148B-HDMI-DP-8K
HDMI 2 1 to DP 1 4 Adapter
Connect an HDMI-enabled source to a DisplayPort monitor with support for resolutions up to 8K at 60Hz
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name HDMI 2 1 to DP 1 4 Adapter Product Number 148B-HDMI-DP-8K UPC 065030900867 Lifecycle status Active Warranty 3 Years Weighted Opportunity 30125 Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 HDMI and DVI Display Adapters Category Level 3 HDMI to DisplayPort Family HDMI to DisplayPort Adapters Country of Origin Europe & Japan Vietnam Country of Origin North America Vietnam Country of Origin History (1) Vietnam Country of Origin Revision (1) XXXXXX132X Product Title (Ultra-Short) HDMI to DP Adapter Product Title (Short) HDMI 2.1 to DisplayPort Adapter, 8K 60Hz Product Title (Medium) HDMI to DisplayPort Adapter, 8K 60Hz, Active HDMI 2.1 to DP 1.4 Video Converter Product Title (Standard) 1ft (30cm) HDMI to DisplayPort Adapter Cable, 8K 60Hz, Active HDMI 2.1 to DP 1.4 Video Converter, USB Bus Powered Product Title (Long) 1ft (30cm) HDMI to DisplayPort Adapter Cable, 8K 60Hz, Active HDMI 2.1 to DP 1.4 Video Converter, USB Bus Powered with Included Cable Product Title (AMZ) 1ft/30cm HDMI to DisplayPort Adapter Cable, 8K 60Hz, Active HDMI 2.1 to DP 1.4 Video Converter, USB Bus Powered Title Ingram (Part 1) HDMI to DisplayPort Adapter - Title Ingram (Part 2) HDMI 2.1 to DP 1.4 Video Converter Website Product Headline Connect an HDMI-enabled source to a DisplayPort monitor with support for resolutions up to 8K at 60Hz Bullet 1 HDMI TO DISPLAYPORT CONVERSION: Active Adapter Cable converts an HDMI 2.1 source to a DisplayPort 1.4 output for connecting a DisplayPort monitor; Utilizes the integrated or dedicated GPU, enabling high-performance video with minimal CPU usage Bullet 2 8K 60HZ RESOLUTION: Supports up to 7680 x 4320 at 60Hz, ideal for high-resolution graphics and video; Supports lower resolutions/refresh rates such as 4K 120Hz, 4K 60Hz, and 1080p; DSC support is required for maximum video performance capability Bullet 3 NO DRIVERS OR SOFTWARE: Universal Video Converter is compatible with any OS (i.e., Windows, macOS, ChromeOS, Linux); Works with HDMI-enabled laptops, tablets, MacBooks, and Chromebooks from all hardware platforms (i.e. Intel, Nvidia, AMD, Apple Silicon) Bullet 4 REDUCED PORT STRAIN: HDMI to DP Adapter features a 1-foot (30cm) cable between the HDMI and DP connectors, reducing strain on both the ports and cables; Included 1.6ft (50cm) USB power cable connects to any available USB-A port or USB Wall Charger Bullet 5 TECH SPECS: Unidirectional, HDMI source to DisplayPort display; HDMI 2.1 compliant supporting HDCP 1.4/2.2/2.3, DSC 1.2a, HDR (up to 10-bit RGB/YCbCr 4:4:4), CEC, ARC, and 2.1ch audio; USB powered with the included cable, power is required for operation Bullets (Compact) Convert an HDMI 2.1 source to a DisplayPort 1.4 output; Supports up to 7680x4320 @ 60Hz; DSC is required for maximum performance; No drivers/software; Universal Adapter Cable works with any OS; Supports HDR10/CEC/ARC/2.1ch audio; DSC 1.2a compliant Bullets (Consolidated) - Convert an HDMI 2.1 source to a DisplayPort 1.4 output; Utilize integrated/dedicated GPUs for high-performance video with minimal CPU usage - Supports up to 7680 x 4320 60Hz; DSC is required for maximum performance - No drivers/software; Universal Adapter Cable works with any OS (Windows/macOS/Linux) and all hardware platforms (Intel/Nvidia/AMD/Apple Silicon) - Included 1.6ft/50cm USB cable connects to a USB-A Port/Wall Charger (power is required) - Supports HDR10/DSC 1.2a/CEC/ARC/2.1ch audio Marketing Copy Marketing Copy (No HTML) Applications - Connect an 8K 60Hz HDMI computer to a 8K 60Hz DisplayPort monitor

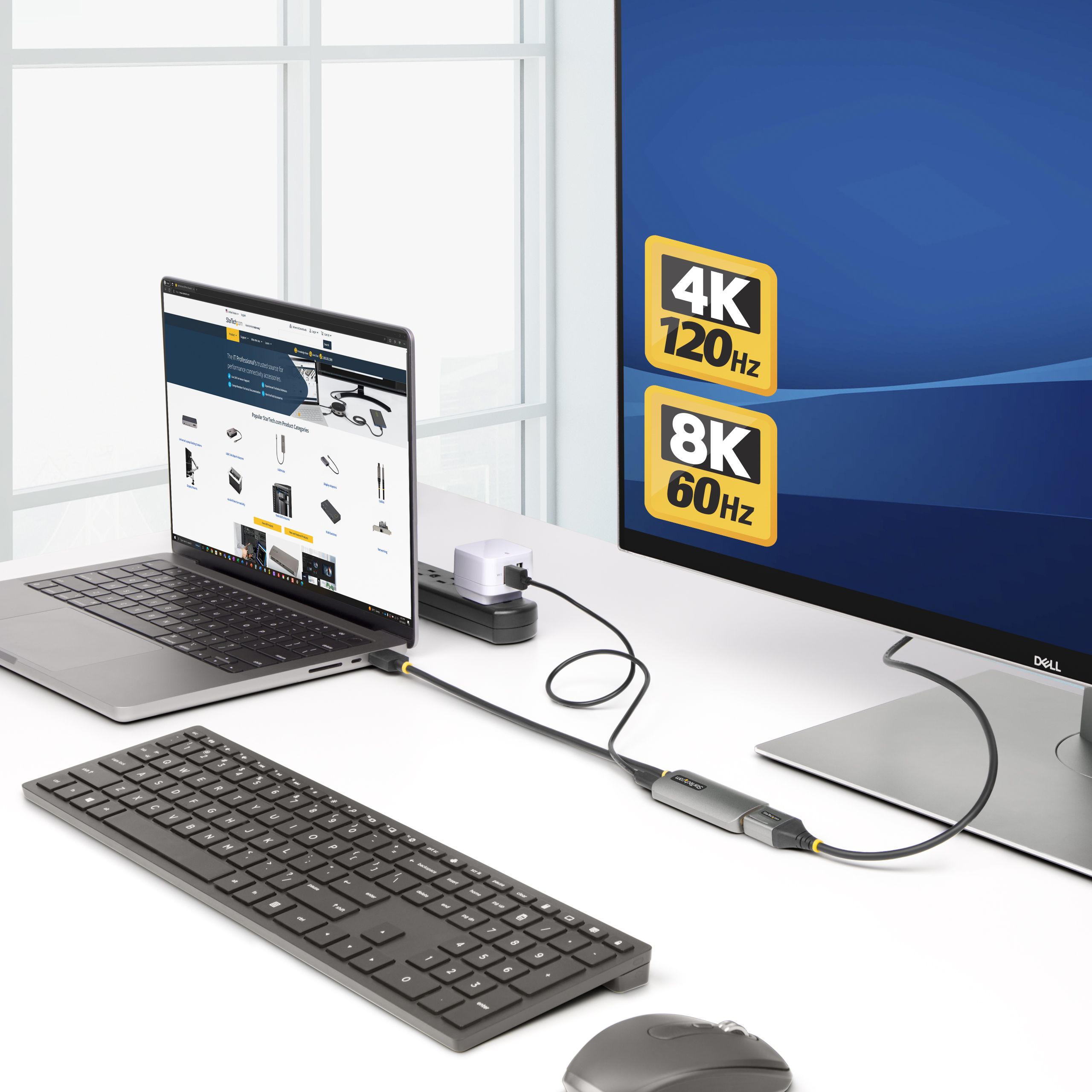

- Design and edit high-resolution graphic files on a DisplayPort display, using an HDMI output of a computer
Website Search Keyword - HDMI 2.1 to DisplayPort adapter
- HDMI 2.0 to DisplayPort converter
- HDMI 8K to DisplayPort
- HDMI to DisplayPort adapter
- HDMI to DisplayPort converter
- HDMI to DP
- HDMI to DP adapter
- HDMI to DP converter
Required Regulatory Compliance Marks - ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- CE - EMC/EMI - European Union - DO NOT USE - EU EMC/EMI Directive Short-Form DoC
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + cords
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes - To achieve 8K resolution, both the source and the display must support it
- To achieve 8K 60Hz, DSC support from the host and an 8K 60Hz DisplayPort monitor are required
Accessory Products - DP14VMM1M
- DP14VMM2M
- DP14VMM3M
- DP14VMM4M
- DP14VMM5M
- USB2PACUBK
Related Products - 128-HDMI-DISPLAYPORT
- HD2DP
- HD2DPMM6
- HD2DPMM2M
- HD2DPMM3M
Cable Length (mm) 300 Color Space Gray Humidity 0% ~ 85% RH (non-condensing) Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 377 Product Width (mm) 31.000 Product Height (mm) 12.000 Product Weight (g) 45 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Audio Specifications DisplayPort - 2 Channel Audio HDR Support HDR10 Maximum Digital Resolutions 7680 x 4320 @ 60Hz Maximum Supported Resolution 8K 60Hz (DSC) OS Compatibility OS Independent Supported Resolutions Video Output Port DisplayPort Wide Screen Supported Yes Active or Passive Adapter Active Audio Yes AV Input HDMI AV Output DisplayPort - 1.4 Chipset ID LT6711GX-U3 Converter Type Adapters Host Connection Port HDMI Industry Standards - HDMI 2.1
- DisplayPort 1.4

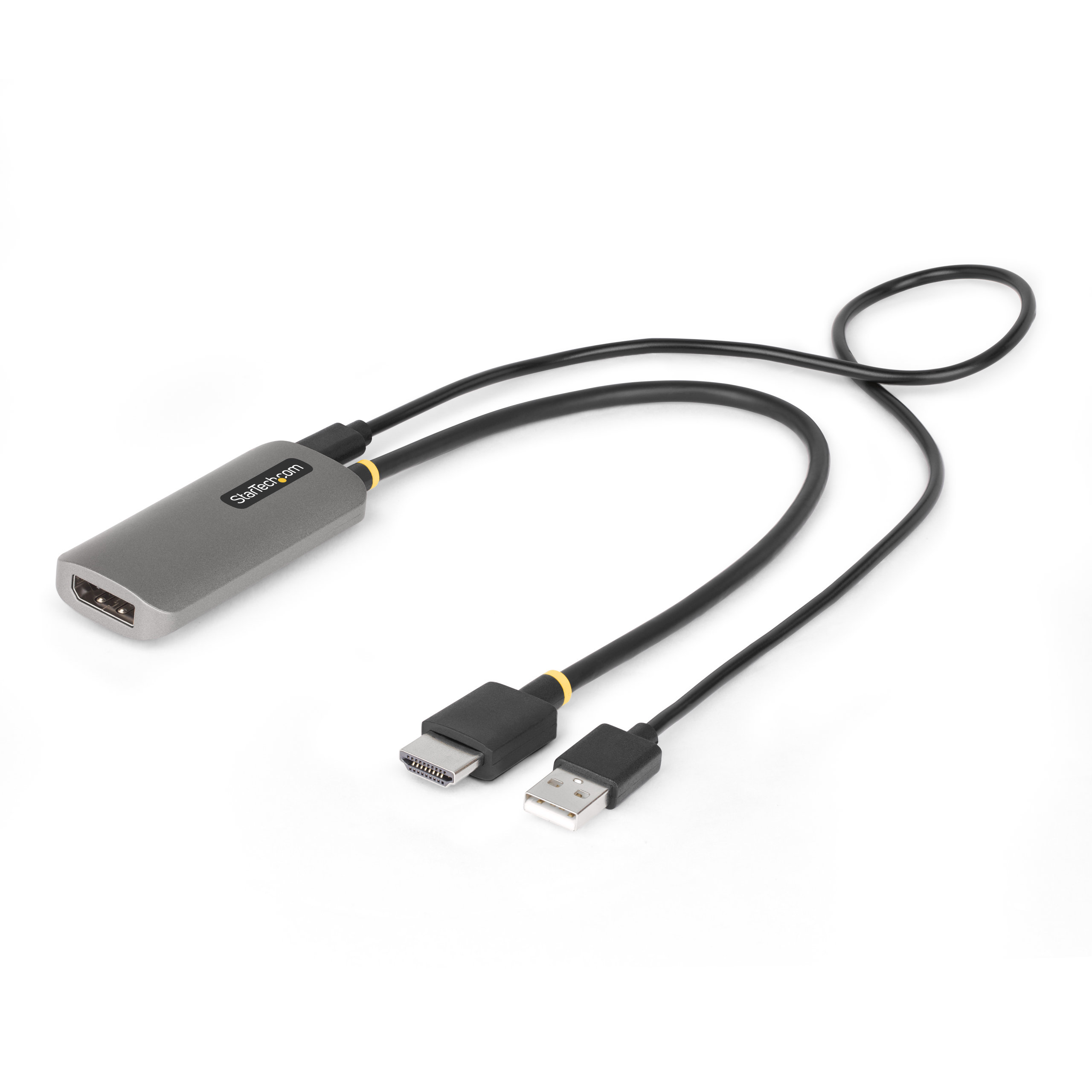

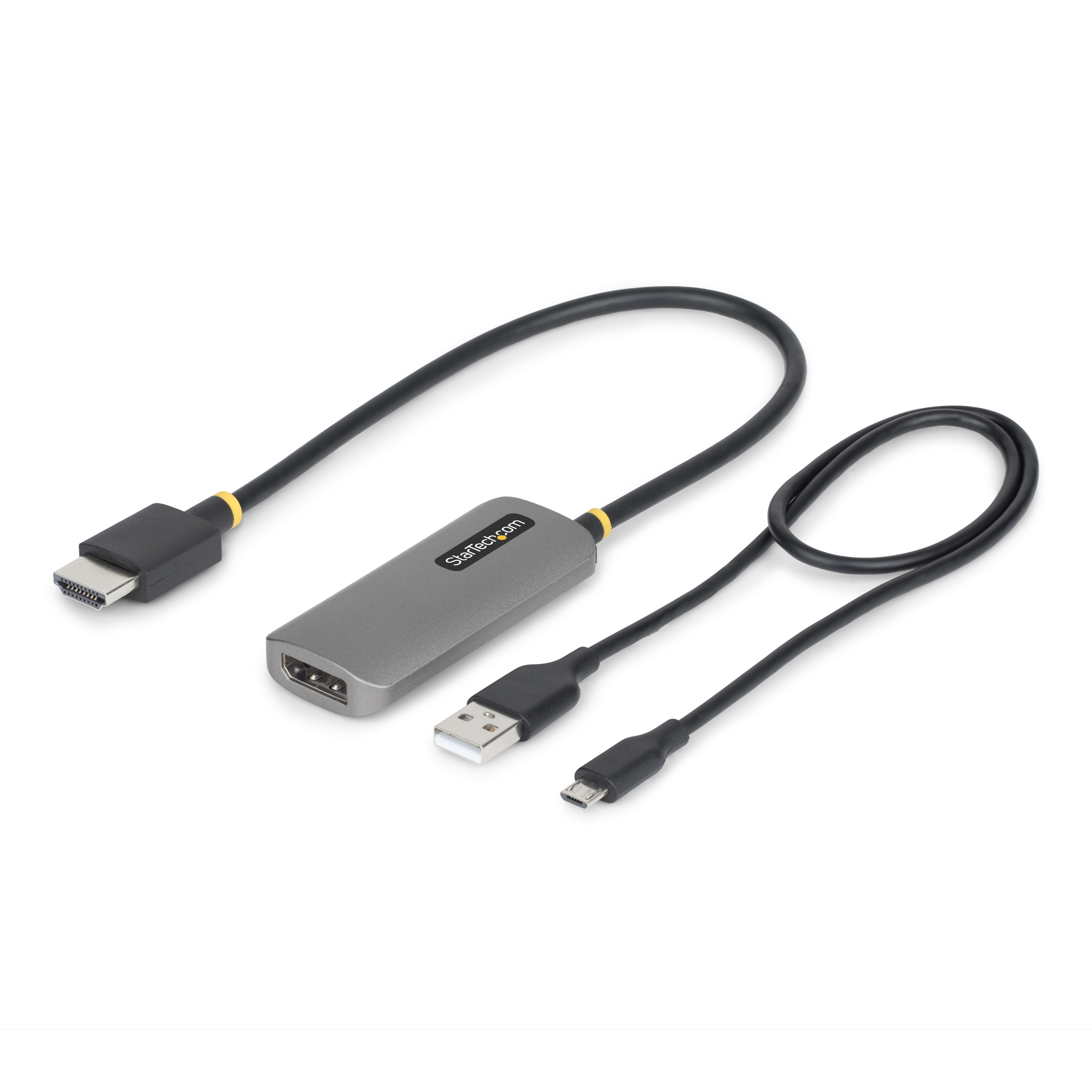

Number of Displays 1 Carton Depth (mm) 467 Carton Height (mm) 288 Carton Quantity 80 Carton Weight Gross (g) 6254 Included in Package - 1 - HDMI to DisplayPort Adapter
- 1 - Micro-USB Power Cable (50cm)
Number of Sub-Cartons 8 Package Depth (mm) 127 Package Height (mm) 19 Package Width (mm) 163 Package Weight (g) 48 Packaging Description HDMI to DisplayPort Adapter - 8K 60Hz Packaging Description India HDMI to DisplayPort Converter - 8K 60Hz Sub-Carton Depth (mm) 202 Sub-Carton Height (mm) 58 Sub-Carton Width (mm) 287 Sub-Carton Quantity 10 Sub-Carton Weight (g) 504 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 USB Micro-B (2.5W Power Only) Connector 2 (Quantity) 1 Connector 3 DisplayPort Connector 3 (Quantity) 1 A+ Not Required Actual Inbox Documents Created None Amazon Merchandising Manager Kristian Haighton Application Photos Uploaded Artwork Due Date 2023-11-17 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Comparable SKU Comment 128 is 4K 60Hz HDMI 2.0 to DP 1.2 Comparable SKU 2 Comment Comp sku is a 3m CABLE. Digital Content Due Date 2024-06-14 Enhanced Gallery Required Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett ID Label Silkscreened or a Label Cable flag - requires cable diameter Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,MX,NL,SE,UK,US Primary Technology - DisplayPort 1.4 DSC / 8K 60Hz +
- HDMI 2.1 / 8K 60Hz +
Product Development Specialist Michael Munn Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2023-11-10 Target Production Release 2023-12-15 Tech Lead Brian Linseman Technical Writer Dan Dagenais Technology Lifecycle Latest Video Not Required
