150UE-USB4DOCKTRIPLE
USB4 Triple Monitor MST docking station
Turn your USB4 laptop into a multi-monitor high-resolution workstation with 6 USB ports, 2.5 Gigabit Ethernet and 100W Laptop Charging
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Product Name USB4 Triple Monitor MST docking station Product Number 150UE-USB4DOCKTRIPLE UPC 065030902885 Lifecycle status Active Warranty 3 Years Weighted Opportunity 102257 Taxonomy Product > Docks, Hubs & Video Adapters > Docking Stations & Multiports Category Level 1 Docking Stations Category Level 2 USB-4 Docks Category Level 3 USB-4 Multi-Monitor Docks Family USB4 Docks Country of Origin Europe & Japan Thailand Country of Origin North America Thailand Country of Origin History (1) Thailand Country of Origin Revision (1) XXXXXX167X Product Title (Ultra-Short) 3x Monitor USB4 Dock Product Title (Short) Triple-Monitor USB4 Dock, 4K 60Hz Product Title (Medium) Triple-Monitor USB4 Docking Station, 4K 60Hz HDMI or DP, 2.5GbE, 100W PD Product Title (Standard) Triple-Monitor USB4 Docking Station, 4K 60Hz HDMI or DisplayPort, 6x USB Hub, 2.5GbE, 100W Charging, Driverless USB-C Dock Product Title (Long) Triple-Monitor USB4 Docking Station, 4K 60Hz HDMI or DisplayPort, 100W Laptop Charging, 2.5GbE, USB-C Multi-Monitor Dock, Driverless Product Title (AMZ) USB-C Docking Station (USB4), Triple 4K 60Hz Monitors, HDMI or DisplayPort, 100W Laptop Charging, 2.5GbE, Driverless, Not macOS Compatible Title Ingram (Part 1) Triple-Monitor USB4 Dock - Title Ingram (Part 2) USB-C Dock, 4K 60Hz, 100W PD Website Product Headline Turn your USB4 laptop into a multi-monitor high-resolution workstation with 6 USB ports, 2.5 Gigabit Ethernet and 100W Laptop Charging Bullet 1 Bullet 2 Bullet 3 Bullet 4 Bullet 5 Bullets (Compact) Connect 3x 4K 60Hz monitors via a single USB4/Thunderbolt 4 port; Utilize GPU capabilities (no software or compression); 3x video outputs (HDMI or DP options); 2.5Gb Ethernet; 100W Power Delivery to the host; Driverless install for Windows/ChromeOS Bullets (Consolidated) - Connect up to 3x 4K 60Hz monitors via a single USB4/Thunderbolt 4 port - Uncompressed video powered by your laptop's native GPU (no compression) - Plug-and-play on Windows and ChromeOS with no drivers or software to install (not compatible with macOS) - 2.5Gb Ethernet; Supports PXE boot and WoL; 100W Power Delivery to the host - Multi-monitor dock features lock slots for physical security - Surface or VESA mounting kits sold separately: SSPMSUDWM/DOCK-NUC-VESA-MOUNT/SSPMSVESA Marketing Copy Marketing Copy (No HTML) Applications - Connect triple 4K monitors to enhance productivity with extended desktops for multitasking in business and office environments
- Supports high-resolution monitors for graphic design, video editing, 3D modeling, and other creative tasks that require detailed visuals
- Simplify connections in work from home applications with a single cable for power, display, and peripherals, making it easy to set up and break down workstations
Website Search Keyword - Docking Stations
- usb4 dock
- thunderbolt 4 dock hdmi 2.1
- usb4 to hdmi
- usb4 docking station
- usb 4 docking station
- usb 4 dock
- usb4 hub
- 4k 120hz docking station
- triple dock
- 4k dock
- usb c dock 4k
- usb c 4k dock
- 8k docking station
- thunderbolt docking station
- usb4 port
- dual 4k docking station
- usb c dock windows
- 4k docking station
- thunderbolt 4 docking station dual monitor
- usb c hub 4k 120hz
- 4 hdmi docking station
- hdmi 2.1 dock
- docking station 4k 120hz
- 4k 120hz usb c dock
- driverless dock
- 150N-USB4DOCK-TRIPLE
Required Regulatory Compliance Marks - CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Input Current 2.5 A Input Voltage 110V-240V AC Output Current 9 Output Voltage (V) 20V DC Power Consumption (In Watts) 180W Power Delivery 100W Power Source AC Adapter Included Plug Type CP (OD:7.4/ID:5.1/CPD:0.6) Center Tip Polarity Positive Color Space Gray Humidity 0% to 95% (non-condensing) at 25°C (77°F) Material Plastic Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 210 Product Width (mm) 95.3 Product Height (mm) 34.15 Product Weight (g) 443 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No Compatible Networks 2.5G/1G/100Mbps/10Mbps Full Duplex Support Yes Maximum Data Transfer Rate 40Gbps Maximum Digital Resolutions MTBF (hours) 10,000 Hours OS Compatibility - Windows 11
- Windows 11 ARM
- Windows 10
- Chrome OS
PXE Yes Supported Charging Outputs - BC 1.2 (1.5A)
- USB-C (18W)
UASP Support Yes USB Type and Rate USB4 (40Gbps) Wake-On-LAN (WOL) Yes Audio Yes Bus Type USB4 (40Gbps) Chipset ID - VIA - VL830
- VIA - VL163
- VIA - VL162
- VIA - VL105
- Realtek - RTL8156BS
- Realtek - ALC4030U
- Parade - PS8469
- Realtek - RTD2188
Compatible Lock Slot - Kensington Standard Slot (K-Slot)
- Kensington Nano Slot
Industry Standards - USB4 (40Gbps)
- USB 3.2 Gen 2 (10Gbps)
- USB 3.2 Gen 1 (5Gbps)
- USB Power Delivery 3.0
- USB Battery Charging Specification 1.2

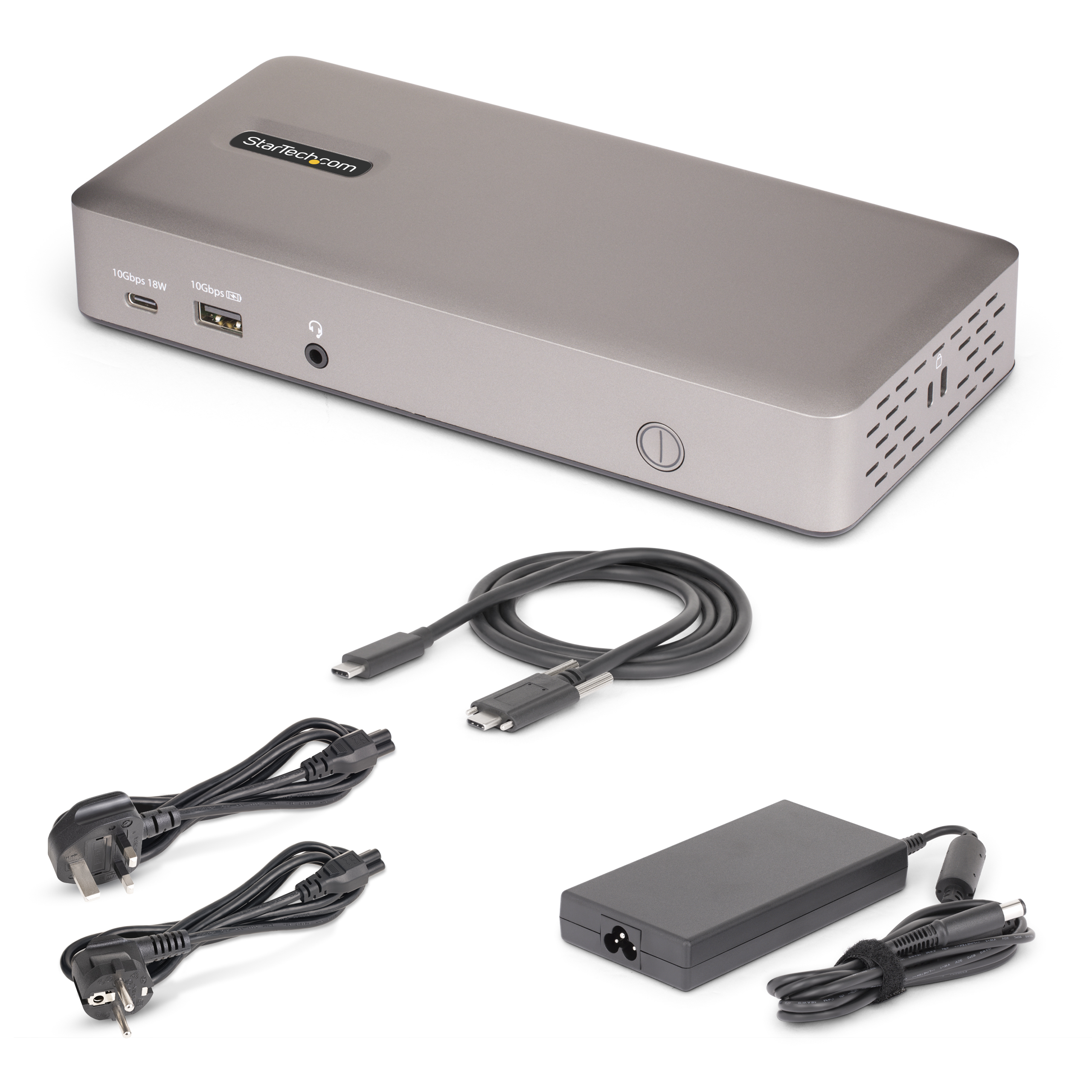

Interface/Bridge USB4 (40Gbps) Laptop Dock 4K Support Yes Laptop Dock Number of Displays 3 Laptop Dock / USB Hub Fast-Charge Yes Number of Battery Charge 1.2 Ports 2 Carton Depth (mm) 310 Carton Height (mm) 285 Carton Quantity 8 Carton Weight Gross (g) 12080 Included in Package - 1 - Docking Station
- 1 - 3 ft [1 m] USB4 Host Cable
- 1 - Universal Power Adapter (EU, UK)
- 1 - Quick-Start Guide
Package Depth (mm) 145 Package Height (mm) 99 Package Width (mm) 235 Package Weight (g) 1360 Packaging Description USB4 Dock, Triple Display 4K 60Hz HDMI/DisplayPort, 6x USB, 2.5GbE, 100W PD Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DisplayPort Connector 1 (Quantity) 3 Connector 2 HDMI Connector 2 (Quantity) 3 Connector 3 USB-C (10Gbps, 4.5W) Connector 3 (Quantity) 2 Connector 4 USB-A (10Gbps, 4.5W) Connector 4 (Quantity) 4 Connector 5 3.5mm (4 Conductors, TRRS) Connector 5 (Quantity) 1 Connector 6 RJ-45 Connector 6 (Quantity) 1 Host Connector 1 USB-C (40Gbps, 100W PD Input) Host Connector 1 (Quantity) 1 A+ Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kristian Haighton Application Photos Uploaded Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Comparable SKU Comment MST Triple Monitor 2 x DP + HDMI; USB-C 10Gbps Gen 2 upstream signal; 6 Port USB hub, SD; GbE, 100W PD Comparable SKU 2 Comment Hybrid USBC (10Gbps) & USBA; DisplayLink DL6950 solution / video switching / 6 Port hub / GbE / 85W Digital Content Due Date 2025-07-18 Enhanced Gallery Required Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,BE,CH,DE,DK,ES,FI,FR,IE,IT,NL,SE,UK Primary Technology - USB4 (40Gbps)
- DisplayPort 1.4 DSC / 8K 60Hz +
- Power Delivery
- HDMI 2.0 / 4K 60 Hz and HDR
Product Development Specialist Michael Munn Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Tim North Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2024-11-29 Target Production Release 2025-02-15 Tech Lead Sam Raskas Technical Writer Alex Garcia Technology Lifecycle Latest Video Required
