155NA-USB4-DOCK
USB4 Dual Monitor Docking Station Dual HDMI 2 1 2 5 GbE

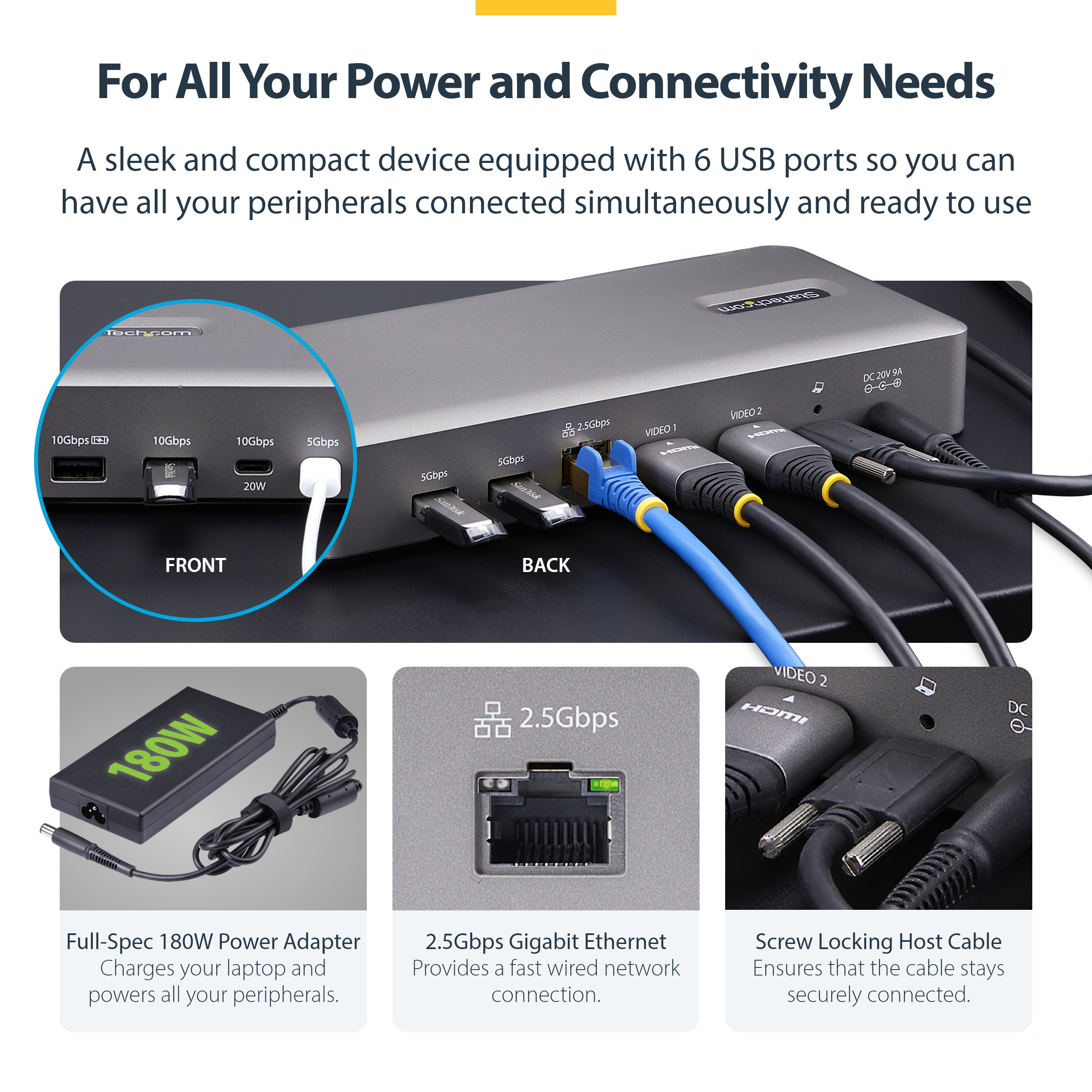

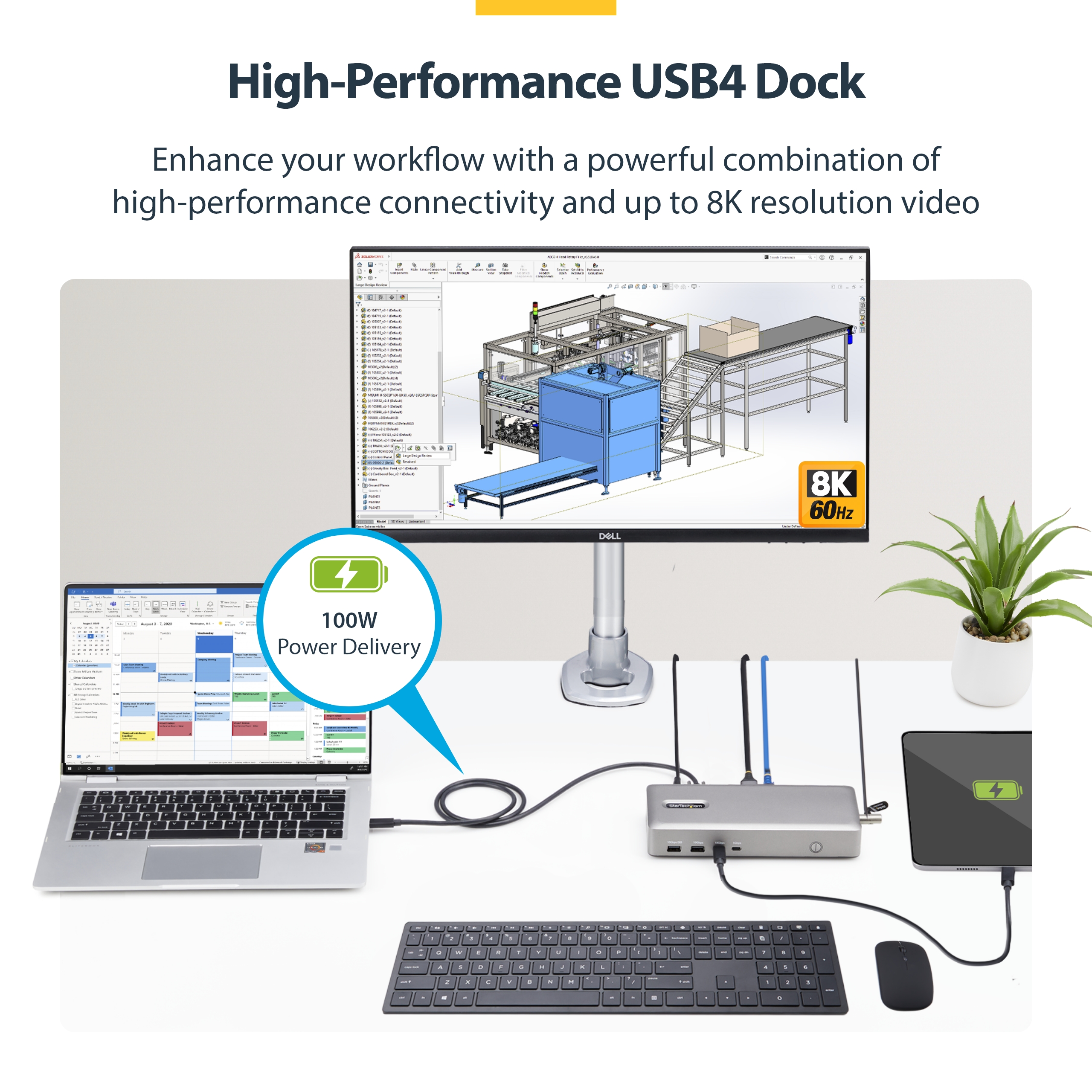

Turn your USB4 laptop into a multi-monitor high-resolution workstation with 6 USB ports, 2.5 Gigabit Ethernet and 100W Laptop Charging
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
BOM Image
Quick-Start Guide
Video Link YouTube

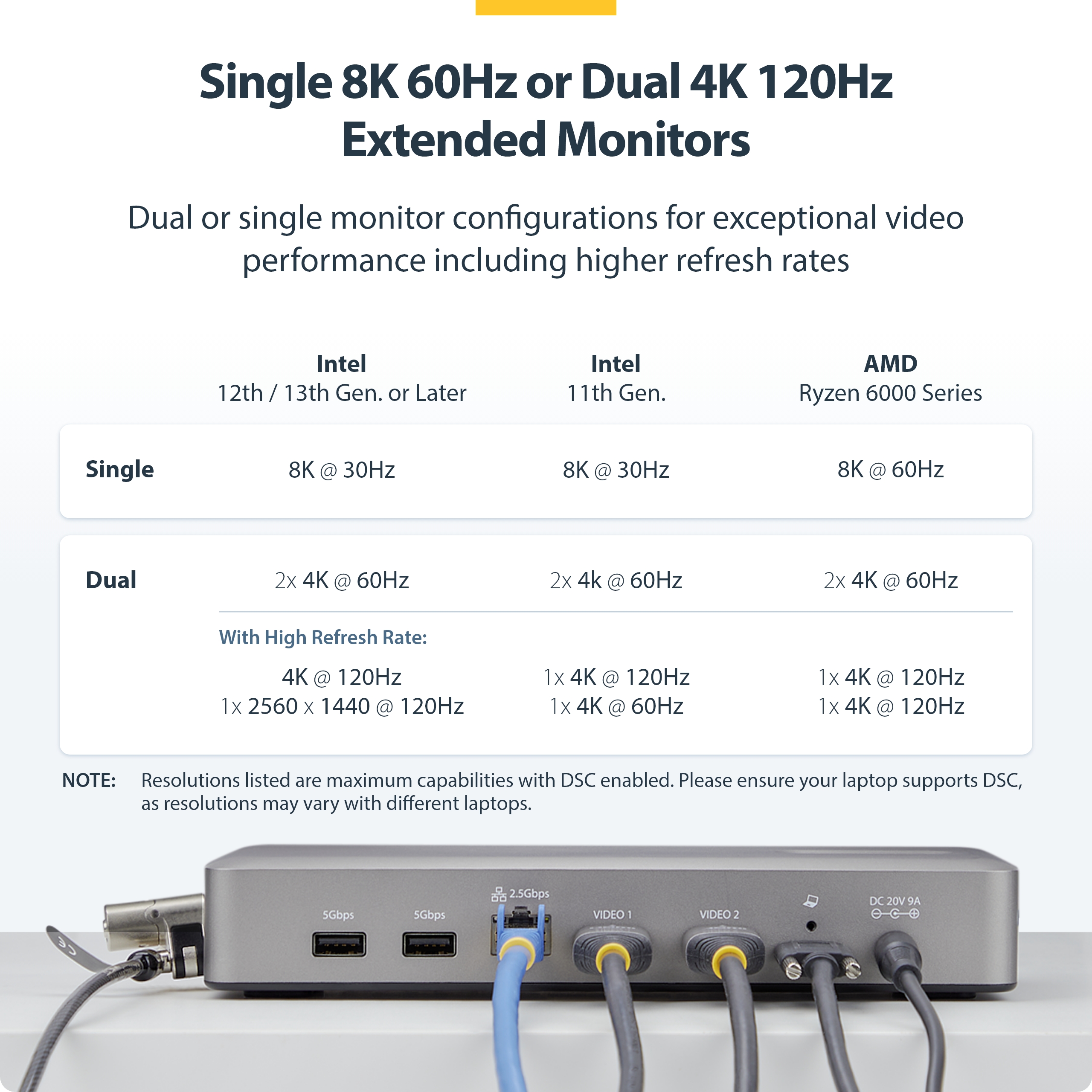

Product Name USB4 Dual Monitor Docking Station Dual HDMI 2 1 2 5 GbE Product Number 155NA-USB4-DOCK UPC 065030899673 Lifecycle status Active Warranty 3 Years Weighted Opportunity 302250 Taxonomy Product > Docks, Hubs & Video Adapters > Docking Stations & Multiports Category Level 1 Docking Stations Category Level 2 USB-4 Docks Category Level 3 USB-4 Multi-Monitor Docks Family USB4 Docks Country of Origin Europe & Japan Thailand Country of Origin North America Thailand Country of Origin History (1) Thailand Country of Origin Revision (1) XXXXXX167X Product Title (Ultra-Short) USB4 Docking Station Product Title (Short) USB4 Docking Station, Dual 4K 60Hz HDMI Product Title (Medium) USB4 Docking Station, USB-C 40Gbps, Dual 4K 60Hz HDMI Dock, 6x USB, 2.5GbE, PD Product Title (Standard) Dual-Monitor USB4 Docking Station, Dual 4K 120Hz or Single 8K 60Hz HDMI, 100W Laptop Charging, 2.5GbE, Driverless USB-C Dock Product Title (Long) Dual-Monitor USB4 Docking Station, Dual 4K 120Hz or Single 8K 60Hz HDMI, 100W Laptop Charging, 2.5GbE, USB-C Multi-Monitor Dock, Driverless Product Title (AMZ) Dual-Monitor USB4 Docking Station, Dual 4K 120Hz or Single 8K 60Hz HDMI, 100W Laptop Charging, 2.5GbE, USB-C Multi-Monitor Dock, Driverless Title Ingram (Part 1) USB4 Docking Station, Dual HDMI Title Ingram (Part 2) 4K 60Hz, USB-C 40Gbps, 6x USB Website Product Headline Turn your USB4 laptop into a multi-monitor high-resolution workstation with 6 USB ports, 2.5 Gigabit Ethernet and 100W Laptop Charging Bullet 1 Bullet 2 Bullet 3 Bullet 4 Bullet 5 Bullets (Compact) Dual 4K 120Hz monitors - Plug-and-play on Windows / ChromeOS; Driverless (not compatible with macOS) - Ideal for shared workspaces and BYOD environments - 2.5GbE connection; PXE Boot, WOL Support - Dock Built-in lock slots; Surface or VESA mounting Bullets (Consolidated) - Connect two 4K 120Hz or 60Hz displays through a single USB4 / Thunderbolt port with uncompressed video powered by your laptop's native GPU - Plug-and-play on Windows and ChromeOS; Driverless (not compatible with macOS) - Engineered for scalable zero-touch rollouts across shared workspaces, and BYOD environments - 2.5GbE connection; Transfer large files or work directly from cloud environments; Supports PXE Boot and Wake-on-LAN - Dock features built-in lock slots; Surface or VESA mounting Marketing Copy Marketing Copy (No HTML) Applications - Drive dual 4K or a single 8K monitor to extend desktops, streamline multitasking, and optimize workflows in business, finance, or office environments
- Ideal for video editors, graphic designers, and 3D modelers who rely on ultra-smooth 4K 120Hz or 8K 60Hz output for precise visual performance
- Consolidate power, display, and peripheral connections—making remote or shared desk setups faster to deploy and easier to manage
Website Search Keyword - usb4 dock
- thunderbolt 4 dock hdmi 2.1
- usb4 to hdmi
- dock mobile
- mobile dock
- usb4 docking station
- usb 4 docking station
- usb 4 dock
- usb4 hub
- 4k 120hz docking station
- dual dock
- 4k dock
- usb c dock 4k
- usb c 4k dock
- 8k docking station
- thunderbolt 2 docking station
- usb4 port
- 4k docking station dual monitor
- dual 4k docking station
- usb c dock windows
- 4k docking station
- dock thunderbolt 2
- thunderbolt 4 docking station dual monitor
- usb c hub 4k 120hz
- 4 hdmi docking station
- hdmi 2.1 dock
- docking station 4k 120hz
- 4k 120hz usb c dock
- Docking Stations
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- TSCA - Environmental - United States - EPA TSCA Title VI Compliant
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider

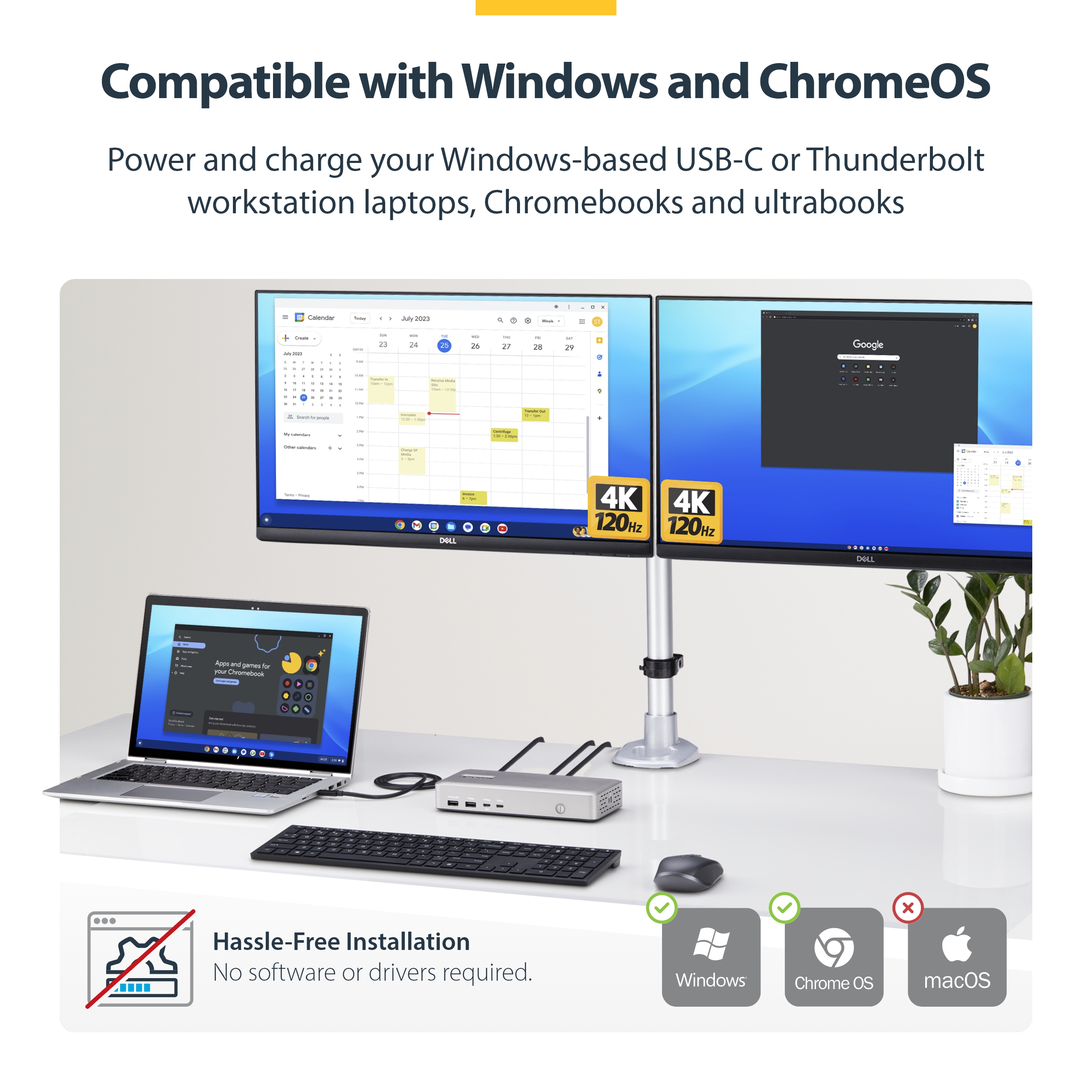

Equivalent Part Number in the EU 155UE-USB4-DOCK Equivalent Part Number in the UK 155UE-USB4-DOCK Input Current 2.5 A Input Voltage 110V-240V AC Output Current 9 A Output Voltage (V) 20V DC Power Consumption (In Watts) 165W Power Delivery 100W Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Space Gray Humidity 0% to 95% (non-condensing) at 25°C Material Plastic Operating Temperature 0°C to 70°C (32°F to 158°F) Product Length (mm) 95.400 Product Width (mm) 210.400 Product Height (mm) 33.900 Product Weight (g) 392 Storage Temperature -20 to 70°C TAA Compliant No Compatible Networks 2.5G/1G/100Mbps/10Mbps Downstream Maximum Data Transfer Rate USB 3.2 Gen 2 (10Gbps) Full Duplex Support Yes Maximum Data Transfer Rate 40Gbps Maximum Digital Resolutions Maximum Supported Resolution 4K 60Hz (3840x2160) MTBF (hours) 10,000 Hours OS Compatibility - Windows 11
- Windows 10
- Chrome OS
- Windows 11 ARM
PXE Yes StarTech.com Connectivity Tools - MAC Address Changer
- USB Event Monitoring
- Wi-Fi Auto Switch
- Windows Layout
Supported Charging Outputs - BC 1.2 (1.5A)
- USB-C (20W)
UASP Support Yes USB Type and Rate USB4 (40Gbps) Video Output Port HDMI Video Transport Technology USB-C (DP Alt-Mode) Wake-On-LAN (WOL) Yes Bus Type USB4 (40Gbps) Chipset ID - VIA - VL830
- VIA - VL163
- Realtek - RTD2188-VA-CG
- Genesys Logic - GL9901NE
- Realtek - RTL8156BG

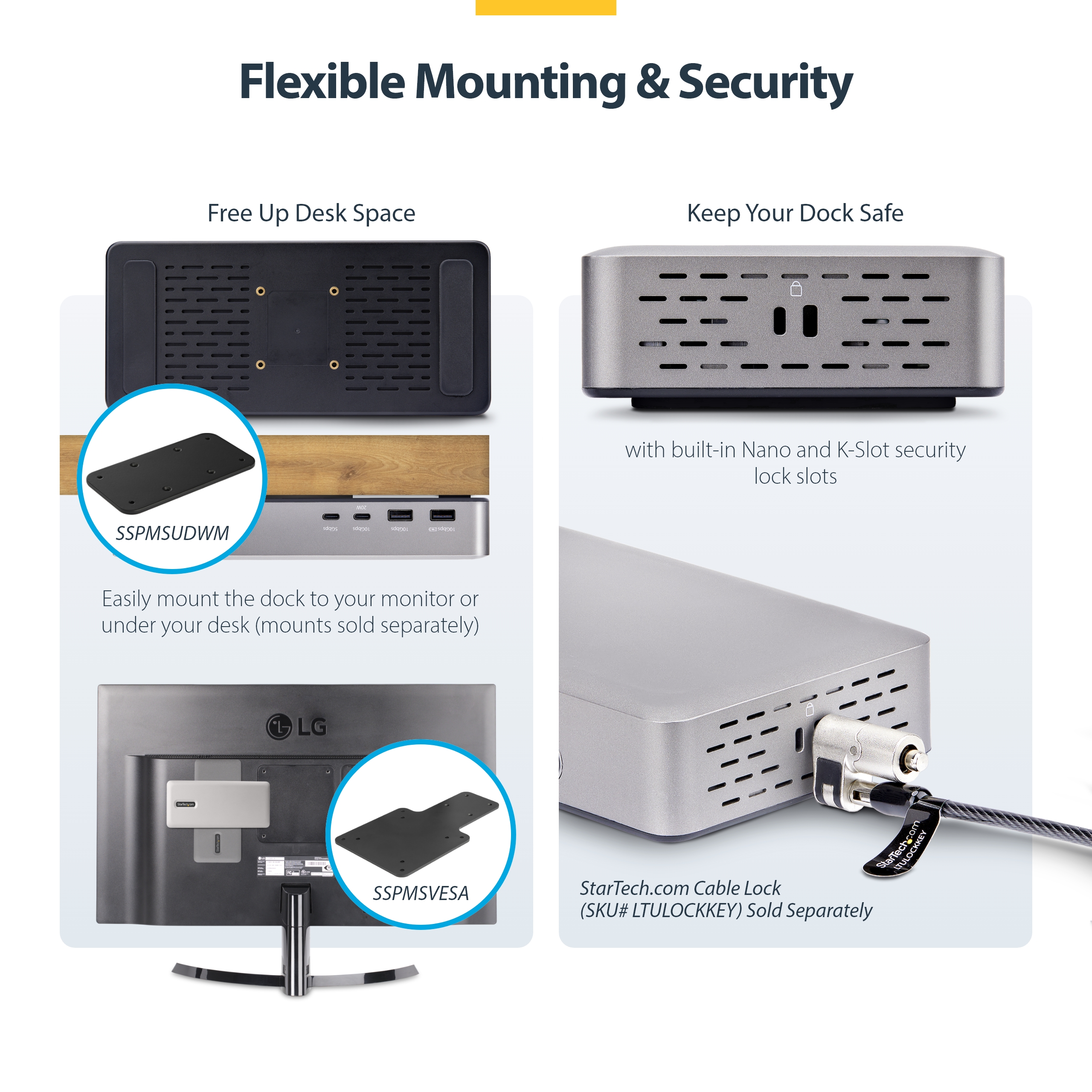

Compatible Lock Slot - Kensington Standard Slot (K-Slot)
- Kensington Nano Slot
Host Connection Port USB-C Industry Standards - USB4 (40Gbps)
- USB 3.2 Gen 2 (10Gbps)
- USB 3.2 Gen 1 (5Gbps)
- USB Power Delivery 3.0
- USB Battery Charging Specification 1.2

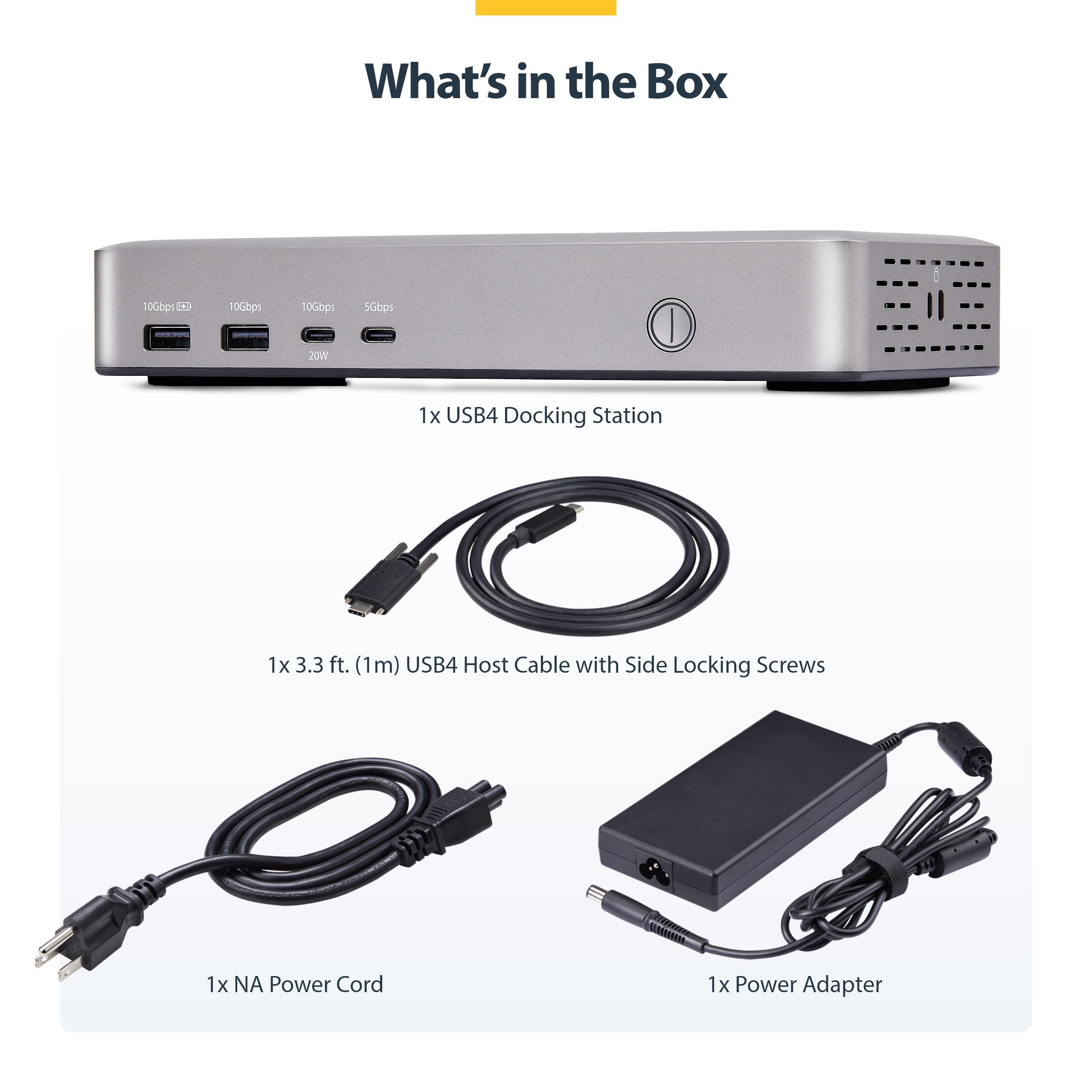

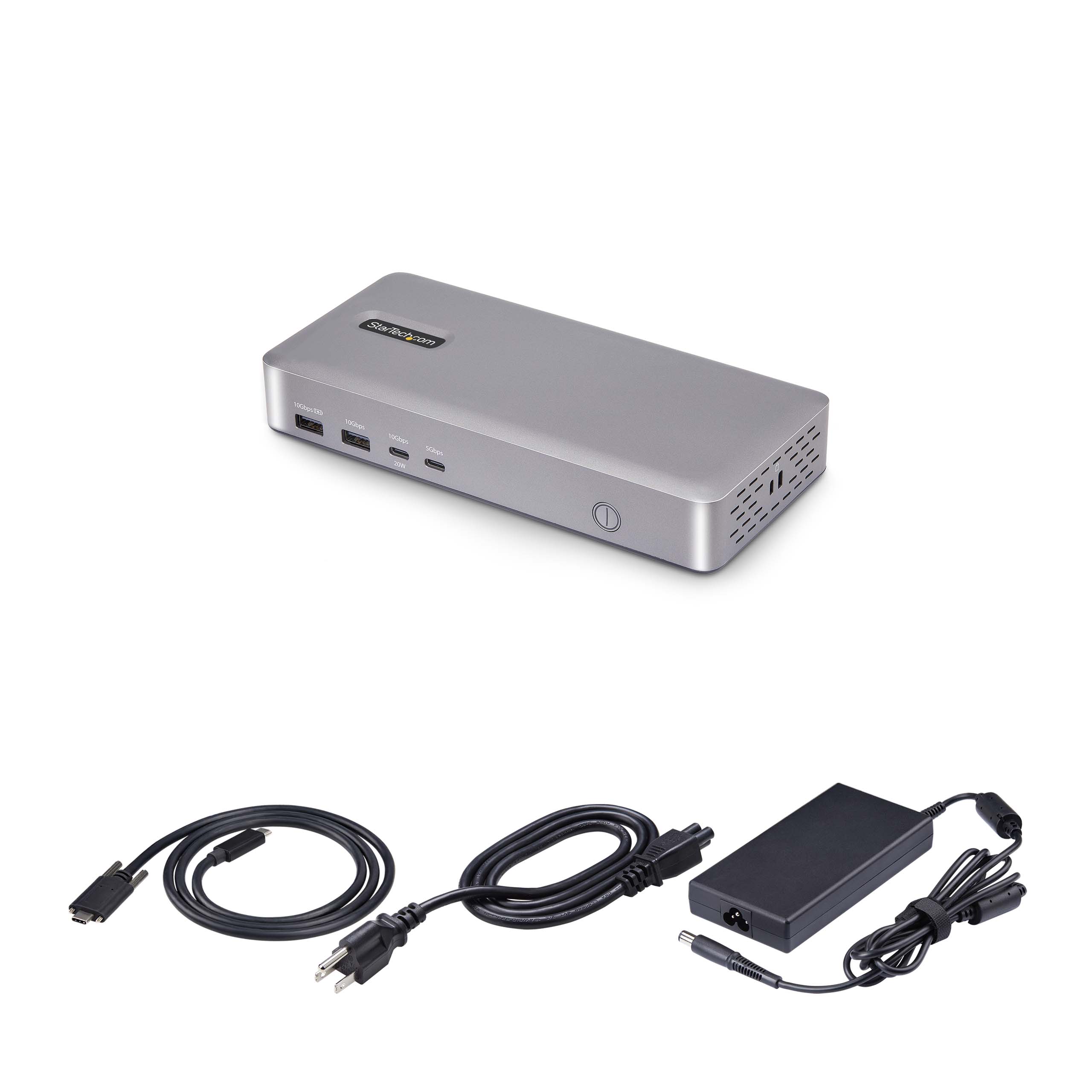

Interface/Bridge USB4 (40Gbps) Laptop Dock 4K Support Yes Laptop Dock Number of Displays 2 Laptop Dock / USB Hub Fast-Charge Yes LED Indicators 1 - Power LED Number of Battery Charge 1.2 Ports 2 Number of Displays 2 Other Ports 2.5Gb Ethernet Carton Depth (mm) 383 Carton Height (mm) 275 Carton Quantity 8 Carton Weight Gross (g) 10350 Included in Package - 1 - Docking Station
- 1 - 3 ft [1 m] USB4 Host Cable
- 1 - Universal Power Adapter (North America)
- 1 - Quick-Start Guide

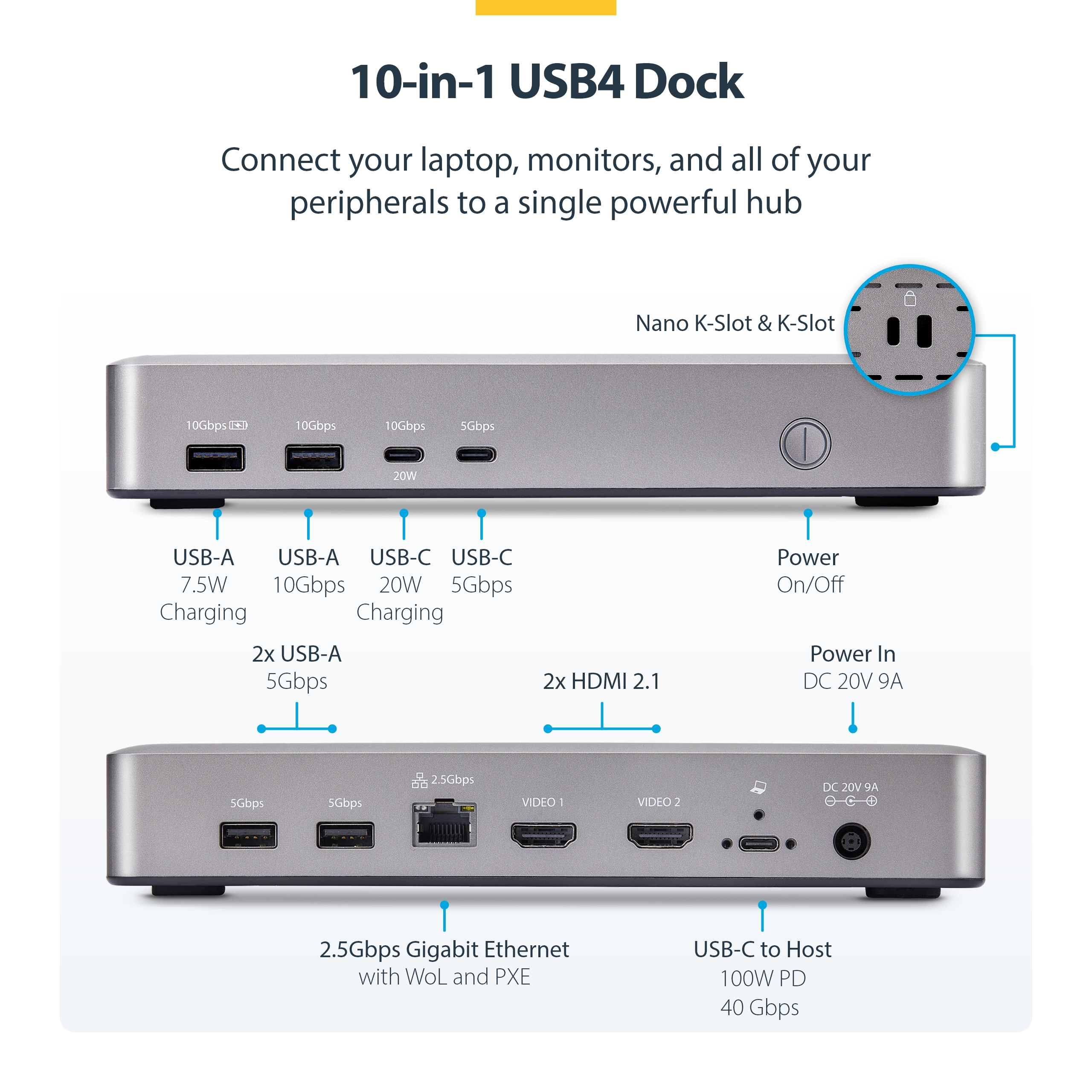

Package Depth (mm) 233 Package Height (mm) 91 Package Width (mm) 146 Package Quantity 1 Package Weight (g) 1200 Packaging Description USB4 Docking Station - Dual 4K 60Hz HDMI, 6-Port USB Hub, 2.5GbE, 100W PD Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 2 Connector 2 USB-A (10Gbps, 7.5W) Connector 2 (Quantity) 1 Connector 3 USB-A (10Gbps, 4.5W) Connector 3 (Quantity) 1 Connector 4 USB-A (5Gbps, 4.5W) Connector 4 (Quantity) 2 Connector 5 USB-C (5Gbps, 4.5W) Connector 5 (Quantity) 1 Connector 6 USB-C (10Gbps, 20W) Connector 6 (Quantity) 1 Connector 7 RJ-45 Connector 7 (Quantity) 1 Host Connector 1 USB-C (40Gbps, 100W PD Input) Host Connector 1 (Quantity) 1 A+ Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kristian Haighton Application Photos Uploaded Artwork Due Date 2024-01-15 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Comparable SKU Comment USB-C Gen 1 5Gbps / Dual 4K 60Hz - Dual HDMI or Dual DP / DL6950 (WIN & Mac) / 3 x USB-A; 1 x USB-C / GbE / 100W PD Comparable SKU 2 Comment USB-C Gen 2 10Gbps / Triple Monitor 4K 60Hz - 2 x DP 1.4 + 1 x HDMI 2.0 / MST 1.4 (WIN) / 4 x USB-A; 2 x USBC (10Gbps) / GbE / SD / !00W PD Digital Content Due Date 2024-05-28 Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) CA,JP,MX,US Primary Technology - USB4 (40Gbps)
- USB 20Gbps
- USB 3.2 Gen 2 / 10Gbps
- USB 3.2 Gen 1 / 5Gbps
- USB-C
- HDMI 1.4 / 1080p or 4K 30Hz
- HDMI 2.1 / 8K 60Hz +
- HDMI 2.0 / 4K 60 Hz and HDR
Product Development Specialist Michael Munn Product Information Creation Specialist (PICS) Andrew Richardson Product Manager Tim North Product Performance Specialist John Mardinly Product Photographer Alejandra Valencia Target Development Completion Date 2024-01-12 Target Production Release 2024-01-15 Tech Lead Sam Raskas Technical Writer Andrew Richardson Technology Lifecycle Latest Video Required
