16NM8-RACK-MOUNT-PDU

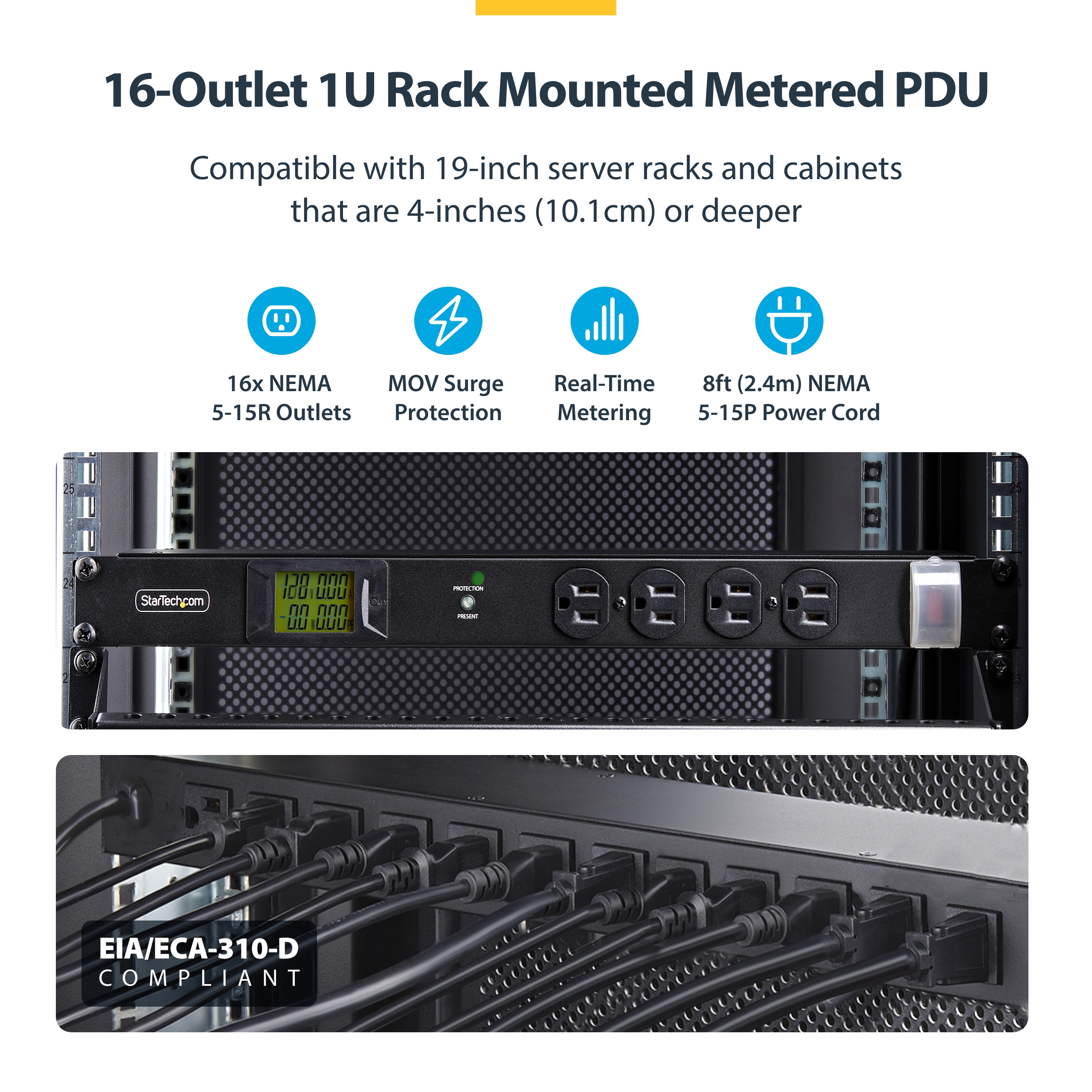

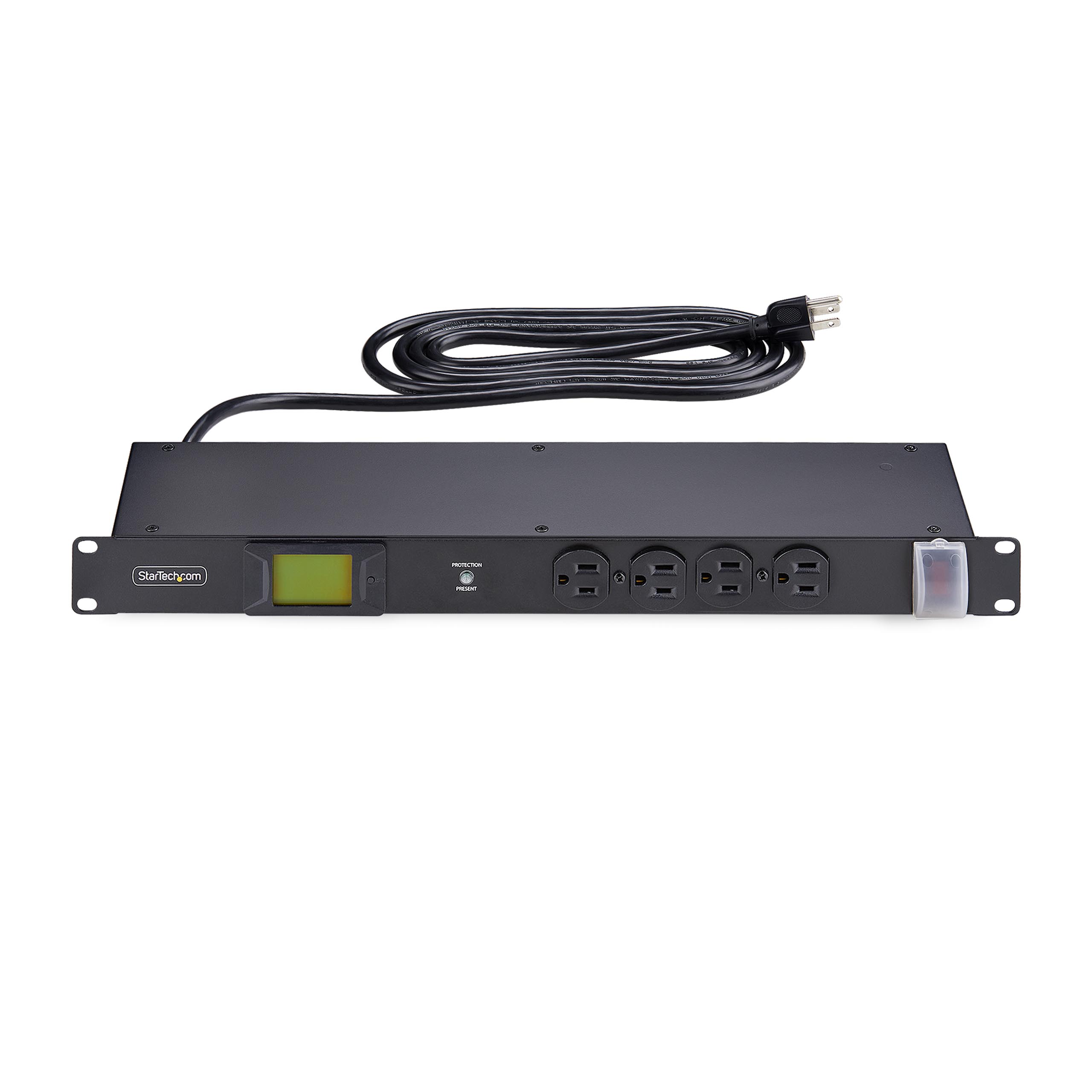

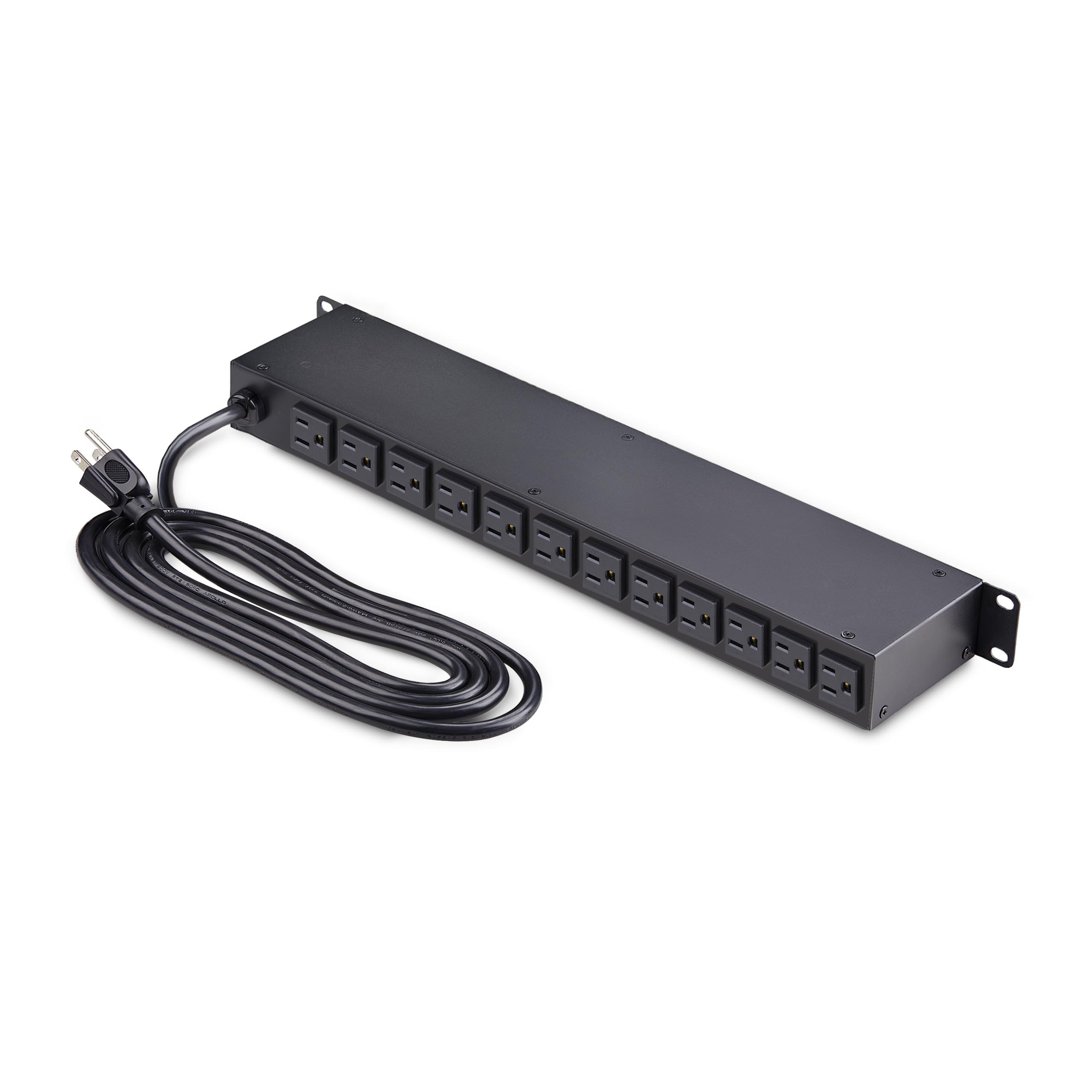

16 Outlet 1U Rackmount Metered PDU with MOV Surge Protection

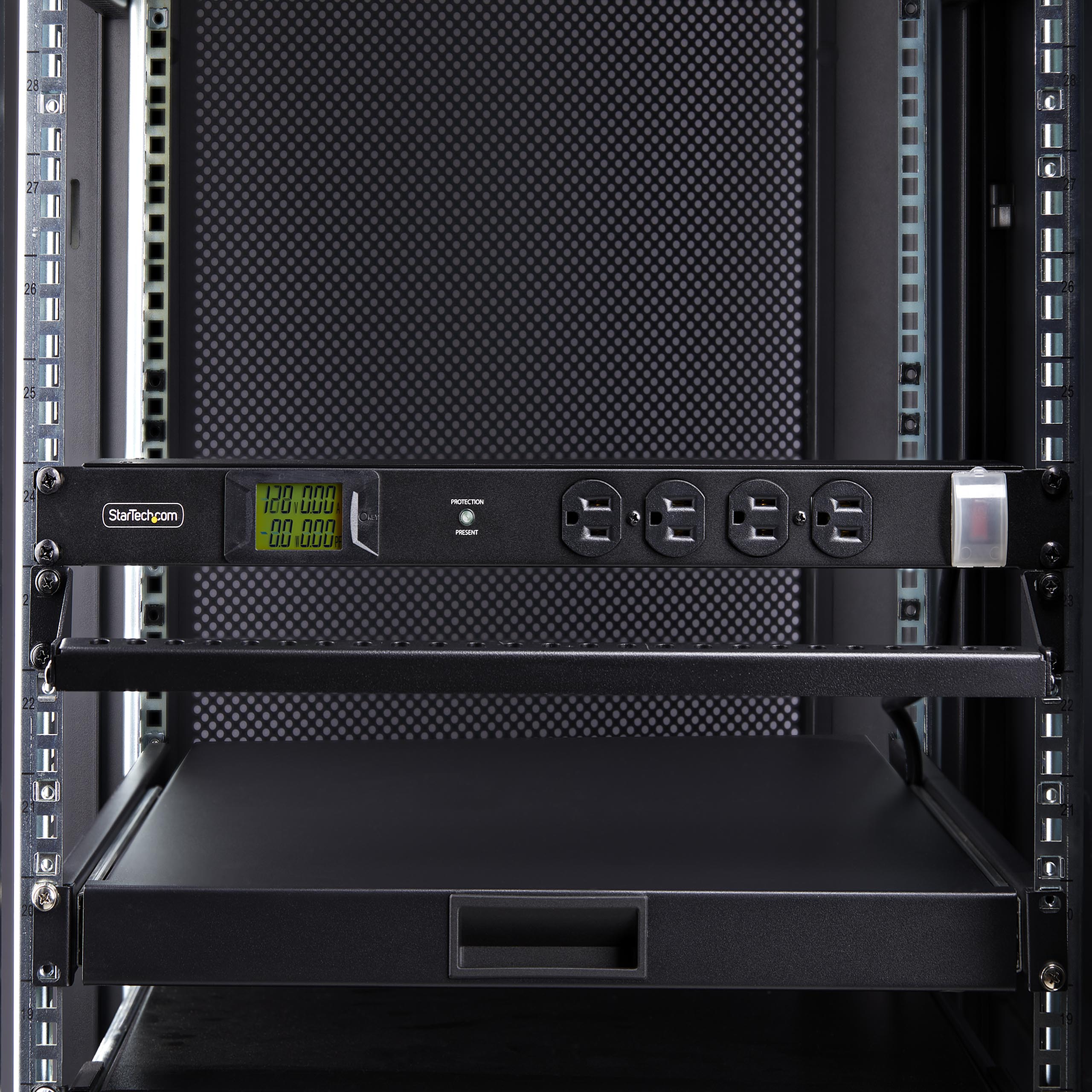

Add sixteen power outlets to a 19in server rack or cabinet
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Quick-Start Guide
Product Name 16 Outlet 1U Rackmount Metered PDU with MOV Surge Protection Product Number 16NM8-RACK-MOUNT-PDU UPC 065030902588 Lifecycle status Active Warranty 2 Years Weighted Opportunity 93722 Taxonomy Product > Power > PDUs Category Level 1 Racks and Enclosures Category Level 2 Rack Power Category Level 3 Rackmount PDUs Family Rackmount PDUs - Metered Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX007X Product Title (Ultra-Short) 16-Outlet Rack PDU Product Title (Short) 16-Outlet Rack Mount PDU, 1U Power Strip Product Title (Medium) 16-Outlet Horizontal Rack Mount Metered PDU, 1U Power Strip, Surge Protector/TAA Product Title (Standard) 16-Outlet Horizontal Rack Mount Metered PDU, 1U Server Power Strip w/Surge Protector, 125V/15A, 8ft (2.4m) Power Cord, TAA Product Title (Long) 16-Outlet Horizontal Rack Mount Metered PDU, 1U Server Power Strip w/Surge Protector, 125V/15A, 8ft (2.4m) Power Cable, Power Distribution Unit, TAA Product Title (AMZ) 16-Outlet Horizontal Rack Mount Metered PDU, 1U Server Power Strip w/Surge Protector, 8ft/2.4m Power Cable, TAA Title Ingram (Part 1) 16-Outlet Horizontal Rack Mount Title Ingram (Part 2) PDU - 1U Power Distribution, TAA Website Product Headline Add sixteen power outlets to a 19in server rack or cabinet Bullet 1 16-OUTLET 1U RACK MOUNTED METERED PDU: 16x NEMA 5-15R power outlets; 125V max and 15A circuit breaker; Built-in 8ft (2.4m) NEMA 5-15P power cord; Ideal power supply strip for 19" racks in server rooms/closets, data center, and testing labs Bullet 2 METERED POWER DISTRIBUTION UNIT: Large-font display with optional backlight for real-time monitoring of key power parameters: voltage (V), current (A), wattage (W), and power factor (PF), which indicates the efficiency of the connected devices Bullet 3 SURGE PROTECTOR: Self-tripping MOV design with mechanical trigger instantly cuts power during surges to protect connected devices; Includes LED status indicator, resettable 15A circuit breaker, and safety cover to prevent accidental resets Bullet 4 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this TAA-compliant rack mount PDU is backed for two years, including free lifetime 24/5 multi-lingual technical assistance Bullet 5 RACK MOUNTABLE: 1U horizontal rackmount PDU for EIA-310-compliant 19-inch server racks/cabinets that are 4in (10.1cm) or deeper; Made of cold-rolled steel w/textured finish for sturdiness & long-lasting durability; 12x rear and 4x front electrical outlets Bullets (Compact) 1U rack mount metered PDU w/16x NEMA 5-15R outlets; 125V max; 8ft power cord - Backlit LCD for real-time electrical monitoring (V/A/W/PF) - Self-tripped MOV surge protector; Resettable 15A breaker - Rackmount power distribution strip for server; TAA Bullets (Consolidated) - 1U rack mount metered PDU w/ 16x NEMA 5-15R power outlets - 125V max/15A circuit breaker; Built-in 8ft NEMA 5-15P power cable - Power strip for server rooms/data centers - Backlit LCD for real-time monitoring of (V)/amps (A)/wattage (W)/power factor (PF) - Self-tripped MOV surge protector w/ mechanical-response; Resettable 15A circuit breaker; Safety cover prevents accidental resets - 1U horizontal rackmount power distribution unit is made of cold-rolled steel w/ textured finish for durability Marketing Copy Marketing Copy (No HTML) Required Regulatory Compliance Marks - CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- TSCA - Environmental - United States - EPA TSCA Title VI Compliant
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- UL - Safety - Electrical - Canada / United States - Legacy cULus Mark
Accessory Products - PXT101
- CABSCREWS
- CABCAGENUTS
- PXT10115
Related Products - 8NS8-RACK-MOUNT-PDU
- 12NM8-RACK-MOUNT-PDU

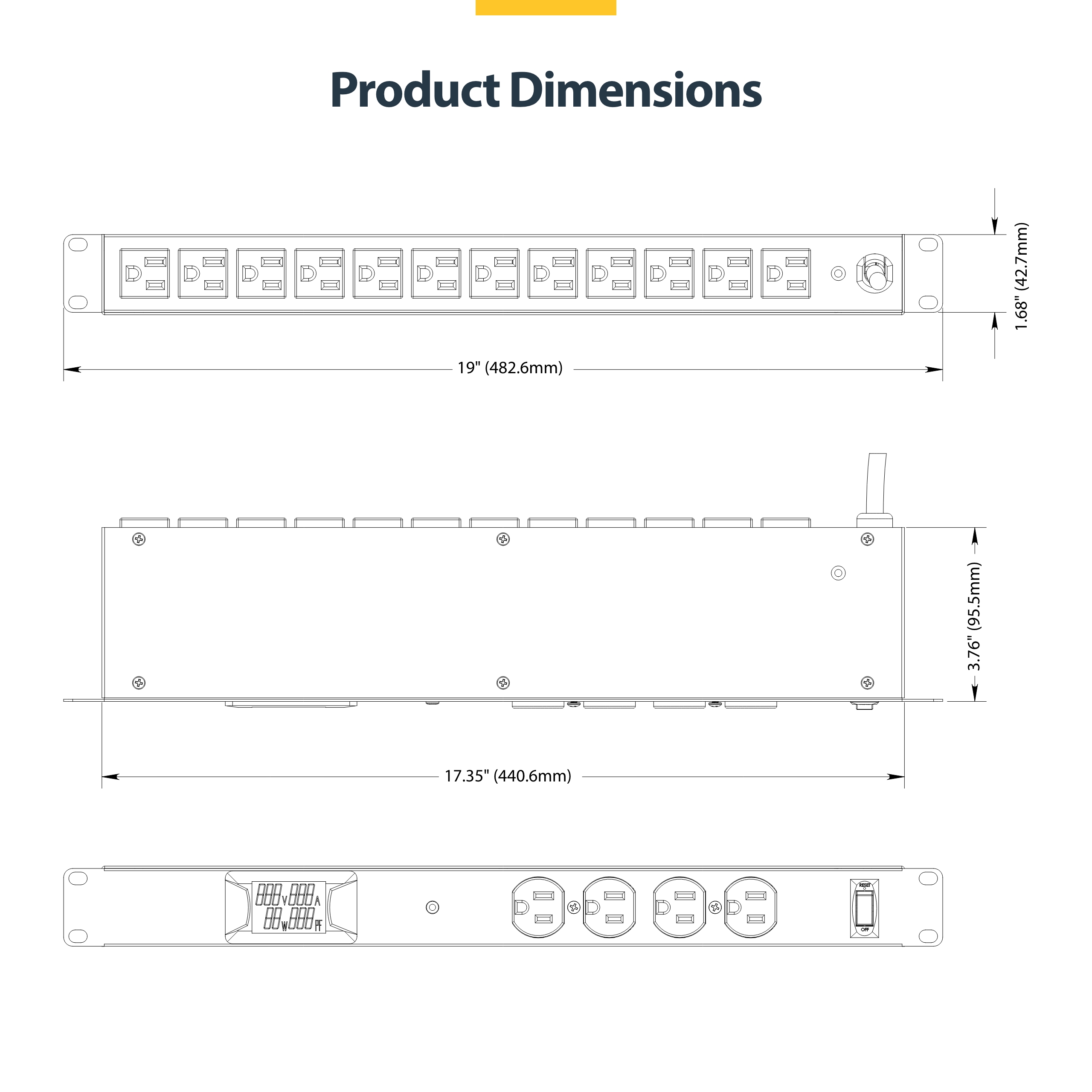

Input Voltage 120 AC Power Source Standard 120V Power Cords Color Black Humidity 5% to 95% non-condensing Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 100.000 Product Width (mm) 480.000 Product Height (mm) 42.700 Product Weight (g) 2000.000 Storage Temperature -10°C to 50°C (14°F to 122°F) TAA Compliant Yes General Specifications 1080J rating Maximum Output Voltage (V) 125V Maximum Total Current 15A Maximum Total Current Draw per Phase 15A Nominal Input Voltage (V) 120V Nominal Output Voltage (V) 120V Regulatory Derated Input Current (North America) 12A Form Factor Horizontal Industry Standards - EIA-310-D
- UL 60950-1
- UL1449 VPT 500V

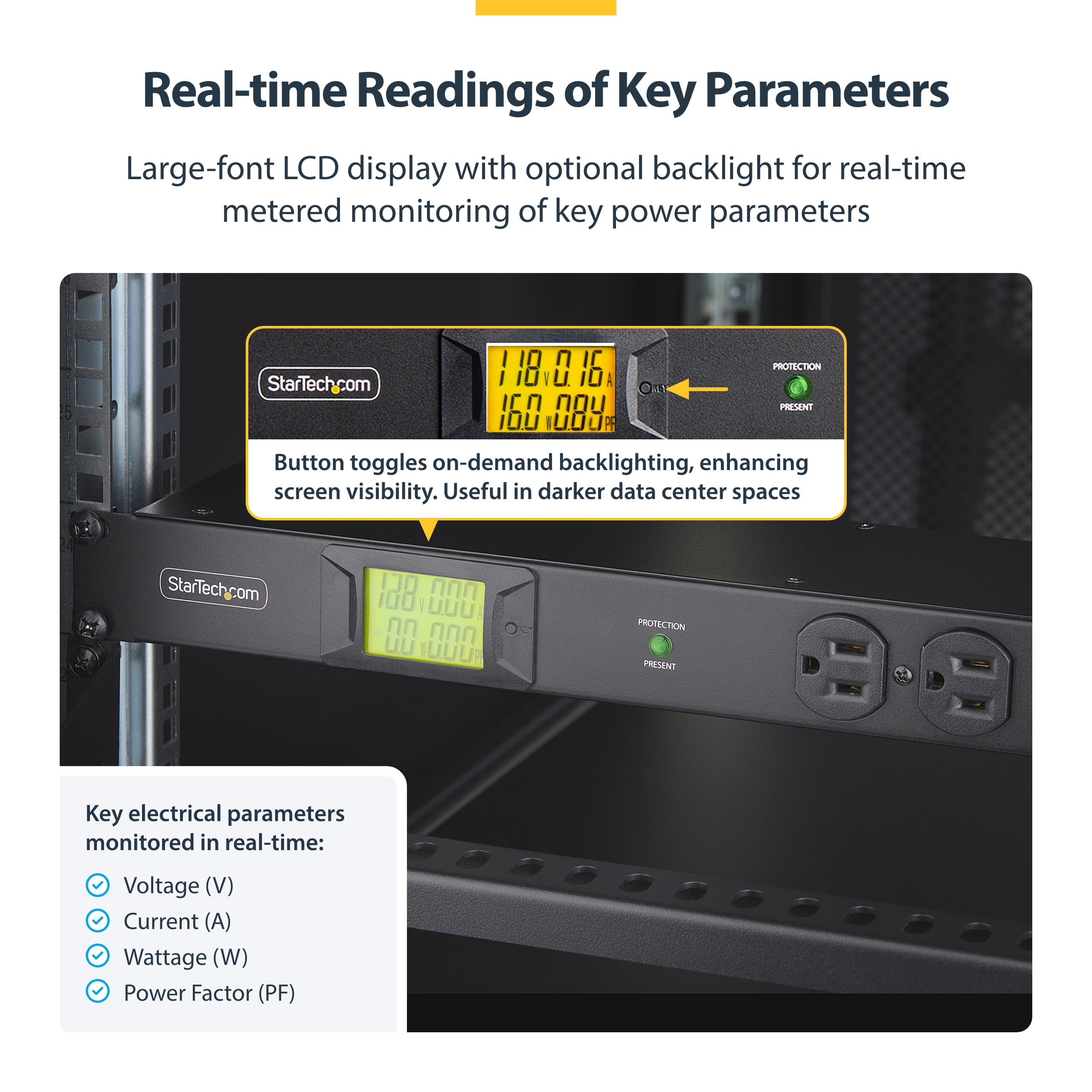

LED Indicators 1 - Surge Protection LED </br> Green: Protection is present </br> Off: No protection Rack-Mountable Yes U Height 1U Carton Depth (mm) 575 Carton Height (mm) 352 Carton Quantity 4 Carton Weight Gross (g) 9440 Included in Package - 1 - Metered PDU
- 1 - Quick-Start Guide
Package Depth (mm) 555 Package Height (mm) 80 Package Width (mm) 190 Package Weight (g) 2360 Packaging Description 16-Outlet 1U Rack-Mount Metered PDU with LCD Display & Surge Protection Packaging Description India 16-Outlet 1U Rack-Mount Metered PDU with LCD Display & Surge Protection Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 NEMA 5-15 (125V AC, 15A) Connector 1 (Quantity) 1 Connector 2 NEMA 5-15 (125V AC, 15A) Connector 2 (Quantity) 16 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kathleen Marshall Application Photos Uploaded Artwork Due Date 2024-09-21 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Comparable SKU Comment 16 Port NEMA 5-15 Rack PDU, Surge Protection 1800J, 15A max Load, 120VAC, Tethered 6ft cable Comparable SKU 2 Comment New Line of metered PDUs Digital Content Due Date 2024-11-26 Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Sticker label - 37x20mm Launch Markets (concatenated) CA,US Primary Technology None Priority New Product High Product Development Specialist Michael Munn Product Information Creation Specialist (PICS) Alex Garcia Product Manager Bhuvan Uppal Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2024-08-09 Target Production Release 2024-08-16 Tech Lead Justin Weaver Technical Writer Dan Dagenais Technology Lifecycle None Vending Machine Not Compatible with Vending Machine Video Required
