16PORT10BT
Main Image

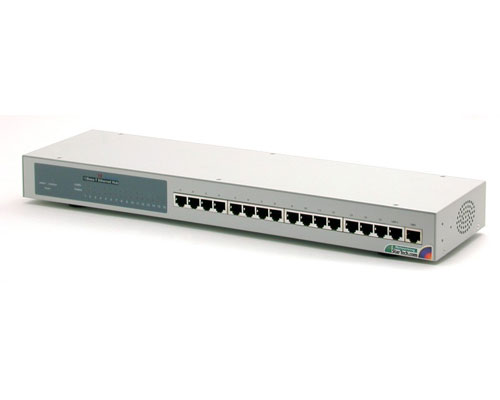

Product Name *D**Replaced by DS16105* 16-port Rackmount 10-Mbps Hub with BNC & AUI Product Number 16PORT10BT UPC 065030775748 Warranty 2 Years Taxonomy Product > Legacy Discontinued Product Title (Long) *D**Replaced by DS16105* 16-port Rackmount 10-Mbps Hub with BNC & AUI Bullet 1 Complies with IEEE 802.3 10Base2, 10Base5, and 10BaseT standards Bullet 2 Amplifies and regenerates signals to and from attached host devices and repeaters Bullet 3 Allows data recovery without signal distortion Bullet 4 Automatic bad port partitioning isolates problem-causing workstations Bullet 5 LEDs indicate Link/Rx and Partition for each RJ-45 port, Collision, and Power Marketing Copy The StarTech.com 16-port 10Mbps network hub is an IEEE 802.3 compliant, rackmountable hub that offers 2 pairs of BNC/AUI connectors. The internal power adapter is capable of operating at voltages between 100VAC and 240VAC, at frequencies between 50-60 Hz. This high-performance hub with its status indicating LED's, is a flexible and expandible cost-effective solution. Applications UTP/STP network connections, AUI network connections, BNC network connections TAA Compliant No General Specifications - Standards: IEEE 802.3 10Base2, 10Base5, and 10BaseT
- STP Ports: (16) RJ-45 Shielded
- Uplink Ports: (1) RJ-45 Shielded
- BNC/AUI Ports: (2) BNC & (2) AUI (DB-15 connectors)
- LEDs: (16) Link/Rx & Partition, Jabber, Collision, Power
- Dimensions: 442x141x50mm (17.4x5.6x2.0 in)
- Weight: 1833g (4.04 lb.)
- Operating Environment: 5~65 deg C, 90% max. relative humidity non-condensing
- Power: Autoswitch AC 100~240V (50~60Hz)
- Safety: UL, CSA, TUV Certified
- Certifications: FCC Part 15 Class A, CE Mark
Included in Package - 1 - ETHERNET HUB (16 PORT)
- 1 - POWER CORD
- 1 - INSTRUCTION MANUAL
- 2 - CONNECTORS
- 1 - SET OF METAL PLATES
en-US Content Approved Yes
