Main Image
16PORTDESK
Main Image

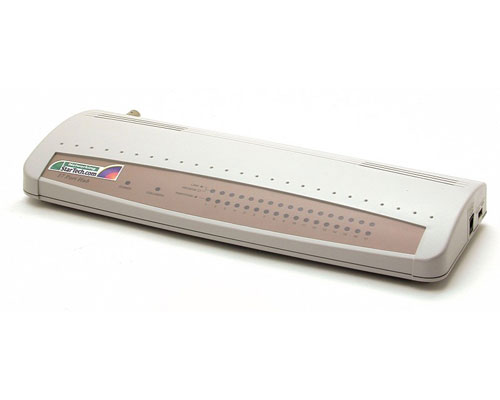

Product Name *D*16-port Desktop 10-Mbps Hub with BNC Product Number 16PORTDESK UPC 0 Warranty 2 Years Taxonomy Product > Legacy Discontinued Product Title (Long) *D*16-port Desktop 10-Mbps Hub with BNC Bullet 1 Complies with IEEE 802.3 10Base2 and 10BaseT standards Bullet 2 Automatic bad port partitioning isolates problem-causing workstations Bullet 3 Allows data recovery without signal distortion Bullet 4 LEDs indicate Link/Receive and Partition for each RJ-45 port, Collision, and Power Bullet 5 Compact desktop hub design can also be wallmounted Marketing Copy The StarTech.com 10-Mbps Desktop Hub is an IEEE 802.3 compliant networking solution that connects one 10-Base-2 segment, and sixteen 10-Base-T segments. This network hub boasts such features as auto partitioning/reconnection of faulty segments, and collision/jabber handling. As well, the 16PORTDESK can be cascaded from a BNC or RJ-45 port allowing expandibility as your network grows. Applications UTP/STP network connections, BNC network connections TAA Compliant No General Specifications - Standards: IEEE 802.3 10Base2 and 10BaseT
- UTP/STP Ports: (16) RJ-45 Shielded
- Uplink Ports: (1) RJ-45 Shielded (uses an existing port)
- BNC Ports: (1) BNC for 10Base2 connection
- LEDs: (16) Link/Rx & Partition, Collision, Power
- Dimensions: 270x105x30mm (10.6x4.1x1.2 in.)
- Weight: 445g (0.98 lb.) excluding AC adapter
- Power: DC 7.5V 1000mA (from 120V AC adapter)
Included in Package - 1 - 16 PORT ETHERNET HUB
- 1 - POWER ADAPTOR
- 1 - INSTRUCTION MANUAL
- 1 - SET OF SCREWS/BOLTS
- 1 - SET OF CONNECTORS
en-US Content Approved Yes
