Main Image
199UE-USBC-DOCK
USB-C Triple Display Dock, 4k60, 6-7 USB Ports, GbE 100W PD
Transform a USB-C laptop into a multi-monitor workstation with DisplayPort and HDMI video, plus USB-A and USB-C ports
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
BOM Image
Quick-Start Guide
Video Link YouTube
Video Link YouTube
Product Name USB-C Triple Display Dock, 4k60, 6-7 USB Ports, GbE 100W PD Product Number 199UE-USBC-DOCK UPC 065030921817 Lifecycle status Pending Warranty 3 Years Weighted Opportunity 0 Taxonomy Product > Docks, Hubs & Video Adapters > Docking Stations & Multiports Category Level 1 Docking Stations Category Level 2 USB-C Docks Category Level 3 USB-C Multi-Monitor Docks Country of Origin Europe & Japan Vietnam Country of Origin North America Vietnam Country of Origin History (1) Vietnam Country of Origin Revision (1) XXXXXX132X Product Title (Ultra-Short) 3 Monitor USB-C Dock Product Title (Short) USB-C Dock, 2x DP, 1x HDMI, 3x 4K, 100W Product Title (Medium) Triple-Monitor USB-C Docking Station, DP/HDMI, 3x 4K, 100W PD, GbE, Driverless Product Title (Standard) Triple-Monitor USB-C Docking Station, DP/HDMI, 2x 4K60Hz, 1x 4K30Hz, 100W PD, GbE, Driverless, Multi-Monitor Dock For Windows Product Title (Long) USB-C Docking Station Triple 4K Displays (2x 4K 60Hz, 1x 4K 30Hz), 100W Power Delivery, 6 USB Ports (10Gbps), Gigabit Ethernet, DisplayPort + HDMI, Driverless Windows Laptop Dock Product Title (AMZ) USB-C Docking Station Triple 4K Displays (2x 4K 60Hz, 1x 4K 30Hz), 100W Power Delivery, 6 USB Ports (10Gbps), Gigabit Ethernet, DisplayPort + HDMI, Driverless Windows Laptop Dock Title Ingram (Part 1) USB-C Docking Station - Title Ingram (Part 2) Triple-Monitor, DP/HDMI, 4K60 Website Product Headline Transform a USB-C laptop into a multi-monitor workstation with DisplayPort and HDMI video, plus USB-A and USB-C ports Bullet 1 Bullet 2 Bullet 3 Bullet 4 Bullet 5 Bullets (Compact) Connect three 4K displays (2x 4K60 and 1x 4K30) w/ 2x DP and 1x HDMI via a single USB Type-C ; Plug-and-play on Windows; No drivers or software to install (no macOS / ChromeOS support); 4x USB-A 5Gbps and 2x USB-C 10Gbps ports (one with 15W PD); 1GbE Bullets (Consolidated) Connect three 4K displays (2x 4K 60Hz and 1x 4K 30Hz) with 2x DP and 1x HDMI via a single USB Type-C port with uncompressed video powered by your laptop's native GPU - Plug-and-play on Windows with no drivers or software to install (not compatible with macOS/ChromeOS) - 4x USB-A 5Gbps and 2x USB-C 10Gbps (1x 15W PD); Gigabit Ethernet - Multi-monitor dock with built-in lock slots for physical security - Surface and VESA mounts sold separately: SSPMSUDWM / DOCK-NUC-VESA-MOUNT / SSPMSVESA Marketing Copy Marketing Copy (No HTML) Website Search Keyword - Docking Stations
- Dock
- USB-C Dock
- MST Dock
- multi-monitor docking station
Required Marketing Compliance Marks FSC - Environmental - Global - FSC Mix Packaging (Global 7 Languages) Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
Special Notes - USB 3.2 Gen 1 (5Gbps) is also known as USB 3.1 Gen 1 (5Gbps) and USB 3.0 (5Gbps).
- Your laptop might have specific charging requirements. For example, if your laptop requires exactly 60W of power and an adapter consumes some of the 60W, your laptop might not recognize that it is getting enough power. For more information about Power Delivery, refer to the manufacturer of your hardware.
System and Cable Requirements For a multi-monitor configuration, the computer must support MST. If the computer doesn't support MST, both displays will show the same video signal. Related Products - 201UE-USBC-DOCK
- 196UE-USBC-DOCK
Input Current 2.5 Input Voltage 110V-240V AC Output Current 6.25 Output Voltage (V) 24 DC Power Consumption (In Watts) 150 Power Delivery 100W Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Color Space Gray Humidity 10% ~ 85% RH (non-condensing) Operating Temperature 0°C to 70°C (32°F to 158°F) Product Length (mm) 190 Product Width (mm) 79 Product Height (mm) 27 Product Weight (g) 275 Storage Temperature 10°C to 70°C (50°F to 158°F) TAA Compliant No Compatible Networks 10/100/1000 Mbps Downstream Maximum Data Transfer Rate USB 3.2 Gen 2 (10Gbps) Full Duplex Support Yes Maximum Data Transfer Rate Maximum Digital Resolutions MTBF (hours) 84,290 Hours OS Compatibility - Windows 11
- Windows 11 ARM
- Windows 10
- Ubuntu
PXE Yes StarTech.com Connectivity Tools - MAC Address Changer
- USB Event Monitoring
- Windows Layout
- Wi-Fi Auto Switch
Supported Charging Outputs USB-C (15W) USB Type and Rate USB 10Gbps Video Output Port - DisplayPort
- HDMI
Video Transport Technology USB-C (DP Alt-Mode) Wake-On-LAN (WOL) Yes Bus Type USB-C Chipset ID - VMM5320
- VL103R
- VL171
- VL822
- VP226
- VL817
- RTL8153E
Compatible Lock Slot - Kensington Standard Slot (K-Slot)
- Kensington Nano Slot
- Noble Wedge Slot

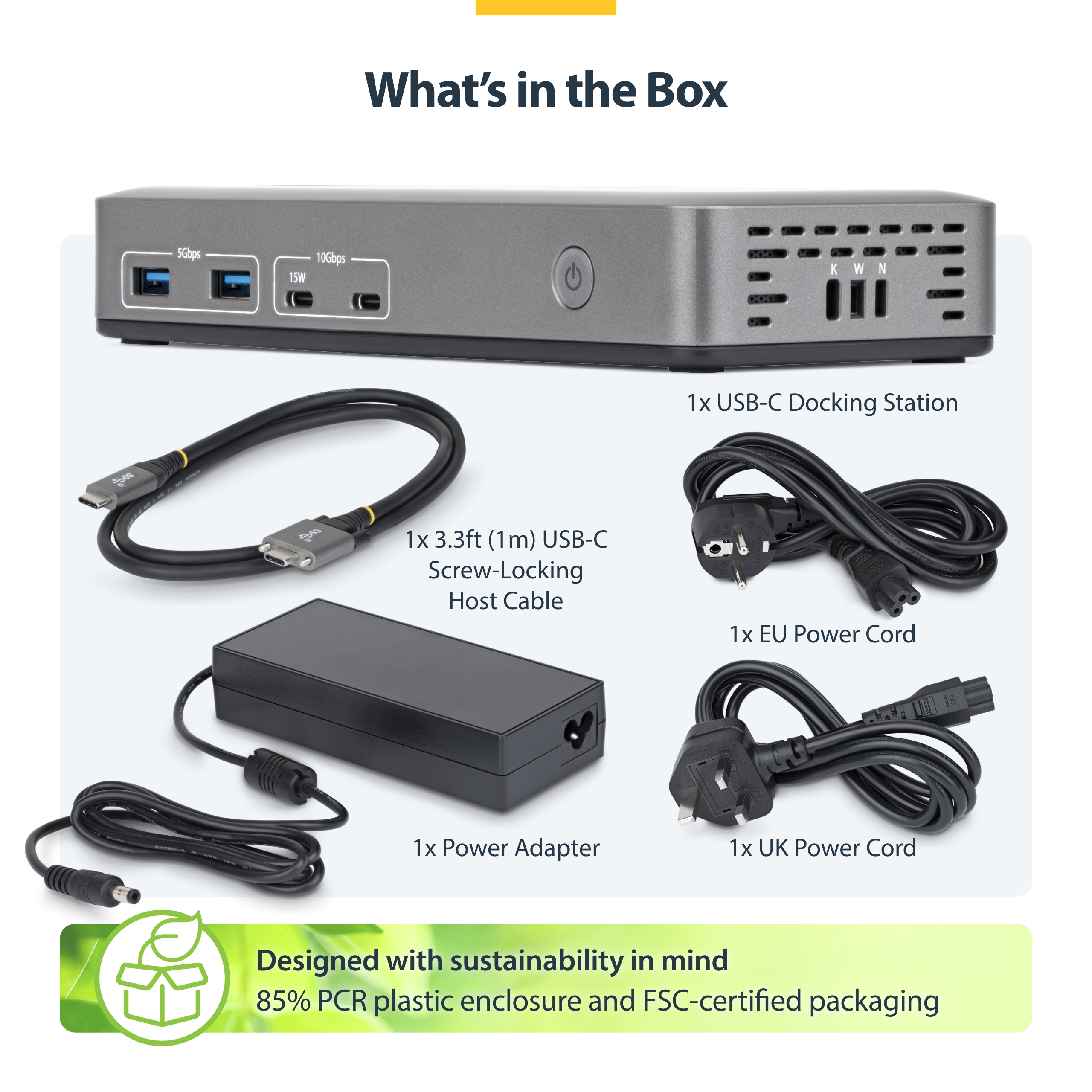

Host Connection Port USB-C Industry Standards USB Power Delivery 3.0 Laptop Dock 4K Support Yes Laptop Dock Number of Displays 3 LED Indicators 1 - Power LED Number of Displays 3 Other Ports Gigabit Ethernet Carton Depth (mm) 430 Carton Height (mm) 280 Carton Quantity 10 Carton Weight Gross (g) 10995 Included in Package - 1 - Docking Station
- 1 - 3.3ft (1m) Host Cable
- 1 - Universal Power Adapter (UK/EU)
- 1 - Product Documentation
Package Depth (mm) 250 Package Height (mm) 50 Package Width (mm) 205 Package Weight (g) 989.05 Packaging Description USB-C Dock, Triple Display 4K HDMI/DisplayPort, 6x USB, GbE, 100W PD Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 4 Connector 2 USB-C (10Gbps, 4.5W) Connector 2 (Quantity) 1 Connector 3 USB-C (10Gbps, 15W) Connector 3 (Quantity) 1 Connector 4 DisplayPort Connector 4 (Quantity) 2 Connector 5 RJ-45 Connector 5 (Quantity) 1 Connector 6 HDMI Connector 6 (Quantity) 1 Host Connector 1 USB-C Dual-Role (10Gbps, 4.5W / 100W PD Input) Host Connector 1 (Quantity) 1 A+ Uploaded Actual Inbox Documents Created Compliance Insert & EN/DE QSG Amazon Merchandising Manager Kristian Haighton Amazon Only SKU No Amazon Visual Content Level Gold Apple Compatibility Apple Compatible Application Photos Uploaded Artwork Due Date 2025-09-29 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Comparable SKU Comment USB4 vs low cost Comparable SKU 2 Comment NA Digital Content Due Date 2025-12-26 Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Brooke Taylor Graphic Design SKU Logic Naming Convention 199y-USBC-DOCK ID Label Silkscreened or a Label Sticker label - 50x25mm Launch Markets (concatenated) AT,BE,CH,CL,CO,DE,DK,ES,FI,FR,IE,IT,NL,PE,SE,SG,UK Primary Technology USB-C Priority New Product Medium Product Development Specialist Alex Sikora Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Tim North Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2026-01-08 Target Production Release 2026-01-23 Tech Lead Brian Linseman Technical Writer Dan Dagenais Technology Lifecycle Latest Video Not Required
