1G-NETWORK-ISOLATOR

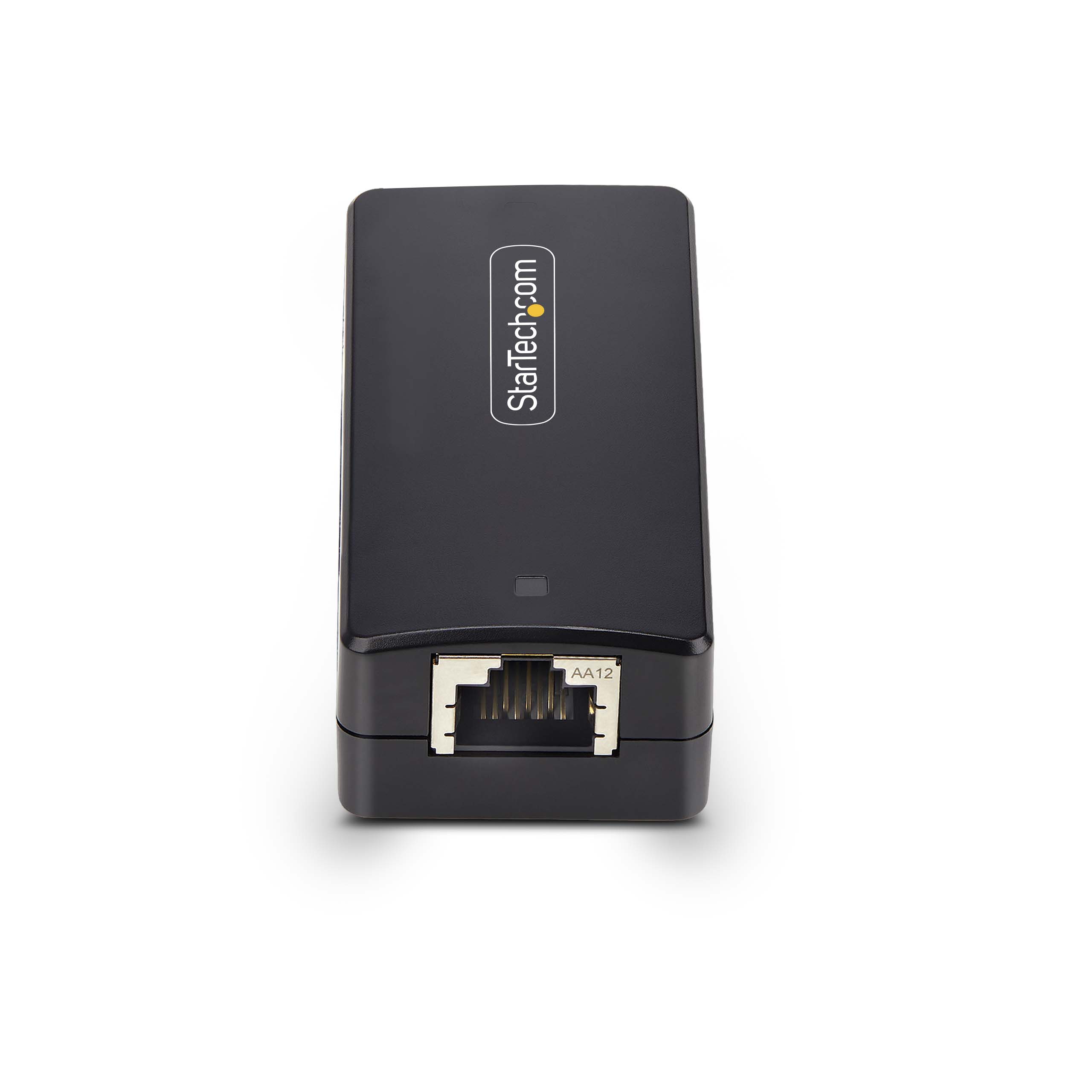

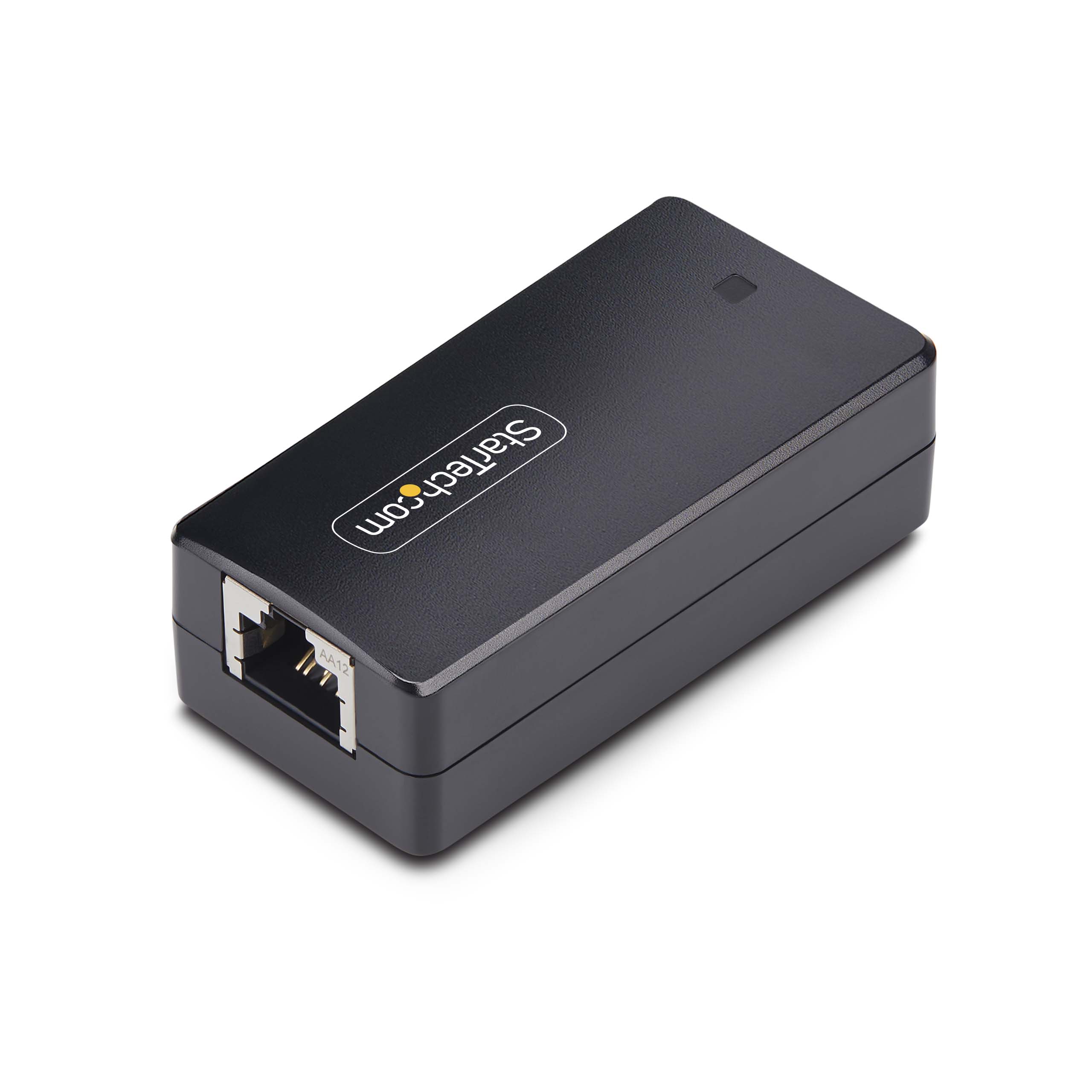

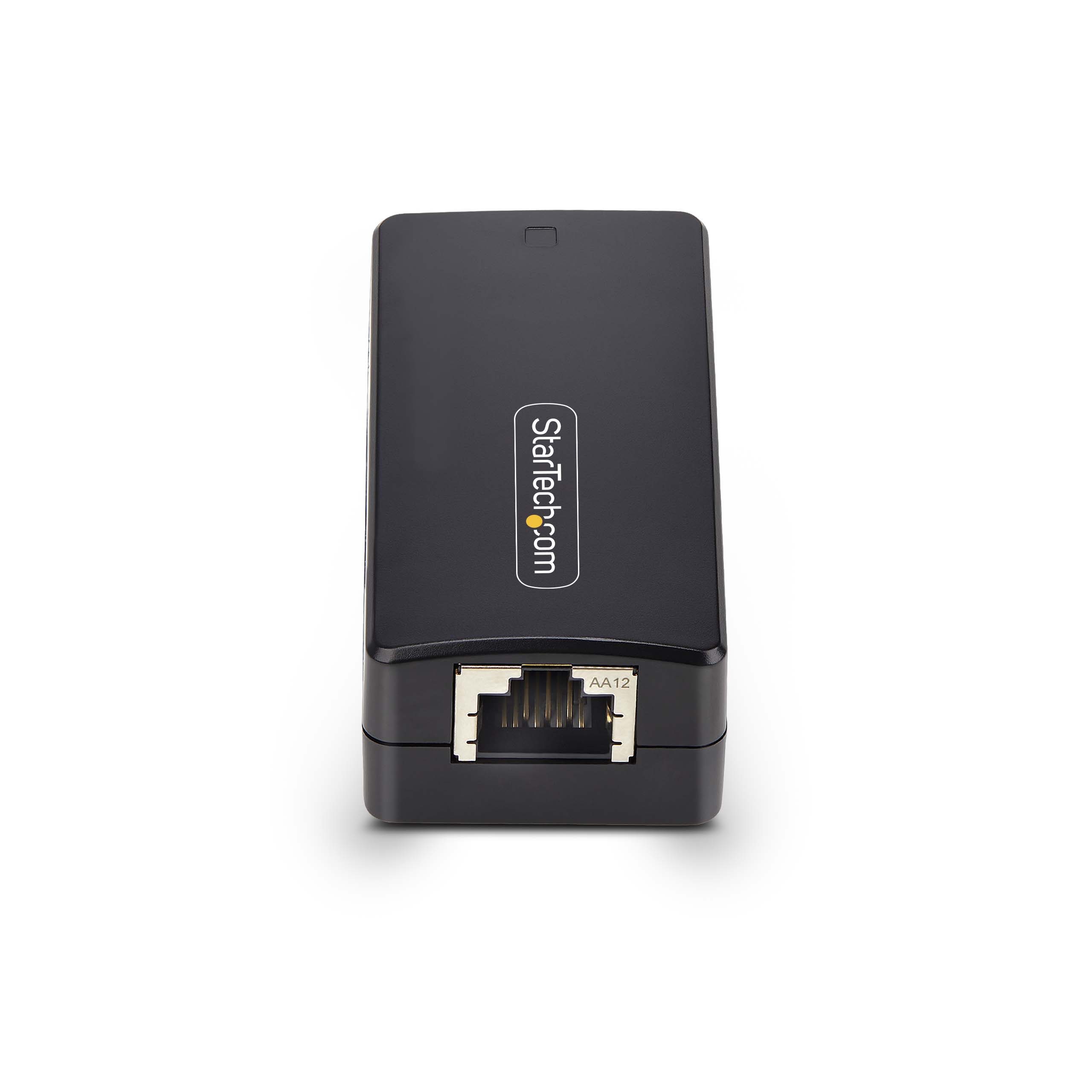

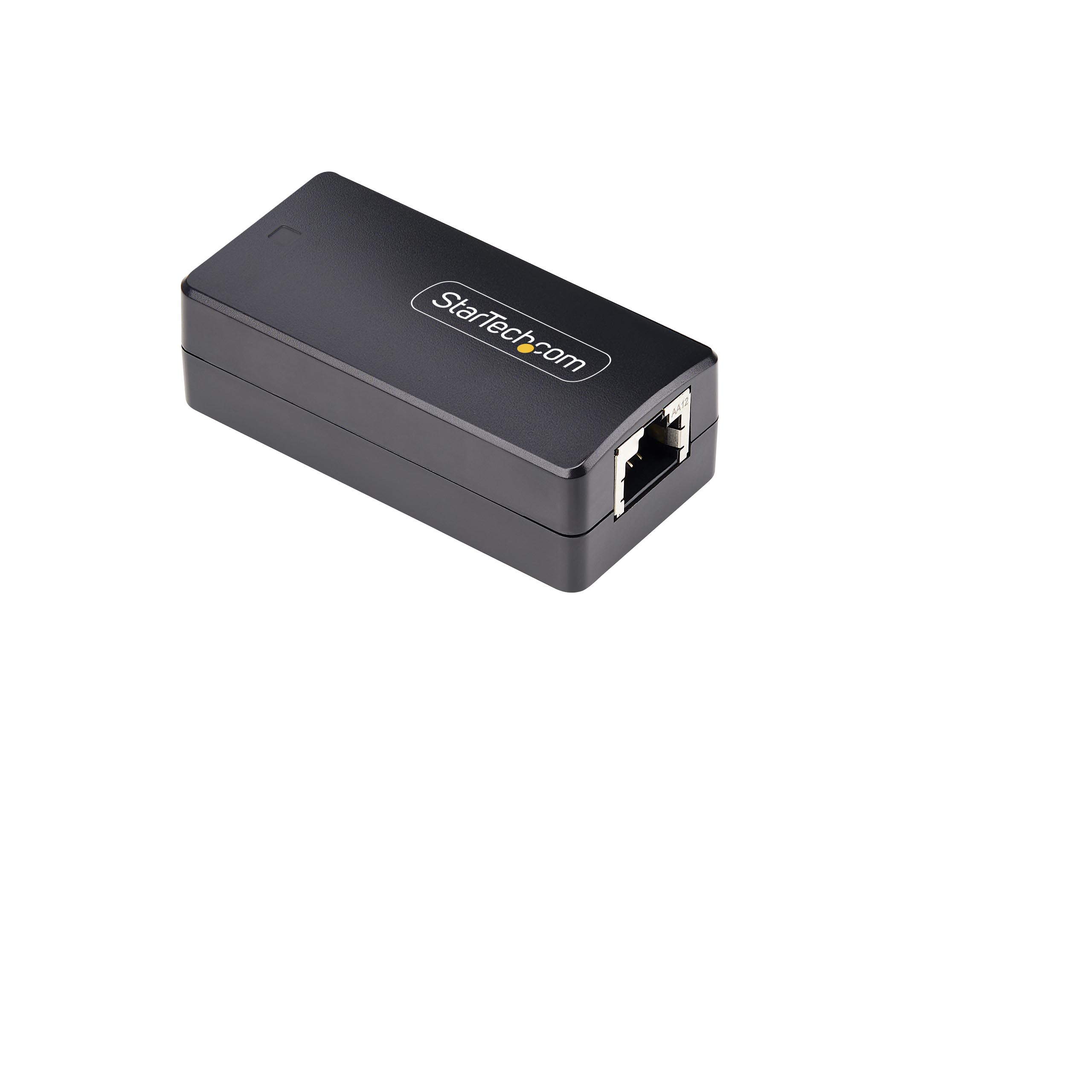

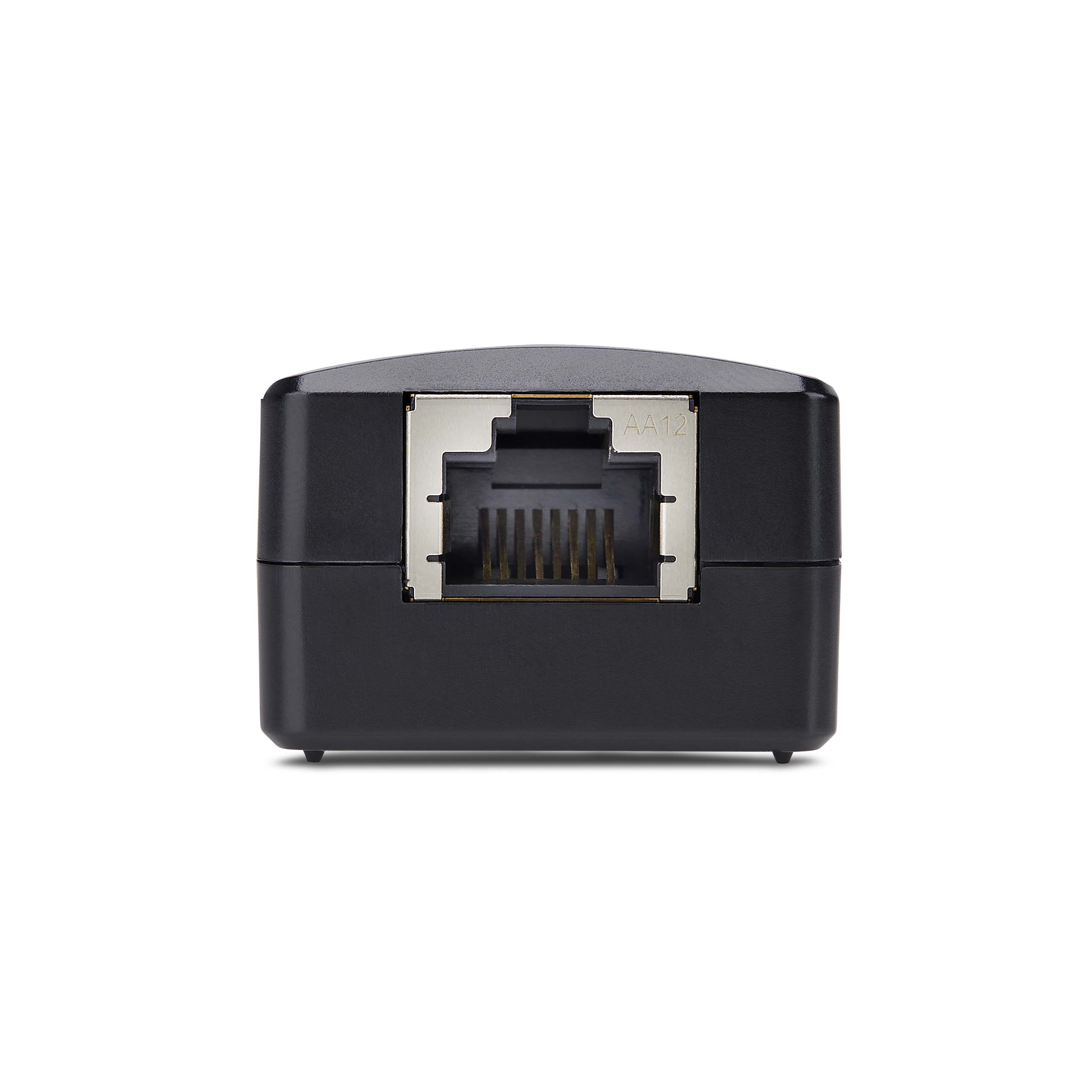

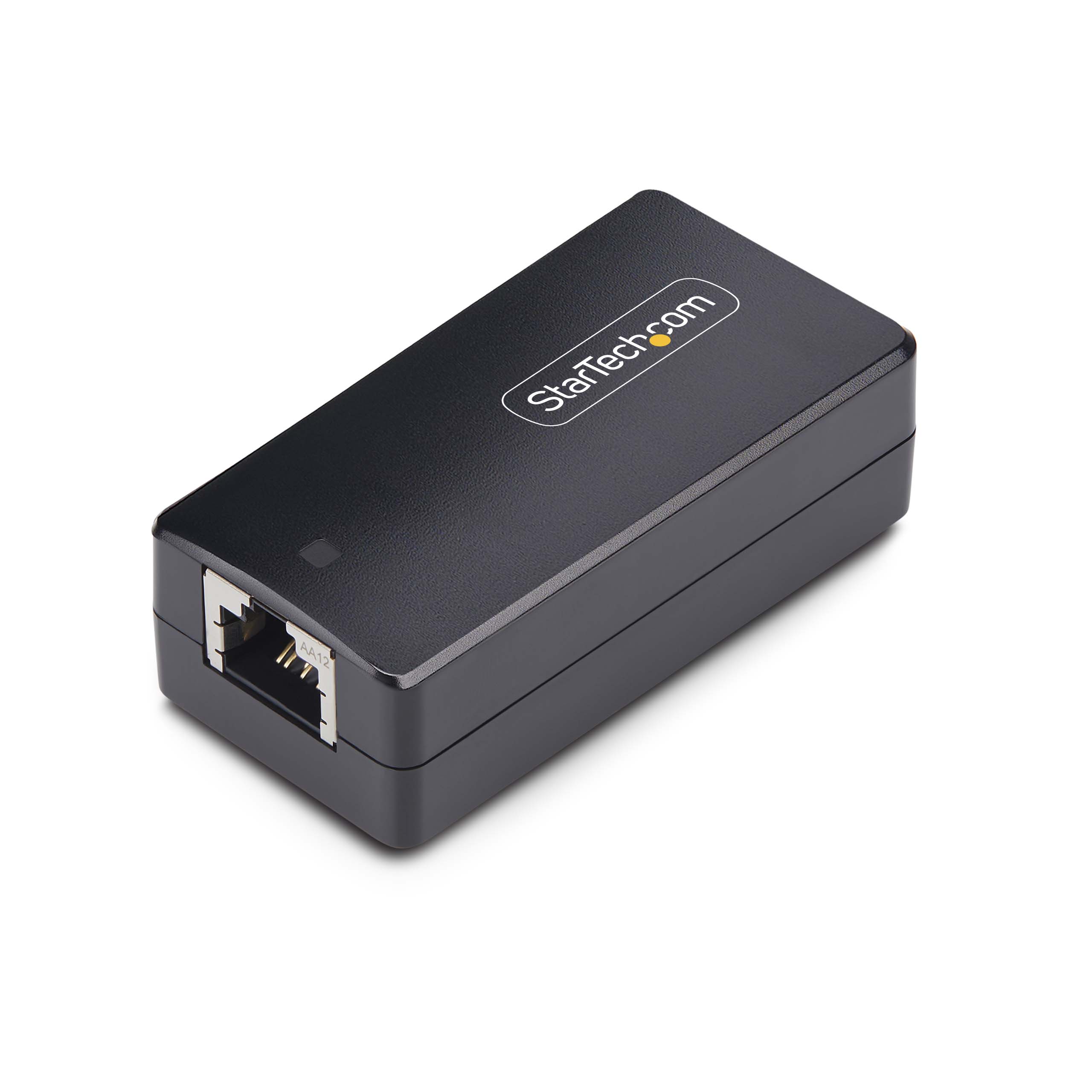

Gigabit Ethernet Network Isolator
Protect network devices from harmful power surges with this Network Isolator
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name Gigabit Ethernet Network Isolator Product Number 1G-NETWORK-ISOLATOR UPC 065030906968 Lifecycle status Active Warranty 2 Years Weighted Opportunity 0 Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Ethernet Switches and Extenders Category Level 3 Ethernet Extenders Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX142X Product Title (Ultra-Short) Network Isolator Product Title (Short) 1-Port Gigabit Ethernet Network Isolator Product Title (Medium) 1-Port Gigabit Network Isolator, Compact In-line RJ45 Ethernet Coupler, 4kV, TAA Product Title (Standard) 1-Port Gigabit Network Isolator, Compact In-line RJ45 Ethernet Coupler with 4kV Galvanic Isolation, DIN Rail Mountable, TAA Product Title (Long) 1-Port Gigabit Network Isolator, Compact In-line RJ45 Ethernet Coupler with 4kV Galvanic Isolation, IP40, DIN Rail Mountable, TAA Compliant Product Title (AMZ) 1-Port Gigabit Network Isolator, Compact In-line RJ45 Ethernet Coupler with 4kV Galvanic Isolation, IP40, TAA Title Ingram (Part 1) 1-Port Gigabit Network Isolator Title Ingram (Part 2) RJ45 Ethernet Coupler, 4kV, TAA Website Product Headline Protect network devices from harmful power surges with this Network Isolator Bullet 1 TAA-COMPLIANT 1G NETWORK ISOLATOR: Protects connected devices by providing 4kV galvanic isolation between Ethernet connections, separating all conductive paths; Essential for preventing ground loops in audio, video, and data networking setups Bullet 2 READY TO USE: Plug-and-play setup with no software/drivers/power supply/grounding wire required; Acts as a coupler, connecting two CAT5e/6 RJ45 cables to link compatible equipment to a computer/data network; Compact and OS-independent for broad deployment Bullet 3 SAFE, RELIABLE & EFFICIENT: Gigabit network isolator safeguards equipment and operators by blocking stray electrical currents, surges, and ground faults in your network; ETL Safety Listed (IEC 62368-1); CE: EN55032/EN55035 Certified Bullet 4 VERSATILE MOUNTING OPTIONS: Compact and durable IP40 rated plastic housing supports multiple installation methods, including DIN rail mounting (kit included) or adhesive mounting for versatile placement on various surfaces Bullet 5 APPLICATIONS: Designed for IT professionals to protect network infrastructure in labs and manufacturing facilities; Reduces the risk of electric shock to users; Protects devices by preventing noise/interference and small surges Bullets (Compact) TAA Compliant 1G Network Isolator with 4kV; Provides a separation of all conductive connections between devices connected via an Ethernet cable; Helps prevent ground loops; Two RJ45 ports for two Cat5/Cat6 cables; Blocks stray electrical currents Bullets (Consolidated) - TAA-Compliant 1G Network Isolator with 4kV isolation provides a separation of all conductive connections between devices connected via an Ethernet cable - Helps prevent ground loops in audio/video equipment - Plug-and-play setup - Acts as a coupler connecting two CAT5e/6 RJ45 cables to link compatible equipment to a computer/data network - Safeguards equipment/operators by blocking stray electrical currents/surges/ground faults - ETL Safety Listed (IEC 62368-1) - DIN Rail kit/adhesive included Marketing Copy Marketing Copy (No HTML) Applications Protect network devices from harmful power surges with this Network Isolator Required Regulatory Compliance Marks - CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- CE - Safety - Electrical - European Union - Low Voltage Directive (LVD) 2014/35/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Special Notes This product does not passthrough Power Over Ethernet (802.3af/802.3at/802.3bt) System and Cable Requirements IEEE 802.3 or IEEE 802.3ab compliant network equipment Accessory Products - N6PATCH10BL
- N6PATCH8BK
- N6PATCH2RD
- N6PATCH4GR
- N6PATCH12PL
- N6PATCH5OR
Related Products U1-USB-ISOLATOR Power Source Bus Powered Color Black Humidity 10% to 90% RH (no condensation) Operating Temperature -10°C to 70°C (14°F to 158°F) Product Length (mm) 33.000 Product Width (mm) 66.700 Product Height (mm) 23.600 Product Weight (g) 31.000 Storage Temperature -40°C to 85°C (-40°F to 185°F) TAA Compliant Yes Compatible Networks 10/100/1000 Mbps OS Compatibility OS Independent Interface/Bridge RJ45 (Gigabit Ethernet) USB Pass-Through No Carton Depth (mm) 532 Carton Height (mm) 196 Carton Quantity 100 Carton Weight Gross (g) 8246 Included in Package - 1 - Network Isolator

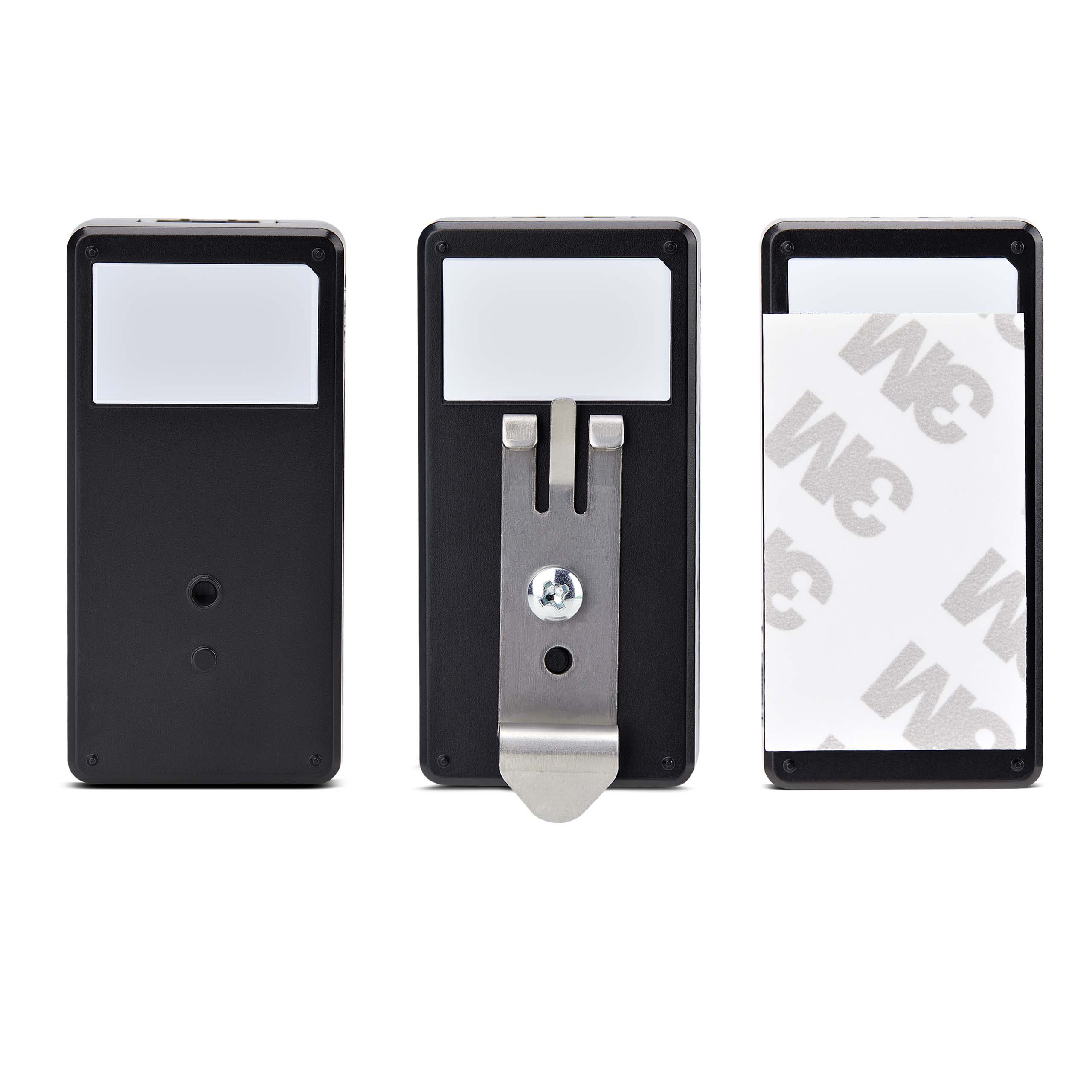

- 1 - DIN Rail Kit
- 1 - Adhesive Strip
- 1 - Quick-Start Guide
Package Depth (mm) 446 Package Height (mm) 33 Package Width (mm) 133 Package Quantity 1 Package Weight (g) 72 Packaging Description 1-Port Gigabit Galvanic Network Isolator Packaging Description India 1-Port Gigabit Galvanic Network Isolator Sub-Carton Depth (mm) 314 Sub-Carton Height (mm) 123 Sub-Carton Width (mm) 297 Sub-Carton Weight (g) 3224 Connector 1 RJ-45 Connector 1 (Quantity) 1 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kathleen Marshall Application Photos Uploaded Artwork Due Date 2024-06-15 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Comparable SKU Comment N/A Comparable SKU 2 Comment N/A Digital Content Due Date 2024-11-08 Enhanced Gallery Not Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett ID Label Silkscreened or a Label Sticker label - custom size - requires size population below Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,NL,SE,UK,US Product Development Specialist Yipeng Zhang Product Information Creation Specialist (PICS) Maria Powell Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2024-02-23 Target Production Release 2024-06-15 Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle None Vending Machine Not Compatible with Vending Machine Video Not Required
