1GPD3-USB-C-ETHERNET

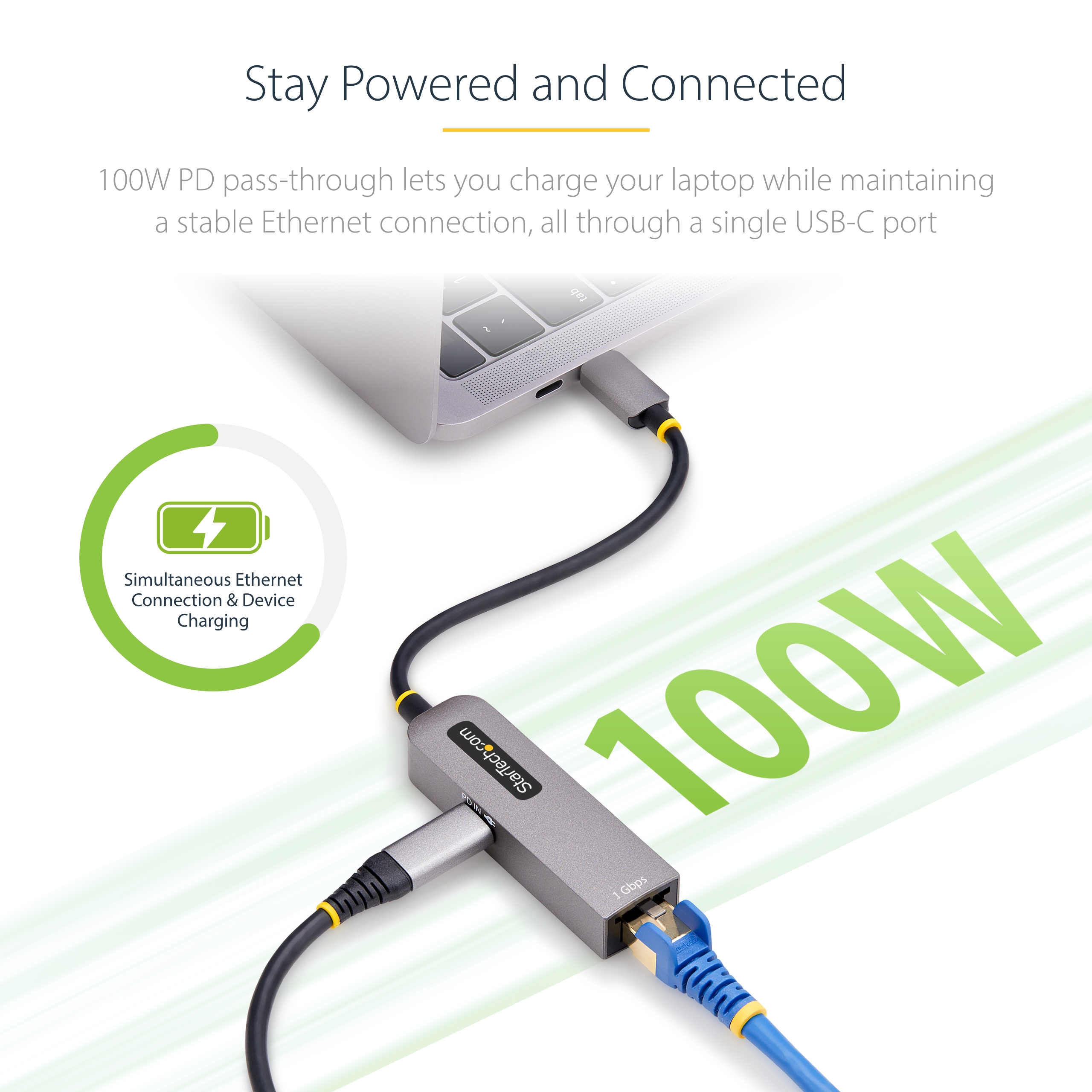

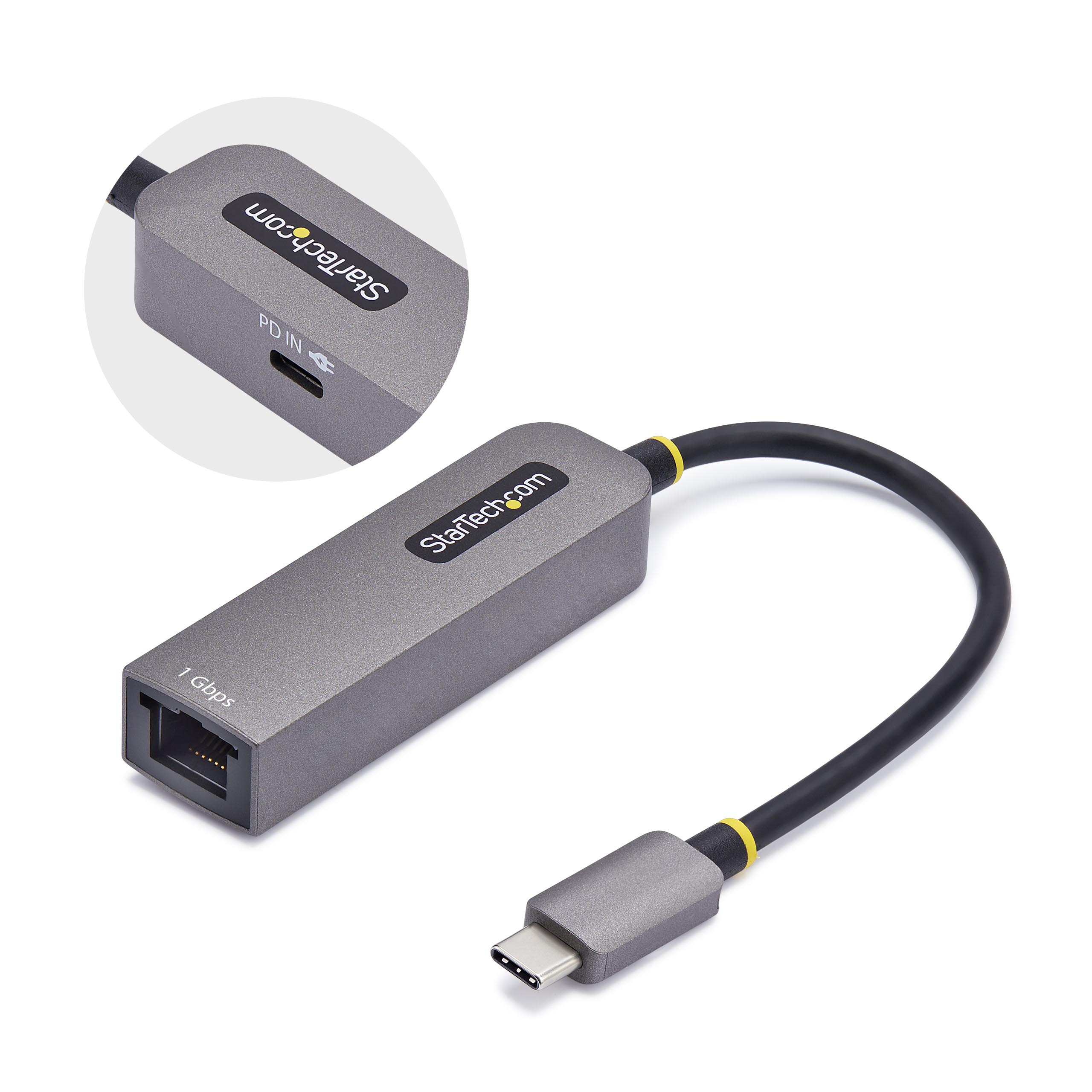

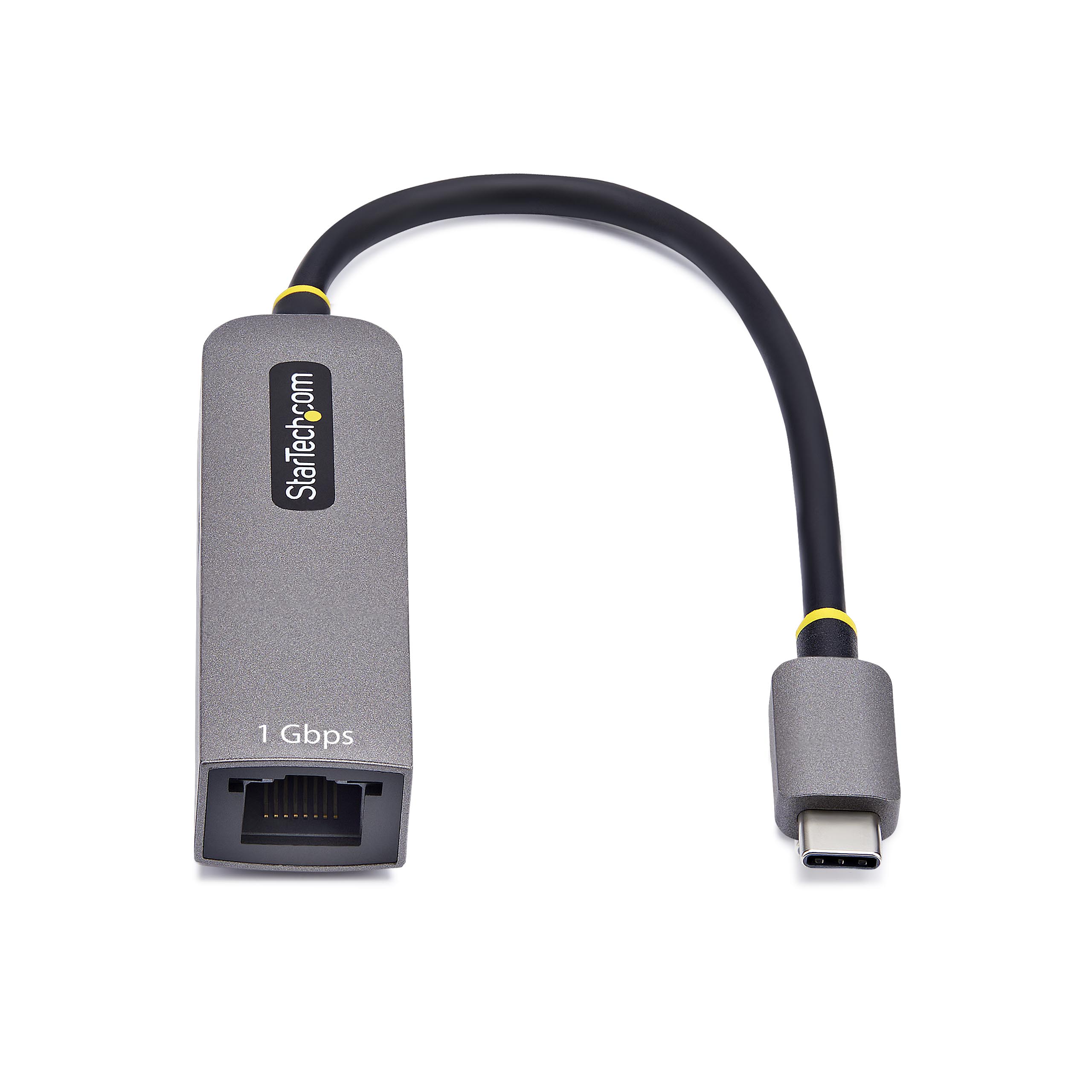

Gigabit USB Ethernet Adapter with 100W PD Passthrough
Add Gigabit Ethernet network connectivity to a Laptop or Desktop Computer through a USB Type-C port
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name Gigabit USB Ethernet Adapter with 100W PD Passthrough Product Number 1GPD3-USB-C-ETHERNET UPC 065030904759 Lifecycle status Active Warranty 2 Years Weighted Opportunity 59319 Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Laptop Network Adapters Category Level 3 USB-C Ethernet Adapters Family Classic Connect Ethernet+PD Country of Origin Europe & Japan Vietnam Country of Origin North America Vietnam Country of Origin History (1) Vietnam Country of Origin Revision (1) XXXXXX190X Product Title (Ultra-Short) Ethernet Adapter Product Title (Short) USB-C to Ethernet Adapter Product Title (Medium) USB 3.0 Type-C to 1 Gigabit Ethernet Adapter, 100W PD Pass-Through Product Title (Standard) USB-C to Ethernet Adapter, 100W PD Pass-Through, NIC, USB 3.0 Type-C 1Gbps Multi Speed Network, USB 3.1 RJ45, Windows & Mac Product Title (Long) USB-C to Ethernet Adapter, NIC, 100W PD Pass-Through, USB 3.0 Type-C 1Gbps Multi Speed Network Adapter, Thunderbolt Compatible, Windows & Mac Product Title (AMZ) USB-C to Ethernet Adapter, 100W PD Pass-Through, NIC, USB 3.0 Type-C 1Gbps Multi Speed Network, Windows & Mac Title Ingram (Part 1) USB 3.0 Type-C to 1 Gigabit Title Ingram (Part 2) Ethernet Adapter Website Product Headline Add Gigabit Ethernet network connectivity to a Laptop or Desktop Computer through a USB Type-C port Bullet 1 100W CHARGING: 100W PD pass-through port allows you to connect a charger to the same USB-C port, enabling simultaneous Ethernet connection and device charging; Devices with limited USB-C ports can share a port without an additional hub Bullet 2 BROAD COMPATIBILITY: Auto-installs on most operating systems including Windows 7 and up, Linux LTS Kernel 4.19+ and up, MacOS/iOS/ChromeOS; Works with MacBooks, Chromebooks and all hardware platforms, including Intel, AMD, ARM (Snapdragon) & Apple Silicon Bullet 3 1G OVER CAT5E: Add 1Gbps network access to laptops/tablets/iPhones with a Type-C port; Enables ethernet connection without losing access to the original USB-C port for charging/connecting additional peripherals; Ideal for devices with limited ports Bullet 4 APPLICATIONS: Well-suited replacement for broken ethernet ports on laptops; Provides a wired connection that is faster and more secure than wireless for home, work and travel; Efficiently provision and maintain laptops with WoL & PXE Bullet 5 TECH SPECS: USB-C 3.2 Gen 1 (5Gbps); 1x RJ45; 6in (15cm) Attached Cable; 10/100Mbps & 1Gbps; Realtek Chipset; 9K Jumbo Frames; WoL; VLAN; PXE Boot support; USB Bus Powered; Thunderbolt Compatible Bullets (Compact) USB-C to Ethernet Adapter securely connects to networks over CAT5e/RJ45/LAN; 100W PD pass-through; NIC; 10/100Mbps/1Gbps; Auto-Negotiation for max bandwidth; Works with USB 3.0/3.1 Type-C/Thunderbolt MacBook Pro/Mac Pro/Surface Book/iPhone 15/up Bullets (Consolidated) - USB-C to Ethernet Adapter allows users to securely connect to high-speed Gigabit network/LAN - 100W PD pass-through - USB 3.0/3.1 Type-C or Thunderbolt; NIC; 1x RJ45; 10/100Mbps/1Gbps; Realtek supports 9K Jumbo Frames/WoL/VLANs; USB Bus-Powered - USB 3.0 NIC for MacBook Pro/iPhone 15 (Plus/Pro/Max), Chromebooks, M-Series Macs/Surface Books - Supports Windows 7/up; Windows Server 2008 R2/up; Linux LTS Kernel 4.19+/up; MacOS 10.11/up; iOS Marketing Copy Marketing Copy (No HTML) Applications Add 1G Ethernet network connectivity to a laptop or desktop computer through a USB Type-C port Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- Triman/Info-Tri - Packaging - Waste - European Union - DO NOT USE - Packaging - General
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Accessory Products - N6PATCH10BL
- N6PATCH8BK
- N6PATCH2RD
- N6PATCH4GR
- N6PATCH12PL
- N6PATCH5OR
Related Products - US2GC30
- US2GA30
- 2GPD3-USB-C-ETHERNET
- C22G-USB-ETHERNET
- U2GA-USB-C-ETHERNET

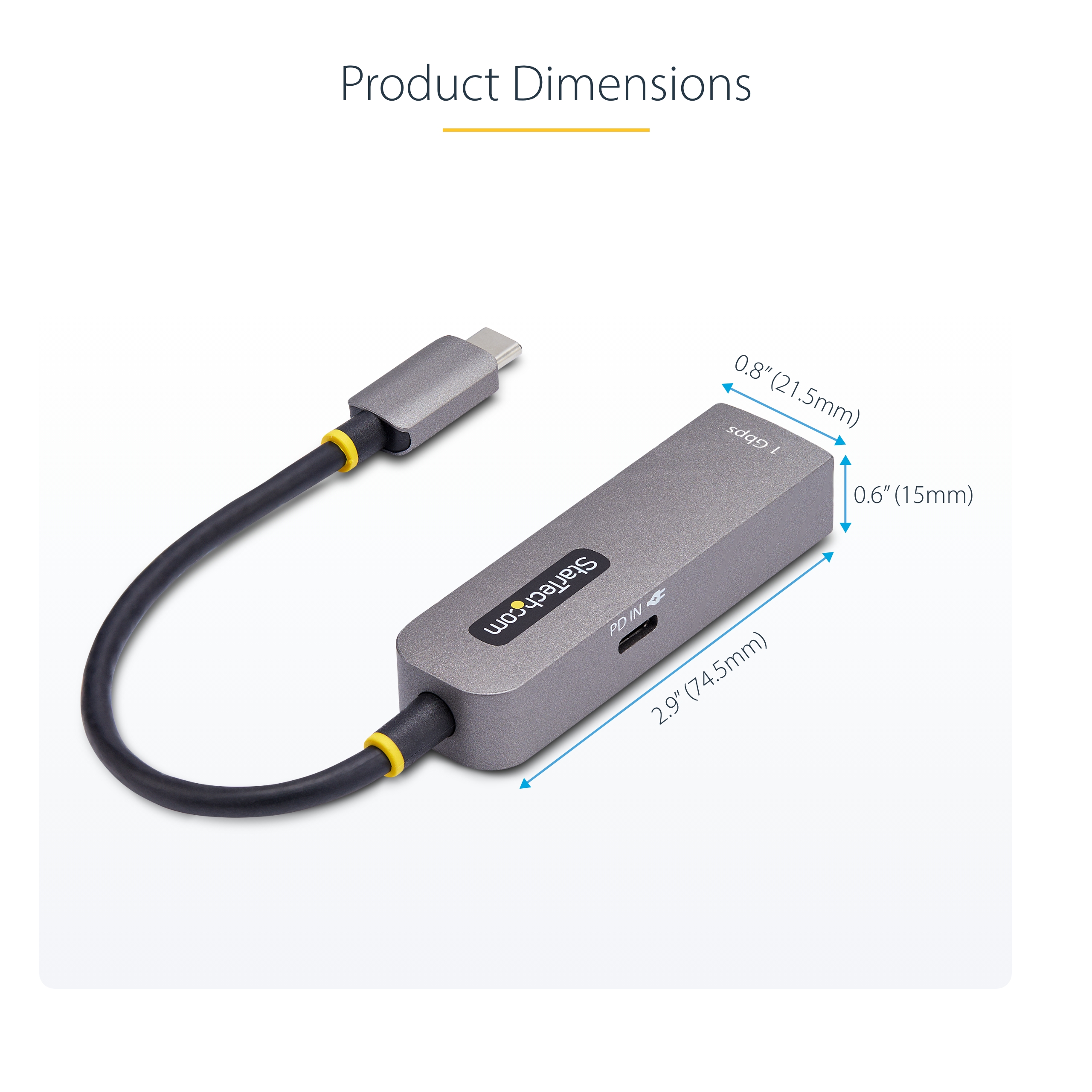

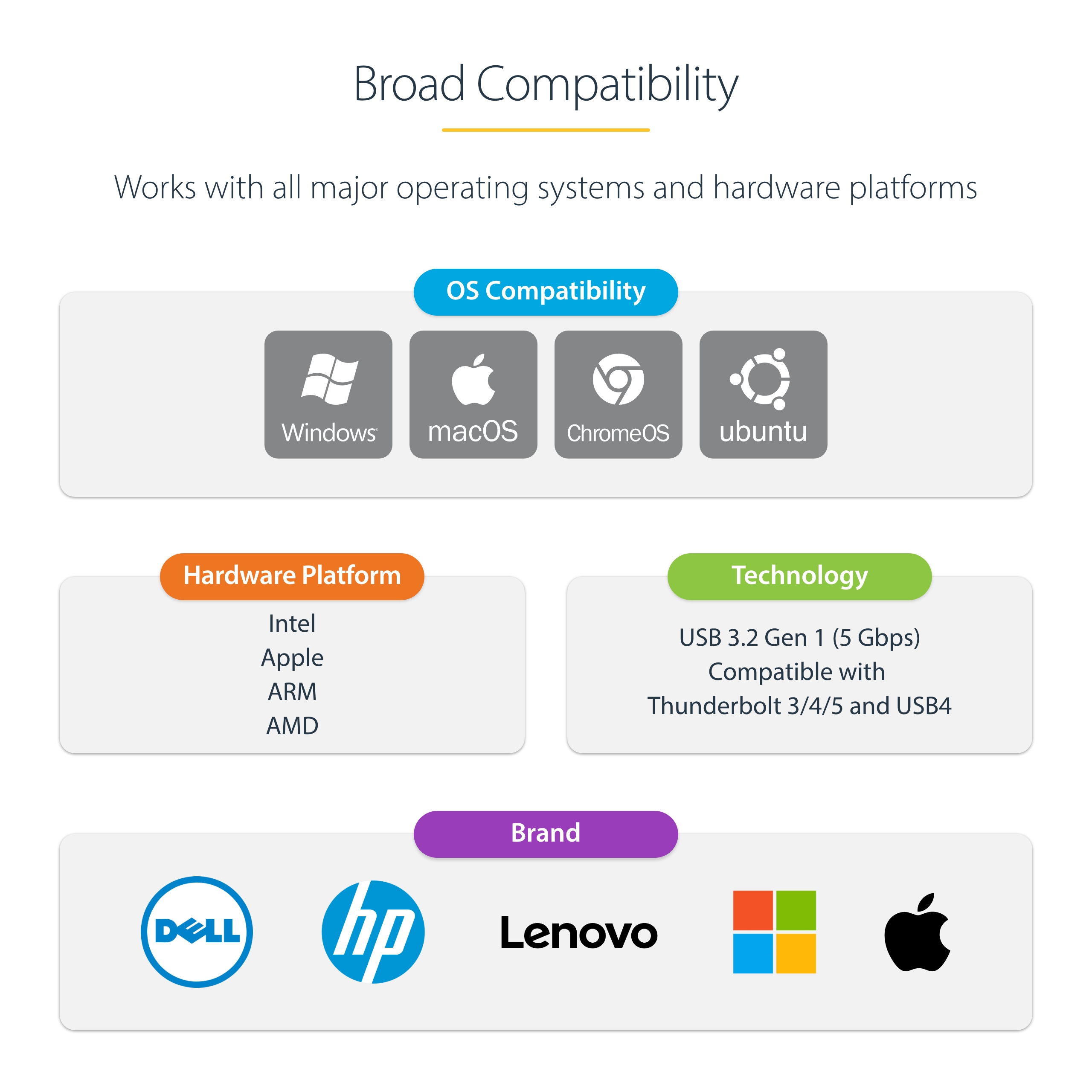

Input Voltage 5V DC Output Voltage (V) 5 DC Power Source USB-Powered Color Space Gray Humidity 10% to 85% RH (no condensation) Network Adapter Form Factor Attached Cable Operating Temperature 0℃ to 45℃ (32°F to 113°F) Primary Material Aluminum Product Length (mm) 245 Product Width (mm) 21.6 Product Height (mm) 15.000 Product Weight (g) 24.700 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Full Duplex Support Yes Jumbo Frame Support 9K max. MTBF (hours) 1,912,948 hours OS Compatibility - Windows 11
- Windows 11 ARM
- Windows 10
- Windows 8.1
- Windows 8
- Windows 7
- Windows Server 2022
- Windows Server 2019
- Windows Server 2016
- Windows Server 2012 R2
- Windows Server 2008 R2
- macOS Sonoma (14.0)
- macOS Ventura (13.0)
- macOS Monterey (12.0)
- macOS Big Sur (11.0)
- macOS Catalina (10.15)
- macOS Mojave (10.14)
- macOS High Sierra (10.13)
- macOS Sierra (10.12)
- Mac OS X El Capitan (10.11)
- Linux
- Chrome OS
- iOS
- iPadOS
- Android
- Windows Server 2025
Promiscuous Mode Yes PXE Yes Wake-On-LAN (WOL) Yes Bus Type USB 3.2 Gen 1 Chipset ID Realtek - RTL8153B Industry Standards - IEEE 802.3i 10BASE-T
- IEEE 802.3ab 1000BASE-T
- IEEE 802.1q VLAN Tagging
- IEEE 802.3x
- IEEE 802.3u 100Base-TX
- USB Power Delivery 3.0

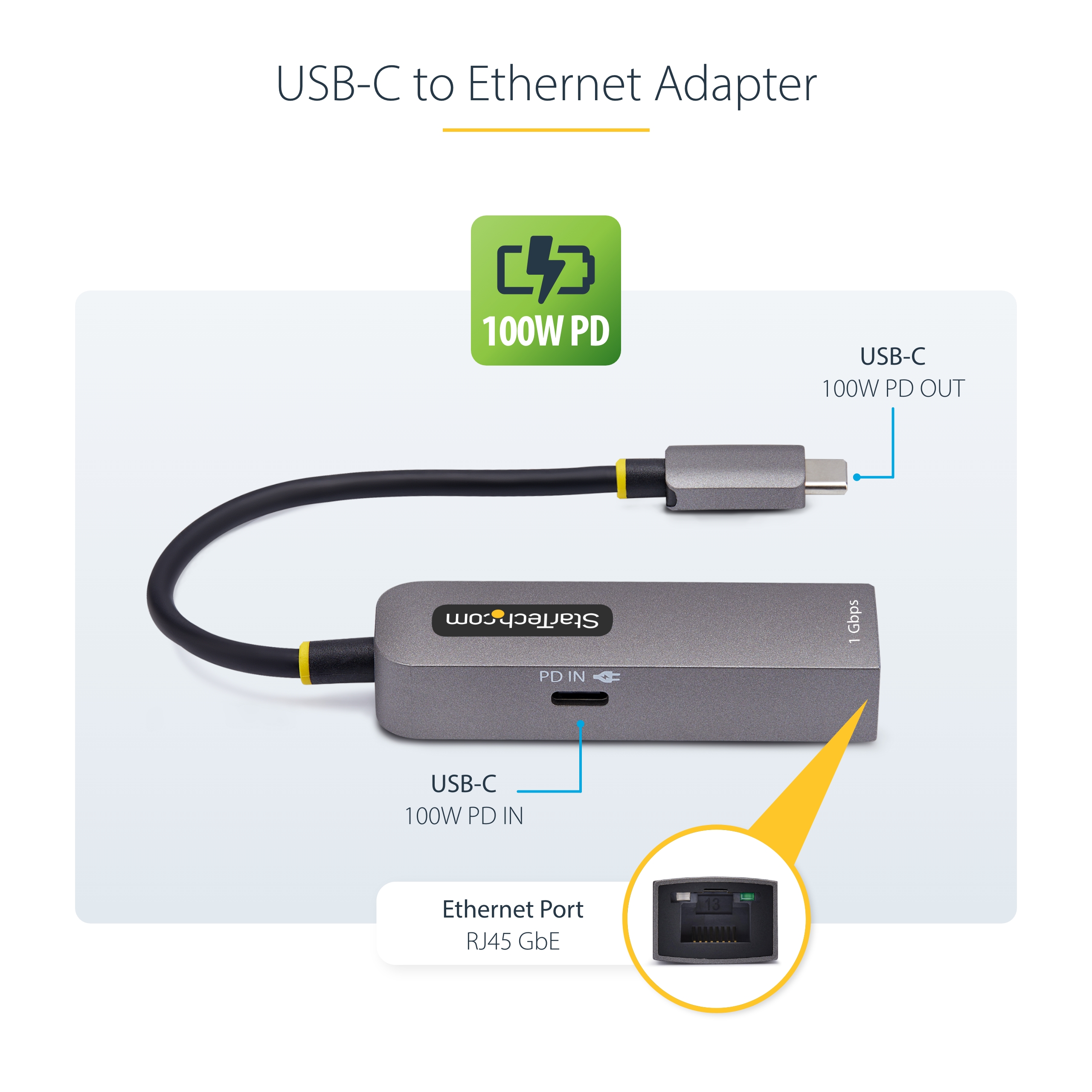

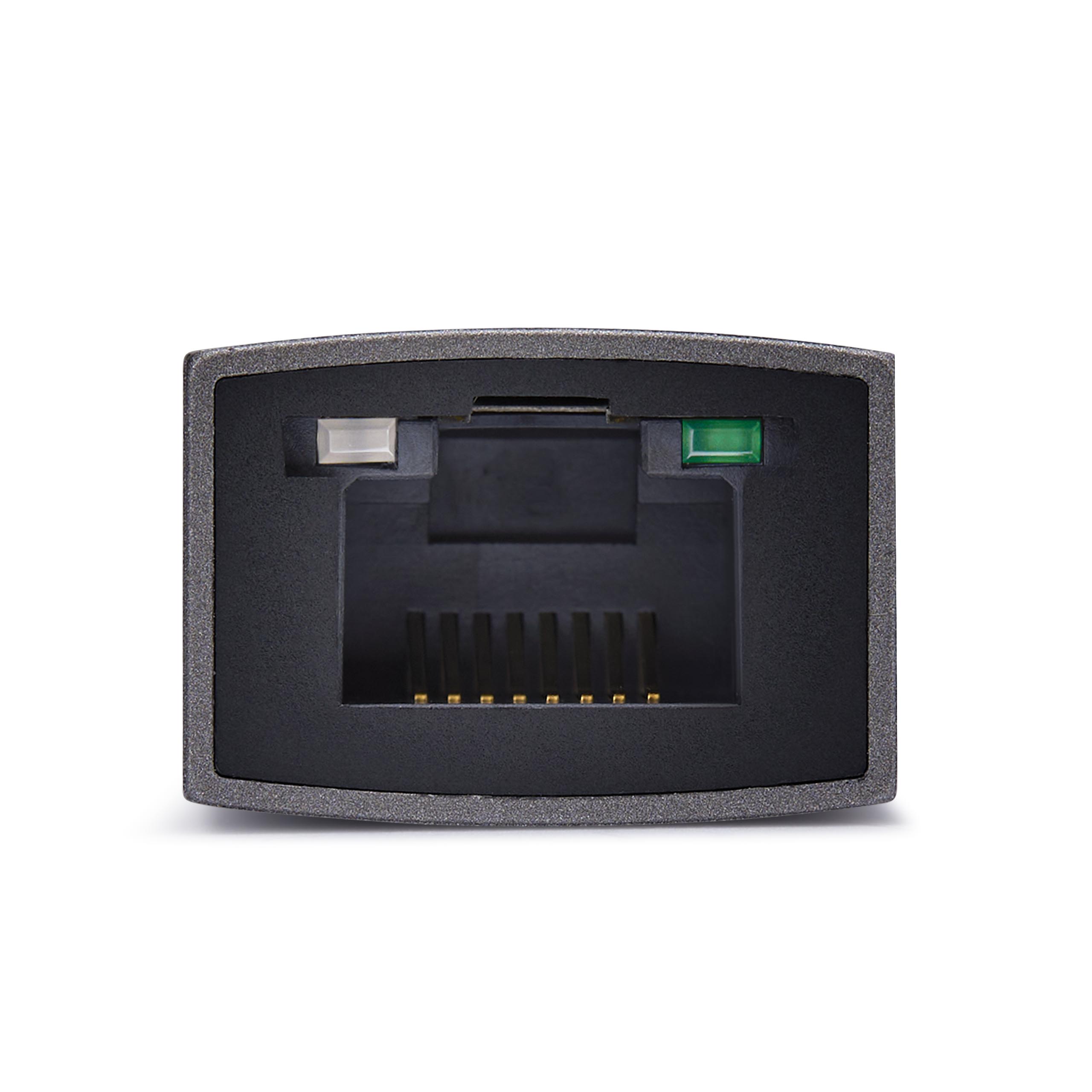

Interface/Bridge RJ45 (Gigabit Ethernet) LED Indicators Network Adapter Host USB 3.0 - USB-C Network Adapter LAN Ports 1 USB Pass-Through No Carton Depth (mm) 500 Carton Height (mm) 210 Carton Quantity 250 Carton Weight Gross (g) 7550 Included in Package 1 - USB Ethernet Adapter Package Depth (mm) 89 Package Height (mm) 16 Package Width (mm) 172 Package Quantity 1 Package Weight (g) 30 Packaging Description USB Type-C to Gigabit Ethernet Adapter - 100W PD Passthrough Packaging Description India USB Type-C to Gigabit Ethernet Converter - 100W PD Passthrough Sub-Carton Depth (mm) 306 Sub-Carton Height (mm) 64 Sub-Carton Width (mm) 164 Sub-Carton Weight (g) 302 Connector 1 USB-C (5Gbps, 4.5W) Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 A+ Not Required Actual Inbox Documents Created None Amazon Merchandising Manager Kathleen Marshall Application Photos Required Artwork Due Date 2024-07-19 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Comparable SKU Comment 1G 60W PD Passthrough USB-C Network Adapter Comparable SKU 2 Comment 1G USB-C adapter Network Adapter; full VBL (perhaps add longer cable) Digital Content Due Date 2024-10-11 Enhanced Gallery Uploaded Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,MX,NL,NZ,SE,UK,US Primary Technology - Power Delivery
- USB-C
Product Development Specialist Alex Sikora Product Information Creation Specialist (PICS) Maria Powell Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2024-07-12 Target Production Release 2024-08-15 Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle Latest Video Not Required
