1M-40G-USB4-CABLE

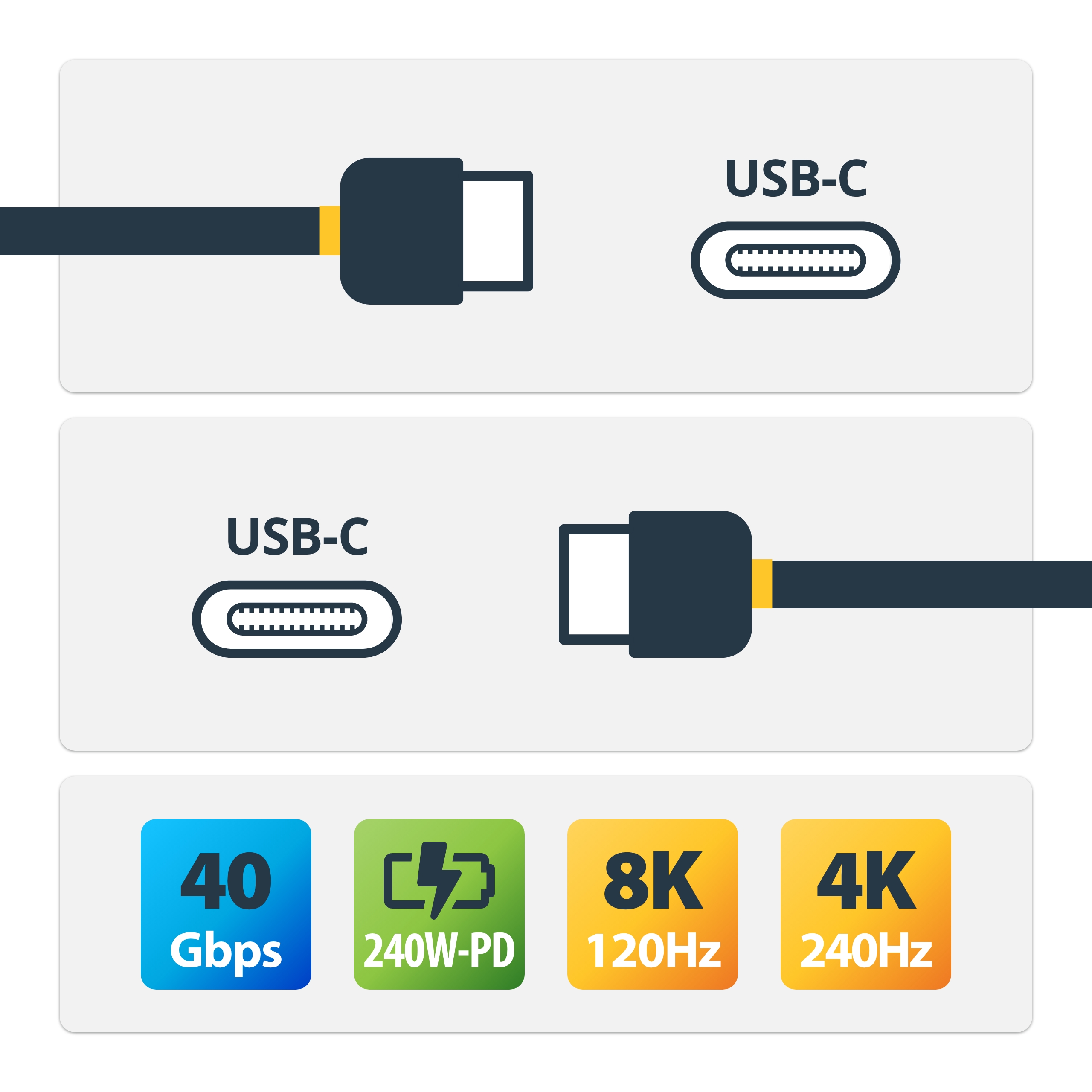

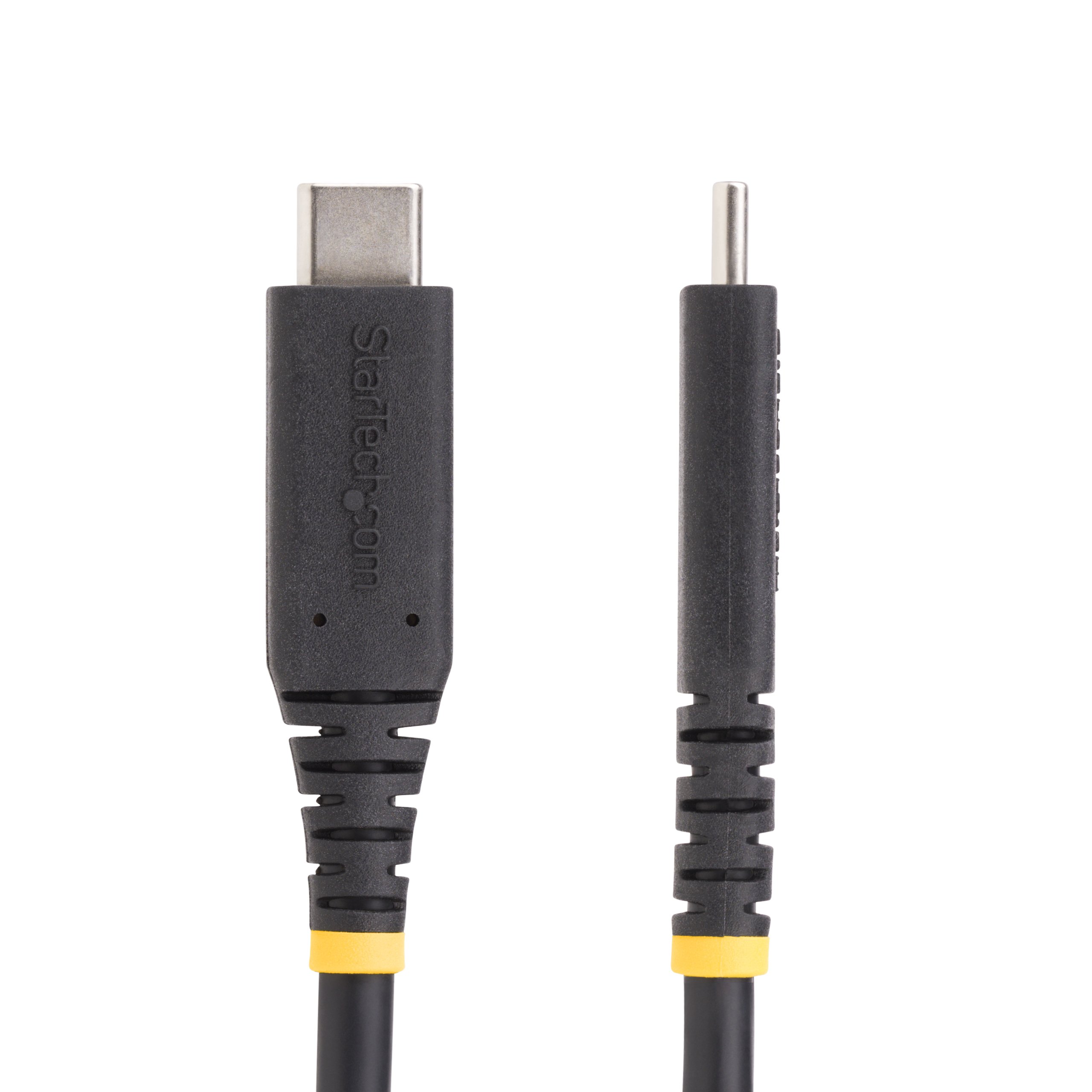

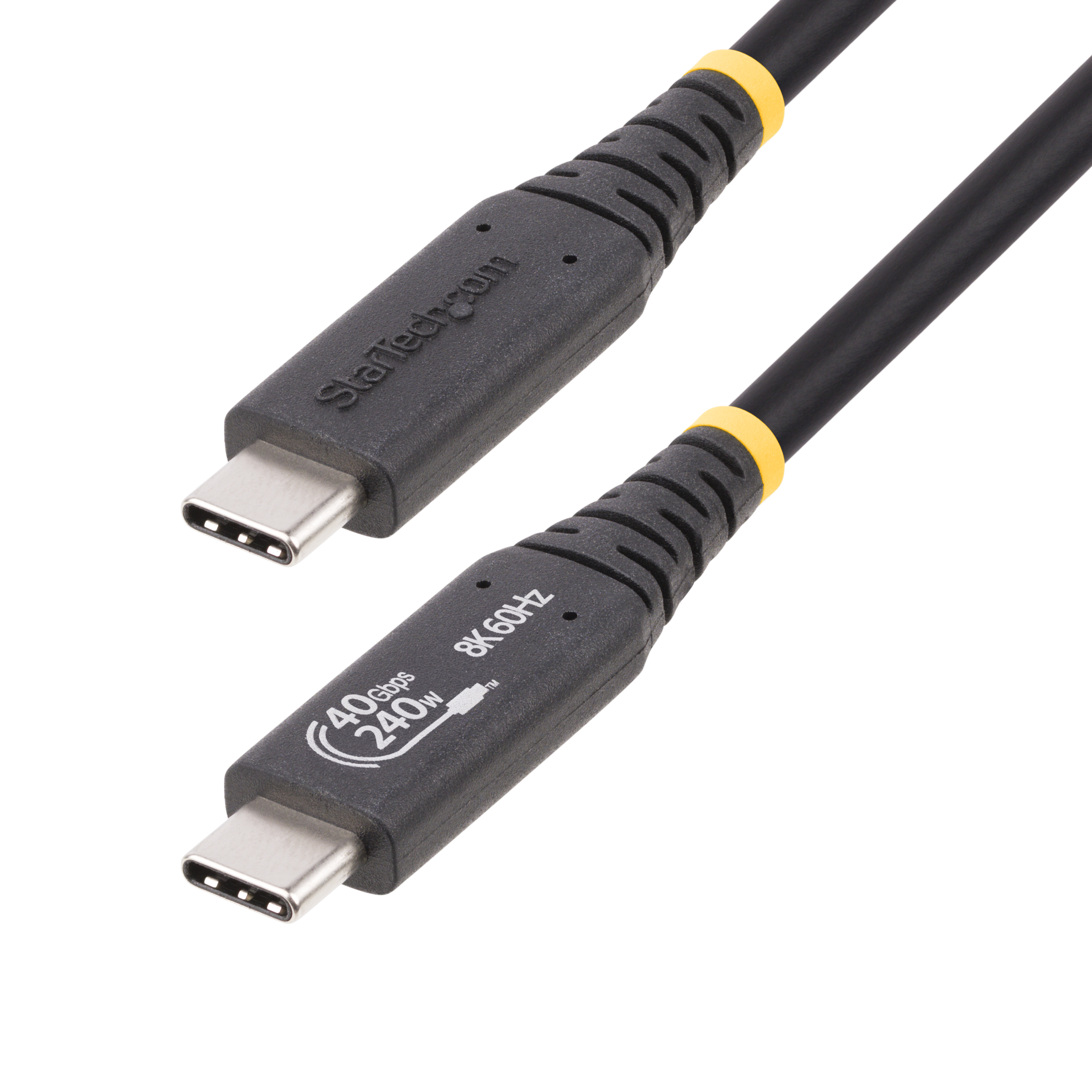

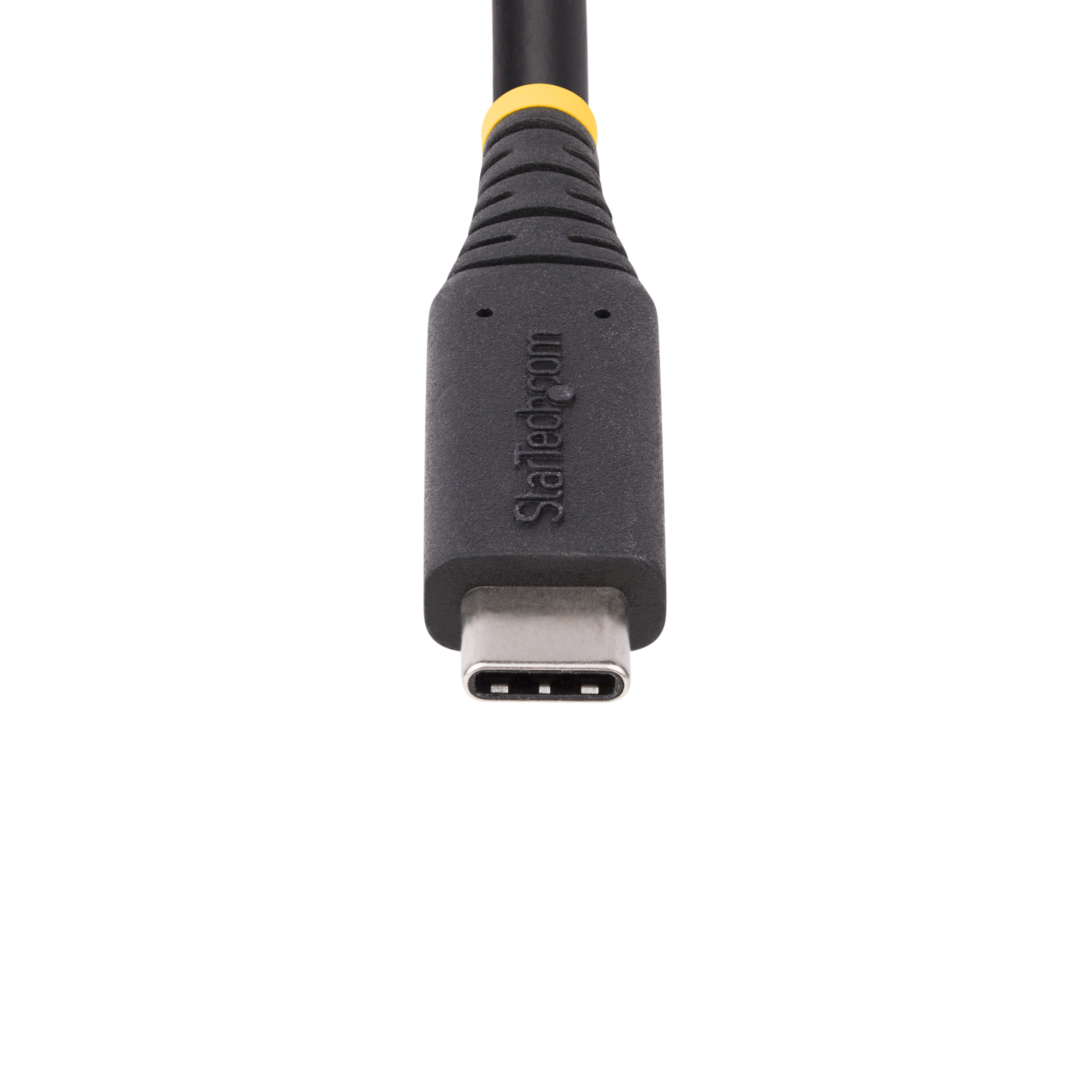

USB 4 Gen 3 40Gbps C to C Cable with EPR 240W USB IF C
Use this USB-IF Certified USB-C cable for fast and reliable connections to your USB4 devices
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Name USB 4 Gen 3 40Gbps C to C Cable with EPR 240W USB IF C Product Number 1M-40G-USB4-CABLE UPC 065030899635 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cables > USB & Thunderbolt Cables Category Level 1 USB and Thunderbolt Cables Category Level 2 USB-C Cables Category Level 3 USB-C Cables - 40Gbps USB4 Family USB4 40Gbps Coaxial Country of Origin Europe & Japan Malaysia Country of Origin North America Malaysia Country of Origin History (1) Malaysia Country of Origin Revision (1) XXXXXX164X Product Title (Ultra-Short) USB4 Cable USB-C Product Title (Short) 1m USB4 Cable, USB-IF Certified USB-C Product Title (Medium) 1m (3.3ft) USB4 Cable, USB-IF Certified USB-C Cable, 40 Gbps, 8K, 240W PD EPR Product Title (Standard) 3.3ft (1m) USB4 Cable 40Gbps, 240W (5A) PD, 8K 120Hz/4K 240Hz DP Alt Mode, USB-IF Certified USB-C Cord, Thunderbolt Compat. Product Title (Long) 3ft (1m) USB4 Cable 40Gbps, 240W (5A) Power Delivery, 8K 120Hz / 4K 240Hz DP Alt Mode, USB-IF Certified USB-C Cable - Thunderbolt Compatible Product Title (AMZ) 3.3ft (1m) USB4 Cable 40Gbps, 240W (5A) PD, 8K 120Hz/4K 240Hz DP Alt Mode, USB-IF Certified, Thunderbolt Compat. Title Ingram (Part 1) 1m USB4 Cable USB-IF Certified Title Ingram (Part 2) 8K60/240W PD 3.1/40Gbps USB Type-C Website Product Headline Use this USB-IF Certified USB-C cable for fast and reliable connections to your USB4 devices Bullet 1 HIGH PERFORMANCE: Deliver full USB4 capabilities using this USB-C Cable; Enhance productivity with 8K/4K video, 40Gbps, and 240W charging over a single connection; Connector markings identify data/video/power specs; Choose the right USB4 cable at-a-glance Bullet 2 GUARANTEED COMPATIBILITY: Universal compatibility w/USB-C and Thunderbolt devices; USB-IF certified with E-Marker chip for safe and consistent Power Delivery output to USB-C devices; Supports DisplayPort 2.1 with DSC; Compliant with PCIe 3.0 Bullet 3 QUALITY CONSTRUCTION: Nickel-plated connectors with robust strain reliefs for durability; Coaxial wire with Mylar shield for enhanced EMI protection; Flexible TPE cable jacket is environmentally friendly, non-toxic, halogen-free, and RoHS compliant Bullet 4 APPLICATIONS: Ideal for high-performance laptops requiring extra power, including 16in MacBook Pro M3 Pro/M3 Max; Seamless connectivity with USB-C and Thunderbolt laptops, docking stations, portable monitors, and USB-C mobile devices Bullet 5 SPECS: 3.3-foot (1-meter); USB4 (40 Gbps); 240W PD 3.1 Extended Power Range (EPR); Up to 8K 120Hz, 4K 240Hz; DisplayPort 2.1 DP Alt Mode w/DSC/HDR/HBR3; PCIe 3.0; Backward Compatible with USB 3.2/3.0/2.0; 30/34 AWG; Cable Outer Diam.: 0.19in (4.8mm) Bullets (Compact) 3.3ft/1m USB-IF Certified USB4 cable supports 40Gbps - DisplayPort 1.4 video w/ DSC up to 8K 120Hz / 4K 240Hz - 240W PD 3.1 charging - Certified E-marker firmware - Ideal for USB-C and Thunderbolt laptops, docks, monitors, and external storage Bullets (Consolidated) - 3.3ft/1m Certified USB4 cable supports 40 Gbps 8K video and 240W Extended Power Range (EPR) PD 3.1 charging - Ideal for high power USB-C and Thunderbolt laptops including 16in MacBook Pro M3 Pro/M3 Max - USB-IF Certified w/E-Marker for safety and reliability; Use connector markings to identify specs at-a-glance; TPE jacket w/Nickel-plated connectors - Suitable for USB-C and Thunderbolt laptops/docks/monitors/high-speed storage - USB 40Gbps; 8K 120Hz/4K 240Hz; DisplayPort 1.4 w/DSC; 240W PD 3.1 Marketing Copy Marketing Copy (No HTML) Applications - Transfer data at 40 Gbps speeds and 240W of power over a USB4 connection

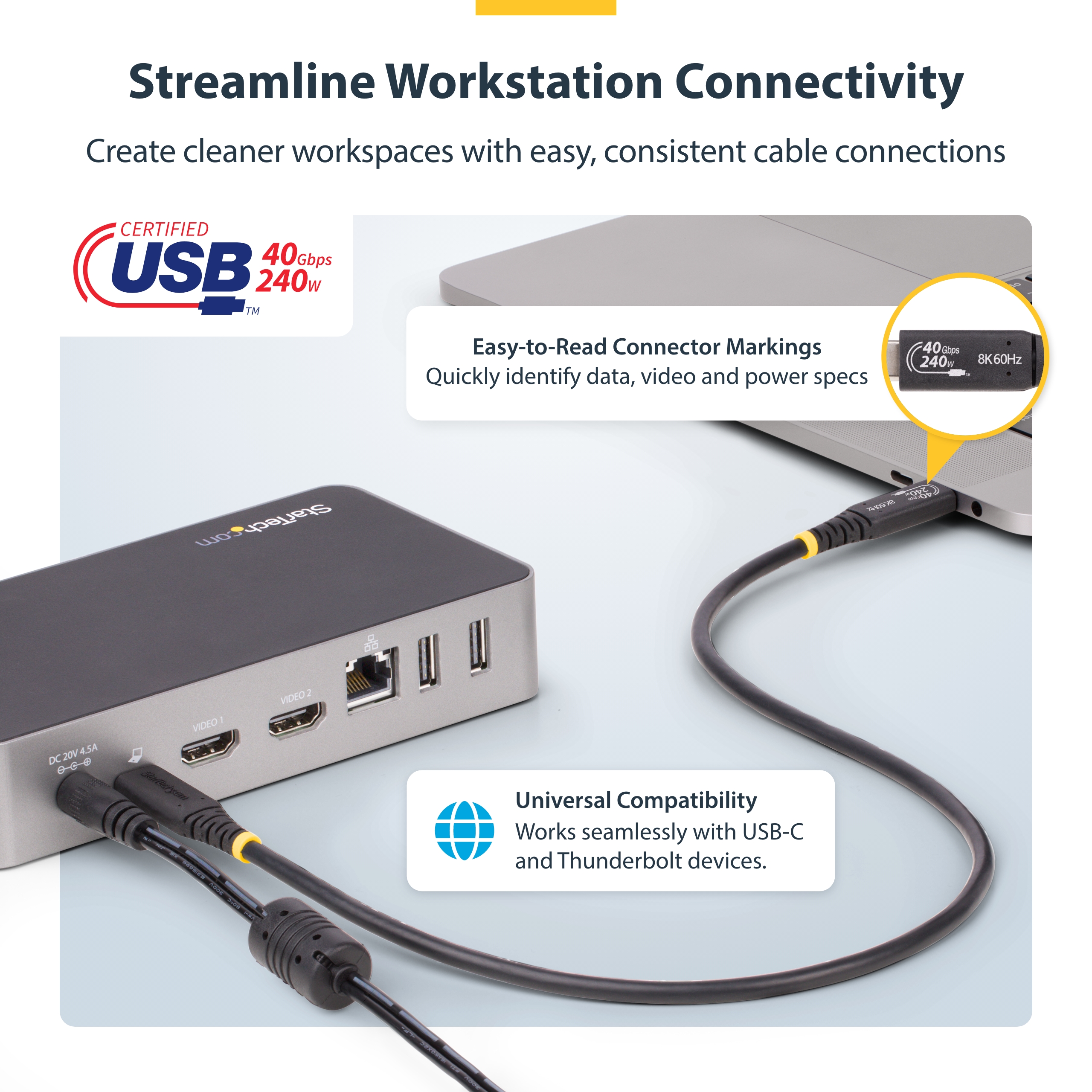

- Power and charge USB4/USB-C, and Thunderbolt devices
- Connect to an external USB-C networking device or PCIe chassis/storage
Website Search Keyword - USB4 Cable
- USB-C Cable
- Laptop Charging Cable
- Apple M3 MacBook Cable
- Apple M3 Max
- Dell Pro Max 14
- Intel Core Ultra 200H Series
Certification USB-IF Required Marketing Compliance Marks USB-IF - Specification - Global - USB4 Gen3 40Gbps 240W EPR Cable Required Regulatory Compliance Marks - CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - Low-Density Polyethylene
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- Triman/Info-Tri - Packaging - Waste - European Union - Plastic Bag
- RCM - EMC/EMI - Australia/New Zealand - DO NOT USE RCM EMC - General Statement - DON'T USE
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Prop 65 - Environmental - United States - Proposition 65 Warning Label
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - TB4CDOCK
- TB3CDK2DH
- TB3DK2DHV
- TB310G2
Related Products - TBLT34MM50CM
- TBLT3MM1M
- TBLT3MM2M
- TBLT34MM50CW
- TBLT3MM1MW
- TBLT3MM2MW
- TBLT3MM1MA
- TBLT4MM1M
- TBLT4MM50CM
- CC1M-40G-USB-CABLE
- A40G2MB-TB4-CABLE

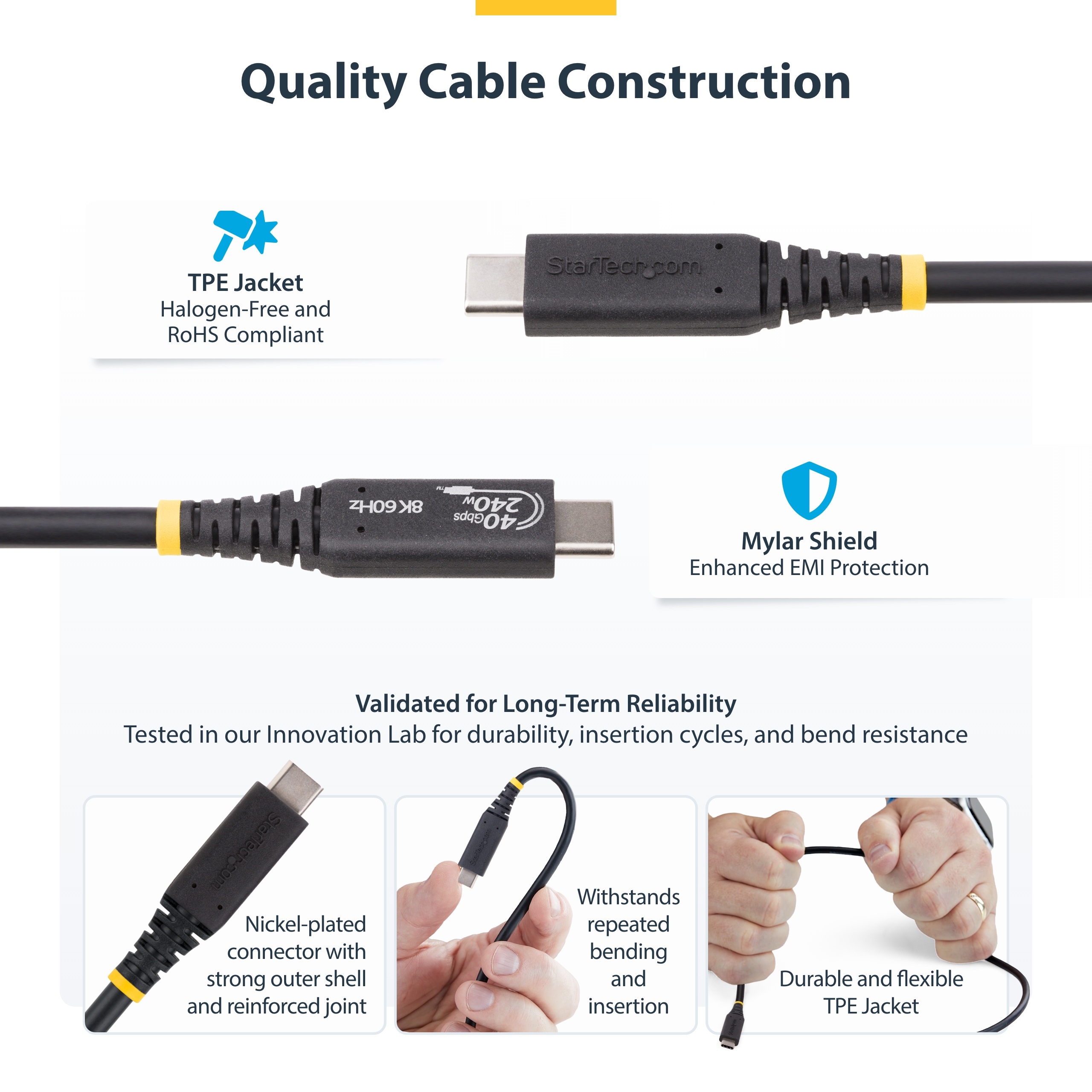

Input Current 5A Input Voltage 48V DC Power Delivery 240W Cable OD 4.8 Color Black Connector Style Straight Humidity 40 - 65% RH Material Santoprene - Thermoplastic Rubber (TPE) Operating Temperature 0°C to 60°C (32°F to 140°F) Product Length (mm) 1000.000 Product Width (mm) 12.350 Product Height (mm) 6.500 Product Weight (g) 46.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Wire Gauge 26/32 AWG Audio Specifications DisplayPort - 32 Channel Audio Maximum Data Transfer Rate 40 Gbps Maximum Digital Resolutions 8K 120Hz Supported Protocols USB Speed USB4 (40Gbps) USB Type and Rate USB4 (40Gbps) Video Support Yes Active or Passive Adapter Passive Cable Jacket Material TPE - Thermoplastic Elastomers Cable Shield Material Aluminum-Mylar Foil with Braid Connector Plating Nickel Connectors Combo USB-C to USB-C Host or Charger Connector USB-C Peripheral Connector USB-C Carton Depth (mm) 315 Carton Height (mm) 330 Carton Quantity 150 Carton Weight Gross (g) 8865 Included in Package 1 - USB4 Cable Included In Package for Label 1 - USB4 Cable Number of Sub-Cartons 15 Package Depth (mm) 126 Package Height (mm) 16 Package Width (mm) 140 Package Weight (g) 56 Packaging Description 1m USB4 Cable - USB-IF Certified USB-C Packaging Description India 1m USB4 Cable - USB-IF Certified USB-C Sub-Carton Depth (mm) 165 Sub-Carton Height (mm) 53 Sub-Carton Width (mm) 298 Sub-Carton Quantity 10 Sub-Carton Weight (g) 546 Connector 1 USB-C (40Gbps, 100W PD Input) Connector 1 (Quantity) 1 Connector 2 USB-C (40Gbps, 100W PD Input) Connector 2 (Quantity) 1 A+ Not Required Actual Inbox Documents Created None Amazon Merchandising Manager Veronica Ye Application Photos Uploaded Artwork Due Date 2024-02-19 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Comparable SKU Comment USB 3.2 Gen 2 10Gbps, 100W. Comparable SKU 2 Comment n/a Digital Content Due Date 2024-06-07 Enhanced Gallery Uploaded Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,IE,IT,JP,MX,NL,NZ,SE,UK,US Primary Technology USB4 (40Gbps) Product Development Specialist Chi Zhang Product Information Creation Specialist (PICS) Brian Chan Product Manager Tim North Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Target Development Completion Date 2024-02-02 Target Production Release 2024-02-09 Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle Latest Video Not Required
