Main Image
1P3FFCNB-USB-SERIAL

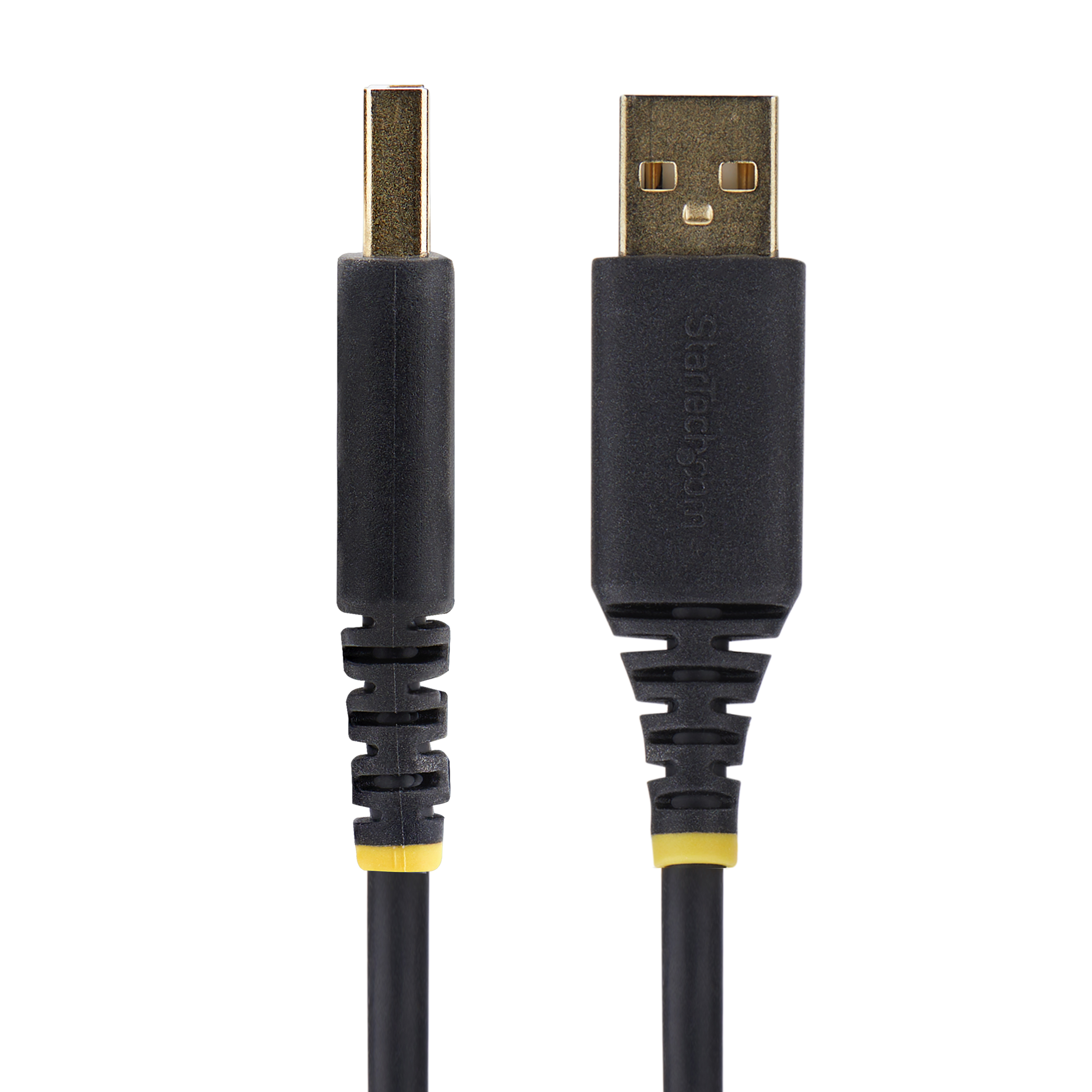

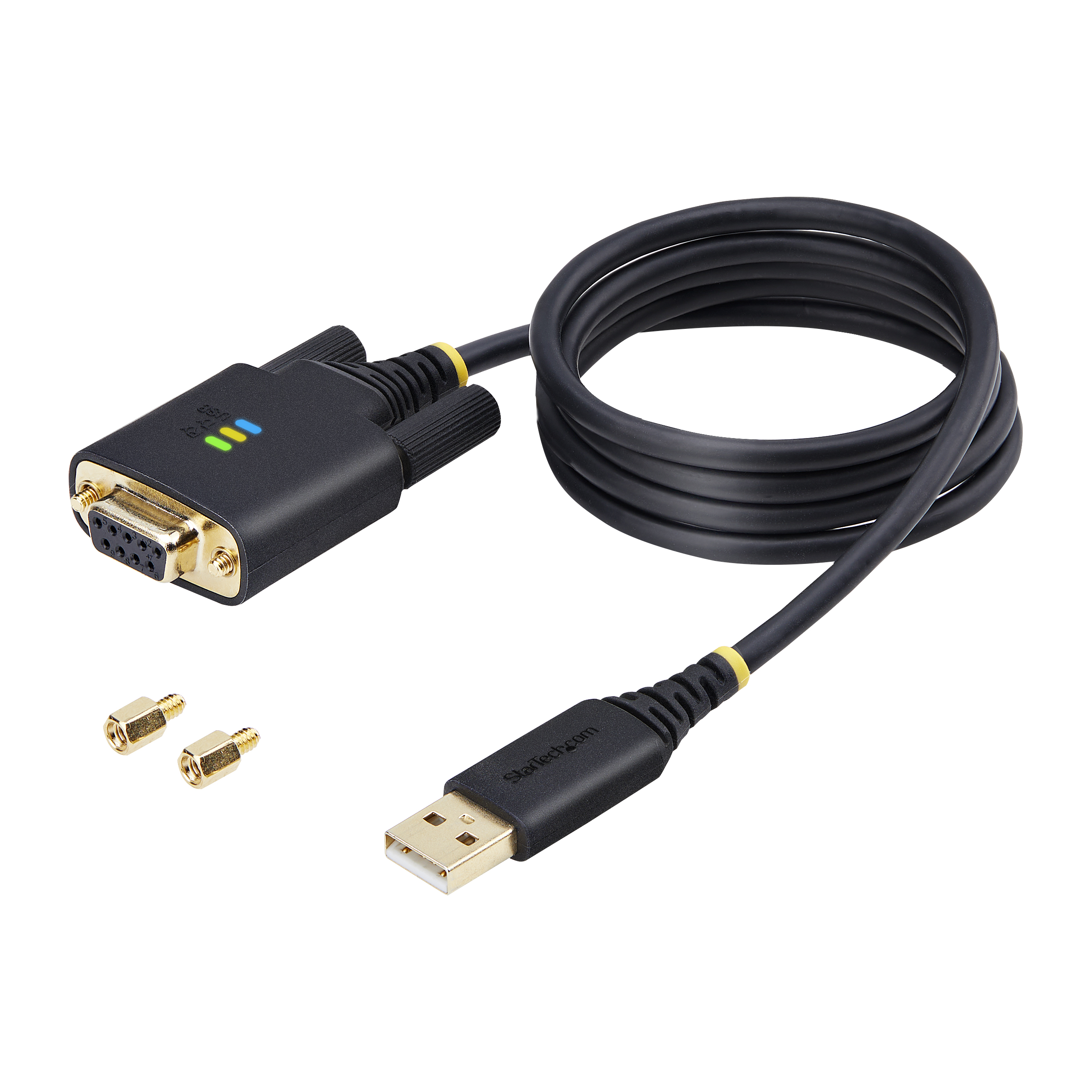

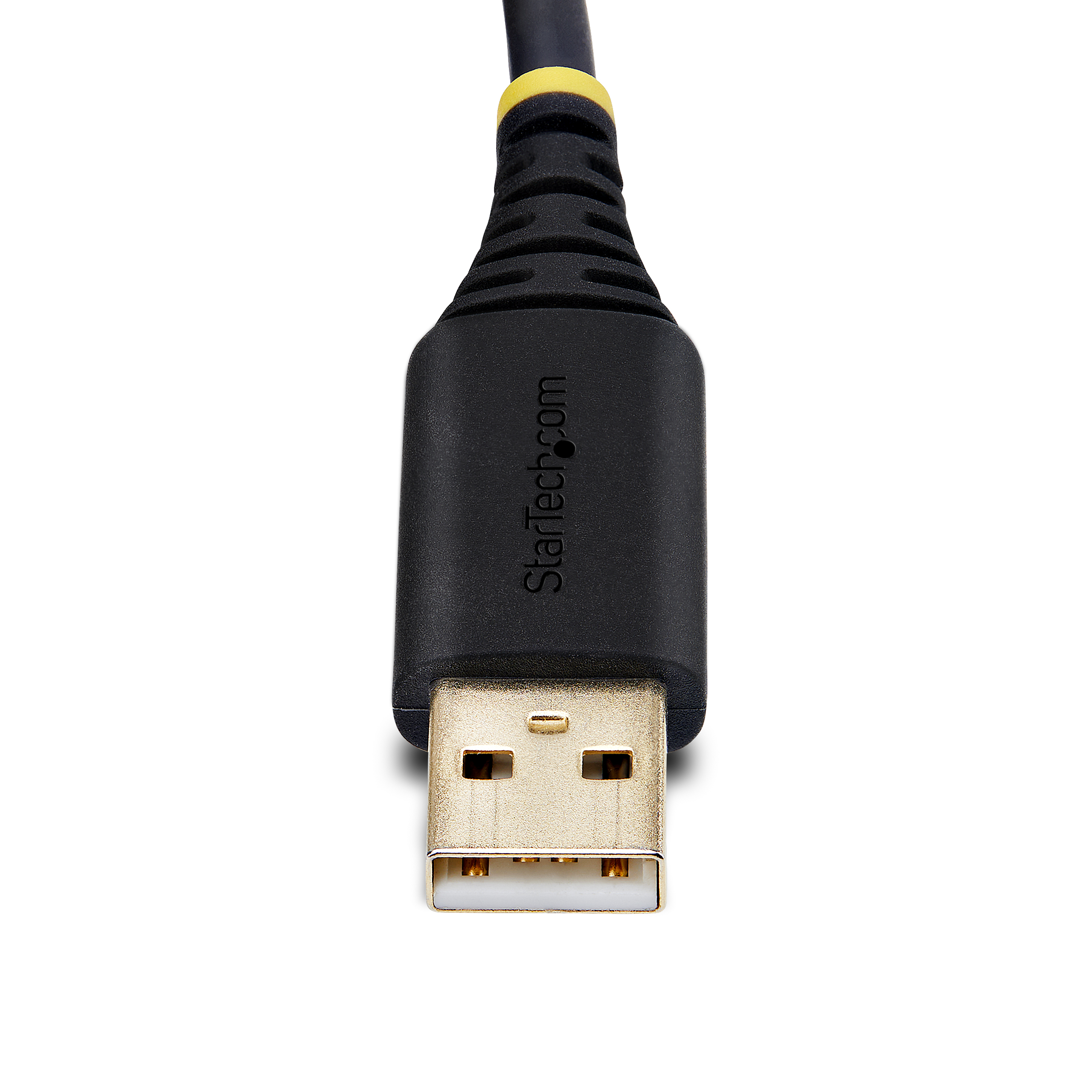

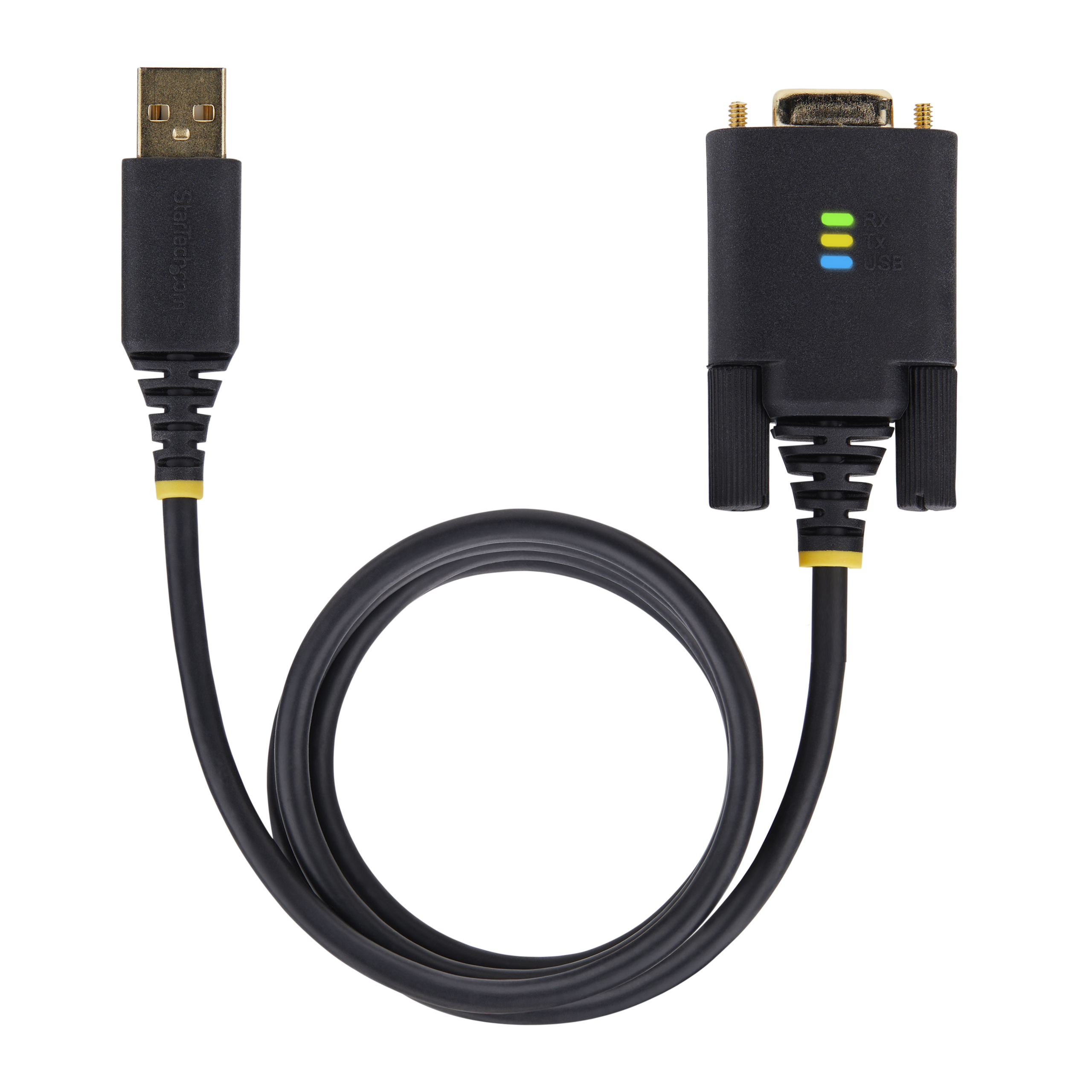

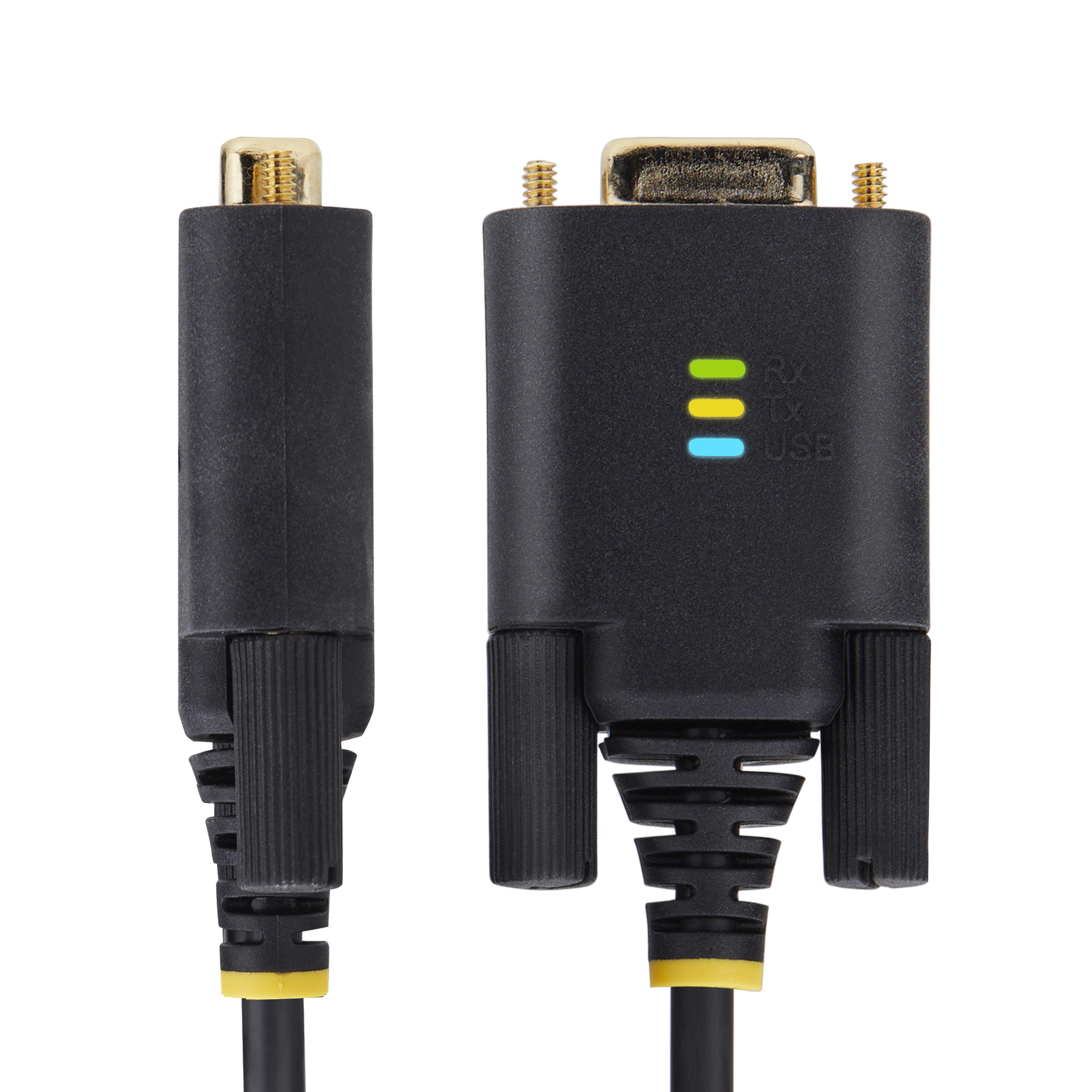

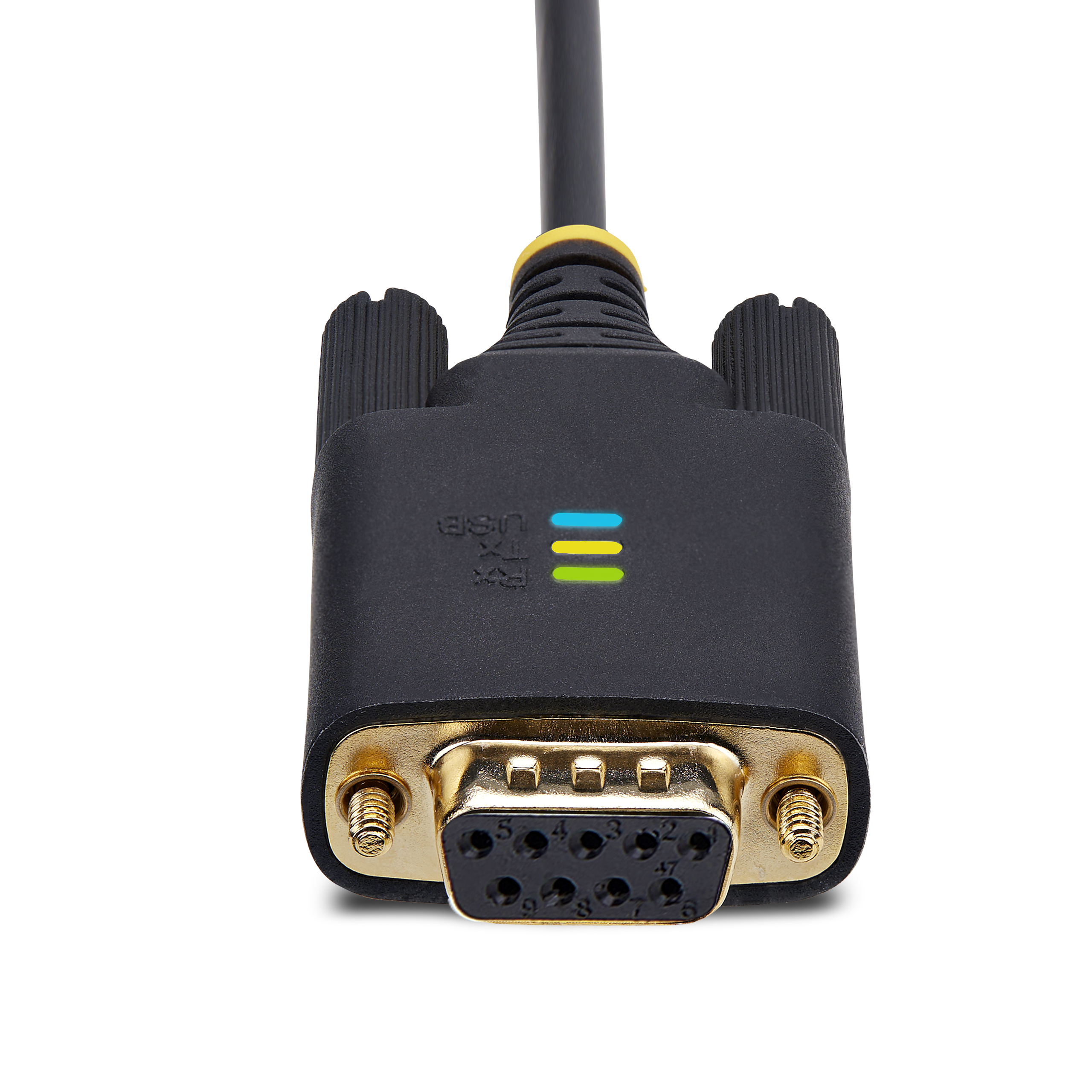

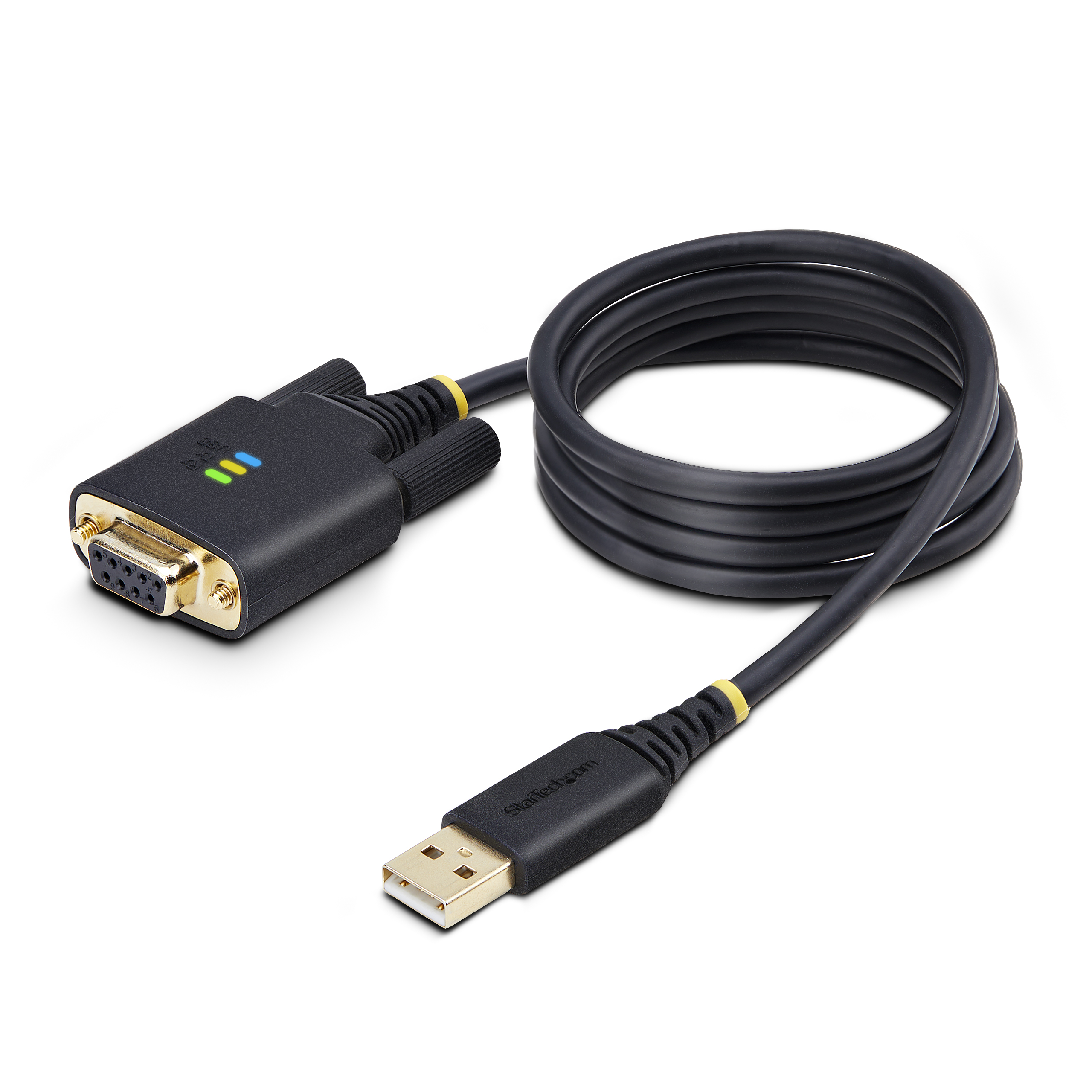

USB to RS-232 Null Modem Cable - FTDI - 3ft
Add an RS-232 null modem serial port to a laptop or desktop, using an available USB-A port
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Video Link YouTube
Product Name USB to RS-232 Null Modem Cable - FTDI - 3ft Product Number 1P3FFCNB-USB-SERIAL UPC 065030900362 Lifecycle status Active Warranty 2 Years Weighted Opportunity 92653 Taxonomy Product > Cards & Adapters > Serial and Parallel Cards & Adapters Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 USB Serial Host Adapter Interconnects Family USB to Serial Adapter Cables - USB-A - FTDI - Null Modem Country of Origin Europe & Japan Malaysia Country of Origin North America Malaysia Country of Origin History (1) Malaysia Country of Origin Revision (1) XXXXXX156X Product Title (Ultra-Short) USB Serial DCE Cable Product Title (Short) 3ft (1m) USB to Null Modem Serial Cable Product Title (Medium) 3ft (1m) USB to Serial DCE Adapter Cable, FTDI, RS232, Changeable Screws/Nuts Product Title (Standard) 3ft (1m) USB to Null Modem Serial Adapter Cable, COM Retention, FTDI, RS232, Changeable DB9 Screws/Nuts, Windows/macOS/Linux Product Title (Long) 3.3ft (1m) USB to Null Modem Serial Adapter Cable, Interchangeable DB9 Screws/Nuts, COM Retention, USB-A to RS232, FTDI, Level-4 ESD Protection, Windows/macOS/ChromeOS/Linux - Rugged TPE Construction Product Title (AMZ) 3ft (1m) USB to Null Modem Serial Adapter Cable, COM Retention, FTDI, USB-A to RS232, LED Indicators, Changeable DB9 Screws Nuts Title Ingram (Part 1) 1m USB to Serial DCE Cable - Title Ingram (Part 2) USB to Null Modem Serial Adapter Website Product Headline Add an RS-232 null modem serial port to a laptop or desktop, using an available USB-A port Bullet 1 INTERCHANGEABLE NUTS & SCREWS: Secure the adapter to a serial device using the pre-installed DB9 screws, or install the included DB9 Nuts for compatibility with serial peripheral devices/cables; Add a null modem RS232 port to a computer using a USB-A port Bullet 2 LED INDICATORS: Transmit and Receive LED indicators offer real-time monitoring of port activity, while the USB LED indicates when the adapter is successfully recognized by the desktop or laptop Bullet 3 COMPATIBILITY: Works with Windows, macOS, ChromeOS, and Linux; Drivers auto-install in Windows 7+, macOS 10.15+, and Linux; COM retention enables the COM port to automatically re-assign; Resolve DCE/DTE conflicts without using cross-wired cables/adapters Bullet 4 BUILD QUALITY: Solid one-piece molded TPE housing and Level-4 ESD protection (15kV air/8kV contact) enhance reliability and longevity; Copper shielding minimizes EMI/RFI interference; Gold-plated connectors; Extended operating temperature of -40°C to 80°C Bullet 5 TECH SPECS: 3.3ft (1m) Cable Length; FTDI FT232R Chipset; Max Baud Rate: 921.6Kbps; 128 Byte RX and 256 Byte TX FIFO; Odd/Even/Mark/Space/None Parity Modes; 7 or 8 Data Bits; 1 or 2 Stop bits Bullets (Compact) Add a DB9 RS-232 null modem serial port to a computer using a USB-A port; Interchangeable DB9 Screws/Nuts; Screws pre-installed; Nuts included for device/cable compatibility; 3.3ft/1m Cable; Copper shielding; LED Indicators; FTDI; Windows/macOS/Linux Bullets (Consolidated) Add a Null Modem DB9 RS-232 serial port to a desktop/laptop using a USB-A port - DB9 screws pre-installed; DB9 Nuts included for device/cable compatibility - Resolve DCE/DTE conflict without cross-wired cables/adapters; Rugged TPE construction; level-4 ESD protection; Copper shielding; Operating temp. -40 to 80DEGC - Transmit/Receive LED indicators; USB LED shows successful enumeration - Windows/macOS/Linux; 3.3ft/1m Cable; Max Baud 115.2Kbps; 128 Byte RX; 256 Byte TX FIFO; FTDI FT232R Chipset Marketing Copy Marketing Copy (No HTML) Applications - Resolve DCE/DTE conflicts directly without the need for additional cross-wired serial cables or adapters
- Connect, monitor, and control industrial sensors and equipment
- Connect bar code scanners, receipt printers, and other point of sale devices
- Program LED and digital signage boards with serial communication ports
Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Packaging - Waste - European Union - DO NOT USE - Packaging - General
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
System and Cable Requirements Computer with a USB Type-A Port version 1.1 or greater Accessory Products - MXT10050CMBK
- USBEXTAA3BK
- MXT1002MBK
- MXT1003MBK
- USBEXTAA6BK
Related Products - 1P10FFCN-USB-SERIAL
- 1P10FFC-USB-SERIAL
- 1P3FP-USB-SERIAL
- 1P3FPC-USB-SERIAL
Power Source Bus Powered Cable Length (mm) 1000 Color Black Humidity 0% ~ 95% RH (non-condensing) Operating Temperature -40°C to 80°C (-40°F to 176°F) Product Length (mm) 1000.000 Product Width (mm) 34.000 Product Height (mm) 16.000 Product Weight (g) 55.000 Storage Temperature -40°C to 80°C (-40°F to 176°F) TAA Compliant No Data Bits 7, 8 FIFO Max Baud Rate 921.6 Kbps OS Compatibility - Windows 7
- Windows 8
- Windows 8.1
- Windows 10
- Windows 11
- Windows Server 2008 R2
- Windows Server 2012
- Windows Server 2012 R2
- Windows Server 2016
- Windows Server 2019
- Windows Server 2022
- Mac OS X Mavericks (10.9)
- Mac OS X Yosemite (10.10)
- Mac OS X El Capitan (10.11)
- macOS Sierra (10.12)
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- Linux
- Chrome OS
- Windows 11 ARM
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
- Windows Server 2025
Parity Even, Odd, None, Space, and Mark Stop Bits 1, 2 Supported Serial Protocol RS-232 Bus Type USB 2.0 Chipset ID FTDI - FT232R Industry Standards - USB 2.0/1.1
- RS-232
Interface/Bridge Serial IO Card Port Style Cable Adapters LED Indicators Carton Depth (mm) 579 Carton Height (mm) 304 Carton Quantity 60 Carton Weight Gross (g) 6534 Included in Package - 1 - USB to Serial Adapter

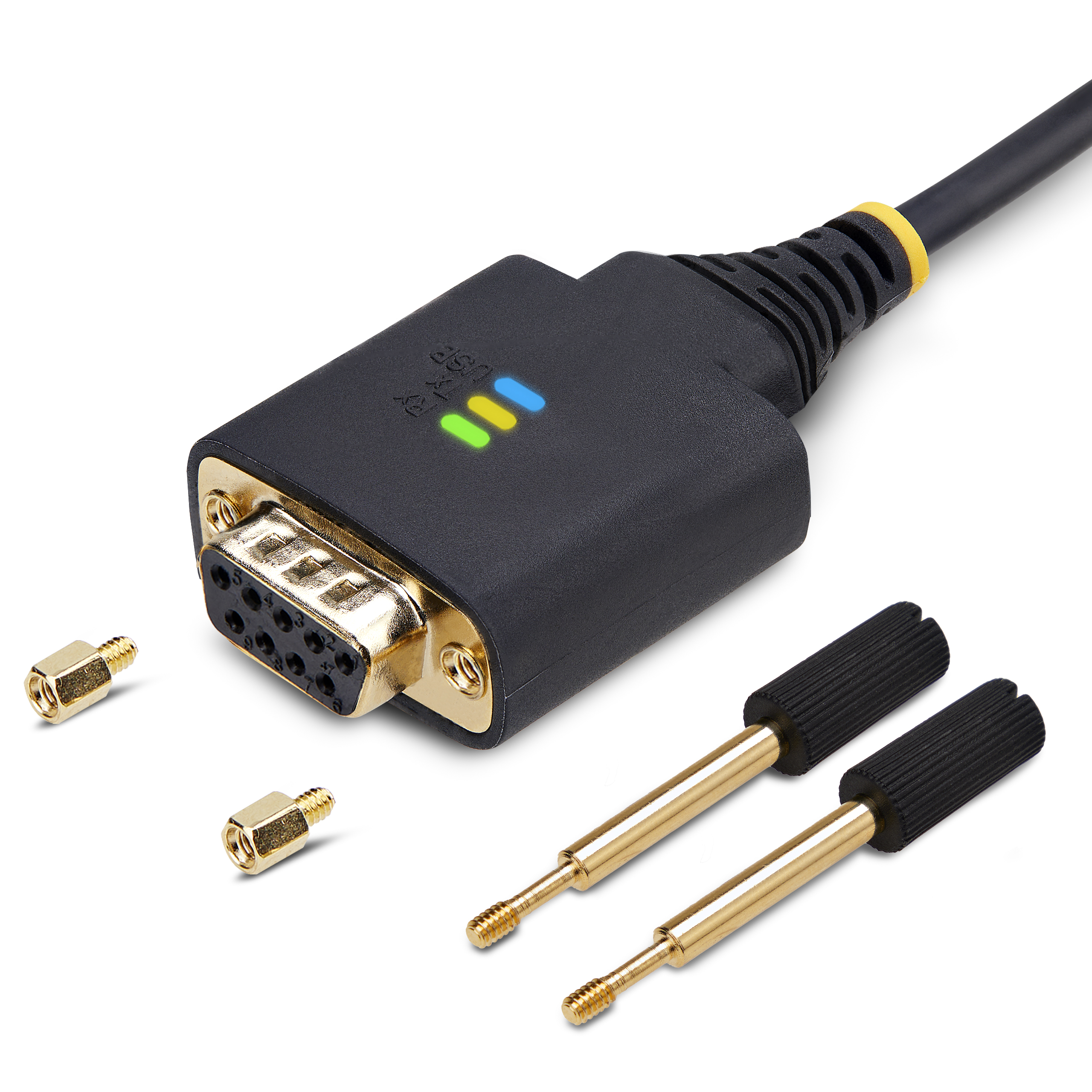

- 2 - DB9 Nuts
- 1 - Quick-Start Guide
Included In Package for Label - 1 - USB to Serial Converter
- 2 - DB9 Nuts
- 1 - Quick-Start Guide
Package Depth (mm) 146 Package Height (mm) 30 Package Width (mm) 141 Package Quantity 1 Package Weight (g) 84 Packaging Description 3ft (1m) FTDI USB-A to RS232 DB9 Null Modem Serial Adapter Cable - M/F Packaging Description India 3ft (1m) FTDI USB-A to RS232 DB9 Null Modem Serial Converter Cable - M/F Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 1 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Veronica Ye Application Photos Required Artwork Due Date 2023-09-15 Buying Center - AV & Collaboration Yes Buying Center - Data Center Yes Buying Center - End User Compute No Buying Center - Networking & Edge Yes Comparable SKU Comment 5.6ft long null modem cable with 2 LEDs. No other advanced features. Comparable SKU 2 Comment n/a Digital Content Due Date 2023-12-26 Enhanced Gallery Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,MX,NL,NZ,SE,UK,US Product Development Specialist Alex Sikora Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2023-09-08 Target Production Release 2023-09-30 Tech Lead Brian Linseman Technical Writer Dan Dagenais Technology Lifecycle None Video Not Required
