1P3FP-USB-SERIAL

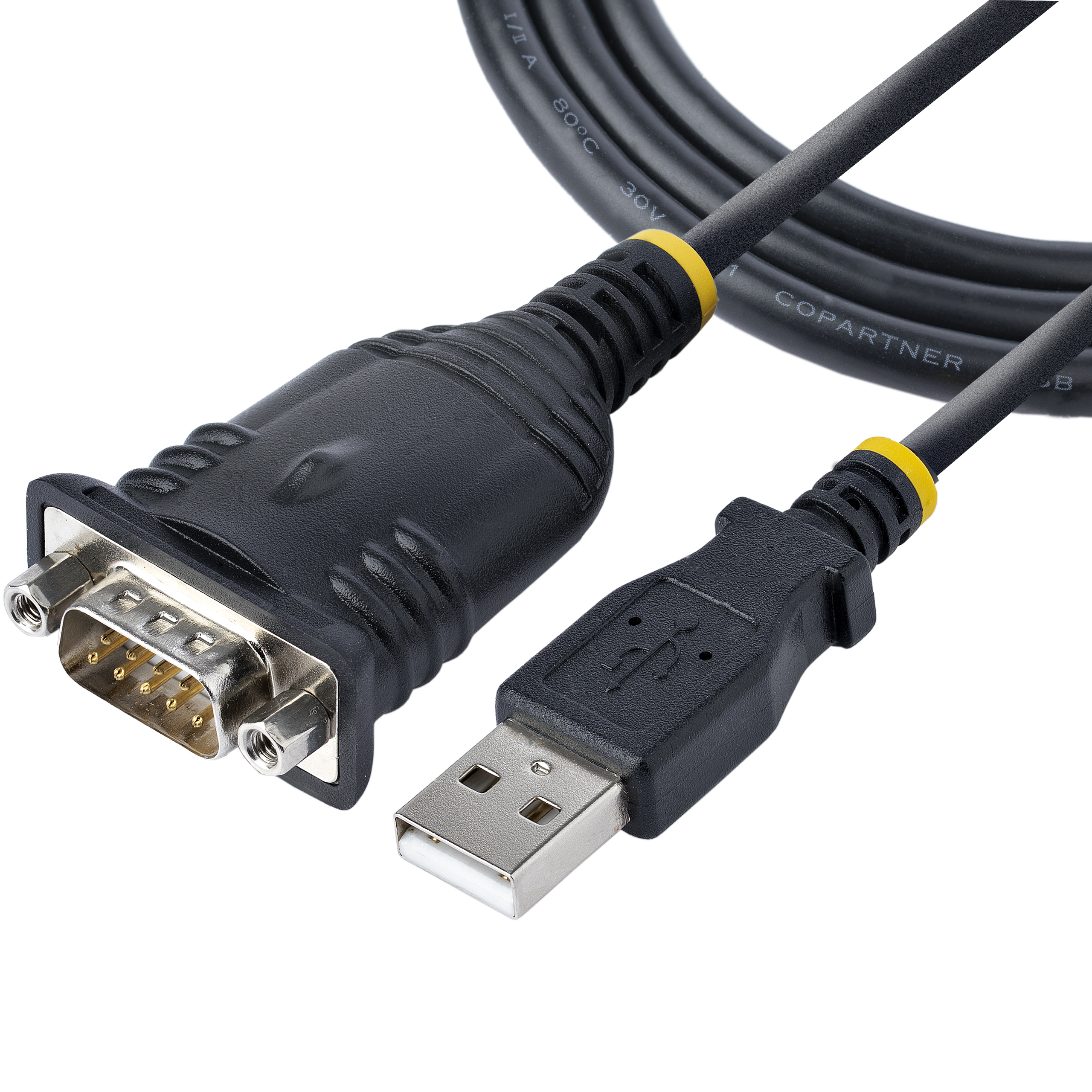

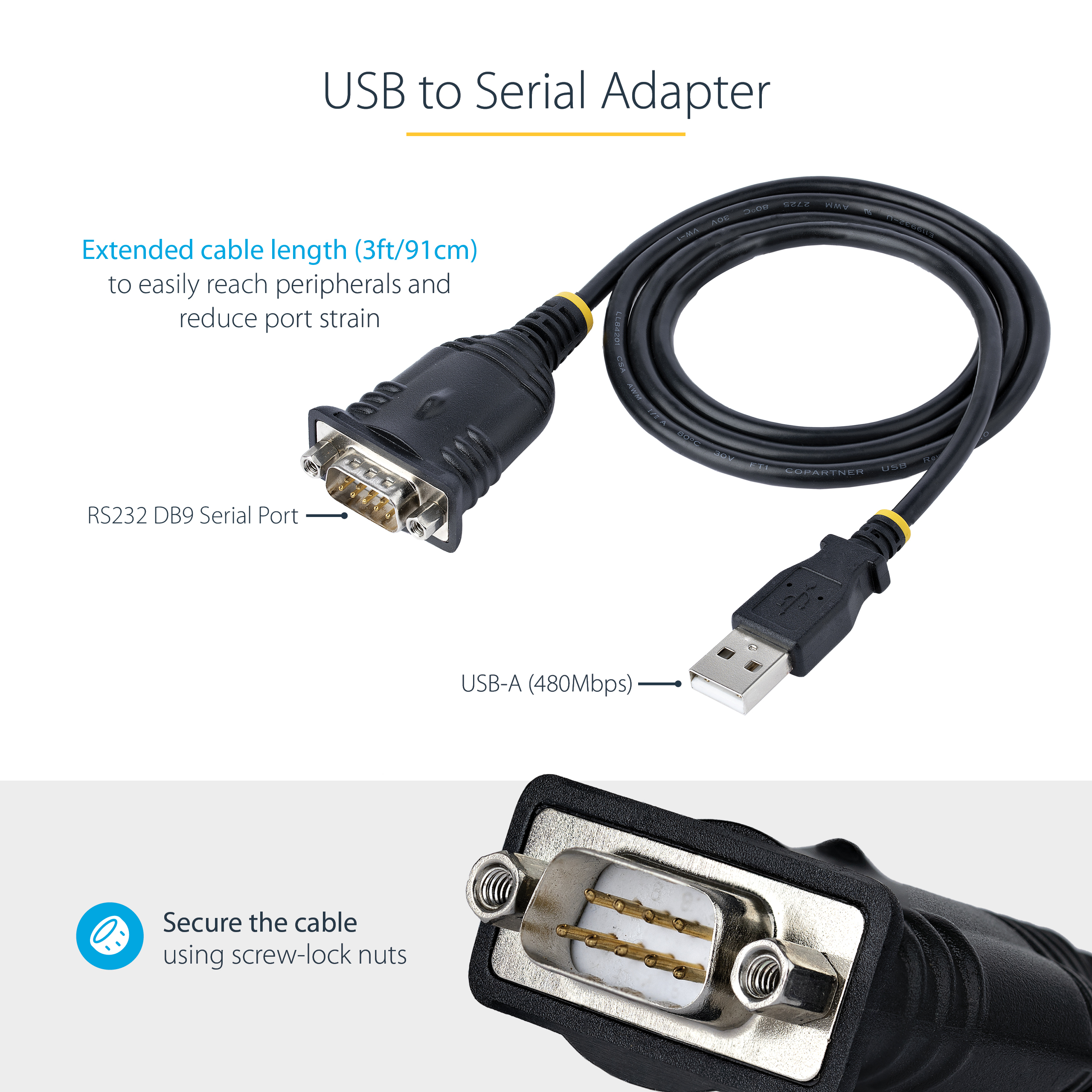

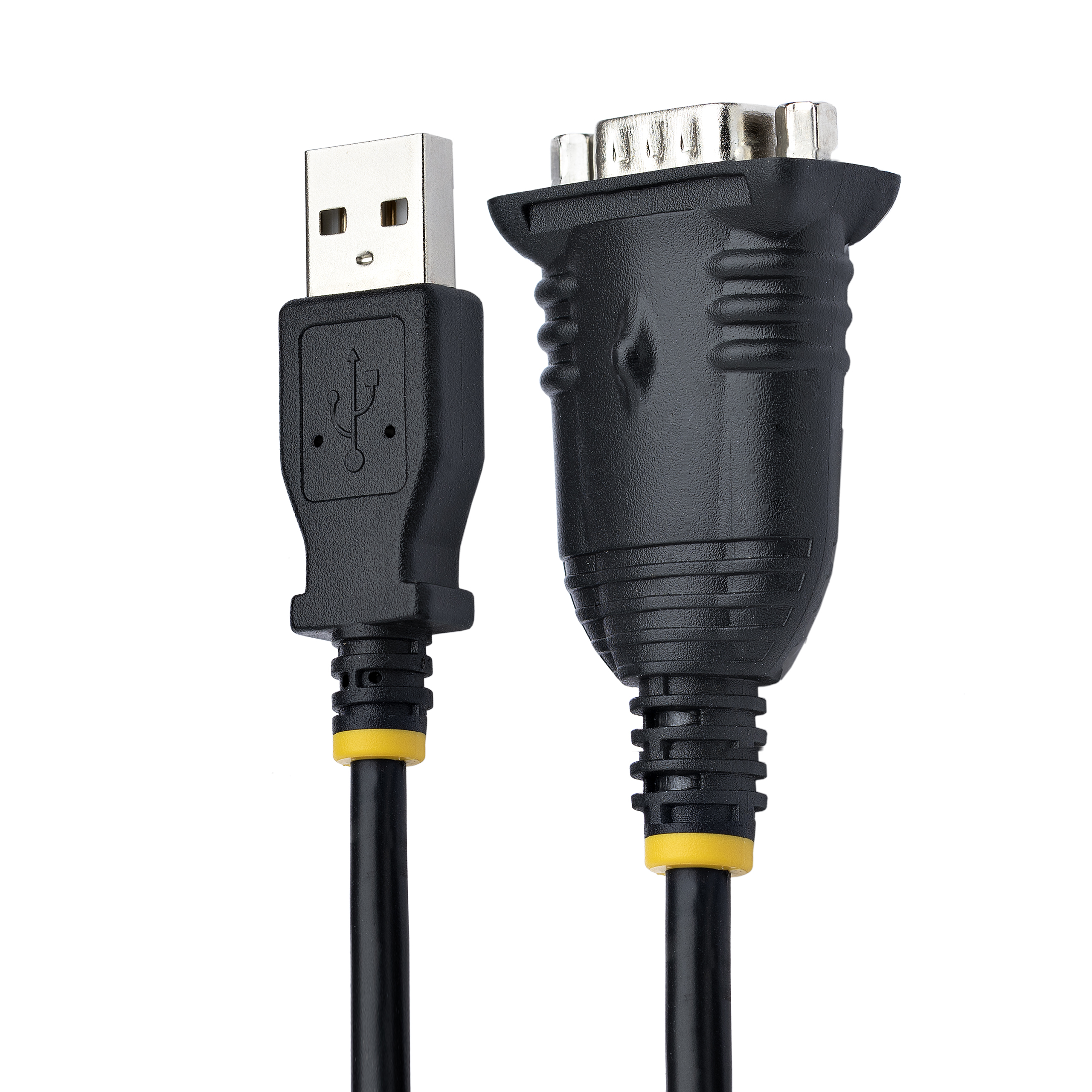

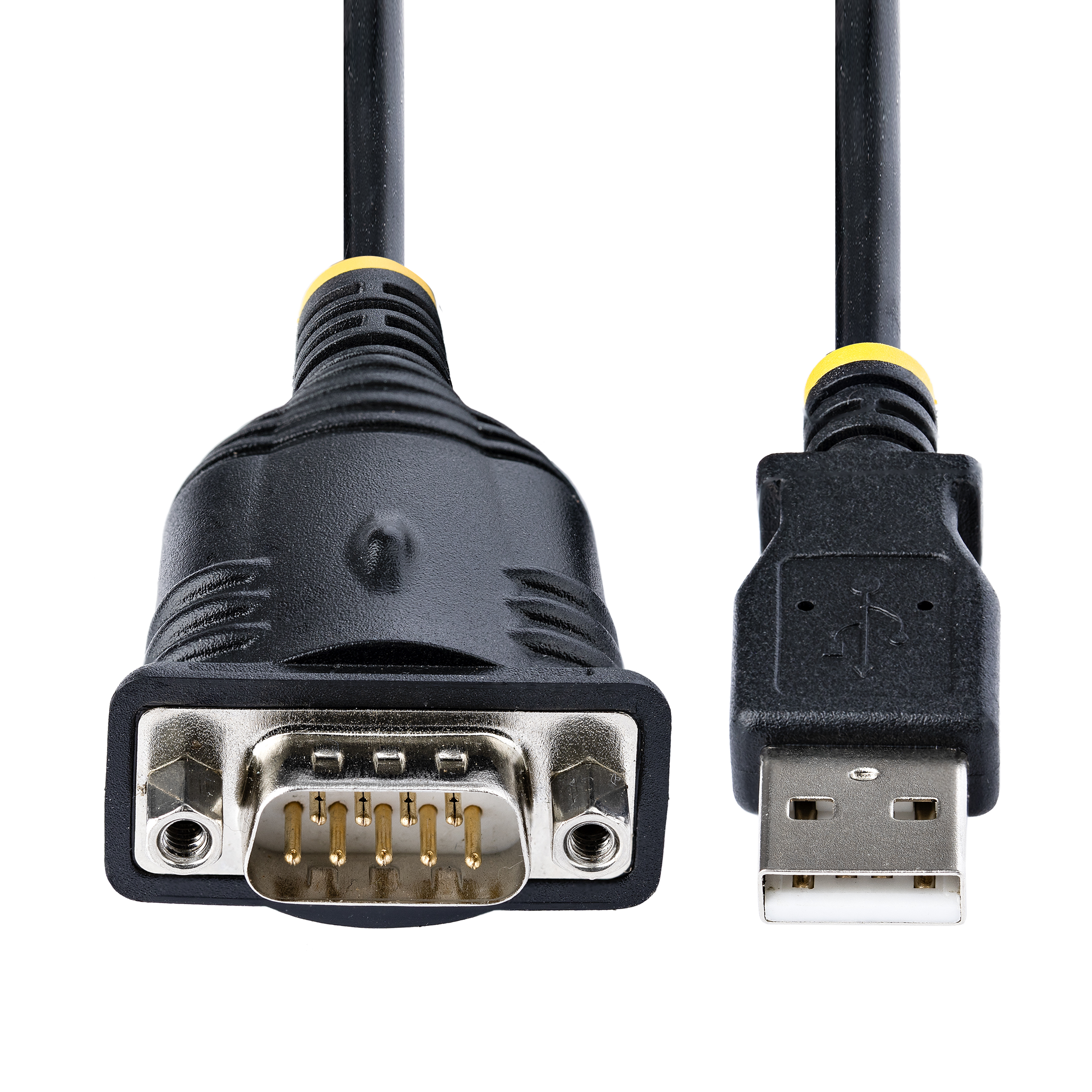

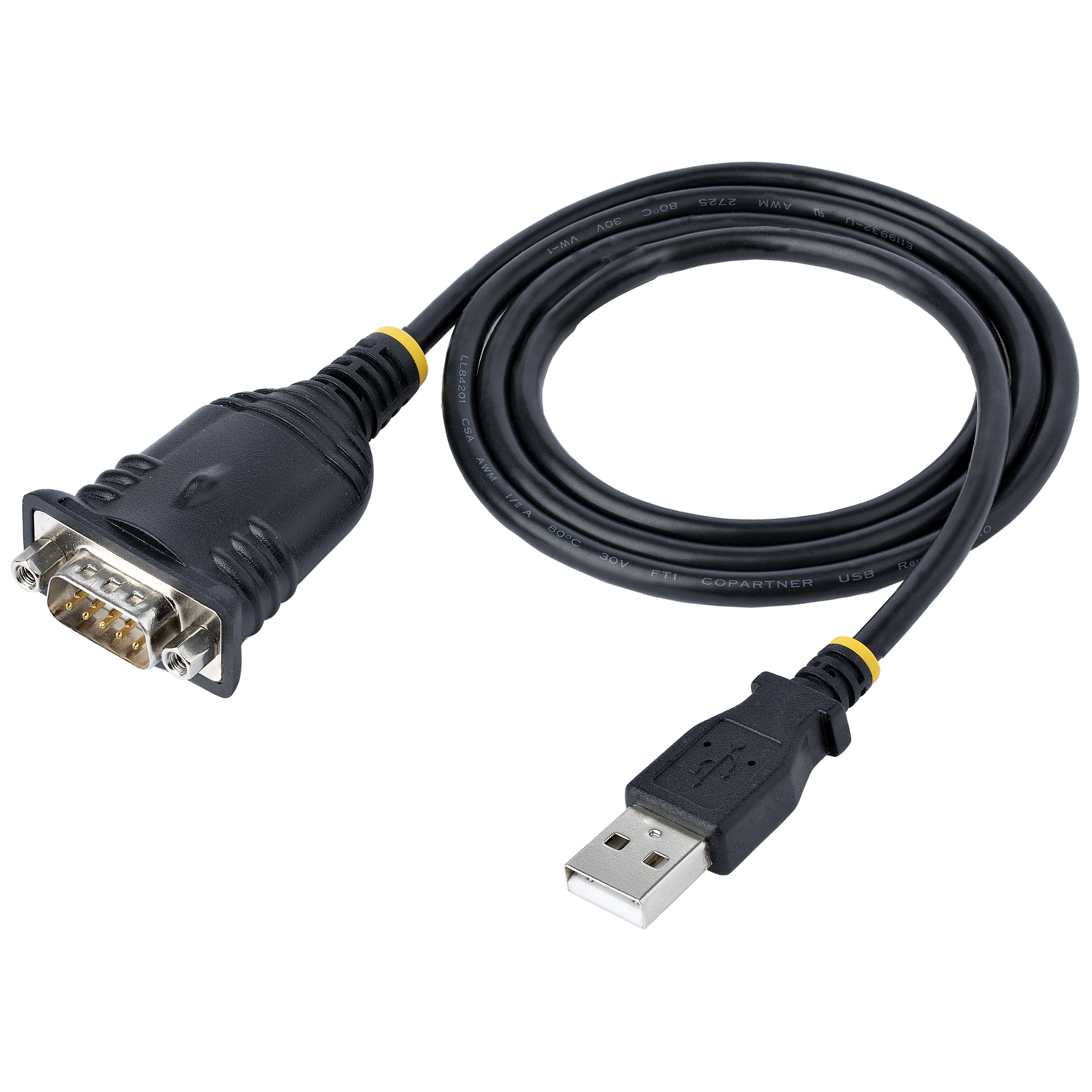

1m USB-A to RS232 DB9 Serial Cable - M/M

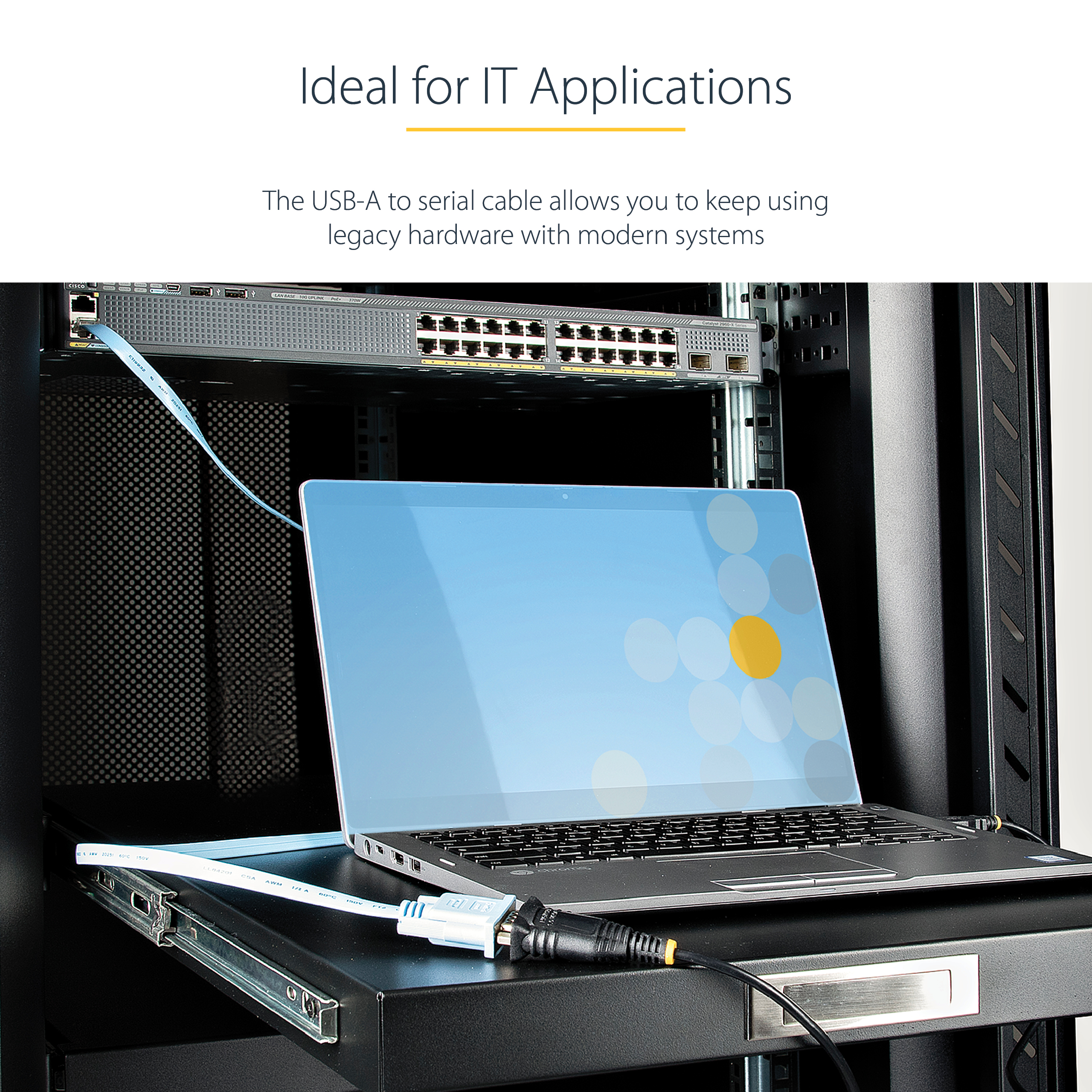

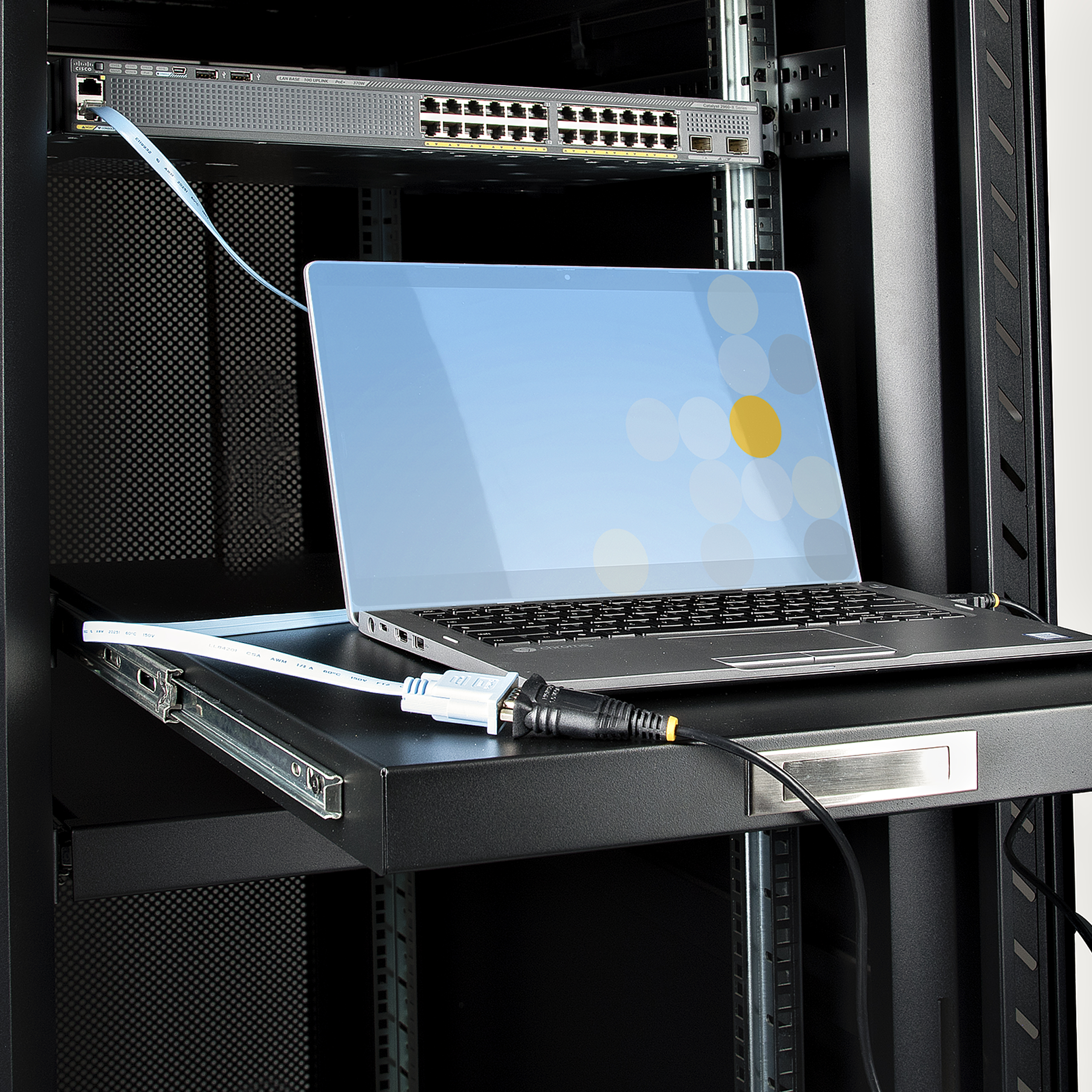

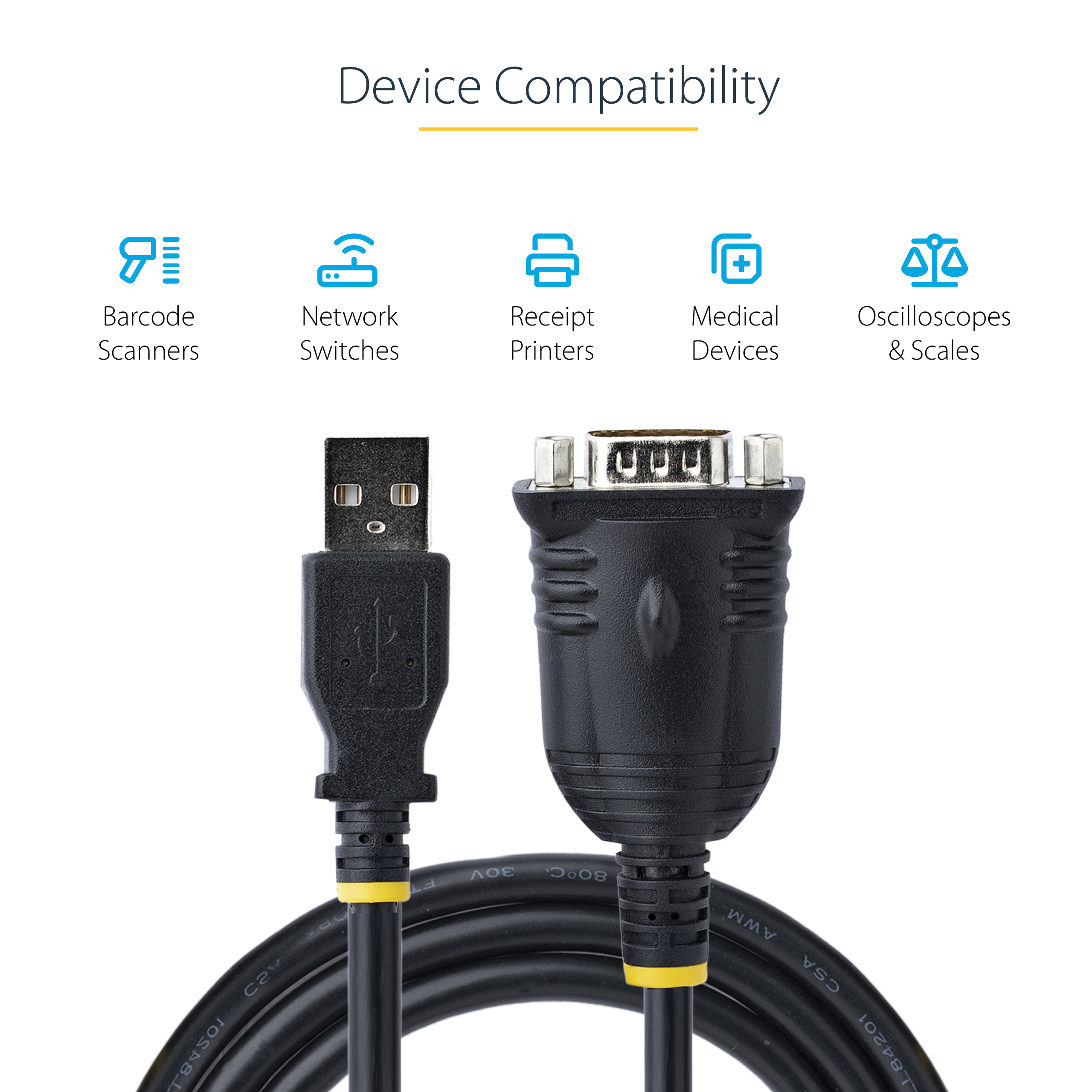

USB to Serial Cable | 921.6 Kbps | For Servers/Printers/Barcode Readers/AV | Prolific Chipset | Windows/Mac/Linux
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Name 1m USB-A to RS232 DB9 Serial Cable - M/M Product Number 1P3FP-USB-SERIAL UPC 065030894586 Lifecycle status Active Warranty 3 Years Taxonomy Product > Cards & Adapters > Serial and Parallel Cards & Adapters Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 USB Serial Host Adapter Interconnects Family USB to Serial Adapter Cables - USB-A - Prolific Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Country of Origin History (2) Malaysia Country of Origin Revision (2) XXXXXX156X Product Title (Ultra-Short) USB to Serial Cable Product Title (Short) 3ft USB to Serial Cable/RS232 Adapter Product Title (Medium) 3ft USB to Serial Cable, USB to Serial Port Adapter, Window/Mac, Prolific IC Product Title (Standard) 3ft (1m) USB to Serial Cable, DB9 Male RS232 to USB Converter, USB to Serial Adapter, COM Port Adapter with Prolific IC Product Title (Long) 3ft (1m) USB to Serial Cable, DB9 Male RS232 to USB Converter, Prolific IC, USB to Serial Adapter for PLC/Printer/Scanner/Switch, USB to COM Port Adapter, Windows/Mac Product Title (AMZ) 3ft (1m) USB to Serial Cable, DB9 Male RS232 to USB Converter, Prolific IC, USB to Serial Adapter for PLC/Printer/Scanner/Switch, USB to COM Port Adapter, Windows/Mac (1P3FP-USB-SERIAL) Title Ingram (Part 1) 3ft USB to Serial Cable - Title Ingram (Part 2) Win/Mac - Prolific IC Website Product Headline USB to Serial Cable | 921.6 Kbps | For Servers/Printers/Barcode Readers/AV | Prolific Chipset | Windows/Mac/Linux Bullet 1 USB TO SERIAL: Connect serial RS232 (DB9) devices to a computer with this USB to serial adapter. Secure the cable using the screw-lock nuts located on the male serial DB9 connector. Reach peripherals with extended cable length 3 ft (0.91 m) Bullet 2 DEVICE COMPATIBILITY: Use this USB to RS232 serial adapter to reliably connect, configure, and monitor serial devices. Compatible with barcode readers/scanners, network switches, receipt printers, PLCs, medical devices, oscilloscopes, scales, etc. Bullet 3 APPLICATIONS: This USB to serial cable is ideal for IT applications such as server rooms, industrial control/automation, logistics, POS, AV installations, laboratories, etc. Continue using legacy hardware with modern systems, using this USB to RS232 cable Bullet 4 USB TO SERIAL ADAPTER SPECS: 3ft (91cm) Cable Length | Max Baud 921.6 Kbps | 512 Byte FIFO | Supports Windows, macOS, and Linux | Prolific PL2303GT Chipset | Odd/Even/Mark/Space/None Parity Modes | 5/6/7/8 Data Bits Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this USB to serial port adapter is backed for 3-years, including free lifetime 24/5 multilingual technical assistance Bullets (Compact) Use current and legacy serial RS232 devices w/ this USB to serial cable - Use the USB to RS232 serial adapter w/ barcode readers/scanners/networks switches/scales - 3ft (91cm) Long/921.6 Kbps/512 Byte FIFO/5-6-7-8 Bits/Prolific PL2303/Screw-lock Nut Bullets (Consolidated) Connect current and legacy serial RS232 (DB9) devices to a computer with this USB to serial cable - Use this USB to RS232 serial adapter to reliably connect barcode readers/scanners/networks switches/scales - This USB to serial cable is ideal for IT server rooms/industrial control/automation/POS/AV installations - Specifications: 3ft (91cm) Length |Max Baud 921.6 Kbps | 512 Byte FIFO | 5/6/7/8 Data Bits | Windows/macOS/Linux | Prolific PL2303 IC | Screw-lock Nuts Marketing Copy Marketing Copy (No HTML) Website Search Keyword usb to serial cable Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
System and Cable Requirements Computer with an available USB Type A port version 1.1 or greater Accessory Products - MXT10050CMBK
- MXT1001MBK
- MXT1002MBK
- MXT1003MBK
- SCNM9FM1MBK
- SCNM9FM2MBK
- MXT106
- MXT10010
- MXT100_25

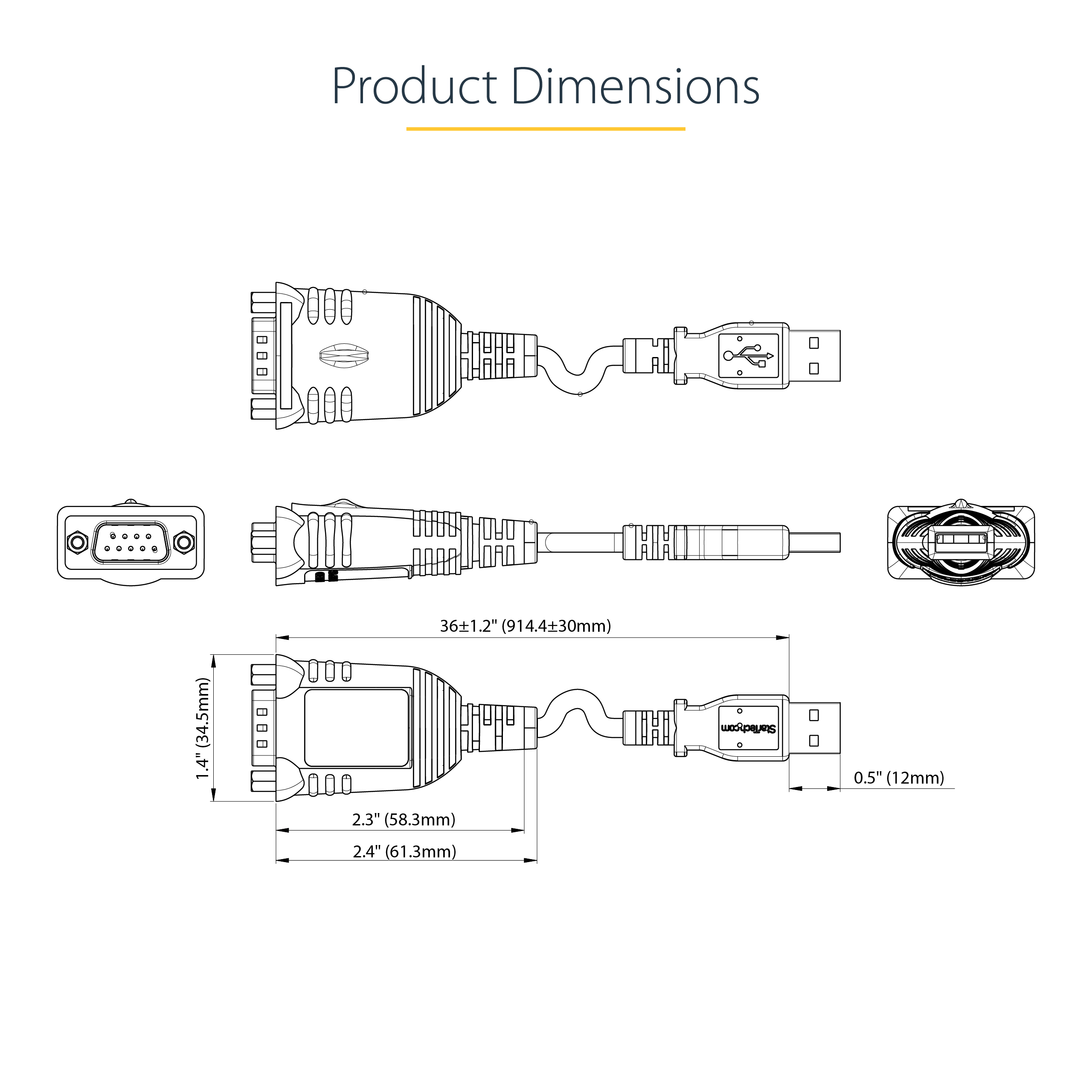

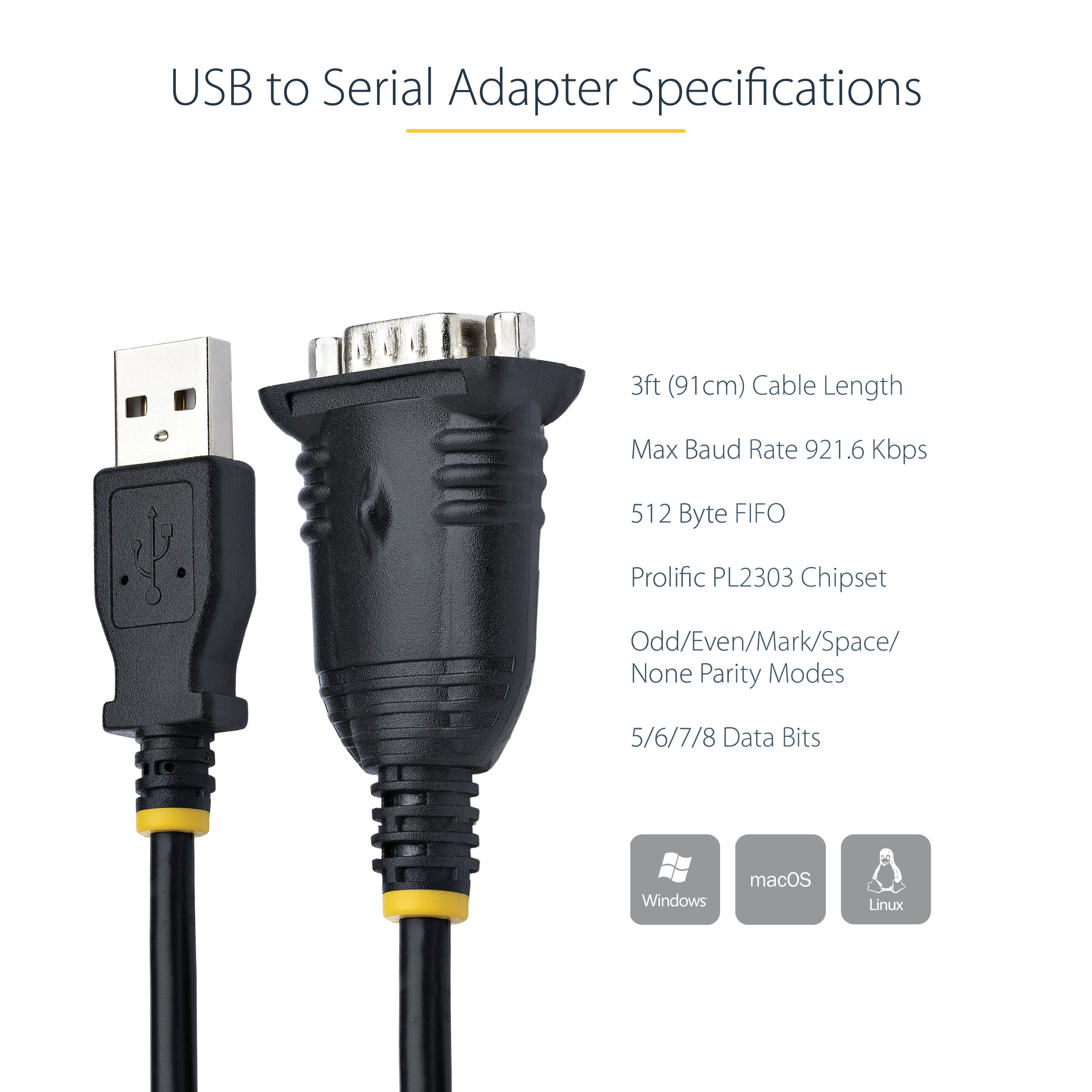

Cable Length (mm) 914.4 Color Black Humidity 50% to 90% RH Non-Condensing Operating Temperature 0°C to 60°C (32°F to 140°F) Product Length (mm) 914.400 Product Width (mm) 45.000 Product Height (mm) 15.600 Product Weight (g) 60.000 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Data Bits 5, 6, 7, 8 FIFO 512 Bytes Flow Control None, CTS/RTS, DSR/DTR, XON/XOFF Max Baud Rate 921.6 Kbps OS Compatibility - Windows 7
- Windows 8.1
- Windows 10
- Windows 11
- Windows Server 2016
- Windows Server 2019
- Mac OS X El Capitan (10.11)
- macOS Sierra (10.12)
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- macOS Monterey (12.0)
- Linux
- Chrome OS
- macOS Ventura (13.0)
- Windows Server 2022
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
Parity Even, Odd, None, Space, and Mark Stop Bits 1, 1.5, 2 Supported Serial Protocol RS-232 Bus Type USB 2.0 Chipset ID Prolific - PL2303GT Industry Standards - USB 1.1/2.0
- RS-232
Interface/Bridge Serial IO Card Port Style Cable Adapters Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 578 Carton Height (mm) 304 Carton Quantity 100 Carton Weight Gross (g) 8588 Included in Package 1 - USB to Serial Adapter Included In Package for Label 1 - USB to Serial Converter Package Depth (mm) 199 Package Height (mm) 23 Package Width (mm) 133 Package Quantity 1 Package Weight (g) 74 Packaging Description 3 ft. (1 m) USB-A to RS232 DB9 Serial Adapter Cable - M/M Packaging Description India 1m USB-A to RS232 DB9 Serial Cable - M/M Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DB-9 Serial Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 1 Actual Inbox Documents Created None Amazon Merchandising Manager Veronica Ye Application Photos Required Artwork Due Date 2021-12-03 Buying Center - AV & Collaboration Yes Buying Center - Data Center Yes Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2022-03-17 Enhanced Gallery Uploaded Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2021-12-31 Target Production Release 2022-02-14 Tech Lead Brian Linseman Technical Writer Alex Garcia Technology Lifecycle None
