1P3FPC-USB-SERIAL

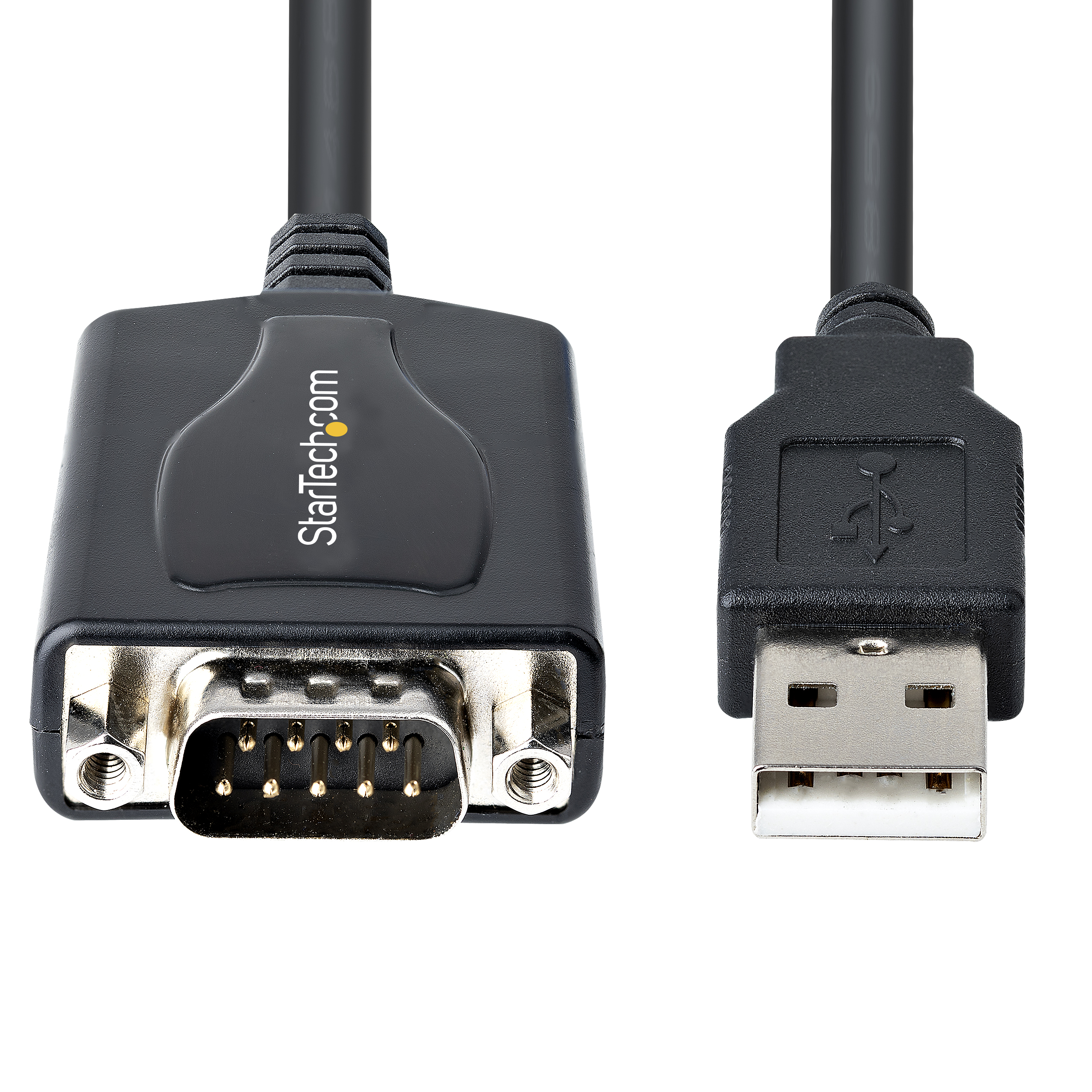

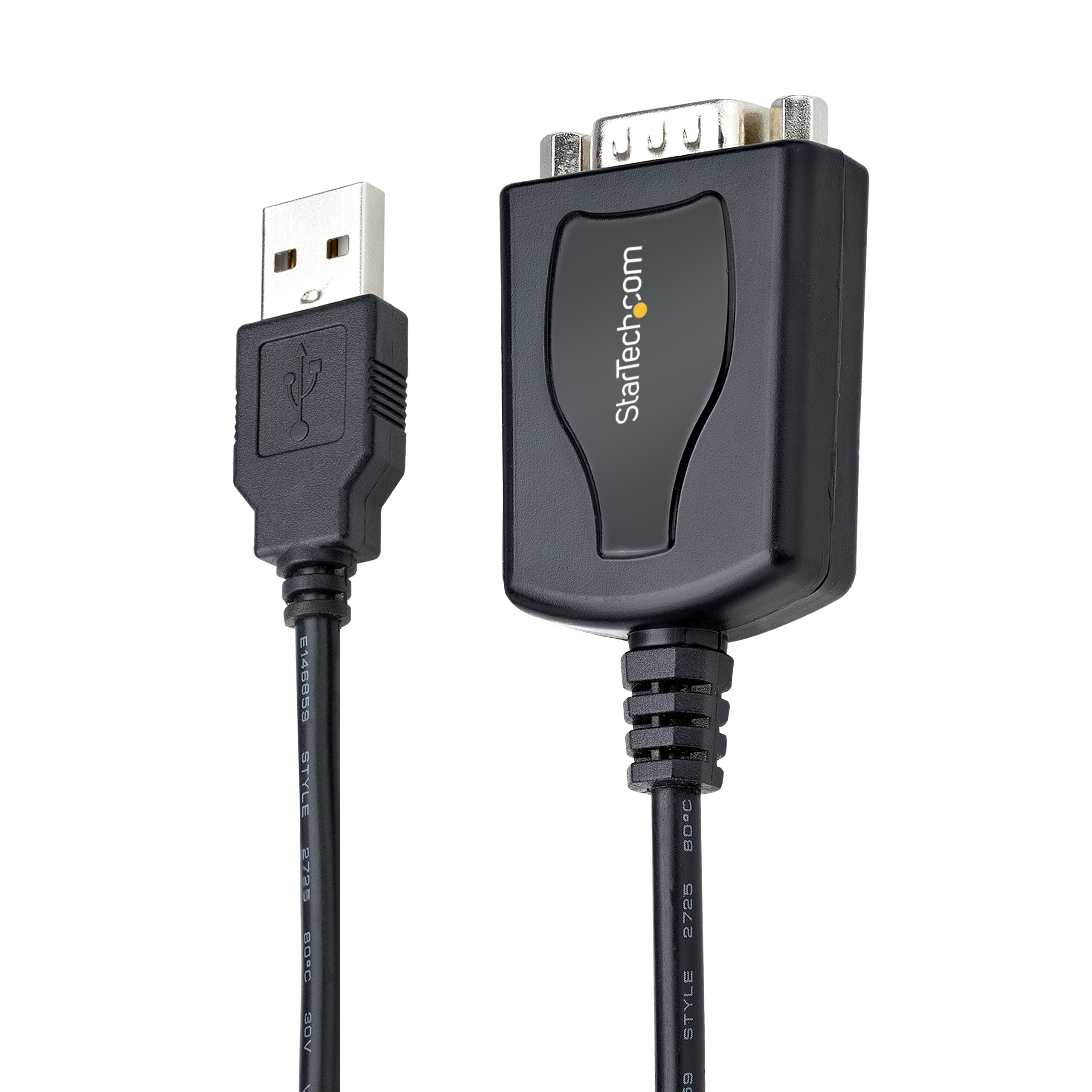

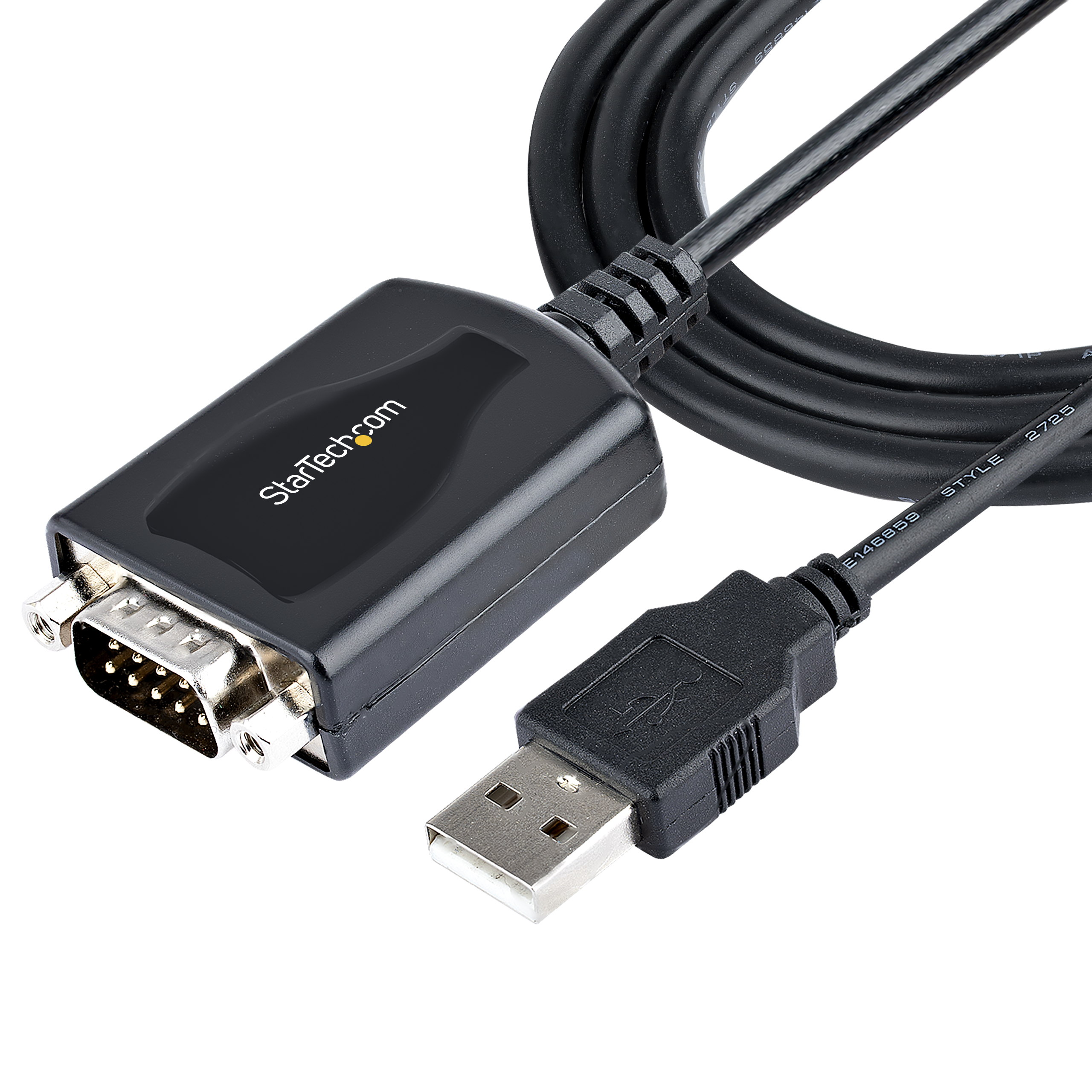

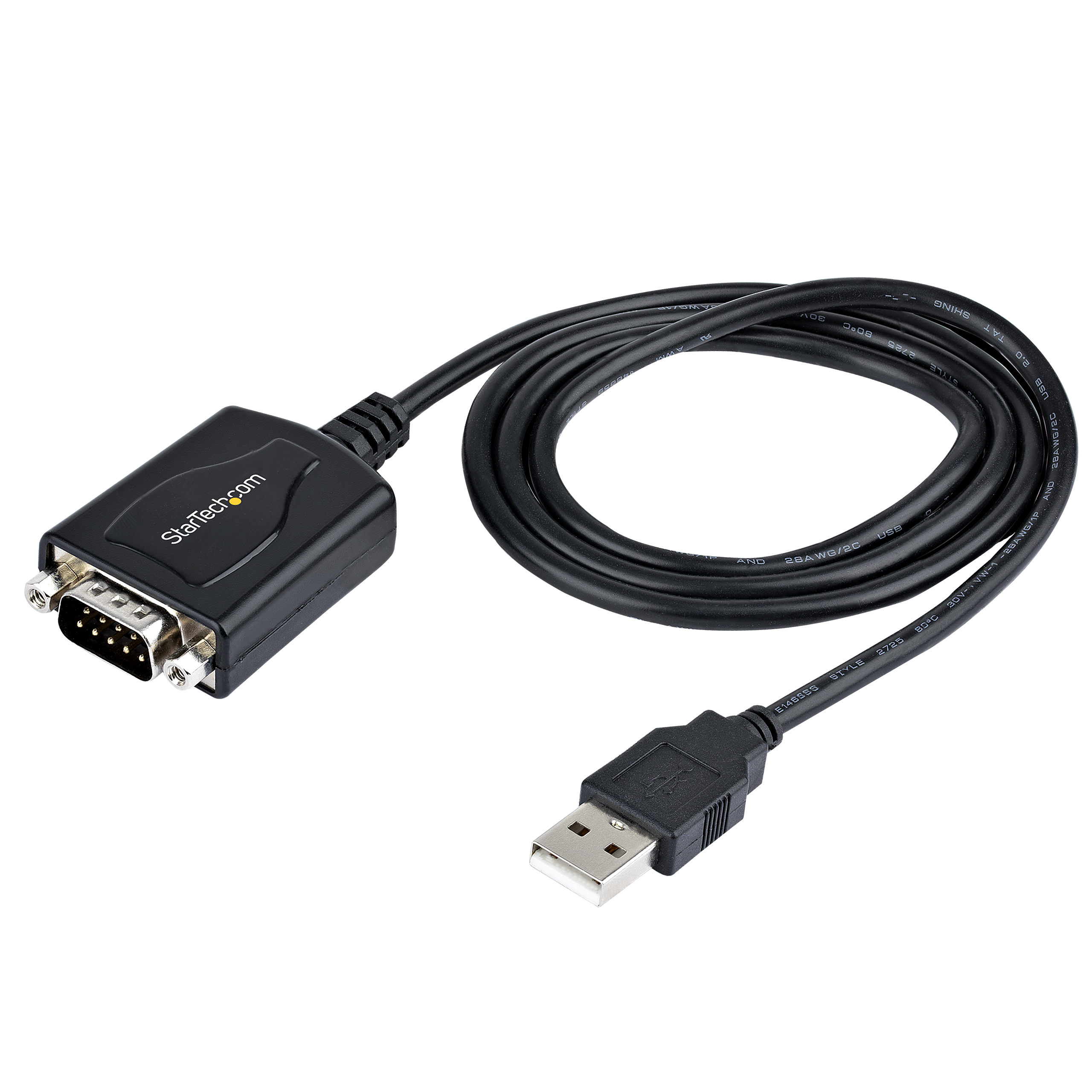

1m USB-A to RS232 DB9 Serial Cable with COM Retention - M/M

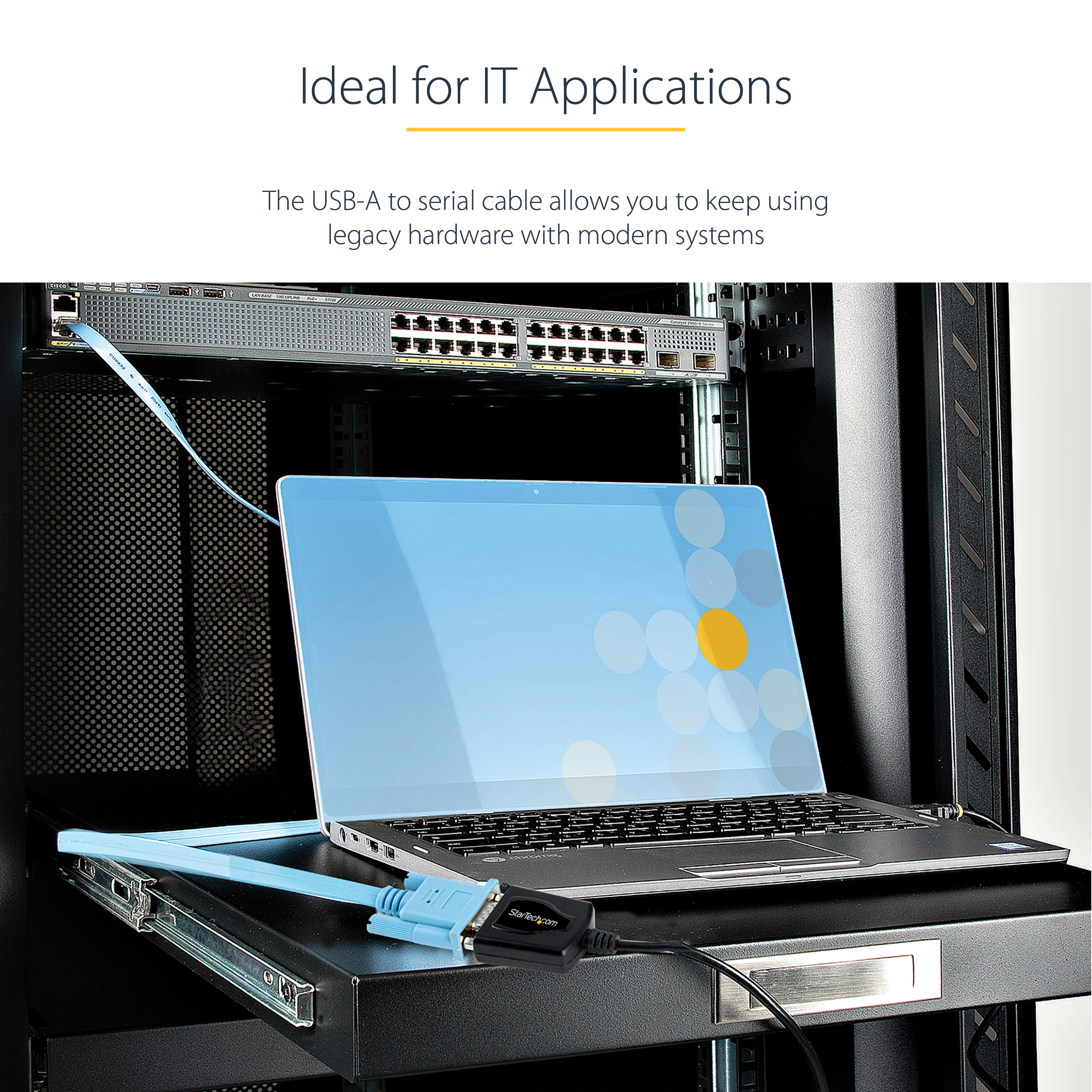

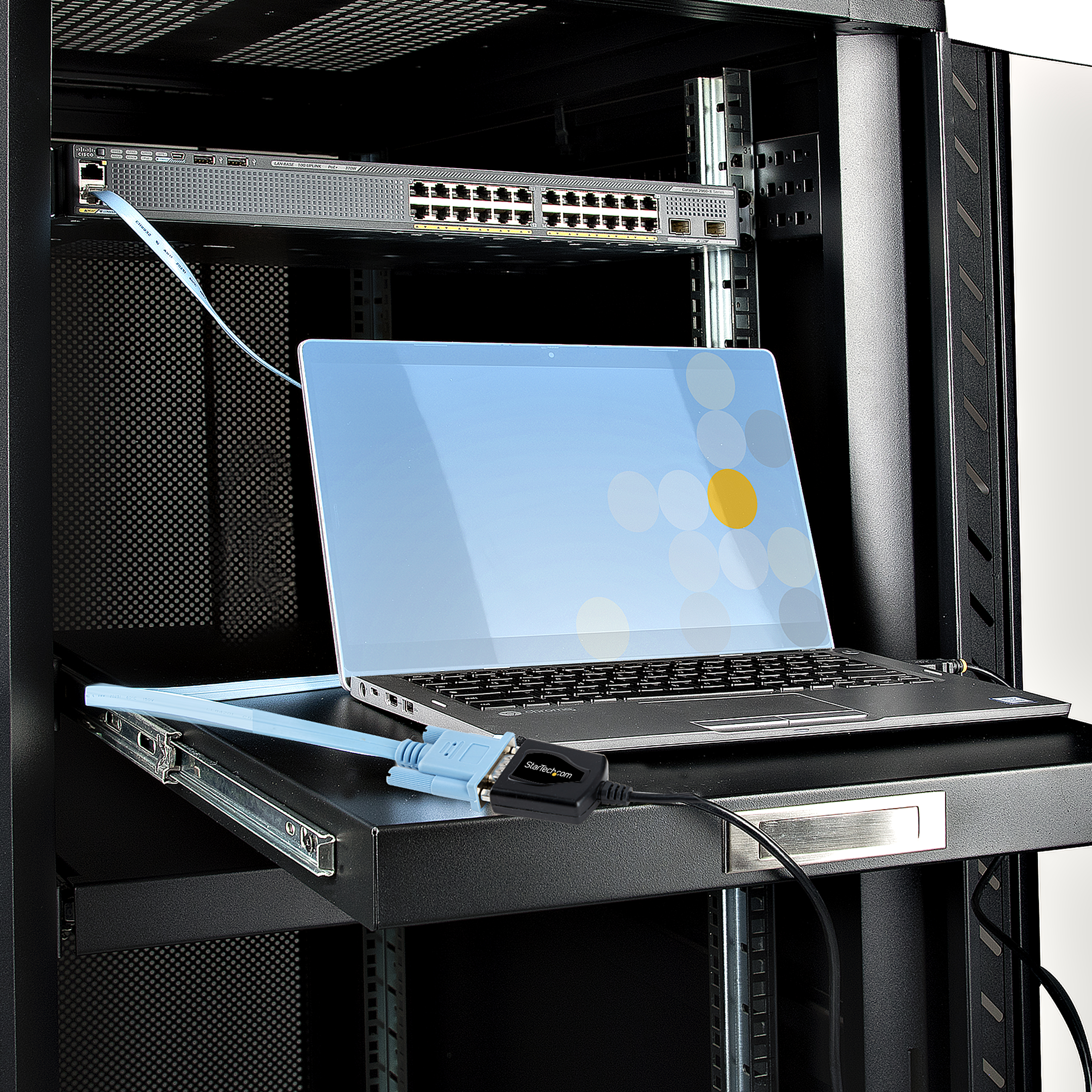

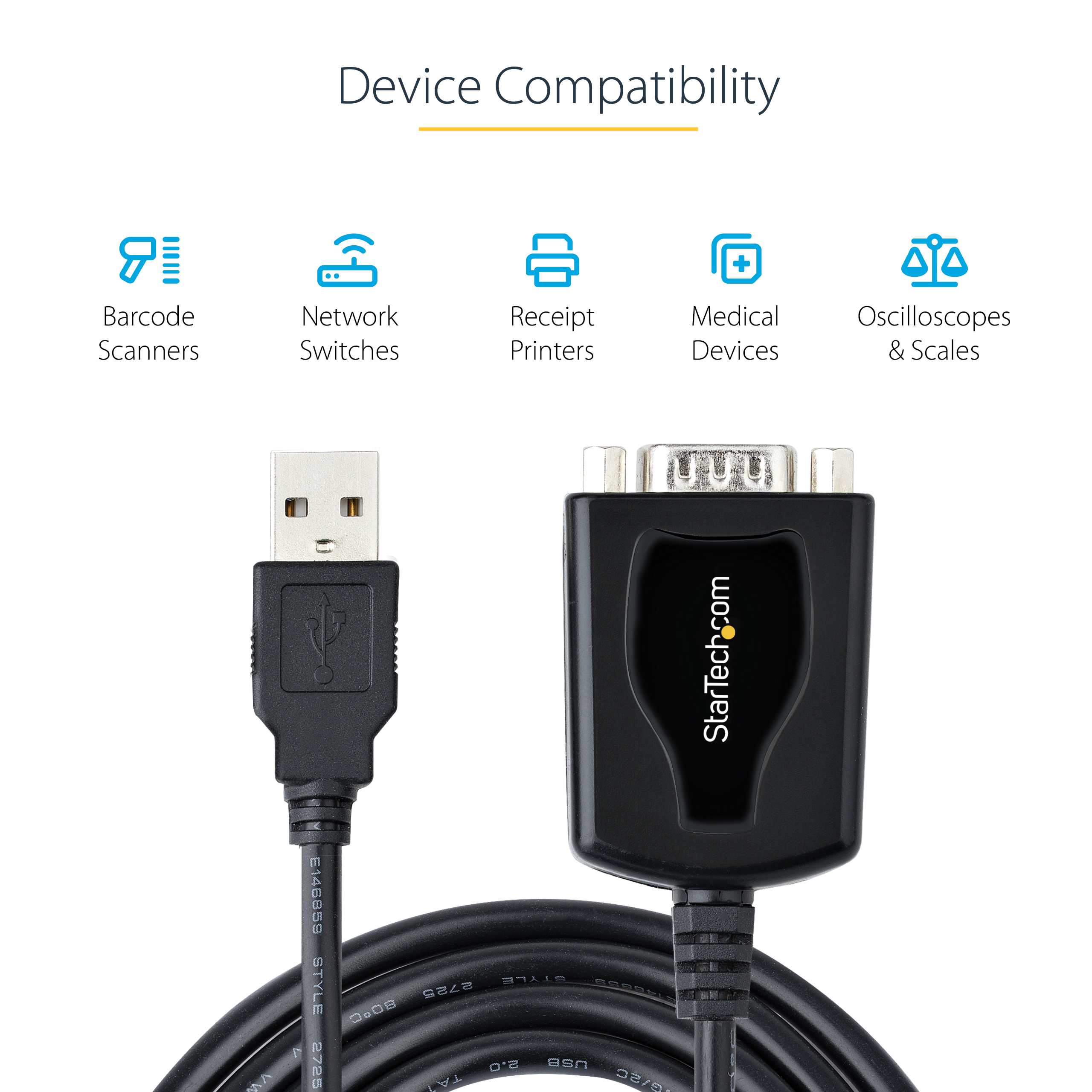

USB to Serial Cable | COM Retention | For Servers/Printers/Barcode Readers/AV | Prolific Chipset |Windows/Mac/Linux
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Name 1m USB-A to RS232 DB9 Serial Cable with COM Retention - M/M Product Number 1P3FPC-USB-SERIAL UPC 065030894593 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Serial and Parallel Cards & Adapters Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 USB Serial Host Adapter Interconnects Family USB to Serial Adapter Cables - USB-A - Prolific Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Ultra-Short) USB to Serial Cable Product Title (Short) 3ft USB to Serial Cable/RS232 Adapter Product Title (Medium) 3ft USB to Serial Cable, USB to Serial Port Adapter, Window/Mac, Prolific IC Product Title (Standard) 3ft/1m USB to Serial Cable with COM Port Retention, DB9 Male RS232 to USB Converter, USB to Serial Adapter, Prolific IC, TAA Product Title (Long) 3ft (1m) USB to Serial Cable with COM Port Retention, DB9 Male RS232 to USB Converter, USB to Serial Adapter for PLC/Printer/Scanner, Prolific Chipset, Windows/Mac - TAA Product Title (AMZ) 3ft (1m) USB to Serial Cable with COM Port Retention, DB9 Male RS232 to USB Converter, USB to Serial Adapter for PLC/Printer/Scanner, Prolific Chipset, Windows/Mac , TAA Title Ingram (Part 1) 3ft USB to Serial Cable - Title Ingram (Part 2) Win/Mac - Prolific IC Website Product Headline USB to Serial Cable | COM Retention | For Servers/Printers/Barcode Readers/AV | Prolific Chipset |Windows/Mac/Linux Bullet 1 USB TO SERIAL: Easily connect serial RS232 (DB9) devices to a computer with this USB to serial adapter. Secure the cable using the screw-lock nuts located on the male serial DB9 connector. COM retention between reboots Bullet 2 DEVICE COMPATIBILITY: Use this USB to RS232 serial adapter to reliably connect, configure, and monitor serial devices. Compatible with barcode readers/scanners, networks switches, receipt printers, PLCs, medical devices, oscilloscopes, scales, etc. Bullet 3 APPLICATIONS: This USB to serial cable is ideal for IT applications such as server rooms, industrial control/automation, logistics, POS, AV installations, laboratories, etc. Keep using legacy hardware with modern systems with this USB to RS232 cable Bullet 4 USB TO SERIAL ADAPTER SPECS: 3ft (91cm) Cable Length |Max Baud 921.6 Kbps | 512 Byte FIFO | COM Retention Between Reboots |Supports Windows, macOS, and Linux | Prolific PL2303 Chipset | Odd/Even/Mark/Space/None Parity Modes | 5/6/7/8 Data Bits Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this USB to serial port adapter is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance Bullets (Compact) Use current and legacy serial RS232 devices w/ this USB to serial cable - Use the USB to RS232 serial adapter w/ barcode readers/scanners/networks switches/scales - 3ft (91cm) Long/921.6 Kbps/512 Byte FIFO/COM Retention/Prolific PL2303/Screw-lock Nut Bullets (Consolidated) Connect current and legacy serial RS232 (DB9) devices to a computer with this USB to serial cable - Use this USB to RS232 serial adapter to reliably connect barcode readers/scanners/networks switches/scales - This USB to serial cable is ideal for IT server rooms/industrial control/automation/POS/AV installations - Specifications: 3ft (91cm) Length | Max Baud 921.6 Kbps | 512 Byte FIFO | COM Retention | Windows/macOS/Linux | Prolific PL2303 Chipset | Screw-lock Nuts Marketing Copy Marketing Copy (No HTML) Website Search Keyword - usb to serial cable
- db9 male to usb
- rs232 to usb converter
- serial to usb converter
- usb to com port adapter
- usb to rs232 cable
- usb to rs232 serial adapter
- USB to serial Adapter
- USB to serial port
- usb to serial prolific
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
System and Cable Requirements Computer with an available USB Type A port version 1.1 or greater Accessory Products - MXT10050CMBK
- MXT1001MBK
- MXT1002MBK
- MXT1003MBK
- SCNM9FM1MBK
- SCNM9FM2MBK
- MXT106
- MXT10010
- MXT100_25

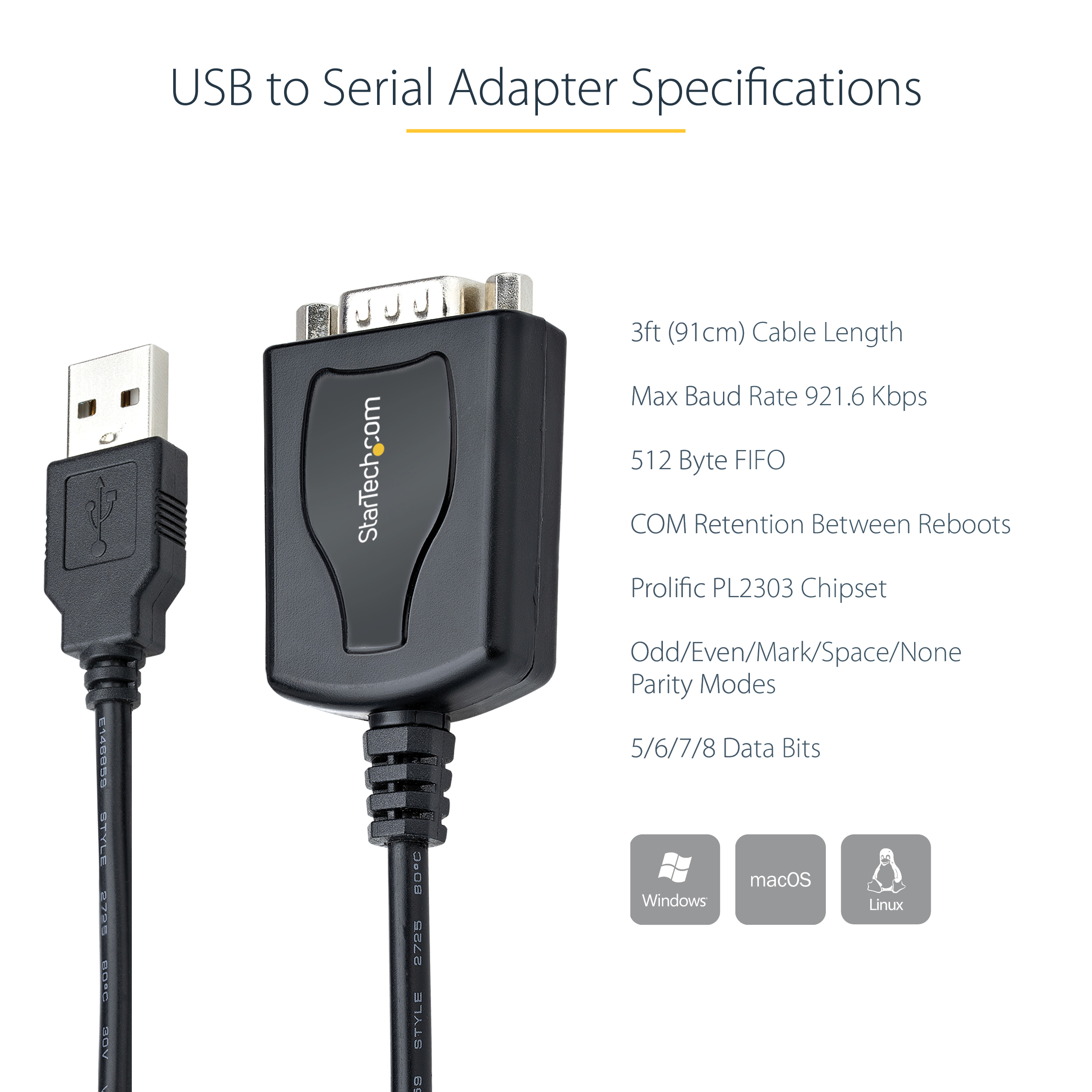

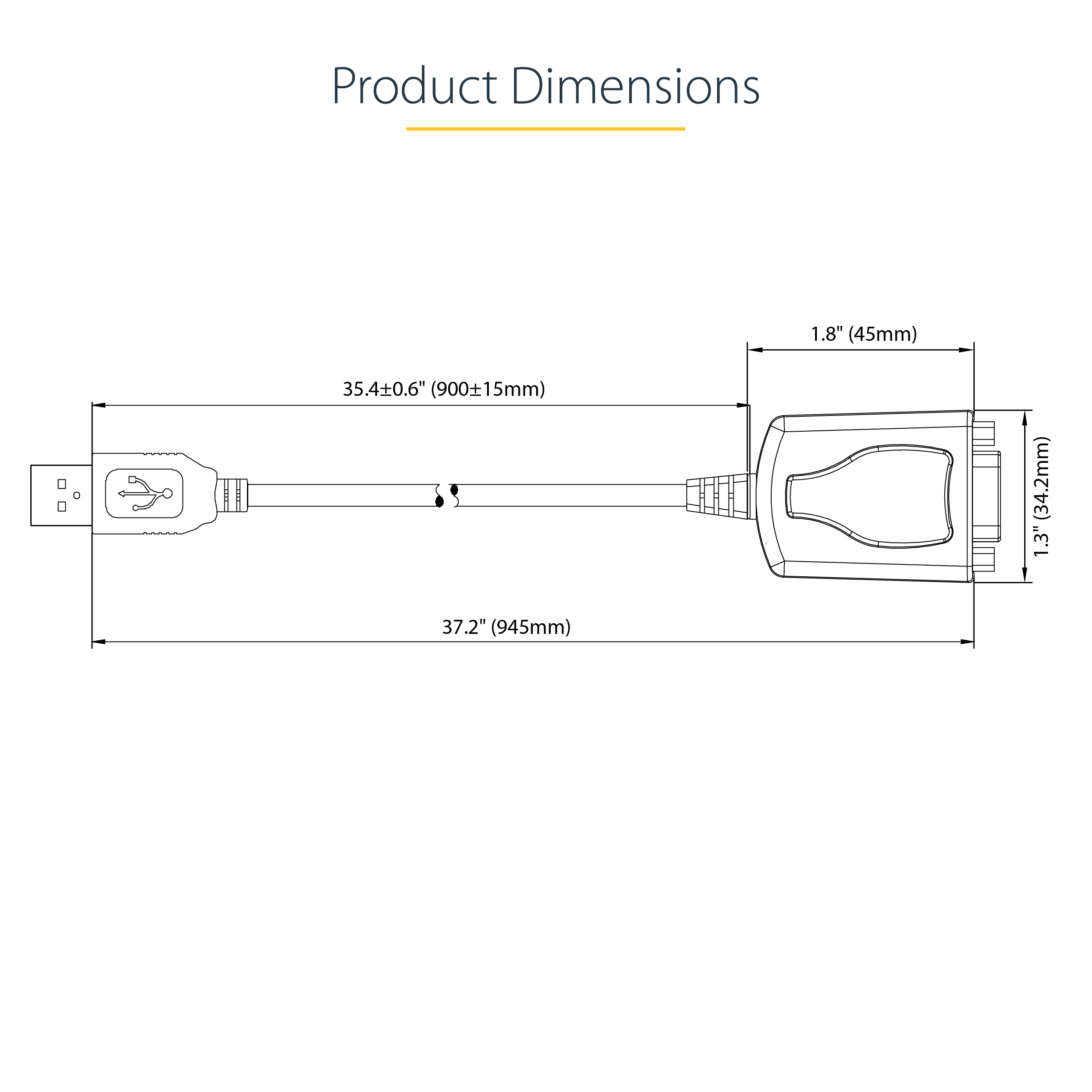

Cable Length (mm) 915 Color Black Humidity 20% to 80% RH Non-Condensing Material Plastic Operating Temperature 0°C to 80°C (32°F to 176°F) Primary Material Plastic Product Length (mm) 915.000 Product Width (mm) 45.000 Product Height (mm) 15.600 Product Weight (g) 39.200 Storage Temperature -20°C to 100°C (-4°F to 212°F) TAA Compliant Yes Data Bits 5, 6, 7, 8 FIFO 512 Bytes Flow Control None, CTS/RTS, DSR/DTR, XON/XOFF Max Baud Rate 921.6 Kbps OS Compatibility - Windows 7
- Linux
- Mac OS X El Capitan (10.11)
- Windows 10
- Windows 11
- Windows 8.1
- Windows Server 2016
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- Windows Server 2019
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- macOS Monterey (12.0)
- macOS Sierra (10.12)
- Chrome OS
- macOS Ventura (13.0)
- Windows Server 2022
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
Parity Even, Odd, None, Space, and Mark Stop Bits 1, 1.5, 2 Supported Serial Protocol RS-232 Bus Type USB 2.0 Chipset ID Prolific - PL2303GT Industry Standards - USB 1.1/2.0
- RS-232
Interface/Bridge Serial IO Card Port Style Cable Adapters Carton Depth (mm) 677 Carton Height (mm) 220 Carton Quantity 50 Carton Weight Gross (g) 3592 Included in Package - 1 - USB to Serial Adapter
- 1 - Quick-start Guide
Included In Package for Label - 1 - USB to Serial Converter
- 1 - Quick-start Guide

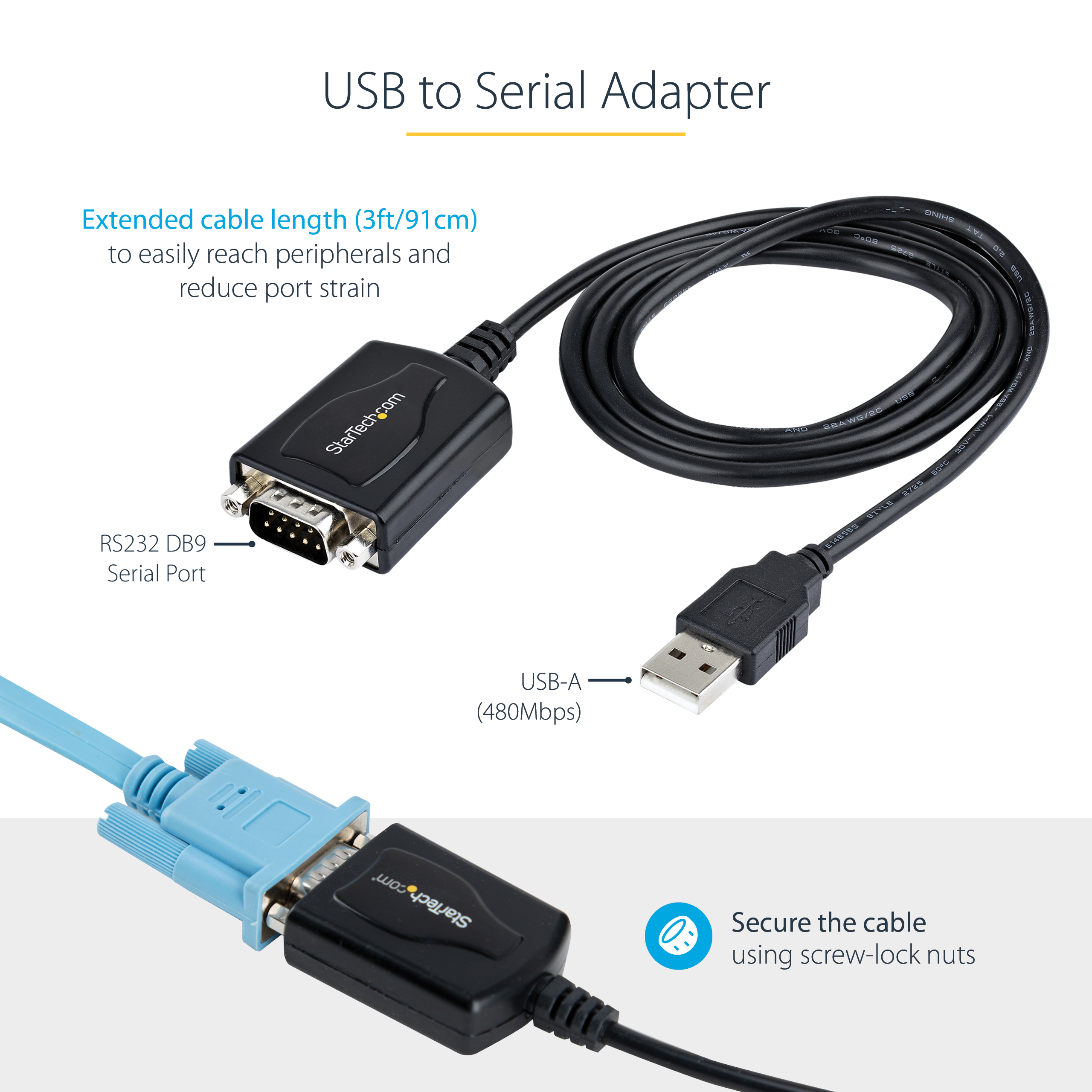

Package Depth (mm) 124 Package Height (mm) 23 Package Width (mm) 148 Package Quantity 1 Package Weight (g) 50 Packaging Description 3 ft/1 m USB-A to RS232 DB9 Serial Adapter Cable with COM Retention - M/M Packaging Description India 1m USB-A to RS232 DB9 Serial Cable with COM Retention - M/M Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DB-9 Serial Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 1 A+ Not Required Actual Inbox Documents Created None Amazon Merchandising Manager Veronica Ye Application Photos Uploaded Artwork Due Date 2021-09-16 Buying Center - AV & Collaboration Yes Buying Center - Data Center Yes Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2022-02-11 Enhanced Gallery Uploaded Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,FI,FR,IE,IN,IT,JP,MX,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2021-09-14 Target Production Release 2021-10-14 Tech Lead Brian Linseman Technical Writer Evan Hanbidge Technology Lifecycle None Video Required
