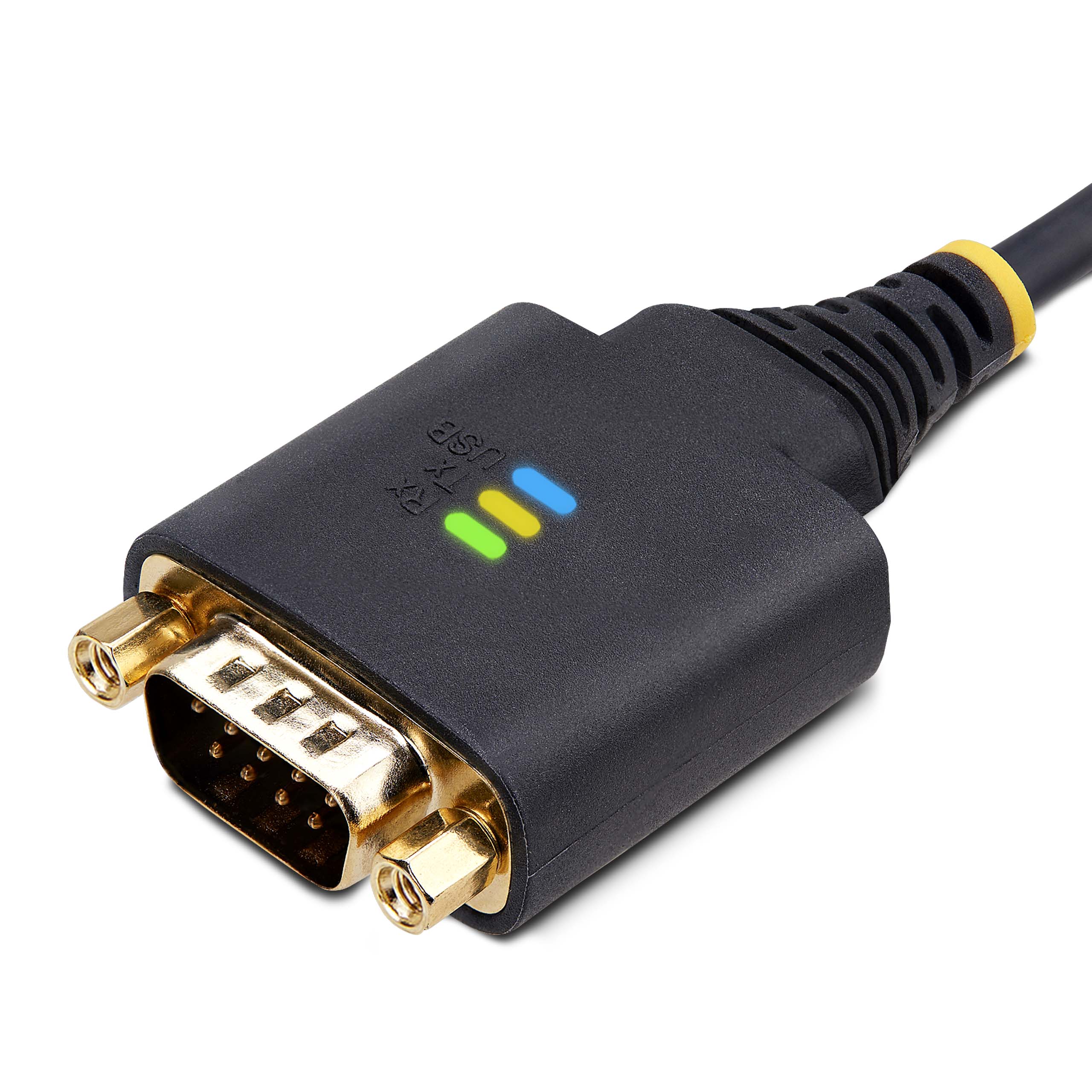

1P6FFC-USB-SERIAL

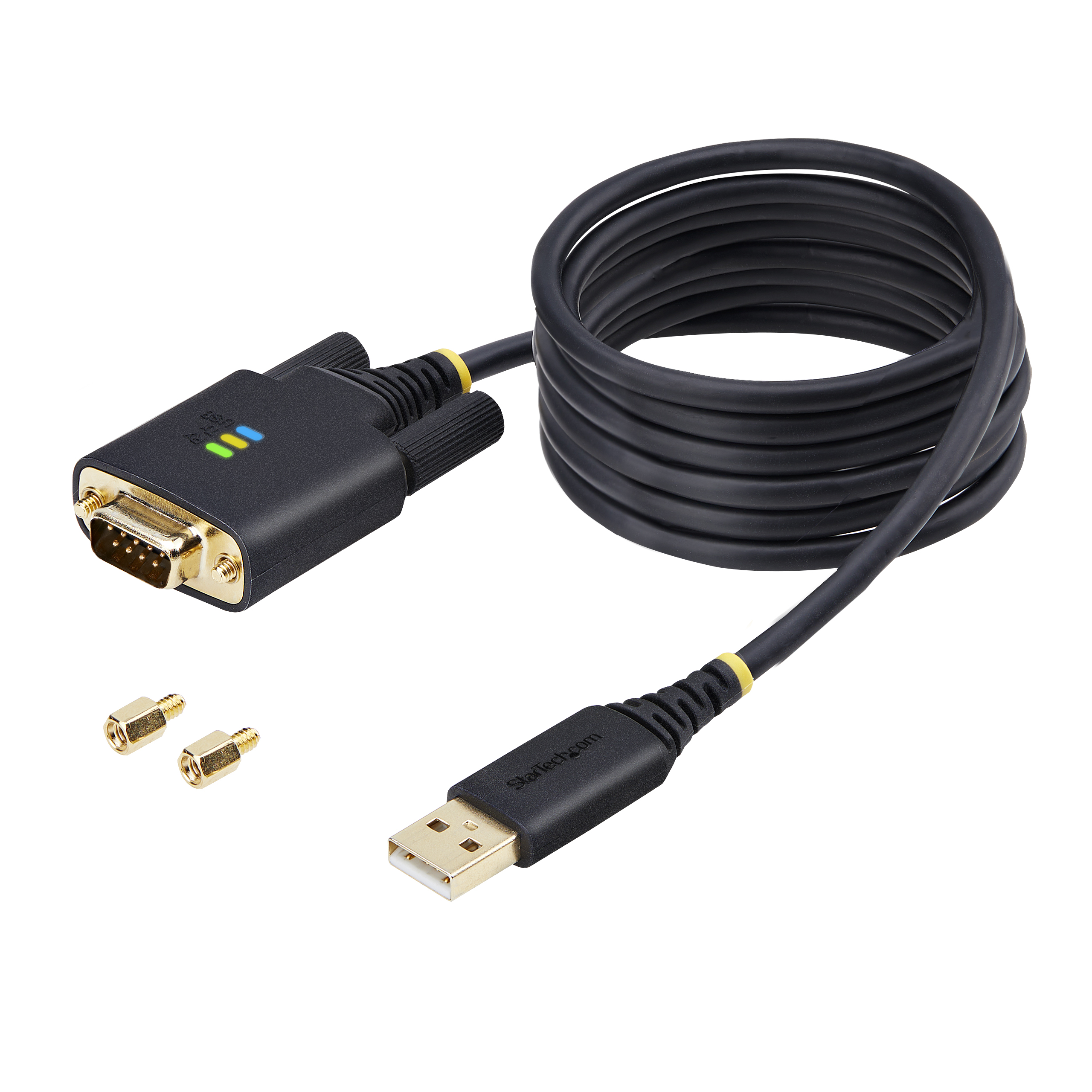

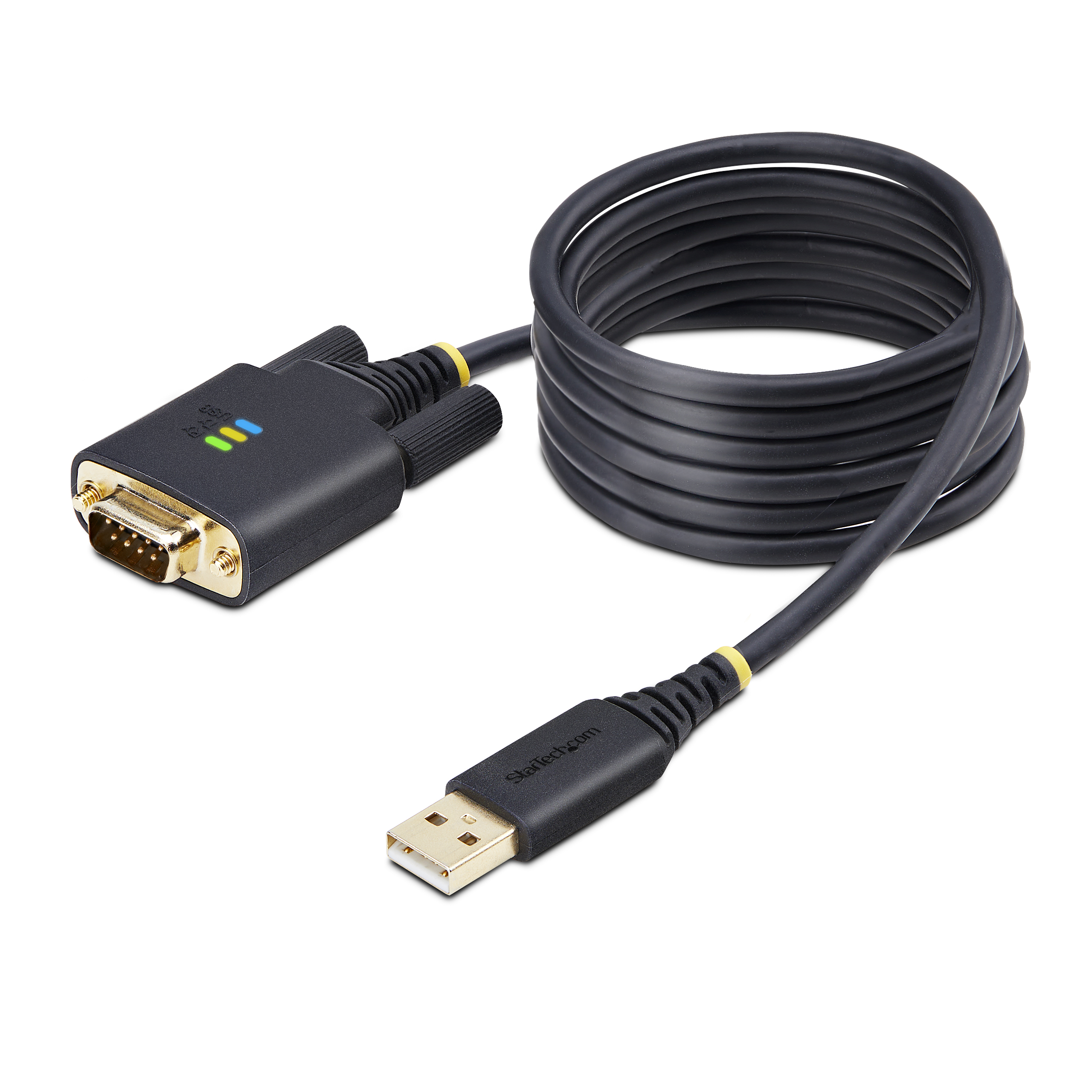

USB to RS232 FTDI cable 6ft COM retention

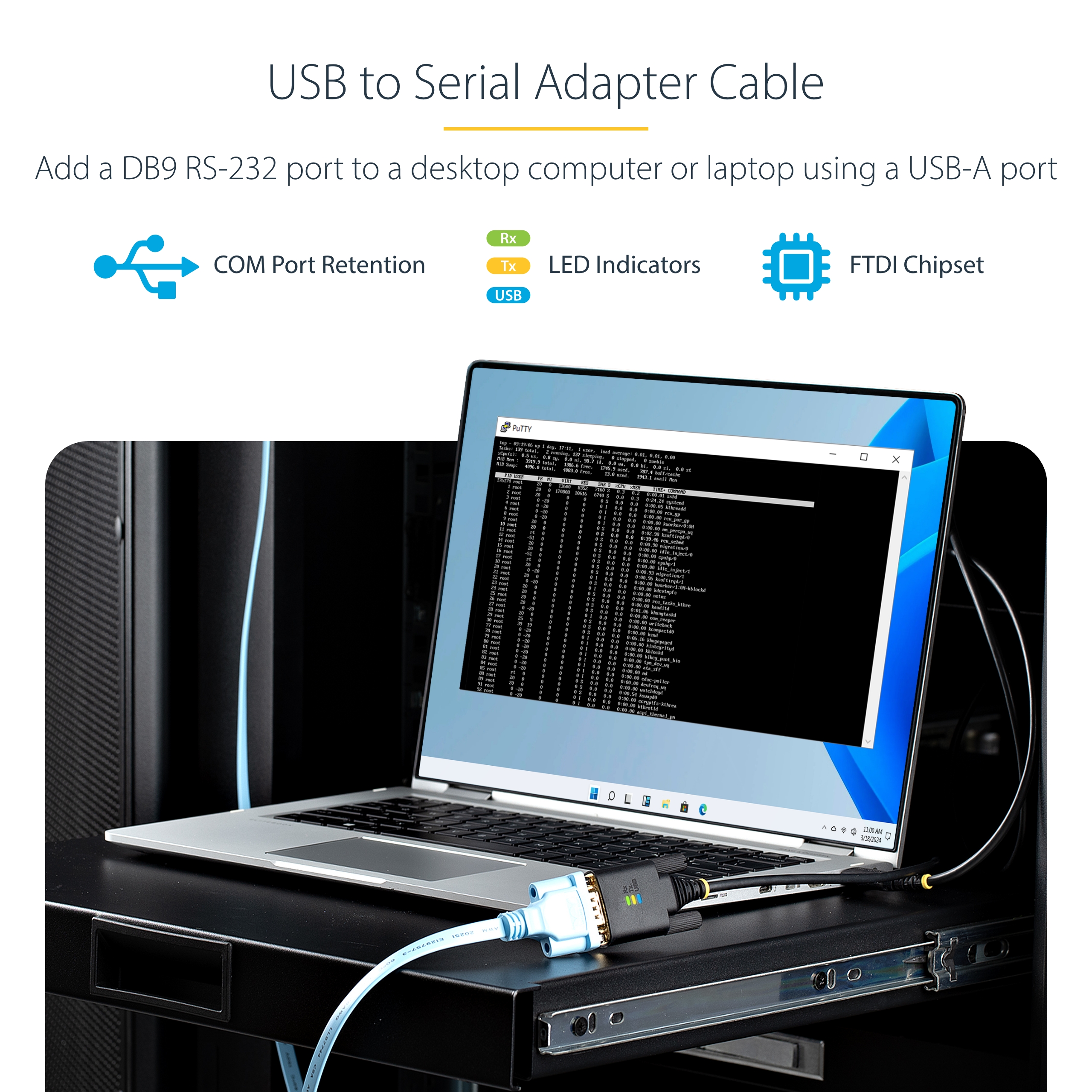

Add an RS232 serial port to a laptop or desktop, using an available USB-A port
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Video Link YouTube

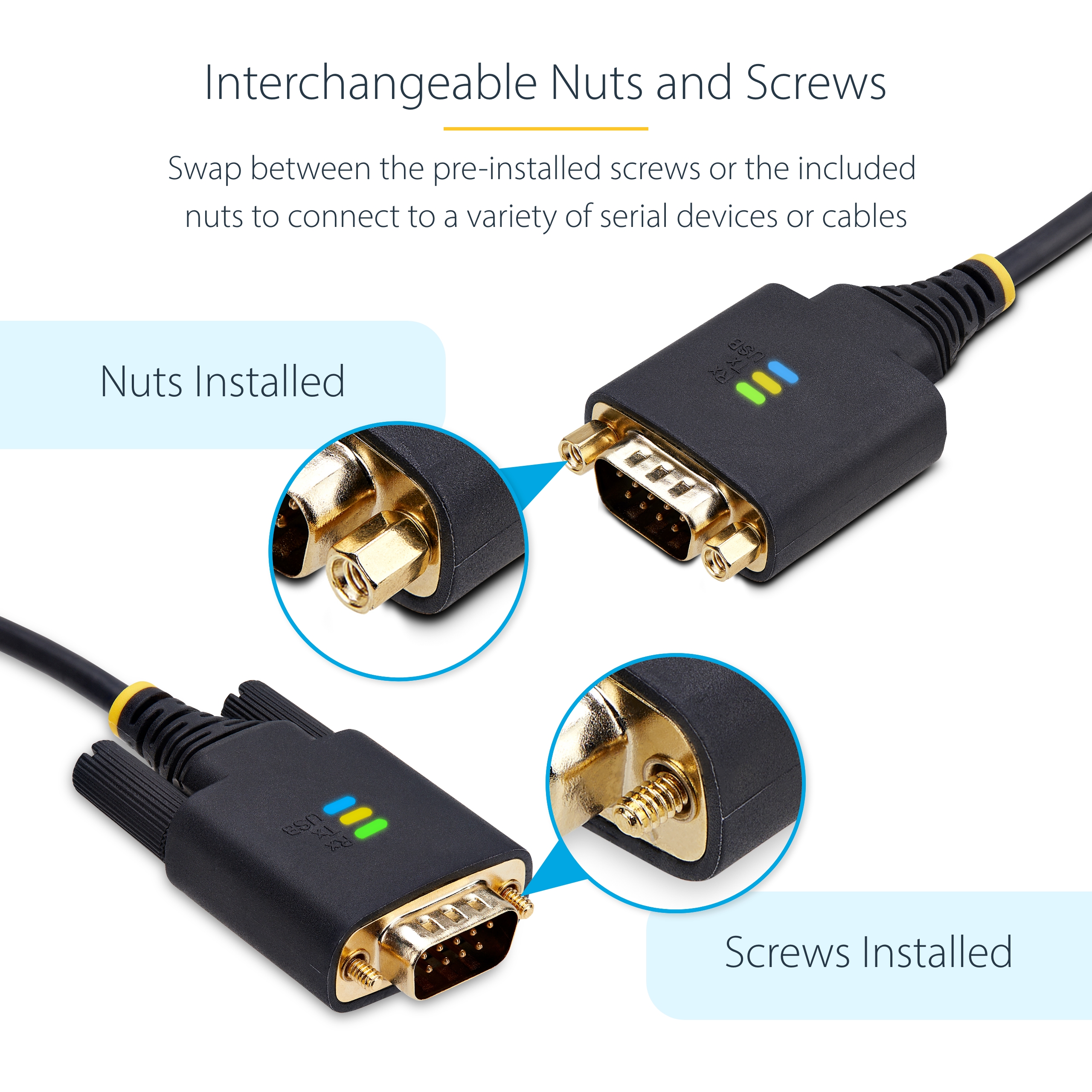

Product Name USB to RS232 FTDI cable 6ft COM retention Product Number 1P6FFC-USB-SERIAL UPC 065030898263 Lifecycle status Active Warranty 2 Years Weighted Opportunity 145032 Taxonomy Product > Cards & Adapters > Serial and Parallel Cards & Adapters Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 USB Serial Host Adapter Interconnects Family USB to Serial Adapter Cables - USB-A - FTDI Country of Origin Europe & Japan Malaysia Country of Origin North America Malaysia Country of Origin History (1) Malaysia Country of Origin Revision (1) XXXXXX156X Product Title (Ultra-Short) USB to Serial Cable Product Title (Short) 6.6ft/2m USB to RS232 Serial Adapter Product Title (Medium) 6.6ft (2m) USB to Serial Adapter Cable, COM Retention, FTDI, DB9 RS232 Converter Product Title (Standard) 6.6ft (2m) USB to Serial Adapter Cable, COM Retention, FTDI, DB9 RS232, Interchangeable DB9 Screws/Nuts, Windows/macOS/Linux Product Title (Long) 6.6ft (2m) USB to Serial Adapter Cable, COM Retention, Interchangeable Screws/Nuts, USB-A to DB9 RS232, FTDI IC, ESD Protection, Windows/macOS/Linux Product Title (AMZ) 6ft (2m) USB to Serial Adapter Cable, COM Retention, FTDI, USB-A to DB9 RS232, LED Indicators, Interchangeable DB9 Screws Nuts Title Ingram (Part 1) 2m USB to Serial Cable - Title Ingram (Part 2) USB to DB9 RS232 Adapter Website Product Headline Add an RS232 serial port to a laptop or desktop, using an available USB-A port Bullet 1 INTERCHANGEABLE NUTS & SCREWS: Secure the adapter to a serial device using the pre-installed DB9 screws, or install the included DB9 Nuts for compatibility with serial peripheral devices/cables; Add a DB9 RS-232 port to a computer, using a USB-A port Bullet 2 LED INDICATORS: Transmit and Receive LED indicators offer real-time monitoring of port activity, while the USB LED indicates when the adapter is successfully recognized by the desktop or laptop Bullet 3 COMPATIBILITY: Works with Windows, macOS, ChromeOS, and Linux; Drivers auto-install in Windows 7+, macOS 10.15+, and Linux; COM retention enables the COM port to automatically re-assign if the cable is disconnected/reconnected or if the system is rebooted Bullet 4 BUILD QUALITY: Solid one-piece molded TPE housing and Level-4 ESD protection (15kV air/8kV contact) enhance reliability and longevity; Copper shielding minimizes EMI/RFI interference; Gold-plated connectors; Extended operating temperature of -40°C to 80°C Bullet 5 TECH SPECS: 6.6-foot (2-meter) Cable Length; FTDI FT232R Chipset; Max Baud Rate: 921.6Kbps; 128 Byte RX and 256 Byte TX FIFO; Odd/Even/Mark/Space/None Parity Modes; 7 or 8 Data Bits; 1 or 2 Stop bits Bullets (Compact) Add a DB9 RS-232 serial port to a desktop/laptop using a USB-A port; Interchangeable Screws/Nuts; DB9 screws pre-installed; DB9 Nuts included for device/cable compatibility; Rugged TPE housing; Copper shielding; LED Indicators; Windows/macOS/Linux Bullets (Consolidated) Add a DB9 RS-232 serial port to a desktop / laptop using a USB-A port - DB9 screws pre-installed; DB9 Nuts included for device/cable compatibility - Rugged TPE housing and level-4 ESD protection; Copper shielding; Gold plated connectors; Operating temp. -40 to 80DEGC - Transmit/Receive LED indicators for port activity; USB LED for when the adapter has successfully enumerated on the desktop - Works w/Windows/macOS/Linux; Max Baud 115.2Kbps; 128 Byte RX and 256 Byte TX FIFO; FTDI FT232R Chipset Marketing Copy Marketing Copy (No HTML) Applications - Add RS-232 capabilities to USB-enabled Data Terminal Equipment (DTE) to connect Data Communication Equipment (DCE) peripherals
- Connect, monitor, and control industrial sensors and equipment
- Connect bar code scanners, receipt printers, and other point of sale devices
- Program LED and digital signage boards with serial communication ports
Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Packaging - Waste - European Union - DO NOT USE - Packaging - General
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
System and Cable Requirements Computer with a USB Type-A Port version 1.1 or greater Accessory Products - MXT10050CMBK
- SCNM9FM1MBK
- USBEXTAA3BK
- MXT1002MBK
- MXT1003MBK
- SCNM9FM2MBK
- USBEXTAA6BK
Related Products - 1P3FP-USB-SERIAL
- 1P3FPC-USB-SERIAL
- ICUSB2321F
- ICUSB2321FIS
- 1P3FFCB-USB-SERIAL
- 1P10FFC-USB-SERIAL

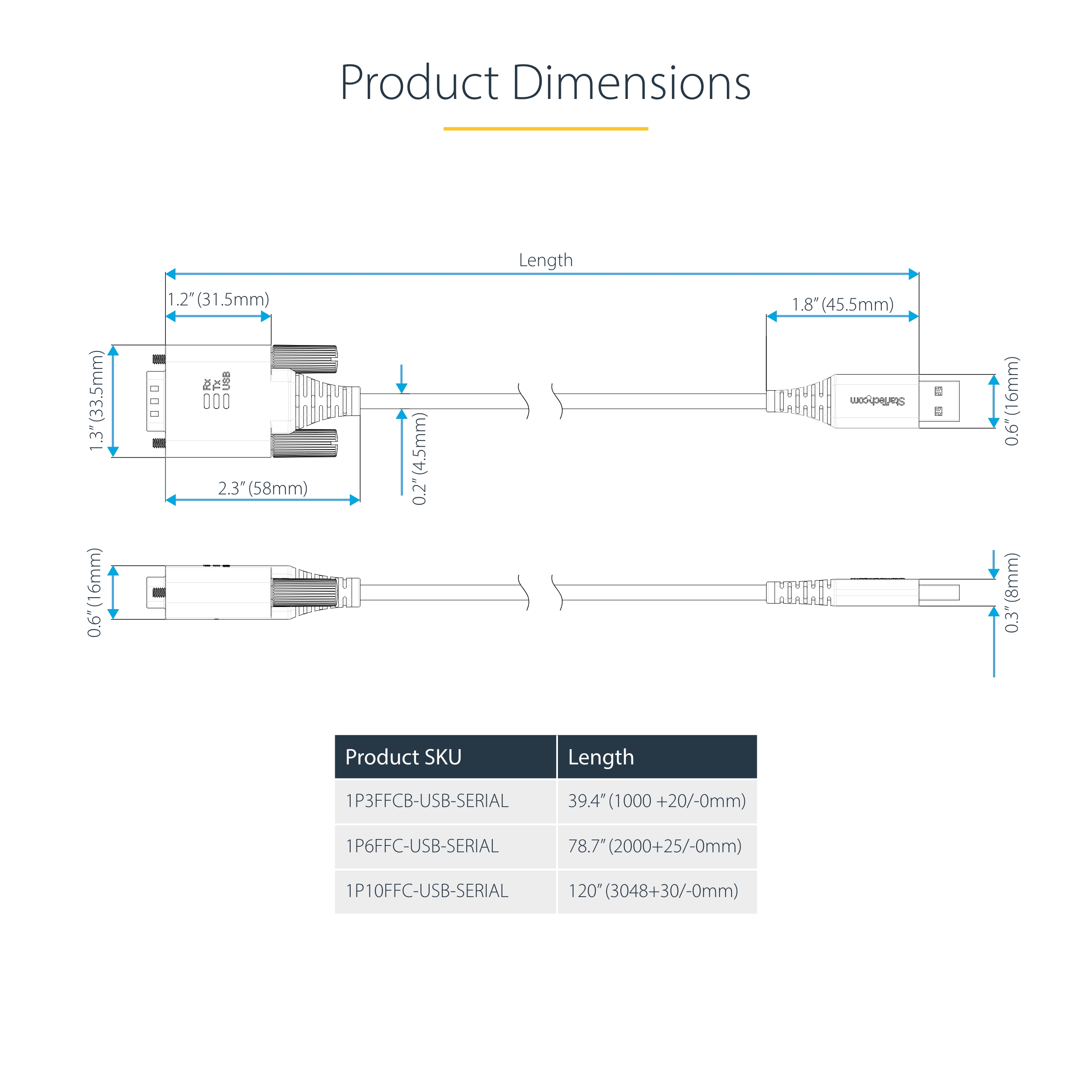

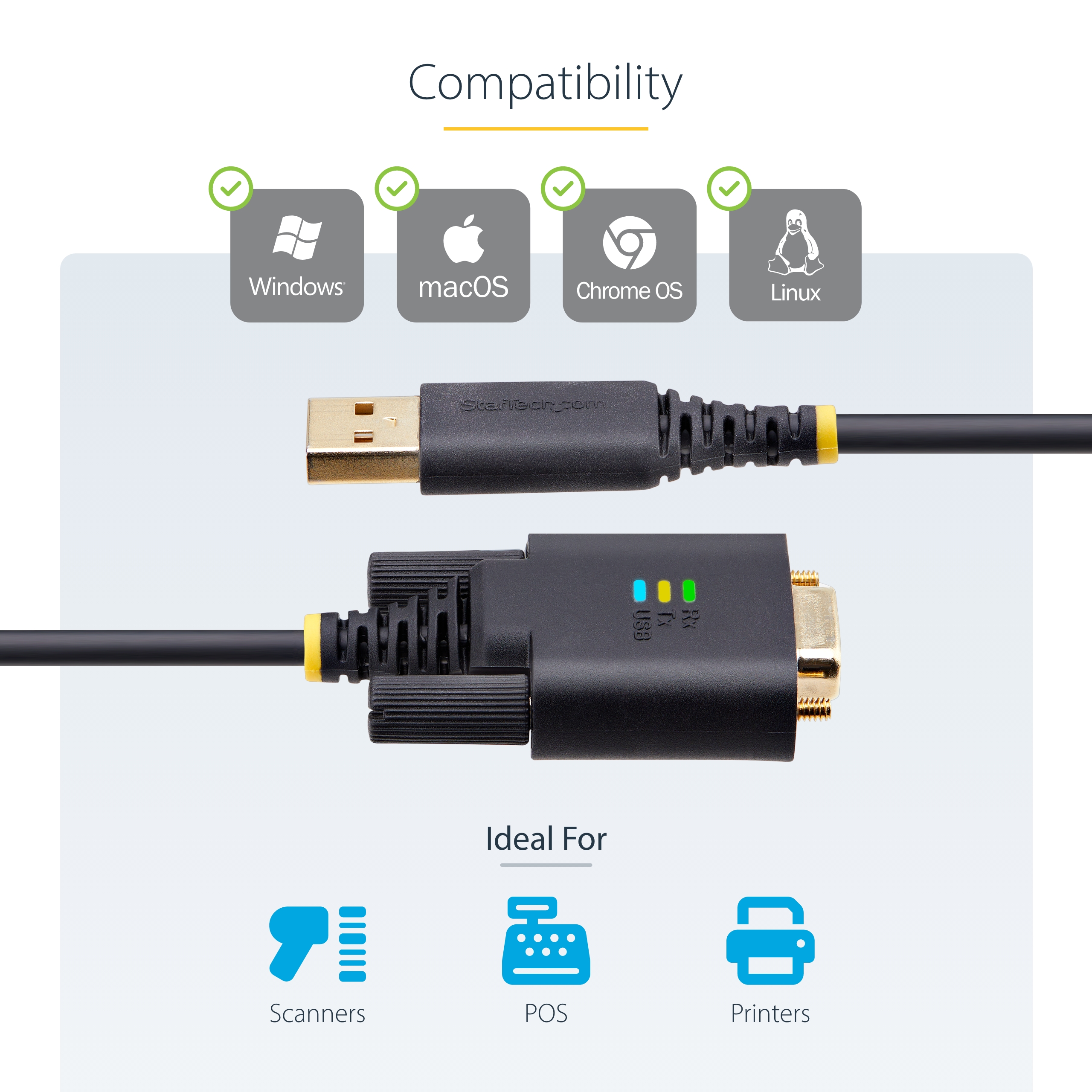

Power Source Bus Powered Cable Length (mm) 2000 Color Black Humidity 0% ~ 95% RH (non-condensing) Operating Temperature -40°C to 80°C (-40°F to 176°F) Product Length (mm) 2000.000 Product Width (mm) 33.500 Product Height (mm) 16.000 Product Weight (g) 87 Storage Temperature -40°C to 80°C (-40°F to 176°F) TAA Compliant No Data Bits 7, 8 FIFO Max Baud Rate 921.6 Kbps OS Compatibility - Windows 7
- Windows 8
- Windows 8.1
- Windows 10
- Windows 11
- Windows 11 ARM
- Windows Server 2008 R2
- Windows Server 2012
- Windows Server 2012 R2
- Windows Server 2016
- Windows Server 2019
- Windows Server 2022
- Mac OS X Mavericks (10.9)
- Mac OS X Yosemite (10.10)
- Mac OS X El Capitan (10.11)
- macOS Sierra (10.12)
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- Linux
- Chrome OS
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
- Windows Server 2025
Parity Even, Odd, None, Space, and Mark Stop Bits 1, 2 Supported Serial Protocol RS-232 Bus Type USB 2.0 Chipset ID FTDI - FT232R Industry Standards - USB 2.0/1.1
- RS-232

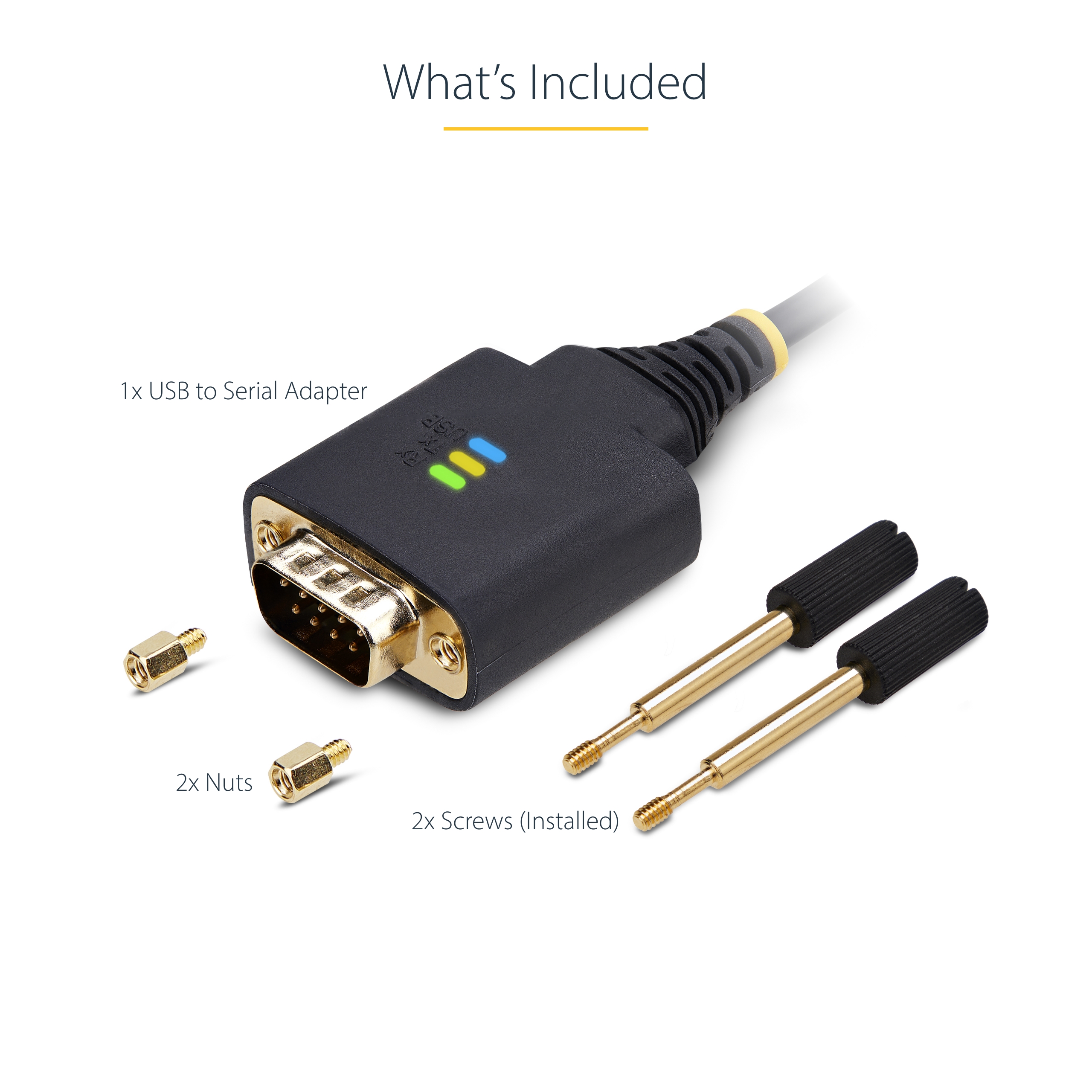

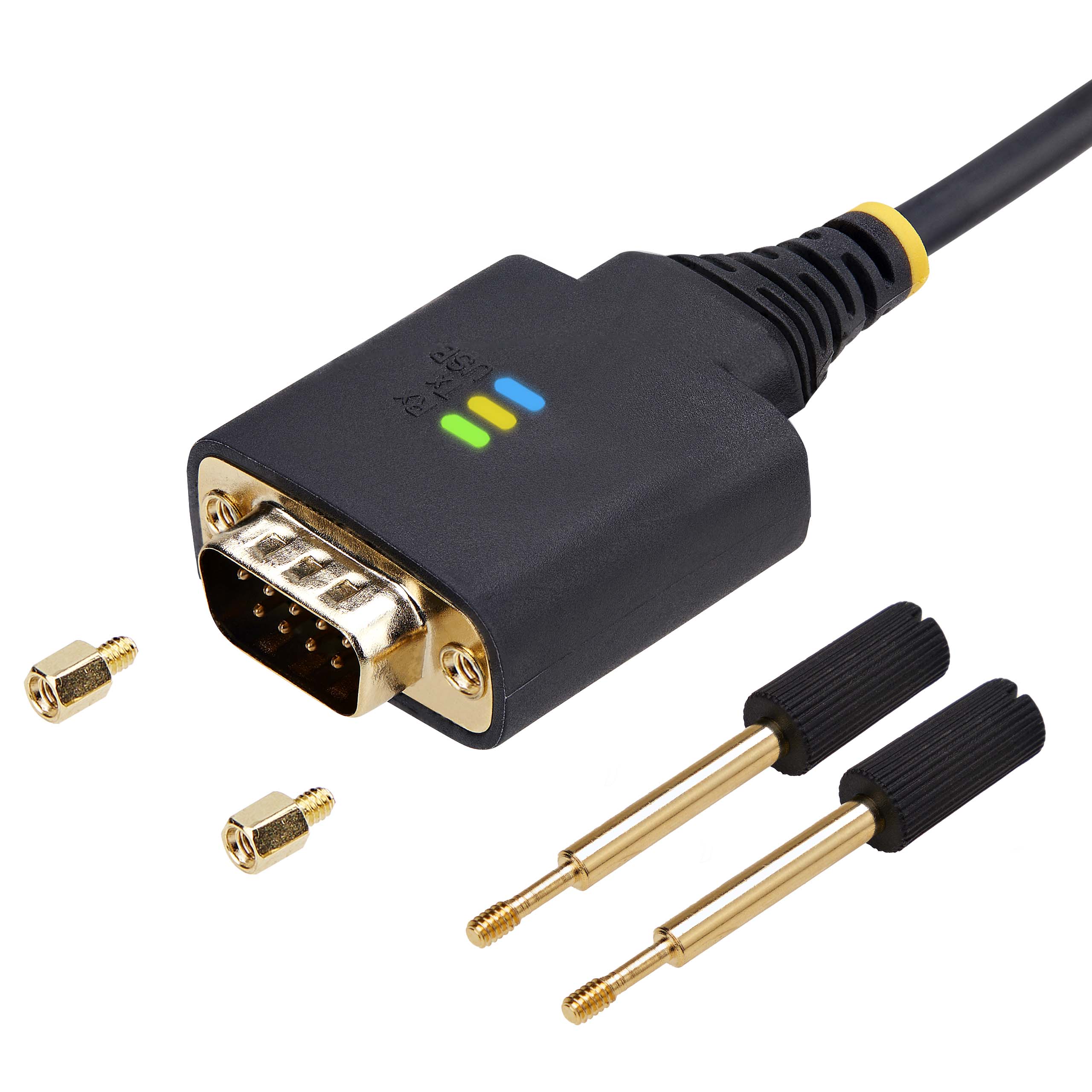

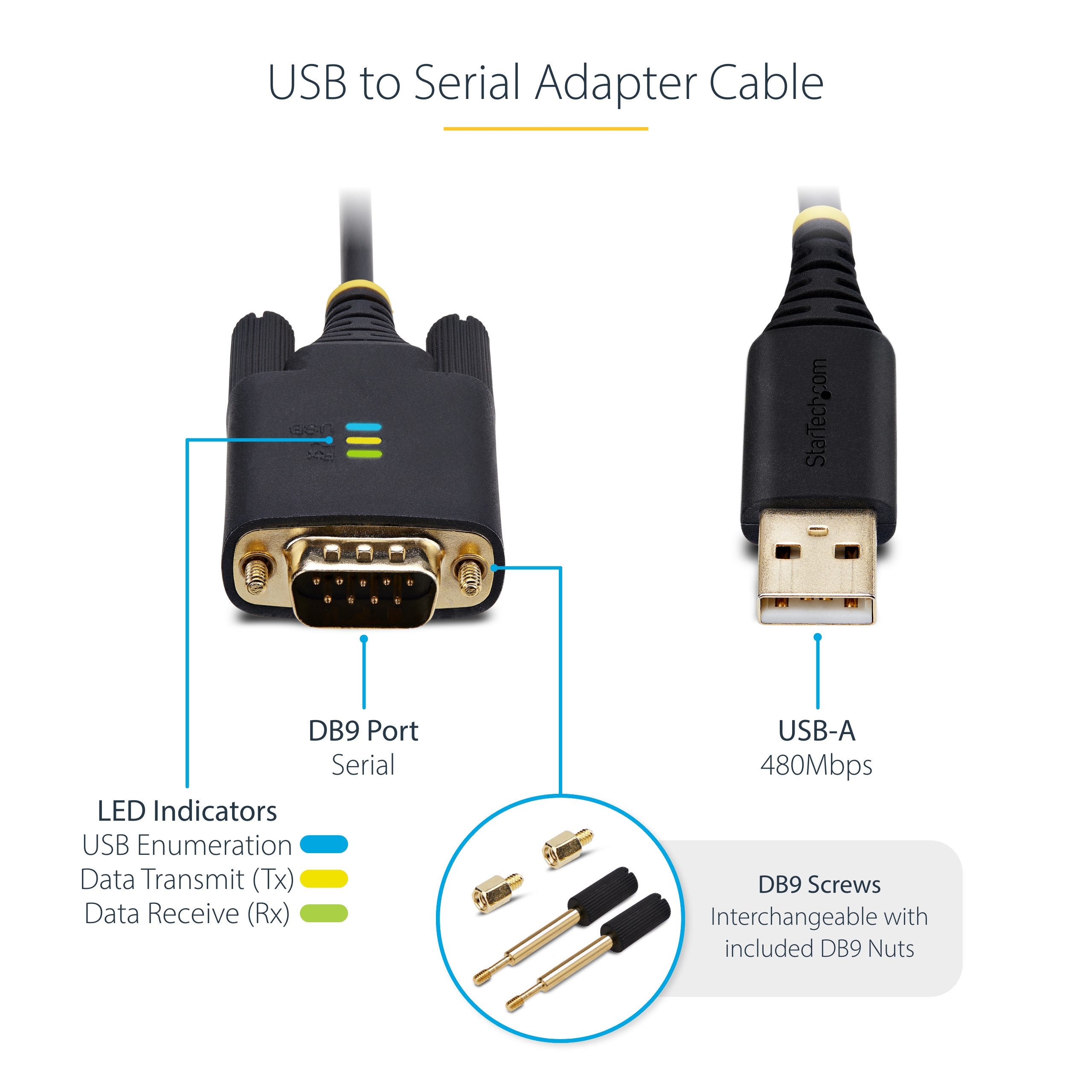

Interface/Bridge Serial IO Card Port Style Cable Adapters LED Indicators Carton Depth (mm) 581 Carton Height (mm) 302 Carton Quantity 40 Carton Weight Gross (g) 5826 Included in Package - 2 - DB9 Nuts
- 1 - USB to Serial Adapter
- 1 - Quick-Start Guide

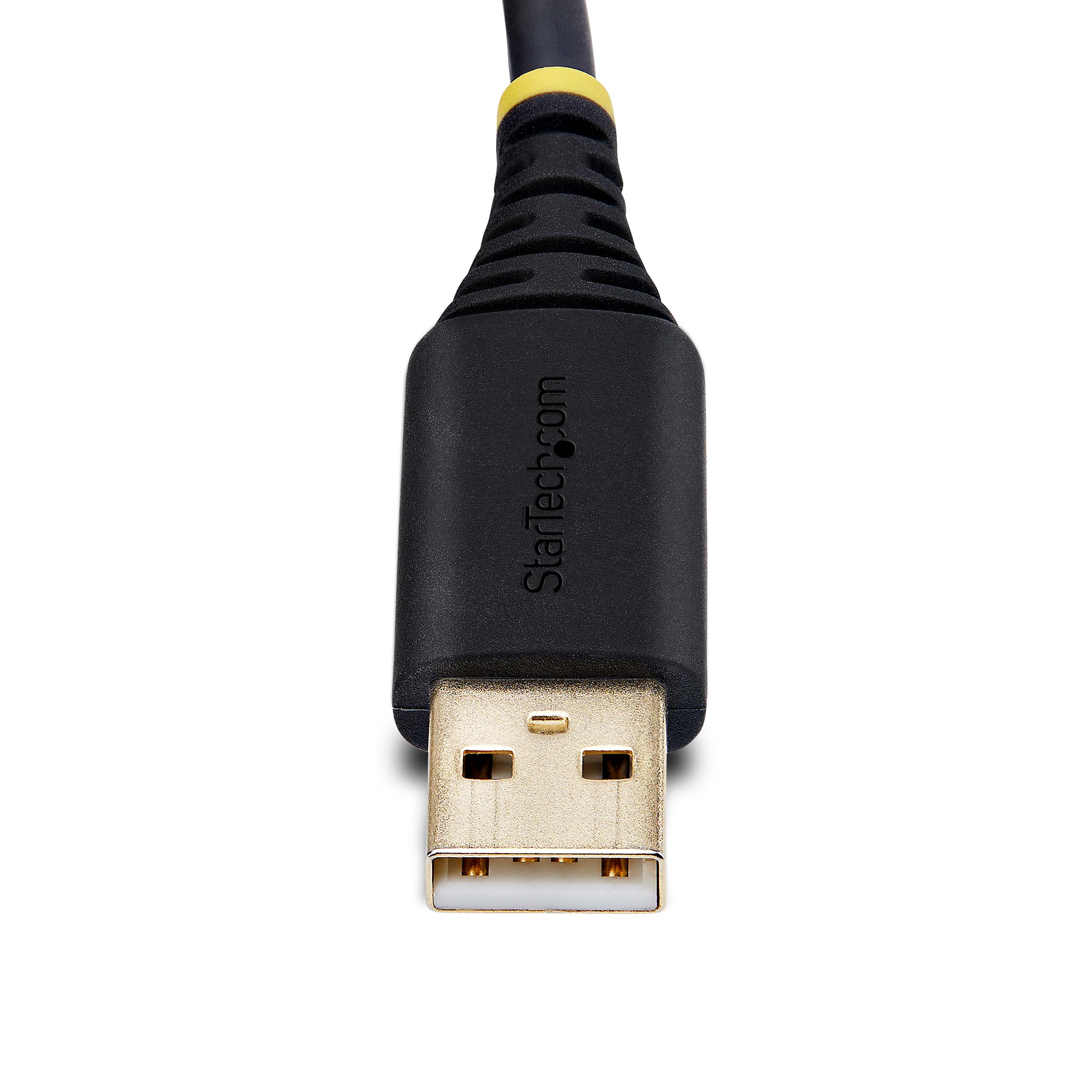

Package Depth (mm) 199 Package Height (mm) 21 Package Width (mm) 142 Package Quantity 1 Package Weight (g) 108 Packaging Description 6.6ft (2m) FTDI USB-A to RS232 DB9 Serial Adapter Cable - M/M - ESD Level 4 Packaging Description India 6.6ft (2m) FTDI USB-A to RS232 DB9 Serial Converter Cable - M/M - ESD Level 4 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 1 Connector 2 DB-9 Serial Connector 2 (Quantity) 1 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Veronica Ye Application Photos Uploaded Artwork Due Date 2024-06-15 Buying Center - AV & Collaboration Yes Buying Center - Data Center Yes Buying Center - End User Compute No Buying Center - Networking & Edge Yes Comparable SKU Comment Standard cable without gold plated connectors, rubberized housing, replaceable nuts/bolts, LED status lights, wider operating temp and extended shielding Comparable SKU 2 Comment Standard cable without gold plated connectors, rubberized housing, replaceable nuts/bolts, LED status lights, wider operating temp and extended shielding, Prolific instead of FTDI chip and 3' length Digital Content Due Date 2024-07-12 Enhanced Gallery Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,MX,NL,NZ,SE,UK,US Product Development Specialist Alex Sikora Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2024-03-29 Target Production Release 2024-06-15 Tech Lead Brian Linseman Technical Writer Alex Garcia Technology Lifecycle None Video Required
