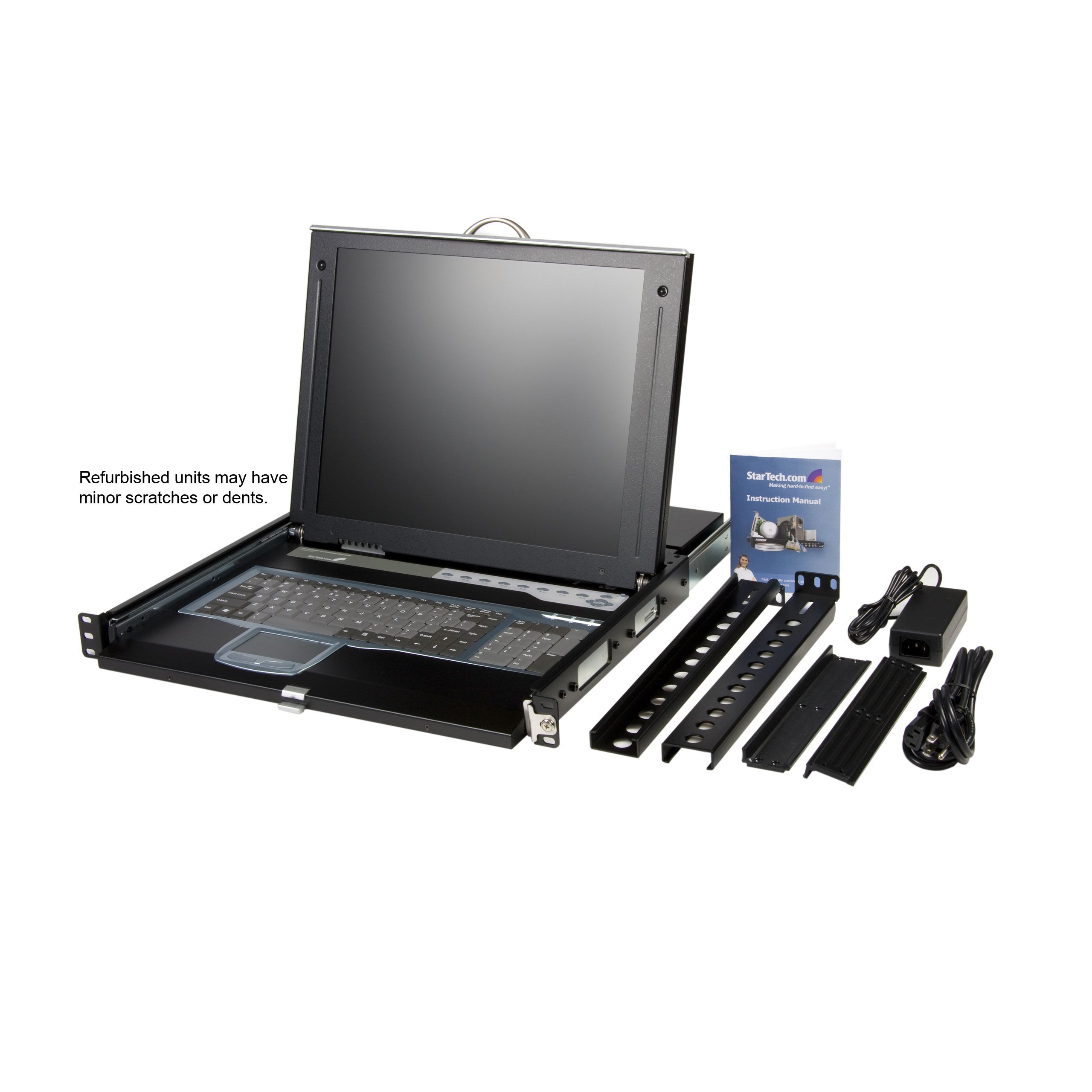

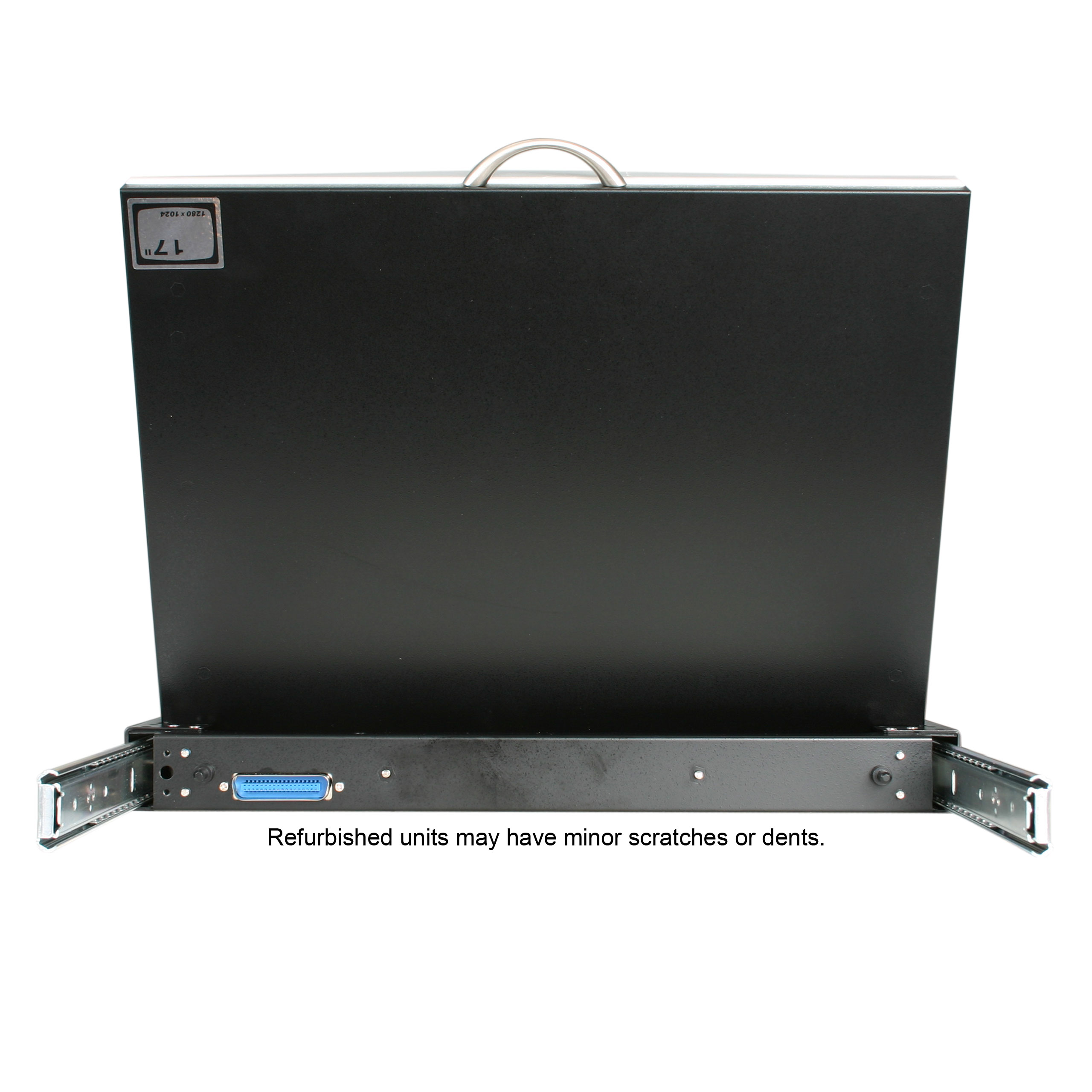

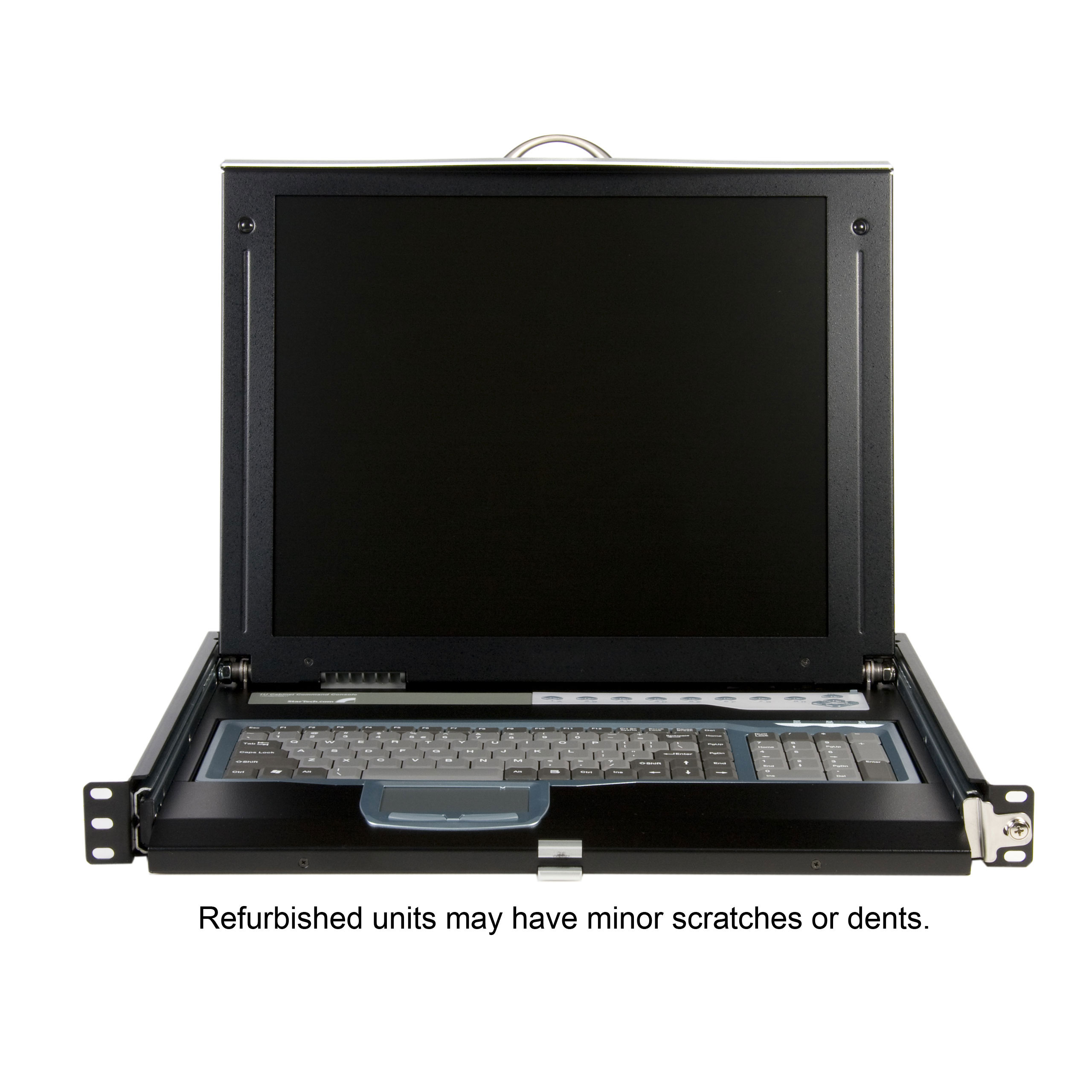

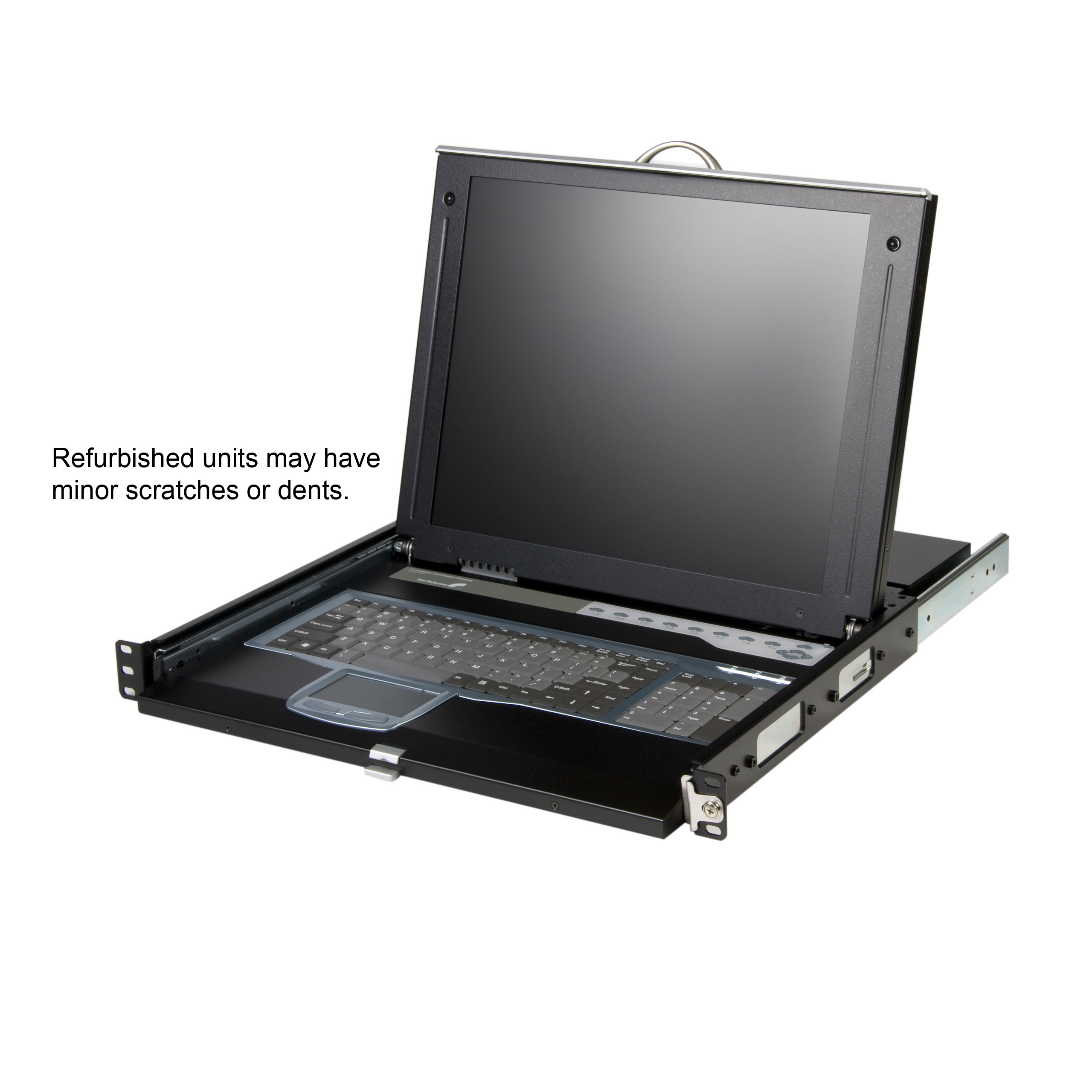

Product Name Refurbished 1U 17" LCD, Keyboard, Touchpad Rack Console Product Number 1UCABCONS17R UPC 065030845007 Lifecycle status Discontinued Warranty Refurbished 90 Days Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Long) Refurbished 1U 17" Rackmount LCD Console w/ Rear Mount KVM Module Bullet 1 A compact and efficient way to control multiple computers in a 19” by 36” deep Rack Cabinet. Bullet 2 Comfortable laptop design with integrated keyboard and touchpad mouse Bullet 3 Optional 8 or 16 port KVM switch modules lets users controls up to 16 computers directly, and up to 136 computers in total Bullet 4 High resolution 17” Active Matrix Color TFT LCD monitor, displays up to 1280 x 1024 pixels Bullet 5 Adjustable mounting brackets to fit any cabinet Marketing Copy Website Search Keyword cabconssearch Special Notes Power consumption for Standby, Suspend and Off modes is <= 1W Accessory Products - PS23N1THIN2
- PS23N1THIN6
- CAB832DS
- CABCONS30KIT
- PS23N1THIN4
- PS23N1THIN10
- PS23N1THIN15
- PS23N1THIN25
- SV125
- CAB831HD
- CAB1631HD
- CABCONS42KIT
- CAB1641HDI
- CABUSKEYBD
- CABUKKEYBD
- CABFRKEYBD
- CABCONSPA
- CABTPAD
- SV1631HD
- SV1631DUSB
Related Products - 1UCABCONS
- 1UCABCONS19
- RACKCONS
- CABCONS8
- CABCONS16
Input Current 1.8A Input Voltage 110V-240V AC Output Current 4A Output Voltage (V) 12V DC Power Consumption (In Watts) 26.5W Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Material Steel Minimum Mounting Depth (mm) 765 Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 525 Product Width (mm) 482.6 Product Height (mm) 381 Product Weight (g) 10150 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No DVI Support No KVM IP Control No Maximum Analog Resolutions 1280 x 1024 Maximum Number of Users 1 MTBF (hours) 360,562 Hours On-Screen Display Yes OS Compatibility OS Independent Port Selection Support Push Button and OSD (On Screen Display) Aspect Ratio 4:3 Audio No Cascadable Yes Display Size 17" Front Door Key Lock No Industry Standards VESA DDC 1/2B, VESA DPMS compliant Number of KVM Ports 1 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms PS/2 Carton Depth (mm) 625 Carton Height (mm) 208 Carton Quantity 1 Carton Weight Gross (g) 19780 Package Depth (mm) 622 Package Height (mm) 288 Package Width (mm) 703 Package Weight (g) 18580 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 PS/2 Connector 2 (Quantity) 2 en-US Content Approved Yes Product Manager Daryl Hunt
