1UCABCONS19
19" Modular Rackmount LCD KVM Drawer

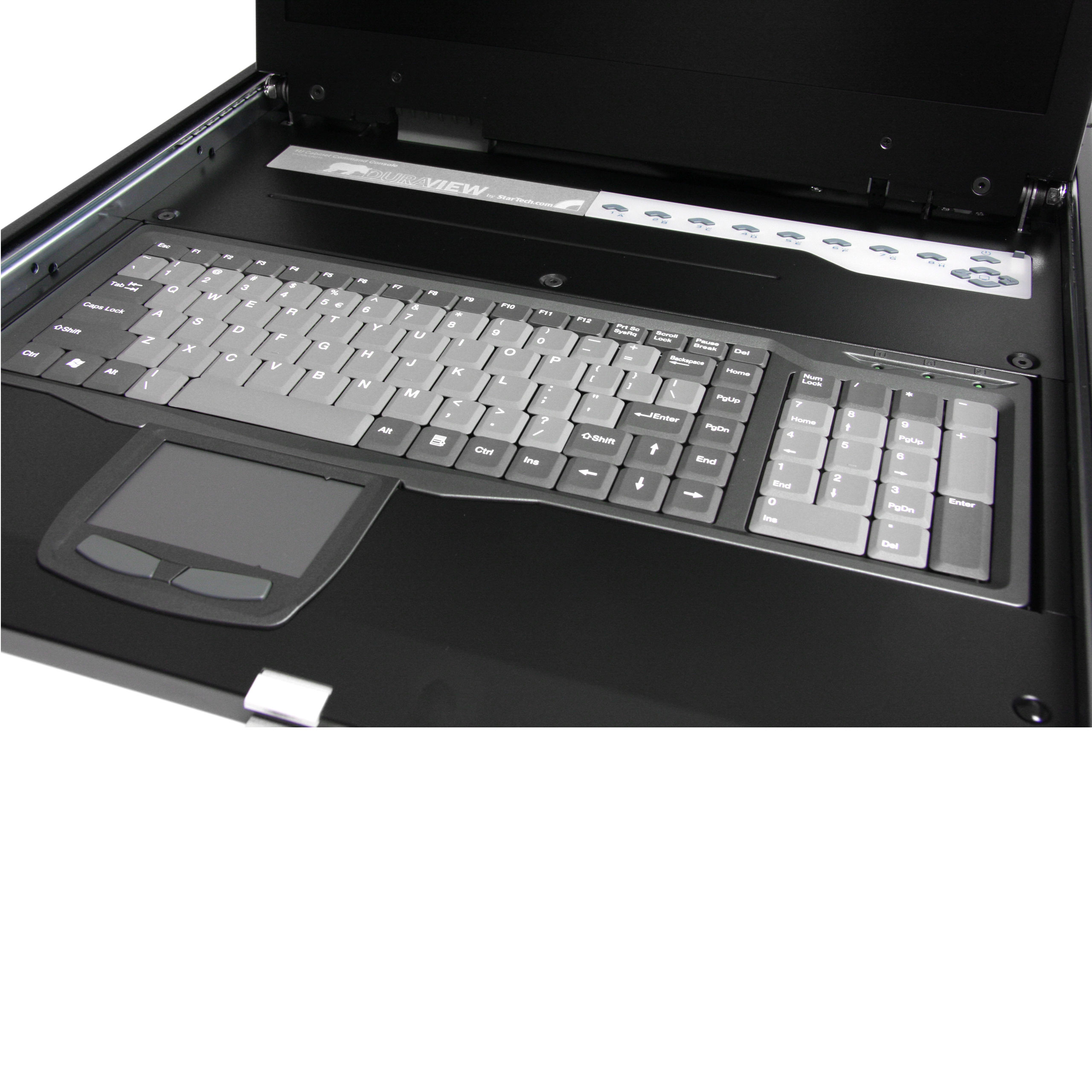

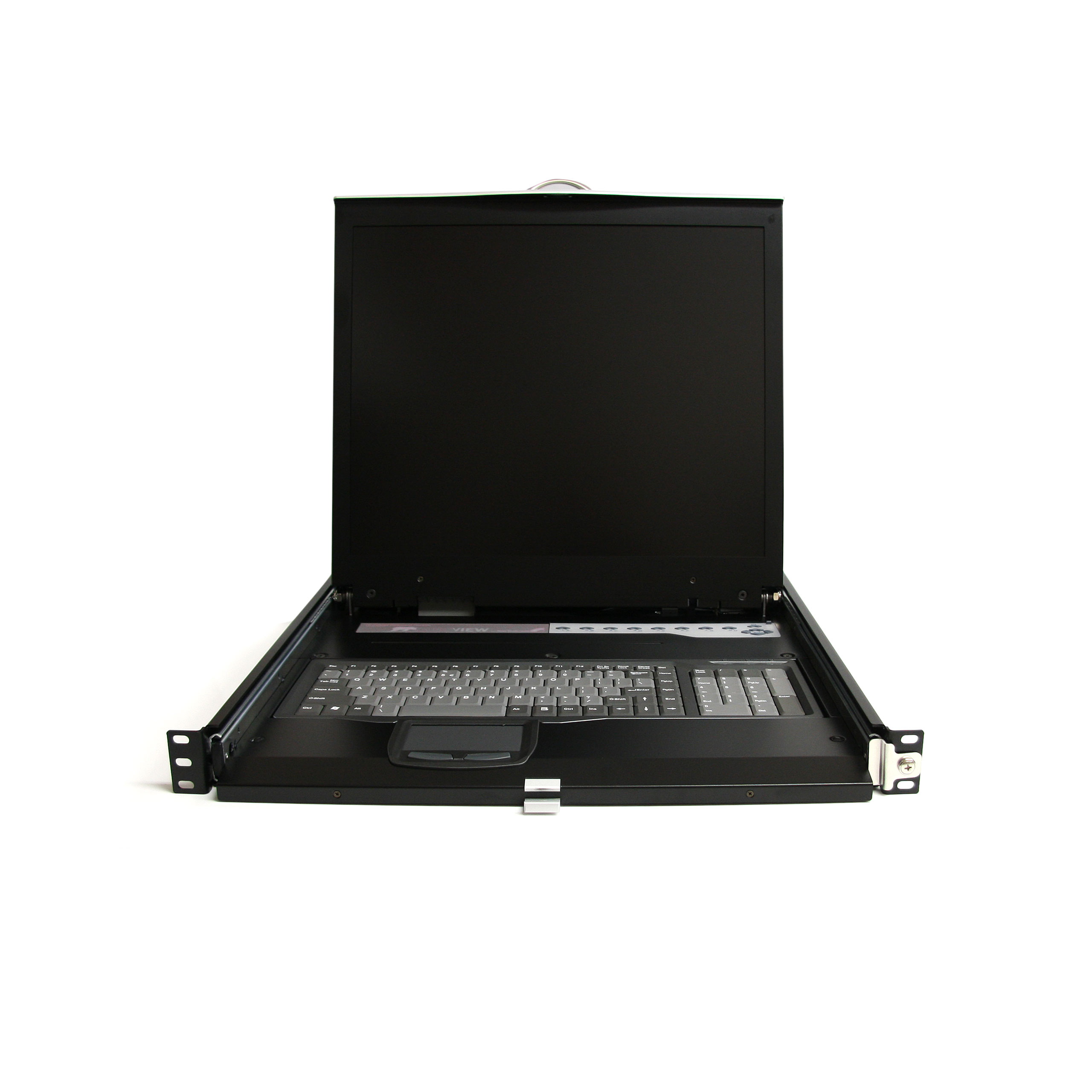

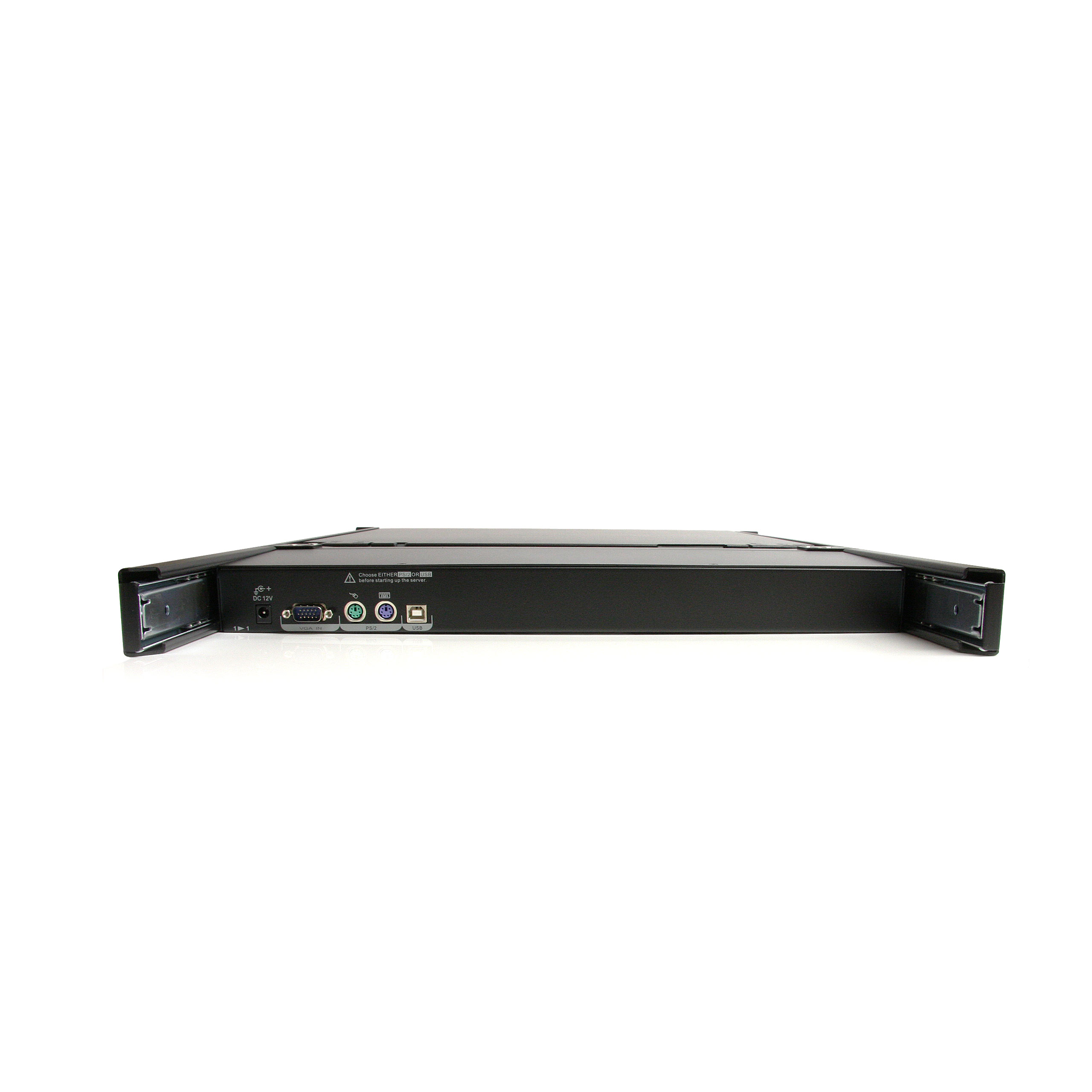

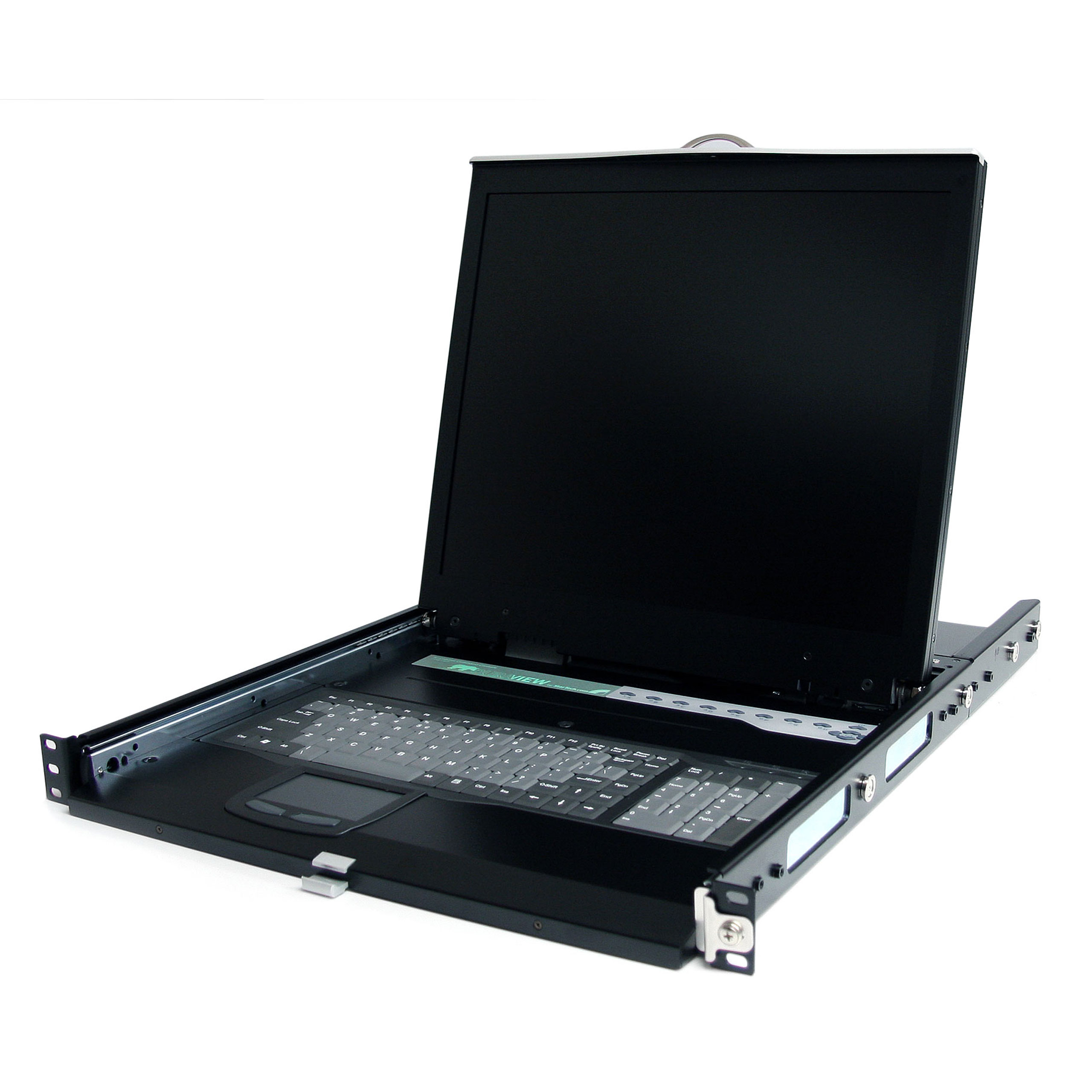

Control a server or KVM switch with this 1U rack-mountable LCD console
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 19" Modular Rackmount LCD KVM Drawer Product Number 1UCABCONS19 UPC 065030819404 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Short) 19" Rackmount LCD Console w/ KVM Module Product Title (Standard) 1U 19" Rackmount LCD Console w/ KVM Switch Module Product Title (Long) 1U 19" Rackmount LCD Console w/ Rear Mount KVM Switch Module Title Ingram (Part 1) 1U 19" Rackmount LCD Console w/ Title Ingram (Part 2) KVM Switch Module Website Product Headline Control a server or KVM switch with this 1U rack-mountable LCD console Bullet 1 Flip-open 19” TFT LCD panel supports 1280 x 1024@60/70/75Hz resolution Bullet 2 Standard 19" 1U rack drawer Bullet 3 Modular design Bullet 4 Full 105 key, low-profile, sturdy keyboard built-in Bullet 5 Standard connectors for PC connection Marketing Copy Applications - Managing cabinet-mounted servers
- Improving the internal space efficiency of existing cabinets
- Centralized control of dozens of PCs and servers if used with optional KVM modules.
Website Search Keyword - 1U
- Console
- Cabinet
- cabconssearch
Accessory Products - PS23N1THIN2
- PS23N1THIN6
- CAB832DS
- CABCONS30KIT
- PS23N1THIN4
- PS23N1THIN10
- PS23N1THIN15
- PS23N1THIN25
- SV125
- CAB831HD
- CAB1631HD
- CABCONS42KIT
- CABTPAD
- CABCONSPA
- CABFRKEYBD
- CABUSKEYBD
- CABUKKEYBD
- SV1631HD
- SV1631DUSB
Related Products - CABCONS16
- CABCONS8
- 1UCABCONS17
- 1UCABCONS
- RACKCONS
- RACKCONS1901

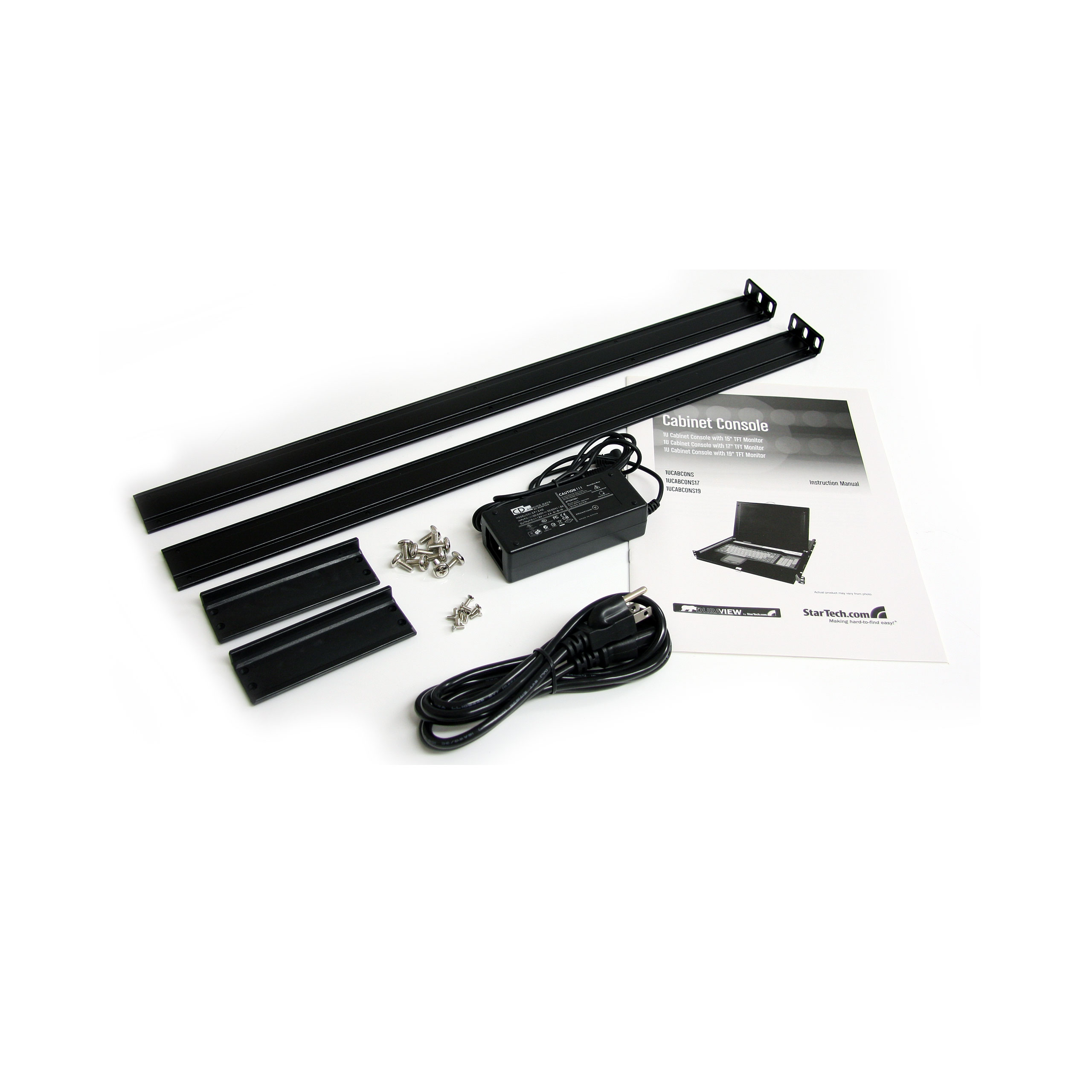

Input Current 1.8A Input Voltage 110V-240V AC Output Current 4A Output Voltage (V) 12V DC Power Consumption (In Watts) 28W Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Operating Temperature 0 to +50 Storage Temperature -20 to +60℃ TAA Compliant No DVI Support No KVM IP Control No Maximum Analog Resolutions 1280 x 1024 pixels MTBF (hours) 360,562 Hours On-Screen Display Yes OS Compatibility OS Independent Aspect Ratio 4:3 Audio No Cascadable Yes Display Size 19" Front Door Key Lock No Industry Standards VESA DPMS compliant Number of KVM Ports 1 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms PS/2 Carton Depth (mm) 625 Carton Height (mm) 208 Carton Quantity 1 Carton Weight Gross (g) 21800 Included in Package - 1 - 19in Rack Console
- 1 - 1 Port Rear Mount KVM Module
- 2 - Mounting Brackets
- 2 - Rear Bracket Extensions
- 1 - Bag, Screws
- 1 - Power Adapter (w/ Cord)
- 1 - Instruction Manual
Package Depth (mm) 800 Package Height (mm) 272 Package Width (mm) 630 Package Weight (g) 20599.8806 Packaging Description 1U 19" LCD Rack Console w/ Rear KVM Module Packaging Description India 1U 19" LCD Rack Console w/ Rear KVM Module Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 en-US Content Approved Yes Product Manager Daryl Hunt
