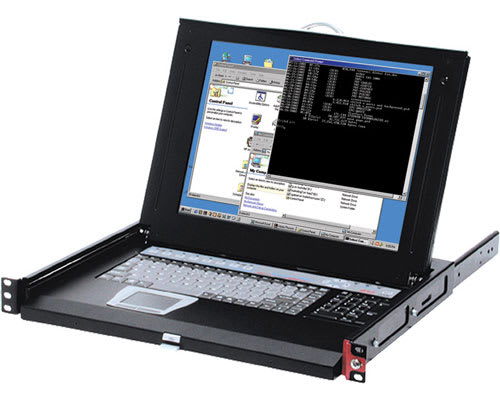

Main Image
1UCABCONSGB
Main Image
Product Name 1U Cabinet Command Console Product Number 1UCABCONSGB UPC 065030800563 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Short) 15in Rackmount LCD Console w/ KVM Module Product Title (Standard) StarTech.com 1U Cabinet Command Console - KVM switch - rackmount LCD Console - TFT - 15" - 1024 x 768 / 75 Hz - 1U Product Title (Long) 1U 15in Folding Rackmount LCD Console w/ Rear Mount KVM Switch Module Title Ingram (Part 1) 1U 15in Folding Rackmount LCD Co Title Ingram (Part 2) nsole w/ KVM Switch Module Bullet 1 Modular design allows optional 8 or 16 port KVM switch modules to be integrated into the unit. Bullet 2 15 Inch TFT LCD Display Bullet 3 Supports resolution up to 1024x768 Bullet 4 Standard 19" 1U rack drawer Bullet 5 Full 105 key low profile keyboard Marketing Copy Applications - Managing cabinet mounted servers
- Improving the internal space efficiency of existing cabinets
- Centralized control of dozens of PCs and servers if used with optional KVM modules.
Input Current 1.8A Input Voltage 110V-240V AC Output Current 4A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Material Steel TAA Compliant No DVI Support No General Specifications - LCD Size: 15.1 inches TFT
- Resolution: 1024 x 768 @60/70/75Hz
- Display Color: 16.7M (8 bits)
- User Control: OSD control (auto saving)
- Input Signal: RGB analog, H/V separate
- Plug and Play VESA: VESA DDC 1/2B
- Keyboard: 105 Key, PS/2
- Mouse Touch Pad: PS/2
- Power Management: VESA DPMS compliant
- : ON mode = 23.2W
- : STANDBY mode <= 1W
- : SUSPEND mode <= 1W
- : OFF mode <= 1W
- Cert: FCC (Part 15)
- Power Adapter: 12 Volt / 2.0 Amps
- Rack/Cabinet Depth Requirement: 30 in. (minimum)
KVM IP Control No Maximum Number of Users 1 Audio No Cascadable Yes Number of Monitors Supported 1 Rack-Mountable Yes Supported Platforms PS/2 Carton Depth (mm) 625 Carton Height (mm) 208 Carton Quantity 1 Carton Weight Gross (g) 15990 Package Depth (mm) 577 Package Height (mm) 208 Package Width (mm) 625 Package Weight (g) 14790 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PS/2 Connector 1 (Quantity) 2 Connector 2 VGA Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
