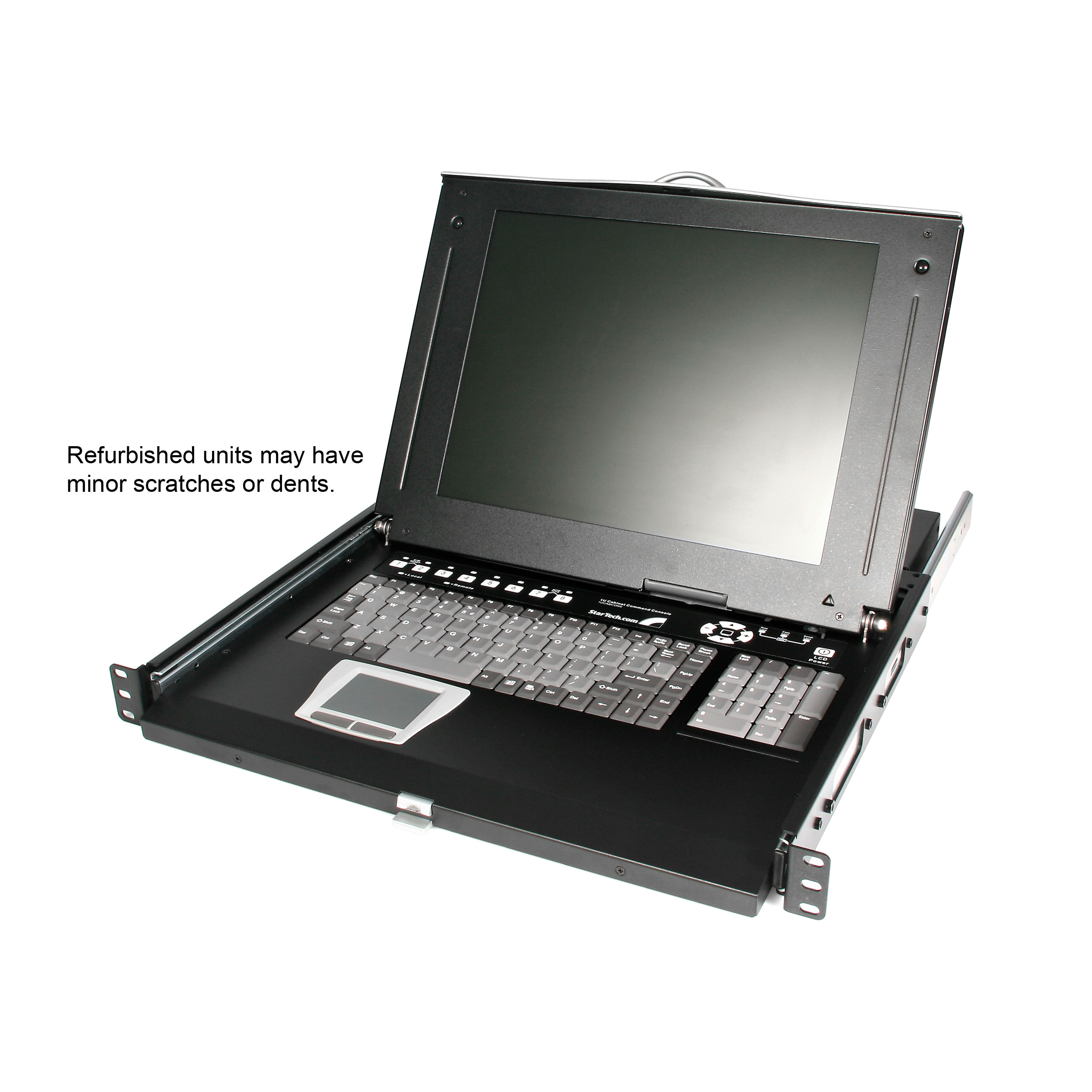

Product Name Refurbished 1U Rackmount Integrated Monitor Keyboard Product Number 1UCABCONSR UPC 065030844994 Lifecycle status Discontinued Warranty Refurbished 90 Days Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Long) Refurbished 1U 15" Rackmount LCD Console w/ Rear Mount KVM Module Bullet 1 Modular design allows optional 8 or 16 port KVM switch modules to be integrated into the unit. Bullet 2 15 Inch TFT LCD Display Bullet 3 Supports resolution up to 1024x768 pixels Bullet 4 Standard 19" 1U rack drawer Bullet 5 Full 105 key low profile keyboard Marketing Copy Applications - Managing cabinet mounted servers
- Improving the internal space efficiency of existing cabinets
- Centralized control of dozens of PCs and servers if used with optional KVM modules.
Website Search Keyword cabconssearch System and Cable Requirements Extendable rails can be adjusted between 67.5 cm (26.63 in) and 80.5 cm (36.63 in) Accessory Products - PS23N1THIN2
- PS23N1THIN6
- CAB832DS
- CABCONS30KIT
- PS23N1THIN4
- PS23N1THIN10
- PS23N1THIN15
- PS23N1THIN25
- SV125
- CAB831HD
- CAB1631HD
- CABCONS42KIT
- CABTPAD
- CABCONSPA
- CABFRKEYBD
- CABUSKEYBD
- CABUKKEYBD
Related Products - CABCONS16
- CABCONS8
- 1UCABCONS17
- 1UCABCONS19
- RACKCONS

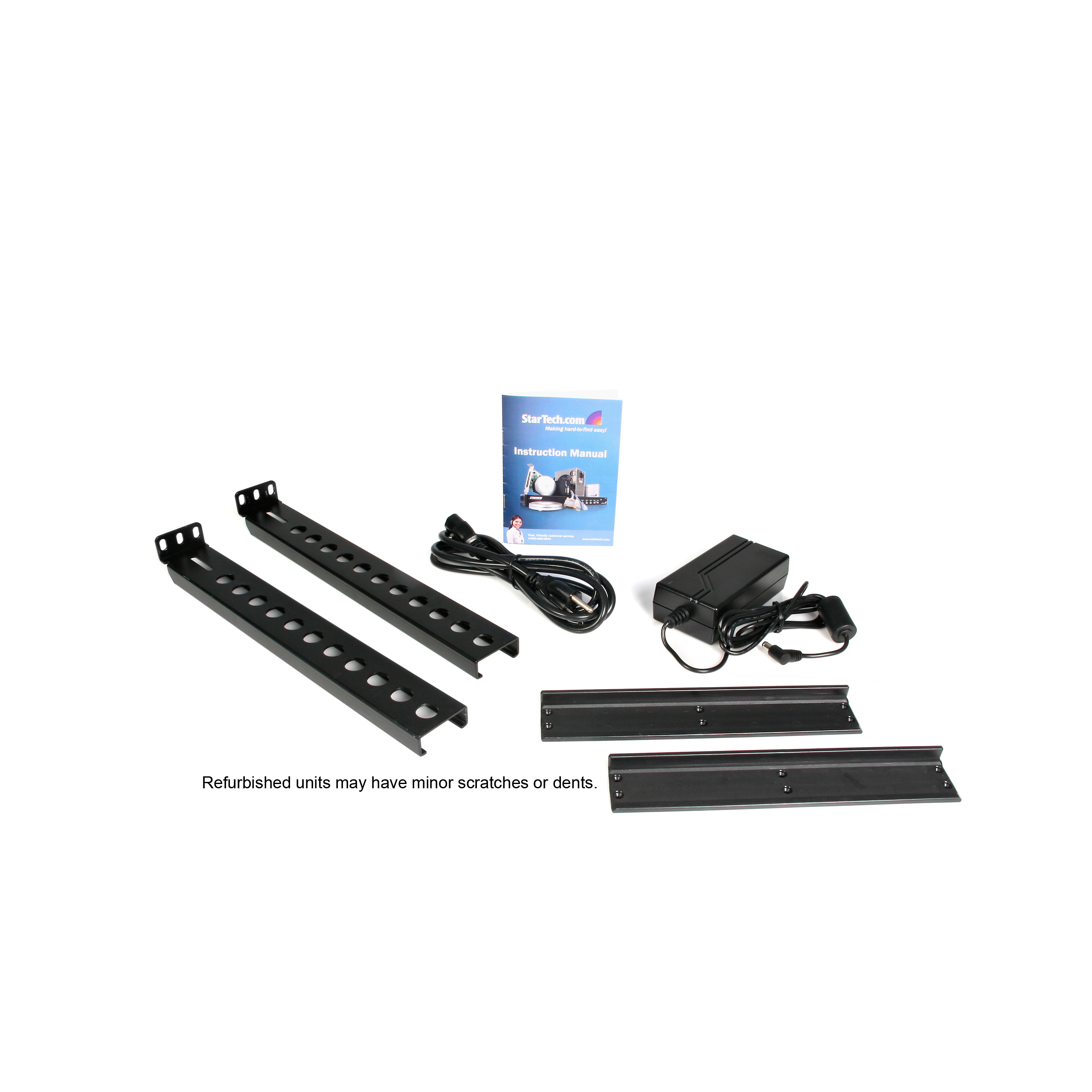

Replacement Product RACKCONS1501 Input Current 1.8A Input Voltage 110V-240V AC Output Current 4A Output Voltage (V) 12V DC Power Consumption (In Watts) 23.2W Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Material Steel Minimum Mounting Depth (mm) 762 Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 480 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No DVI Support No KVM IP Control No Maximum Analog Resolutions 1024 x 768 @60/70/75Hz Maximum Number of Users 1 MTBF (hours) 384,893 Hours On-Screen Display Yes OS Compatibility OS Independent Port Selection Support Push Button and OSD (On Screen Display) Aspect Ratio 4:3 Audio No Cascadable Yes Display Size 15" Front Door Key Lock No Industry Standards VESA DDC 1/2B, VESA DPMS Number of KVM Ports 1 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms PS/2 Carton Depth (mm) 625 Carton Height (mm) 208 Carton Quantity 1 Carton Weight Gross (g) 15990 Included in Package - 1 - 1U Cabinet Command Console
- 1 - PC/KVM Console
- 1 - Bag of Rackmount Screws
- 1 - Rear Bracket and Extension Kit
- 1 - Power Adapter
- 1 - Manual
- 1 - Power Cord
Package Depth (mm) 547 Package Height (mm) 208 Package Width (mm) 625 Package Weight (g) 14790 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 PS/2 Connector 2 (Quantity) 2 en-US Content Approved Yes Product Manager Daryl Hunt
