1USB4-NVME-ENCLOSURE
M.2 NVMe SSD Enclosure - USB4 (40Gbps)

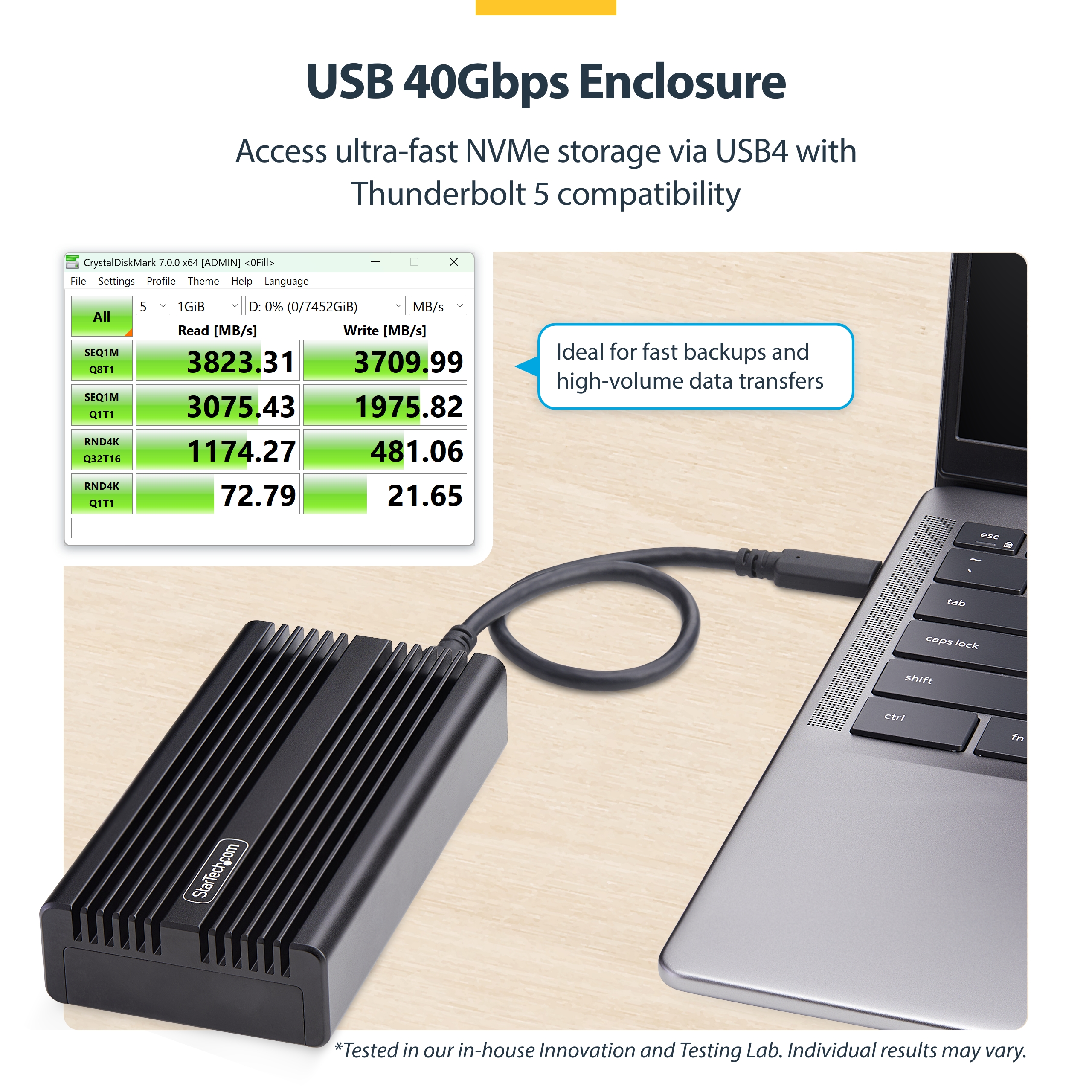

Access Ultra-Fast NVMe Storage via 40Gbps USB4 with Thunderbolt 5 Compatibility
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name M.2 NVMe SSD Enclosure - USB4 (40Gbps) Product Number 1USB4-NVME-ENCLOSURE UPC 065030907248 Lifecycle status Active Warranty 2 Years Weighted Opportunity 0 Taxonomy Product > Cards & Adapters > External Drive Enclosures Category Level 1 Data Storage Category Level 2 External Drive Enclosures Category Level 3 M.2 NVMe Enclosures - USB-C 10Gbps Family M.2 NVMe Enclosure - USB-C 40Gbps Country of Origin Europe & Japan Vietnam Country of Origin North America Vietnam Country of Origin History (1) Vietnam Country of Origin Revision (1) XXXXXX177X Product Title (Ultra-Short) USB4 NVMe Enclosure Product Title (Short) USB4 M.2 NVMe Enclosure, SSD Enclosure Product Title (Medium) USB4 M.2 NVMe Enclosure, 40Gbps, External USB-C/Thunderbolt NVMe SSD Enclosure Product Title (Standard) USB4 M.2 NVMe Enclosure, 40Gbps, External USB-C/Thunderbolt NVMe SSD Enclosure, B+M/M-Key Product Title (Long) USB4 M.2 NVMe Enclosure, 40Gbps, External USB-C/Thunderbolt NVMe SSD Enclosure, Aluminum Heatsink Case, B+M/M-Key Product Title (AMZ) USB4 M.2 NVMe Enclosure, 40Gbps, External USB-C/Thunderbolt NVMe SSD Enclosure, Aluminum Heatsink Case, B+M/M-Key Title Ingram (Part 1) USB4 NVMe Enclosure, M.2 SSD Title Ingram (Part 2) USB-C/Thunderbolt 5/4 SSD Enclosure Website Product Headline Access Ultra-Fast NVMe Storage via 40Gbps USB4 with Thunderbolt 5 Compatibility Bullet 1 Bullet 2 Bullet 3 Bullet 4 Bullet 5 Bullets (Compact) Ultra-fast USB4 NVMe enclosure supports up to 40Gbps; Thunderbolt 5/4/3/USB-C Compatible; Heat-dissipating aluminum heatsink case w/thermal pad; Supports B+M/M-Key 2230/2242/2260/2280 M.2 NVMe (PCIe 4.0 x4); NOTE: M.2 SATA is not supported Bullets (Consolidated) Ultra-fast USB-C enclosure for PCIe M.2 NVMe SSDs; Up to 40Gbps via a USB4 host - Thunderbolt 5/4/3/USB 3.2 compatible for seamless USB-C compatibility between enterprise laptops/workstations - Supports B+M/M-Key 2230/2242/2260/2280 M.2 NVMe including Samsung EVO 950/960/970 Kingston/Seagate/Western Digital/HP/Intel - Heatsink cover w/thermal pad for optimal heat dissipation - Perform instant backup/disk imaging; Ideal for professional applications where fast and portable NVMe access is required Marketing Copy Marketing Copy (No HTML) Applications - Access your NVMe drive externally with ultra-fast transfer speeds

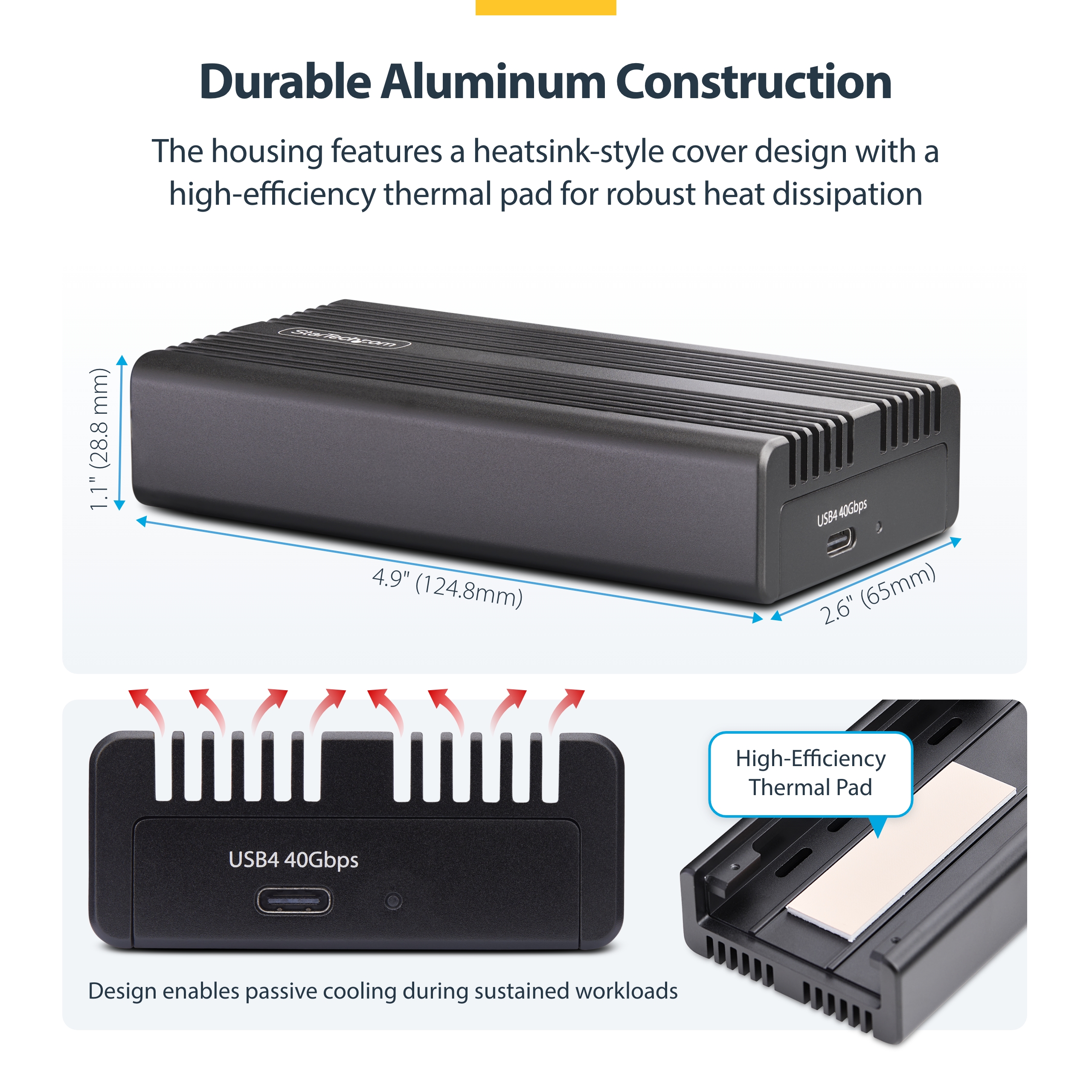

- Heat-dissipating design is ideal for extended data-migration related tasks
- Designed for professional high-speed data workflows where fast, portable NVMe access is required

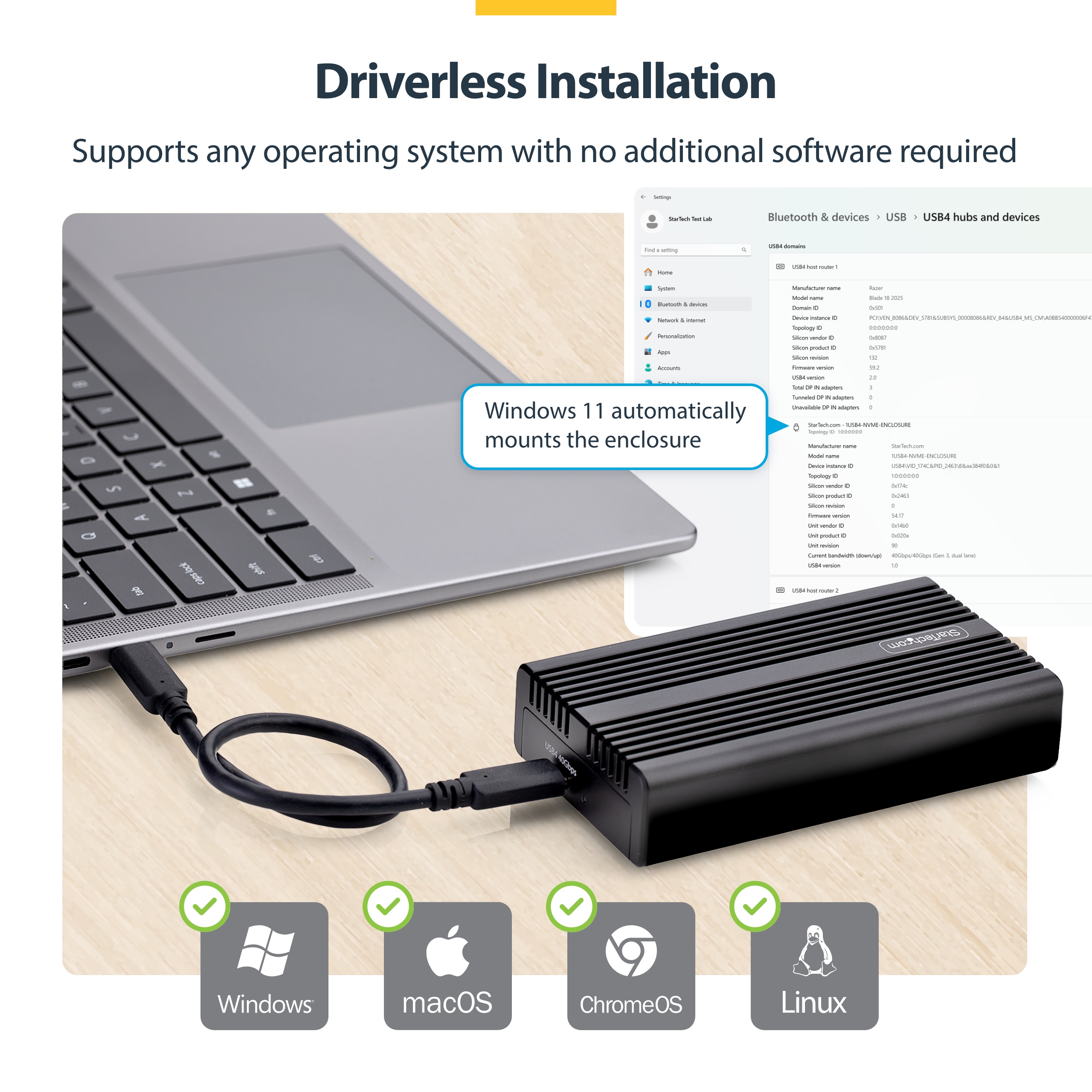

- Provide an instant, high-performance storage solution for data recovery, backup or repair. No driver installation required
Website Search Keyword - nvme enclosure
- USB4 NVMe Enclosure
- usb nvme enclosure
- nvme thunderbolt 4 enclosure
- usb 4 enclosure
- usb4 nvme enclosure
- thunderbolt 5 nvme enclosure
- nvme thunderbolt enclosure
- nvme usb enclosure
- nvme external enclosure
- usb4 ssd enclosure
Required Marketing Compliance Marks FSC - Environmental - Global - FSC Mix Packaging (Global 7 Languages) Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider

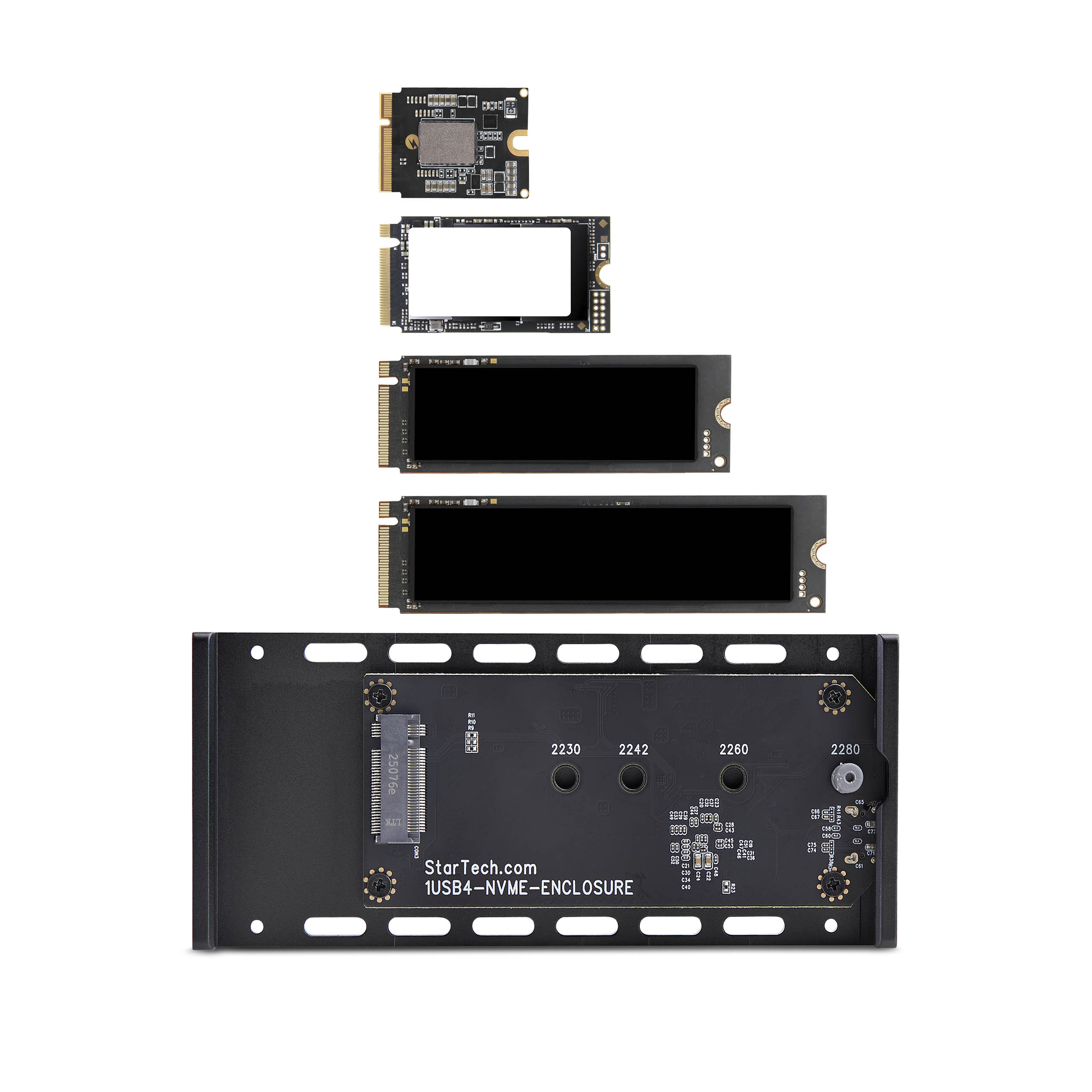

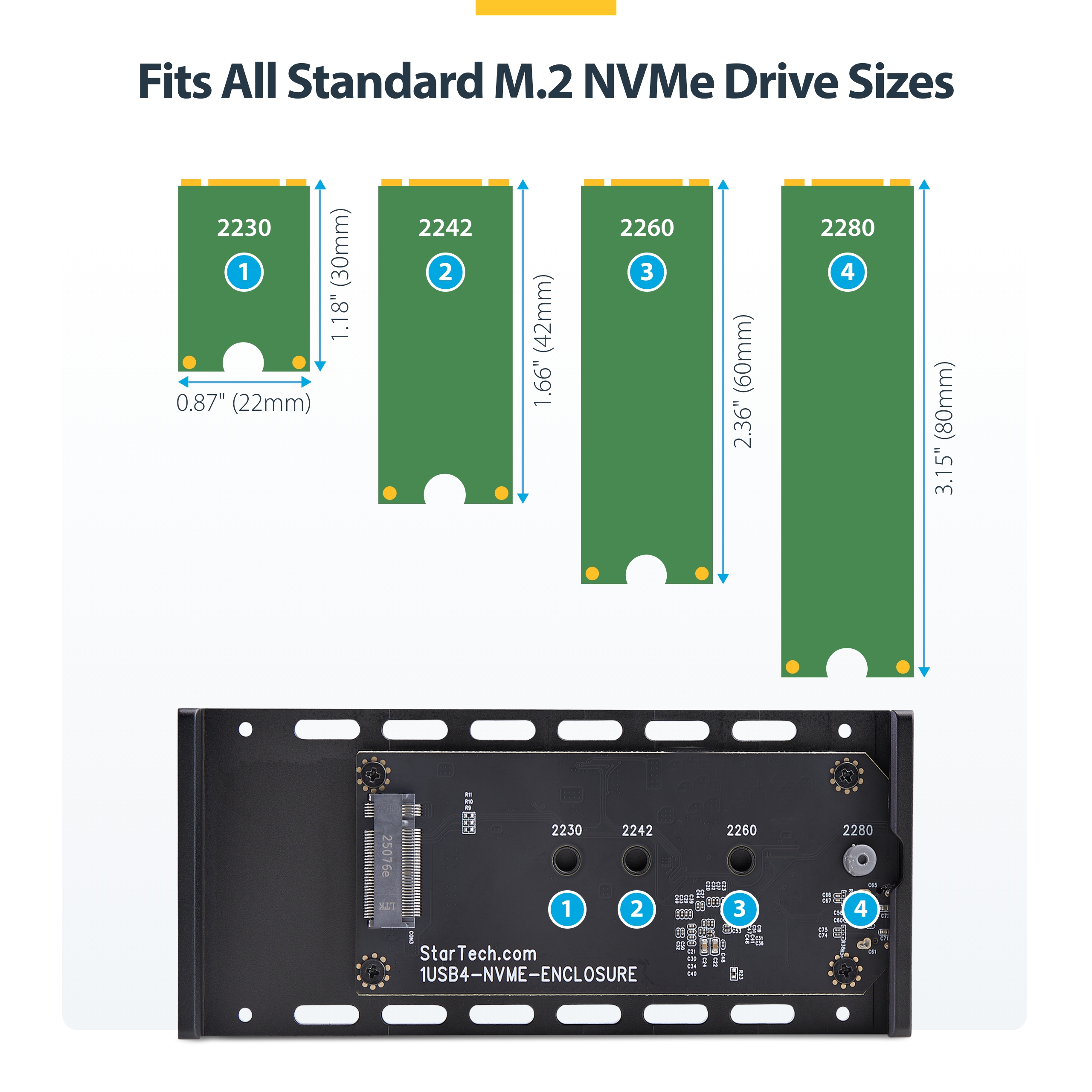

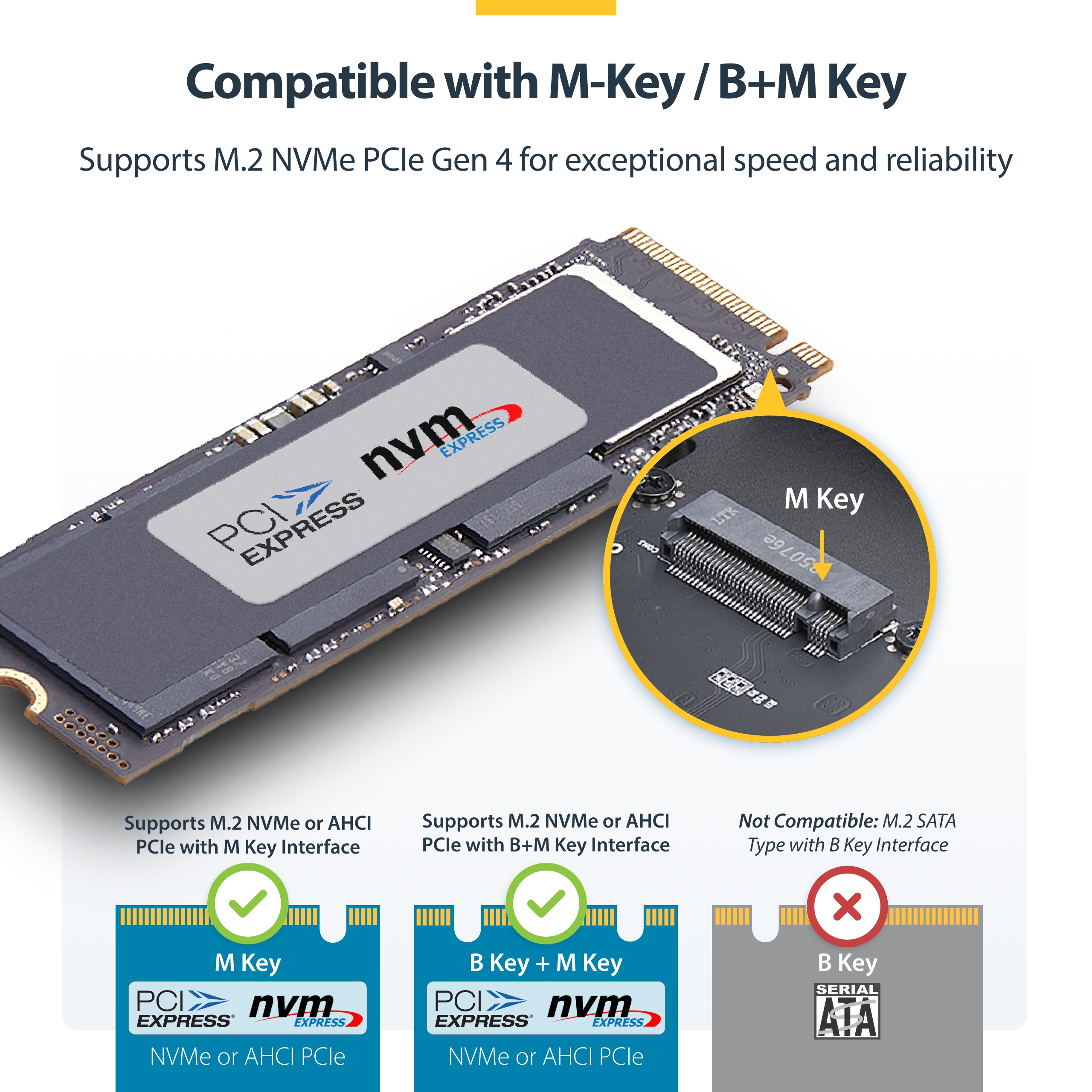

Power Source Bus Powered Cable Length (mm) 305 Color Black Humidity Up to 90% RH Material Aluminum Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 124.8 Product Width (mm) 65 Product Height (mm) 28.8 Product Weight (g) 340 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No 4Kn Support Yes Maximum Data Transfer Rate 40Gbps MTBF (hours) 112000 Hours OS Compatibility OS Independent RAID No SATA Type and Rate NVMe (PCIe Gen 4) S.M.A.R.T. Support Yes TRIM Support Yes UASP Support Yes USB Type and Rate USB4 (40Gbps) Bus Type USB4 (40Gbps) Chipset ID ASMedia - ASM2464PD Compatible Drive Types M.2 (PCIe, NVMe, M-Key, NGFF) Fans Included? Yes/No No Interface/Bridge USB4 (40Gbps) LED Indicators Number of Drives 1 Supported Drive Height(s) - 2230
- 2242
- 2260
- 2280

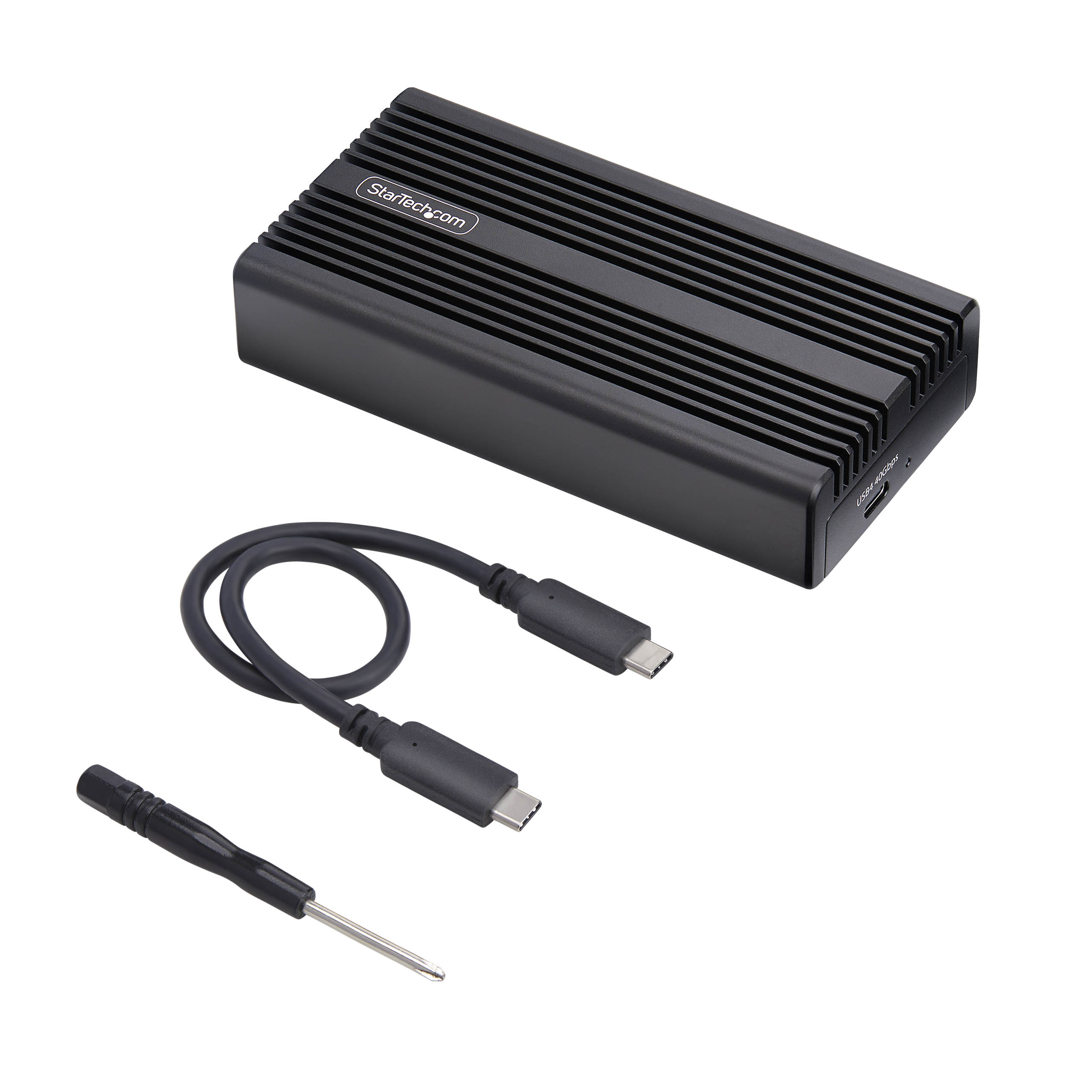

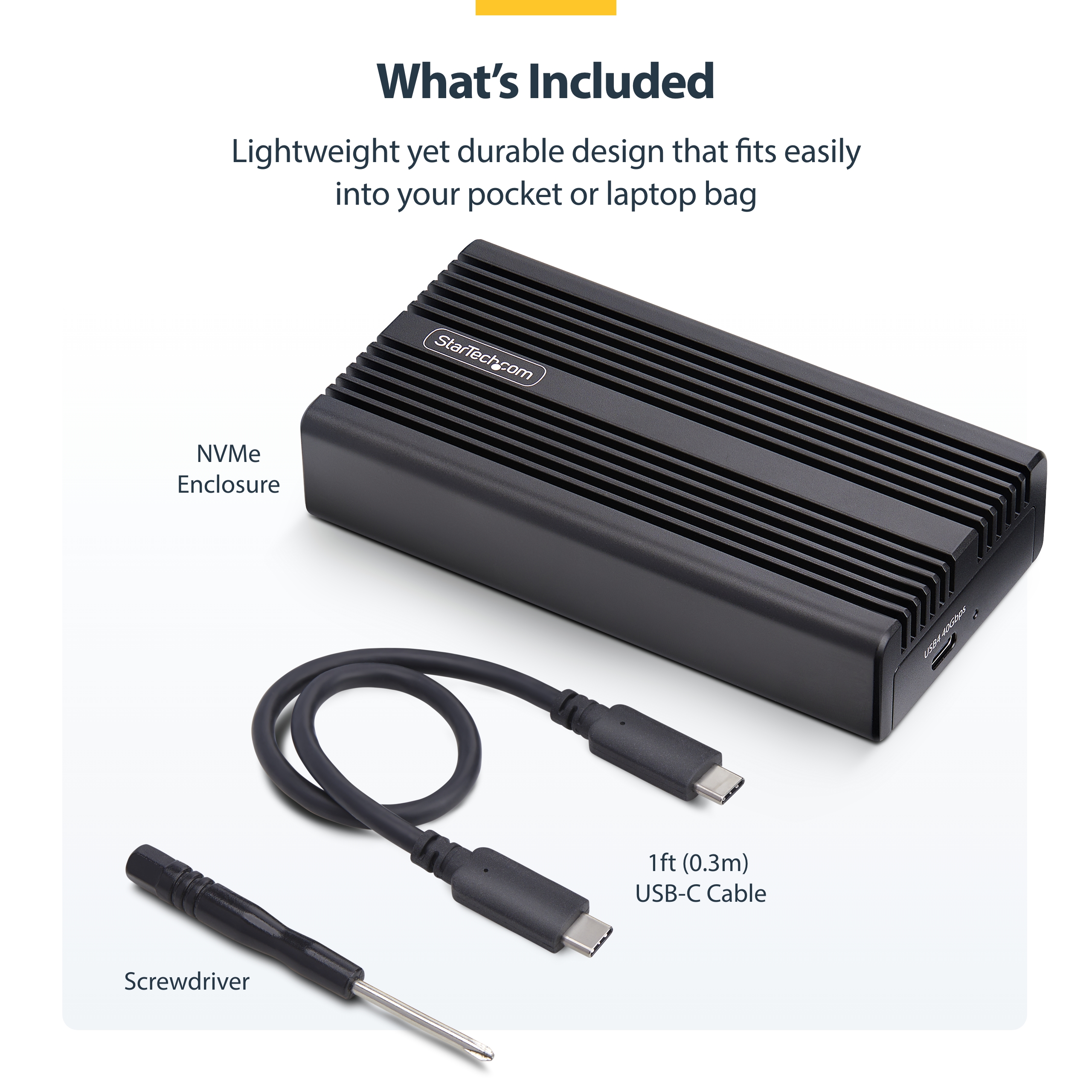

Carton Depth (mm) 395 Carton Height (mm) 260 Carton Quantity 20 Carton Weight Gross (g) 9100 Included in Package - 1 - M.2 NVMe Enclosure
- 1 - Thermal Pad (Pre-installed)
- 1 - USB4 Cable

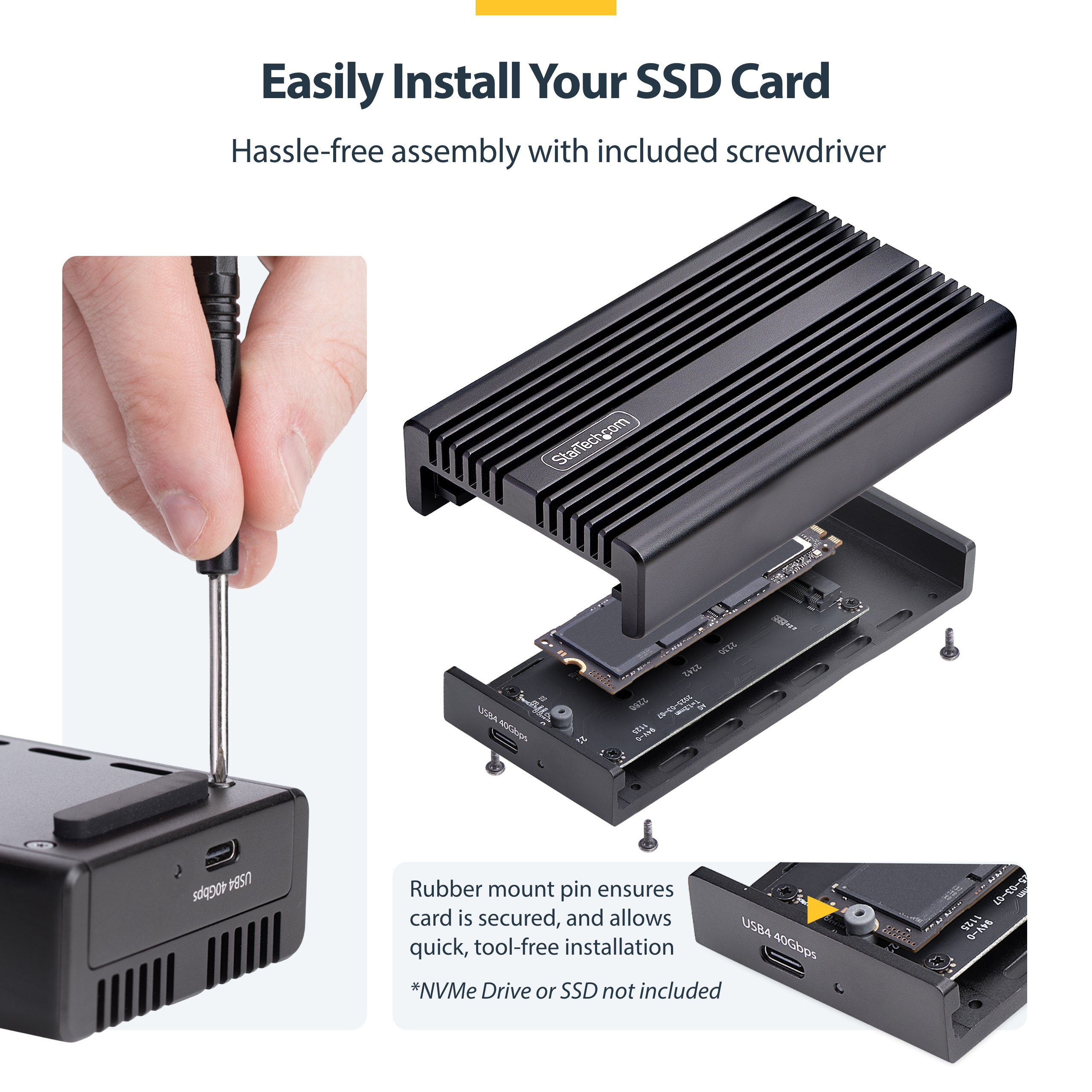

- 1 - Philips Head Screwdriver
- 1 - Product Documentation
Package Depth (mm) 190 Package Height (mm) 35 Package Width (mm) 114 Package Weight (g) 430 Packaging Description M.2 NVMe SSD Enclosure - USB4 (40Gbps) Packaging Description India M.2 NVMe SSD Enclosure - USB4 (40Gbps) Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 M.2 M-Key (PCIe, AHCI / NVMe) Connector 1 (Quantity) 1 Host Connector 1 USB-C (40Gbps, 100W PD Input) Host Connector 1 (Quantity) 1 A+ Not Required Actual Inbox Documents Created Compliance Insert Amazon Merchandising Manager Veronica Ye Amazon Only SKU No Amazon Visual Content Level Diamond Application Photos Uploaded Artwork Due Date 2025-05-01 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Comparable SKU Comment USB-C 10Gbps to M.2 NVMe or M.2 SATA SSD Enclosure Comparable SKU 2 Comment USB-C 10Gbps to M.2 NVMe SSD Enclosure Digital Content Due Date 2025-05-27 Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett ID Label Silkscreened or a Label Laser etched label - requires dieline showing location Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,FI,FR,IE,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology - USB4 (40Gbps)
- USB-C
Priority New Product High Product Development Specialist Yipeng Zhang Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2025-06-27 Target Production Release 2025-07-04 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Latest Video Not Required
