2030B8H-RACK-PDU-IC
Basic 20 Port PDU 208 240V 30 A 24A L6 30P Plug

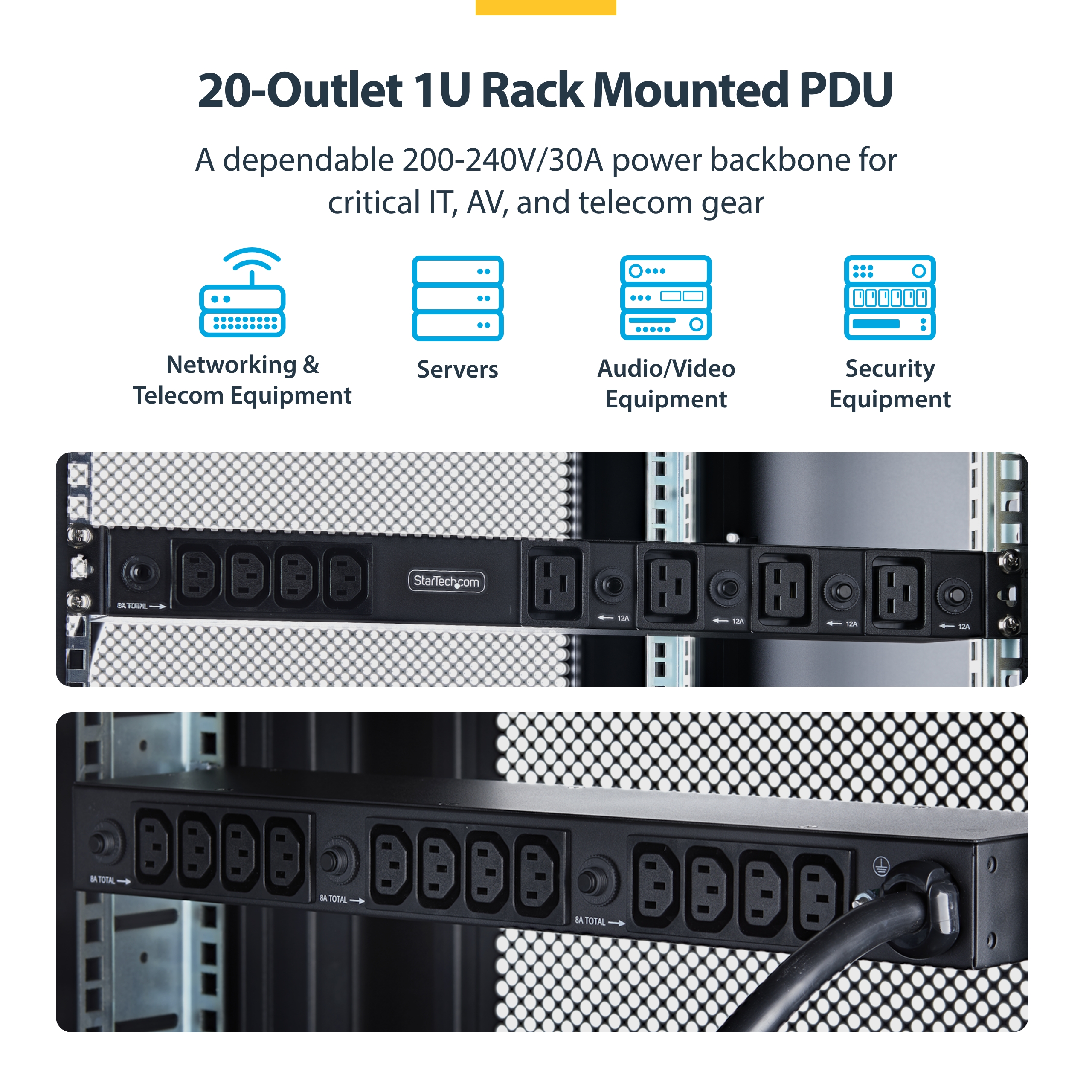

Add twenty power outlets to a 19in server rack or cabinet
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
BOM Image
Quick-Start Guide

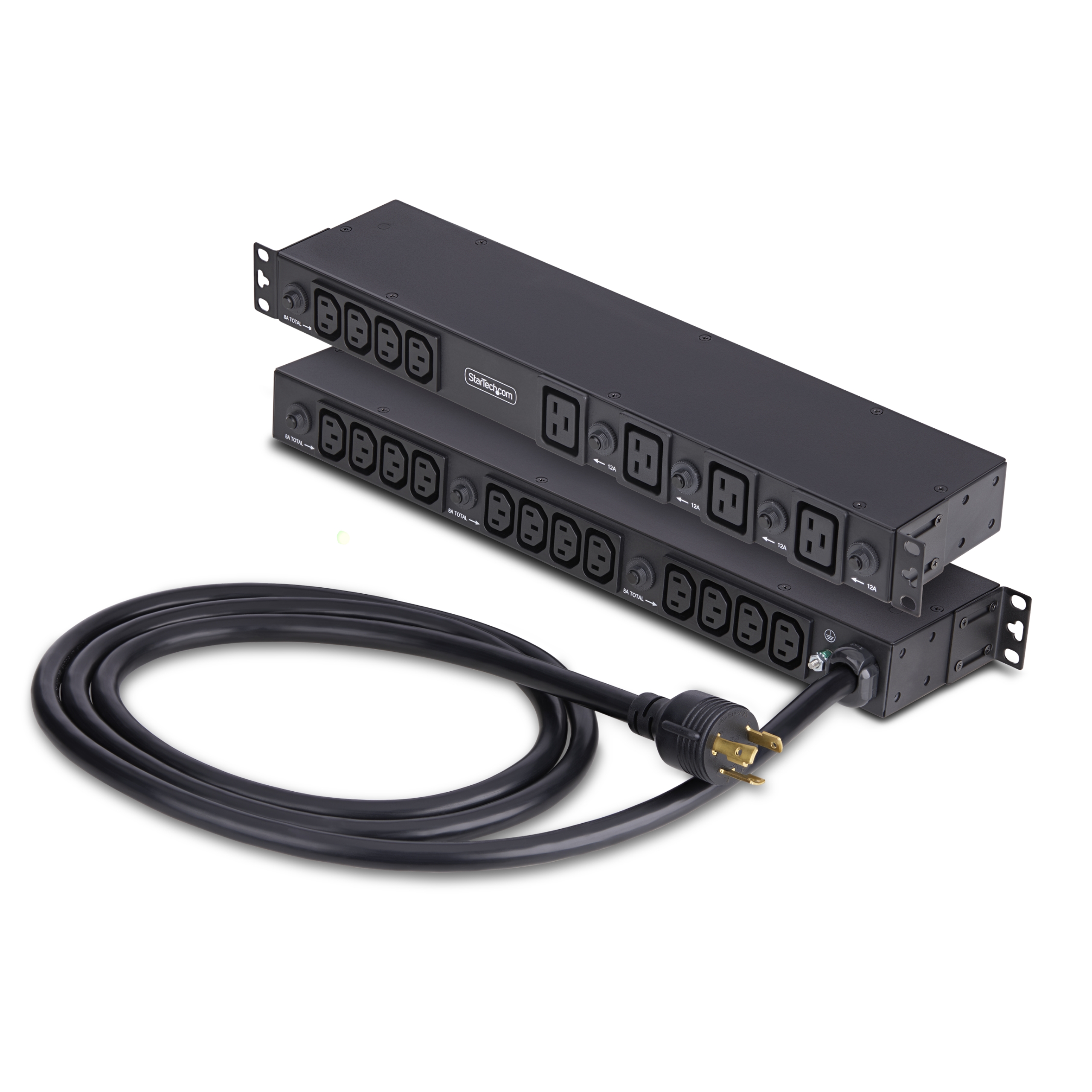

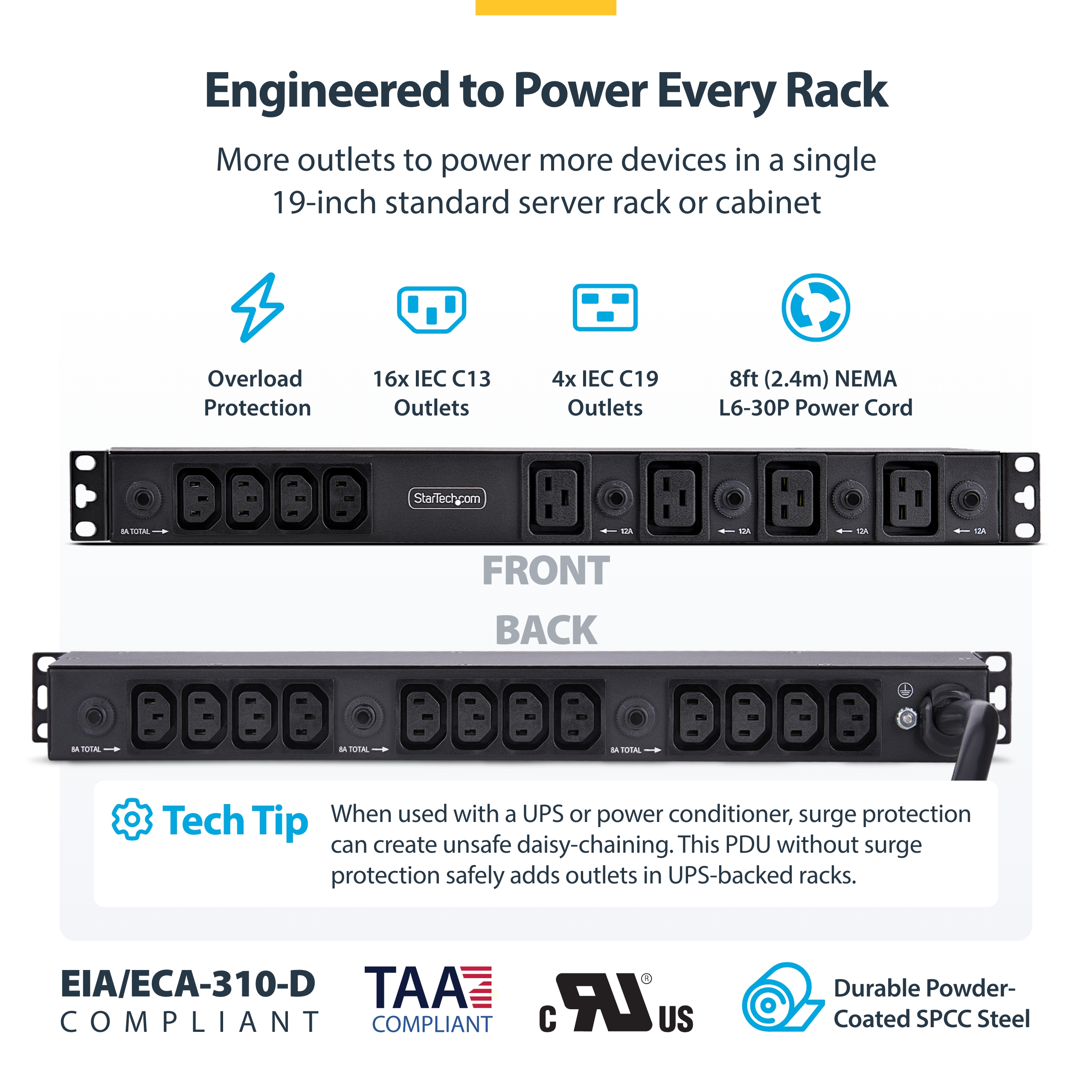

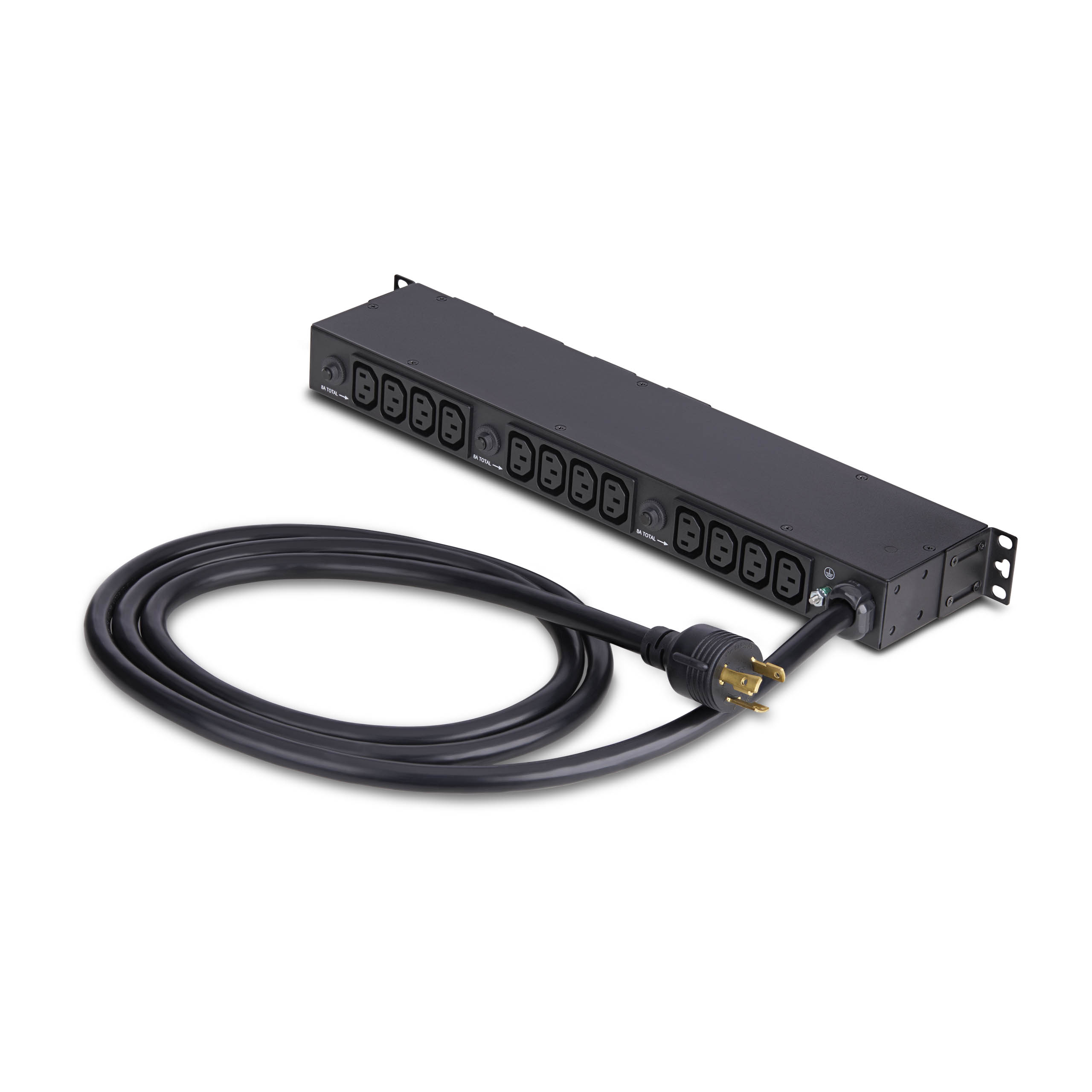

Product Name Basic 20 Port PDU 208 240V 30 A 24A L6 30P Plug Product Number 2030B8H-RACK-PDU-IC UPC 065030920919 Lifecycle status Pending Warranty 2 Years Weighted Opportunity 0 Taxonomy Product > Power > PDUs Category Level 1 Racks and Enclosures Category Level 2 Rack Power Category Level 3 Rackmount PDUs Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX007X Product Title (Ultra-Short) 20-Outlet Rack PDU Product Title (Short) 20-Outlet Rackmount PDU, 1U Power Strip Product Title (Medium) 20-Outlet Rackmount PDU, 1U Server Power Strip with 8x Front and 12x Rear Ports Product Title (Standard) 20-Outlet Rackmount PDU, 1U Server Power Strip, 16x C13 + 4x C19, NEMA L6-30P Wall Plug, 30A/240V, UL-Listed, TAA Product Title (Long) 20-Outlet Rackmount PDU, 1U Server Power Strip, 16x C13 + 4x C19, 8x Front and 12x Rear Outlets, NEMA L6-30P Wall Connection, 30A/240V, UL-Listed, TAA Product Title (AMZ) 20-Outlet Rackmount PDU, 1U Server Power Strip, 16x C13 + 4x C19, 8x Front and 12x Rear Outlets, NEMA L6-30P Wall Connection, 30A/240V, UL-Listed, TAA Title Ingram (Part 1) 20-Outlet Rackmount PDU, 1U Title Ingram (Part 2) Server Power Strip/Unit - 240V/15A Website Product Headline Add twenty power outlets to a 19in server rack or cabinet Bullet 1 Bullet 2 Bullet 3 Bullet 4 Bullet 5 Bullets (Compact) 1U rackmount PDU unit for 19in racks w/ 20x electrical outlets - 16x IEC C13 / 4x IEC C19 outlets - 240V 30A supply; 8ft power cord - 15A breakers safeguard each C19 outlet and every group of C13 ports - SPCC steel power distribution unit/strip; TAA Bullets (Consolidated) 1U rack-mounted PDU unit with 20x electrical outlets - 16x IEC C13 outlets (4x front / 12x rear) and 4x front IEC C19 outlets - 240V max 30A; Built-in 8ft NEMA L6-30P power cord - Rackmount power distribution strip includes 4-way mounting brackets - User-resettable 15A breakers safeguard each IEC C19 outlet and every group of four IEC C13 ports - Power supply features a SPCC steel housing with powder-coated finish; TAA-compliant Marketing Copy Marketing Copy (No HTML) Required Regulatory Compliance Marks - ETL - Safety - Electrical - Canada / United States - cETLus Mark (Intertek)
- Recycling - Waste - Japan - Paper Recycling Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- Recycling - Waste - European Union - Resin Identification Codes (RIC) + Sorting Information - Packaging - Italy
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
Accessory Products - CABSCREWS
- CABCAGENUTS
- 271B-6800-POWER-CORD
- 27LC-4B00-POWER-CORD
- PXT101
- PXT1011010PK
- PXT101143
- PXT10112
Related Products - RKPW081915
- RKPW161915
- RKPW101920
- PDU08C13H
Input Voltage 240V AC Plug Type - IEC 60320 C13 Power
- IEC 60320 C19 Power
Cable Length (mm) 2400 Color Black Material Steel Product Length (mm) 462.48 Product Width (mm) 95.25 Product Height (mm) 43.29 Product Weight (g) 3339 TAA Compliant Yes Maximum Output Voltage (V) 200V - 240V Maximum Total Current 30A Maximum Total Current Draw per Phase 30A Nominal Input Voltage (V) 200V - 240V Nominal Output Voltage (V) 200V - 240V Regulatory Derated Input Current (North America) 24A Form Factor Horizontal Industry Standards - UL 1363
- EIA/ECA-310-E

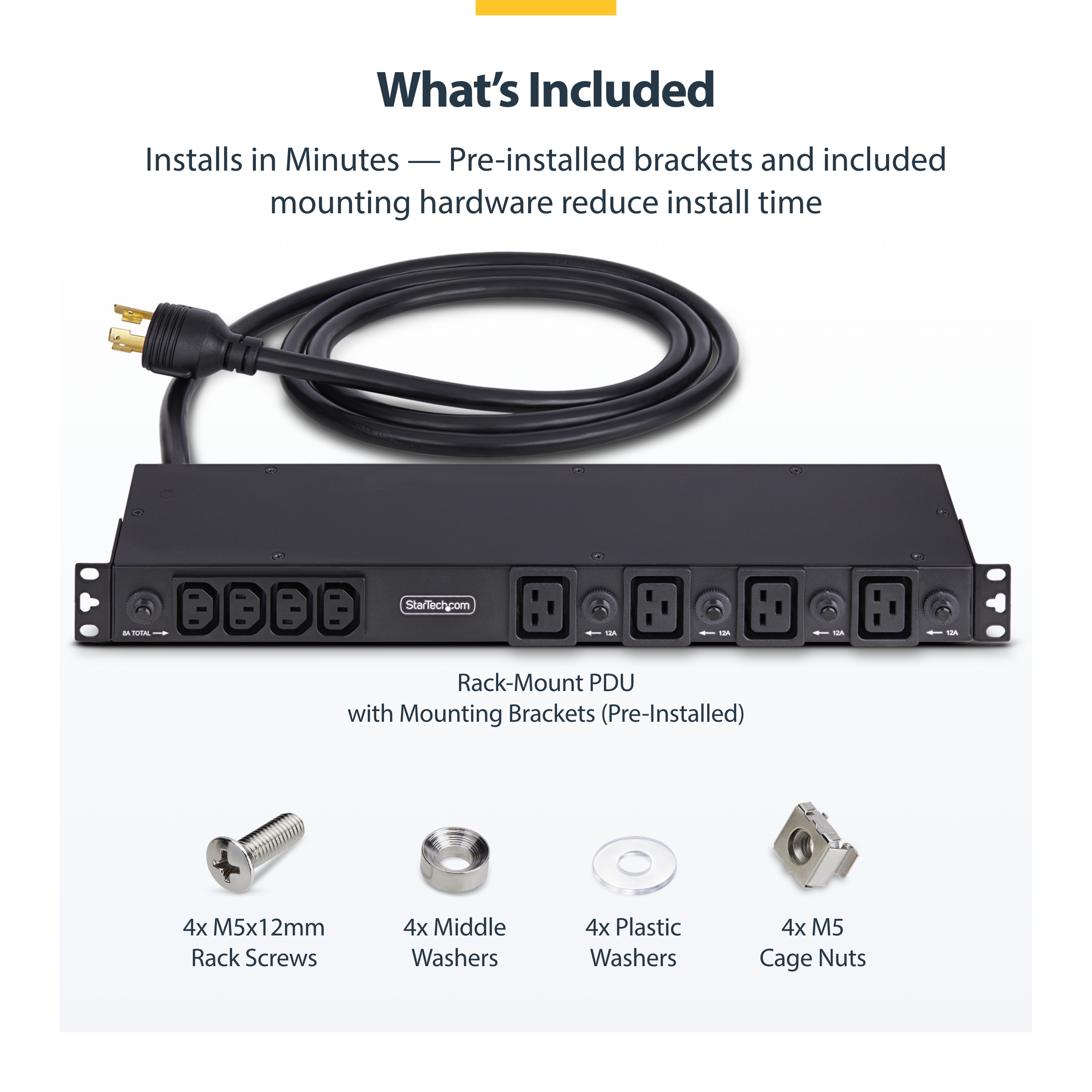

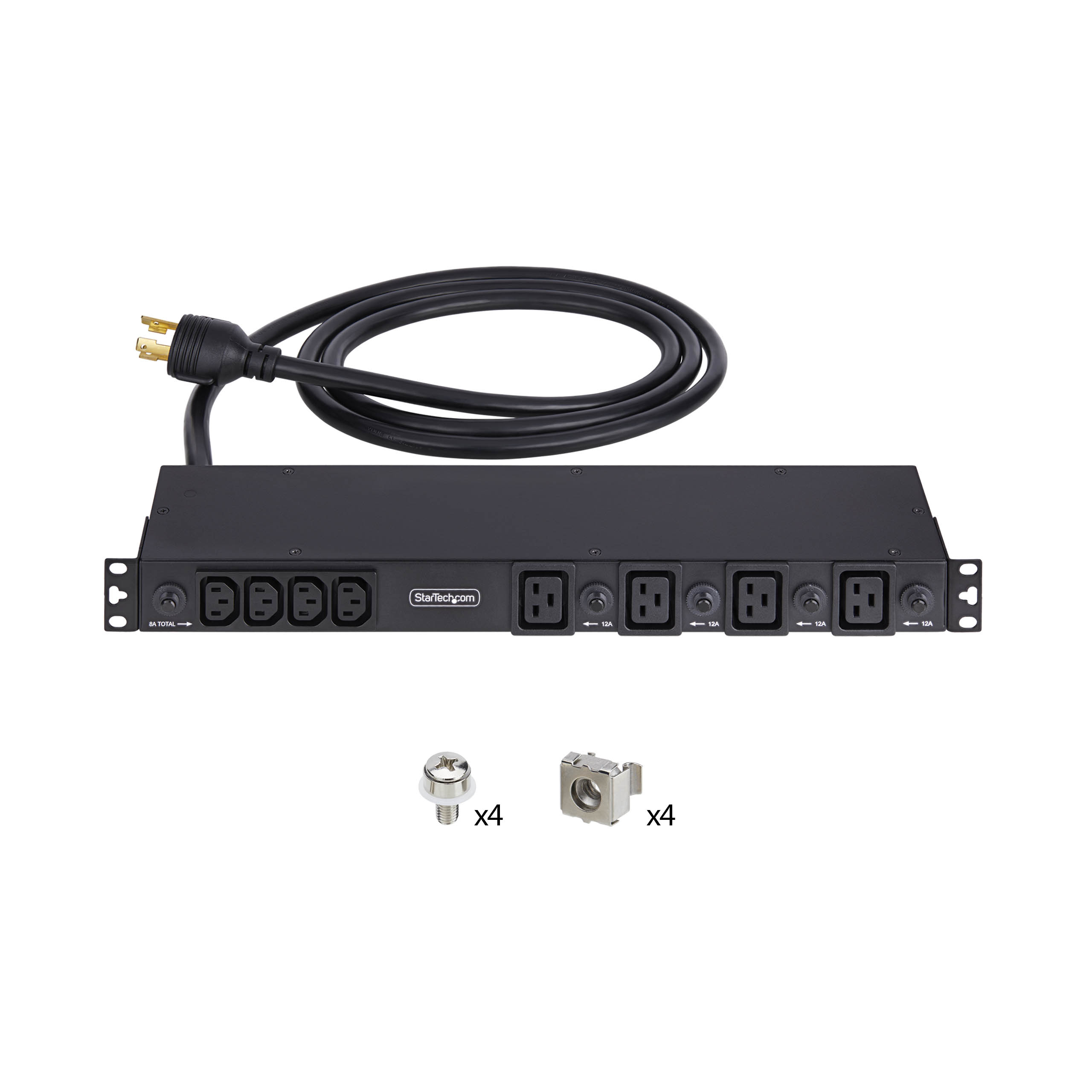

Rack-Mountable Yes U Height 1U Carton Depth (mm) 528 Carton Height (mm) 299 Carton Quantity 6 Carton Weight Gross (g) 22850 Included in Package - 1 - Rack-Mount PDU
- 4 - M5 Cage Nuts
- 4 - M5x12mm Rack Screws
- 1 - Product Documentation
- 4 - Middle Washer
- 4 - Plastic Washer
Package Depth (mm) 511 Package Height (mm) 76 Package Width (mm) 281 Package Weight (g) 3640 Packaging Description 20-Outlet 1U Rack Mount PDU - NEMA L6-30P Plugs - 8Ft (2.4m) Power Cable Packaging Description India 20-Outlet 1U Rack Mount PDU - NEMA L6-30P Plugs - 8Ft (2.4m) Power Cable Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 NEMA L6-30P (250V AC, 30A) Connector 1 (Quantity) 1 Connector 2 IEC C13 (250V AC, 10A) Connector 2 (Quantity) 16 Connector 3 IEC C19 (250V AC, 16A) Connector 3 (Quantity) 4 A+ Not Required Actual Inbox Documents Created Compliance Insert & EN QSG Amazon Merchandising Manager Kathleen Marshall Amazon Only SKU No Amazon Visual Content Level Gold Application Photos Uploaded Artwork Due Date 2025-05-30 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Comparable SKU Comment We don't have 240V / 30A SKU in our existing line up. This is net new SKU in PDU line Up. Comparable SKU 2 Comment NA Digital Content Due Date 2025-10-08 Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Brooke Taylor ID Label Silkscreened or a Label Sticker label - 37x20mm Launch Markets (concatenated) CA,US Primary Technology None Priority New Product High Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Alex Garcia Product Manager Bhuvan Uppal Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2025-06-06 Target Production Release 2025-07-18 Tech Lead Justin Weaver Technical Writer Alex Garcia Technology Lifecycle None Vending Machine Not Compatible with Vending Machine Video Not Required
