21050-PC-SERIAL-LP

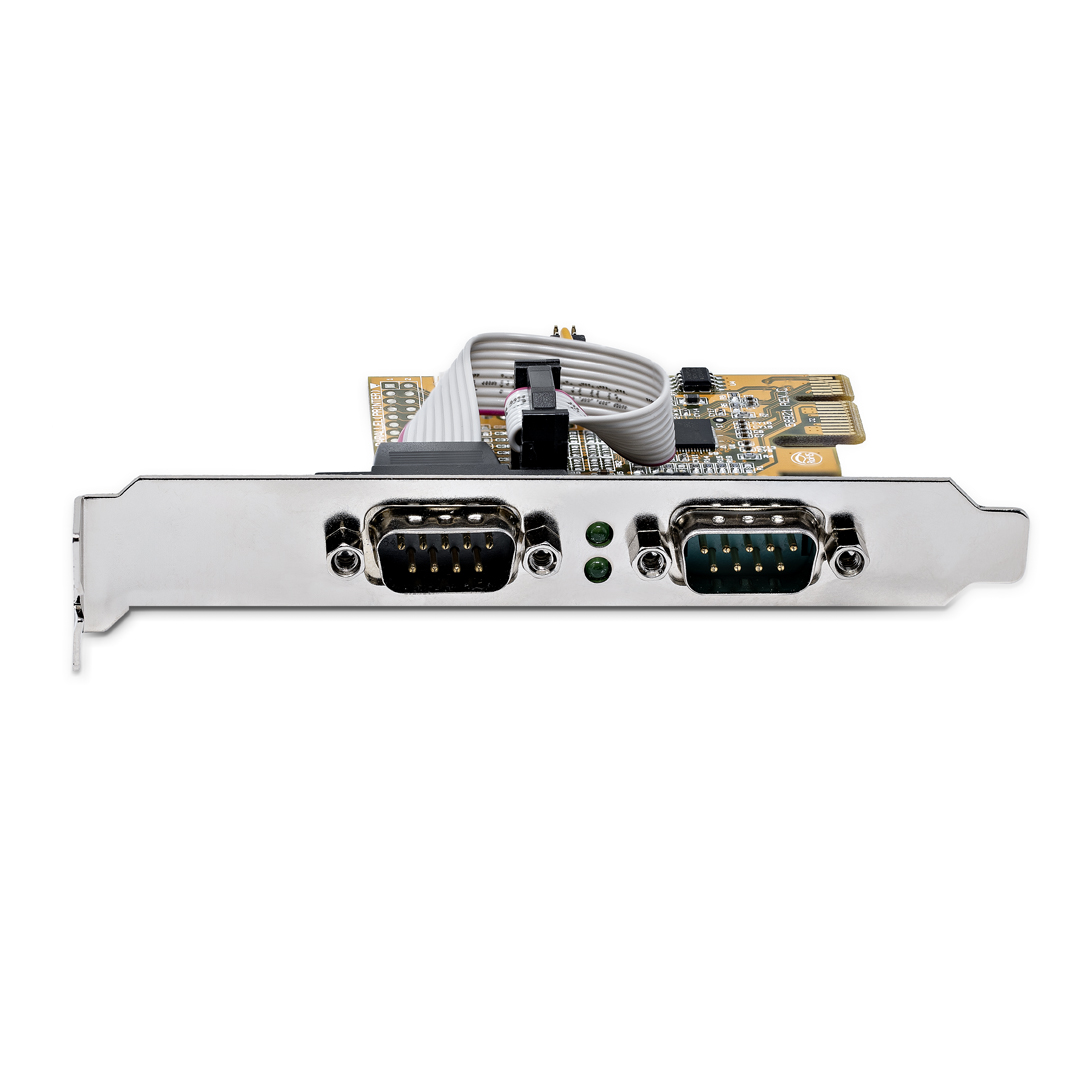

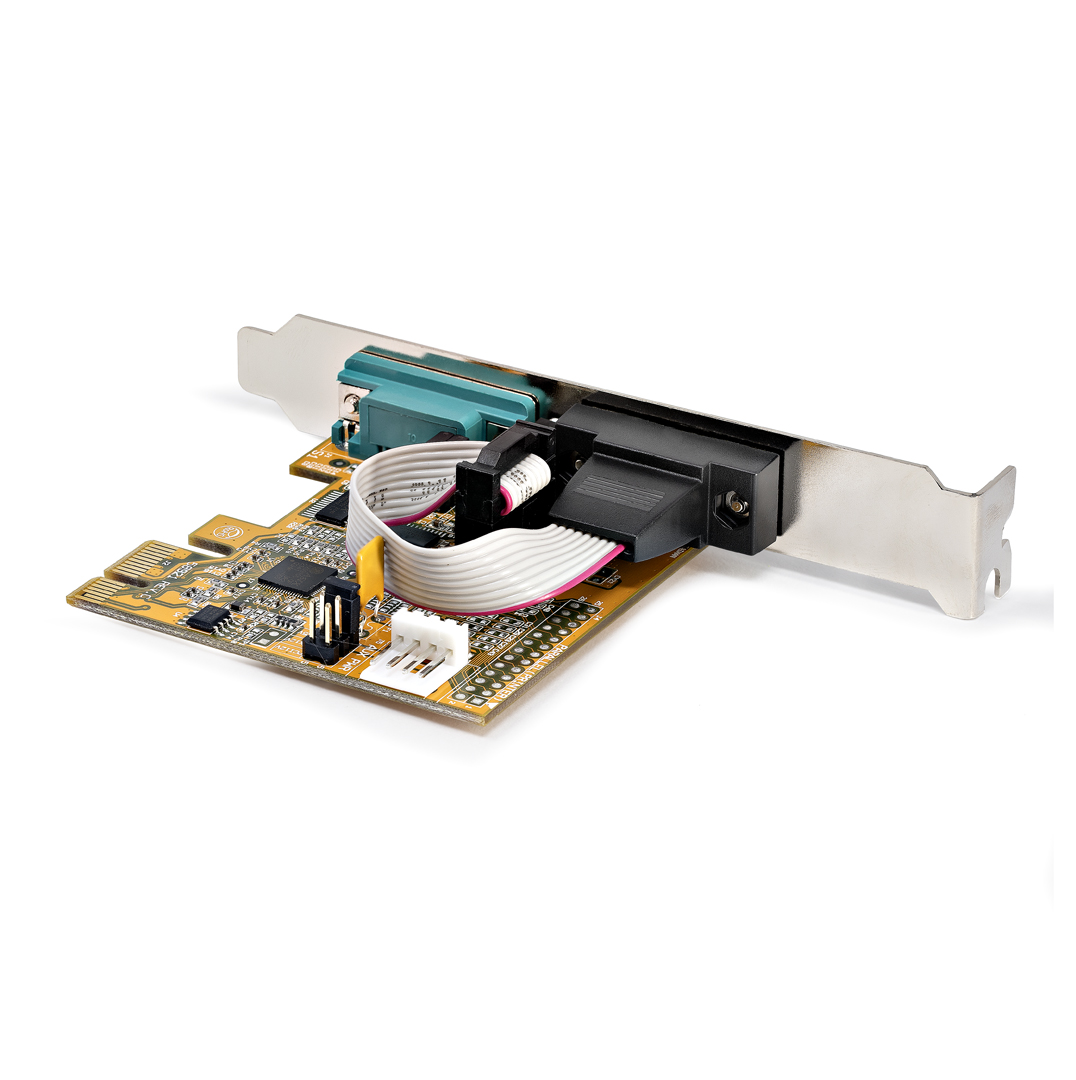

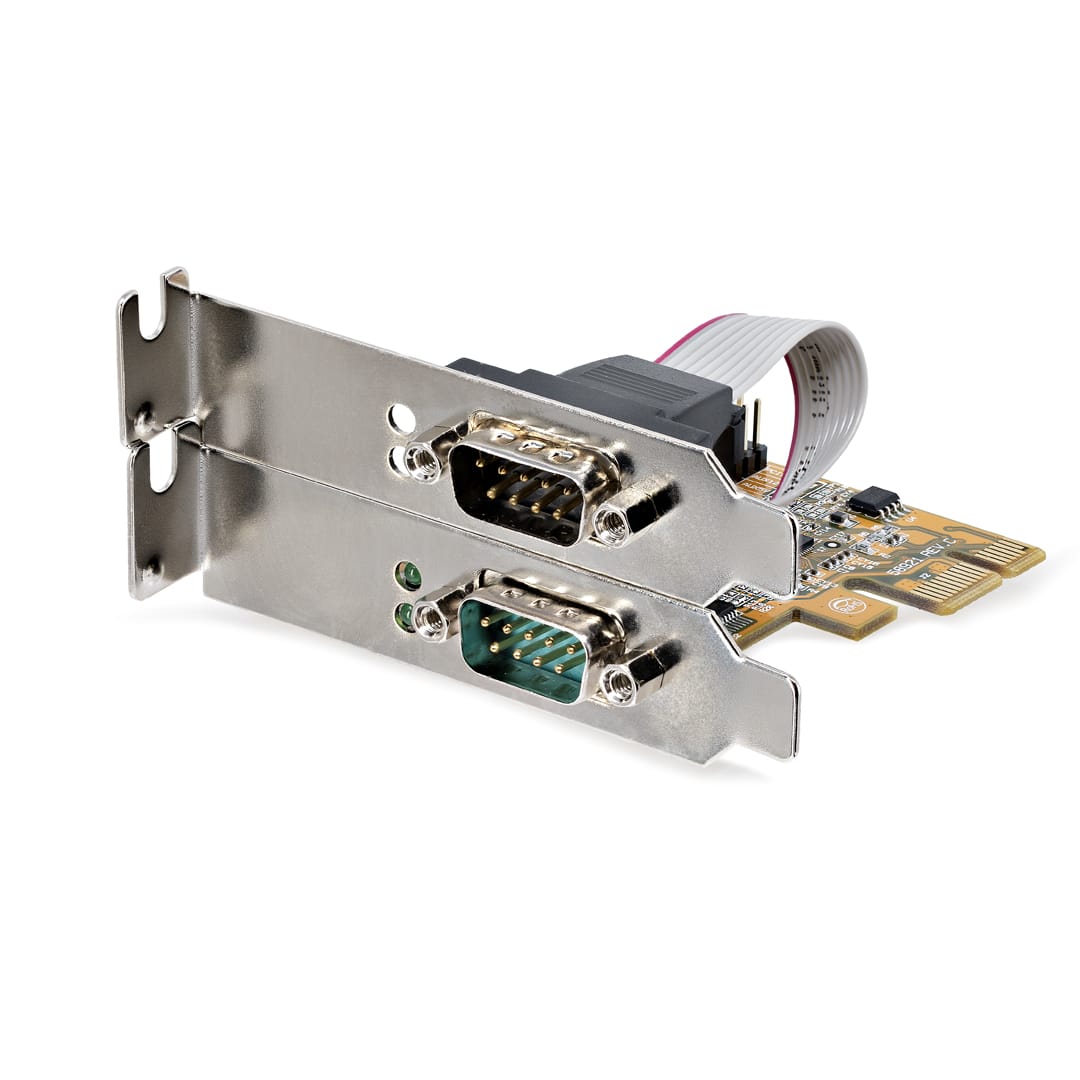

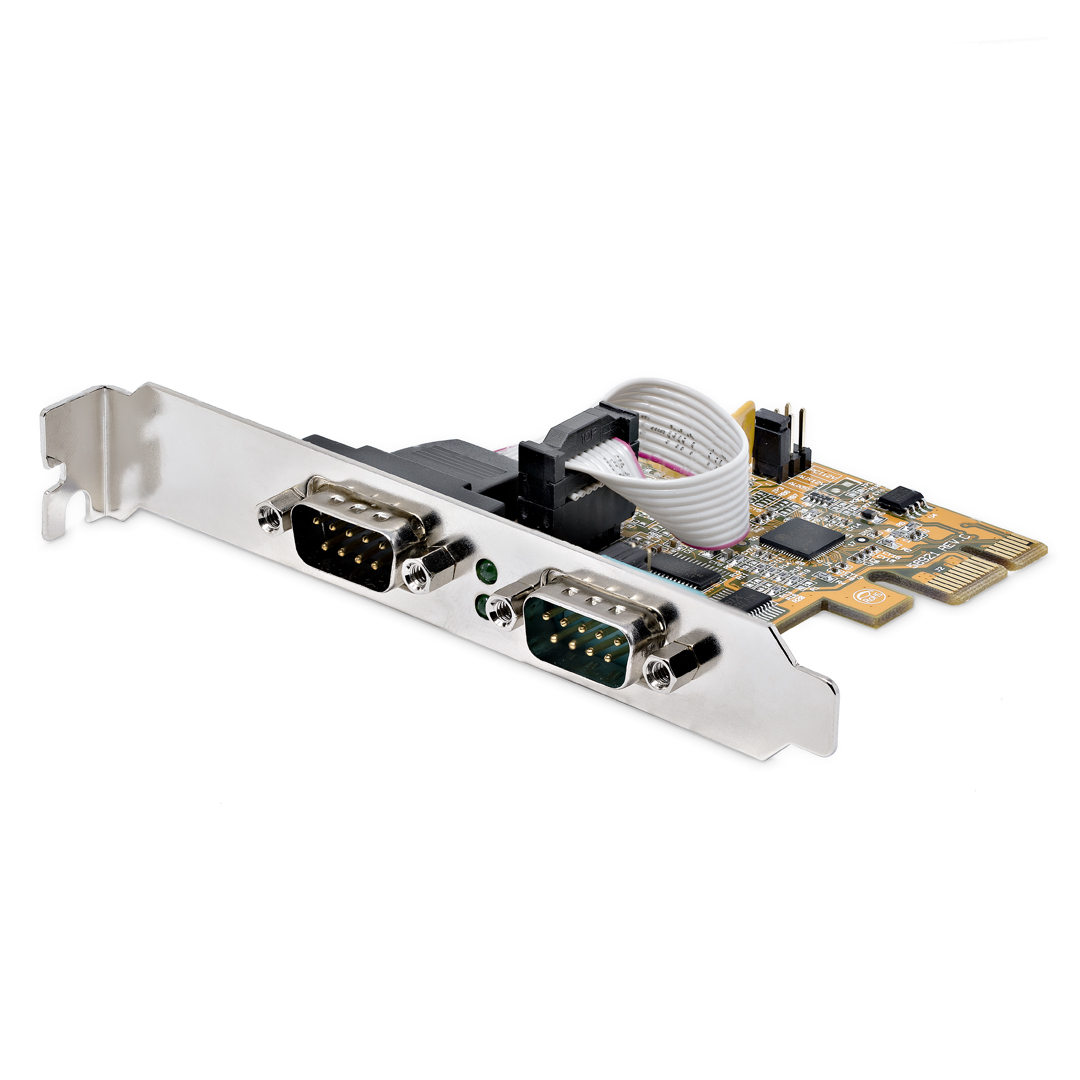

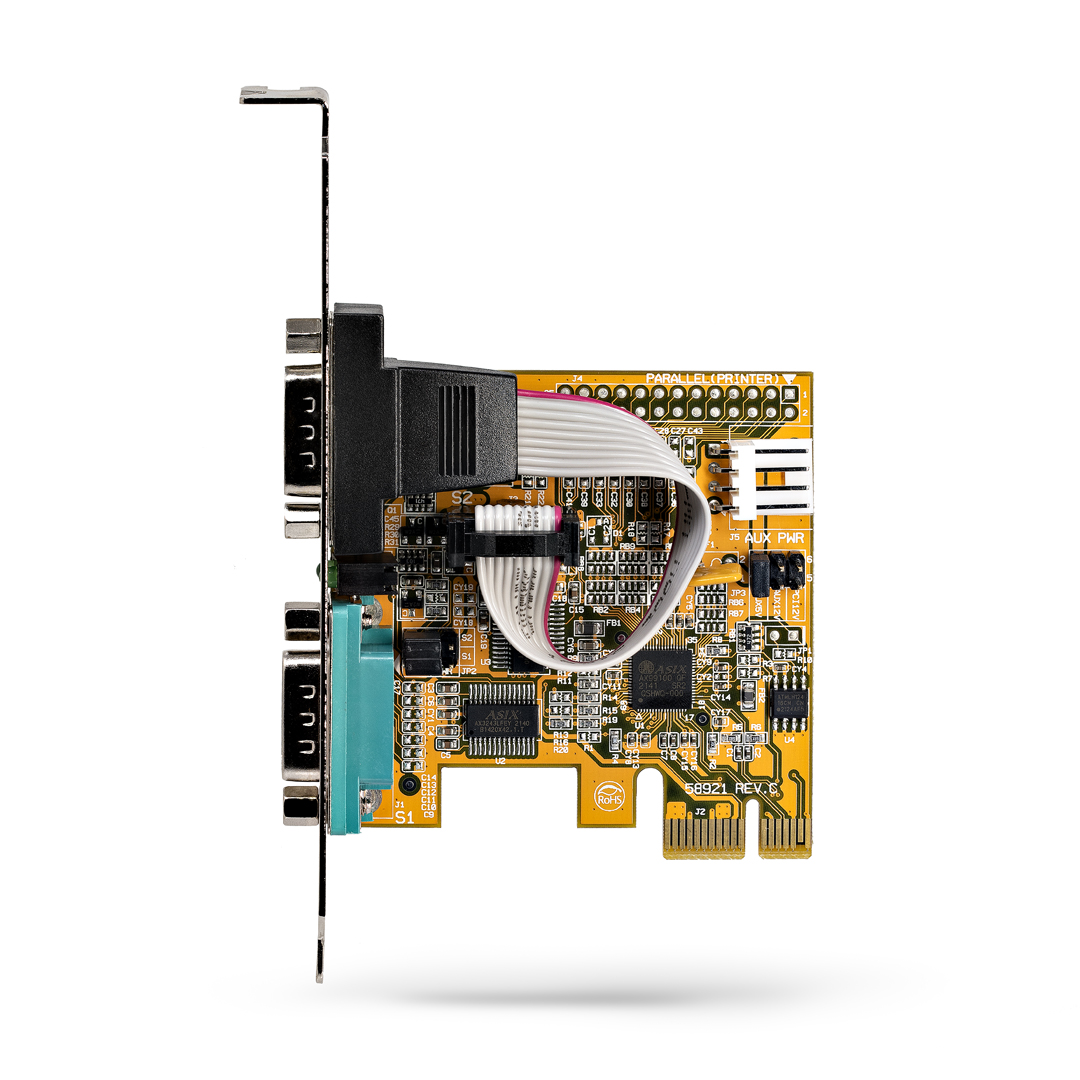

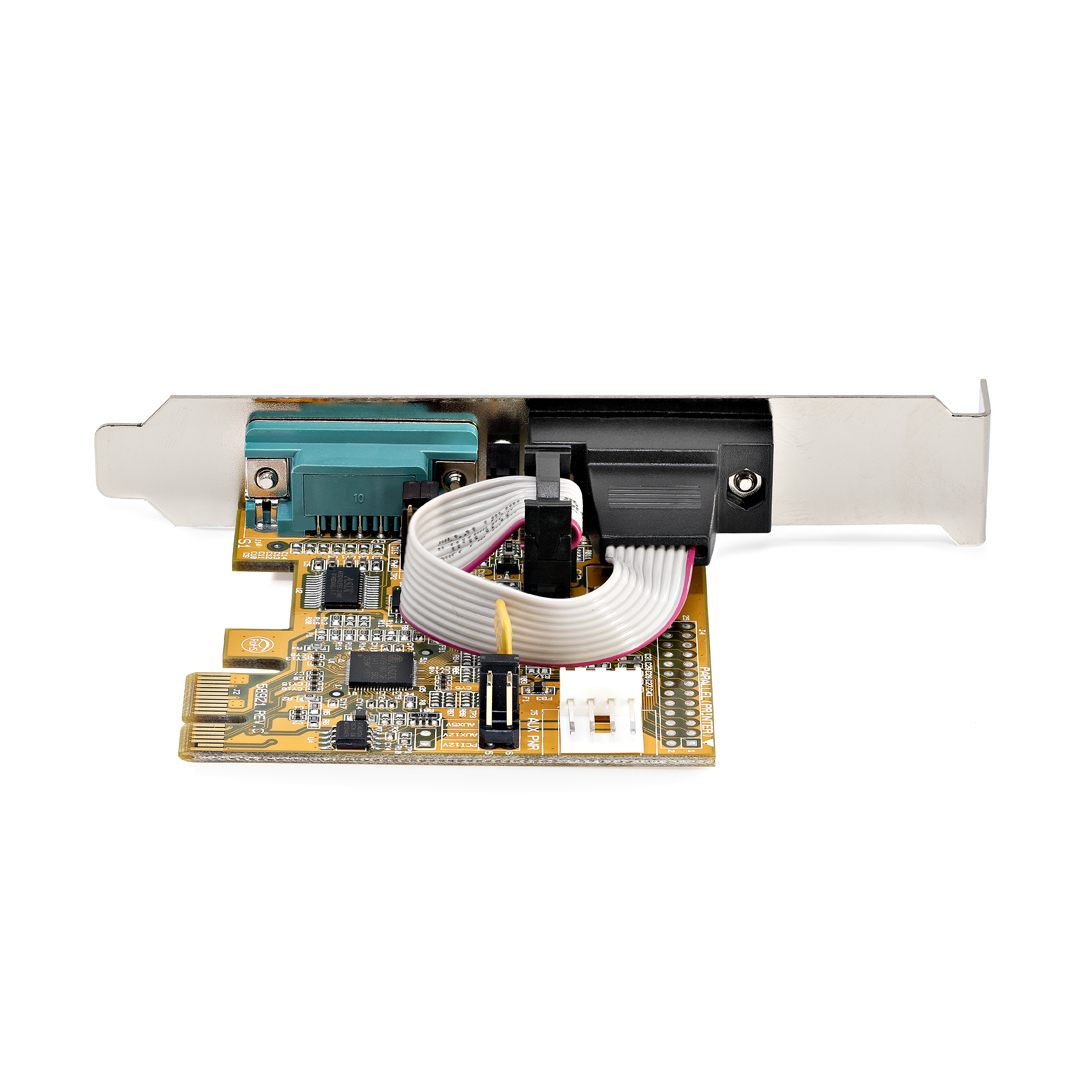

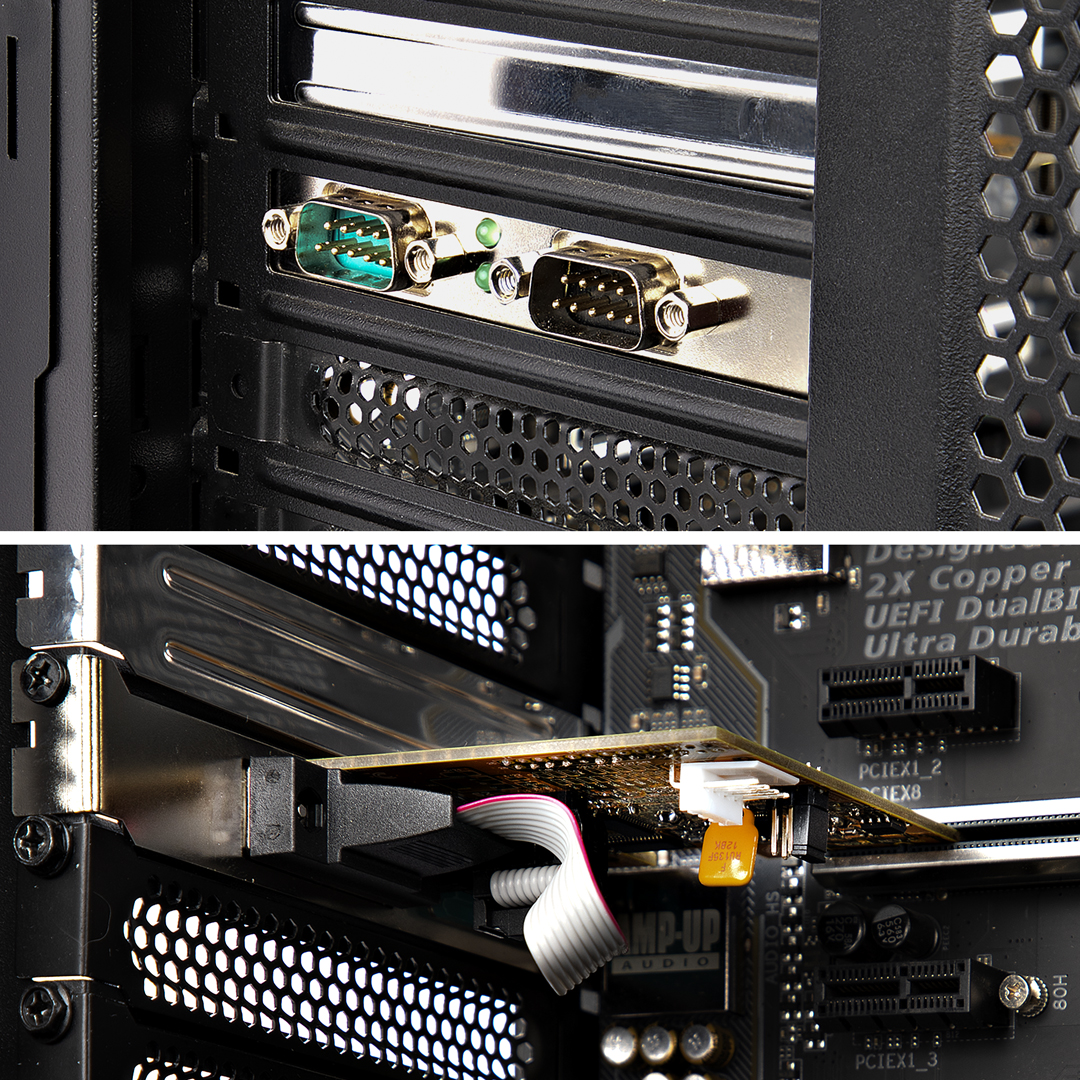

2 Port PCI Express RS232 Serial Card Low Profile
Baud Rate 921.6 Kbps per Port | 256-byte FIFO | PCIe 2.0 x1
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 2 Port PCI Express RS232 Serial Card Low Profile Product Number 21050-PC-SERIAL-LP UPC 065030899376 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Serial and Parallel Cards & Adapters Category Level 1 Computer Cards and Adapters Category Level 2 Serial Cards, Adapters and Extenders Category Level 3 Serial Host Adapter Cards Family Serial Host Adapter Cards - PCIe - 161050 UART Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Ultra-Short) Dual Serial Card Product Title (Short) 2-Port PCI Express RS232 Serial Card Product Title (Medium) 2-Port PCI Express Serial Card, PCIe to Dual Port RS232 (DB9) Card/COM Retention Product Title (Standard) 2-Port PCI Express Serial Card, Dual Port PCIe to RS232 (DB9) Serial Card, 16C1050 UART, COM Retention, Windows & Linux, TAA Product Title (Long) 2-Port PCI Express Serial Interface Card, Dual Port PCIe to RS232 (DB9) Serial Card, 16C1050 UART, Low/Full Profile Brackets, COM Retention, For Windows/Linux - TAA Product Title (AMZ) 2-Port PCI Express Serial Interface Card, Dual Port PCIe to RS232 (DB9) Serial Card, 16C1050 UART, Low/Full Profile Brackets, COM Retention, For Windows/Linux , TAA (21050-PC-SERIAL-LP) Title Ingram (Part 1) PCIe dual serial port card - Title Ingram (Part 2) 16C1050 UART, 5V/12V, Status Lights Website Product Headline Baud Rate 921.6 Kbps per Port | 256-byte FIFO | PCIe 2.0 x1 Bullet 1 PCIE TO SERIAL: Connect serial RS232 (DB9) devices to a computer with this low profile PC serial card; Features support for high performance 16C1050 UART on both DB9 male ports; Monitor activity with the built-in LED status lights on the PCI express DB9 card Bullet 2 DEVICE COMPATIBILITY: Use this serial interface card to connect barcode readers/scanners, receipt printers, scales, PLCs, medical devices, etc; The UART PCIe card supplies 5V or 12V power over pin 9; Full-profile bracket included Bullet 3 APPLICATIONS: This card is ideal for IT applications such as server rooms, industrial control/automation, logistics, and laboratories; Continue using legacy hardware with this RS232 PCIe card; DB9 ports accept screw locking serial cables Bullet 4 DUAL SERIAL PORT CARD SPECS: 16C1050 UART, Max Baud 921.6 Kbps per Port, 256 Byte FIFO, COM Retention, Supports Windows/Linux, ASIX AX99100 Chipset, Odd/Even/Mark/Space/None Parity Modes, 5/6/7/8/9 Data Bits, PCIe 2.0 x1, Low-profile brackets installed Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this PCIe to RS232 card is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance Bullets (Compact) Connect serial RS232 (DB9) devices with this PC Serial Card. Supports 16C1050 UART - PCI Express serial card with LED activity lights - The UART PCIe supports 5/12V over pin 9 - Keep using legacy hardware with this dual serial port interface card Bullets (Consolidated) Connect serial RS232 (DB9) devices with this dual port low profile PC Serial Card | Supports 16C1050 UART | PCI Express serial card with LED activity lights - Serial interface card for barcode readers/receipt printers/scales/PLCs/medical devices - UART PCIe card supports 5V/12V over pin 9 | Full profile bracket included - Ideal for IT applications such as server rooms/industrial control/automation/logistics/test labs | Extend the life of legacy hardware with this RS232 PCIe card Marketing Copy Marketing Copy (No HTML) Website Search Keyword - PCI Express serial card
- db9 card
- dual serial port card
- low profile serial card
- mini pcie rs232
- pc serial card
- pci express db9
- pcie to rs232
- rs 232 pcie
- rs232 pcie card
- serial interface card
- uart pcie
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement

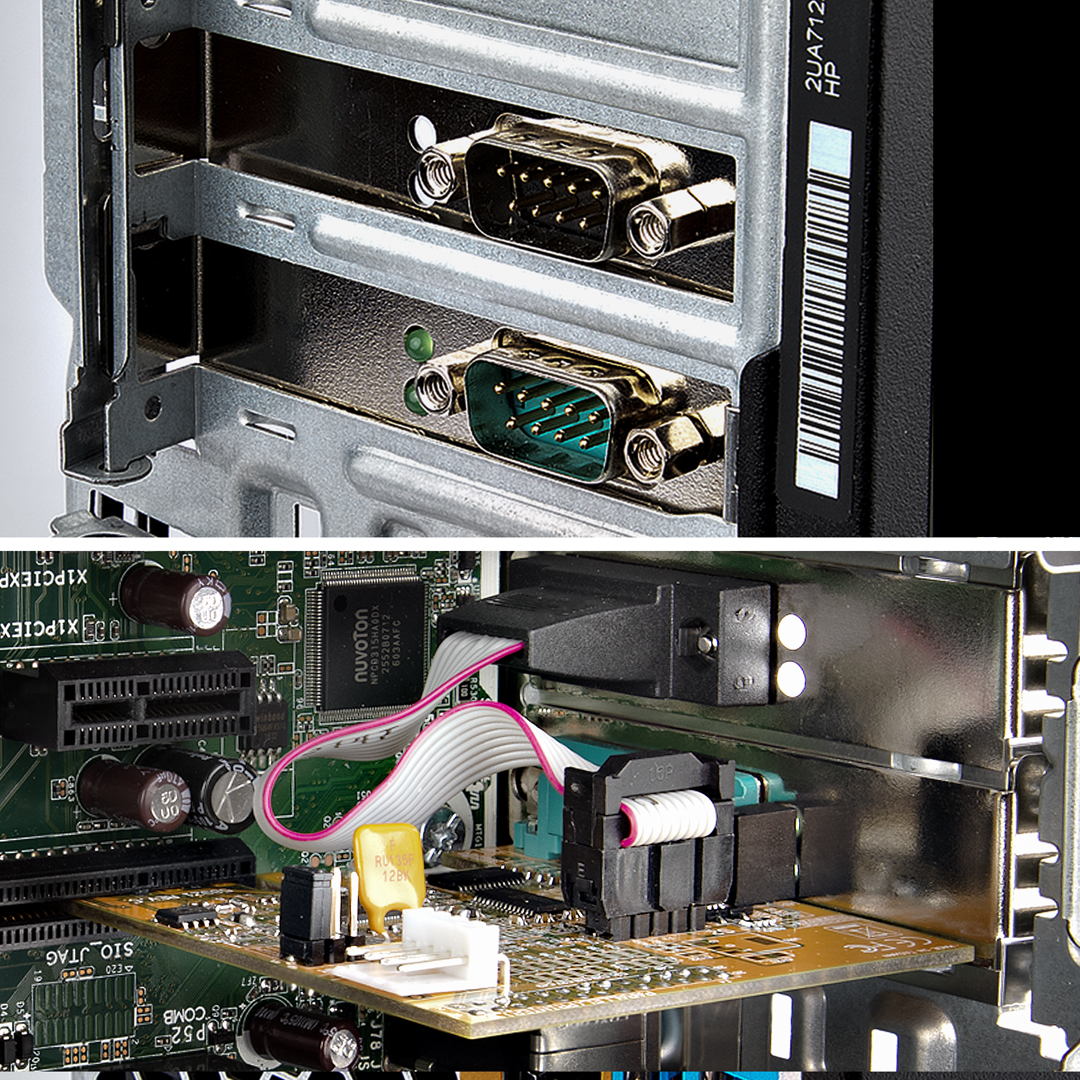

System and Cable Requirements Computer with an available PCI Express x1 or greater slot Accessory Products - MXT100
- MXT106
- MXT1003
- SCNM925FM
- SCNM9FF
- SCNM9FM2MBK
Related Products - PEX8S1050LP
- PEX2S1050
- PEX8S1050
- PEX4S953LP
- PEX4S953
- PEX4S232485
- PEX2S1P553B
- PEX4S553
- PEX4S553B
- PEX2S5531P
- PEX1S553LP
- PEX2S553
- PEX2S553LP
- PEX1S952LP
- PEX4S952
- PEX1S953LP
Color Yellow Humidity 5 ~ 95% RH Material Steel Operating Temperature 0°C to 55°C (32°F to 131°F) Product Length (mm) 66.600 Product Width (mm) 65.500 Product Height (mm) 18.500 Product Weight (g) 54 Storage Temperature -40°C to 75°C (-40°F to 167°F) TAA Compliant Yes Data Bits 5, 6, 7, 8, 9 FIFO 256 Bytes Flow Control Hardware and Software Max Baud Rate 921.6 Kbps OS Compatibility - Windows 7
- Windows 8
- Windows 8.1
- Windows 10
- Windows 11
- Windows Server 2016
- Windows Server 2019
- Linux
Parity Even, Odd, None, Space, and Mark Supported Serial Protocol RS-232 Bus Type PCI Express Card Type Low Profile (SP bracket incl.) Chipset ID - ASIX - AX99100
- ASIX - ZT3243LFEY

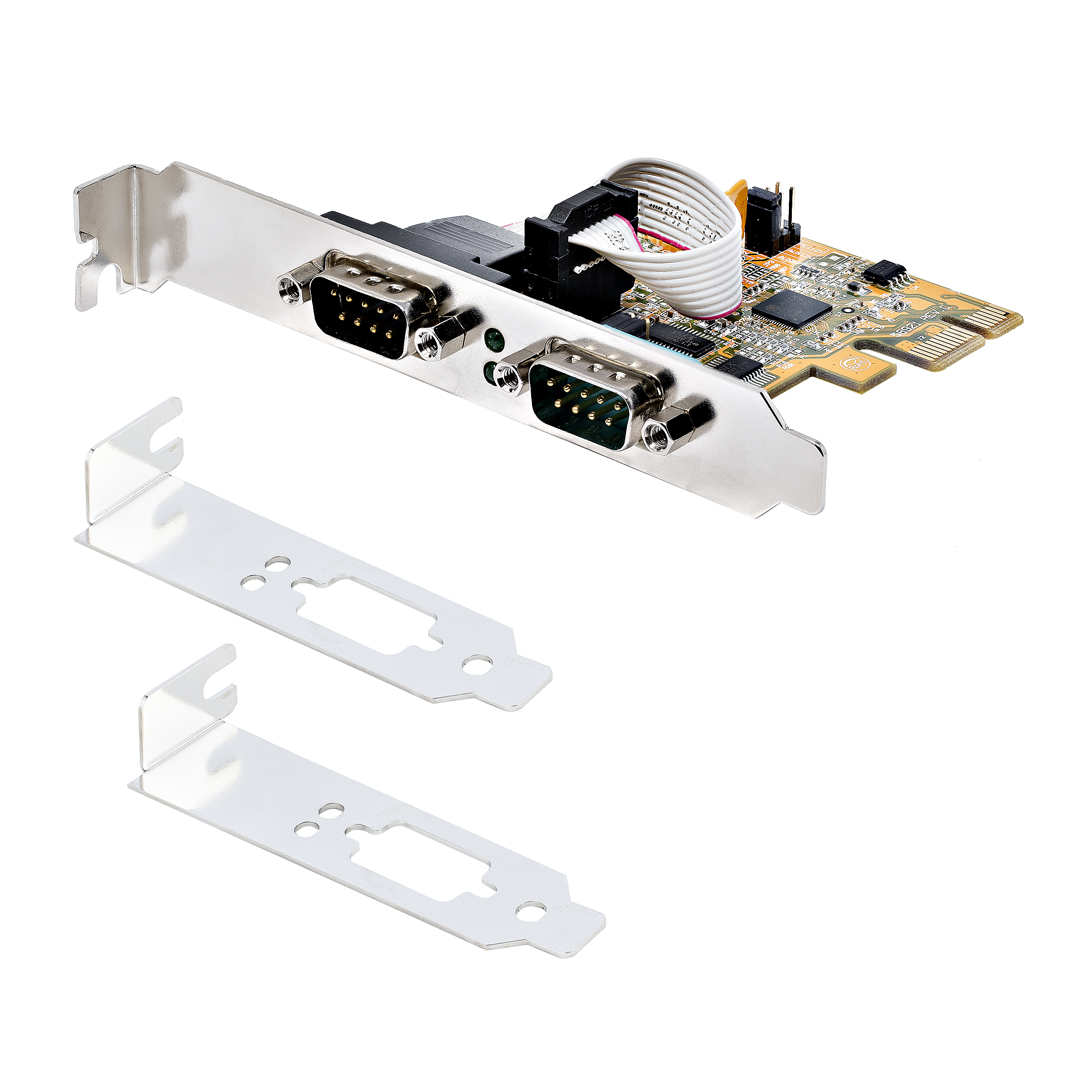

Industry Standards PCI Express Version 2.0 x1 Interface/Bridge Serial IO Card Port Style Integrated on Card LED Indicators Carton Depth (mm) 533 Carton Height (mm) 345 Carton Quantity 50 Carton Weight Gross (g) 8722 Included in Package - 1 - Two-Port PCIe Serial Card
- 1 - Full Profile Bracket
- 1 - Quick-Start Guide
- 2 - Low Profile Bracket
Included In Package for Label - 2 - Low Profile Bracket
- 1 - Quick-Start Guide
- 1 - Full Profile Bracket
- 1 - Two-Port PCIe Serial Card
Package Depth (mm) 145 Package Height (mm) 41 Package Width (mm) 211 Package Quantity 1 Package Weight (g) 160 Packaging Description 2-Port Low-Profile PCIe RS232 Serial Card - Activity LEDs - Dual 16C1050 Packaging Description India 2-Port Low-Profile PCIe RS232 Serial Card - Activity LEDs - Dual 16C1050 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DB-9 Serial Connector 1 (Quantity) 2 Connector 2 PCI Express x1 Connector 2 (Quantity) 1 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Veronica Ye Application Photos Uploaded Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Comparable SKU Comment Same sku but with full profile bracket mounted Comparable SKU 2 Comment slightly lower performance and no TxRx LEDs. full profile bracket mounted. New sku has a native PCIe serial controller chipset without a bridge chip. Digital Content Due Date 2023-01-23 Enhanced Gallery Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,AU,BE,CA,DE,DK,ES,FI,FR,IN,IT,JP,NL,NZ,SE,SG,UK,US Primary Technology None Product Development Specialist Alex Sikora Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2022-10-17 Target Production Release 2022-12-15 Tech Lead Brian Linseman Technical Writer Alex Garcia Technology Lifecycle None Video Not Required
