215N-TB5USB4DOCK
Thunderbolt 5 Docking Station (no NVME)

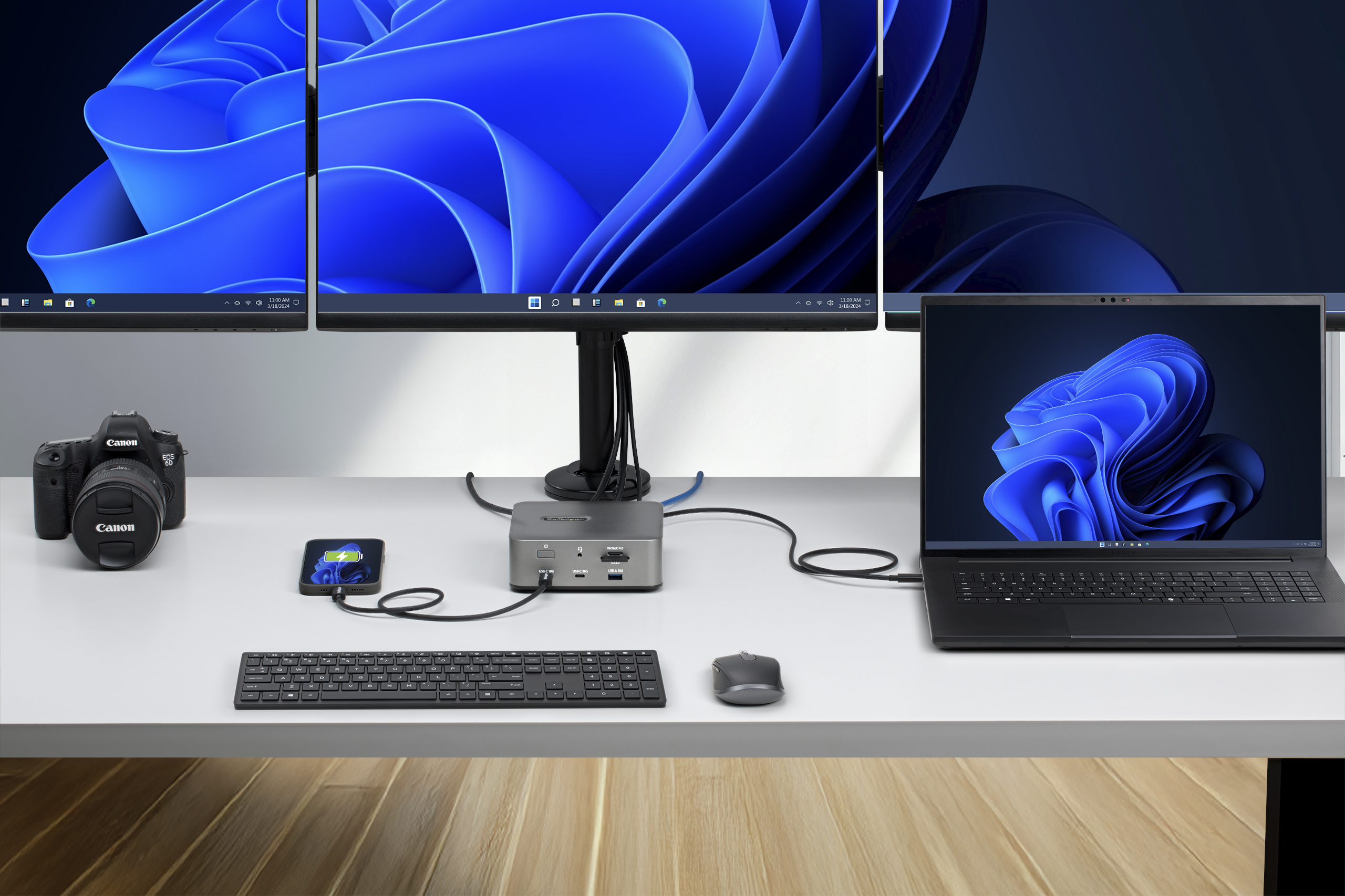

Transform your Thunderbolt 5 or USB4 laptop into a high-resolution, multi-monitor workstation
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Quick-Start Guide
Video Link YouTube
Video Link YouTube
Product Name Thunderbolt 5 Docking Station (no NVME) Product Number 215N-TB5USB4DOCK UPC 065030923101 Lifecycle status Active Warranty 3 Years Taxonomy Product > Docks, Hubs & Video Adapters > Docking Stations & Multiports Category Level 1 Docking Stations Category Level 2 Thunderbolt Docks Category Level 3 Thunderbolt 4 Docks Family Thunderbolt 5 Docks Country of Origin Europe & Japan Vietnam Country of Origin North America Canada Country of Origin History (1) Vietnam Country of Origin Revision (1) XXXXXX190X Product Title (Ultra-Short) Thunderbolt 5 Dock Product Title (Short) Thunderbolt 5 Docking Station, 140W PD Product Title (Medium) Thunderbolt 5 Docking Station, Triple Monitor 4K 144Hz, 140W Laptop Charging Product Title (Standard) Thunderbolt 5 Universal Docking Station, Multi-Display Hub, 8K 60Hz / 4K 144Hz, 120Gbps Bandwidth Boost, 140W PD, USB 10Gbps Product Title (Long) Thunderbolt 5 Universal Docking Station, Multi-Display Hub, 8K 60Hz or 4K 144Hz, 120Gbps Bandwidth Boost, 140W PD, 30W Phone Charging, USB 10Gbps, 2.5G LAN Product Title (AMZ) Thunderbolt 5 Dock, Dual 8K 60Hz, Triple 4K for Windows, Up to Dual 6K 60Hz for Mac - TB5 & USB4 Docking station with 120Gbps max transfer, 140W PD, 30W Phone, USB 10Gbps Title Ingram (Part 1) Thunderbolt 5 Docking Station - Title Ingram (Part 2) Triple Monitor, 140W Laptop Charge Website Product Headline Transform your Thunderbolt 5 or USB4 laptop into a high-resolution, multi-monitor workstation Bullet 1 Bullet 2 Bullet 3 Bullet 4 Bullet 5 Bullets (Compact) Thunderbolt 5 Certified, USB4 Compatible Dock with driverless compatibility in Windows 11 and macOS 15 / 26; Connect up to three extended 4K displays on Windows; Includes 180W power adapter to charge 140W laptops; 2.5GbE / 10G USB Bullets (Consolidated) Thunderbolt Certified, USB4 Compatible Dock provides driverless compatibility with Windows 11 and macOS 15 / 26 - Dual 6K 60Hz on MacBook Air and entry MacBook Pro; Triple 4K 144Hz on M5 Pro MacBook Pro; Quad 4K displays daisy chaining 2 Thunderbolt monitors with M5 Max - Three extended 4K 144Hz displays on Windows via HDMI, DP, USB-C - 180W power adapter to charge high-powered 140W laptops (such as MacBook Pro) and power all ports - 2.5G Ethernet; Built-in SD / microSD 4.0 slots; 3.5mm audio Marketing Copy Marketing Copy (No HTML) Website Search Keyword - thunderbolt 5 dock
- thunderbolt 5 docking station
- tb5 dock
- usb4 dock
- usb4 docking station
- 120gbps dock
- 140w power delivery dock
- triple 4k 120hz dock
- dual 8k docking station
- thunderbolt 5 hub
- Docking Stations
- Intel Core Ultra 200H Series
- Dell Pro Max 14
Required Marketing Compliance Marks - Thunderbolt - Specification - Global - Thunderbolt 5
- FSC - Environmental - Global - FSC Mix Packaging (Global 7 Languages)
Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
Special Notes - This docking station is not supported on Thunderbolt 3 host devices.
- It is recommended that all connected monitors are of the same make and model.

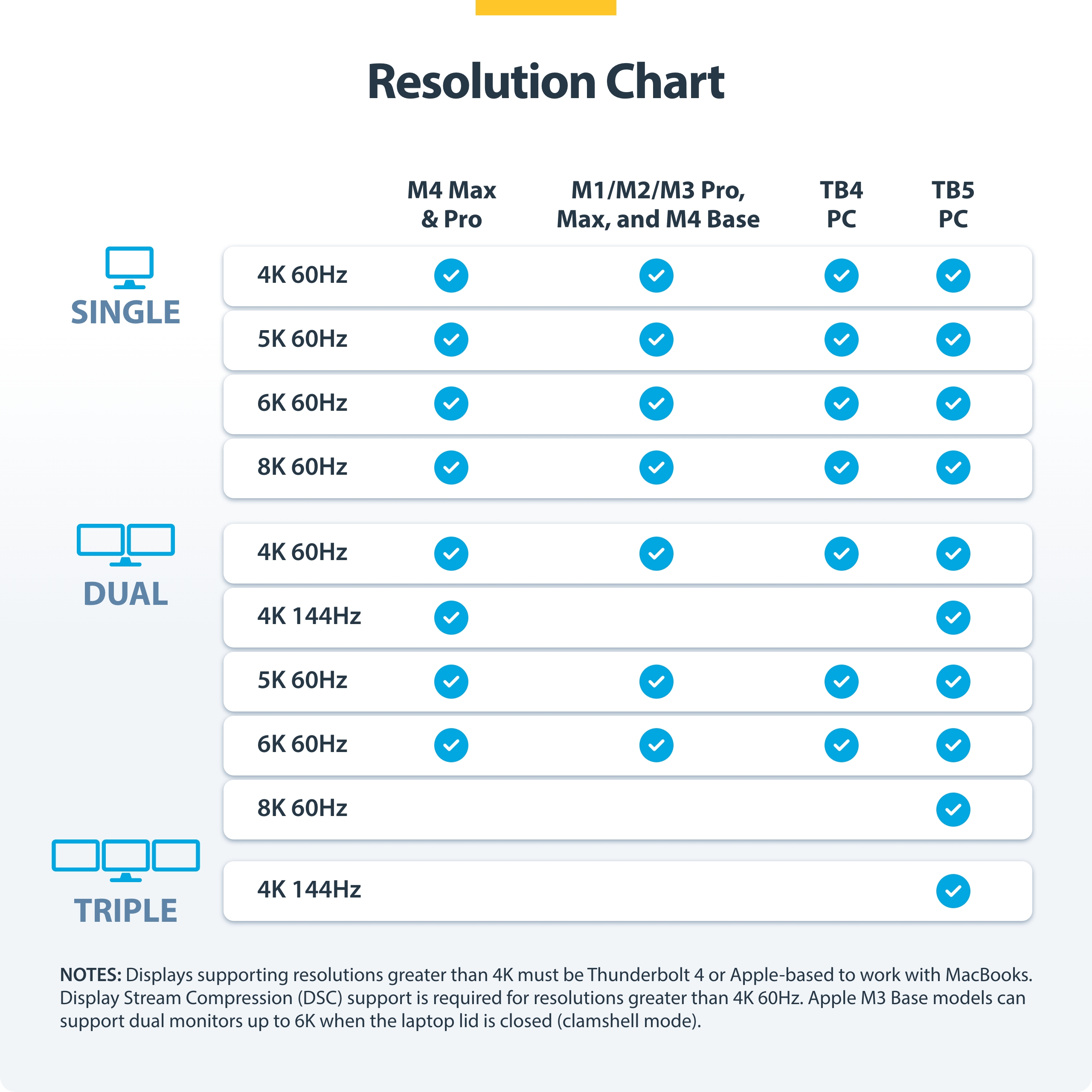

System and Cable Requirements </br> * Thunderbolt 3 (TB3) is not supported (other than on TB3-based Apple M1/M2/M3 Standard chipsets).</br> </br>** M1, M2, and M3 Standard chipsets will work with a single display, while M4/M5 Standard and M1/M2/M3/M4 Pro/Max chipsets will work with dual displays.</br> </br>*** Achieving high refresh rates may require DSC (Display Stream Compression) support from both the monitor and the host GPU. The bit depth and color depth may be adjusted to enable higher refresh rates, and results may vary depending on OS updates.</br> </br>**** If monitor recognition issues occur, connect the monitor with the lowest refresh rate first, as high refresh rate monitors may consume all available bandwidth.</br> </br>***** For external display compatibility over a single Thunderbolt connection on different Windows systems, please consult the computer manufacturer's website.</br> </br>****** When connected to a MacBook, the dock's HDMI 2.1b port supports up to HDMI 2.0b (4K 60 Hz); this is an Apple limitation.</br> </br>******* When connected to a MacBook, the dock's Thunderbolt 5 (USB-C DFP) port supports up to HDMI 2.0b (4K 60 Hz) when using an HDMI adapter; this is an Apple limitation.</br> Related Products - TB4CDOCK
- 132N-TB4USB4DOCK
- 150N-USB4DOCK-TRIPLE
Equivalent Part Number in the EU 215UE-TB5USB4DOCK Equivalent Part Number in the UK 215UE-TB5USB4DOCK Input Voltage 110V-240V AC Output Current 8.2A Output Voltage (V) 20V DC Power Consumption (In Watts) 180W Power Delivery 140W Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Cable Length (mm) 800 Color Space Gray Humidity 0% to 90% (non-condensing) Material Plastic Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Plastic Product Length (mm) 140 Product Width (mm) 150 Product Height (mm) 50 Product Weight (g) 592 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Compatible Networks 2.5G/1G/100Mbps/10Mbps Downstream Maximum Data Transfer Rate USB 3.2 Gen 2 (10Gbps) Full Duplex Support Yes Maximum Data Transfer Rate 40Gbps Maximum Digital Resolutions Maximum Supported Resolution 8K 60Hz (DSC) OS Compatibility - Windows 11
- Windows 11 ARM
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
PXE Yes StarTech.com Connectivity Tools - MAC Address Changer
- USB Event Monitoring
- Windows Layout
- Wi-Fi Auto Switch
Supported Charging Outputs - USB-C (30W)
- BC 1.2 (1.5A)
- USB-C (18W)
UASP Support Yes USB Type and Rate Thunderbolt 5 - 40 Gbit/s Video Output Port - HDMI
- DisplayPort
Video Transport Technology Thunderbolt Wake-On-LAN (WOL) Yes Audio Yes Bus Type - Thunderbolt / USB4
- USB4 (40Gbps)
Chipset ID Intel - JHL9480 (Barlow Ridge) </br> Synaptics - VMM7100 </br> VIA Labs - VL822 </br> VIA Labs - VL817 </br> Realtek - RTL8156B </br> Genesys Logic - GL3231S </br> Parade - FL5801 </br> Realtek - ALC4030U </br> Compatible Lock Slot - Kensington Standard Slot (K-Slot)
- Kensington Nano Slot
Host Connection Port Thunderbolt / USB4 Industry Standards - USB4 (40Gbps)
- USB 3.2 Gen 2 (10Gbps)
- USB 3.2 Gen 1 (5Gbps)
- Thunderbolt 5 (80Gbps)
- USB Power Delivery 3.1 (USB PD 3.1)
- IEEE 802.3bz (2.5GBASE-T)
- Wake-on-LAN (WOL)
- SD/TF Card 4.0
- Thunderbolt 4 (40Gbps)
- Thunderbolt 3 (40-Gbps)
Laptop Dock 4K Support Yes Laptop Dock Number of Displays 3 LED Indicators - 1 - Power LED: </br> Orange Powered On </br> Blue Powered On and Connected to Host </br> Off when not Powered On
- 2 - RJ45 LEDs: </br> </br> Right LED Link/Activiy: </br> Solid Green = Network Port is Connected </br> Flashing Green = Network Port is Active </br> </br> Left LED Link Speed: </br> Solid Green = 2.5Gbps </br> Solid Amber = 1000/100/10Mbps </br>

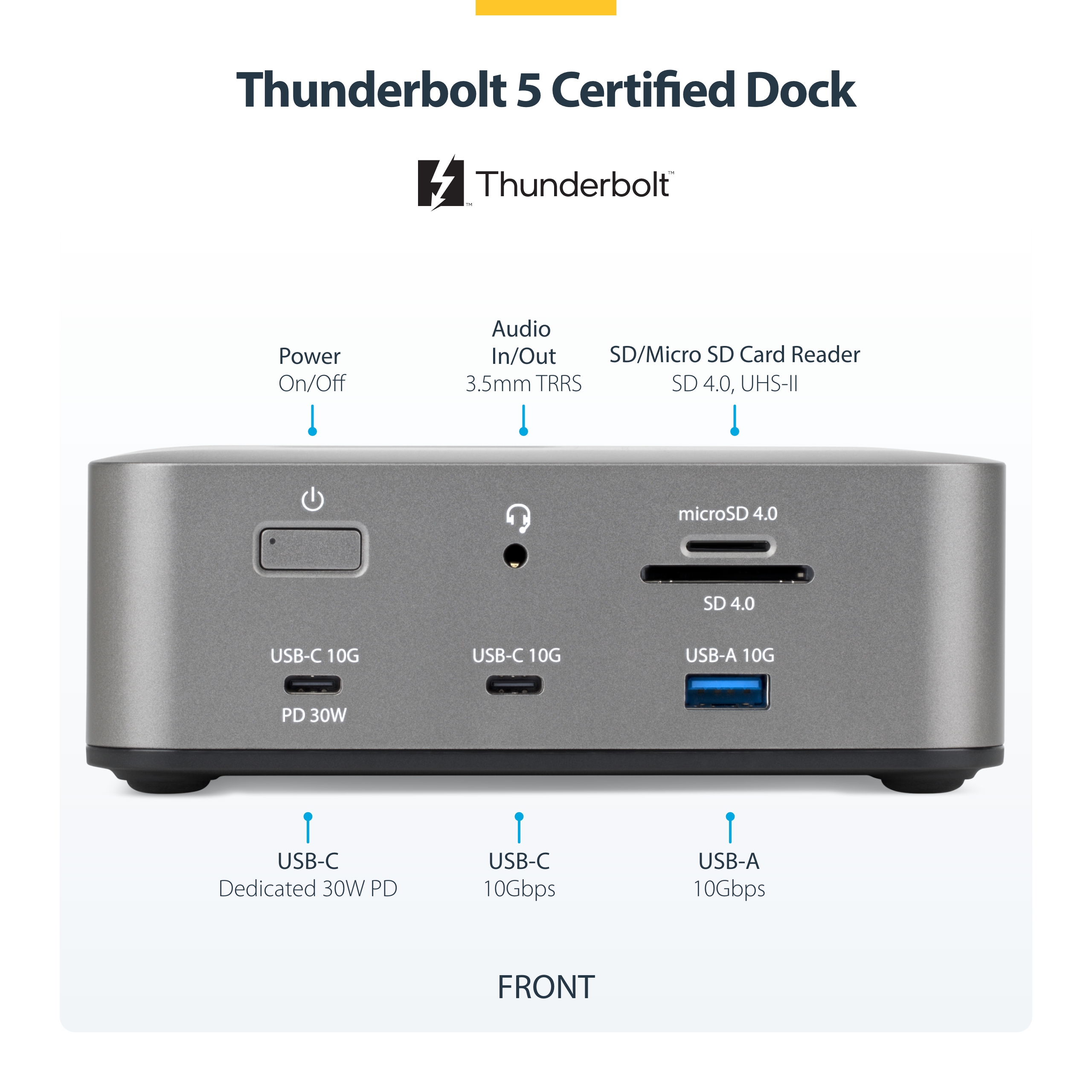

Number of Displays 3 Other Ports - 2.5Gb Ethernet
- 3.5mm TRRS Headset (Speaker+Mic) Audio Jack
- MicroSD
- SD Card Reader
- Nano Slot
- Kensington Standard Slot (K-Slot)
- Thunderbolt 5

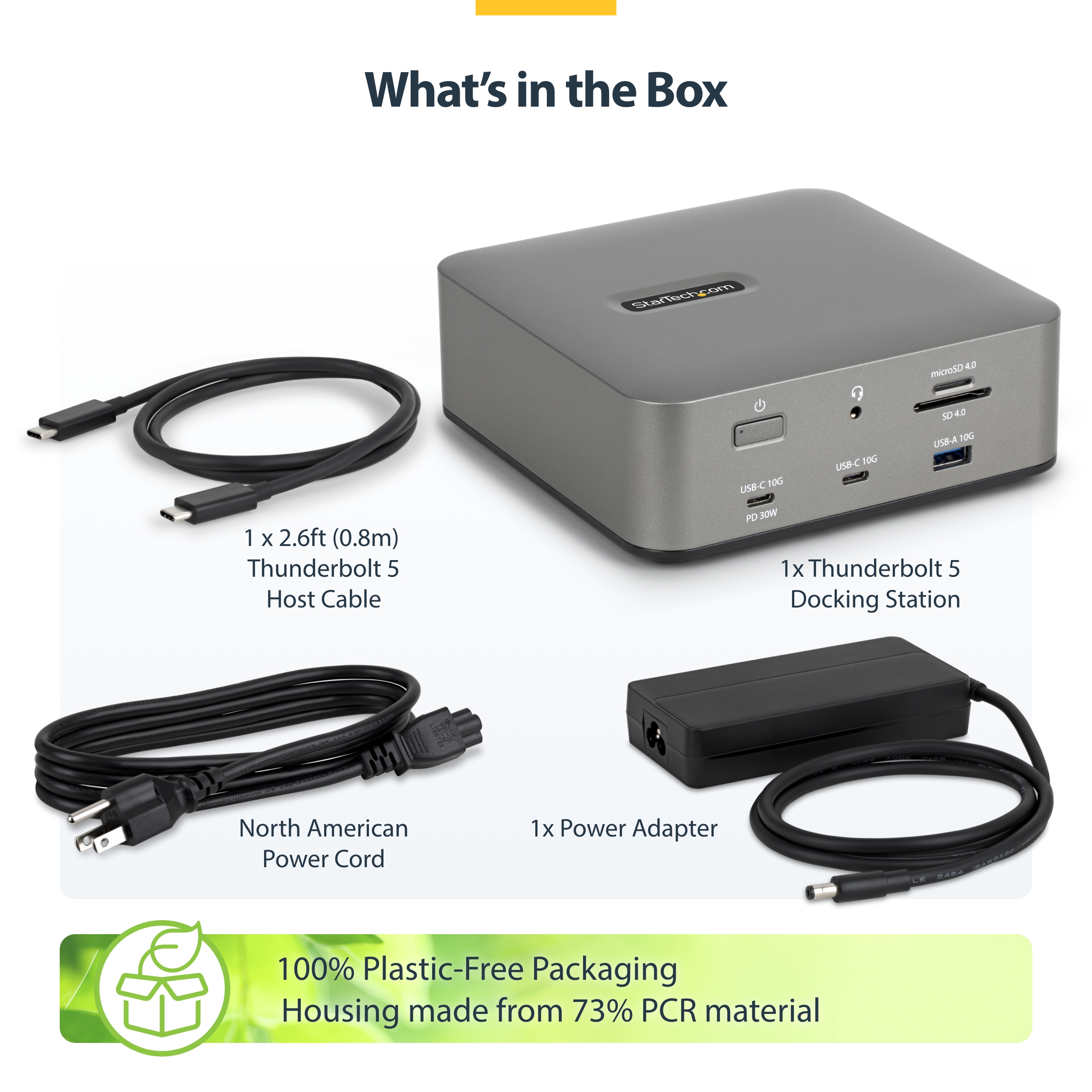

Carton Depth (mm) 330 Carton Height (mm) 190 Carton Quantity 5 Carton Weight Gross (g) 8715 Included in Package - 1 - Thunderbolt 5 Docking Station
- 1 - Thunderbolt 5 Host Cable
- 1 - Universal Power Adapter (North America)
- 1 - Product Documentation

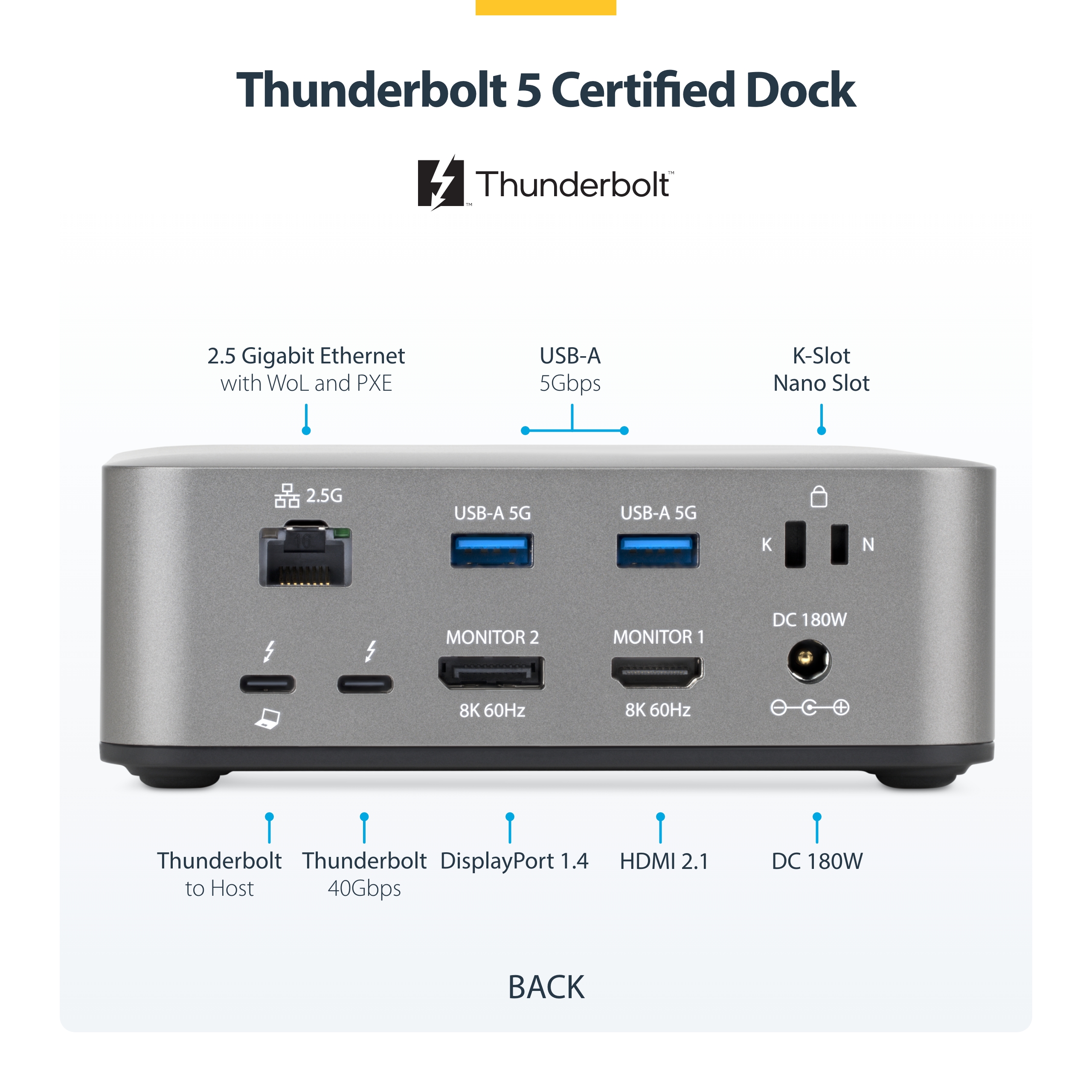

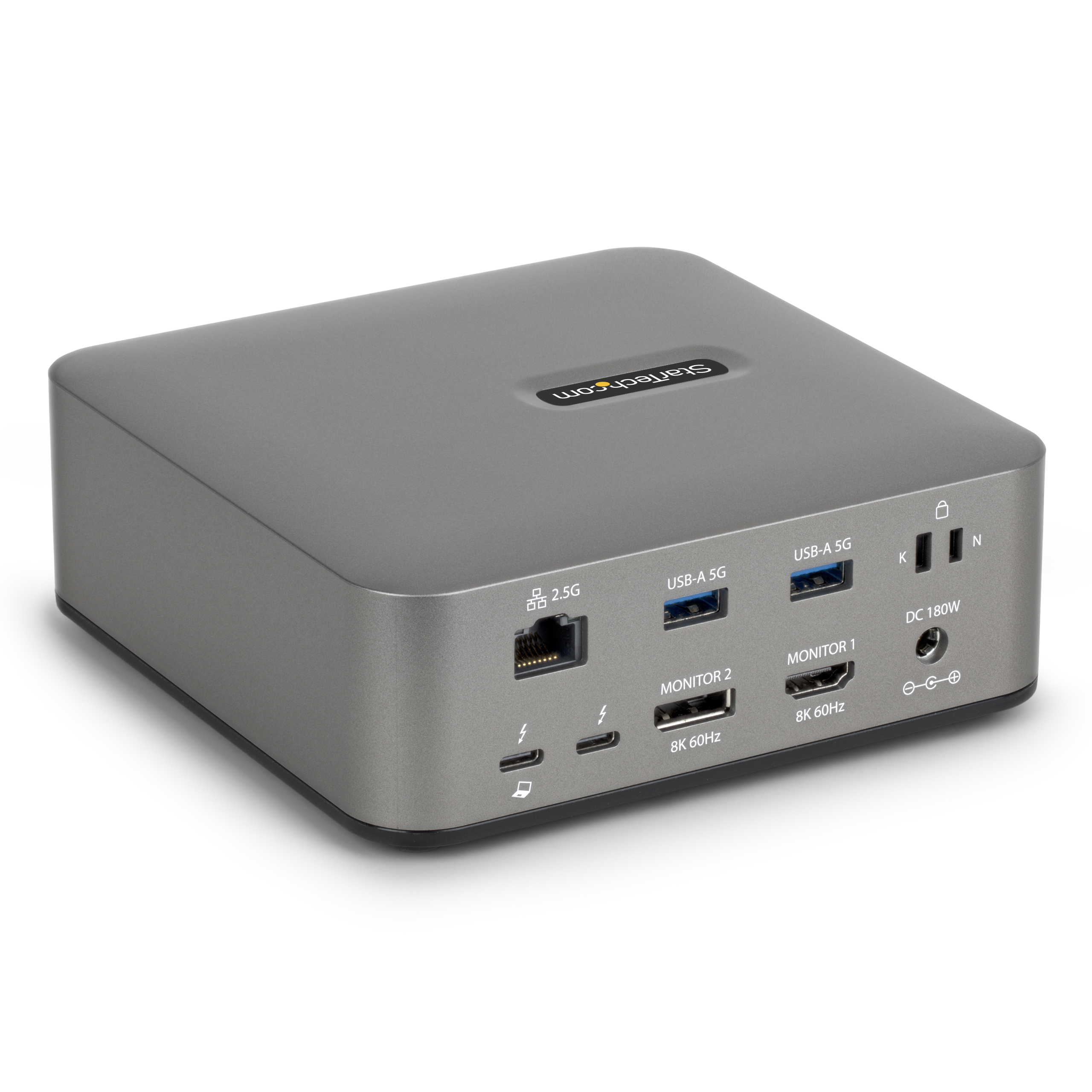

Package Depth (mm) 302 Package Height (mm) 59 Package Width (mm) 169 Package Weight (g) 1538 Packaging Description Thunderbolt 5/USB4 Dock, Triple Display, 5x USB, 2.5GbE, 140W PD Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DisplayPort Connector 1 (Quantity) 1 Connector 2 HDMI Connector 2 (Quantity) 1 Connector 3 USB-C (10Gbps, 4.5W) Connector 3 (Quantity) 2 Connector 4 USB-A (10Gbps, 4.5W) Connector 4 (Quantity) 1 Connector 5 RJ-45 Connector 5 (Quantity) 1 Connector 6 USB-A (5Gbps, 4.5W) Connector 6 (Quantity) 2 Connector 7 USB-C (Thunderbolt 80Gbps) Connector 7 (Quantity) 1 Connector 8 3.5mm (4 Conductors, TRRS) Connector 8 (Quantity) 1 Connector 9 Micro SD Card Slot Connector 9 (Quantity) 1 Connector 10 SD Card Slot Connector 10 (Quantity) 1 Host Connector 1 USB-C (40Gbps, 100W PD Input) Host Connector 1 (Quantity) 1 A+ Uploaded Actual Inbox Documents Created Compliance Insert & EN QSG Amazon Merchandising Manager Kristian Haighton Amazon Only SKU No Amazon Visual Content Level Platinum Apple Compatibility Apple Compatible Application Photos Uploaded Artwork Due Date 2025-06-06 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Comparable SKU Comment NA Comparable SKU 2 Comment NA Digital Content Due Date 2025-08-13 Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Brooke Taylor ID Label Silkscreened or a Label Sticker label - 50x25mm Launch Markets (concatenated) CA,JP,US Primary Technology Thunderbolt 5 Priority New Product High Product Development Specialist Alex Sikora Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Carey Cline Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2025-10-22 Target Production Release 2025-10-31 Tech Lead Brian Linseman Technical Writer Dan Dagenais Technology Lifecycle Latest Vending Machine Not Compatible with Vending Machine Video Required
