231A-8A00-POWER-CORD

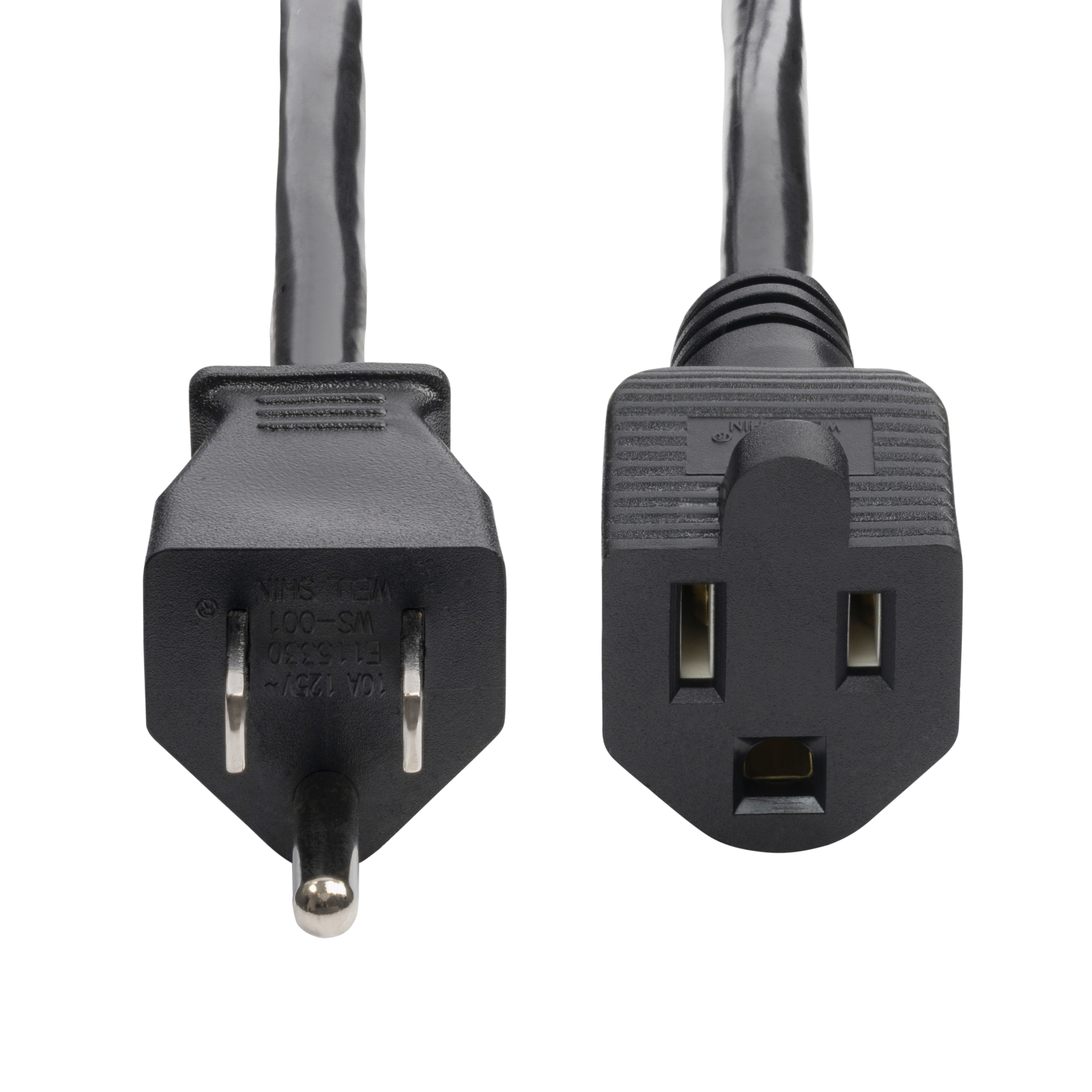

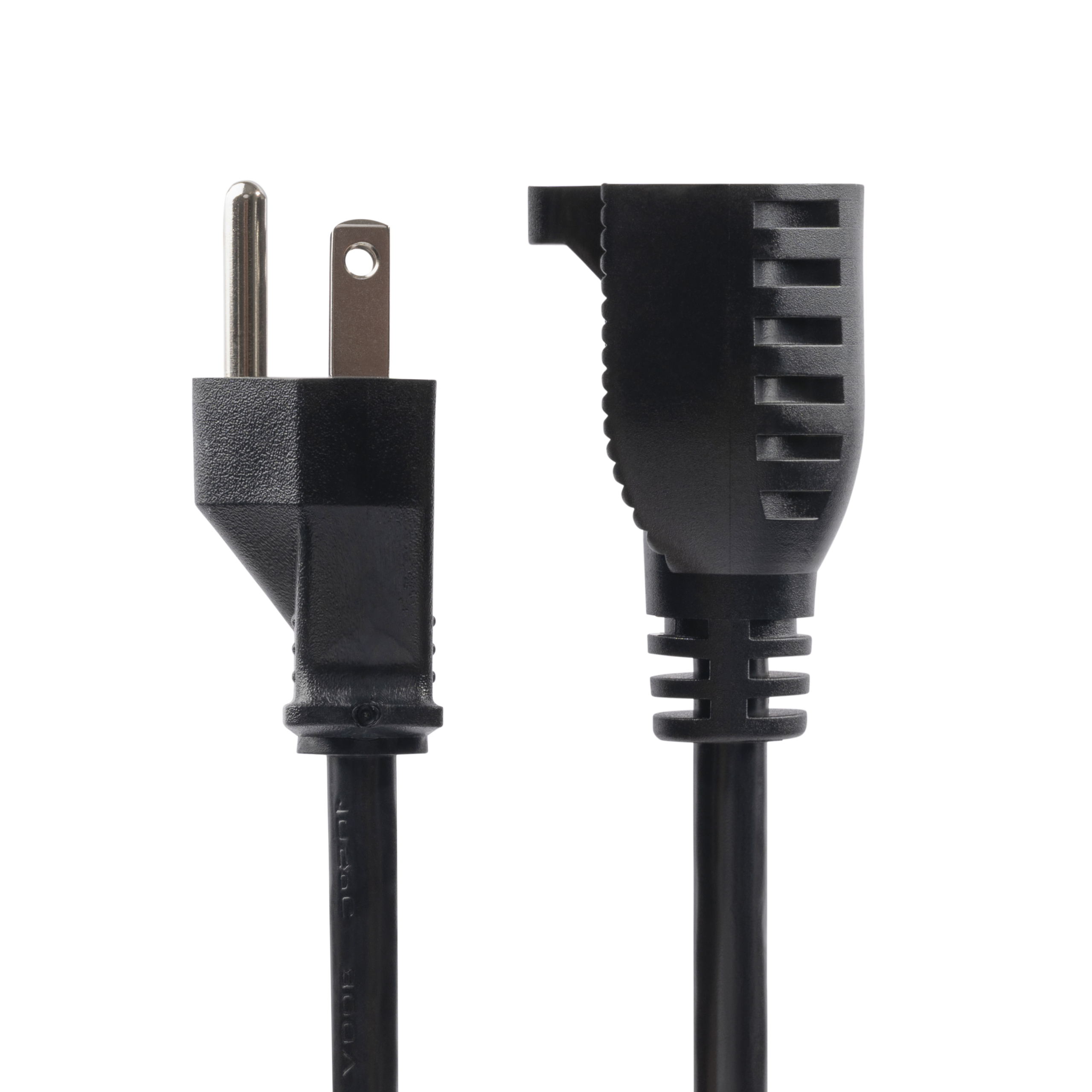

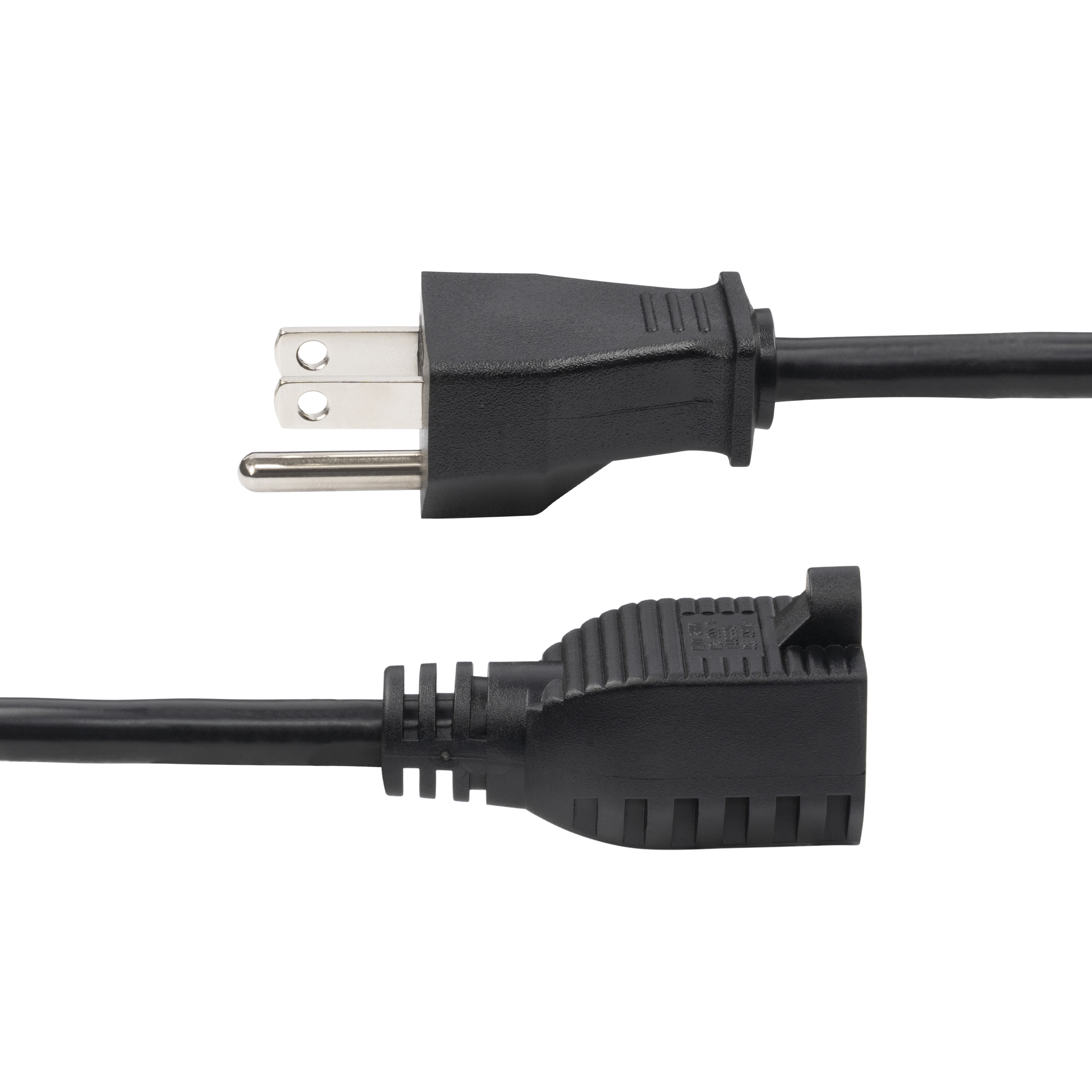

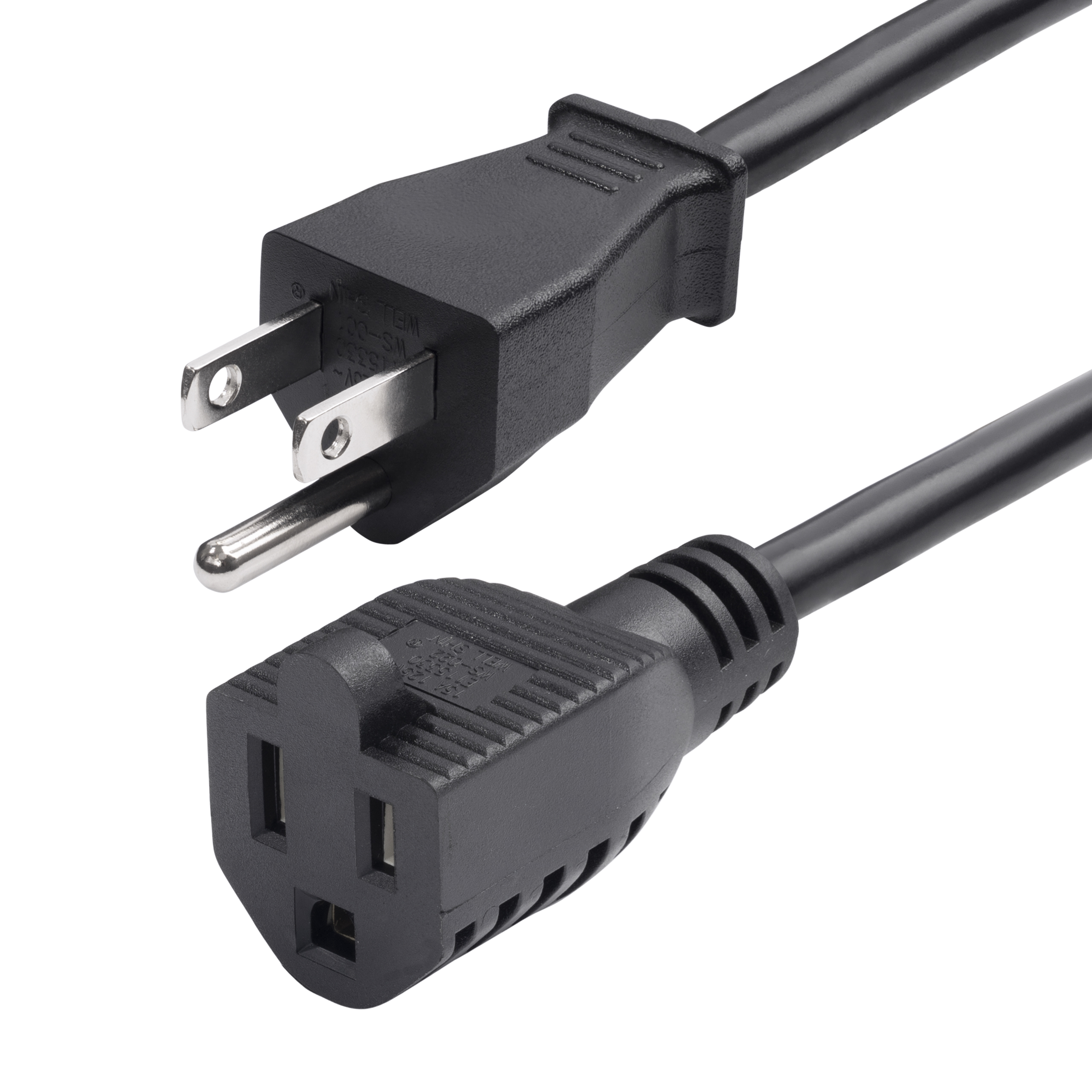

NEMA 5 15P to NEMA 5 15R 10A 125V 18 AWG 10 ft 3 05 m
Extend a power connection from a PDU to a peripheral device
Main Image
Product Images
Product Images
Product Images
Video Link YouTube
Product Name NEMA 5 15P to NEMA 5 15R 10A 125V 18 AWG 10 ft 3 05 m Product Number 231A-8A00-POWER-CORD UPC 065030901451 Lifecycle status Active Warranty Lifetime Weighted Opportunity 15604 Taxonomy Product > Cables > Power Cables Category Level 1 Cables - Other Category Level 2 Power Cables Category Level 3 External Power Cords Family 5-15 to 5-15 Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX120X Product Title (Ultra-Short) Power Extension Cord Product Title (Short) 8ft Power Extension Cord, 5-15P to C13 Product Title (Medium) 10ft (3m) Power Extension Cord, NEMA 5-15P to 5-15R, 10A 125V, 18AWG Product Title (Standard) 10ft (3m) Power Extension Cord, NEMA 5-15P to NEMA 5-15R AC Power Cable, 10A 125V, 18AWG, UL Listed, TAA Product Title (Long) 10ft (3m) Power Extension Cord, NEMA 5-15P to NEMA 5-15R AC Power Cable, 10A 125V, 18AWG, Outlet Extension Power Cable, AC Power Cord, TAA Compliant, UL Listed Product Title (AMZ) 10ft (3m) Power Extension Cord, NEMA 5-15P to NEMA 5-15R AC Power Cable, 10A 125V, 18AWG, Outlet Extension Power Cable, Black Extension Cord - UL Listed , TAA (231A-8A00-POWER-CORD) Title Ingram (Part 1) 2.4m Power Extension Cord Title Ingram (Part 2) NEMA 5-15P to 5-15R, 10A 125V Website Product Headline Extend a power connection from a PDU to a peripheral device Bullet 1 POWER EXTENSION CORD: 10ft (3m) 18AWG Universal Power Extension Cord with NEMA 5-15P to NEMA 5-15R connector is suitable for workstations/home office; Indoor use; Rated to carry 125V at 10A Bullet 2 BUILT FOR PERFORMANCE AND SAFETY: UL Listed; VW-1 Fire Rated cable with fully molded connector strain reliefs for durability; 3-conductor power cable made with 100% copper wire Bullet 3 SPECS: 10ft (3m); TAA Compliant; NEMA 5-15P to NEMA 5-15R; 18AWG; 125V 10A (Max); Jacket Rating: SJT; Color: Black; Temperature Range: -4°F to 221°F (-20℃ to 105℃); Cable O.D.: 0.31in (7.8mm) Bullet 4 COMPATIBILITY: Extend the length of a power cord from your desktop computer, server, or printer to a wall outlet or PDU; NEMA 5-15P plug works with North American electrical outlets; Replacement AC power extension cord Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this computer power cord is backed for life, including free lifetime 24/5 multi-lingual technical assistance; This 5-15P to 5-15R power cord is available in other lengths Bullets (Compact) 10ft Universal Power Extension Cord w/NEMA 5-15P and NEMA 5-15R connectors; 125V at 10A; UL Listed; Wire: 100% Copper; 18AWG; Fire Rating: VW-1; Jacket Rating: SJT; Temp Range: -4 to 221°F; Cable O.D.: 0.31in; TAA Compliant Bullets (Consolidated) 10ft (3m) Universal Power Extension Cord with NEMA 5-15P and NEMA 5-15R connectors; Rated to carry 125V at 10A (Max) - UL Listed; Durable molded connectors w/strain reliefs; 100% Copper wire; Fire Rating: VW-1 - 18AWG; Jacket Rating: SJT; Temperature Range: -4 to 221 DEGF; Cable O.D.: 0.31in - TAA Compliant; NEMA 5-15P plug works with North American electrical outlets; Extend a 3-prong power connection to a wall outlet or PDU Marketing Copy Marketing Copy (No HTML) Our power cables are the preferred choice for IT professionals, tailored to meet the specific demands of IT applications. Our comprehensive range includes standard and heavy-duty power cords, extension cords, medical-grade cords, splitter cables, and passthrough options. We prioritize safety, and reliability through rigorous in-house and third-party testing. Our cables are certified for both performance and safety, constructed using UL-listed components compliant with UL62 and UL817 standards. They also adhere to environmental safety standards, including REACH and RoHS compliance. We use 100% copper wiring that undergoes thorough testing for continuity and conductivity, guaranteeing maximum performance and reliability. Our cables are further tested in temperature chambers to ensure they meet environmental and jacket ratings. Backed for life with 24-hour, five day-a-week support from qualified Technical Advisor and our IT Pro community forums, our brand is trusted throughout the IT ecosystem and used by over 80% of Fortune 500 companies Applications - Extend a monitor, scanner, printer, or PC power cord by an additional 10 ft
- Extend a power connection from a crowded PDU for more convenient access
Website Search Keyword - 10ft Universal Power Cord
- 10ft Universal Power Cable
- PC Power Cable
- 5-15P to 5-15R extension cable
- 5-15P to 5-15R power cord
- PDU power cord
- Power Extension Cord
Required Regulatory Compliance Marks - UL - Safety - Electrical - Canada / United States - Enhanced UL Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Input Current 10A Input Voltage 125V AC Cable Length (mm) 3050 Cable OD 7.8 Color Black Humidity 0% to 65% RH Operating Temperature -20° to 105°C (-4° to 221°F) Product Length (mm) 3050.000 Product Width (mm) 26.800 Product Height (mm) 35.000 Product Weight (g) 324.000 Storage Temperature -20° to 105°C (-4° to 221°F) TAA Compliant Yes Wire Gauge 18 AWG Voltage Rating 125V Cable Jacket Material PVC Cable Type SJT Female Connector 5-15R Fire Rating VW-1 Rated Male Connector / Plug 5-15P Number of Conductors 3 Type AC Extension Cord Carton Depth (mm) 499 Carton Height (mm) 266 Carton Quantity 50 Carton Weight Gross (g) 17890 Included in Package 1 - 10ft NEMA 5-15P to NEMA 5-15R Power Cord Package Depth (mm) 137 Package Height (mm) 40 Package Width (mm) 274 Package Weight (g) 334 Packaging Description Standard Power Cord - NEMA 5-15P to NEMA 5-15R - 10ft (3m) Black Packaging Description India Standard Power Cord - NEMA 5-15P to NEMA 5-15R - 10ft (3m) Black Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 NEMA 5-15 (125V AC, 15A) Connector 1 (Quantity) 1 Connector 2 NEMA 5-15 (125V AC, 15A) Connector 2 (Quantity) 1 A+ Required Actual Inbox Documents Created None Amazon Merchandising Manager Veronica Ye Application Photos Required Artwork Due Date 2023-06-16 Buying Center - AV & Collaboration Yes Buying Center - Data Center Yes Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Comparable SKU Comment This is 10A version. PAC10110 is 13A version. Comparable SKU 2 Comment NA Digital Content Due Date 2023-10-18 Enhanced Gallery Not Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) CA,US Product Development Specialist Alex Sikora Product Information Creation Specialist (PICS) Brian Chan Product Manager Tim North Product Performance Specialist Ray Aoki Product Photographer Shane Arnett Target Development Completion Date 2023-06-09 Target Production Release 2023-07-30 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream Vending Machine Not Compatible with Vending Machine Video Not Required
