25S22M2NGFFR

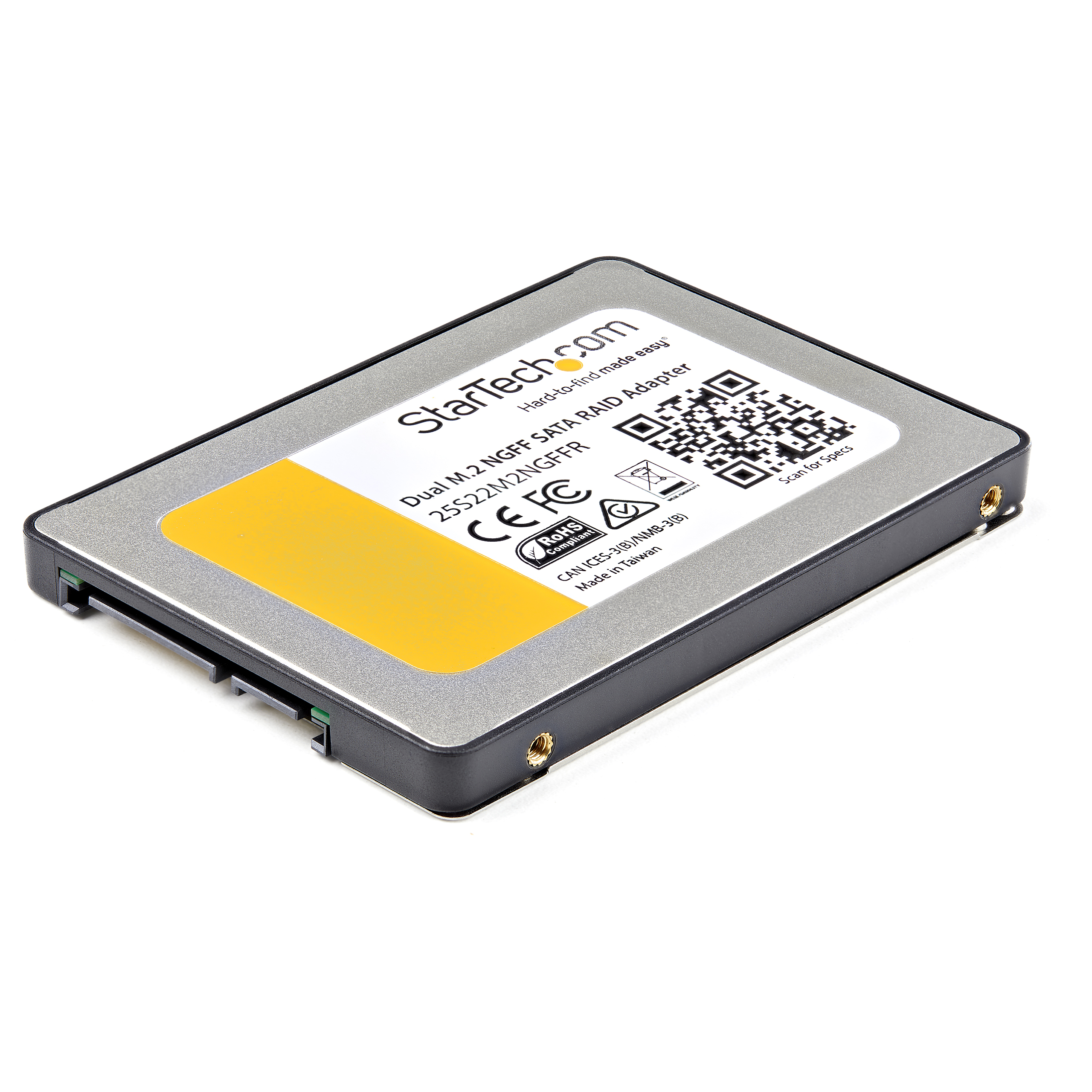

2x M 2 NGFF SSD to 2 5 SATA Adapter with RAID

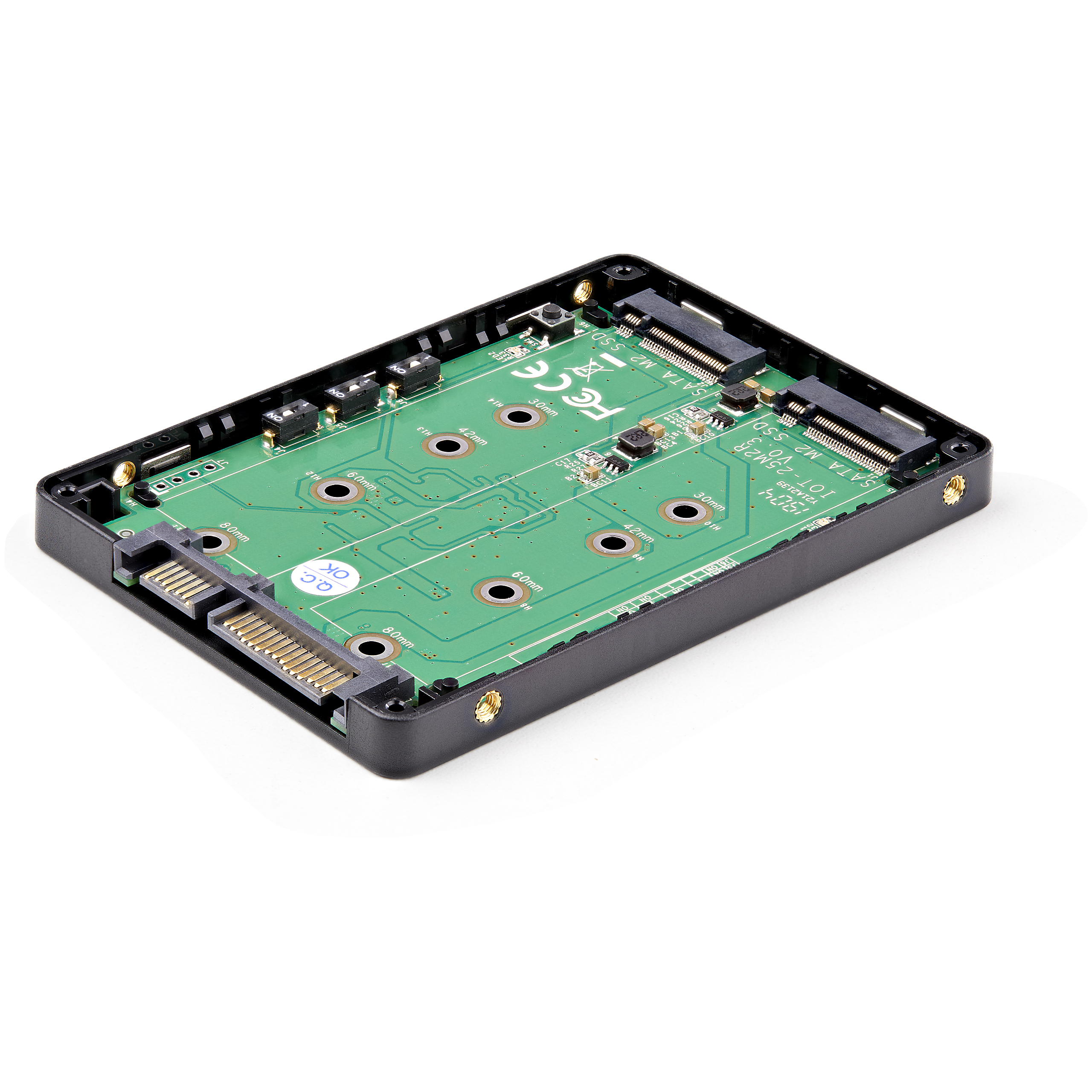

Install two M.2 SSDs into a 2.5” bay to create high-performance storage with configurable RAID
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 2x M 2 NGFF SSD to 2 5 SATA Adapter with RAID Product Number 25S22M2NGFFR UPC 065030863315 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Data Storage Cards & Adapters Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 M.2 NVMe/SATA Card Adapters/Controllers Family M.2 SATA to 2.5" SATA Adapter Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX039X Product Title (Ultra-Short) 2x M.2 SATA Adapter Product Title (Short) Adapter - Dual M.2 SATA with RAID Product Title (Medium) Dual M.2 SATA Adapter with RAID - 2x M.2 SSDs to 2.5in SATA (6Gbps) Adapter Product Title (Standard) Dual M.2 SATA Adapter with RAID, 2x M.2 SSDs to 2.5in SATA (6Gbps) RAID Adapter Converter with TRIM Support, TAA Product Title (Long) Dual M.2 SATA Adapter with RAID - TAA Product Title (AMZ) Dual M.2 SATA Adapter with RAID - 2x M.2 SSDs to 2.5in SATA (6Gbps) RAID Adapter Converter with TRIM Support , TAA (25S22M2NGFFR) Title Ingram (Part 1) Dual M.2 SSDs to 2.5 inch SATA Title Ingram (Part 2) Adapter with RAID and TRIM Support Website Product Headline Install two M.2 SSDs into a 2.5” bay to create high-performance storage with configurable RAID Bullet 1 Install two M.2 NGFF SSDs into a single 2.5” SATA bay and build a powerful RAID array Bullet 2 Supports RAID 0, RAID 1, spanning, or JBOD Bullet 3 Add M.2 SSD performance to any computer system by converting M.2 to SATA Bullet 4 Protect your M.2 (NGFF) SSDs in any 2.5in application with enclosed housing Bullet 5 Supports TRIM to help ensure stable performance of your M.2 SSDs Bullets (Compact) Install two M.2 SSDs into a 2.5” bay to create high-performance storage with RAID - Dual M.2 SATA adapter - 2x M.2 SSDs to 2.5in SATA (6Gbps) RAID adapter converter with TRIM - Dual M.2 SSD adapter enclosure with RAID 0, RAID 1, Spanning & JBOD Bullets (Consolidated) Install two M.2 SSDs into a 2.5" bay to create high-performance storage with configurable RAID - Dual M.2 SATA adapter with RAID - 2x M.2 SSDs to 2.5in SATA (6Gbps)RAID adapter converter with TRIM support - Dual M.2 SSD adapter enclosure with RAID 0 and RAID 1 plus Spanning and JBOD - Broad compatibility with support for common SATA M.2 SSDs (2230, 2242, 2260, 2280) (Not compatible with M.2 NVMe or AHCI PCI-Express SSDs) - Supports SATA I/II/III (up to 6Gbps) - 2.5in SATA form factor housing Marketing Copy Applications - Add data redundancy to your system, by adding a mirrored SSD (RAID 1)
- Increase the storage capacity of your system by adding an additional SSD in a RAID array (RAID 0/BIG)
- Turn two unused M.2 drives into a regular 2.5in SATA solid-state drive
- Retrieve/backup data from an M.2 (NGFF) drive using a standard SATA computer
- Use M.2 drives in any 2.5 in. SATA application
Website Search Keyword - Dual M.2 NGFF SSD to SATA Adapter
- 2x M.2 NGFF SSD to SATA Converter
- M.2 RAID Adapter
- M.2 RAID
- M.2 Adapter
- M.2 Converter
- M.2 NGFF RAID controller
- M.2 NGFF RAID adapter
- SSD RAID
- Dual SSD RAID
- RAID adapter
- M.2 to SATA
- M.2 to 2.5in SATA
- M.2 to 2.5" SATA adapter
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Special Notes TRIM and SMART have limited support while in a RAID configuration. A SATA controller with Port Multiplier support is required, in addition to the product configured in JBOD mode, to provide full TRIM and SMART support. Accessory Products - LSATA12
- SATA18
- SATA18POW
- SATA24
- LSATA8
- SATA12LSA1
- SATA12RSA1
- SATA18RSA1
- LSATA18RA1
- SATA6LA1
- LP4LSATAADAP
- PYO2LP4SATA
- LP4SATAFM6IN
- SATA18RA1
- SATA18LA1
- SATA12
- SATA24RA1
- SATA18LSA1
- BRACKET25SAT
- BRACKET25X2
- SATA35252X
Related Products - 25SAT22MSAT
- SAT2MSAT25
- SAT32M225
- SAT32MSATM
- 2CF2SATAR
- IDE2SAT2
- SAT32MSATPEX
- CF2USAT18E
- SAT2CF
- MSAT2SAT3
- SAT32MSAT257
Input Voltage 5V DC Output Voltage (V) 5 DC Color Black & Silver Humidity 5% ~ 95% RH Material Steel and Plastic Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Steel Product Length (mm) 99.000 Product Width (mm) 70.000 Product Height (mm) 8.000 Product Weight (g) 55.000 Storage Temperature -10°C to 85°C (14°F to 185°F) TAA Compliant Yes General Specifications Maximum Data Transfer Rate 6Gbps MTBF (hours) 500000 OS Compatibility OS Independent Port Multiplier Yes RAID Yes SATA Type and Rate SATA III (6 Gbps) Chipset ID ASMedia - ASM1092R Compatible Drive Types M.2 (SATA, B-Key, NGFF) Interface/Bridge SATA LED Indicators 2 - Drive Error Number of Drives 2 Supported Drive Height(s) - 2242
- 2260
- 2280
- 2230

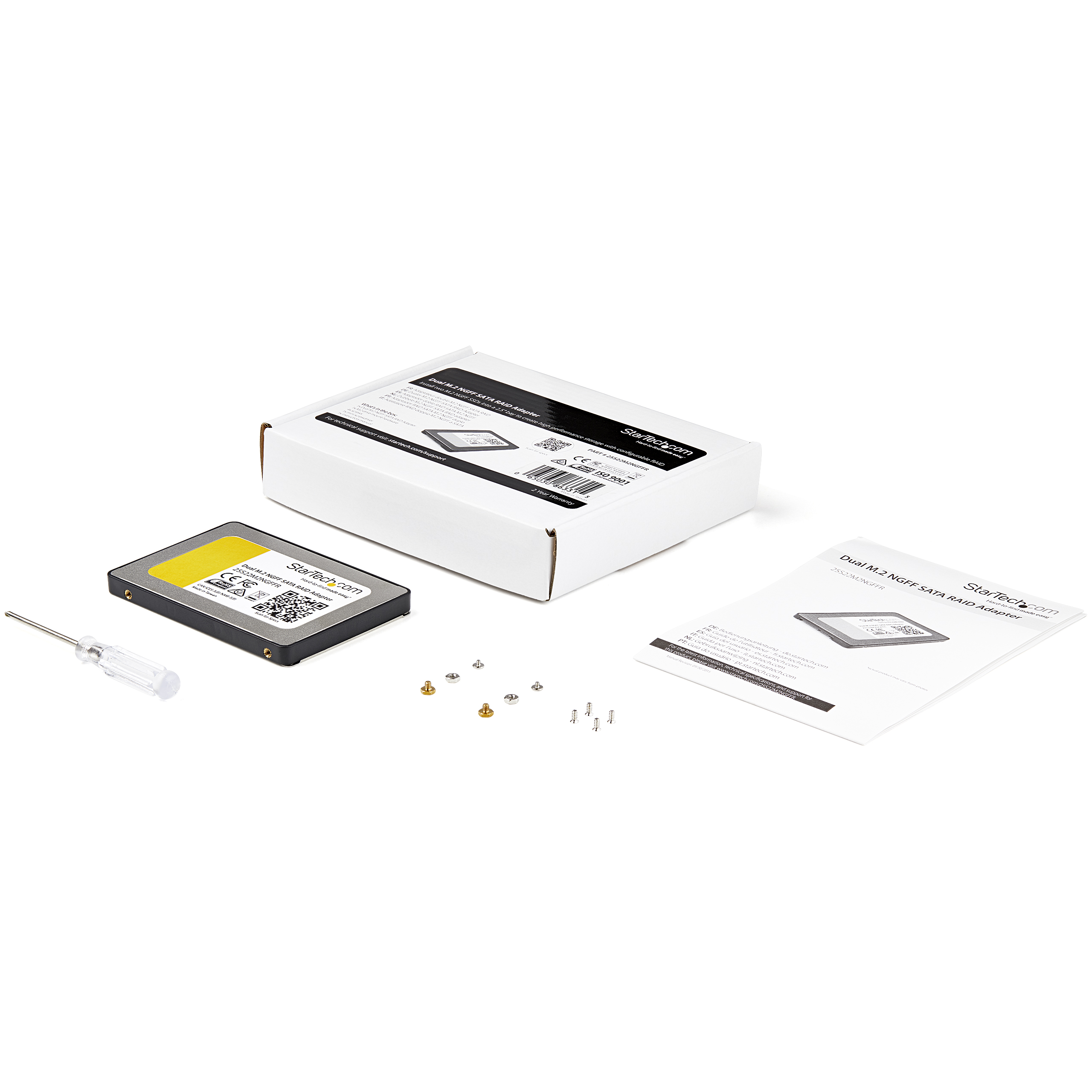

Carton Depth (mm) 484 Carton Height (mm) 332 Carton Quantity 100 Carton Weight Gross (g) 13226 Included in Package - 1 - dual M.2 NGFF SATA RAID adapter
- 4 - screws
- 1 - mini screwdriver
- 1 - quick start guide
- 2 - M.2 drive mount hardware
Included In Package for Label - 2 - M.2 Drive Mount Hardware
- 1 - Quick Start Guide
- 1 - Mini Screwdriver
- 4 - Screws
- 1 - Dual M.2 Ngff SATA Raid Converter

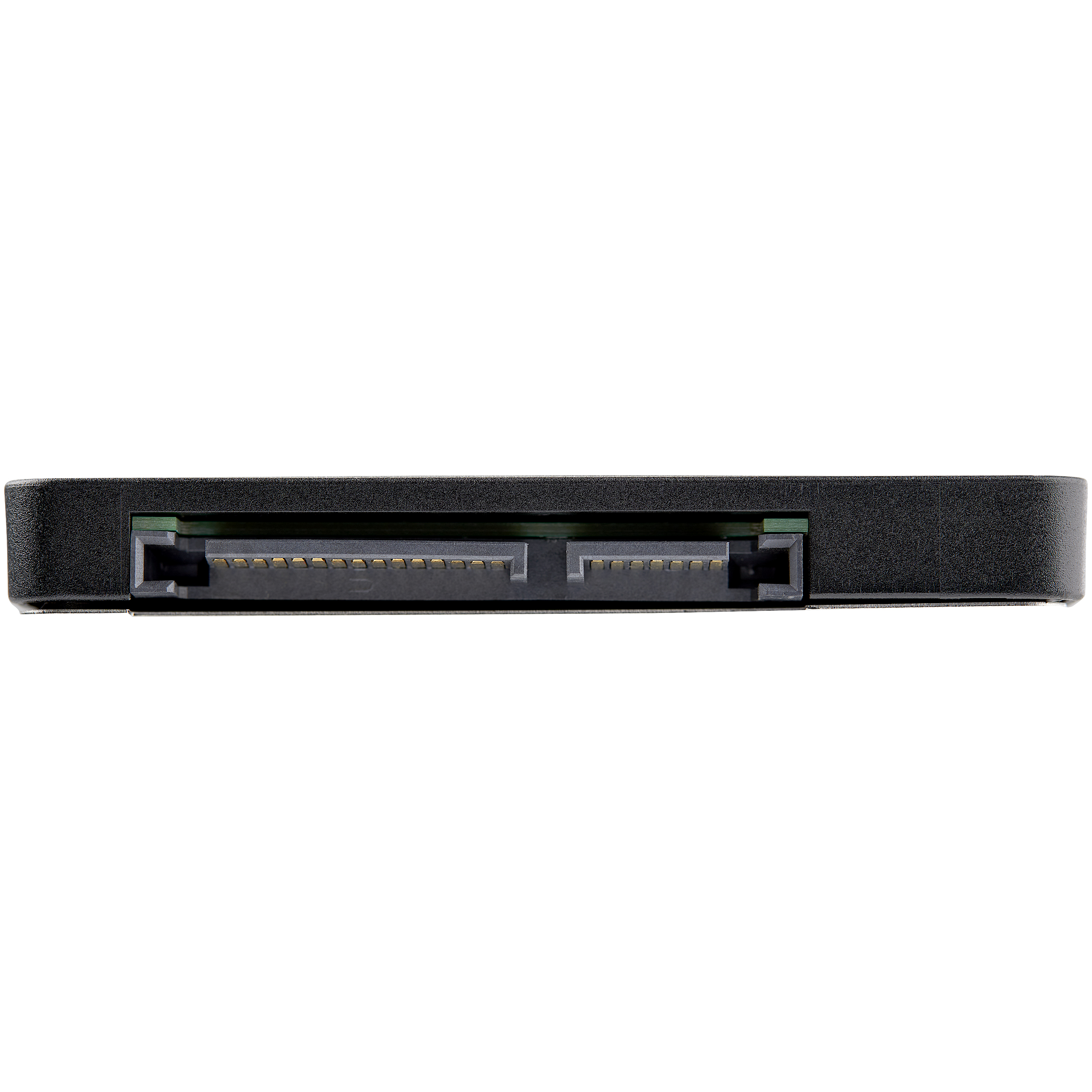

Package Depth (mm) 132 Package Height (mm) 32 Package Width (mm) 158 Package Quantity 1 Package Weight (g) 118 Packaging Description Dual M.2 NGFF SATA RAID Adapter Packaging Description India Dual M.2 NGFF SATA RAID Converter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 M.2 B-Key (SATA, AHCI) Host Connector 1 (Quantity) 2 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2015-09-02 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2015-10-02 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy
