25SAT22MSAT

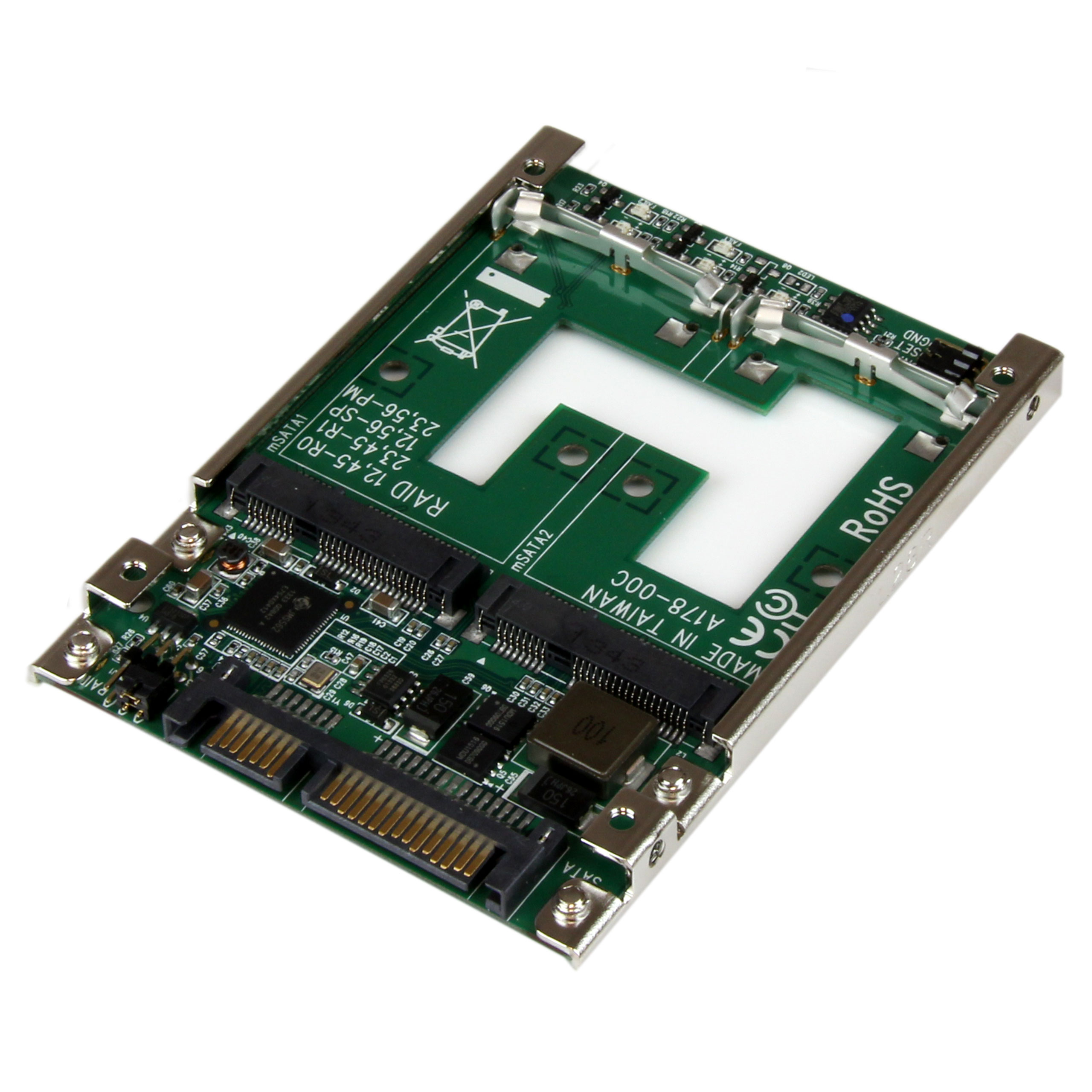

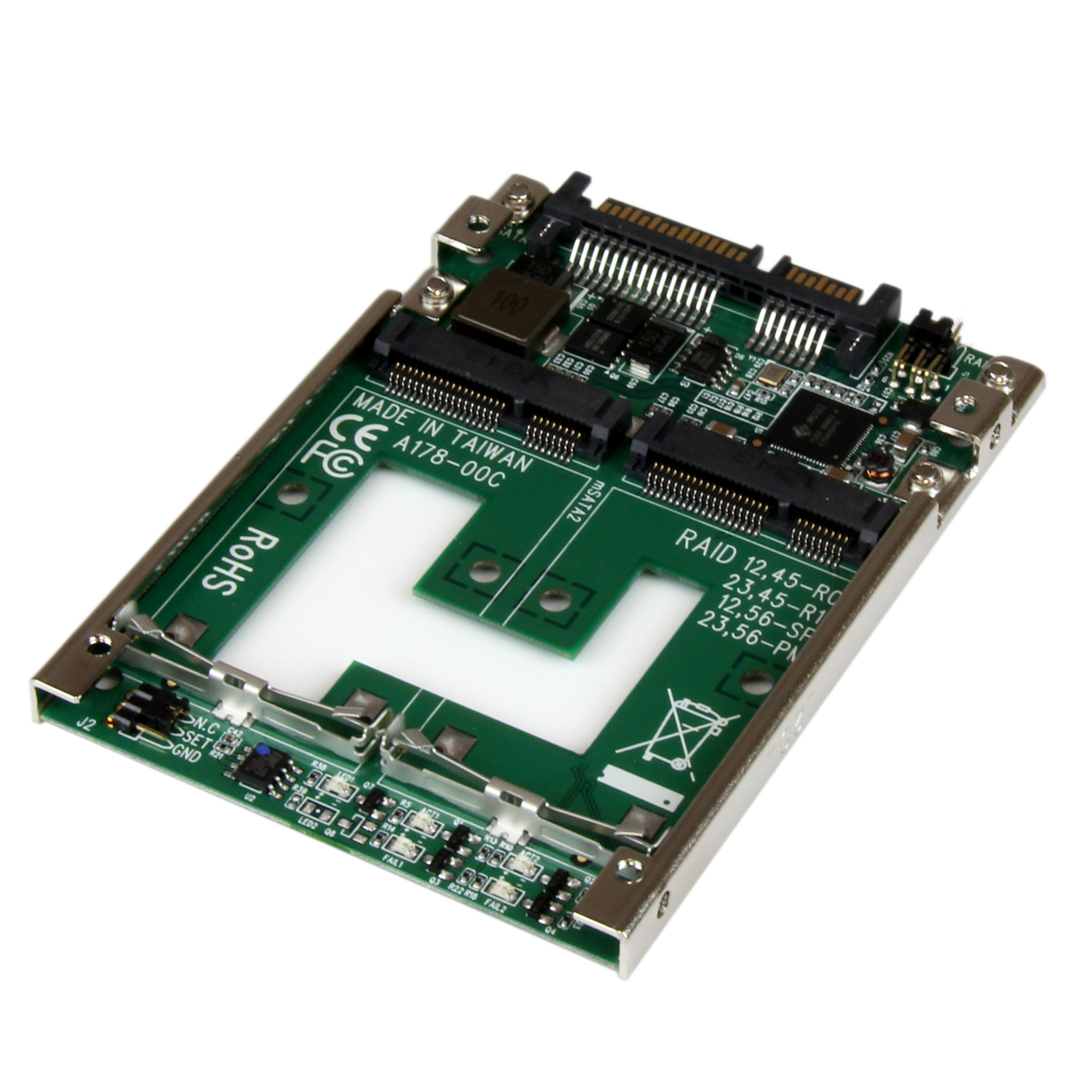

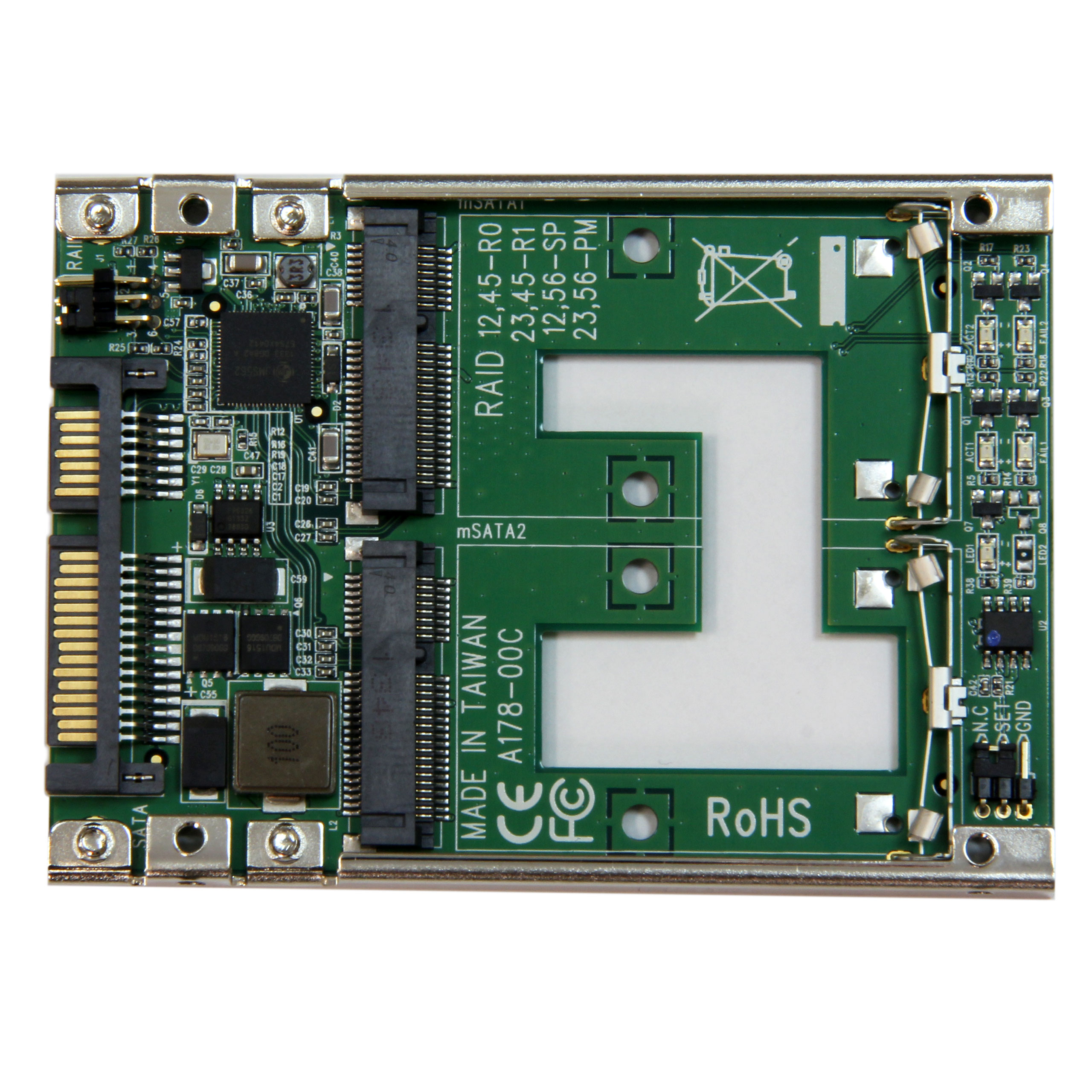

SATA to Dual mSATA RAID Adapter w 2 5in Bracket
Build a RAID array with two mSATA SSDs that can be installed into a single 2.5in SATA bay
Main Image
Product Images
Product Images
BOM Image
Product Name SATA to Dual mSATA RAID Adapter w 2 5in Bracket Product Number 25SAT22MSAT UPC 065030855617 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Data Storage Cards & Adapters Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 Other Cards And Adapters - mSATA/CF/IDE Family mSATA to 2.5" SATA Adapter Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX051X Product Title (Ultra-Short) mSATA to SATA RAID Product Title (Short) Dual mSATA SSD to 2.5” SATA RAID Adapter Product Title (Medium) x Product Title (Standard) Dual mSATA SSD to 2.5” SATA RAID Adapter Converter, TAA Product Title (Long) Dual mSATA SSD to 2.5” SATA RAID Adapter Converter - TAA Product Title (AMZ) Dual mSATA SSD to 2.5” SATA RAID Adapter Converter - 2x mSATA SSD to 2.5in SATA Adapter with RAID and 7mm Open Frame Housing , TAA (25SAT22MSAT) Title Ingram (Part 1) Dual mSATA SSD RAID to 2.5" SATA Title Ingram (Part 2) RAID Adapter Converter Website Product Headline Build a RAID array with two mSATA SSDs that can be installed into a single 2.5in SATA bay Bullet 1 Dual full size mSATA SSD bays Bullet 2 Supports RAID0, RAID1, JBOD, BIG Bullet 3 Compatible with SATA revision I/II/III (1.5/3.0/6.0 Gbps) drives and controllers Bullet 4 Open-frame steel mounting bracket Bullet 5 2.5in SATA form factor housing Bullets (Consolidated) Storage controller - 2 Channel - mSATA - 6 GBps - RAID 0 - 1 - JBOD - BIG - SATA 6Gb/s Marketing Copy Applications - Turn two unused mSATA SSD drives into a hardware RAID 2.5in SATA solid state drive
- Increase the capacity of your SSD system by adding an additional SSD in a RAID array (RAID 0/BIG)
- Add data redundancy to your SSD system, by adding an additional SSD in a RAID array (RAID1)
Website Search Keyword - mSATA RAID
- 2.5" SSD RAID
- mSATA RAID to 2.5" SATA
- mSATA to RAID
- mSATA RAID Controller to SATA
- SSD RAID
- 2.5in mSATA RAID
- Dual SSD RAID
- mSATA SSD to SATA Adapter
- Dual mSATA RAID
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
Accessory Products - LSATA12
- SATA18
- SATA18POW
- SATA24
- LSATA8
- SATA12LSA1
- SATA12RSA1
- SATA18RSA1
- LSATA18RA1
- SATA6LA1
- LP4LSATAADAP
- PYO2LP4SATA
- LP4SATAFM6IN
- SATA18RA1
- SATA18LA1
- SATA12
- SATA24RA1
- SATA18LSA1
- BRACKET25SAT
- BRACKET25X2
- SATA35252X
Related Products - SAT2MSAT25
- SAT32M225
- SAT32MSATM
- 2CF2SATAR
- IDE2SAT2
- SAT32MSATPEX
- CF2USAT18E
- SAT2CF
- MSAT2SAT3
- SAT32MSAT257
Input Voltage 5V DC Output Voltage (V) 5 DC Color Green Material Steel, Aluminum and Plastic Operating Temperature -40°C to 85°C (-40°F to 185°F) Primary Material Steel Product Length (mm) 97 Product Width (mm) 70 Product Height (mm) 7 Product Weight (g) 39 TAA Compliant Yes Hot Swap Capability No Maximum Data Transfer Rate 6 Gbps MTBF (hours) 5,101,299 Hours OS Compatibility OS Independent Port Multiplier Yes RAID Yes SATA Type and Rate SATA III (6 Gbps) Chipset ID JMicron - JMS562 Compatible Drive Types mSATA (Mini SATA) Interface/Bridge SATA LED Indicators - 1 - Drive #1 Activity
- 1 - Drive #1 Failure
- 1 - Drive #2 Activity
- 1 - Drive #2 Failure

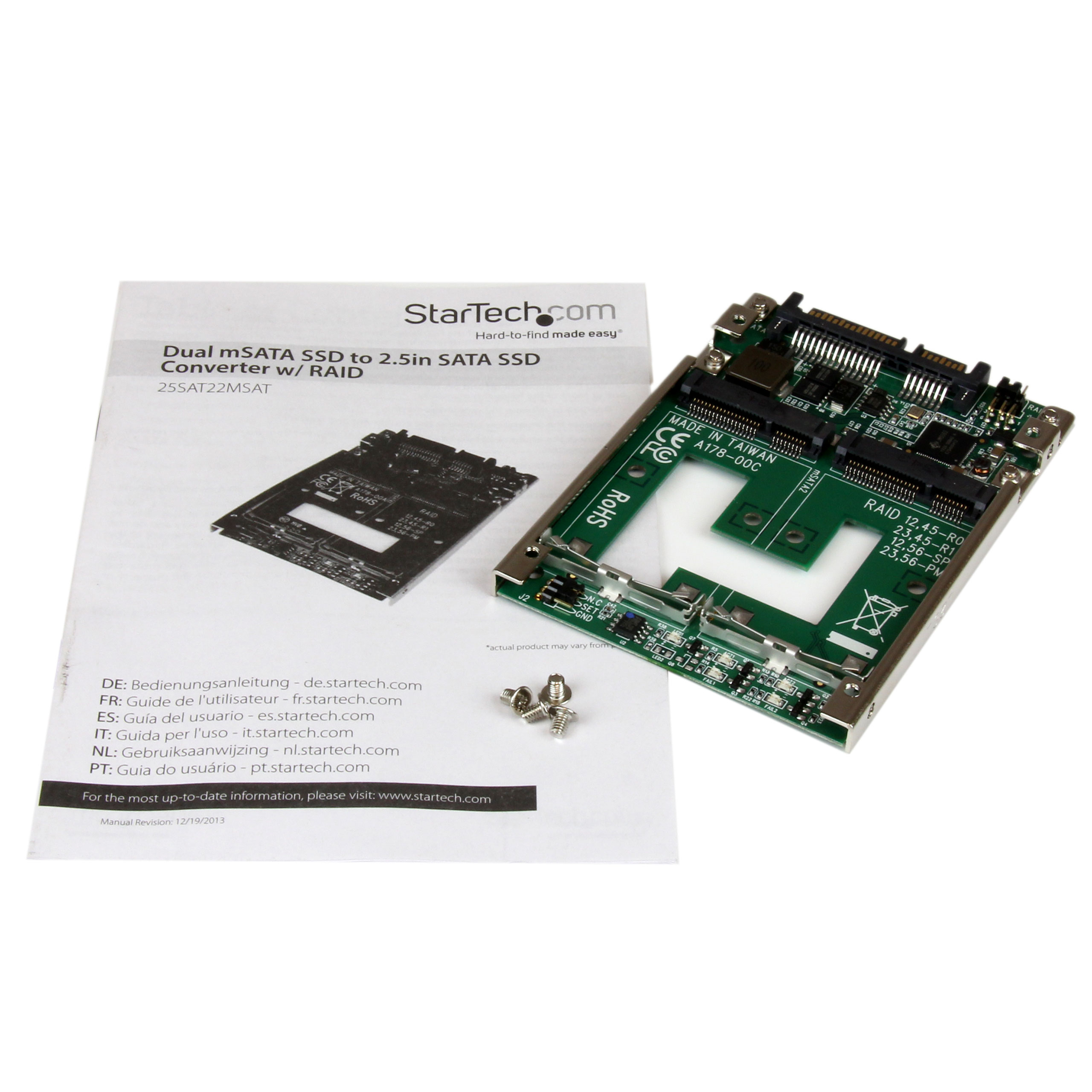

Number of Drives 2 Carton Depth (mm) 382 Carton Height (mm) 322 Carton Quantity 60 Carton Weight Gross (g) 7478 Included in Package - 1 - Dual mSATA to 2.5in SATA Adapter
- 1 - Mounting screw kit
- 1 - Install Guide
Package Depth (mm) 143 Package Height (mm) 34 Package Width (mm) 175 Package Quantity 1 Package Weight (g) 108 Packaging Description Dual mSATA SSD to 2.5in SATA SSD Converter w/ RAID Packaging Description India Dual mSATA SSD to 2.5in SATA SSD Converter w/ RAID Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 mSATA (52-Pin) Connector 1 (Quantity) 2 Host Connector 1 SATA (7-Pin + 15-Pin) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-01-06 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,EU,FR,IE,IN,IT,JP,MX,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
