25SAT35HDD

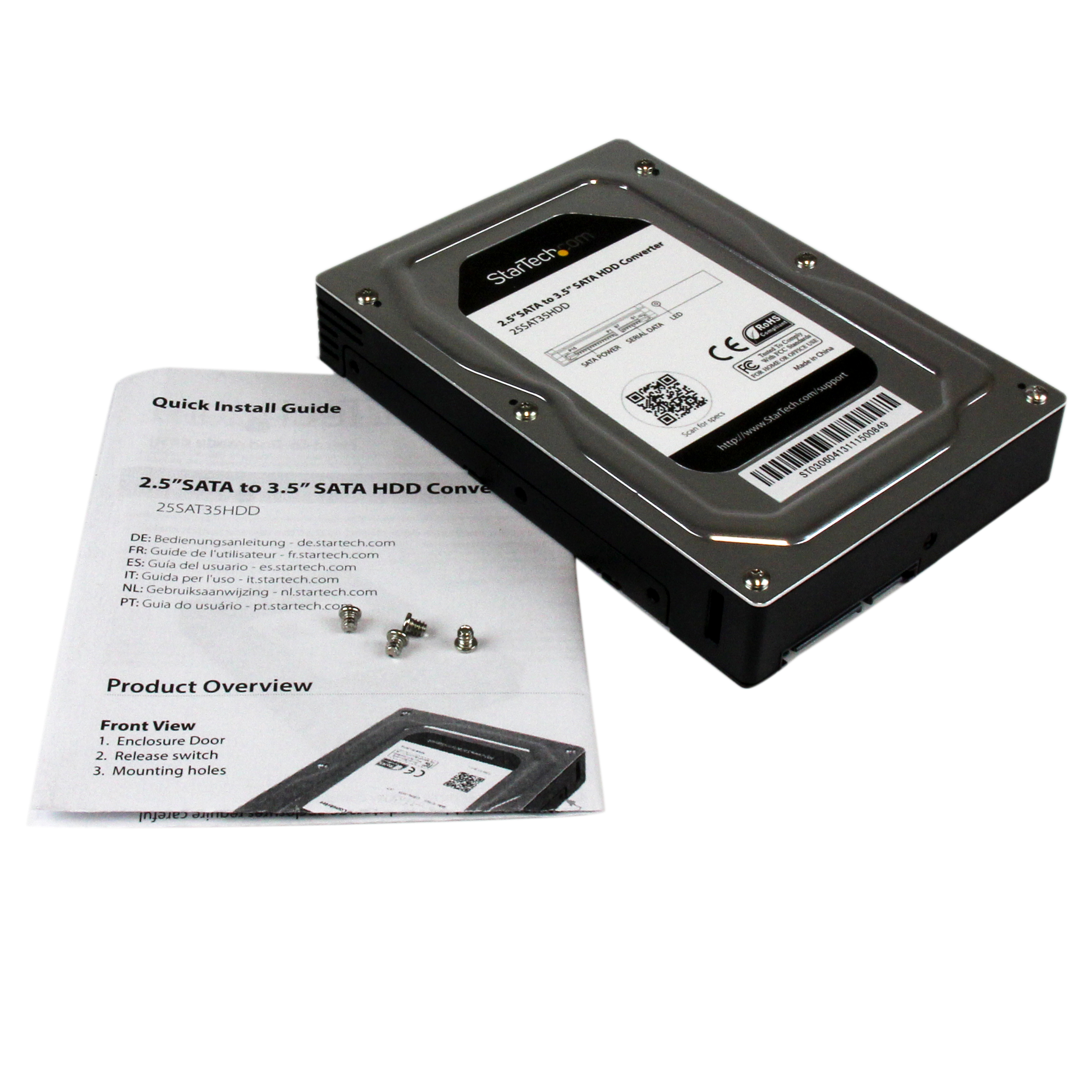

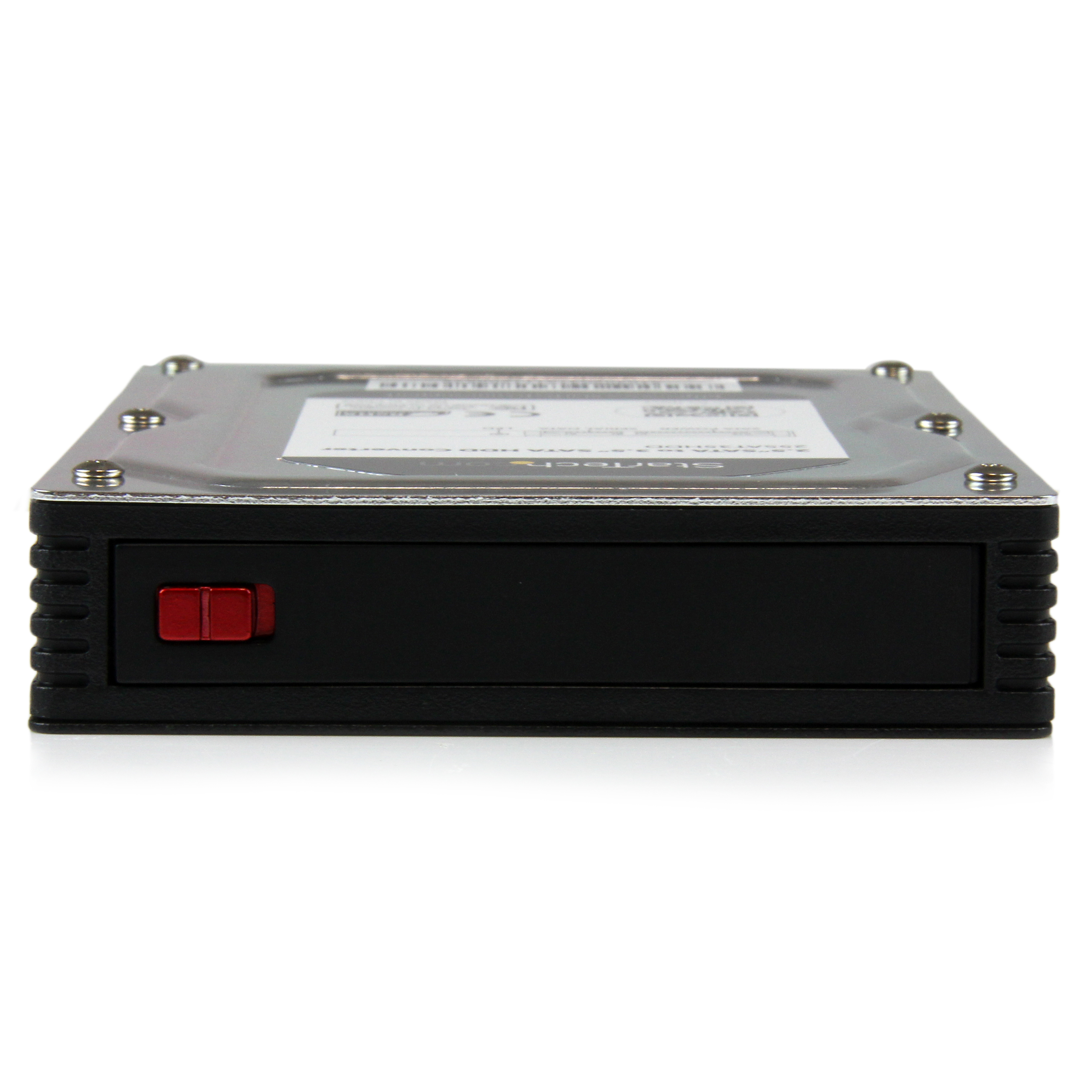

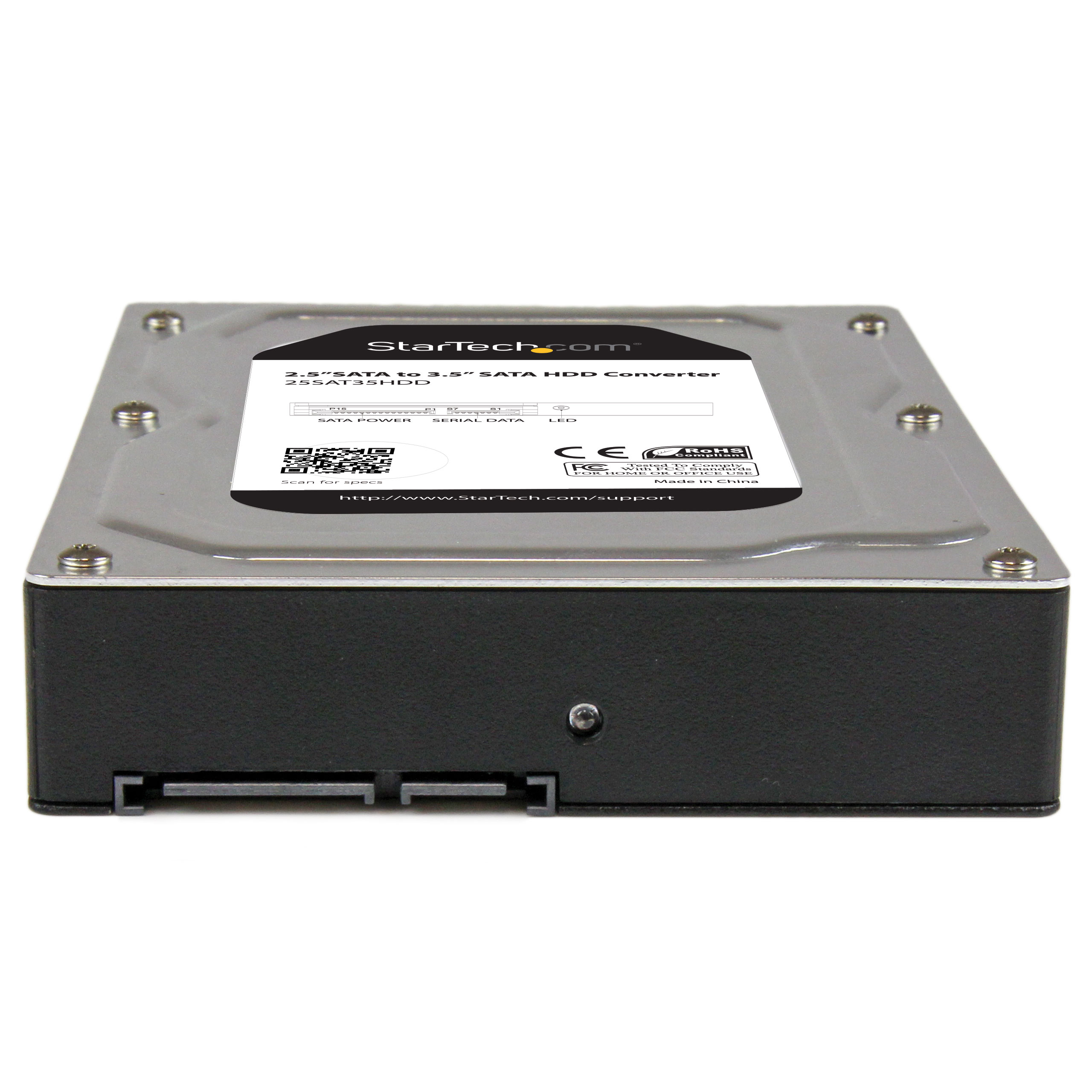

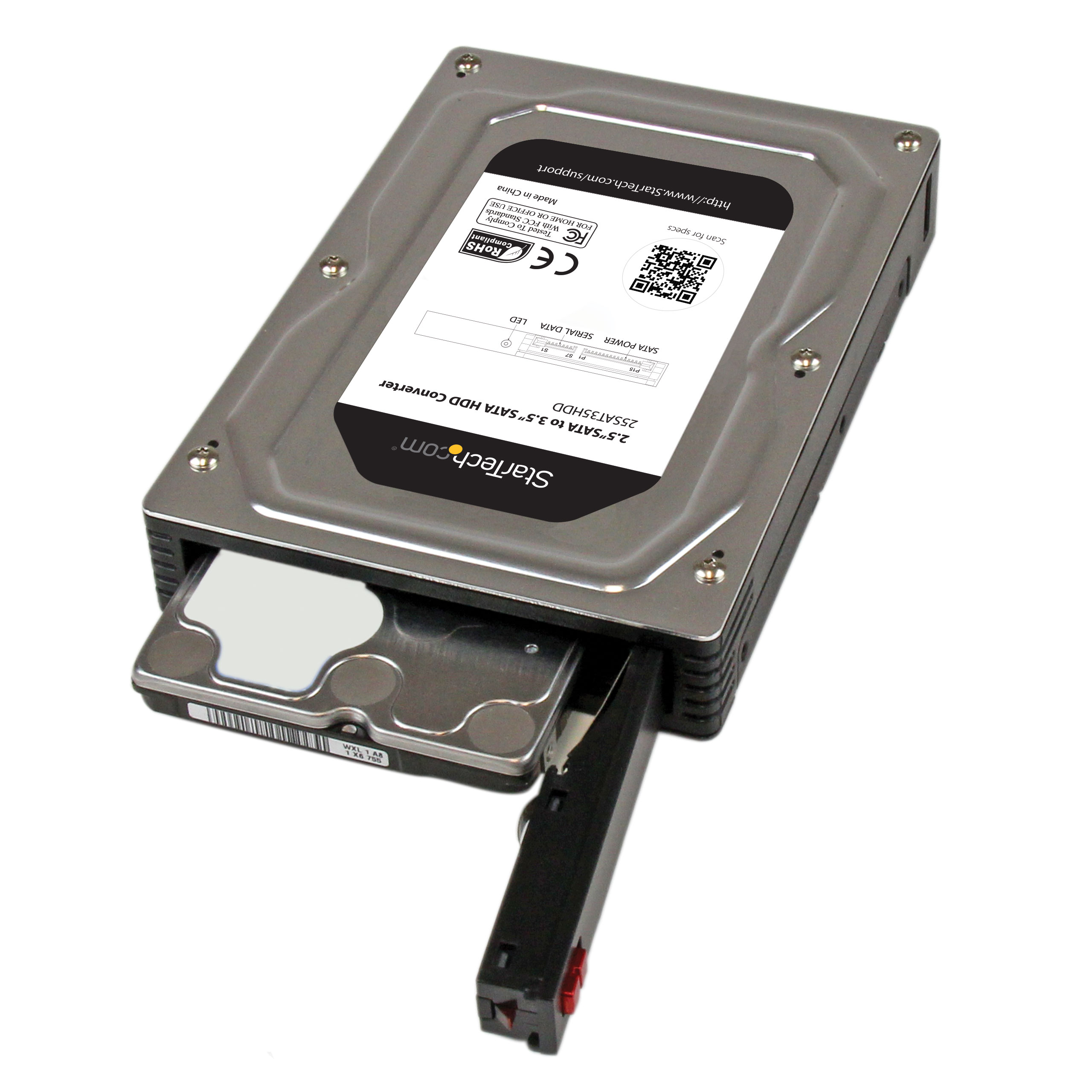

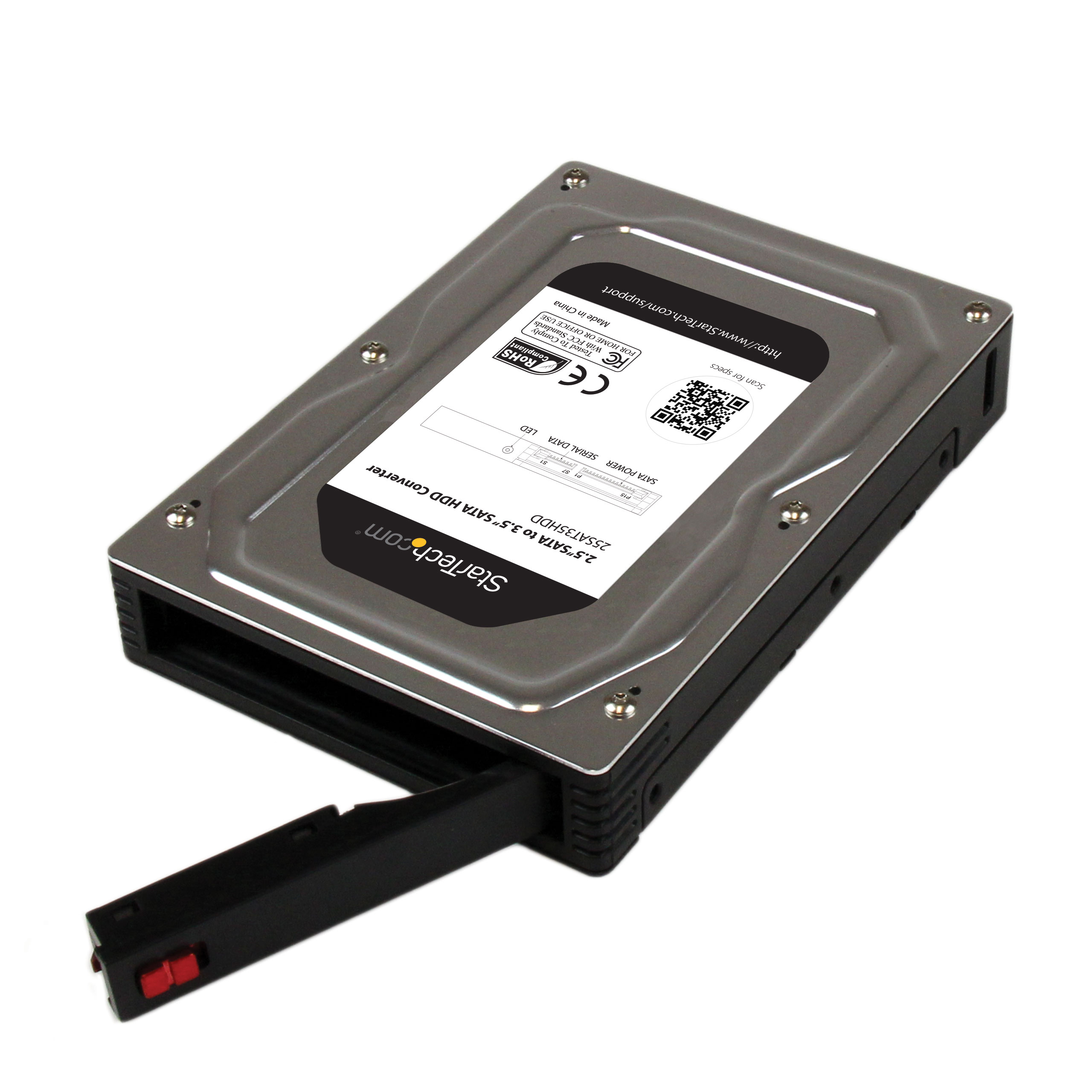

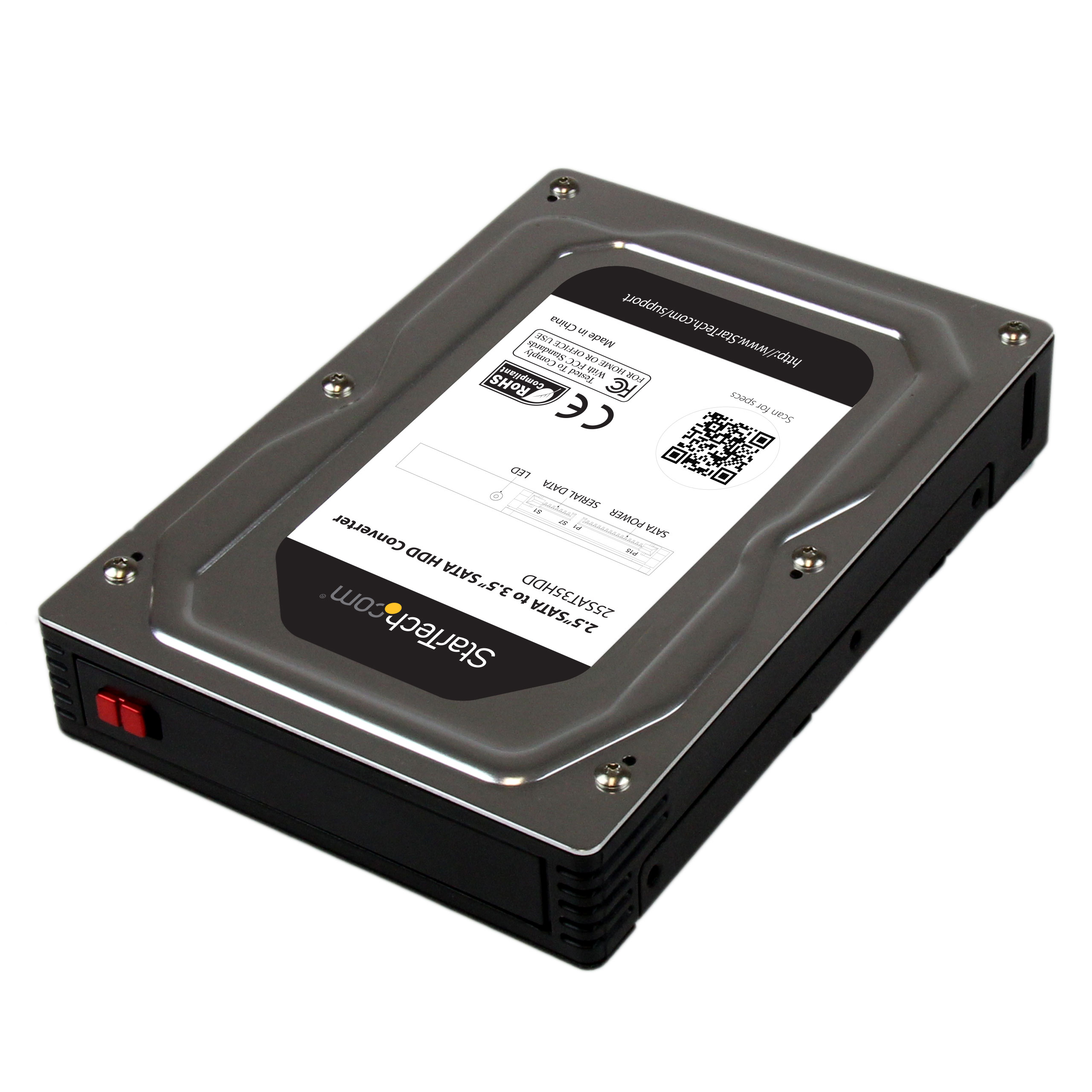

2.5”SATA to 3.5” SATA HDD Converter
Turn a 2.5” SATA HDD/SSD into a 3.5” SATA Drive
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 2.5”SATA to 3.5” SATA HDD Converter Product Number 25SAT35HDD UPC 065030854856 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Data Storage Cards & Adapters Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 SATA Adapter Enclosures/Converters Family 2.5" to 3.5" SATA/SAS Adapter Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX088X Product Title (Ultra-Short) 2.5” to 3.5” HDD/SSD Product Title (Short) 2.5” to 3.5” SATA HDD Adapter Enclosure Product Title (Medium) x Product Title (Standard) 2.5” to 3.5” SATA Aluminum Hard Drive Adapter Enclosure with SSD / HDD Height up to 12.5mm Product Title (Long) 2.5” to 3.5” SATA Aluminum Hard Drive Adapter Enclosure with SSD / HDD Height up to 12.5mm Product Title (AMZ) 2.5" to 3.5" SATA HDD/SSD Adapter Enclosure - External Hard Drive Converter with HDD/SSD Height up to 12.5mm (25SAT35HDD) Title Ingram (Part 1) 2.5” to 3.5” SATA Hard Drive Title Ingram (Part 2) Adapter Converter - SSD/HDD Website Product Headline Turn a 2.5” SATA HDD/SSD into a 3.5” SATA Drive Bullet 1 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this 3.5in hard drive enclosure is backed for 2 years, including free lifetime 24/5 multi-lingual assistance Bullet 2 VERSATILE FUNCTIONALITY: The 2.5in to 3.5in SATA adapter enclosure lets you substitute a 3.5in hard drive for a 2.5in SSD/HDD in any application that would typically require a 3.5in drive form factor Bullet 3 SIMPLE DESIGN: The external hard drive converter enclosure fits directly into a standard 3.5in hard drive bay, including mounting points, and SATA connector locations; Toolless design facilitates convenient setup and drive swapping Bullet 4 2.5in TO 3.5in SATA ENCLOSURE: The 2.5in to 3.5in hard drive adapter enclosure turns a 2.5in SATA hard drive (HDD) or solid-state drive (SSD) into a 3.5in SATA drive Bullet 5 MAXIMUM COMPATIBILITY: With support for high-capacity SATA I/II/III drives this 2.5in to 3.5in hard drive adapter enclosure ensures compatibility with virtually any 2.5in SATA HDD or SSD, up to 12.5mm drive height Bullets (Compact) Turn a 2.5” SATA HDD/SSD into a 3.5” SATA Drive - 2.5 to 3.5 HDD Adapter - 2.5in HDD Converter - 2.5 to 3.5 SATA Adapter - SATA Hard Drive Converter Enclosure - SATA Converter Enclosure - Use a 2.5" SATA HDD / SSD in a 3.5in SATA HDD Application Bullets (Consolidated) Turn a 2.5" SATA HDD/SSD into a 3.5" SATA Drive - 2.5 to 3.5 HDD adapter supports 2.5" SSD/HDD up to 12.5mm in height - 2.5in HDD converter - Use a 2.5" SATA HDD/SSD in a 3.5in SATA HDD application such as a desktop chassis or backplane or docking station - 2.5 to 3.5 SATA Adapter with standard 3.5" HDD mounting points - Supports SATA I/II/III - SATA Hard Drive converter enclosure with tool-less installation - Compatible with virtually any 2.5" SATA hard drive or solid state drive Marketing Copy Marketing Copy (No HTML) The 2.5" to 3.5" hard drive adapter enclosure turns a 2.5" SATA hard drive (HDD) or solid-state drive (SSD) into a 3.5" drive. The aluminum hard drive adapter enclosure lets you substitute a 3.5" hard drive for a 2.5" SSD/HDD in any application that would typically require a 3.5" drive, such as desktop chassis, backplane, or docking station. The 2.5" to 3.5" SSD/HDD adapter enclosure has the same dimensions as a standard 3.5" hard drive, including mounting points, and SATA connector locations. With support for drives up to 12.5mm in height, and high-capacity SATA I/II/III drives (tested up to 1TB) this 2.5" to 3.5" SATA adapter enclosure ensures compatibility with virtually any 2.5" SATA hard drive or solid-state drive. The 2.5" to 3.5" hard drive adapter enclosure is backed by a StarTech.com 2-year warranty and free lifetime technical support. Applications - Replace your 3.5" hard drives with same-size SSDs
- Install a 2.5" SATA HDD/SSD into any 3.5" hard drive bay, such as a desktop chassis, backplane kit, or docking station
- Repurpose unused laptop hard drives to work with your desktop computer, or as a hot-swap storage solution
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
Accessory Products - LP4SATAFM
- SATAPOWADAP
- SATA18
- SATARA18
- SATA36
- HSB100SATBK
- HSB320SATBK
- HSB2535SATBK
- HSB430SATBK
- HSB110SATBK
- HSB3SATSASBA
Related Products - BRACKET25
- BRACKETFDBK
- SAT2IDEADP
- BRACKET25X2
- SLIMCDFDCAGE
- SATA35252X
- IDE35252X
- ZIF2IDE35
- SAT2MSAT25
- SAT2CF
- 25SATSAS35
- BRACKET25SAT
- IDE502CFE
Input Voltage 5V DC Output Voltage (V) 5 DC Color Black & Silver Humidity 5% - 85% RH Material Aluminum and Plastic Max Drive Height (mm) 12.5 Operating Temperature 5°C to 55°C (32°F to 131°F) Primary Material Aluminum Product Length (mm) 146.000 Product Width (mm) 101.500 Product Height (mm) 36.000 Product Weight (g) 260.000 Storage Temperature 5°C to 55°C (32°F to 131°F) TAA Compliant No Insertion Rating Door: 500 cycles NSS Connector: 50,000 cycles Max Drive Capacity Currently tested with up to 1TB 7200 RPM hard drives RAID No SATA Type and Rate SATA III (6 Gbps) Compatible Drive Types SATA Interface/Bridge SATA Number of Drives 1 Carton Depth (mm) 344 Carton Height (mm) 267 Carton Quantity 32 Carton Weight Gross (g) 9018 Included in Package - 1 - 2.5” to 3.5” SATA HDD/SSD Enclosure
- 1 - Screw kit
- 1 - Install Guide
Package Depth (mm) 163 Package Height (mm) 38 Package Width (mm) 113 Package Quantity 1 Package Weight (g) 264 Packaging Description 2.5”SATA to 3.5” SATA HDD Converter Packaging Description India 2.5”SATA to 3.5” SATA HDD Converter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Host Connector 1 SATA (7-Pin + 15-Pin) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-11-05 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
