2630CABINET
Main Image

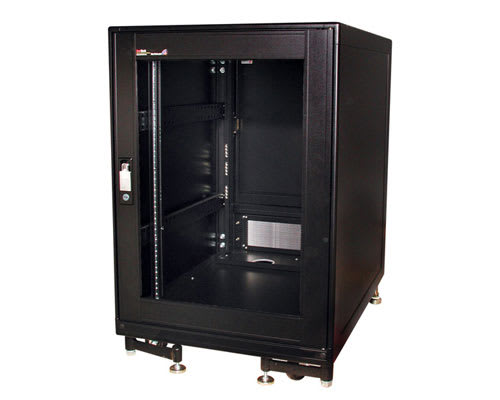

Product Name 15U x 29.5" Professional Rackmount Computer Server Cabinet Product Number 2630CABINET UPC 065030786379 Warranty Lifetime Taxonomy Product > Legacy Discontinued Product Title (Long) 15U x 29.5" Professional Rackmount Computer Server Cabinet Bullet 1 Extruded aluminum construction provides rounded corners and edges for an attractive appearance Bullet 2 Fully forward/back adjustable mounting rails inside cabinet Bullet 3 Front and back doors are removable and can be switched to open left or right Bullet 4 Rolling casters provide full mobility Bullet 5 Three (3) roof-mounted fans exhaust up to 300 CFM of air Marketing Copy The StarRack Cabinet is a high quality, lockable, secure, and dust-reduced environment for rackmount servers and network equipment. With exterior dimensions of H30" x W22" x D29.5" (cabinet only), this sturdy space saving unit is made from extruded aluminum for an appealing appearance. Its low height makes it easy to tuck this cabinet under a counter and out of the way. A standard lockable smoked plexiglass see-through front door and solid aluminum rear door provide quick access to equipment. The internal front and rear mounting rails are completely depth adjustable as to be able to fit virtually any piece of equipment that is less than 27 inches deep. A standard roof-mounted triple motor AC fan unit and high-flow air filter below the rear door provide up to 300 CFM of bottom to top air flow through the cabinet, removing the heat produced by the enclosed equipment. In addition to the standard equipment that are options on most other cabinets, the StarRack Cabinet also has a full compliment of optional accessories like fixed shelving, storage drawers, keyboard drawers, front panel spacer plates, and slide-out shelves. Applications - Data centers
- Industrial control centers
- Telecommunication closets
- Audio/Visual control centers
Accessory Products - 4UDRAWER
- CABSHELF
- 1UBLANK
- CABSCREWS
- CABCAGENUTS
Related Products - 7230CABINET
- 7236CABINET
- CAB4236BK
- 2636CABINET
Color Black Internal Depth (mm) 673.1 Internal Width (mm) 482.6 Product Length (mm) 749.3 Product Width (mm) 559 Product Height (mm) 762 TAA Compliant No Air Flow Rate 300 CFM General Specifications - Internal Rack Height: 15U
- External height: 30 inches
- Internal width: 19 inches
- External width: 22 inches
- Internal depth: 26.5 inches
- External depth: 29.5 inches
- Shipping dimensions: 38.5H x 24W x 32.75D inches
- Color: Flat Black
- Package Contents:
- : 26x30x19 Inch 15U Equipment Cabinet Rack
- : Bag of screws, fastners and keys
- Standards: EIA RS310-C
- Max load capacity: 1000 Kgs
Weight Capacity for Racks (Stationary) (g) 1000000 Fans 3 - 5in Fans Included? Yes/No Yes Front Door Key Lock Yes Industry Standards EIA RS310-C U Height 15U Wallmountable No Included in Package - 1 - 26x30x19 Inch 15U Equipment Cabinet Rack
- 1 - Bag of screws, fasteners and keys
en-US Content Approved Yes
