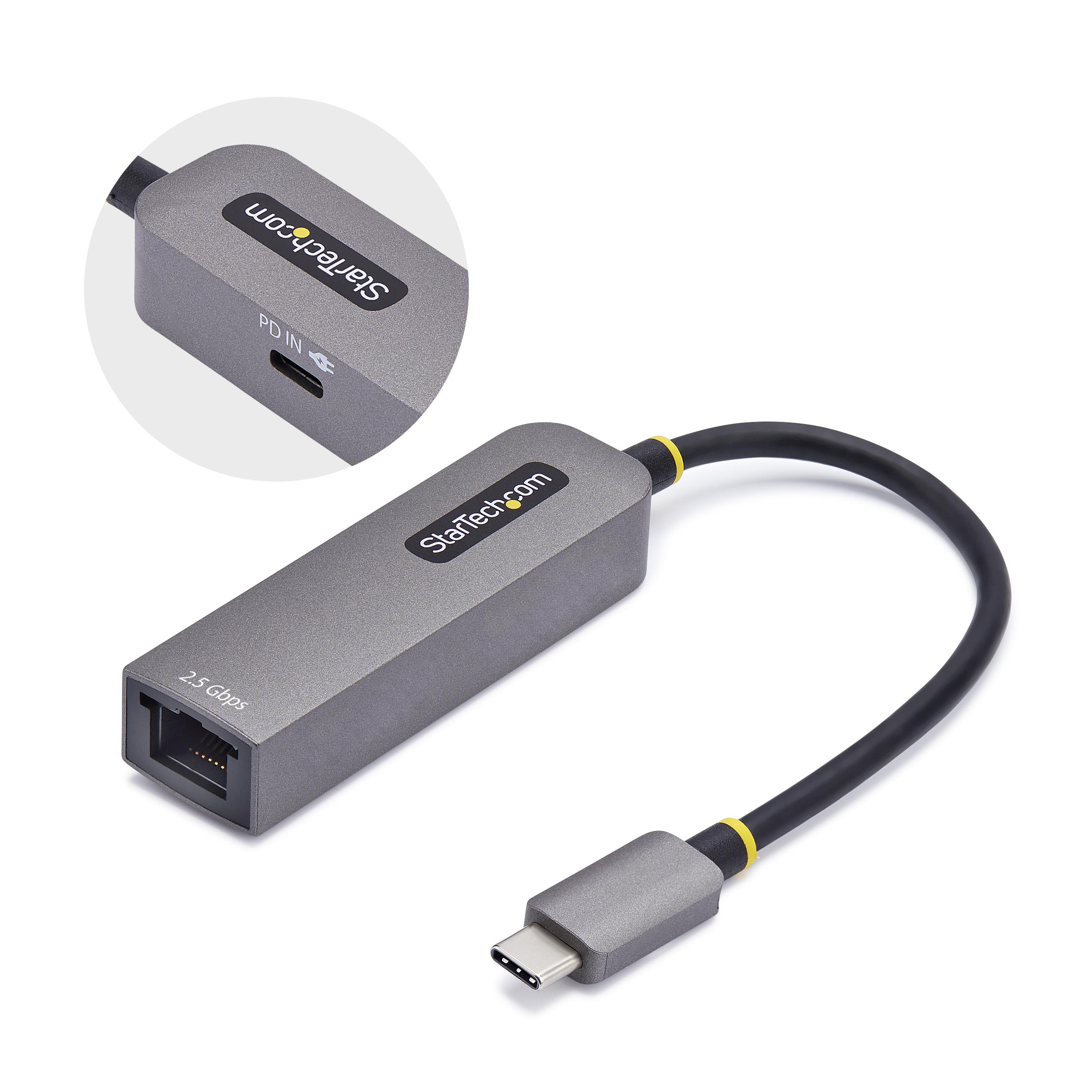

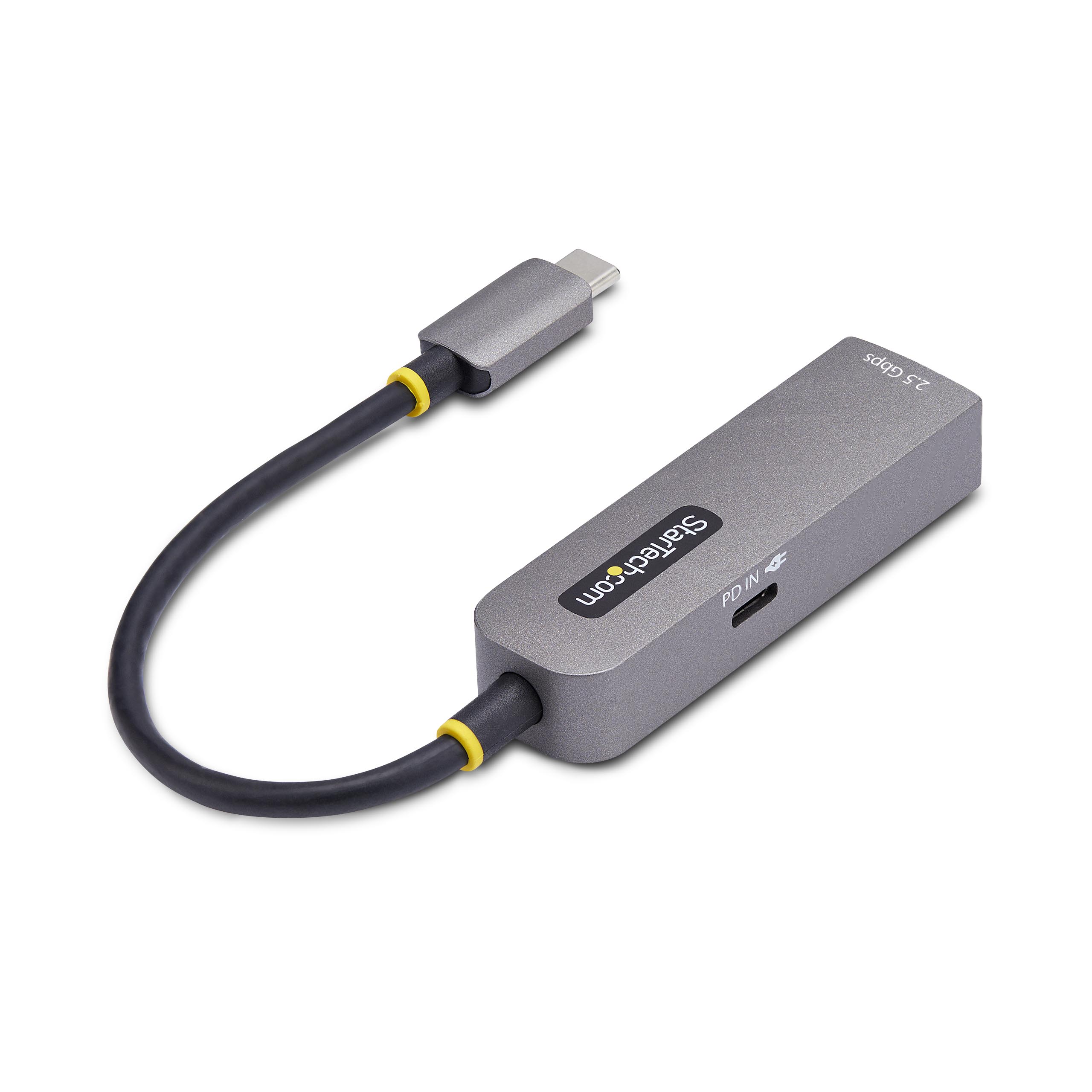

2GPD3-USB-C-ETHERNET
USB 3 2 Gen 1x1 Type C to 2 5GBASE T Ethernet Adapter with 1

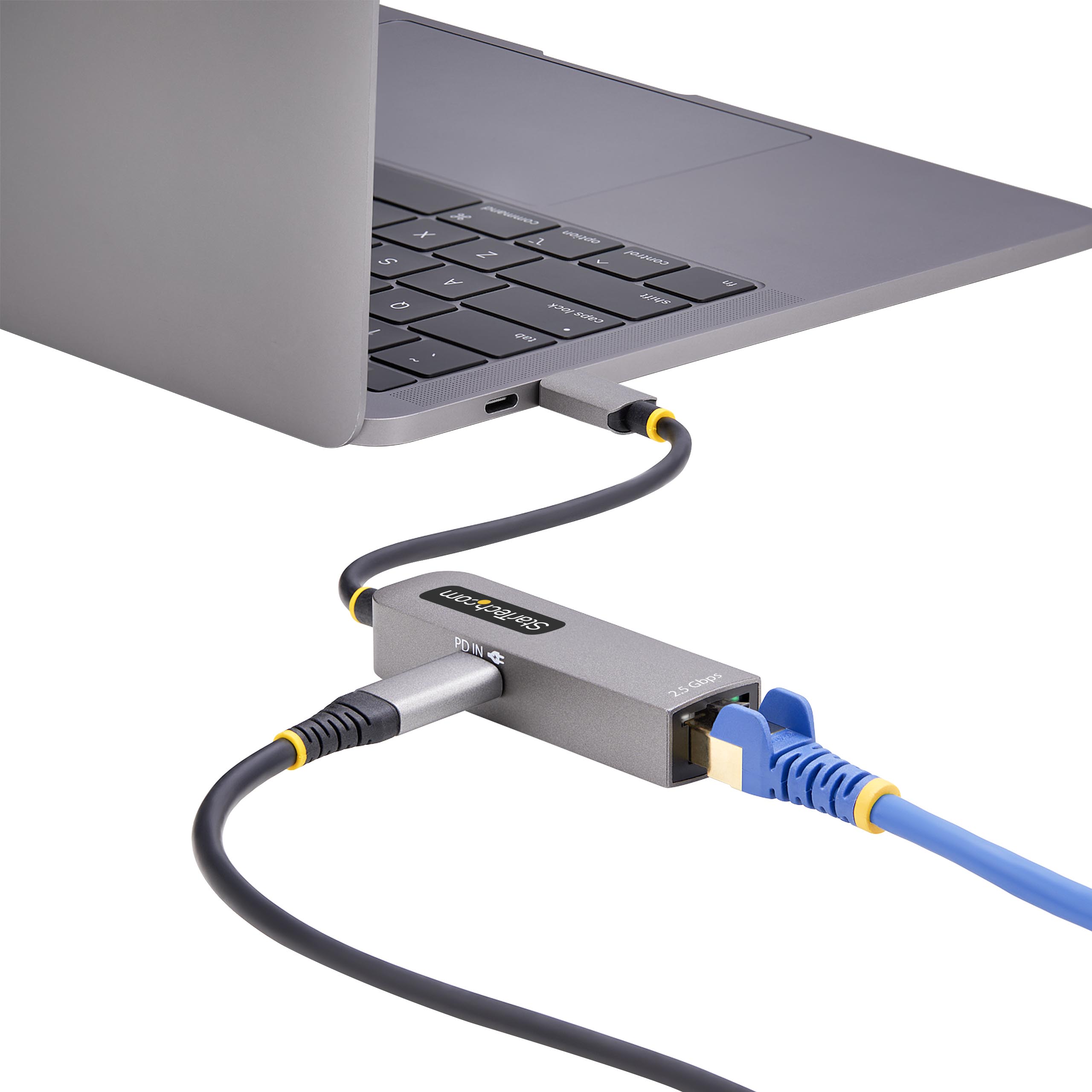

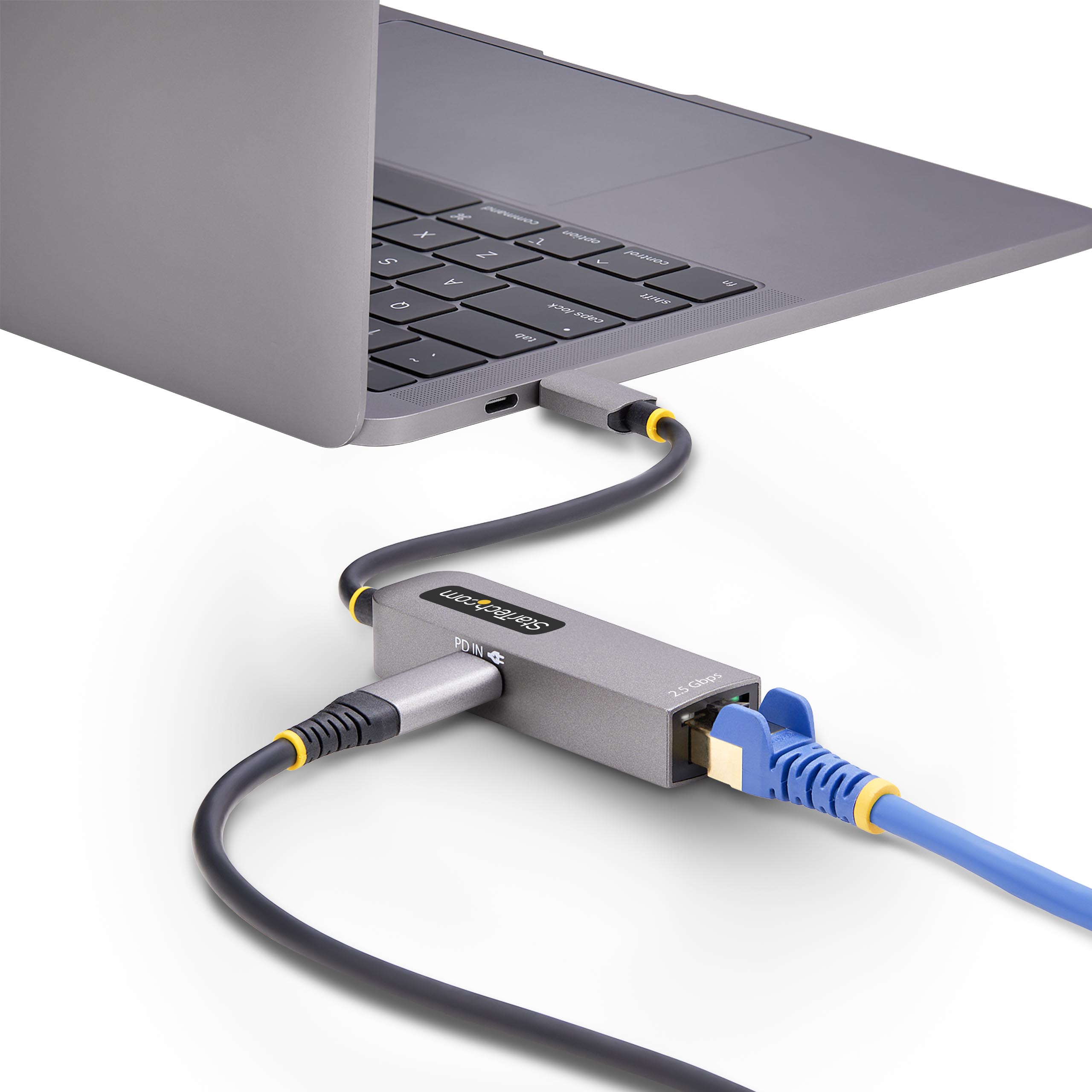

Add a 2.5Gb Ethernet port to your MacBook, Chromebook™ or laptop with USB-C or Thunderbolt™ 3
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name USB 3 2 Gen 1x1 Type C to 2 5GBASE T Ethernet Adapter with 1 Product Number 2GPD3-USB-C-ETHERNET UPC 065030904742 Lifecycle status Active Warranty 2 Years Weighted Opportunity 27120 Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Laptop Network Adapters Category Level 3 USB-C Ethernet Adapters Family basic connect Ethernet+PD Country of Origin Europe & Japan Vietnam Country of Origin North America Vietnam Country of Origin History (1) Vietnam Country of Origin Revision (1) XXXXXX190X Product Title (Ultra-Short) Ethernet Adapter Product Title (Short) USB-C to Ethernet Adapter Product Title (Medium) USB 3.0 Type-C to 2.5 Gigabit Ethernet Adapter, 100W PD Pass-Through, 2.5GBASE-T Product Title (Standard) 2.5GbE USB-C to Ethernet Adapter, 100W PD Pass-Through, NBASE-T NIC, USB 3.0 Type-C 2.5/1G Multi Speed Network, USB 3.1 RJ45 Product Title (Long) 2.5GbE USB-C to Ethernet Adapter, 100W PD Pass-Through, NBASE-T NIC, USB 3.0 Type-C 2.5/1G Multi Speed Network, Thunderbolt Compatible, Windows & Mac Product Title (AMZ) 2.5GbE USB-C to Ethernet Adapter, 100W PD Pass-Through, NBASE-T NIC, USB 3.0 Type-C 2.5G Multi Speed Network Title Ingram (Part 1) USB 3.0 Type-C to 2.5 Gigabit Title Ingram (Part 2) Ethernet Adapter Website Product Headline Add a 2.5Gb Ethernet port to your MacBook, Chromebook™ or laptop with USB-C or Thunderbolt™ 3 Bullet 1 100W CHARGING: 100W PD pass-through port allows you to connect a charger to the same USB-C port, enabling simultaneous Ethernet connection and device charging; Devices with limited USB-C ports can share a port without an additional hub Bullet 2 BROAD COMPATIBILITY: Auto-installs on most operating systems including Windows 7 and up, Linux LTS Kernel 4.19+ and up, MacOS/iOS/ChromeOS; Works with MacBooks, Chromebooks and all hardware platforms, including Intel, AMD, ARM (Snapdragon) & Apple Silicon Bullet 3 2.5G OVER CAT5E: Leverage NBASE-T for 2.5Gbps speeds over existing Cat 5e cables without the expense of upgrading to Cat6A/Fiber; 4-speed auto-negotiation for optimal performance with network devices; Extend system longevity by retrofitting older systems Bullet 4 APPLICATIONS: Slim form factor adapter for office/hot desks; Quickly download large files from a network, experience higher quality video conferencing & sync files to the cloud in the background with a faster/more secure connection compared to wireless Bullet 5 TECH SPECS: USB-C (5Gbps); 1x RJ45; 6in (15cm) Attached Cable; 2.5Gbps Multi-Gigabit; 10/100Mbps & 1/2.5Gbps; Realtek Chipset; NBASE-T & 2.5GBASE-T; 16K Jumbo Frames (not supported in macOS); WoL; VLAN; PXE Boot; Bus-Powered; Thunderbolt Compatible Bullets (Compact) 2.5GbE USB-C to Ethernet Adapter securely connect to networks over CAT5e/RJ45/LAN; 100W PD Pass-Through; NBASE-T NIC; 10/100Mbps/1G/2.5G; Auto-Negotiation for max bandwidth; Works w/USB 3.0/3.1 Type-C/TB MacBook Pro/Mac Pro/Surface Book/iPhone 15/up Bullets (Consolidated) - 2.5GbE USB-C to Ethernet Adapter allows users to securely connect to high-speed network/LAN faster than Gigabit - 100W PD pass-through - USB 3.0/3.1 Type-C or Thunderbolt; NBASE-T NIC; 1x RJ45; 2.5Gbps Multi-Gigabit; 10/100Mbps/1G/2.5G; 2.5GBASE-T; Realtek for 16k Jumbo Frames/WoL/VLANs; USB Bus-Powered - USB 3.0 NIC for MacBook Pro/iPhone 15 (Plus/Pro/Max)/Chromebooks/M-Series Macs/Surface Books - Supports Windows 7/up; Windows Server 2008 R2/up; Linux LTS Kernel 4.19+/up; macOS 10.11/up; iOS Marketing Copy Marketing Copy (No HTML) Applications Add 2.5 Ethernet network connectivity to a laptop or desktop computer through a USB Type-C port Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- Triman/Info-Tri - Packaging - Waste - European Union - DO NOT USE - Packaging - General
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Special Notes - Jumbo Frames are no longer supported in macOS Accessory Products - N6PATCH10BL
- N6PATCH8BK
- N6PATCH2RD
- N6PATCH4GR
- N6PATCH12PL
- N6PATCH5OR
Related Products - US2GC30
- US2GA30
- 1GPD3-USB-C-ETHERNET
- C22G-USB-ETHERNET
- U2GA-USB-C-ETHERNET

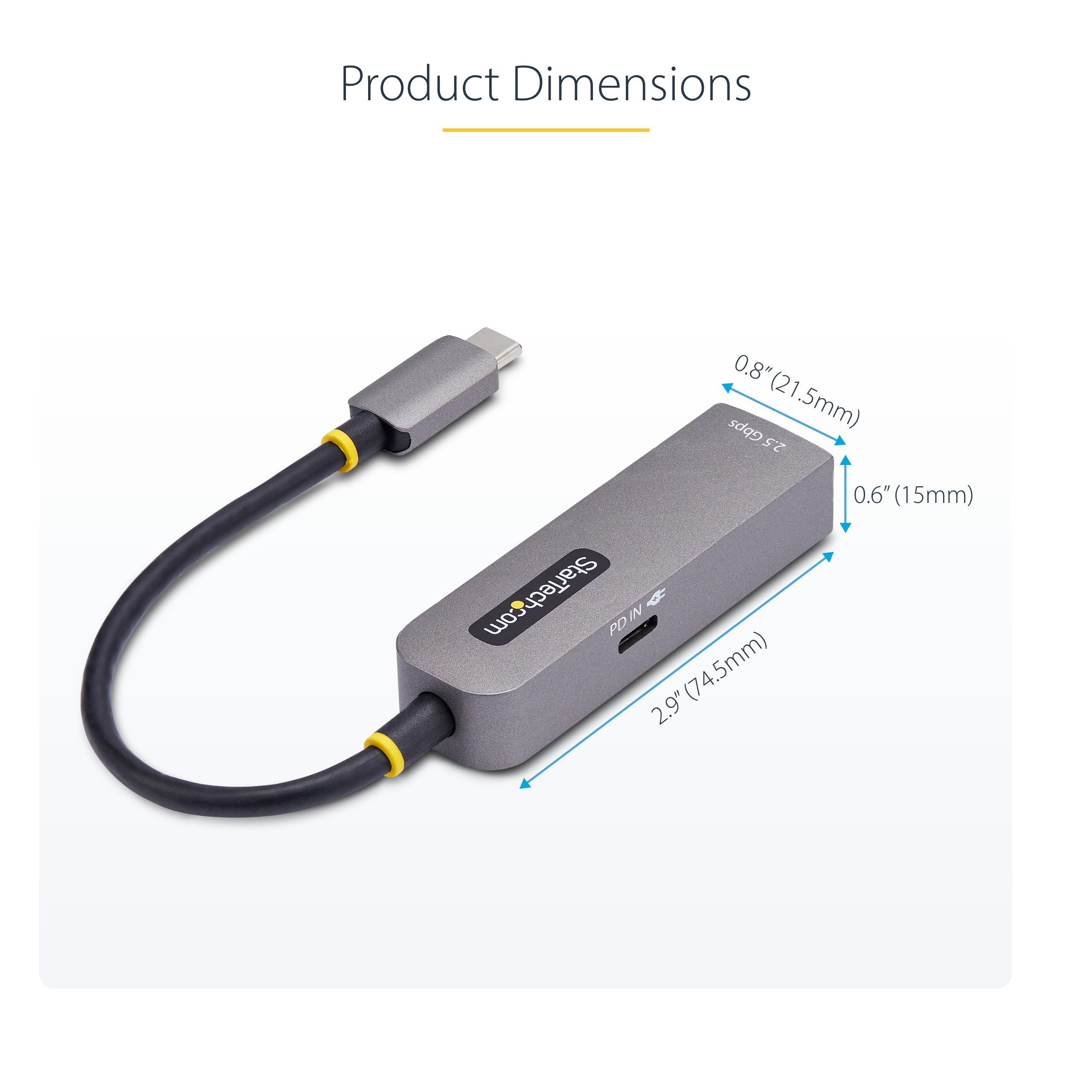

Input Voltage 5V DC Output Voltage (V) 5 DC Power Source USB-Powered Color Space Gray Humidity 10% to 85% RH (no condensation) Network Adapter Form Factor Attached Cable Operating Temperature 0℃ to 45℃ (32°F to 113°F) Product Length (mm) 245 Product Width (mm) 21.6 Product Height (mm) 15.000 Product Weight (g) 24.700 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Auto MDIX Yes Compatible Networks 2.5G/1G/100Mbps/10Mbps Full Duplex Support Yes Jumbo Frame Support 16K max. MTBF (hours) 1,912,948 hours OS Compatibility - Windows 11
- Windows 11 ARM
- Windows 10
- Windows 8.1
- Windows 8
- Windows 7
- Windows Server 2022
- Windows Server 2019
- Windows Server 2016
- Windows Server 2012 R2
- Windows Server 2008 R2
- macOS Sonoma (14.0)
- macOS Ventura (13.0)
- macOS Monterey (12.0)
- macOS Big Sur (11.0)
- macOS Catalina (10.15)
- macOS Mojave (10.14)
- macOS High Sierra (10.13)
- macOS Sierra (10.12)
- Mac OS X El Capitan (10.11)
- Linux
- Chrome OS
- iOS
- iPadOS
- Android
Promiscuous Mode Yes PXE Yes Wake-On-LAN (WOL) Yes Bus Type USB 3.2 Gen 1 Chipset ID Realtek - RTL8156BG Industry Standards - IEEE 802.3i 10BASE-T
- IEEE 802.3ab 1000BASE-T
- IEEE 802.1q VLAN Tagging
- IEEE 802.3x
- IEEE 802.3u 100Base-TX
- IEEE 802.3bz 2.5GBase-T
- USB Power Delivery 3.0

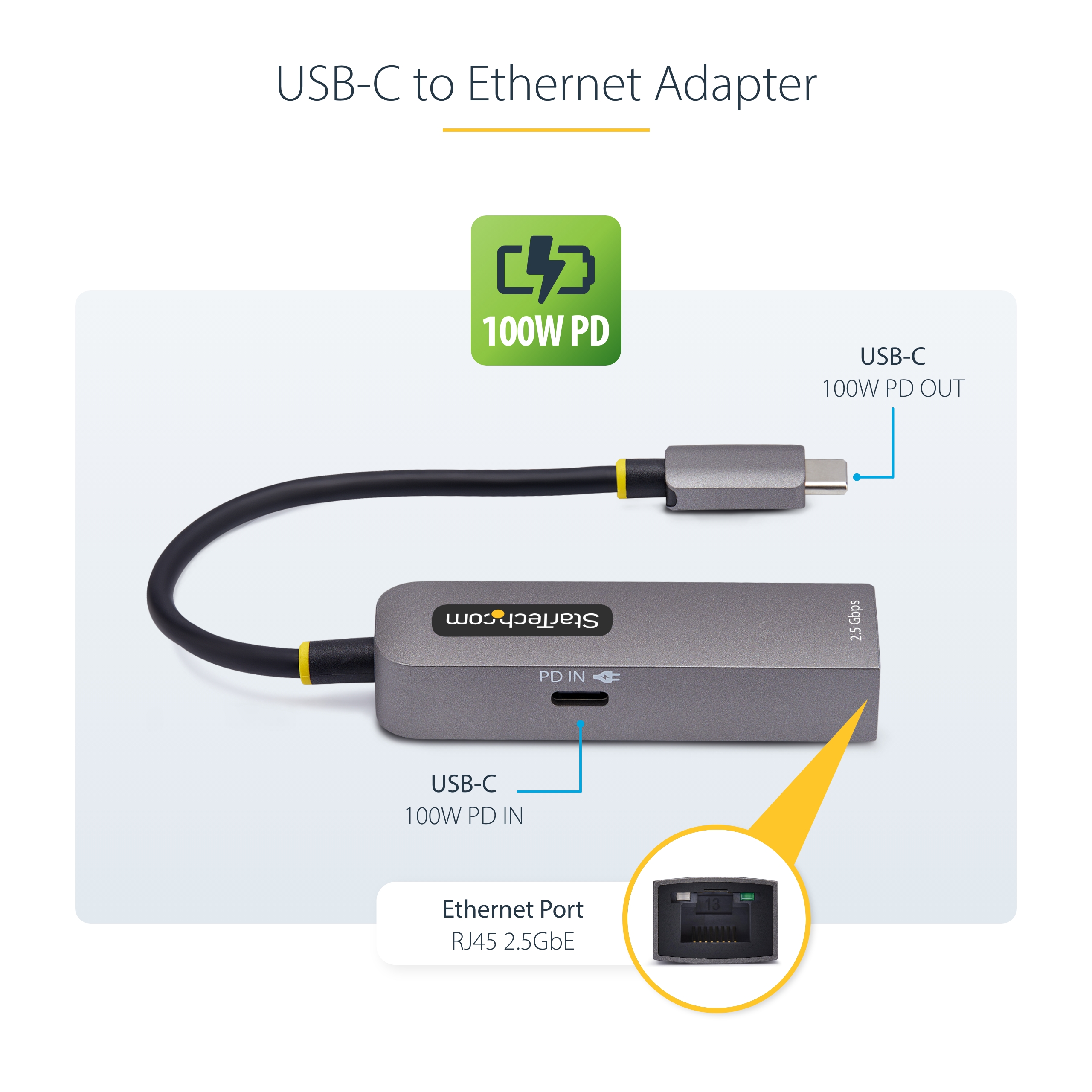

Interface/Bridge RJ45 (Gigabit Ethernet) LED Indicators Network Adapter Host USB 3.0 - USB-C Network Adapter LAN Ports 1 USB Pass-Through No Carton Depth (mm) 500 Carton Height (mm) 210 Carton Quantity 250 Carton Weight Gross (g) 7550 Included in Package 1 - USB Ethernet Adapter Package Depth (mm) 127 Package Height (mm) 18 Package Width (mm) 175 Package Quantity 1 Package Weight (g) 32 Packaging Description USB Type-C to 2.5G Ethernet Adapter - 100W PD Passthrough Packaging Description India USB Type-C to 2.5G Ethernet Converter - 100W PD Passthrough Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-C (5Gbps, 4.5W) Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 A+ Not Required Actual Inbox Documents Created None Amazon Merchandising Manager Kathleen Marshall Application Photos Uploaded Artwork Due Date 2024-07-19 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Comparable SKU Comment 1G 60W PD Passthrough USB-C Network Adapter Comparable SKU 2 Comment 2.5G USB-C Ethernet Adapter Digital Content Due Date 2024-09-30 Enhanced Gallery Uploaded Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,MX,NL,NZ,SE,UK,US Primary Technology - USB-C
