2M2-REMOVABLE-PCIE

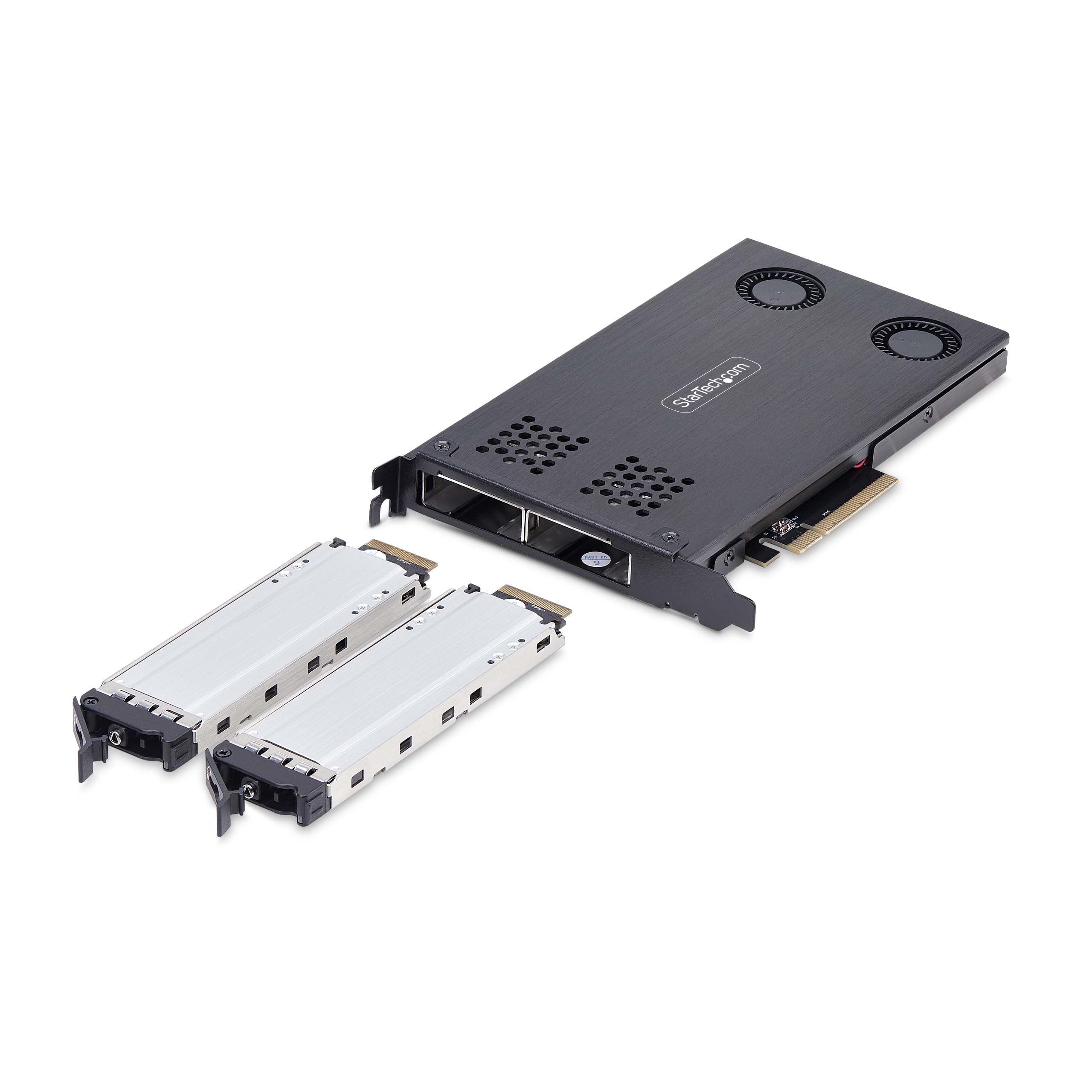

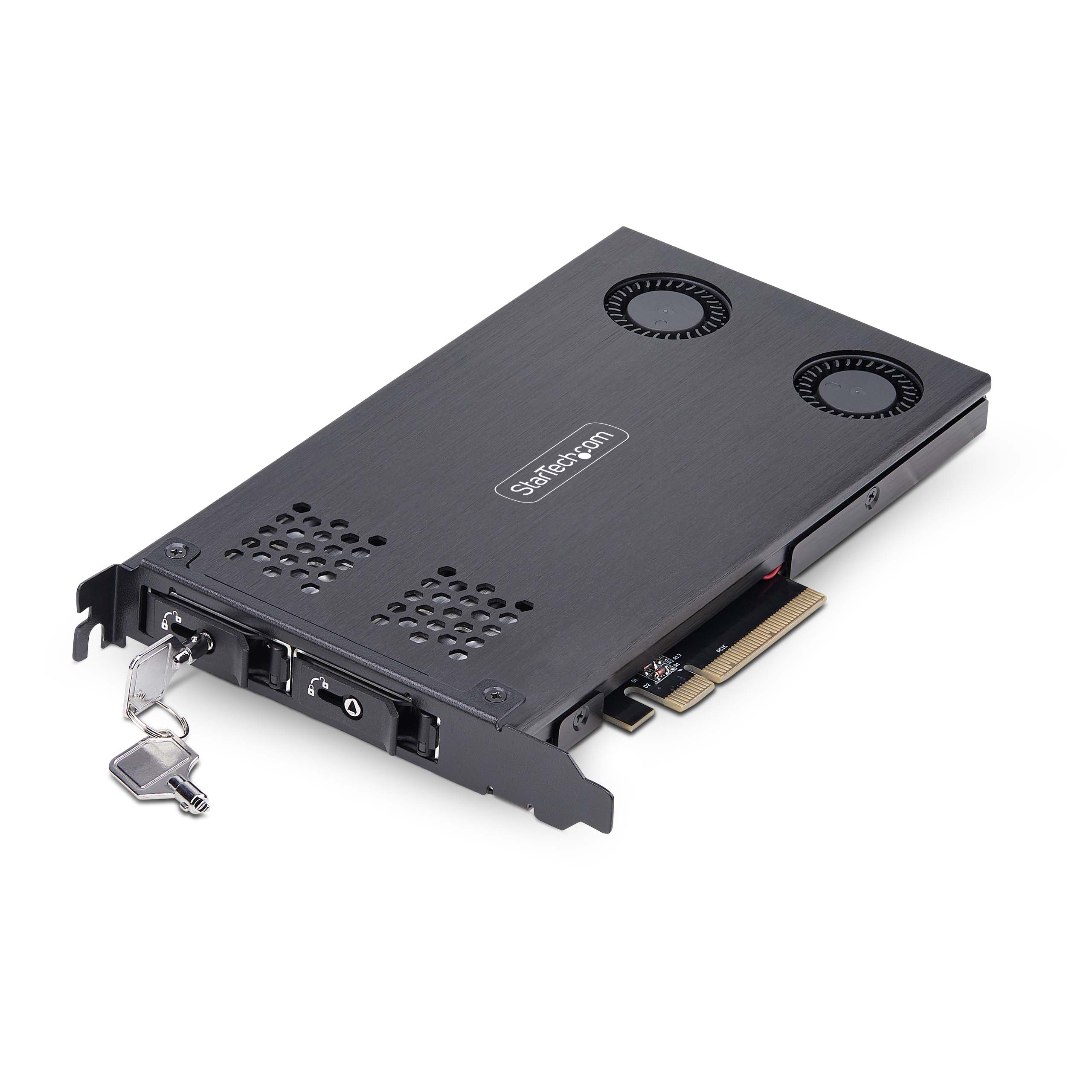

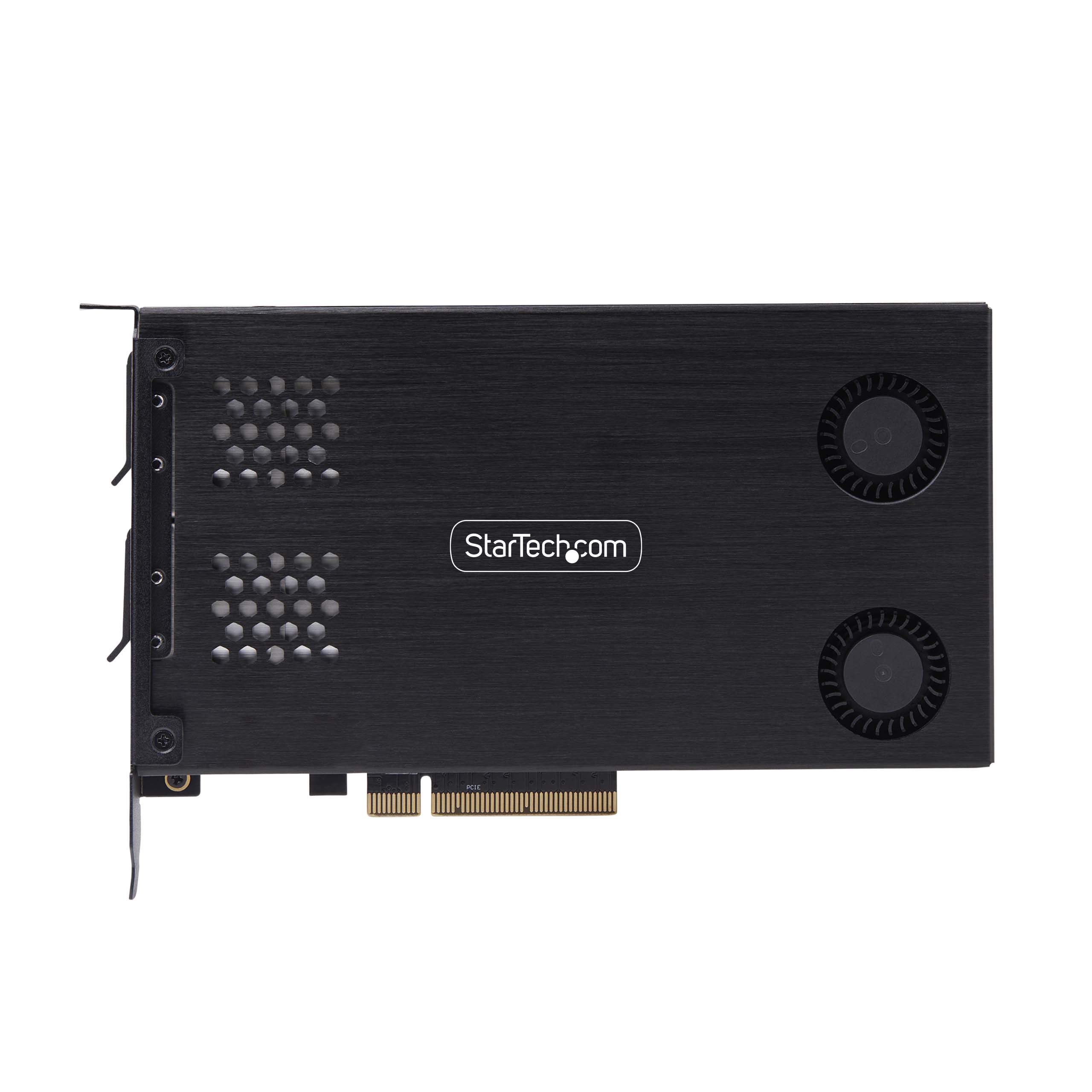

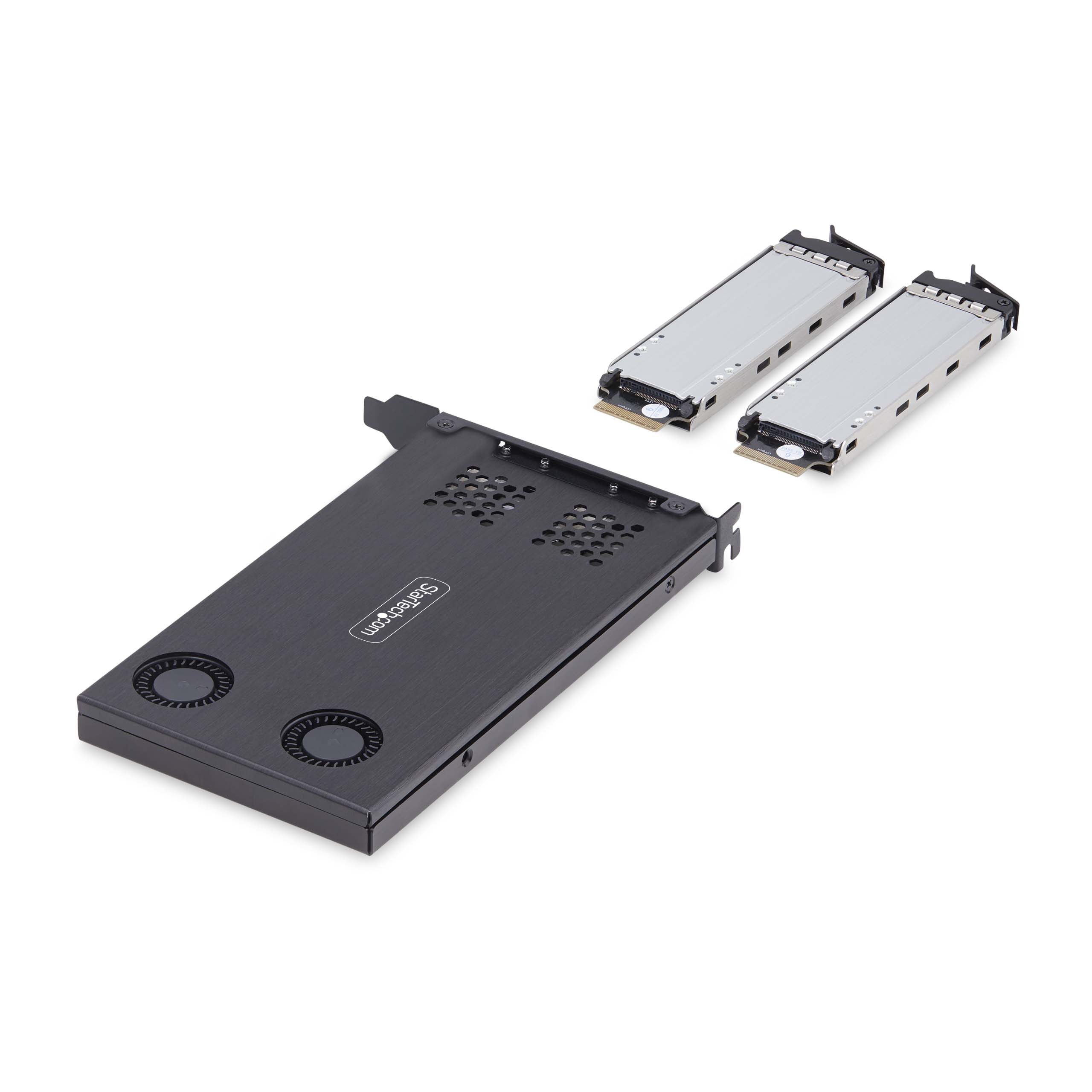

Dual Drive Removable M 2 NVMe SSD Mobile Rack Bay for PCIe E

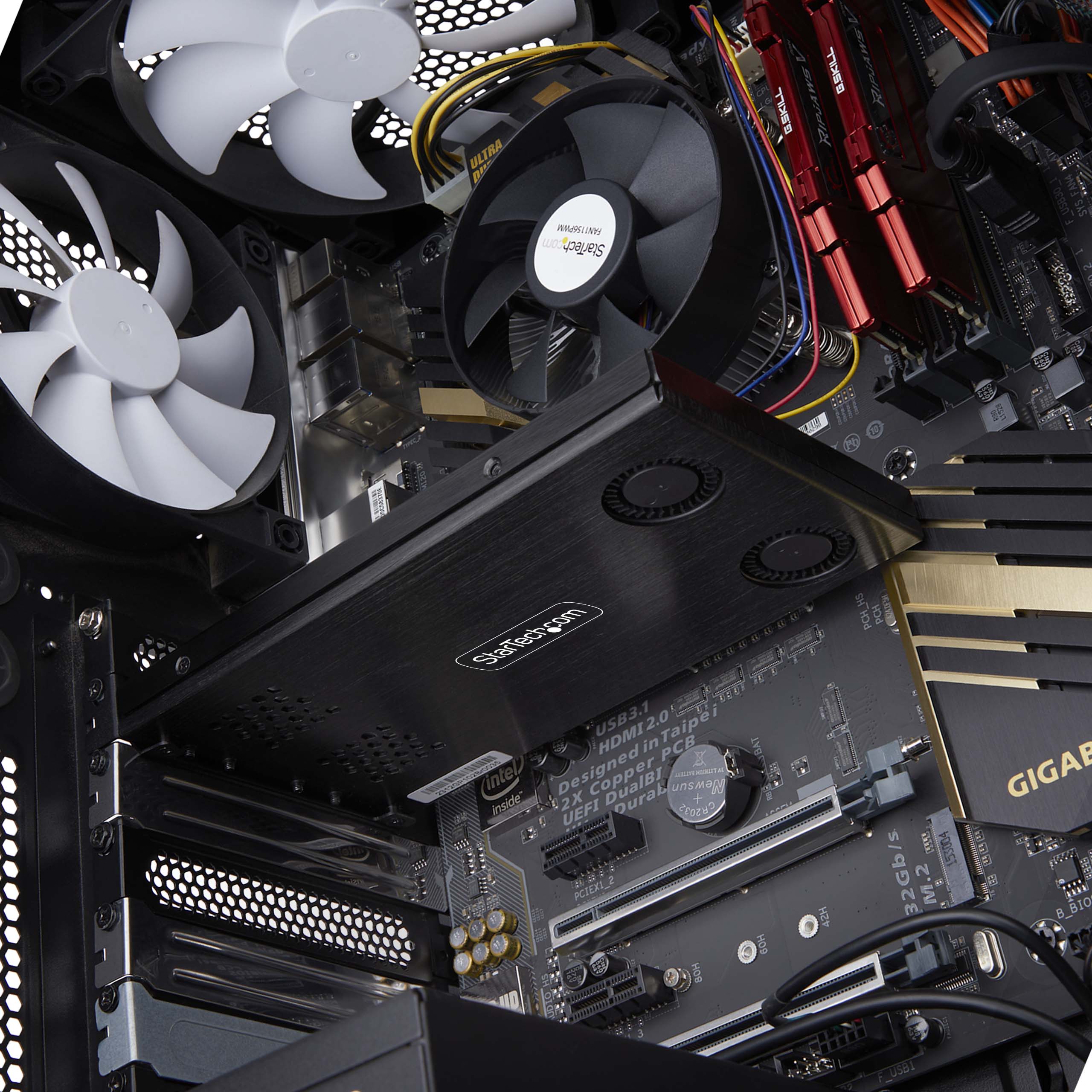

Use an available PCIe x8 or larger expansion slot to create two removable M.2 NVMe drive bays
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name Dual Drive Removable M 2 NVMe SSD Mobile Rack Bay for PCIe E Product Number 2M2-REMOVABLE-PCIE UPC 065030904650 Lifecycle status Active Warranty 2 Years Weighted Opportunity 74912 Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Data Storage Category Level 2 Internal Storage Category Level 3 M.2 Drive Mounting Family Removable M.2 NVMe Bay for PCIe Slot Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX122X Product Title (Ultra-Short) Dual M.2 SSD to PCIe Product Title (Short) Dual-Bay M.2 NVMe SSD to PCIe x8 Product Title (Medium) Dual-Bay M.2 NVMe SSD to PCIe x8 Removable Mobile Rack; Bifurcation Required Product Title (Standard) Dual-Bay M.2 NVMe SSD to PCIe x8 Removable Mobile Rack; Bifurcation Required; Tool-less Installation, PCIe Hot-Swap Drive Bay Product Title (Long) Dual-Bay M.2 NVMe SSD to PCIe x8 Removable Mobile Rack; Bifurcation Required; Tool-less Installation, PCIe Backplane w/Two Hot-Swap Drive Bays Product Title (AMZ) Dual-Bay M.2 NVMe SSD to PCIe x8 Removable Mobile Rack; PCI Express Bifurcation Required; Tool-less Install Title Ingram (Part 1) Dual M.2 NVMe SSD to PCIe x8 - Title Ingram (Part 2) Removable Mobile Rack/Backplane Website Product Headline Use an available PCIe x8 or larger expansion slot to create two removable M.2 NVMe drive bays Bullet 1 DUAL REMOVABLE M.2 DRIVE BAYS: Use an available PCIe 4.0 x8 or x16 expansion slot to install, swap, or upgrade PCIe M.2 SSDs; Supports 2230, 2242, 2260, and 2280 M-Key M.2 NVMe SSDs; Additional drive trays sold separately (TR-M2-REMOVABLE-PCIE) Bullet 2 TOOLLESS INSTALLATION: Install an M.2 drive into the drive tray or insert the tray into the drive bay without the need for tools; Power/Activity LED indicator; Drive tray features a latching mechanism and is lockable for secure installation (2 keys incl.) Bullet 3 EFFECTIVE EXPANSION: Provide quick-swap external access to internal M.2 NVMe drives without requiring external enclosures or adapters; Maintain full drive performance of up to 64Gbps per drive; Ideal for servicing, replacing, or upgrading M.2 drives Bullet 4 RELIABLE PERFORMANCE: Vented stainless steel frame, bracket, & tray w/thermal pads, along w/an aluminum cover & active cooling fans, aid in heat dissipation; Anti-vibration springs on the drive tray reduce shock or vibrations; Optional screw for stability Bullet 5 COMPATIBILITY: No drivers or software required and works w/any OS (e.g.,Windows, Linux); Compatible with PCI Express 4.0/3.0 motherboards with PCIe Bifurcation and an available x8 or x16 slot; PCIe bifurcation required; Not compatible with M.2 SATA drives Bullets (Compact) Utilize a PCIe x8/x16 slot as a removable drive bay for dual M.2 SSDs; Supports up to 2280 M-Key M.2 NVMe SSDs; Toolless installation; Lockable Drive Tray (2 keys incl.); PCIe bifurcation required; Active cooling fans; No drivers/software required Bullets (Consolidated) - Utilize a PCIe x8/x16 slot as a removable drive bay for 2x M.2 NVMe SSDs (up to 2280); Capable of read/write speeds up to 64Gbps per drive - Toolless installation of drive to tray/tray to bay; Lockable Drive Tray (2 keys incl.) - Vented frame/active cooling fans aid heat dissipation; Thermal pad/anti-vibration springs on tray - No drivers required; PCI Express 4.0/3.0; PCIe bifurcation required; Not compatible with M.2 SATA drives; Additional drive trays sold separately (TR-M2-REMOVABLE-PCIE) Marketing Copy Marketing Copy (No HTML) Applications Add a high-speed external storage solution to quickly transfer and backup large files, such as videos, images, and project files Website Search Keyword - m.2 ssd expansion slot
- hard drive rack
- hot swap drive bay
- removable ssd
- ide mobile rack
- pcie nvme adapter
- m 2 expansion slot
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic tray
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Non-Corrugated Fiberboard
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - All other Plastics
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - Low-Density Polyethylene
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - Safety - Electrical - European Union - Low Voltage Directive (LVD) 2014/35/EU
Special Notes - This product is not compatible with M.2 SATA drives.
- NVMe SSDs require drivers provided by the manufacture of the drive or may be natively provided by the OS (Windows®️ 8 and later - Mac OS 10.10.3 and later). Earlier OS versions do not have native NVMe support.
- Consult the documentation that came with the Computer/Motherboard for details regarding how to enable and configure PCIe Bifurcation.
System and Cable Requirements PCIe bifurcation is required to read and write to multiple drives Accessory Products TR-M2-REMOVABLE-PCIE Related Products - M2-REMOVABLE-PCIE-N1
- DUAL-M2-PCIE-CARD-B
- S25SLOTR
Power Source Bus Powered Color Black Humidity 10% ~ 60% RH Operating Temperature 0⁰C to 50⁰C (32°F to 122°F) Product Length (mm) 120.800 Product Width (mm) 186.000 Product Height (mm) 19.000 Product Weight (g) 373.000 Storage Temperature -10⁰C to 60⁰C (14°F to 140°F) TAA Compliant No 4Kn Support Yes Hot Swap Capability Yes Maximum Data Transfer Rate 128Gbps MTBF (hours) 40,000 Hours OS Compatibility OS Independent RAID No SATA Type and Rate PCI Express 4.0 (16 Gbps per lane) S.M.A.R.T. Support Yes TRIM Support Yes Bus Type PCI Express Compatible Drive Types M.2 (PCIe, NVMe, M-Key, NGFF) Fans Included? Yes/No Yes Front Door Key Lock Yes Industry Standards PCI Express 4.0 Interface/Bridge PCI Express x8 LED Indicators Number of Drives 2 Supported Drive Height(s) - 2230
- 2242
- 2260
- 2280

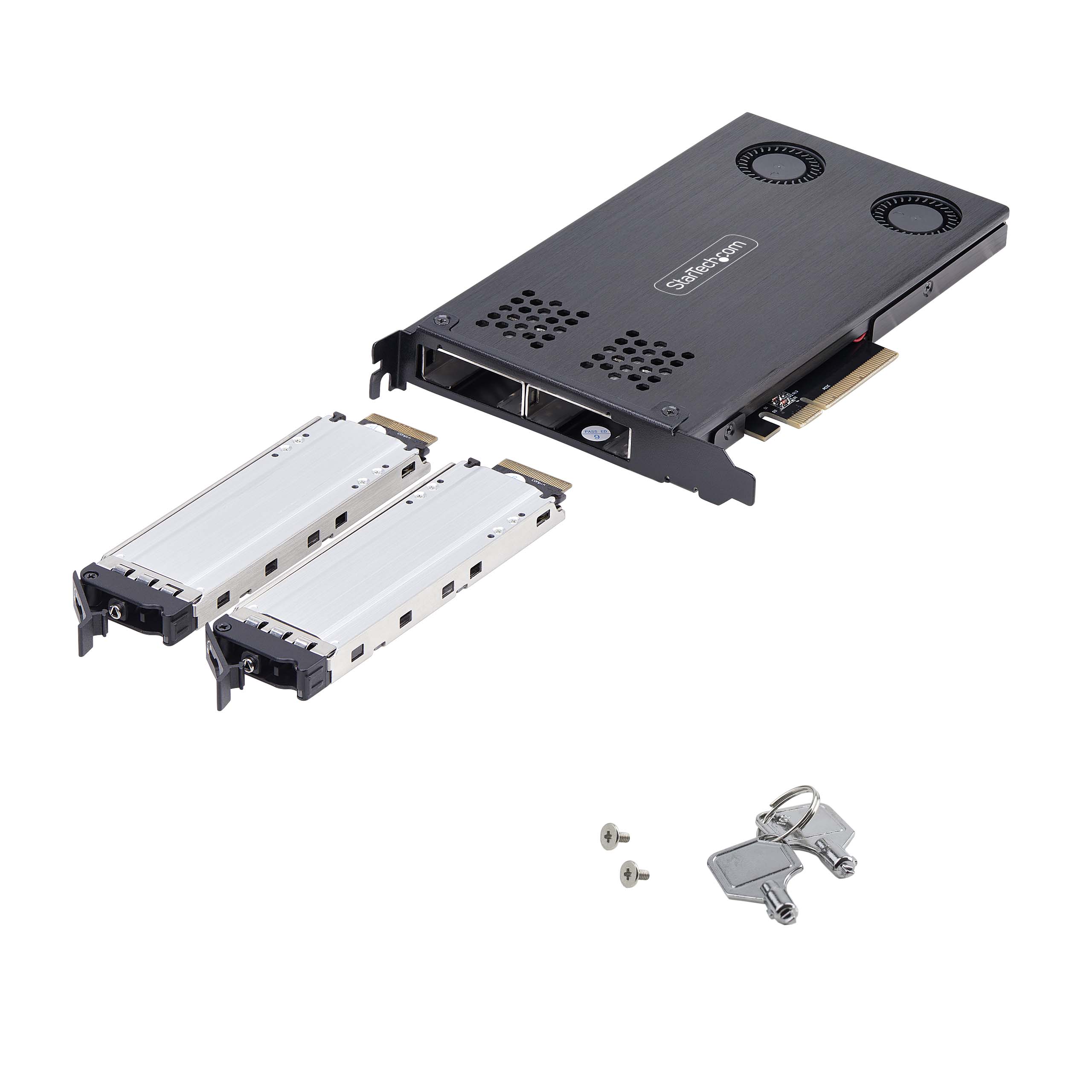

Carton Depth (mm) 325 Carton Height (mm) 258 Carton Quantity 28 Carton Weight Gross (g) 13674 Included in Package - 1 - Dual-Bay M.2 NVMe SSD Backplane
- 2 - Removable M.2 Drive Tray
- 1 - Quick-Start Guide
- 1 - Set of Keys
- 2 - M.2 Drive Mounting Screw
Package Depth (mm) 230 Package Height (mm) 46 Package Width (mm) 151 Package Weight (g) 468 Packaging Description Dual-Bay M.2 NVMe SSD Backplane for PCIe x8 Slot with Bifurcation Packaging Description India Dual-Bay M.2 NVMe SSD Backplane for PCIe x8 Slot with Bifurcation Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 M.2 M-Key (PCIe, AHCI / NVMe) Connector 1 (Quantity) 2 Host Connector 1 PCI Express x8 Host Connector 1 (Quantity) 1 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Veronica Ye Application Photos Required Artwork Due Date 2024-03-30 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Comparable SKU Comment Removable M.2 NVMe SSD Mobile Rack/Bay for PCIe Expansion Slots Comparable SKU 2 Comment Dual M.2 PCIe SSD Adapter Card - x8 / x16 Dual NVMe or AHCI M.2 SSD to PCI Express 3.0 Digital Content Due Date 2024-08-05 Enhanced Gallery Required Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Sticker label - custom size - requires size population below Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,NL,SE,UK,US Primary Technology None Product Development Specialist Yipeng Zhang Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2023-10-20 Target Production Release 2024-03-30 Tech Lead Justin Weaver Technical Writer Dan Dagenais Technology Lifecycle Mainstream Video Not Required
