2P6GR-PCIE-SATA-CARD

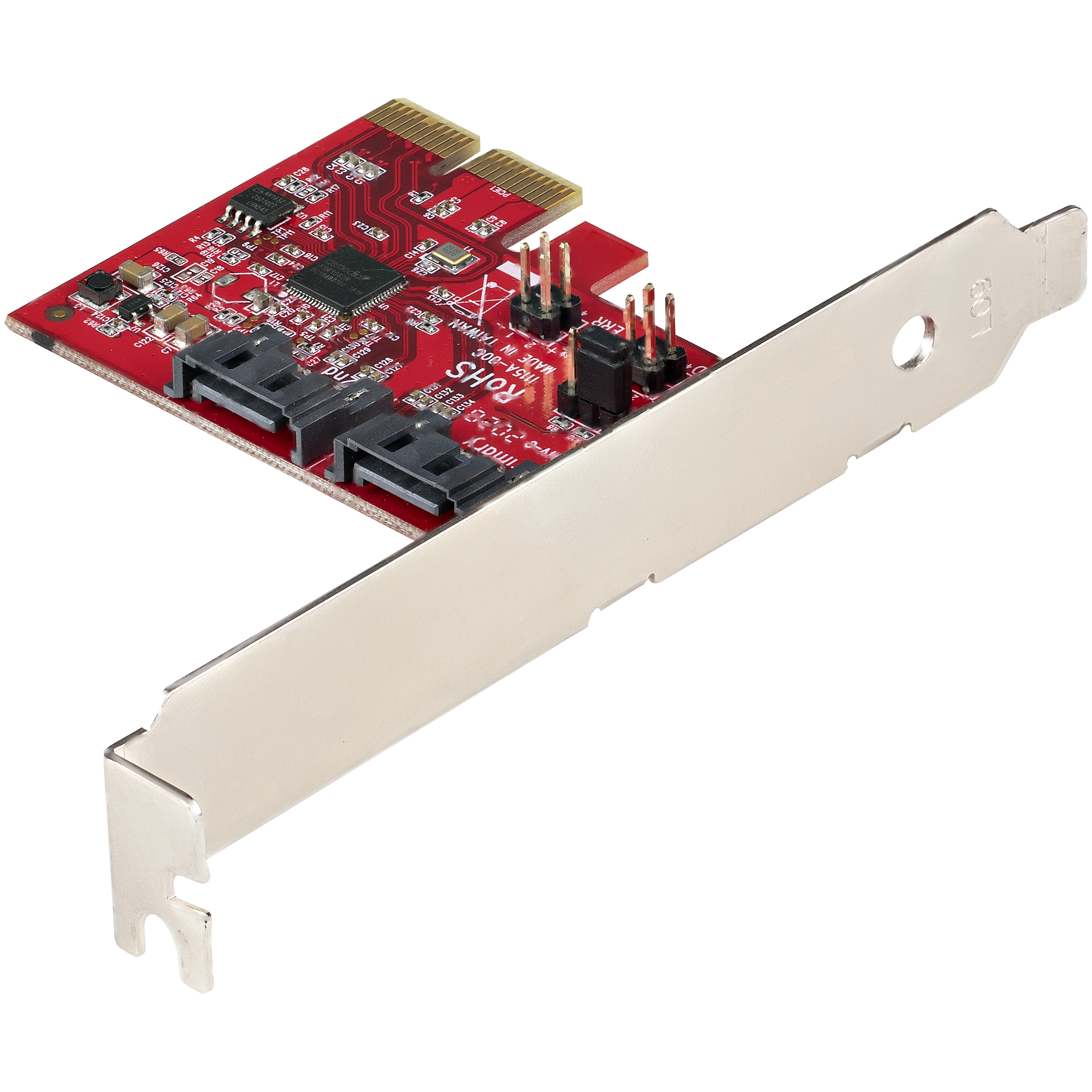

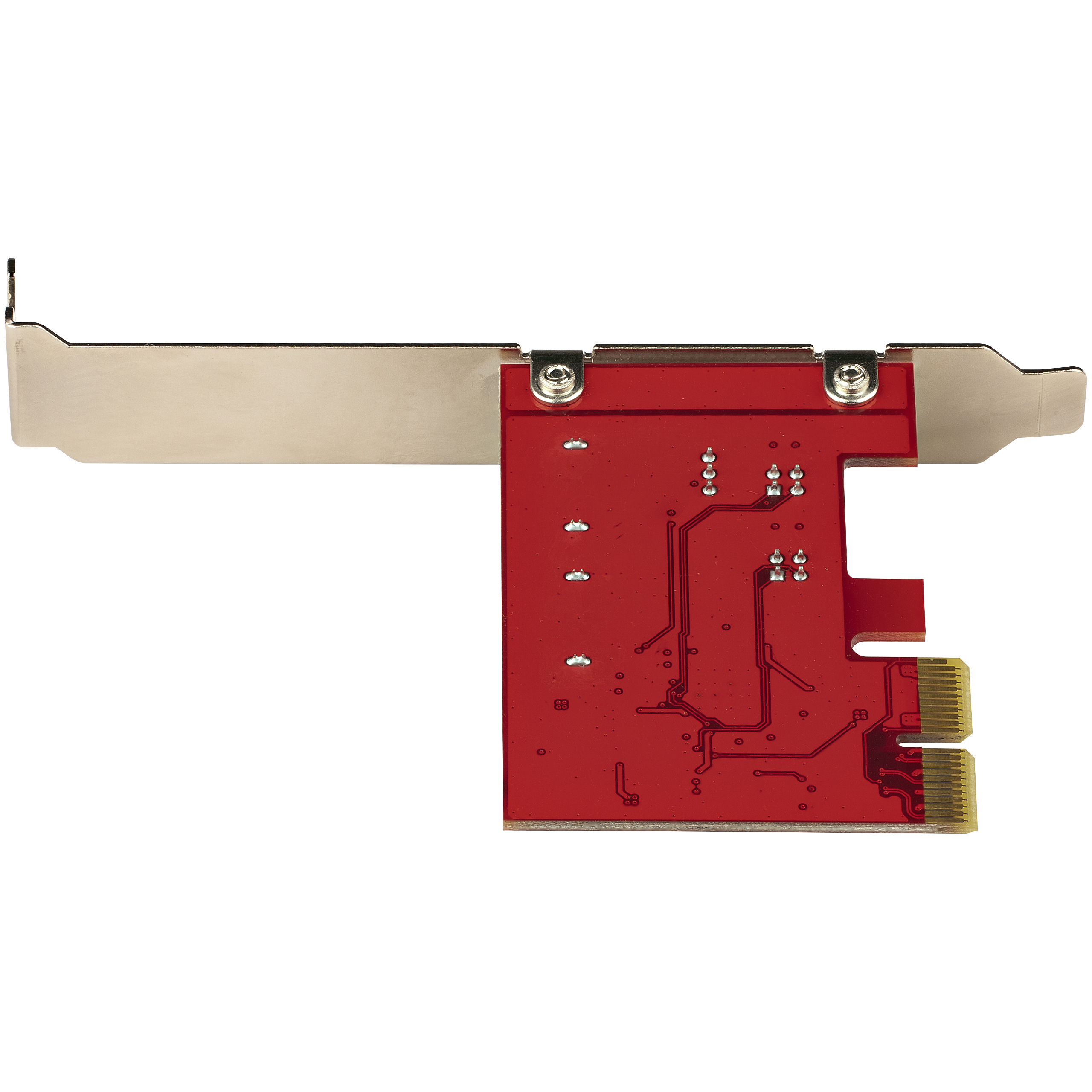

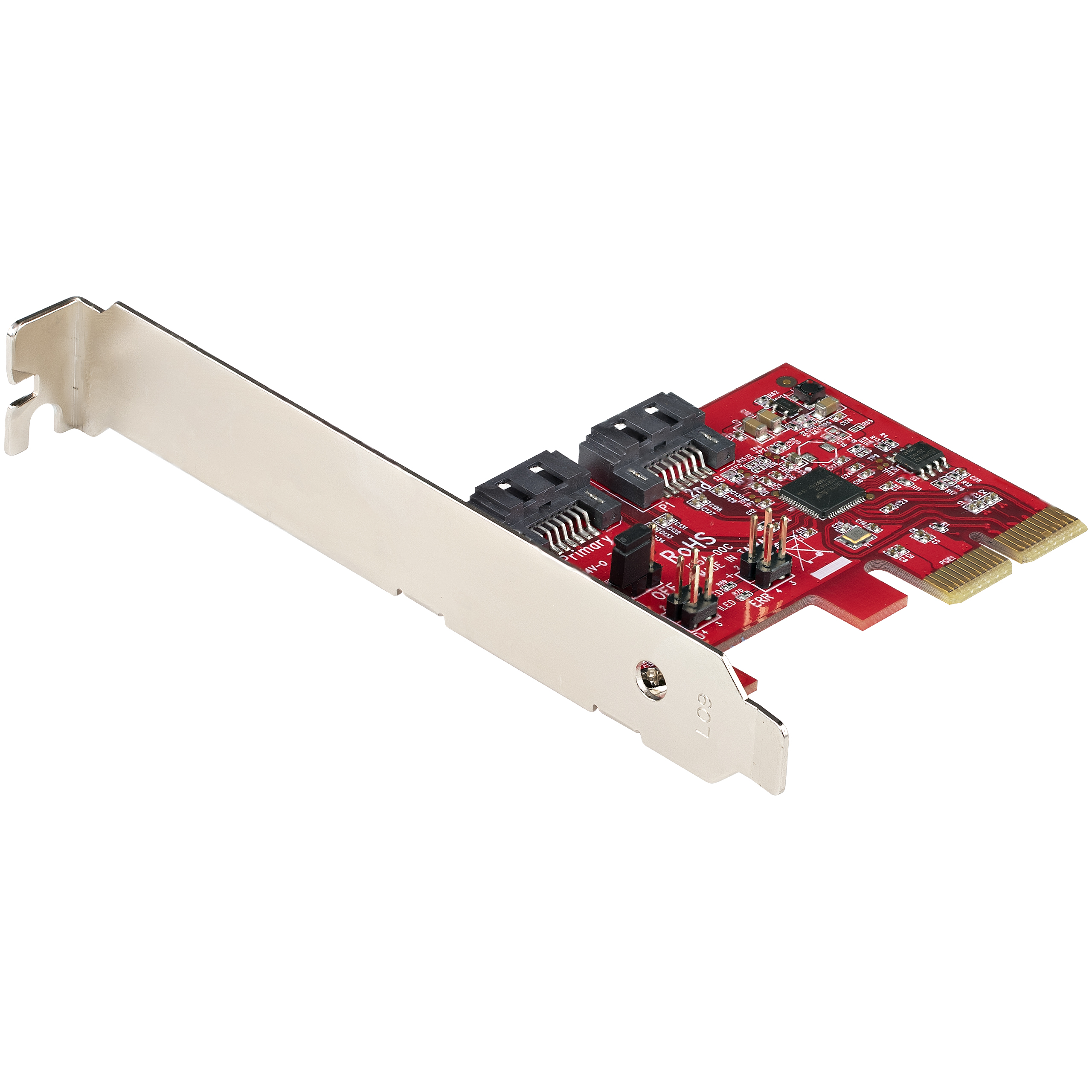

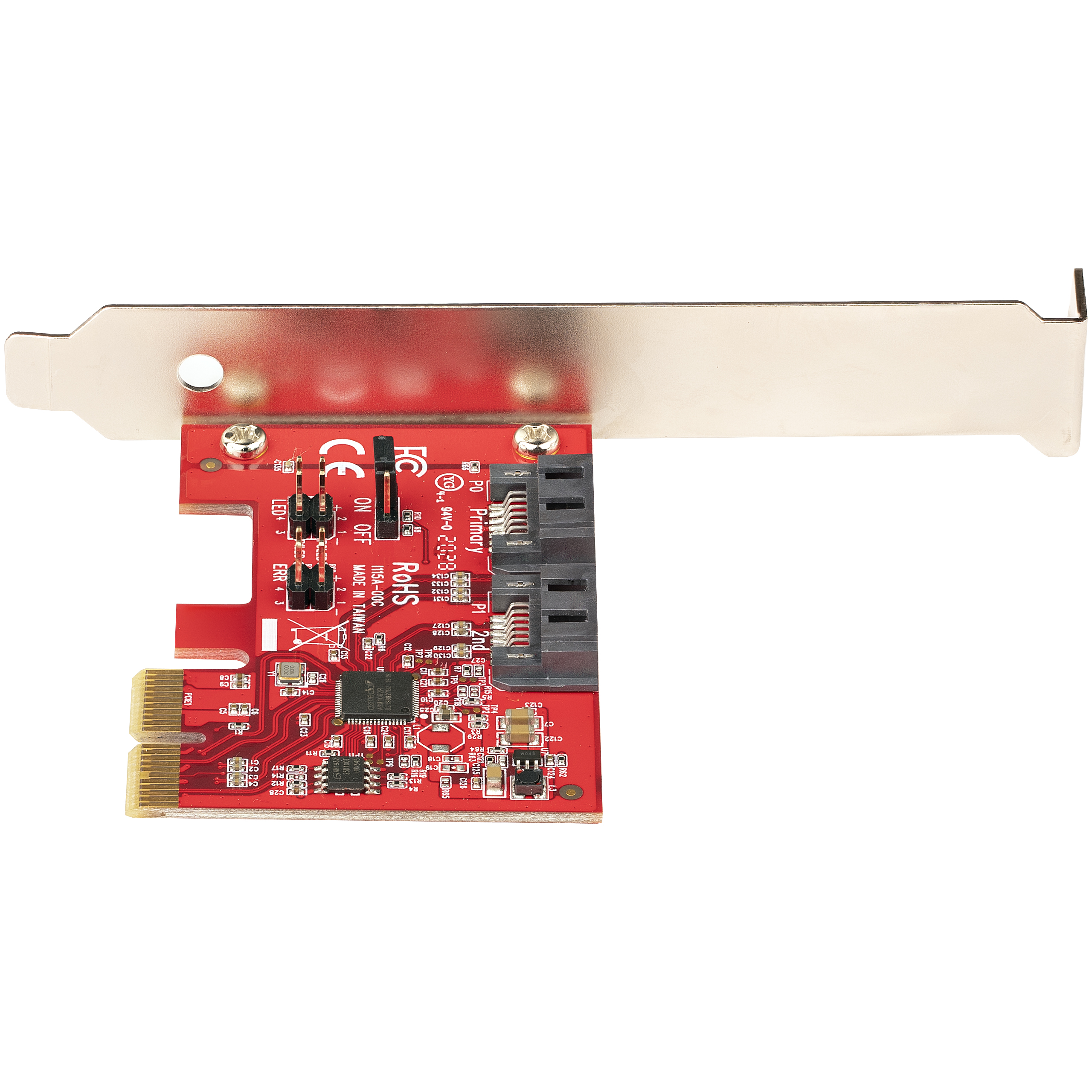

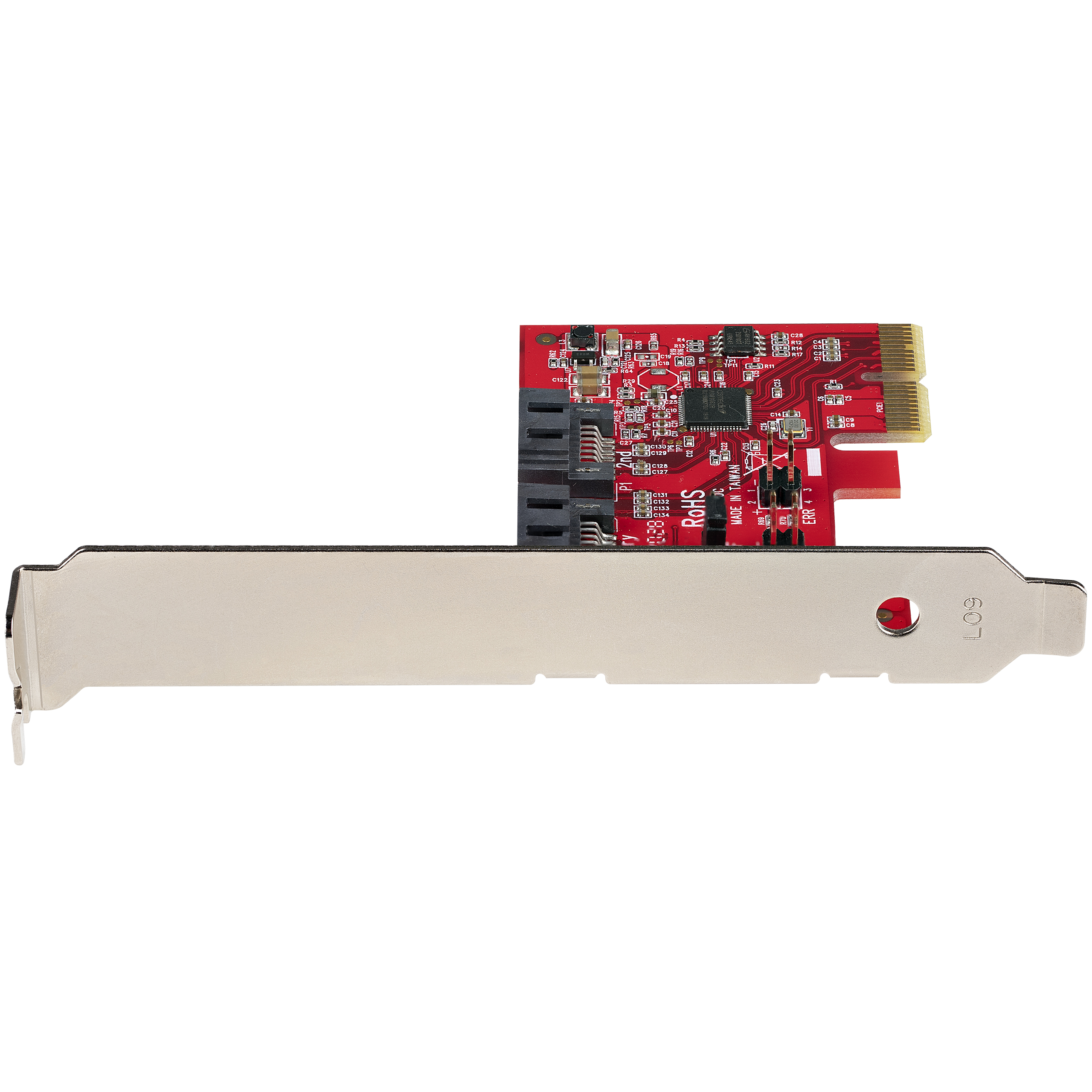

2 Port SATA 6Gbps PCIe SATA Controller Card w RAID
SATA III (6Gbps) | Hardware RAID | PCI Express 2.0 | PCIe x2 Slot | 2x SATA Connectors | Lifetime Warranty
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 2 Port SATA 6Gbps PCIe SATA Controller Card w RAID Product Number 2P6GR-PCIE-SATA-CARD UPC 065030893169 Lifecycle status Active Warranty Lifetime Taxonomy Product > Cards & Adapters > Data Storage Cards & Adapters Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 SATA Card Adapters/Controllers Family SATA to PCIe Controller Card with RAID Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX051X Product Title (Ultra-Short) SATA RAID PCIe Card Product Title (Short) SATA PCIe Card, 2 Ports, 6Gbps SATA RAID Product Title (Medium) SATA PCIe Card, 2 Port PCIe SATA Expansion Card, 6Gbps, PCIe/SATA RAID Converter Product Title (Standard) 2-Port SATA PCIe Card, SATA Expansion Card, 6Gbps SATA, PCI Express to SATA Adapter, SATA RAID, PCIe to SATA Converter, TAA Product Title (Long) SATA PCIe Card - 2 Port PCIe SATA Expansion Card - 6Gbps - Full/Low Profile - PCI Express to SATA Adapter/Controller - ASM1062R SATA RAID - PCIe to SATA Converter - TAA Product Title (AMZ) SATA PCIe Card - 2 Port PCIe SATA Expansion Card - 6Gbps - Full/Low Profile - PCI Express to SATA Adapter/Controller - ASM1062R SATA RAID - PCIe to SATA Converter , TAA Title Ingram (Part 1) SATA PCIe Card, 2 Ports, SATA Title Ingram (Part 2) RAID, 6Gbps, PCI Express to SATA Website Product Headline SATA III (6Gbps) | Hardware RAID | PCI Express 2.0 | PCIe x2 Slot | 2x SATA Connectors | Lifetime Warranty Bullet 1 HIGH-PERFORMANCE: Add two SATA III 6Gbps ports to your desktop computer or server using a PCI Express x2 slot to connect SATA drives (HDD/SSD); 6Gbps per port; Built-in hardware RAID controller to off-load host CPU for maximum performance Bullet 2 VERSATILE HARDWARE RAID CONFIGURATIONS: The PCIe card supports Hardware RAID modes: RAID 0/RAID 1/SPAN (Big Disk); The card can also be used without RAID in JBOD (Just a Bunch of Disks) supporting HDD, SSD, and Optical Disk Drives (Blu-Ray/DVD/CD ROM/RW) Bullet 3 COMPATIBILITY: PCIe 2.0; Plug-and-play setup on Windows (7+), macOS (10.10+), Linux (2.6.32+); OS booting on Windows & Linux for BIOS level RAID setup/config; Incl Windows app for OS level RAID setup/config & monitoring; Software RAID only on macOS Bullet 4 APPLICATIONS: Setup in full or low-profile PCI-e slot (full-profile bracket installed, low-profile incl); Ideal for laboratories, performance CAD or Audio/Video work stations, data banks & schools; Upgrade computer systems with Hardware RAID & SATA 6Gbps Bullet 5 STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; This SATA PCIe expansion adapter controller card converter is backed for life by StarTech.com, including free 24/5 North America based multi-lingual tech support Bullets (Compact) SATA III 6Gbps PCIe x2 expansion adapter card converter - 2-Port SATA 3 - RAID 0/1/SPAN/JBOD - BIOS level RAID setup/config (Win/Linux) - OS level RAID setup/config/monitor (Win) - Software RAID on Mac - PCI Express 2.0 controller - Full/low-profile Bullets (Consolidated) 2-Port SATA III 6Gbps PCI Express 2.0 x2 expansion controller card w/Hardware RAID - RAID 0/RAID 1/SPAN (Big Disk)/JBOD (Just a Bunch of Disks) - Windows (7+) | macOS (10.10+) | Linux (2.6.32+) - OS booting on Windows/Linux for BIOS level RAID setup/config | Included app on Windows for OS level RAID setup/config and monitoring | Software RAID on macOS - PCIe adapter converter Ideal for laboratories/performance CAD or A/V work stations/data banks and schools | Full/low-profile brackets Marketing Copy Applications - Add two 6Gbps drives to your desktop computer or server

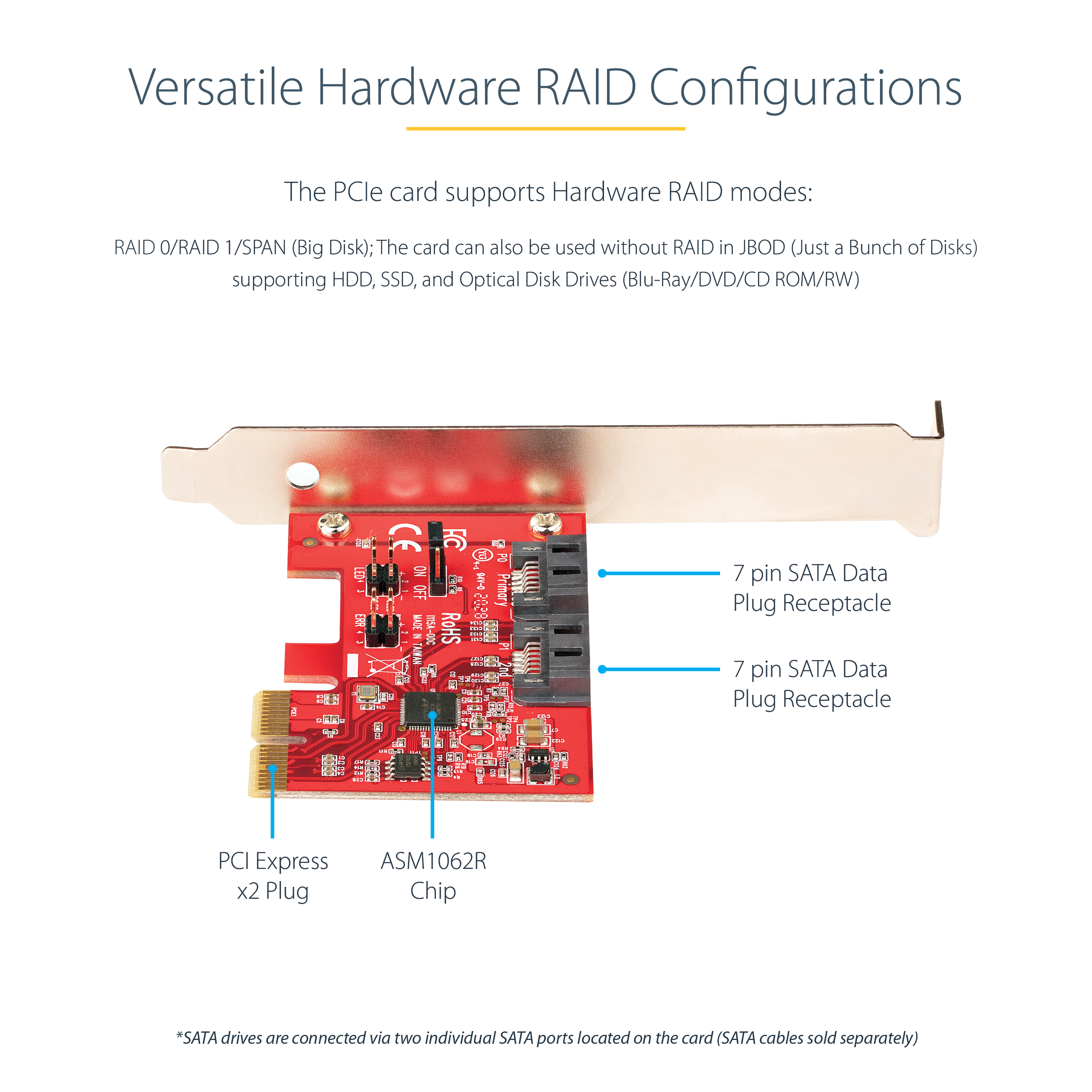

- Manage your drives and build hardware RAID arrays in RAID 0, RAID 1, SPAN or JBOD configurations
Website Search Keyword - 2 port sata card
- 6Gbps SATA card
- pci express card
- PCI Express SATA
- pci express sata 3 controller card
- pci express sata expansion card
- pci express to sata
- pcie 3.0 sata controller
- pcie SATA
- pcie sata 3 adapter
- pcie sata 3 expansion card
- pcie sata adapter
- PCIe sata card
- pcie sata card 2 port
- pcie sata controller card
- pcie sata expansion
- PCIe sata expansion card
- pcie sata raid
- pcie to sata
- pcie to sata 6g expansion card
- pcie to sata converter
- pcie to sata expansion card
- raid card
- raid controller card
- sata 3 pcie adapter
- sata 6g card
- SATA 6Gb controller
- SATA card
- sata controller card
- sata expansion card
- sata expansion card pcie
- SATA III controller
- sata pcie card
- sata pcie controller card
- sata pcie expansion card
- sata to pcie
- sata to pcie adapter
- 6 port sata pcie card
- mzhou pcie sata card 8 port
- pcie x4 to sata adapter
- rivo pcie sata card
- rivo pcie sata card 8 port
Required Regulatory Compliance Marks - RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
Special Notes - Management utility provided is only compatible with Windows 7 and up
- On macOS only software RAID is supported
- This card is only supported in Legacy BIOS Environments
Accessory Products - LSATA6
- LSATA8
- LSATA12
- LSATA18
- LSATA24
- SATA6
- SATA12
- SATA8
- SATA18
- SATA24
- SATA36
Related Products - CBESATA2
- ECESAT32
- ECESATA1
- ECESATA22
- ECESATA254
- ECESATUSB1
- PCIESATA2I
- PEXESATA1
- PEXESATA2
- PEXESATA2I
- PEXSAT2IDE2
- PEXESAT32
- PEXSATA22I
- PEXSATA24E
- USB2ESATA
- 10P6G-PCIE-SATA-CARD
- 8P6G-PCIE-SATA-CARD
- 6P6G-PCIE-SATA-CARD

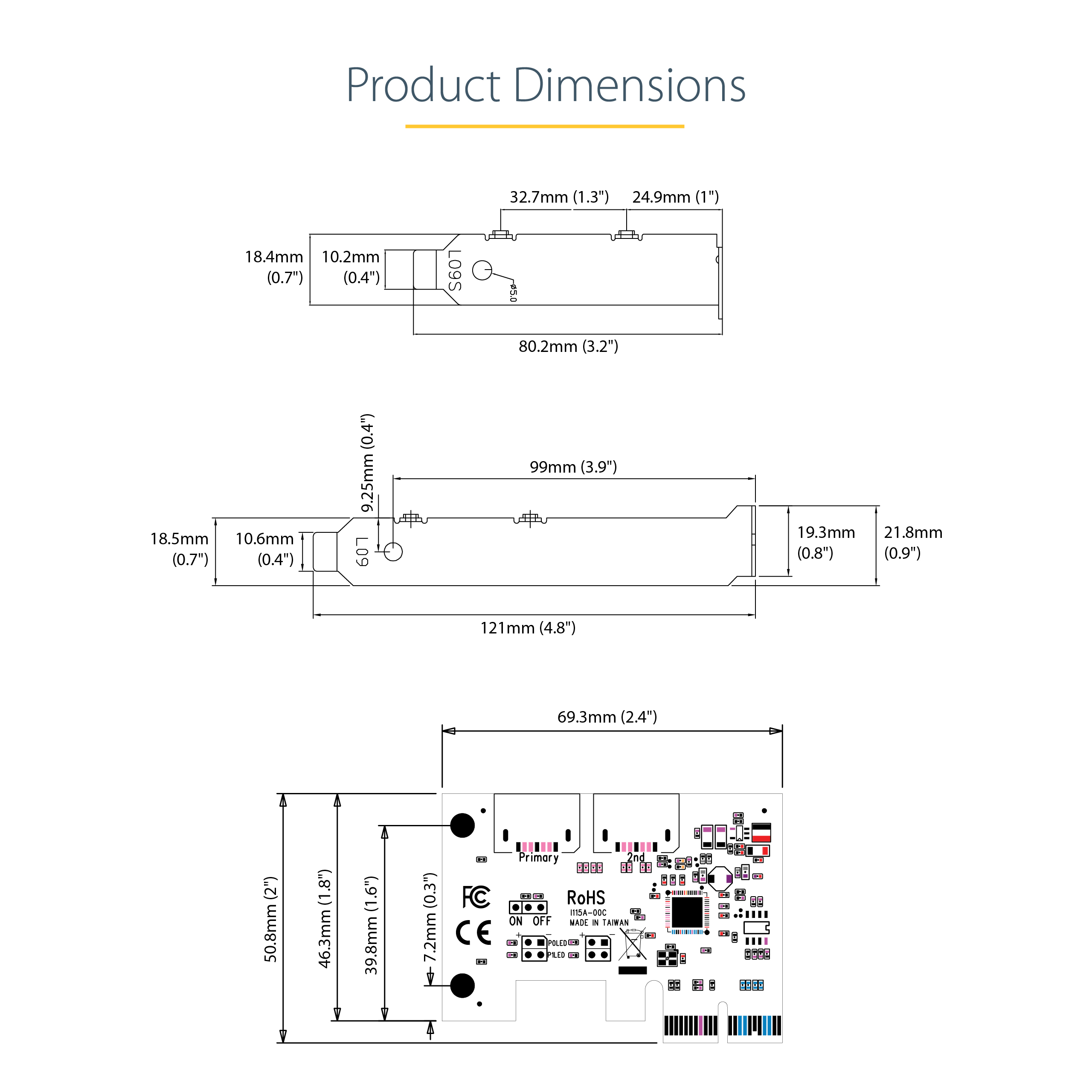

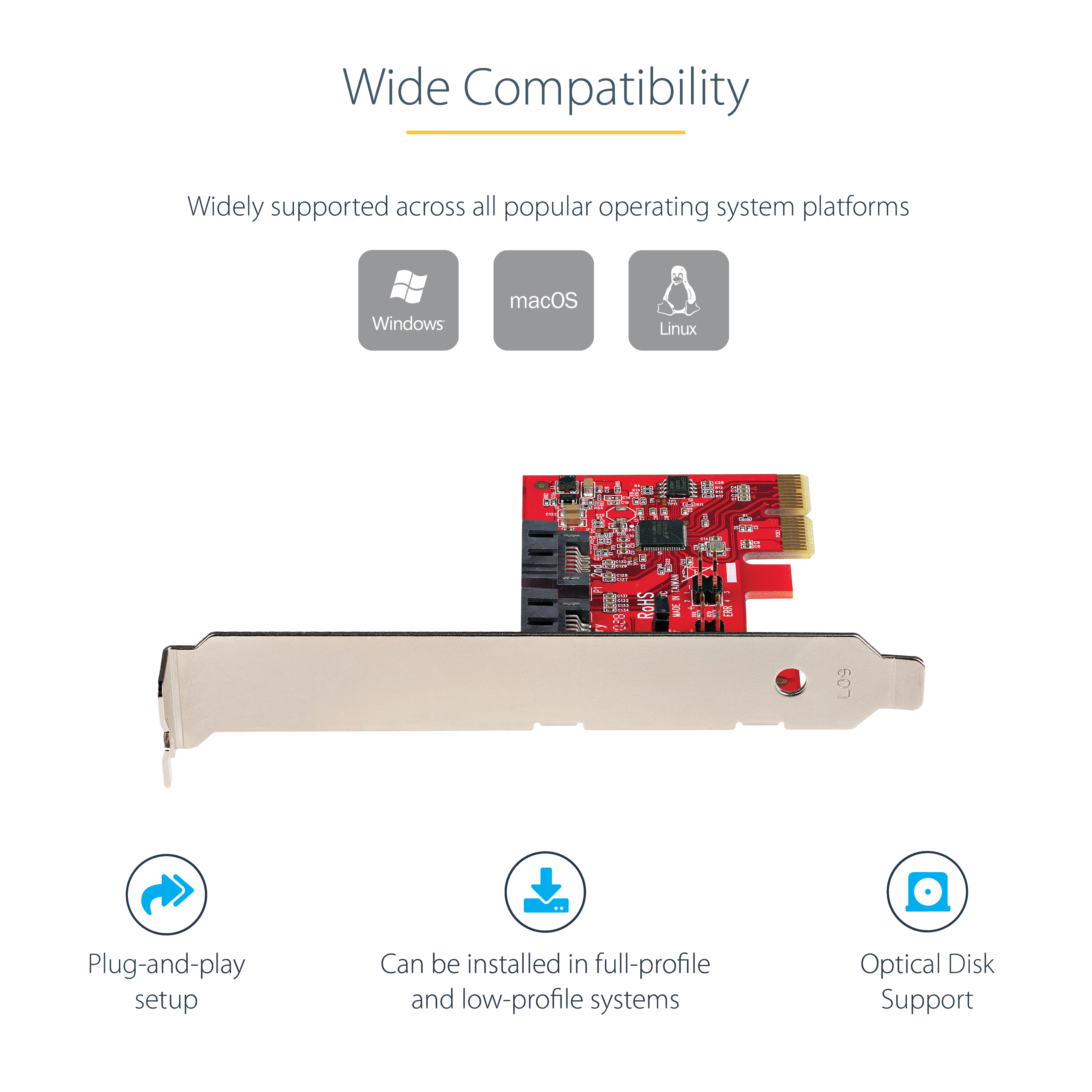

Color Red Humidity 20~80% RH Operating Temperature 0°C to 85°C (32°F to 185°F) Product Length (mm) 71.000 Product Width (mm) 18.000 Product Height (mm) 121.000 Product Weight (g) 33.000 Storage Temperature -25°C to 85°C (-13°F to 185°F) TAA Compliant Yes 4Kn Support Yes Maximum Data Transfer Rate 6 Gbps OS Compatibility - Windows 7
- Windows 8
- Windows 10
- Windows 11
- Windows Server 2012 R2
- Windows Server 2016
- Windows Server 2019
- Mac OS X Yosemite (10.10)
- Mac OS X El Capitan (10.11)
- macOS Sierra (10.12)
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Linux
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- Windows Server 2022
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
Port Multiplier Yes RAID Yes SATA Type and Rate SATA III (6 Gbps) S.M.A.R.T. Support Yes TRIM Support Yes Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID ASMedia - ASM1062R Industry Standards - Serial ATA 3.0 specification - SATA I/II/III (1.5/3/6Gbps)
- PCI Express Base Specification Revision 2.0
Interface/Bridge SATA LED Indicators 2 - Header, for drive activity LEDs Carton Depth (mm) 500 Carton Height (mm) 310 Carton Quantity 60 Carton Weight Gross (g) 8465 Included in Package - 1 - SATA Controller Card

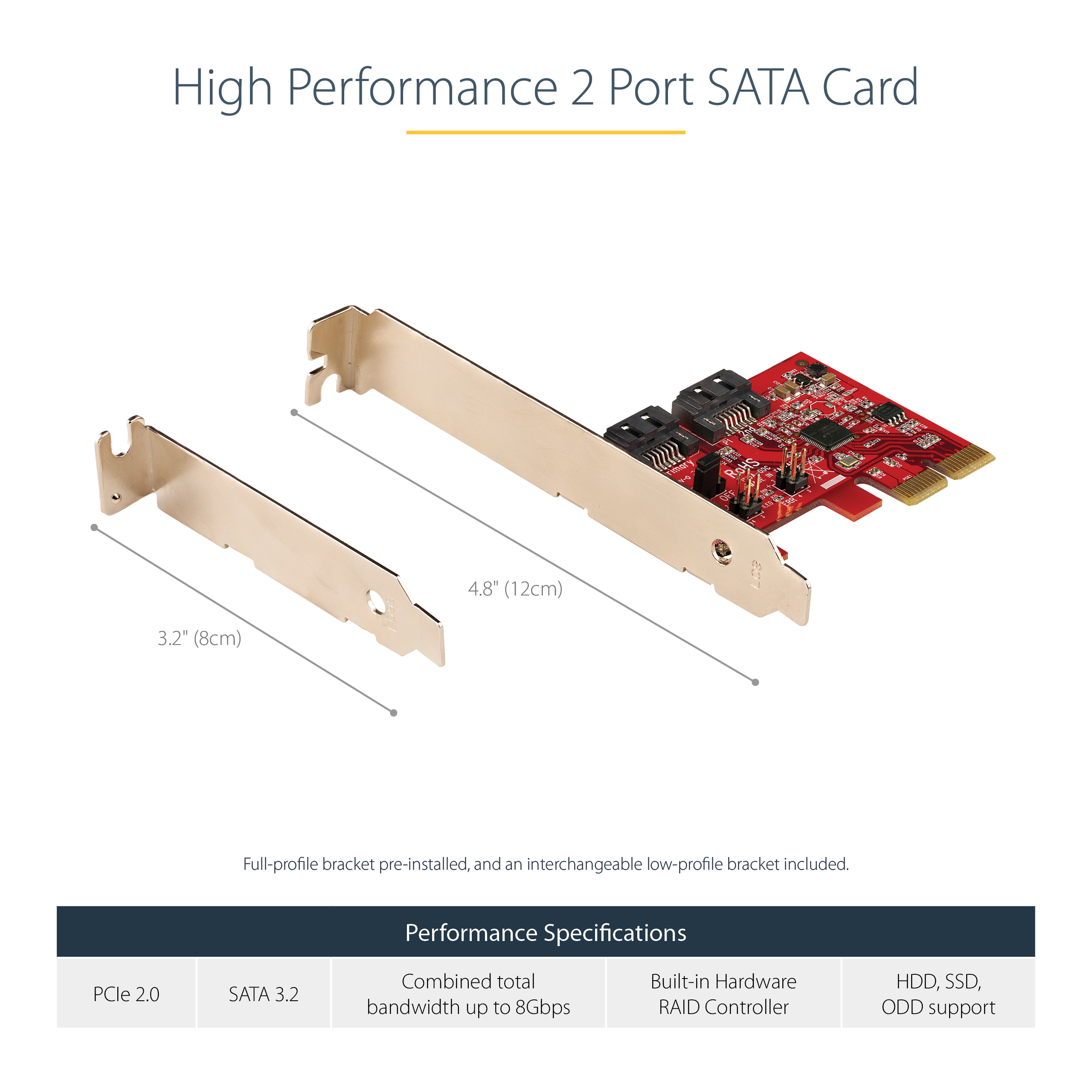

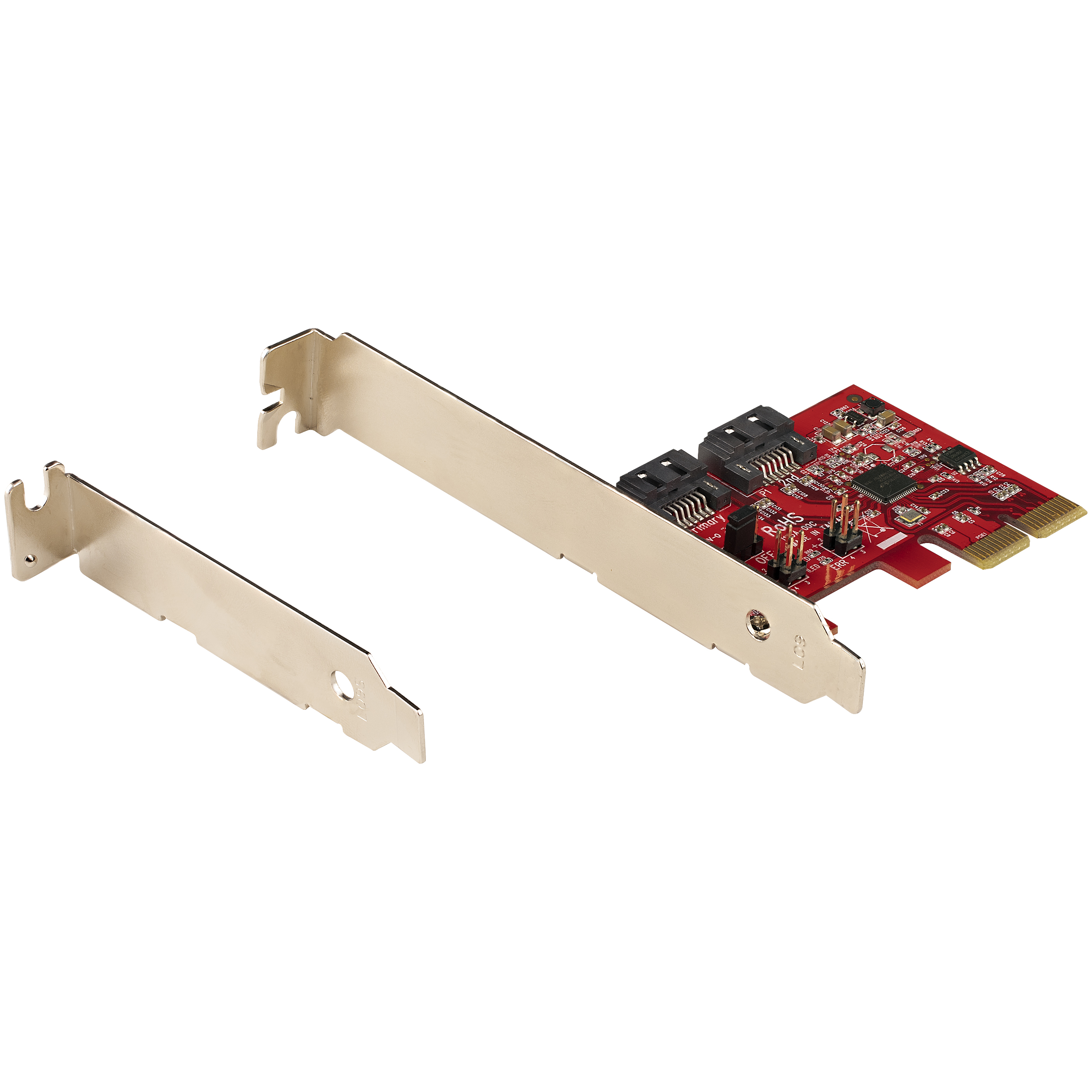

- 1 - Full-Profile Bracket (Installed)
- 1 - Low-Profile Bracket
- 1 - Quick-Start Guide
Included In Package for Label - 1 - Low-Profile Bracket
- 1 - Full-Profile Bracket (Installed)
- 1 - SATA Controller Card
- 1 - Quick-Start Guide
Number of Sub-Cartons 6 Package Depth (mm) 144 Package Height (mm) 34 Package Width (mm) 175 Package Quantity 1 Package Weight (g) 110 Packaging Description 2-Port SATA 6Gbps PCIe Controller with RAID Packaging Description India 2-Port SATA 6Gbps PCIe Controller with RAID Sub-Carton Depth (mm) 360 Sub-Carton Height (mm) 160 Sub-Carton Width (mm) 170 Sub-Carton Quantity 10 Sub-Carton Weight (g) 1420 Connector 1 PCI Express x2 Connector 1 (Quantity) 1 Connector 2 SATA (7-Pin) Connector 2 (Quantity) 2 Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Veronica Ye Artwork Due Date 2021-05-20 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2021-09-17 Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AU,CA,DE,DK,ES,FR,IN,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2021-05-17 Target Production Release 2021-05-24 Tech Lead Brian Linseman Technical Writer Maria Powell Technology Lifecycle Mainstream
