2PASTSC-WALL-MOUNT

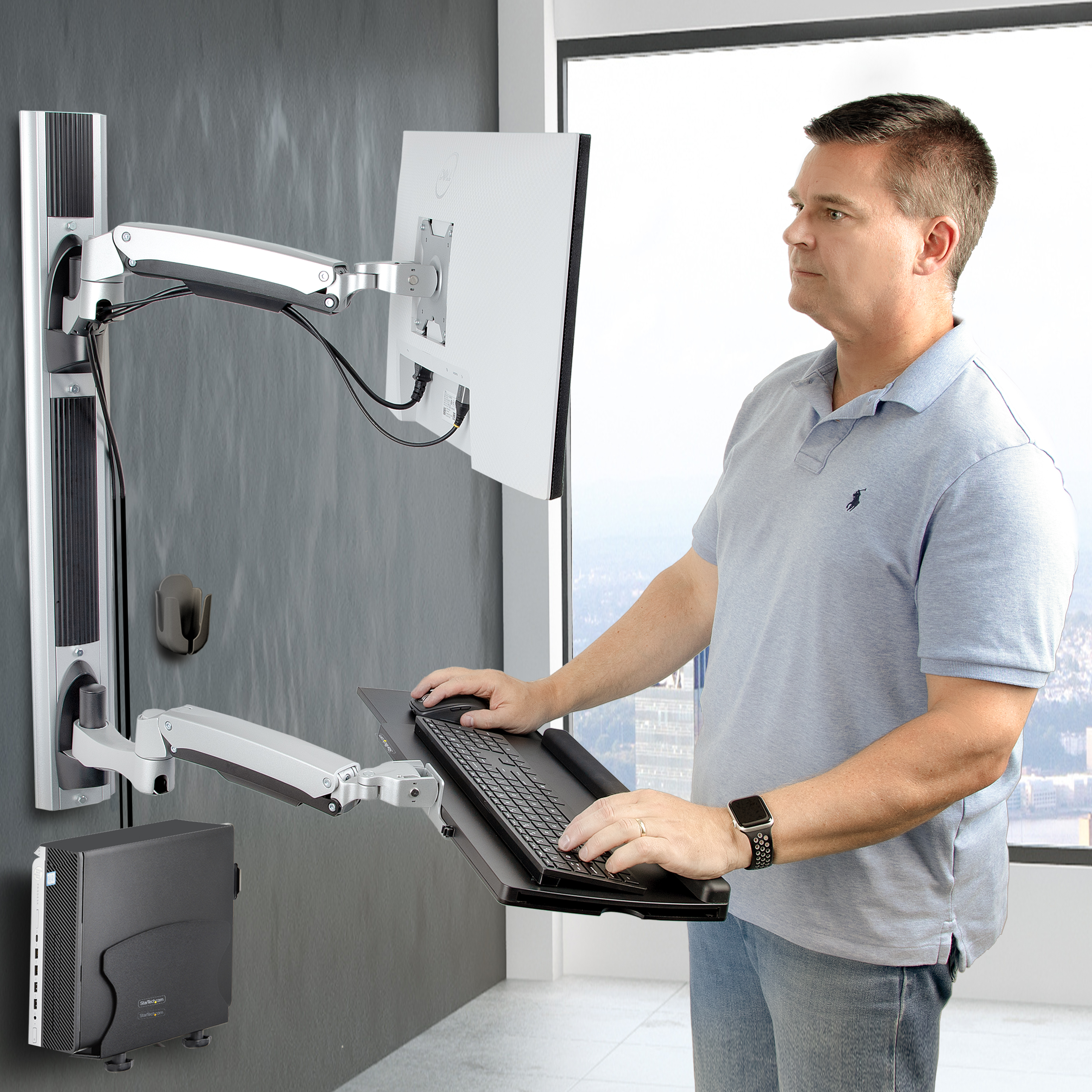

Wall Mount Workstation system with dual-pivot lower spring a
Mount workstation components to a wall, using this fully adjustable mounting system
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name Wall Mount Workstation system with dual-pivot lower spring a Product Number 2PASTSC-WALL-MOUNT UPC 065030899475 Lifecycle status Active Warranty 10 Years Weighted Opportunity 149997 Taxonomy Product > Mechanical Products > Ergonomic Furniture Category Level 1 Workstation Accessories Category Level 2 Ergonomic Furniture Category Level 3 Wall Mount Workstations Family Single Monitor Wall-Mounted Workstations Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX036X Product Title (Ultra-Short) Wall Workstation Product Title (Short) Wall Mount Workstation With PC Bracket Product Title (Medium) Wall Mount Workstation, Up To 32" Monitor, Articulating Arms, With PC Bracket Product Title (Standard) Wall Mount Workstation, VESA Mount 22lb/10kg, Fully Articulating Monitor Mount/Keyboard Tray, Standing Desk w/PC Bracket, TAA Product Title (Long) Wall Mount Workstation, VESA Mount For 32" Monitor (22lb/10kg), Fully Articulating Monitor Mount & Keyboard Tray - TAA Product Title (AMZ) Wall Mount Workstation, VESA Mount For 32" Monitor (22lb/10kg), Fully Articulating Monitor Mount & Keyboard Tray, TAA Title Ingram (Part 1) Wall Mount Workstation - Title Ingram (Part 2) With Desktop PC Wall Mount-Bracket Website Product Headline Mount workstation components to a wall, using this fully adjustable mounting system Bullet 1 WALL MOUNT WORKSTATION: Ergonomic space-saving standing workstation w/ PC Wall Mount Bracket; Single-monitor VESA mount (75x75/100x100) for up to 32" displays (22lb/10kg); Fully articulating mechanical spring arms; Keyboard tray w/ removable wrist rest Bullet 2 STOW AWAY WORKSTATION: Independently adjustable arms allow for flush-to-wall positioning & feature a slide-out mouse tray and fold-away keyboard tray; For warehouse, office, clinic, & small areas; includes CPU/PC wall bracket & wall-mount mouse holder Bullet 3 DURABLE DESIGN: Die-cast aluminum arms with mechanical springs that passed 10,000 cycle test and are backed for 10 years for long-lasting performance; Sturdy keyboard arm is designed to reduce typing bounce and supports up to 3.5kg (7.7lb) Bullet 4 MOUNTING OPTIONS: Affix the computer/CPU Standing Desk to a single wall stud or concrete wall (wood screws and concrete anchors included); For maximum space-saving, mount only the spring arms; Adjust arm heights along the wall track up to 34.6in (88cm) Bullet 5 RANGE OF MOTION: Monitor arm features +90/-20° tilt, +/-90° swivel, 360° rotation; Keyboard Tray +90/- 20° tilt; Full-motion arms w/ height range of 12.4in (31.5cm); Monitor arm extends 24.1in (61.3cm) & keyboard tray 33.5in (85.3cm) from wall Bullets (Compact) Wall mount workstation w/ articulating arms - VESA mount tilts/swivels/rotates; Up to 32"/22lb monitor - Stow away standing desk w/ mechanical spring arms - Features removable wrist rest/slide-out mouse tray - Includes desktop computer/PC bracket Bullets (Consolidated) - Sit-stand wall mount workstation w/keyboard tray and VESA mount for monitor 32"/22lb - Fully adjustable mechanical spring arms w/ foldable design; Die-cast aluminum arms endure a 10k cycle test; Backed by 10-years - Features removable wrist rest/slide-out mouse tray/wall-mounted mouse holder - VESA mount with tilt/swivel/rotation; Arms height adjustment range of 12.4in - Affix the computer/CPU standing desk to a concrete wall/single stud wooden wall - Includes desktop PC wall mount bracket Marketing Copy Marketing Copy (No HTML) Website Search Keyword - computer case wall mount
- computer tower wall mount
- computer wall mount
- computer wall shelf
- cpu holder wall mount
- CPU wall mount
- desktop computer wall mount
- ergonomic standing workstation
- monitor wall mount with keyboard tray
- pc shelf
- pc wall mount bracket
- sit stand wall mount workstation
- standing monitor and keyboard stand
- wall desktop mount
- wall mount for pc
Required Regulatory Compliance Marks - REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Triman/Info-Tri - Product - Waste - European Union - Furniture and Non-EEE
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
Special Notes Portrait mode is not supported for Ultrawide Monitors (21:9 aspect ratio). Accessory Products - CV150
- CV200K
- B506I-HOOK-LOOP-TIES
- HKLP25
- HKLP25BL
- HKLP25GN
- HKLP25YW
- HKLP25RD
- CBMZTRB6BK
- CBMZTS10N6
- CBMMCTTOOL
- CBMCTM3
- CMVBMOD
- CMSCOILED2
- TC6W2
- CBMCC1
- AD2X2
- WKSTNCM
- STSMAT
- CPUWALLMNT
- FTRST1
- FTRST2
Related Products - WALLSTS1
- WALLSTS2
- WALLSTSI1
- WALLSTSI2
- SIT-STAND-ARM-1MS
- ARMSTSCP1

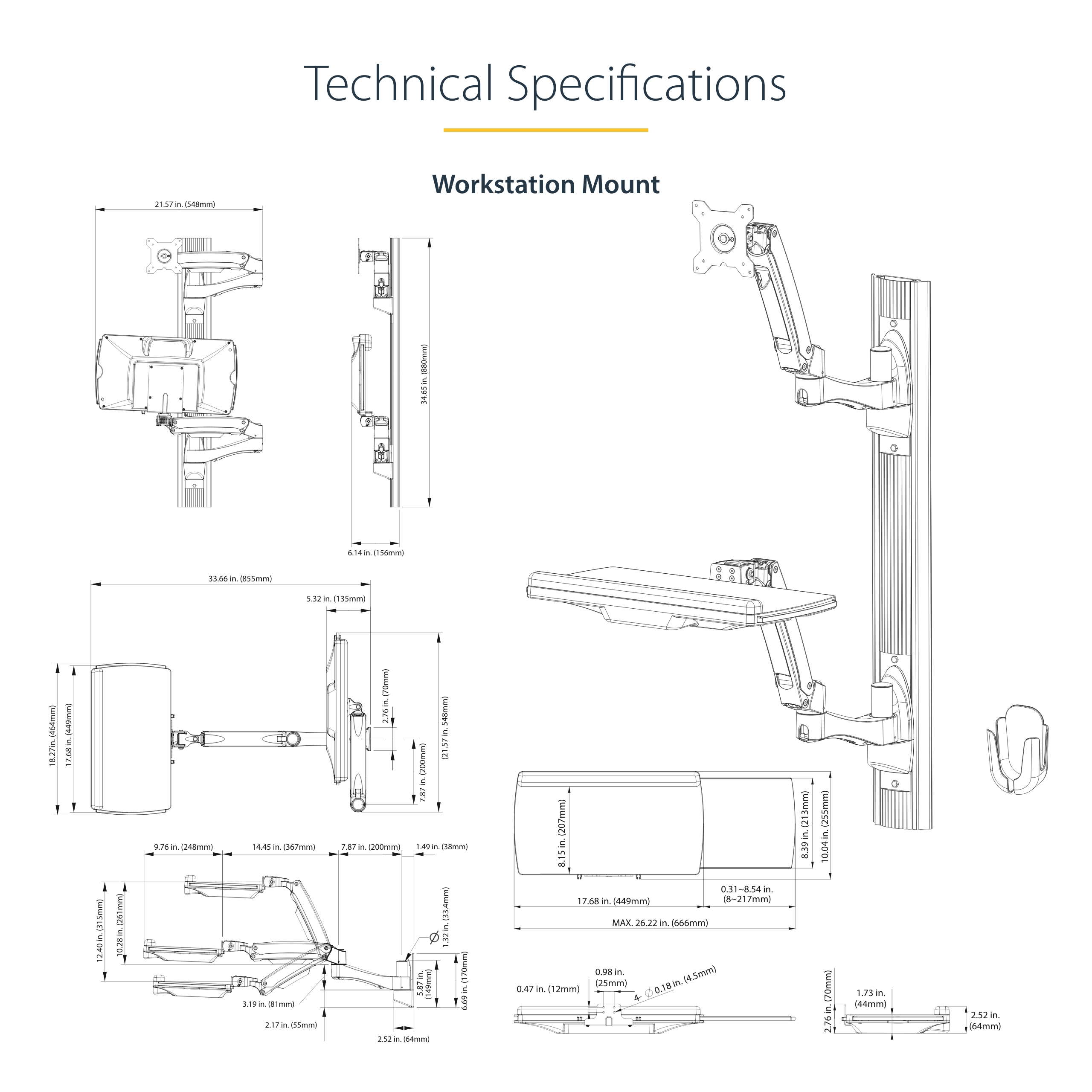

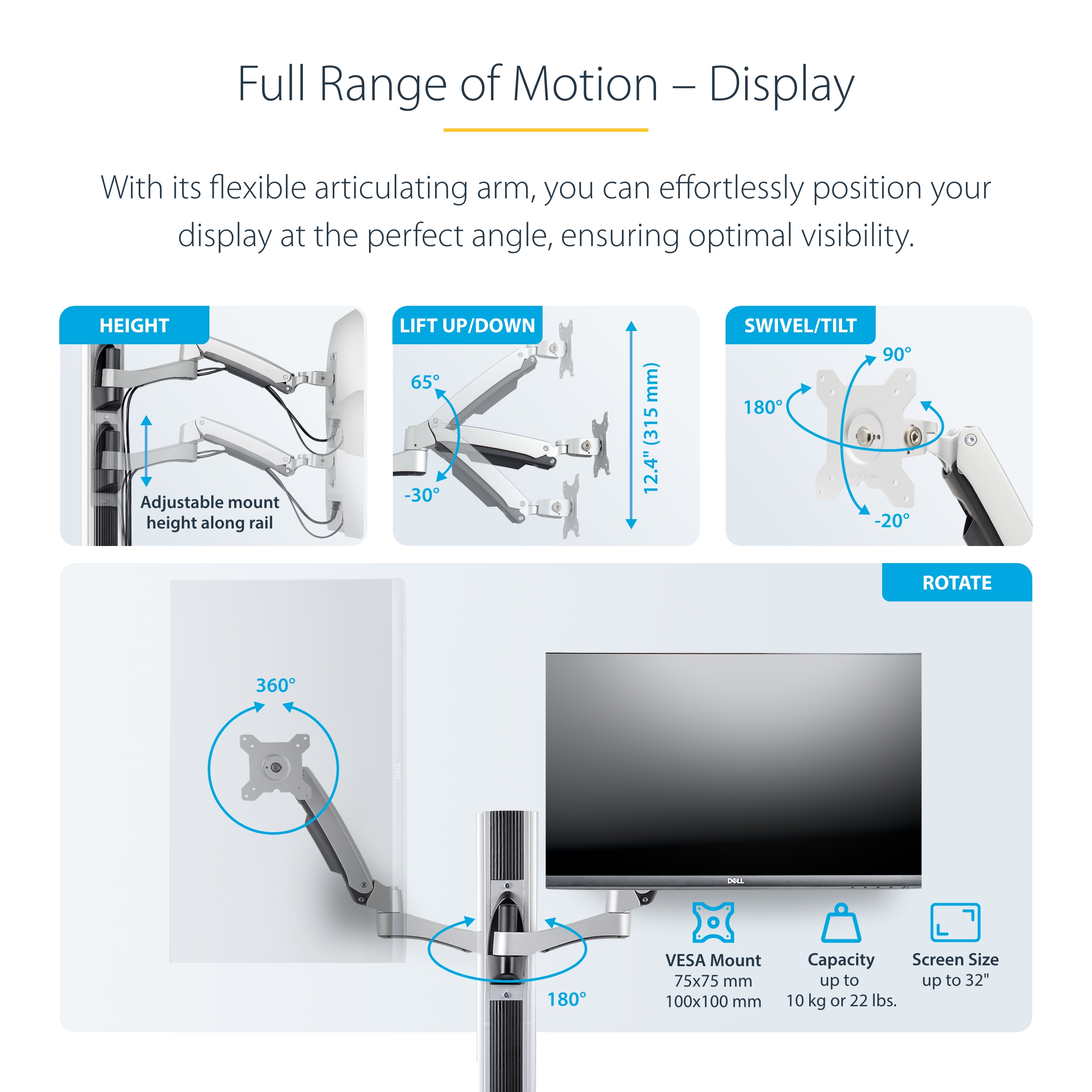

Color Black Construction Material Aluminum and Steel Primary Material Aluminum Product Length (mm) 548.000 Product Width (mm) 880.000 Product Height (mm) 156.000 Product Weight (g) 10500.000 TAA Compliant Yes Anti-theft No Display Rotation 360° Display Tilt +90° / -20° Fits Curved Display No Fits UltraWide Displays Yes Height Adjustment Yes Maximum Arm Extension 613 Maximum Display Size - 27"
- 32" (16:9)
Maximum Height (mm) 880 Minimum Arm Extension 97 Swivel / Pivot +90° / -90° Weight Capacity for Display Mounts (g) 10000 Articulating Yes Cable Management Yes Height Adjustment Method One-Touch (Spring Assisted) Minimum Profile from Wall (mm) 0 Mounting Options Wall-Mount Number of Displays 1 Tools Included Yes VESA Hole Pattern(s) - 75x75 mm
- 100x100 mm

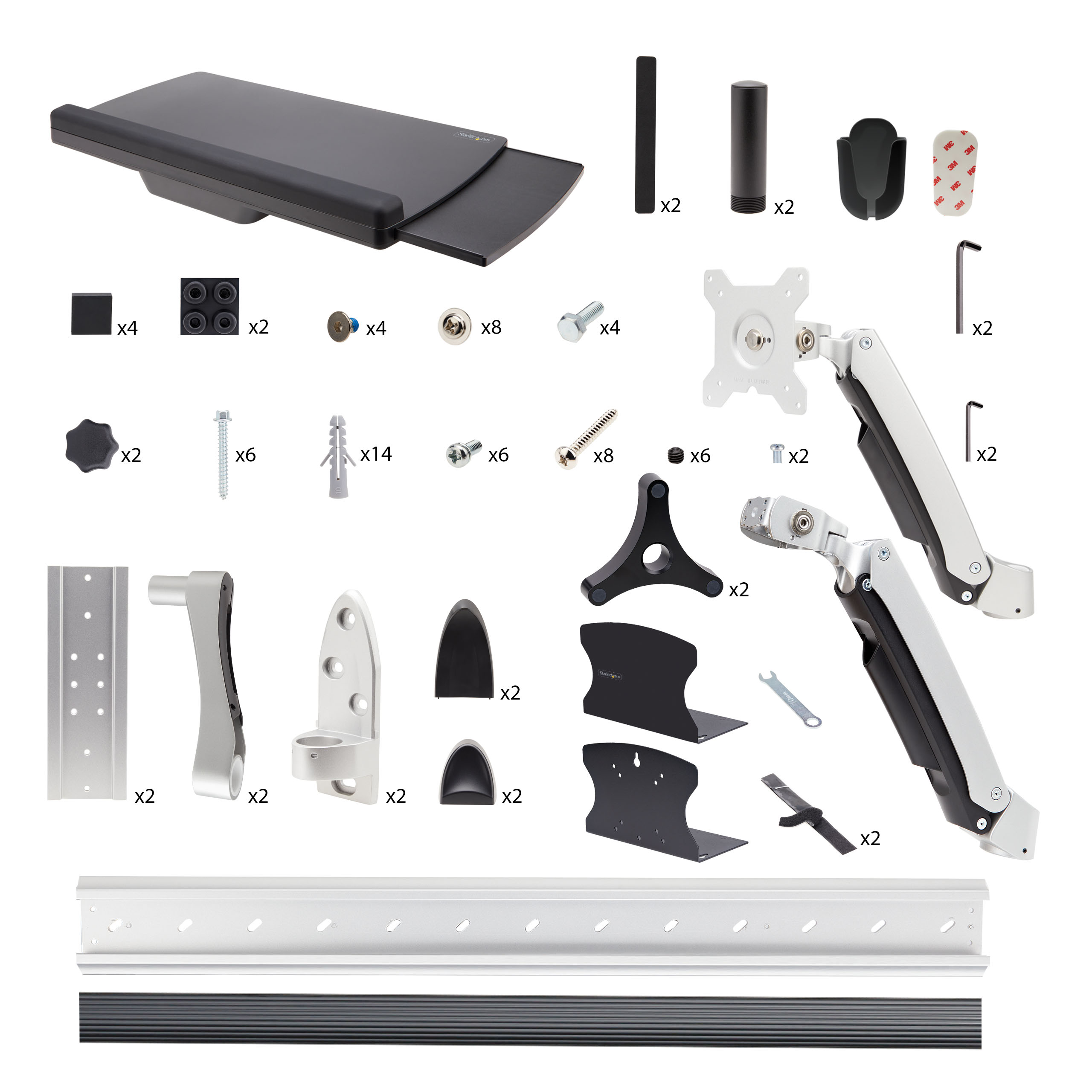

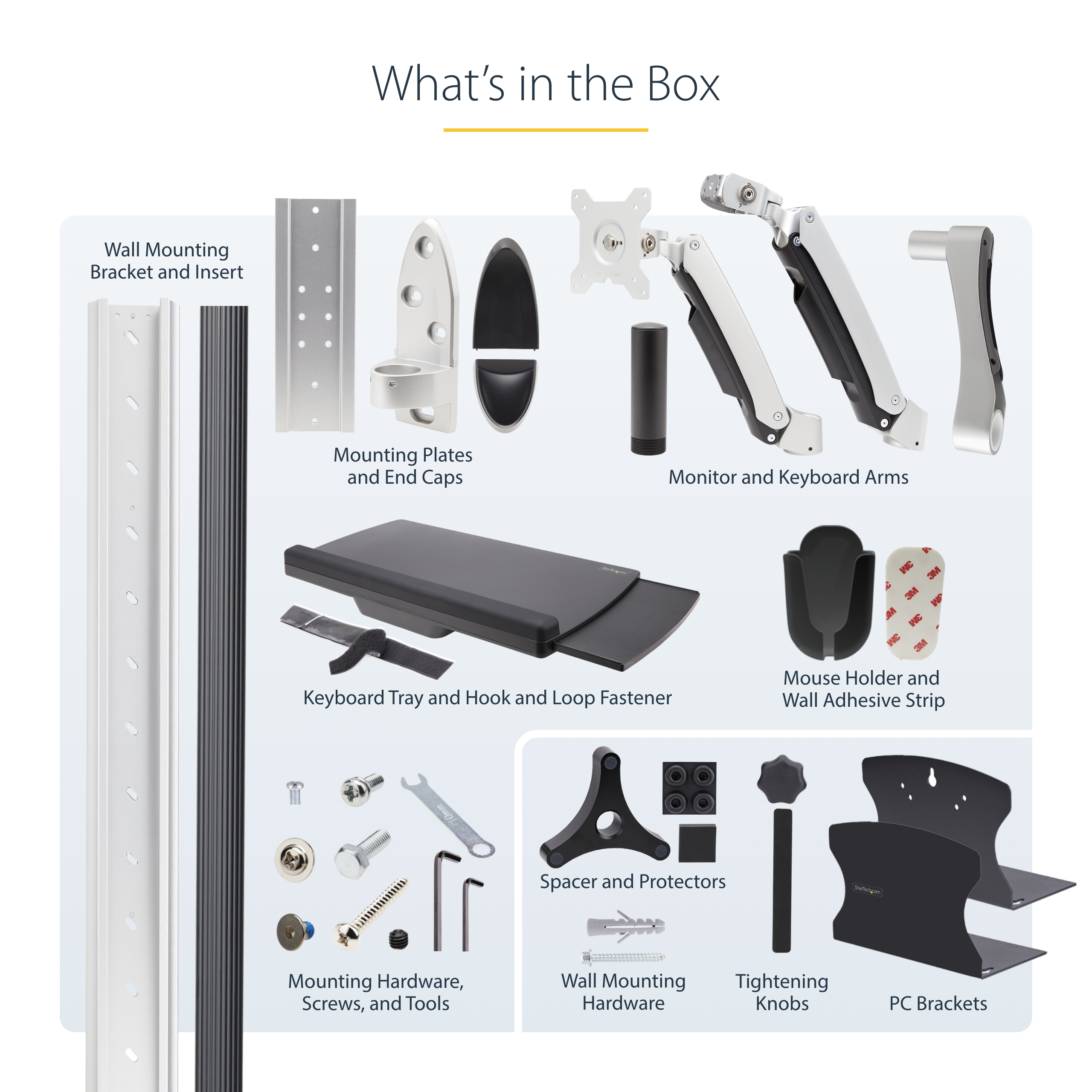

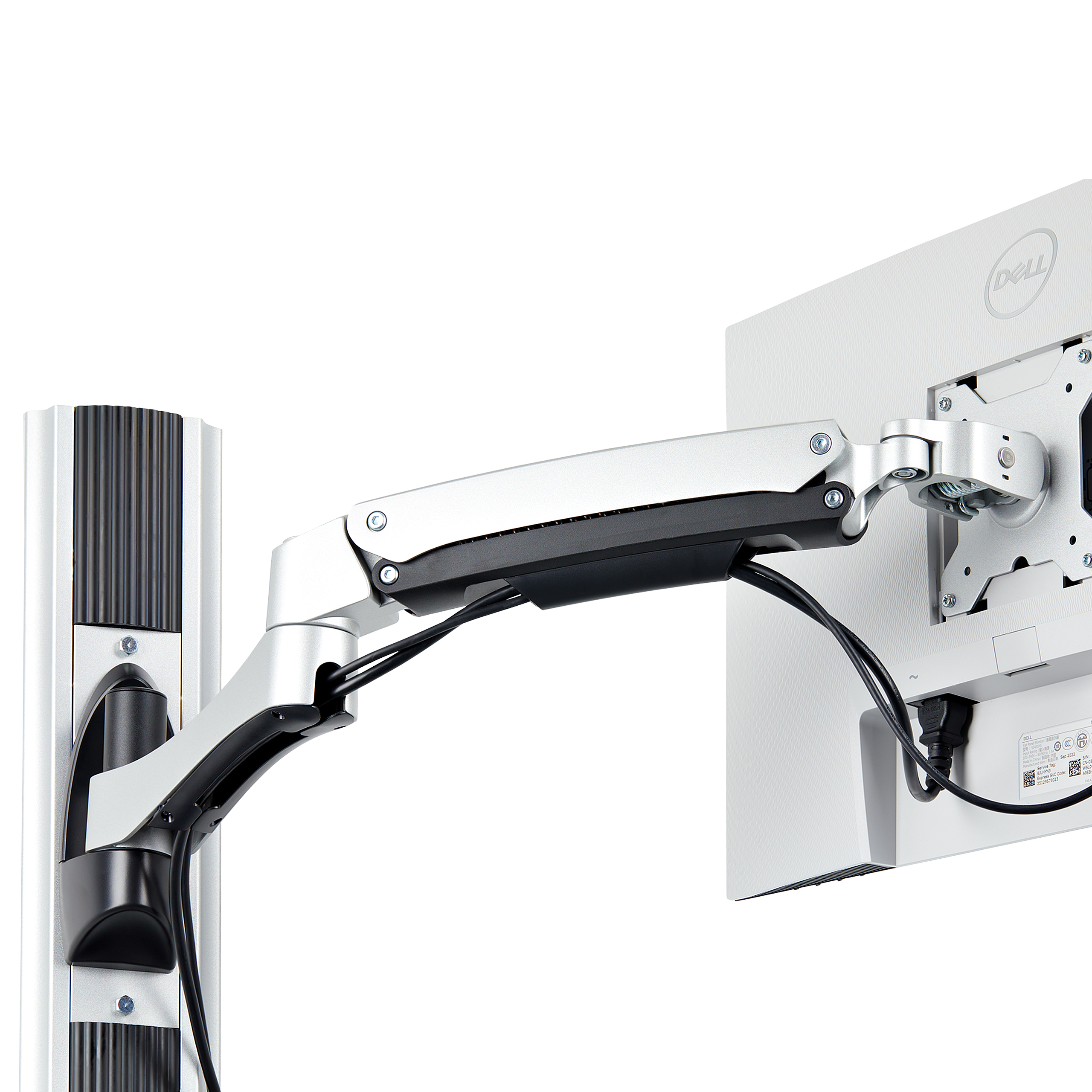

Wallmountable Yes Carton Depth (mm) 965 Carton Height (mm) 163 Carton Quantity 1 Carton Weight Gross (g) 11150 Included in Package - 1 - Spring Arm, Display
- 2 - Swivel Arms
- 2 - Mounting Plates, Spring Arm
- 2 - Upper Decorative Covers
- 2 - Lower Decorative Covers
- 2 - Spring Arm Post
- 1 - Wall Mounting Rail, Track
- 1 - Wall Mounting Rail, Track Cover

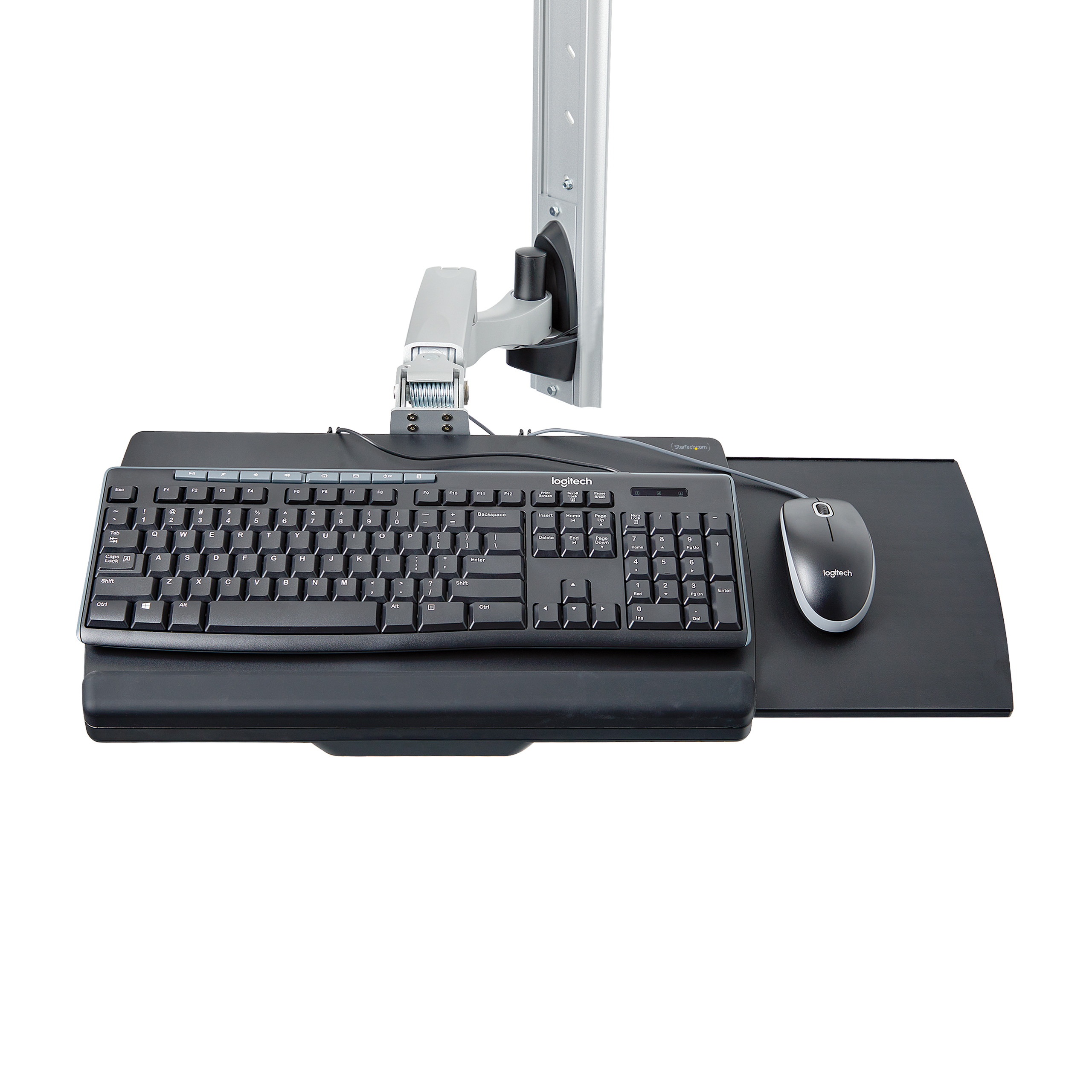

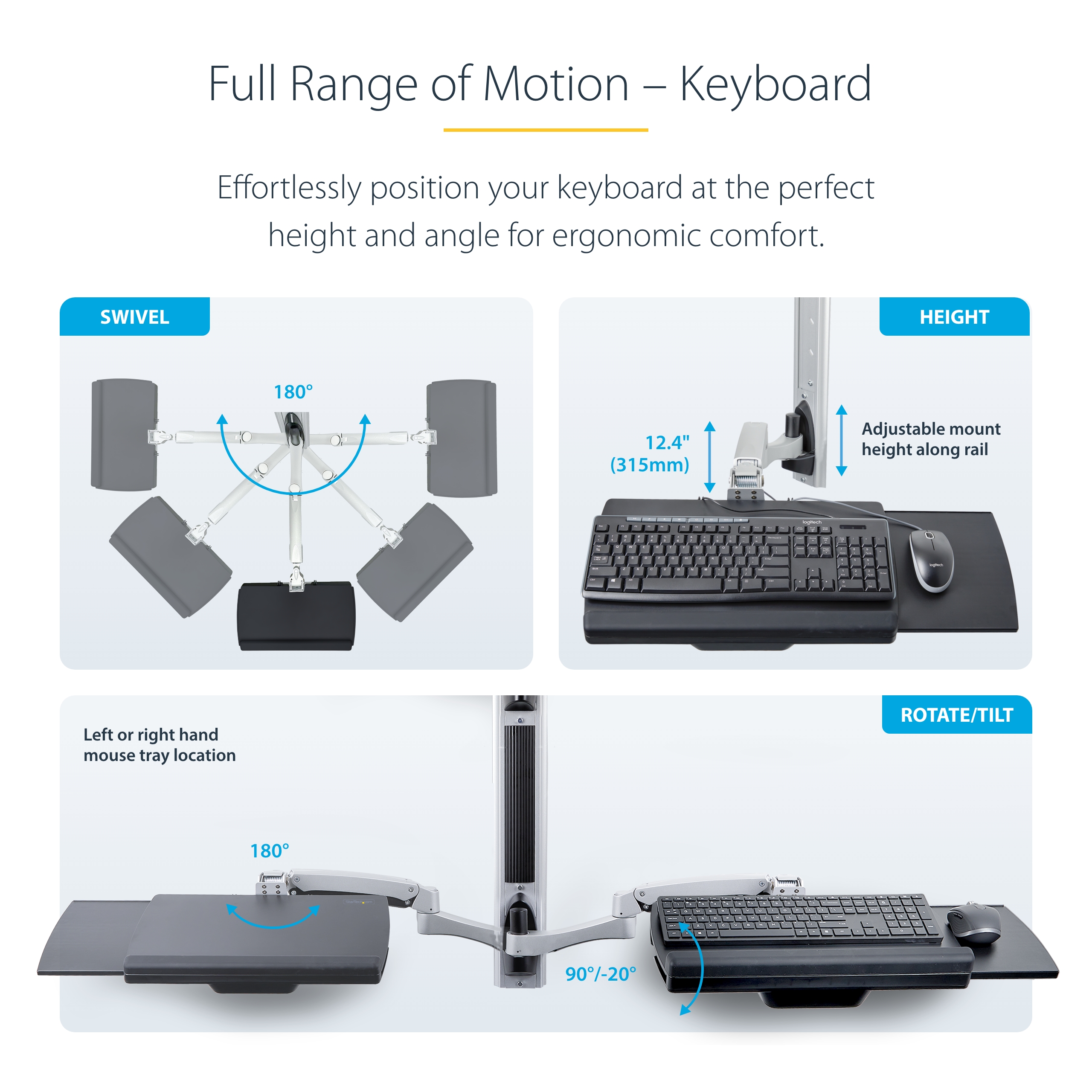

- 1 - Keyboard Tray Assembly
- 1 - Mouse Holder
- 1 - Mouse Holder Adhesive Pad
- 2 - Adhesive Hook And Loop Strips

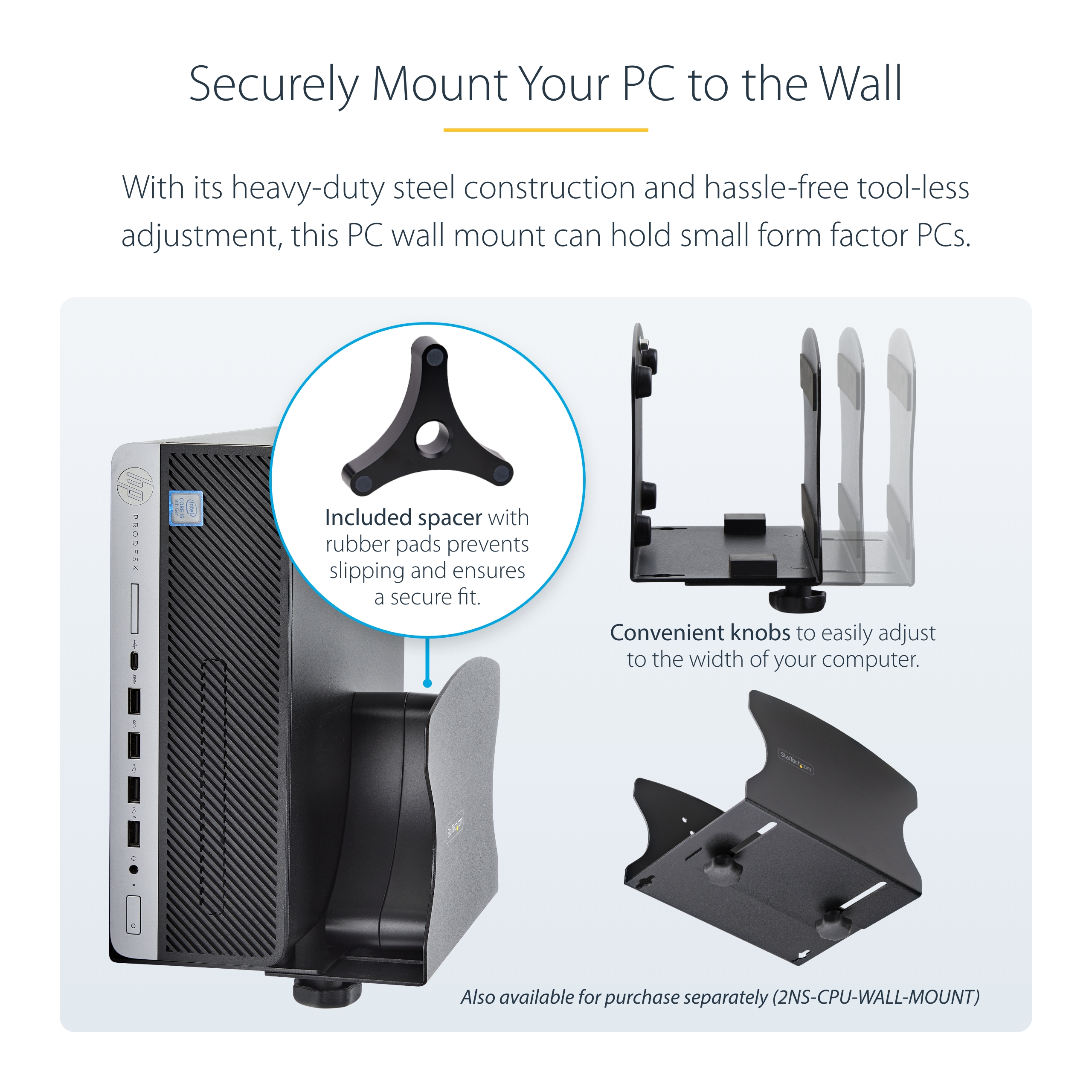

- 1 - Mounting Bracket, CPU Holder
- 1 - Sliding Bracket, CPU Holder
- 2 - Rubber Self-Adhesive Strips, CPU Holder
- 2 - Wall Mounting Screws, CPU Holder
- 2 - Plastic Spacers, CPU Holder
- 8 - Rubber Self-Adhesive Spacers, CPU Holder
- 4 - Rubber Self-Adhesive Pads, CPU Holder
- 2 - Concrete Wall Anchors, CPU Holder
- 2 - Hand Knobs, CPU Holder
- 2 - 2.5mm Hex Key
- 2 - 5mm Hex Key
- 4 - M4 x 10mm Screws
- 4 - M4 x 6mm Screws, Hex Key
- 8 - M6 x 8mm Screws
- 2 - Swivel Arm Mounts
- 4 - M6 x 18mm Screws
- 12 - Concrete Anchors
- 6 - Wall Mounting Lag Screws
- 6 - M5 x 4mm Set Screws
- 1 - 10mm Wrench
- 1 - Spring Arm, Keyboard Tray
- 8 - Wall Mounting Screws
- 2 - M4x6mm Screws, Phillips
- 1 - Product Documentation
Included In Package for Label - 1 - Cpu Holder Assembly

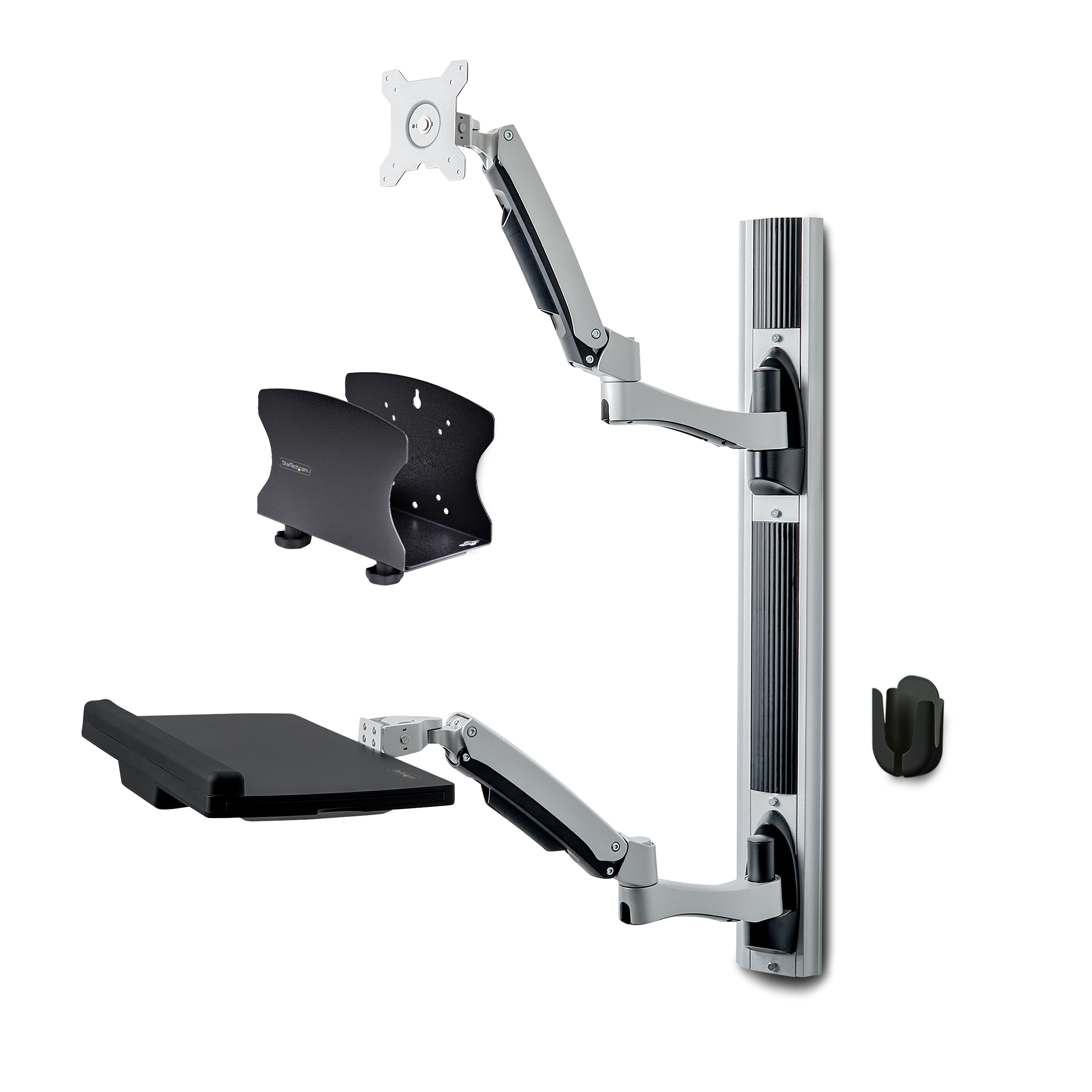

- 1 - Wall Mount Workstation Assembly
- 1 - Product Documentation
Package Depth (mm) 965 Package Height (mm) 170 Package Width (mm) 508 Package Quantity 1 Package Weight (g) 14970 Packaging Description Wall Mount Sit-Stand Workstation - Single Monitor Packaging Description India Wall Mount Sit-Stand Workstation - Single Monitor Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 A+ Not Required Actual Inbox Documents Created Manual in the box Amazon Merchandising Manager Kristian Haighton Application Photos Uploaded Artwork Due Date 2023-05-01 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Comparable SKU Comment Wall-mounted Sit-stand Desk with Independent Monitor and Key Comparable SKU 2 Comment Wall-mount Sit-stand - Single Monitor Digital Content Due Date 2023-11-17 Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,MX,NL,SE,UK,US Product Development Specialist Anthony Slater Product Information Creation Specialist (PICS) Alex Garcia Product Manager Tony Parackal Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2023-03-03 Target Production Release 2023-07-14 Tech Lead Justin Weaver Technical Writer Alex Garcia Technology Lifecycle Mainstream Vending Machine Not Compatible with Vending Machine Video Not Required
