2PORT-HDMI-SWITCH-8K
8K 60Hz HDMI 2-to-1 Switch
Switch between two HDMI video sources on a single display, with support for up to 8K 60Hz resolutions
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 8K 60Hz HDMI 2-to-1 Switch Product Number 2PORT-HDMI-SWITCH-8K UPC 065030898782 Lifecycle status Active Warranty 2 Years Taxonomy Product > KVMs, Switches & Splitters > Video Switches & Splitters Category Level 1 Video Display Connectivity Category Level 2 Video Switchers Category Level 3 HDMI Switchers – 8K HDR10 Family HDMI Switchers - 8K HDR10 Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX062X Product Title (Ultra-Short) 8K HDMI Switch Product Title (Short) 2-Port 8K HDMI Switch, HDMI 2.1 Switcher Product Title (Medium) 2-Port 8K HDMI Switch, 2 In 1 Out HDMI 2.1 Switcher, HDR10+, 8K 60Hz/4K 120Hz Product Title (Standard) 2-Port 8K HDMI Switch, HDMI 2.1 Switcher 4K 120Hz/8K 60Hz UHD, HDR10+, HDMI Switch 2 In 1 Out, Auto/Manual Source Switching Product Title (Long) 2-Port 8K HDMI Switch, HDMI 2.1 Switcher 4K 120Hz HDR10+, 8K 60Hz UHD, HDMI Switch 2 In 1 Out, Auto/Manual Source Switching, Power Adapter and Remote Included Product Title (AMZ) 2-Port 8K HDMI Switch, HDMI 2.1 Switcher 4K 120Hz/8K 60Hz UHD, HDR10+, HDMI Switch 2 In 1 Out, Auto/Manual Source Switching, Power Adapter and Remote Included (2PORT-HDMI-SWITCH-8K) Title Ingram (Part 1) 2-Port 8K HDMI Switch - Title Ingram (Part 2) 8K 60Hz HDMI 2.1 Auto Switcher Website Product Headline Switch between two HDMI video sources on a single display, with support for up to 8K 60Hz resolutions Bullet 1 2-PORT 8K HDMI SWITCH: Connect two HDMI sources to a single HDMI display with support up to 8K 60Hz or 4K 144Hz/120Hz; HDR10+; Supports Dolby TrueHD/Atmos, DTS-HD Master Audio/DTS:X for high quality audio Bullet 2 SWITCHING MODES: 8K HDMI Switcher supports automatic and manual switching; Auto mode automatically switches to the latest active source connection; Manually switch using the push button or the included remote control (batteries not incl.) Bullet 3 HDMI 2.1 COMPATIBLE: 8K Video Switch supports HDMI variable refresh rate, auto low-latency mode, CEC, 7.1-channel audio, and HDCP 2.3/2.2/1.4; Automatic Video Switch is backwards compatible with HDMI 2.0 devices and lower resolutions; 48Gbps Bandwidth Bullet 4 FLEXIBLE POWER OPTIONS: 2-in 1-out HDMI Switch is USB powered with an available 5V 1A USB port; If a USB port is unavailable, the 8K switch can also be powered with the included USB wall charger and 2.5ft (78cm) USB Micro-B power cable Bullet 5 THOUGHTFUL DESIGN: Durable metal housing, included wall mount brackets, and rubber feet make this HDMI 2.1 Switch ideal for many installation environments; LEDs for checking port status and included IR remote for switching; No drivers or software required Bullets (Compact) 2-port 8K HDMI 2.1 Switch connects 2x HDMI sources to an HDMI display of up to 8K 60Hz/4K 120Hz with HDR10+ - Automatic or manual switching - Mounting kit/rubber feet, power adapter and remote control incl. (batteries not incl.) - Metal housing Bullets (Consolidated) 2-port 8K HDMI 2.1 Switch connects 2x HDMI sources to an HDMI display up to 8K 60Hz/4K 144Hz/120Hz; Supports HDR10+/Dolby TrueHD/Atmos/DTS-HD/DTS:X - Automatic switching detects the latest active source; Manually switch using the push button/included remote control (batteries not incl.) - USB-powered with a 5V 1A USB port or the incl. wall charger and 2.5ft (78cm) USB Micro-B cable - Included mounting brackets/rubber feet; Metal housing; LEDs for port status/mode selection/IR functionality Marketing Copy Marketing Copy (No HTML) Applications - Use in digital signage applications to display multiple 8K 60Hz source devices at different times

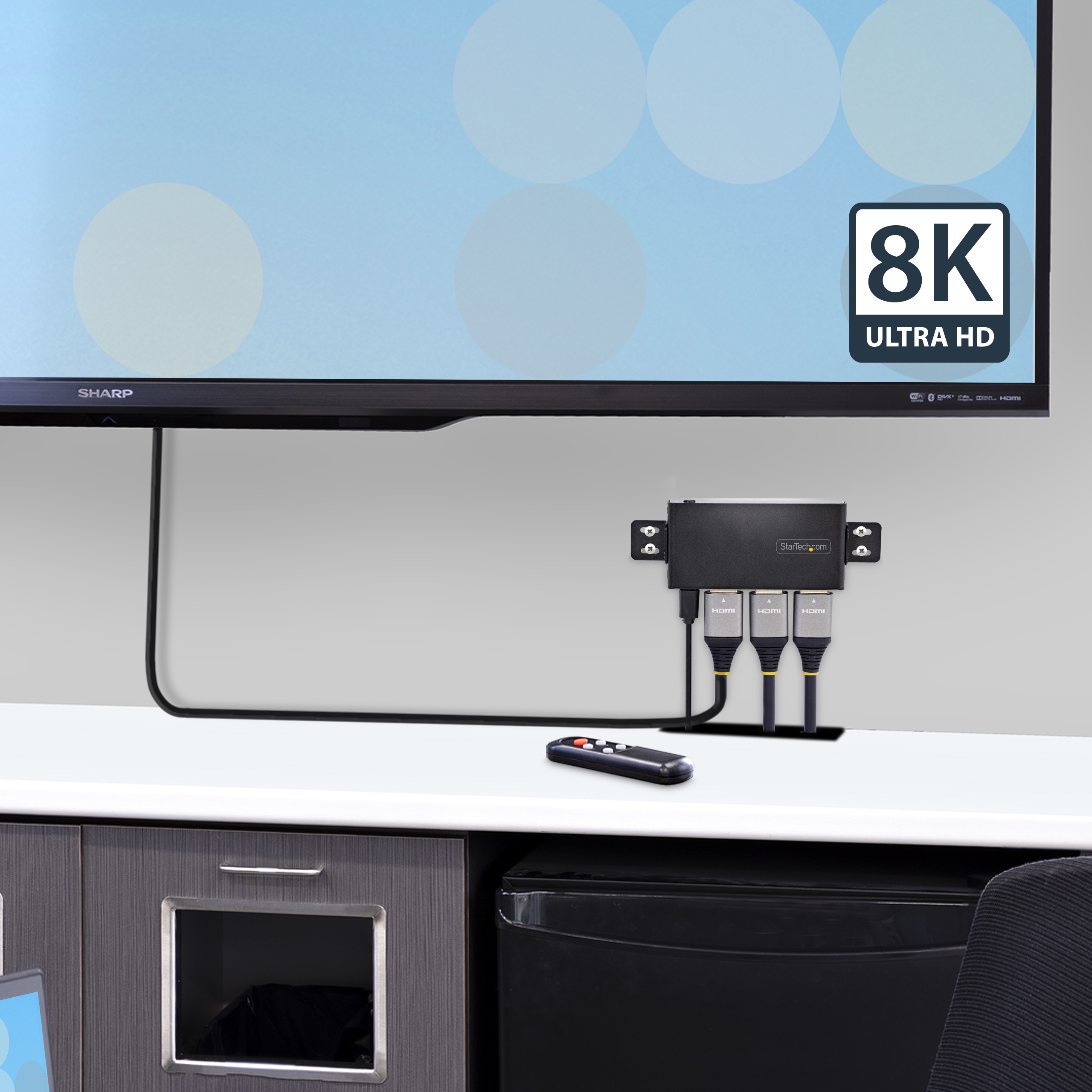

- Ideal for a presentation room setting, enabling users to plug in and automatically switch to the new device
- Connect more source devices to an HDMI display
Website Search Keyword - 8k hdmi 2.1 switch
- 8K HDMI Switch
- HDMI 2.1 switch
- HDMI 2.1 switch 4K 120Hz HDR
- HDMI 2.1 switcher
- hdmi 8k switch
- HDMI switch 120Hz
- HDMI Switch 2 in 1 out
- HDMI switch 2.1
- HDMI switch 4k 120Hz
- hdmi switch 8k
Required Regulatory Compliance Marks - RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - Safety - Electrical - European Union - Low Voltage Directive (LVD) 2014/35/EU
- UL - Safety - Electrical - Canada / United States - Enhanced UL Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Special Notes HDMI 2.1a cables are required for full functionality Accessory Products - HDMM21V1M
- HDMM21V2M
- HDMM21V3M
- HDMM21V4M
- HDMM21V5M
- FPWHANGER

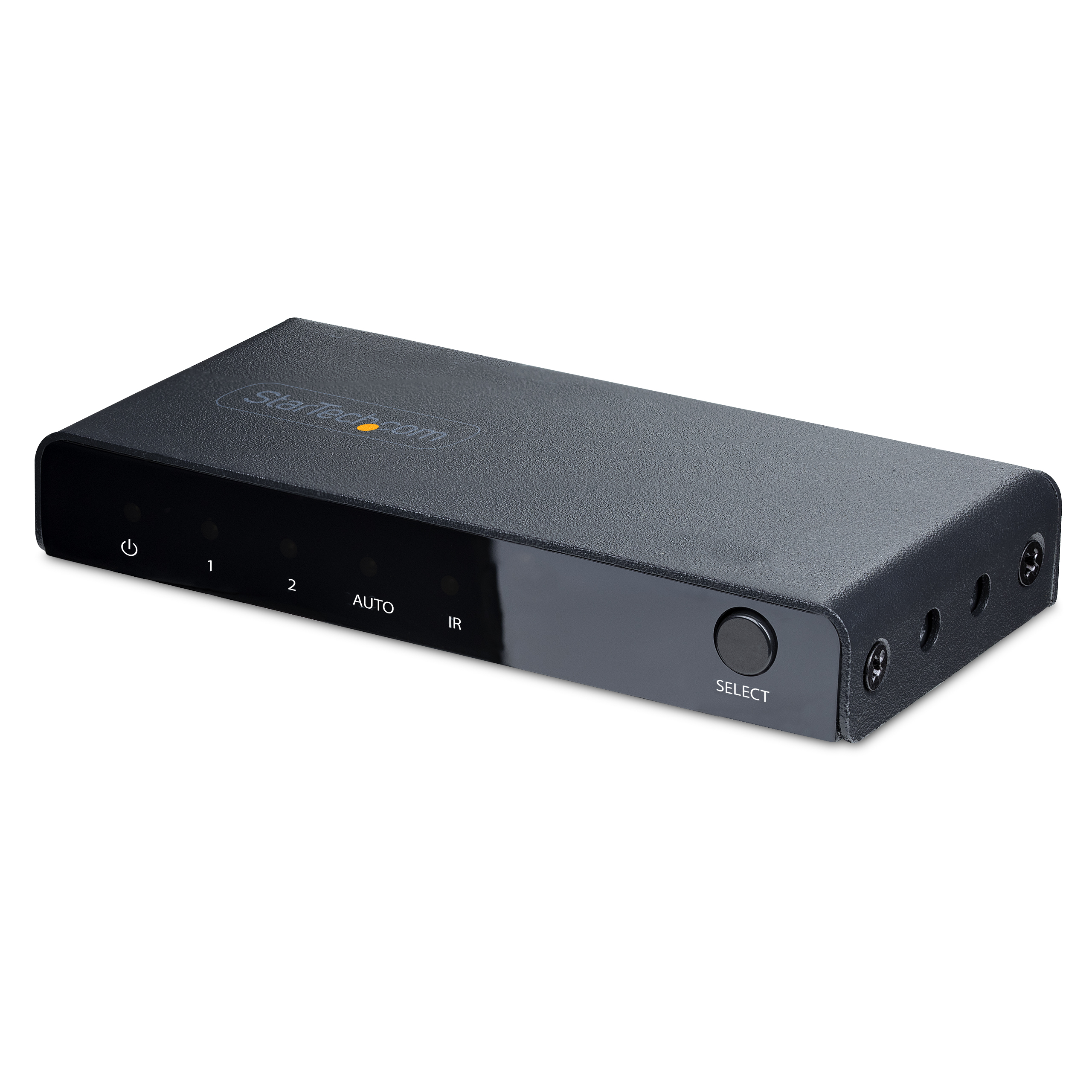

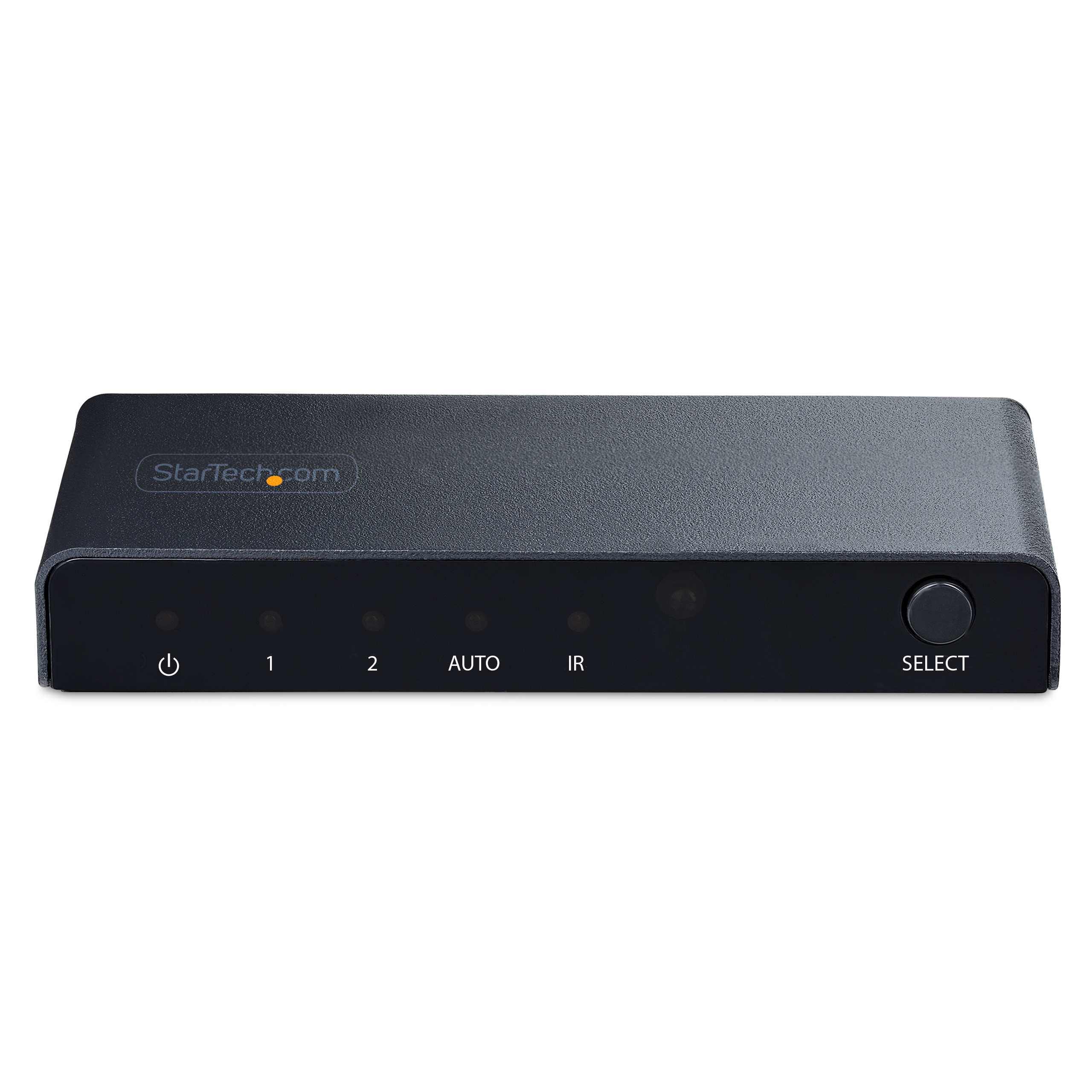

Related Products 4PORT-8K-HDMI-SWITCH Input Current 0.3A Input Voltage 100 - 240 AC Output Current 1A Output Voltage (V) 5V DC Power Consumption (In Watts) 5W Power Source AC Adapter Included Color Black Humidity 5~90% RH (non-condensing) Material Metal Operating Temperature 0°C to 70°C (32°F to 158°F) Product Length (mm) 90.000 Product Width (mm) 44.000 Product Height (mm) 14.000 Product Weight (g) 87.000 Storage Temperature -10°C to 80°C (14°F to 176°F) TAA Compliant No Audio Specifications HDMI - 7.1 Channel Audio Maximum Cable Distance To Display 5000 OS Compatibility OS Independent Supported Resolutions Wide Screen Supported Yes Audio Yes AV Input HDMI AV Output HDMI LED Indicators - 1 - Power
- 2 - Port Selection
- 1 - Automatic Switching Indicator
- 1 - IR Mode Indicator

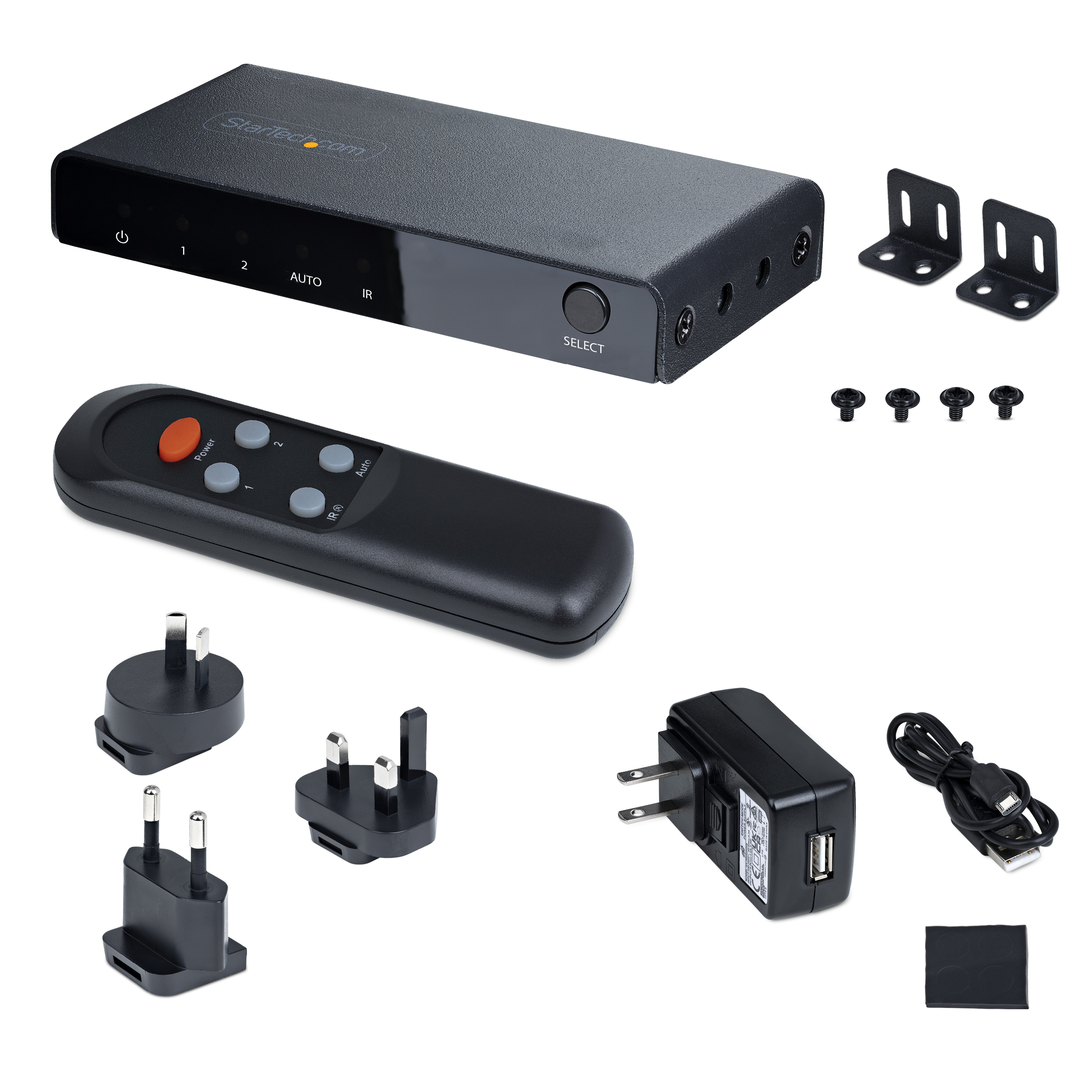

Matrix Video Switch (Filter) No Carton Depth (mm) 397 Carton Height (mm) 469 Carton Quantity 40 Carton Weight Gross (g) 14346 Included in Package - 1 - HDMI Video Switch
- 1 - Remote Control (Batteries Not Included)
- 1 - USB Wall Charger
- 1 - USB Micro-B Power Cable
- 1 - Quick-Start Guide
- 1 - Mounting Kit
- 4 - Rubber Feet

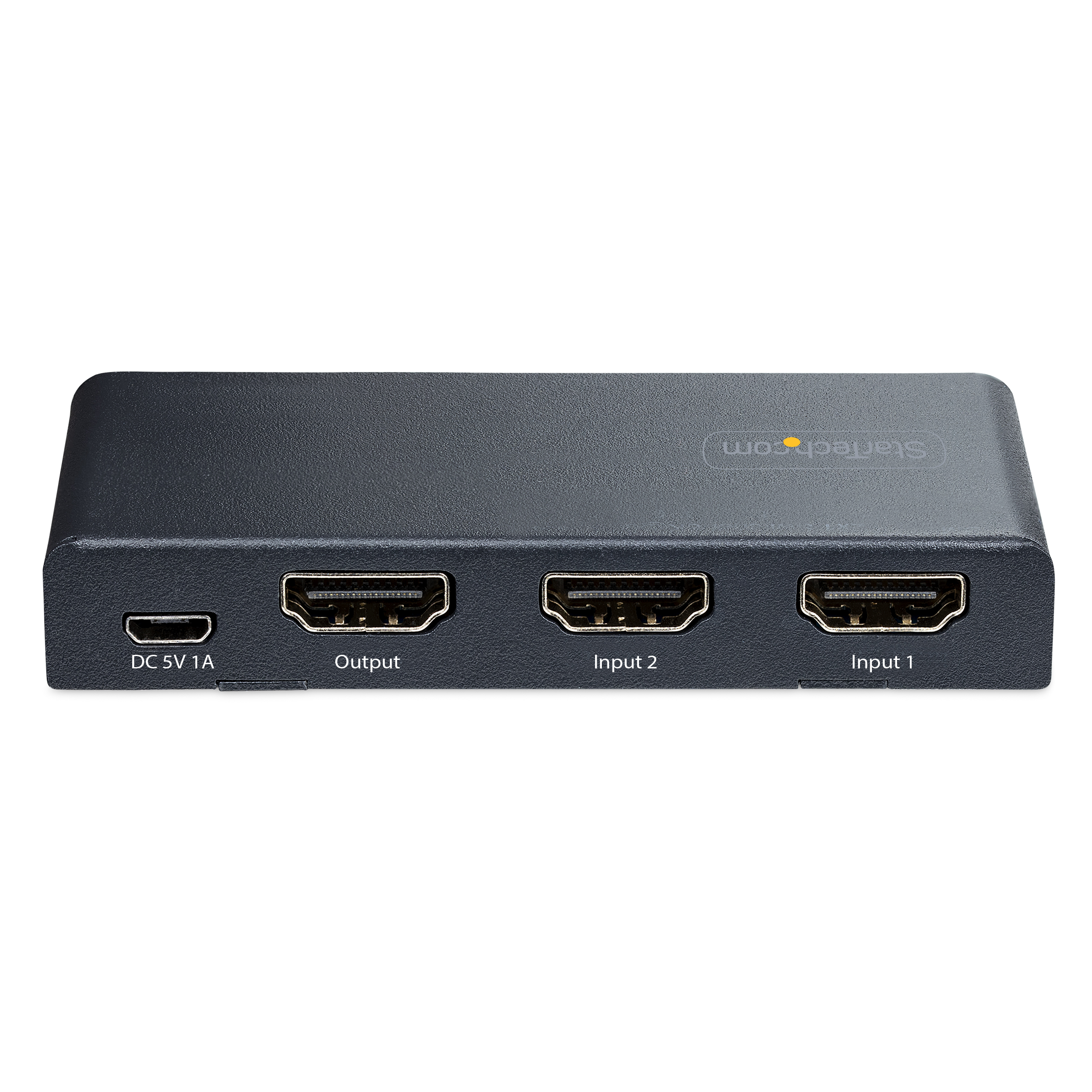

Package Depth (mm) 181 Package Height (mm) 50 Package Width (mm) 125 Package Quantity 1 Package Weight (g) 332 Packaging Description 2-Port HDMI Video Switch - 8K 60Hz - USB-Powered Packaging Description India 2-Port HDMI Video Switch - 8K 60Hz - USB-Powered Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 2 Connector 2 USB Micro-B (2.5W Power Only) Connector 2 (Quantity) 1 Connector 3 HDMI Connector 3 (Quantity) 1 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kathleen Marshall Application Photos Uploaded Artwork Due Date 2022-07-30 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Comparable SKU Comment 2-Port HDMI Switch - 4K 60Hz, with manual and IR remote access only Comparable SKU 2 Comment 2-Port HDMI Automatic Video Switch - 4K with Fast Switching, and RS232 remote access Digital Content Due Date 2022-11-11 Enhanced Gallery Required Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) BE,CA,DE,ES,FR,IT,NL,SE,UK,US Primary Technology HDMI 2.1 / 8K 60Hz + Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2022-06-28 Target Production Release 2022-08-15 Tech Lead Justin Weaver Technical Writer Dan Dagenais Technology Lifecycle None Video Not Required
