2TBT3-PCIE-ENCLOSURE

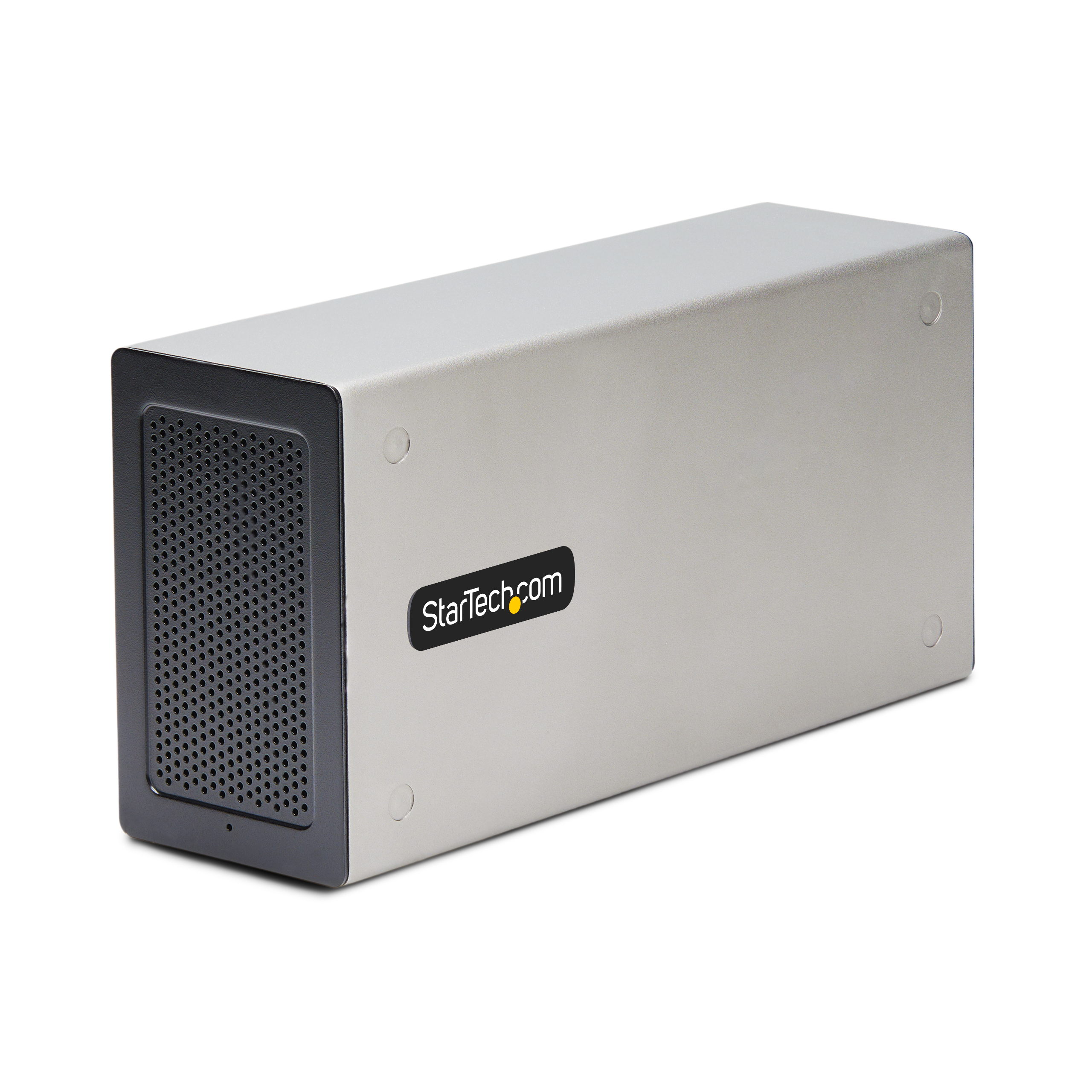

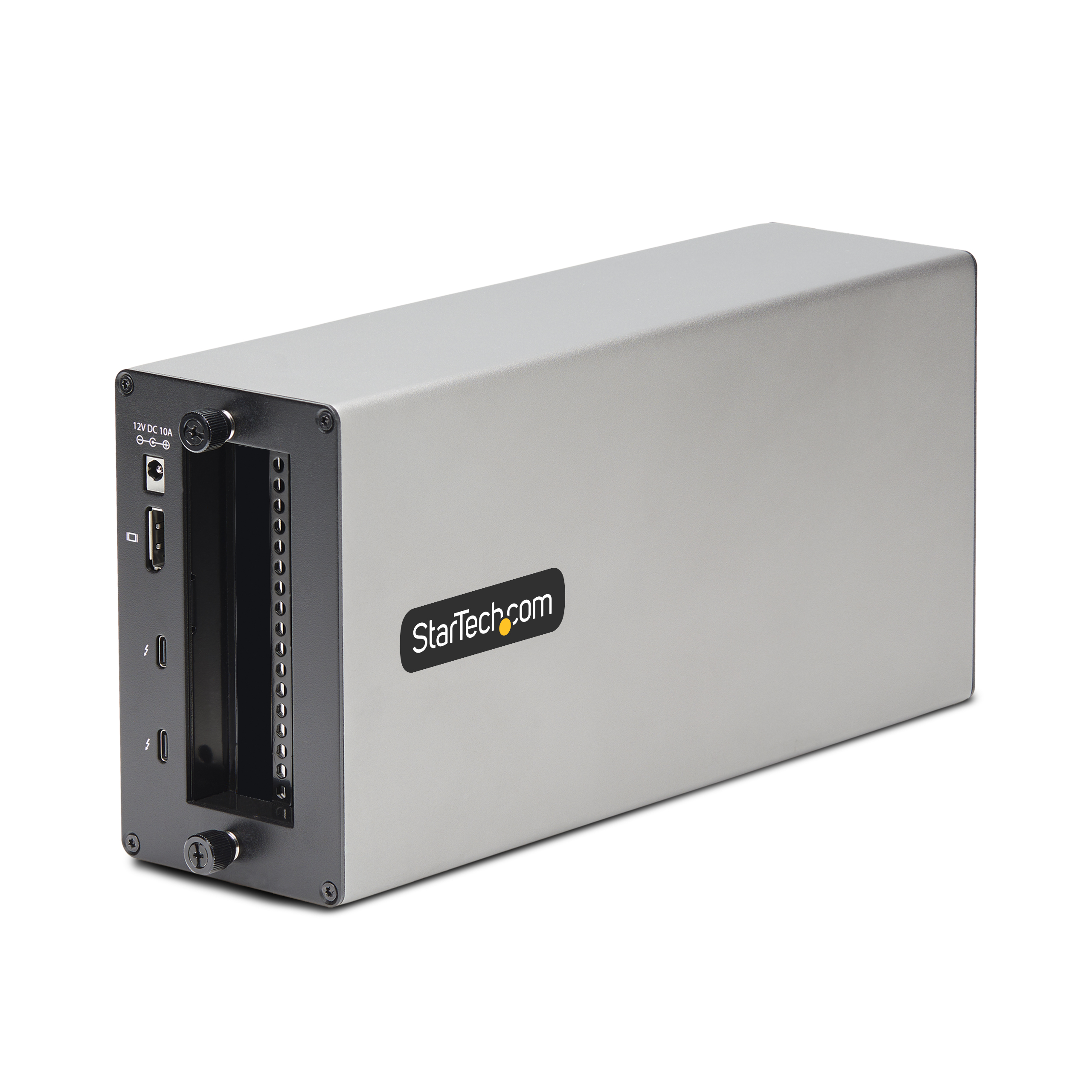

Thunderbolt 3 to 2x PCIe x16 expansion chassis

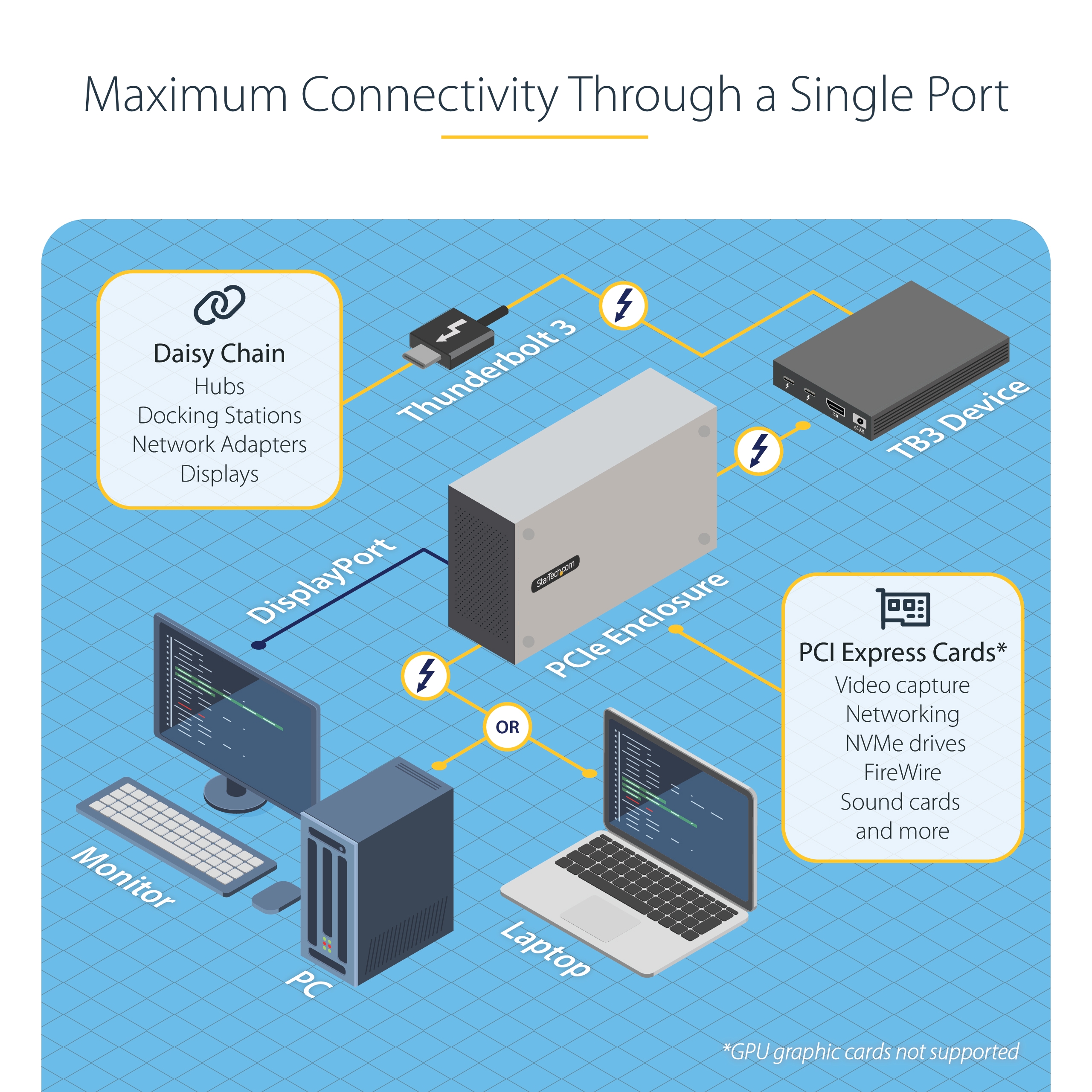

Add dual external PCIe (PCI Express 3.0) slots, Thunderbolt 3 ports, and a DisplayPort connection to a Thunderbolt 3 equipped system.
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Product Name Thunderbolt 3 to 2x PCIe x16 expansion chassis Product Number 2TBT3-PCIE-ENCLOSURE UPC 065030895002 Lifecycle status Active Warranty 2 Years Weighted Opportunity 290154 Taxonomy Product > Cards & Adapters > Expansion Chassis Category Level 1 Computer Cards and Adapters Category Level 2 Components, Tools and Accessories Category Level 3 Expansion Slot Conversion and Extension Family Thunderbolt Expansion Chassis Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Product Title (Ultra-Short) TB3 to External PCIe Product Title (Short) Thunderbolt 3 PCIe Enclosure Box Product Title (Medium) Thunderbolt 3 PCIe Expansion Chassis, Enclosure Box W/Dual External PCIe Slots Product Title (Standard) Thunderbolt 3 PCIe Expansion Chassis, Enclosure Box w/Dual PCI-E Slots, External PCIe Slots, 8K/4K Output Via TB3/DP 1.4, TAA Product Title (Long) Thunderbolt 3 PCIe Expansion Chassis, External Enclosure W/Dual PCI Express Slots, PCIe Box for Laptops/Desktops, 8K/4K Output Via TB3/DP 1.4 Ports, For Video Capture/Fiber/Ethernet Cards - TAA Product Title (AMZ) Thunderbolt 3 PCIe Expansion Chassis, External Enclosure W/Dual PCI Express Slots, PCIe Box for Laptops/Desktops/All-In-Ones, 8K/4K Output Via TB3/DP 1.4 , TAA (2TBT3-PCIE-ENCLOSURE) Title Ingram (Part 1) Thunderbolt 3 PCIe Chassis, Title Ingram (Part 2) Dual External PCI-E Box/Enclosure Website Product Headline Add dual external PCIe (PCI Express 3.0) slots, Thunderbolt 3 ports, and a DisplayPort connection to a Thunderbolt 3 equipped system. Bullet 1 THUNDERBOLT 3 PCIE EXPANSION CHASSIS: Add PCI Express support to a Thunderbolt 3/4 capable laptop/desktop computer; Dual external PCIe 3.0 x16 slots; 32Gbps of combined bandwidth (up to 21.6Gbps/2700MBps per slot); 3.3ft (1m) Thunderbolt cable included Bullet 2 EXPANDABILITY FOR LAPTOPS: Integrate video capture cards, high-speed fiber/Ethernet connectivity, NVMe drives, FireWire cards, and more to unlock the potential of a notebook using this Thunderbolt 3 to PCIe chassis; Toolless design; Aluminum construction Bullet 3 8K & 4K DISPLAY SUPPORT: Connect a display through the external PCIe enclosure; The DP 1.4 port and TB3 ports support video outputs up to 8K/5K 60Hz or dual 4K 60Hz (other video resolutions are also supported); PCIe box does not support GPU graphic cards Bullet 4 ROBUST POWER: The chassis delivers 25W per PCIe slot and features dual internal 12V 15W SATA power ports for up to 40W per card; 12V 10A (120W) universal power adapter is included and is compatible with NA/JP, UK, EU, and ANZ regions Bullet 5 COMPATIBILITY: Use single-width cards up to 8in (20.3cm) long; Built-in fan for active cooling; Daisy chain compatible with multiple TB3/4 devices; The chassis is driverless and is compatible with macOS, Windows; TAA-compliant Bullets (Compact) Thunderbolt 3 PCIe expansion chassis for Thunderbolt 3/4 laptops - External enclosure w/ dual PCI-E 3.0 Slots (up to 21.6Gbps per slot) - For video capture/Fiber/Ethernet cards - Toolless design and aluminum construction - 8K/4K via DP 1.4/TB3 ports Bullets (Consolidated) - Thunderbolt 3 PCIe expansion chassis for Thunderbolt 3/4 laptops/desktops; Dual external PCIe 3.0 x16 slots (each slot supports up to 2700MBps/21.6Gbps) - Enclosure for video capture/Fiber/Ethernet/Firewire that are single-width up to 8in long; 3.3ft (1m) Thunderbolt 3 cable included - Add a 2nd display via DP 1.4 and TB3 ports; Supports 8K/4K - Chassis delivers 25W per card; Dual internal 12V (15W) SATA power ports - PCI Express box is daisy chain compatible; Driverless; MacOS and Windows Marketing Copy Marketing Copy (No HTML) Website Search Keyword - expansion chassis for pcie cards
- external pcie slot for desktop
- external pcie slot for laptop
- pci express expansion chassis
- thunderbolt 3 external pcie enclosure
- thunderbolt 3 pcie enclosure
- thunderbolt 3 pcie expansion box
- Thunderbolt 3 PCIe expansion chassis
- thunderbolt 3 to pcie x16 adapter
- apple
- apple M3
- M3 Pro
- M3 Max
- Apple M3 Pro
- Apple M3 Max
Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + foam tray/divider
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Paper
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
Special Notes - This product does not support graphics cards (GPUs).

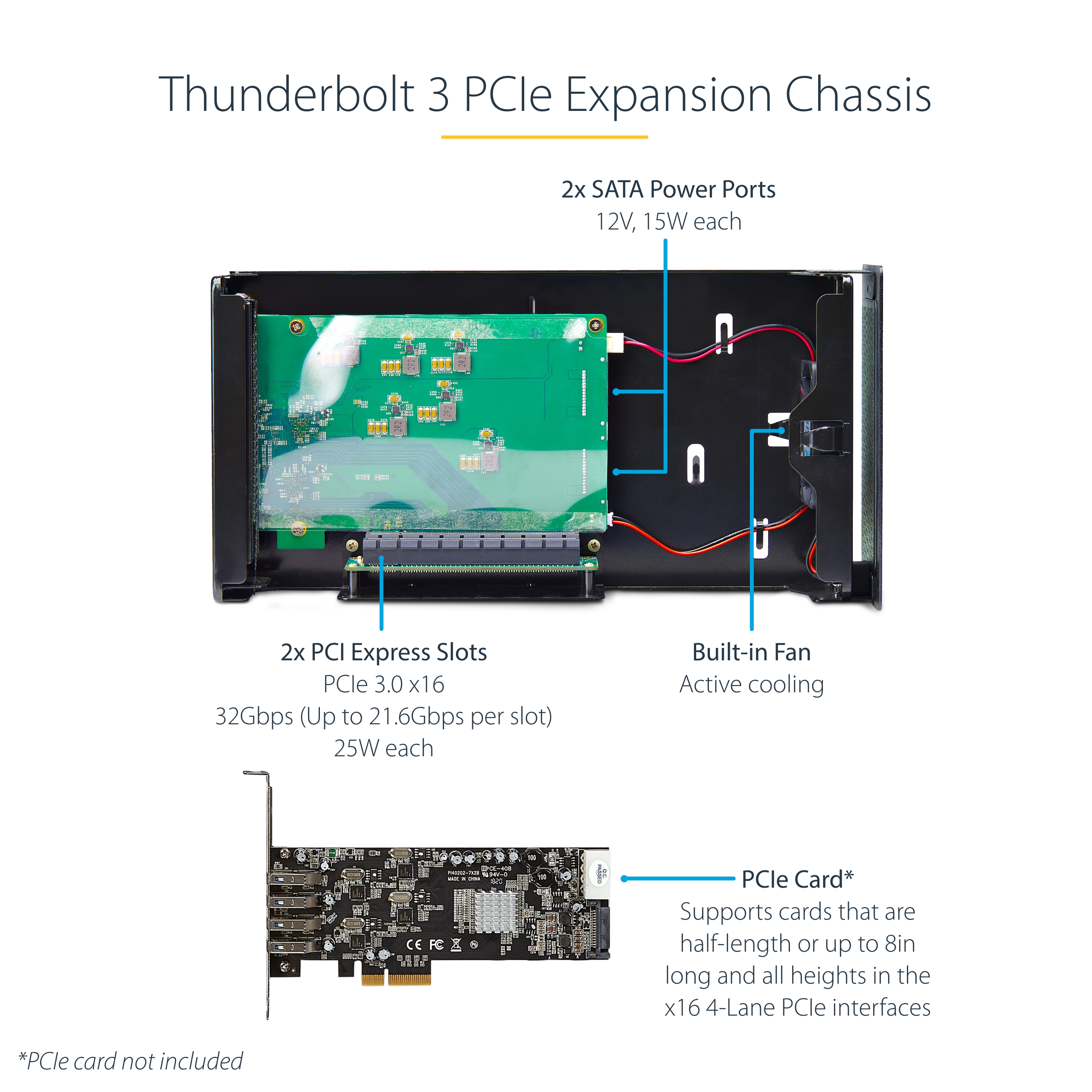

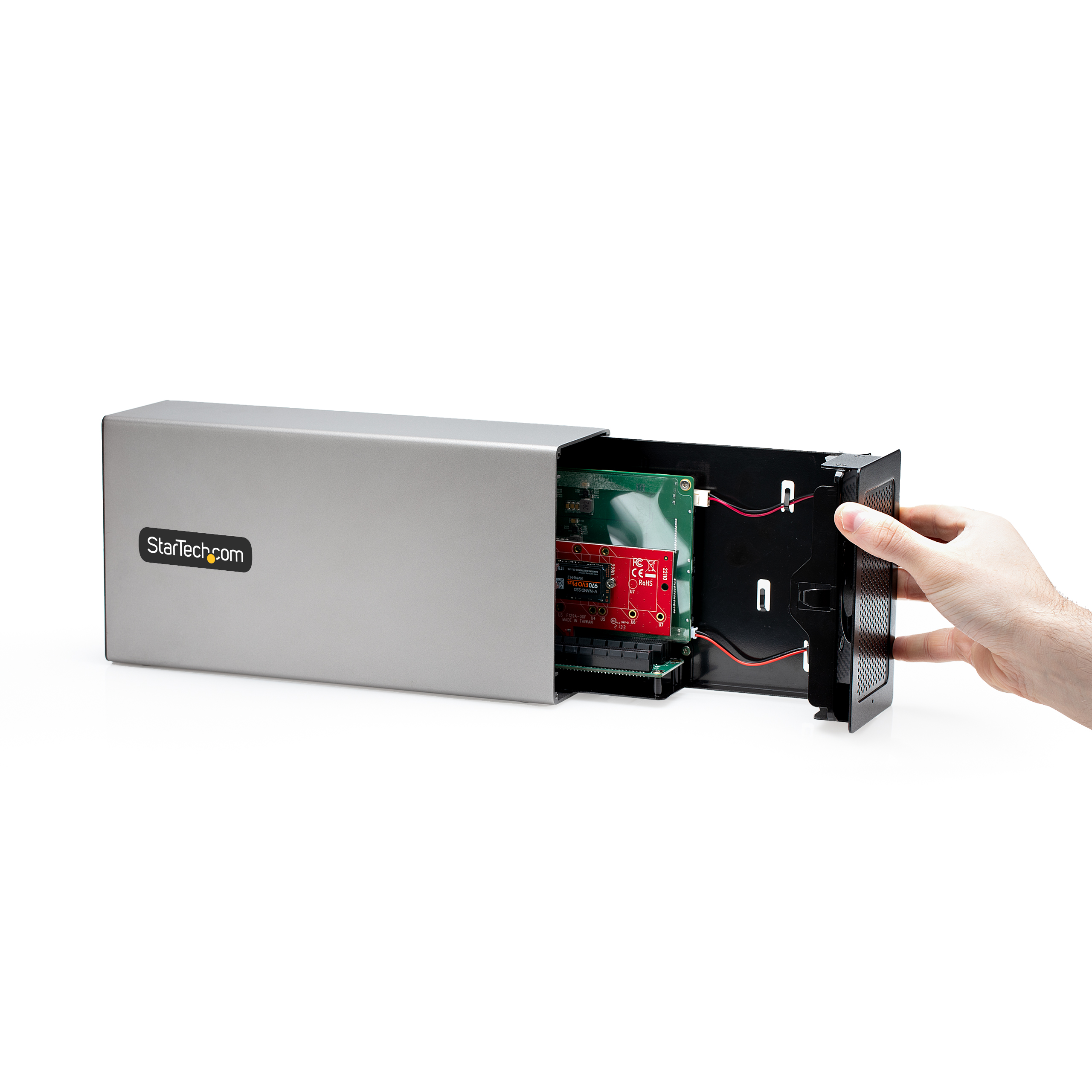

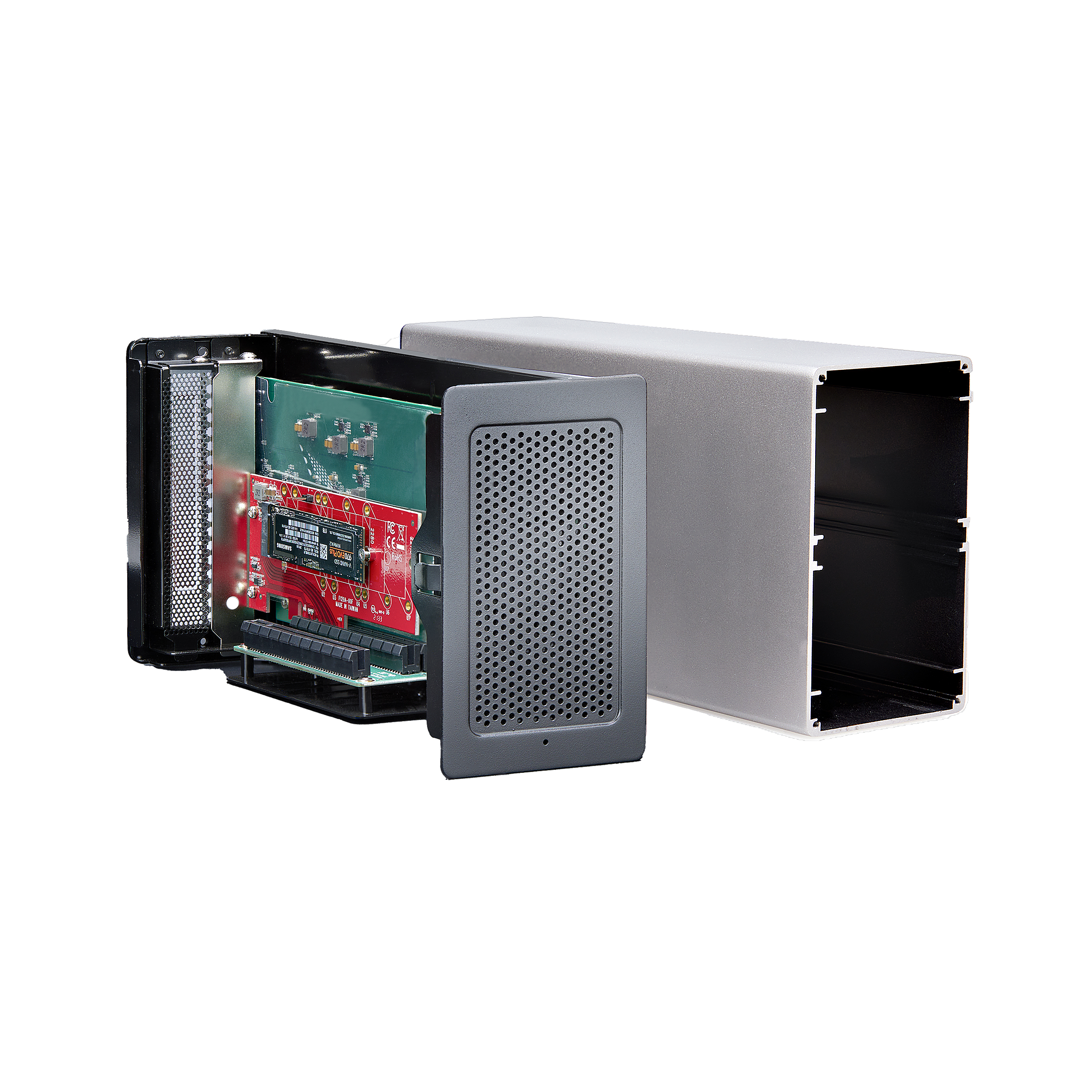

- The PCIe Expansion Chassis supports up to two PCIe 3.0 cards using x16 mechanical slots. However, the slots are in x4 mode.
- Requires a Thunderbolt 3 or 4 host computer with Windows (7 and up) and macOS (10.12 and up) operating systems that is also Thunderbolt certified to ensure device and OS interoperability.

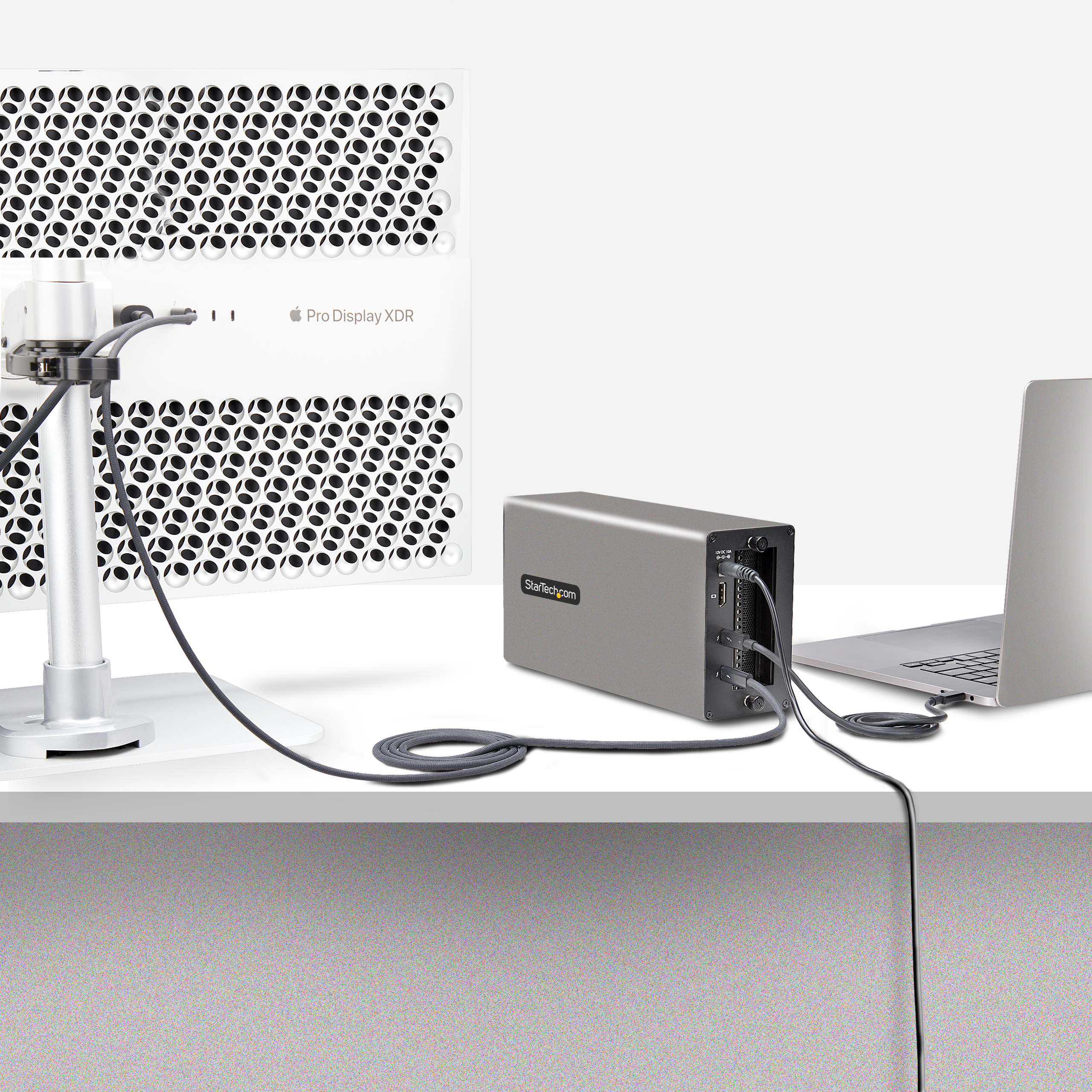

- When using DisplayPort and a 8K monitor a video adapter from DisplayPort to HDMI is needed.
- The available bandwidth per slot is 21.6Gbps. When two PCIe cards are installed, up to 32Gbps of dynamic bandwidth are available for the cards to use.
Accessory Products - PEX10000SRI
- PEXUSB312A2C2V
- PEXUSB314A2V2
- PEXUSB312C3
- PEX4M2E1
- PEX1394B3
- PEX10GSFP4I
- PEXHDCAP4K
- ST2GPEX
Related Products - PEX2PCIE4L
- 4PCIE-PCIE-ENCLOSURE
- TB31PCIEX16
Input Current 3A Input Voltage 100 - 240 AC Output Current 10A Output Voltage (V) 12V DC Power Consumption (In Watts) 120 Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Color Black Humidity 20 to 80% Material Aluminum Operating Temperature 5 to 65°C (41 to 149°F) Primary Material Aluminum Product Length (mm) 84.000 Product Width (mm) 281.000 Product Height (mm) 142.000 Product Weight (g) 1630.000 Storage Temperature -20 to 65°C (-4 to 149°F) TAA Compliant Yes Bandwidth 3.94 GB/s (x4 PCIe 3.0 ) Maximum Cable Length (mm) 1000 Maximum Data Transfer Rate 40 Gbps (Thunderbolt 3) Maximum Supported Resolution 8K 60Hz (DSC) OS Compatibility - Windows 11
- Windows 10
- Windows 8
- Windows 7
- macOS Ventura (13.0)
- macOS Monterey (12.0)
- macOS Big Sur (11.0)
- macOS Catalina (10.15)
- macOS Mojave (10.14)
- macOS High Sierra (10.13)
- macOS Sierra (10.12)
- Windows 8.1
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)

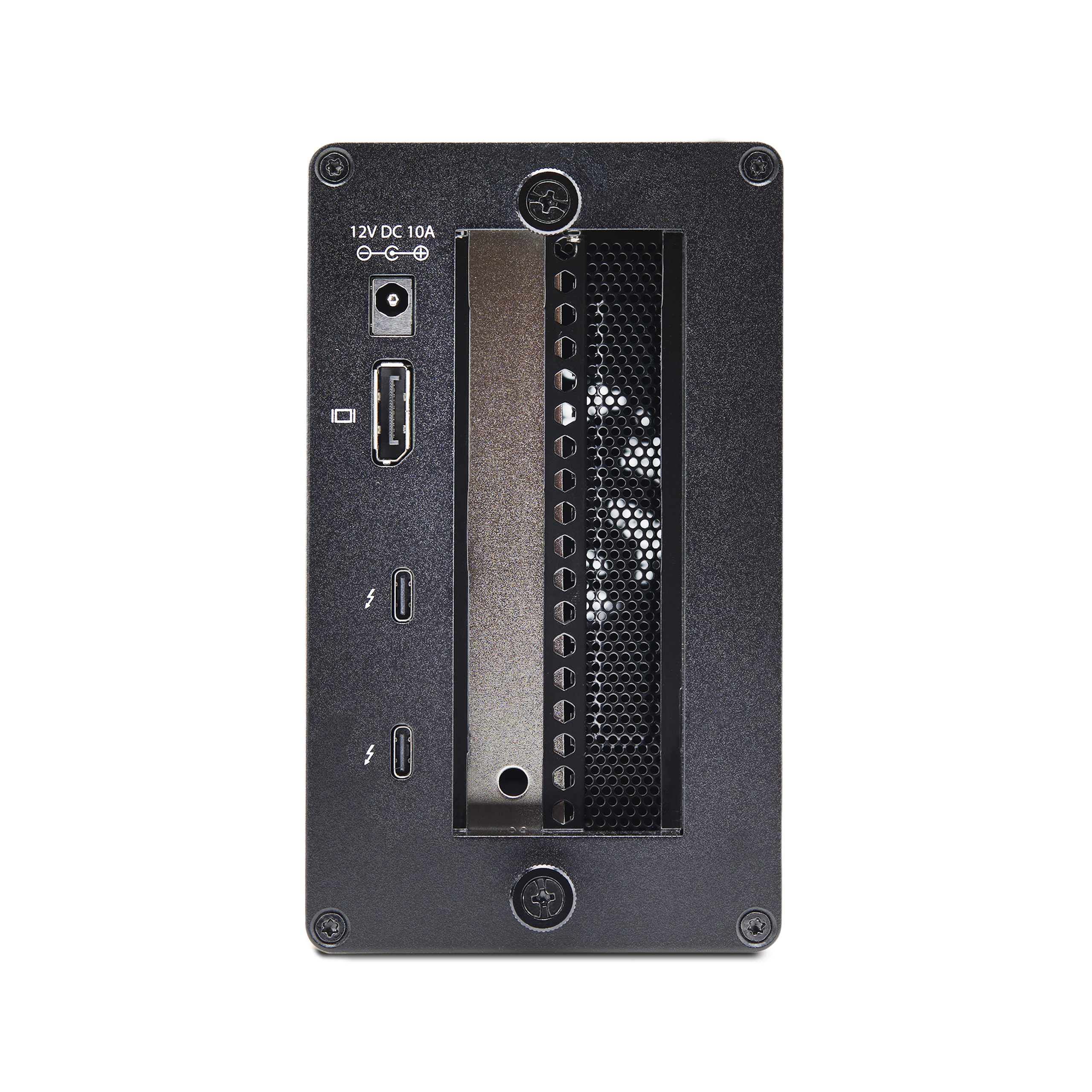

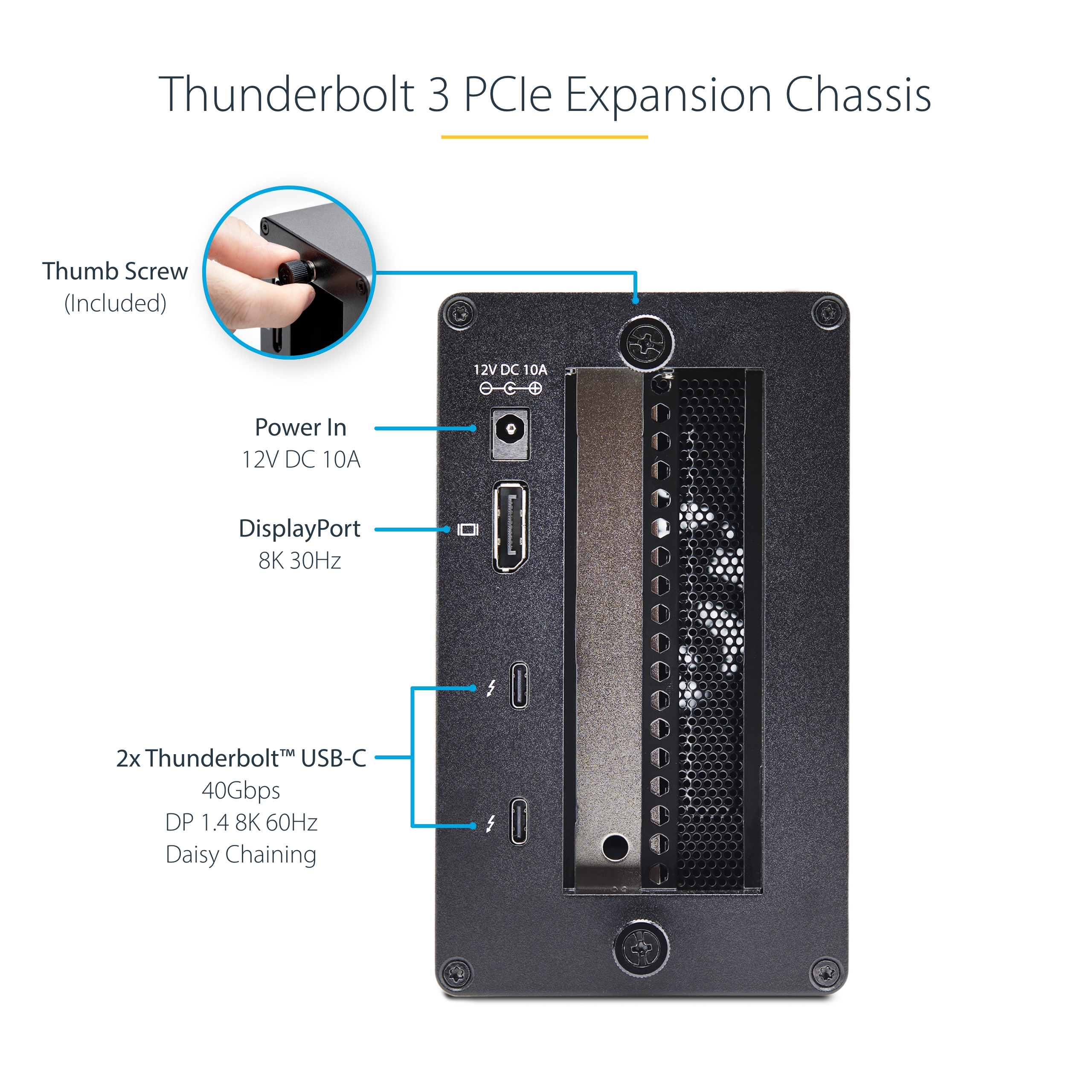

Total Available Power Output (In Watts) 120W USB Type and Rate Thunderbolt 3 (40Gbps) Video Output Port - DisplayPort
- Thunderbolt
Bus Type PCI Express Chipset ID - Titan Ridge DSL7440 (x2)
- Ti TPS65983B (x2)
Fans 1 - 60 mm Fans Included? Yes/No Yes Industry Standards - Thunderbolt 3
- DisplayPort 1.4
- PCI Express 3.0

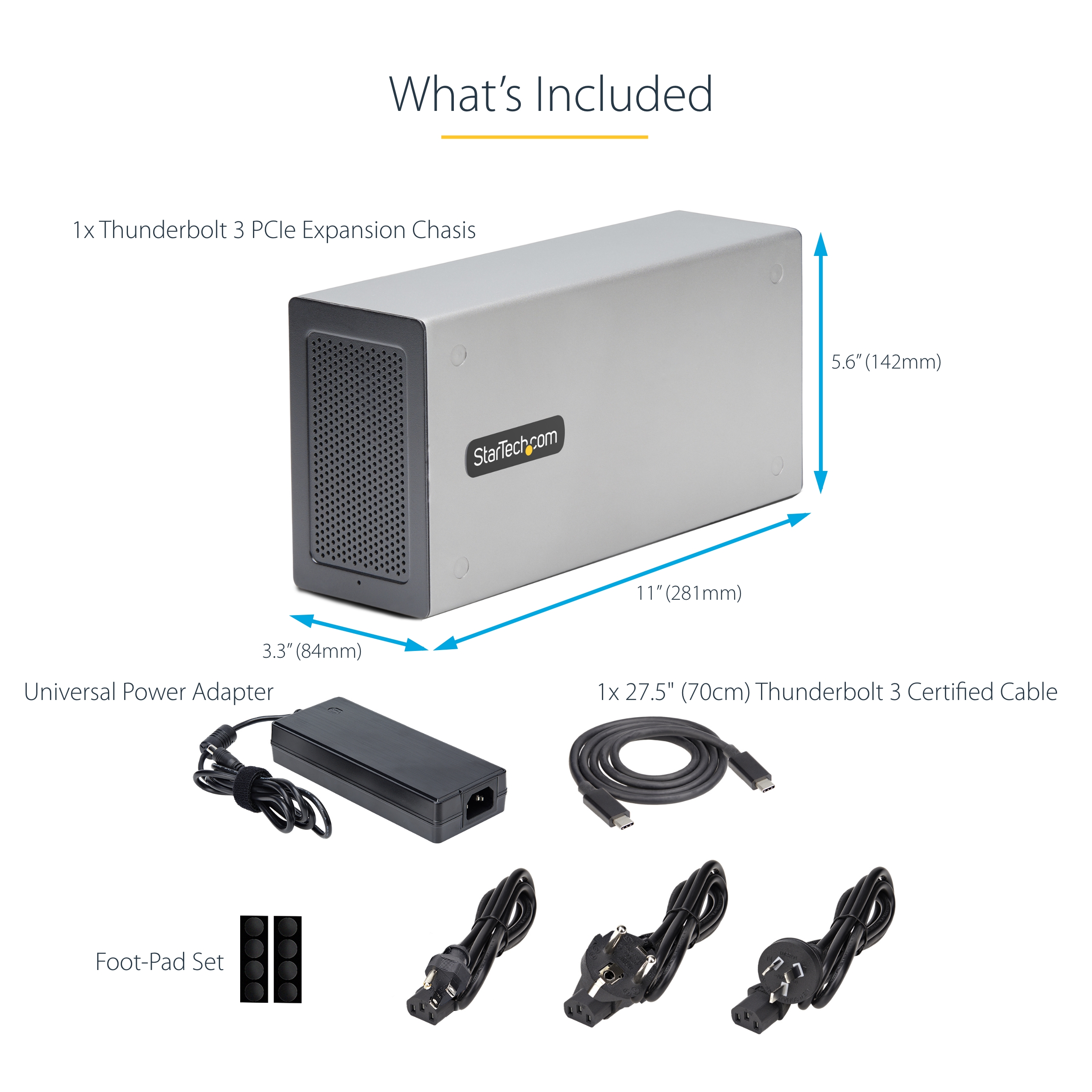

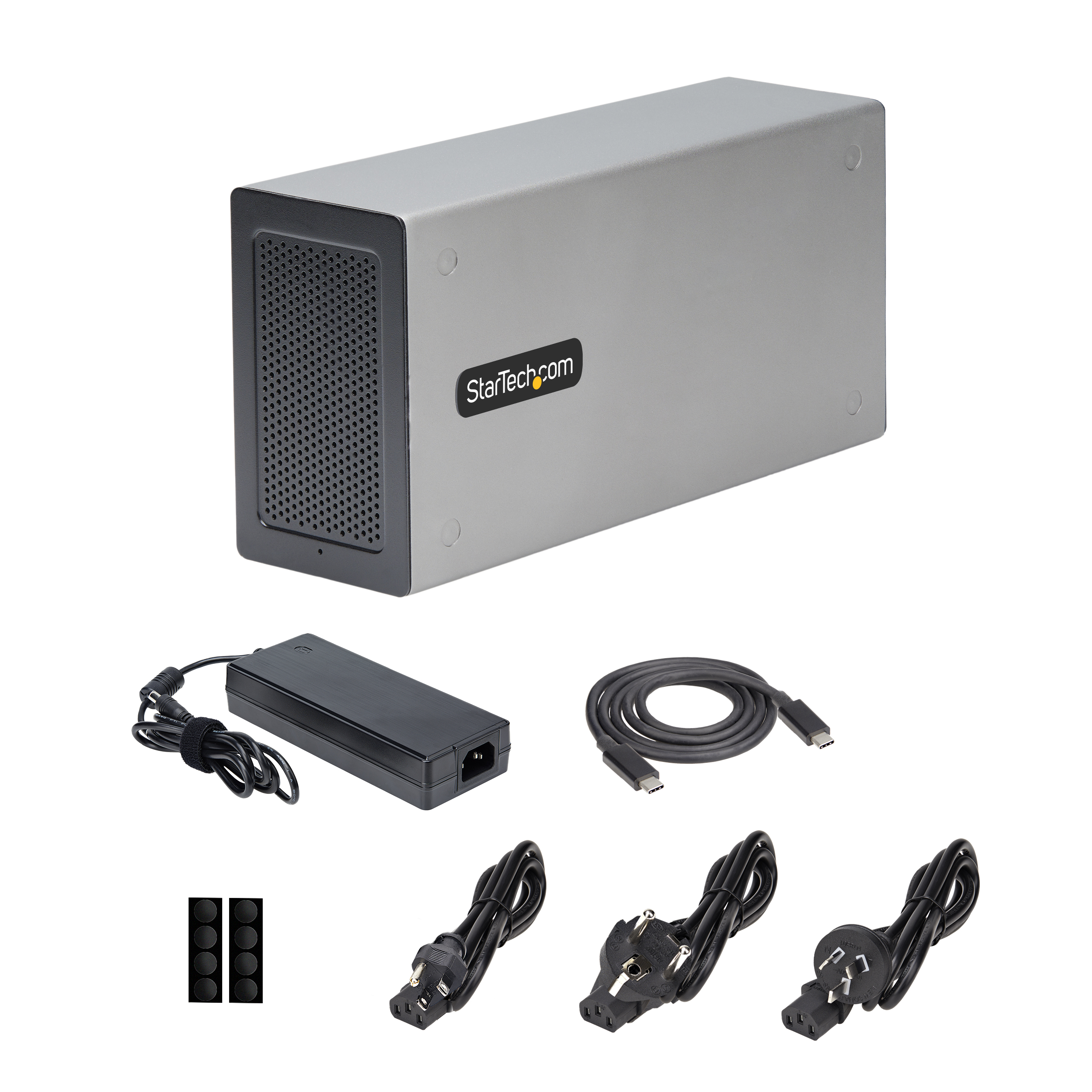

Interface/Bridge Thunderbolt IO Card Port Style External Hub LED Indicators 1 - Solid Blue: Receiving Power </br> Off: No Power Number of Displays 1 Carton Depth (mm) 459 Carton Height (mm) 334 Carton Quantity 3 Carton Weight Gross (g) 11398 Included in Package - 1 - TB3 PCIe Expansion Chassis
- 1 - 3.3ft [1m] Thunderbolt Host Cable
- 1 - Power Adapter
- 1 - Quick-Start Guide
- 1 - Foot-Pad Set
Package Depth (mm) 292 Package Height (mm) 146 Package Width (mm) 362 Package Quantity 1 Package Weight (g) 3528 Packaging Description Thunderbolt 3 Dual PCIe 3.0 Expansion Chassis - 8K 60Hz DisplayPort Packaging Description India Thunderbolt 3 Dual PCIe 3.0 Expansion Chassis - 8K 60Hz DisplayPort Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-C (Thunderbolt 40Gbps) Connector 1 (Quantity) 2 Connector 2 DisplayPort Connector 2 (Quantity) 1 Connector 3 PCI Express x16 Connector 3 (Quantity) 2 Connector 4 SATA (15-Pin) Connector 4 (Quantity) 2 A+ Uploaded Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Veronica Ye Application Photos Uploaded Artwork Due Date 2023-05-01 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Comparable SKU Comment Thunderbolt 3 to Single PCIe slot expansion chassis Comparable SKU 2 Comment PCIe to two PCI/PCIe expansion chassis Digital Content Due Date 2023-09-05 Enhanced Gallery Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,HK,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology Thunderbolt 3 Product Development Specialist Alex Sikora Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2023-03-22 Target Production Release 2023-05-15 Tech Lead Brian Linseman Technical Writer Alex Garcia Technology Lifecycle None Vending Machine Not Compatible with Vending Machine Video Uploaded
