303NA-TB5-HUB
Thunderbolt 5 Hub - 3xTB5, 3x8K, 1xUSB-A, 140W PD
Thunderbolt™ 5 hub with three TB5 downstream ports for triple 8K video, 140W charging, USB-A, and Thunderbolt™ Share
Main Image
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Video Link YouTube
Product Name Thunderbolt 5 Hub - 3xTB5, 3x8K, 1xUSB-A, 140W PD Product Number 303NA-TB5-HUB UPC 065030925716 Lifecycle status Pending Taxonomy Product > Docks, Hubs & Video Adapters > Docking Stations & Multiports Category Level 1 Hubs Category Level 2 Thunderbolt Hubs & Adapters Category Level 3 Thunderbolt 5 Hubs Family Thunderbolt 5 Hubs Country of Origin Europe & Japan Thailand Country of Origin North America Thailand Country of Origin History (1) Thailand Country of Origin Revision (1) XXXXXX167X Product Title (Ultra-Short) 4-Port TB5 Hub Product Title (Short) 4-Port TB5 Hub w/ Thunderbolt Share KVM Product Title (Medium) 4-Port TB5 Hub with Thunderbolt™ Share KVM, 80/120Gbps, 8K 60Hz or 4K 144Hz Product Title (Standard) 4-Port Thunderbolt™ 5 Hub with Thunderbolt™ Share KVM, 80 / 120Gbps, 8K Multi-Display, 140W PD, USB-A 10Gbps, TB4 & USB4 Product Title (Long) 4-Port Thunderbolt™ 5 Hub with Thunderbolt™ Share KVM, 80/120Gbps, 8K 60Hz or 4K 144Hz, 140W PD, USB-A 10Gbps, TB4 & USB4, MacBook M5 Pro M5 Max Product Title (AMZ) 4-Port Thunderbolt™ 5 Hub with Thunderbolt™ Share KVM, 80 / 120Gbps, 8K 60Hz or 4K 144Hz, 140W PD, USB-A 10Gbps, TB4 & USB4, MacBook M5 Pro M5 Max Title Ingram (Part 1) 4-Port Thunderbolt™ 5 Hub - Title Ingram (Part 2) with Thunderbolt™ Share KVM Website Product Headline Thunderbolt™ 5 hub with three TB5 downstream ports for triple 8K video, 140W charging, USB-A, and Thunderbolt™ Share Bullet 1 Bullet 2 Bullet 3 Bullet 4 Bullet 5 Bullets (Compact) Included Thunderbolt™ Share software enables two PCs to share one keyboard, mouse, and display over a single Thunderbolt cable - Features file transfer shared control and PC migration (Windows only) - Supports Thunderbolt and USB4 NVMe storage Bullets (Consolidated) Included Thunderbolt™ Share software enables two PCs to share one keyboard mouse and display over a single Thunderbolt cable - Features file transfer shared control and PC migration (Windows only) - Supports Thunderbolt and USB4 NVMe storage with lightning-fast throughput of 6200MBps - Three Thunderbolt™ 5 ports plus USB-A 10Gbps downstream unlock multiple 8K or 6K displays high-speed SSDs network adapters daisy-chained TBT devices and USB-C devices up to 80Gbps - Up to 140W laptop charging Marketing Copy Marketing Copy (No HTML) Website Search Keyword - Thunderbolt 5 hub
- USB4 V2
- Thunderbolt Share
Required Marketing Compliance Marks - FSC - Environmental - Global - FSC Mix Packaging (Global 7 Languages)
- Thunderbolt - Specification - Global - Thunderbolt 5
- Thunderbolt - Specification - Global - Thunderbolt Share
Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
Special Notes - This product is not supported on Thunderbolt 3 host devices.
- It is recommended that all connected monitors are of the same make and model.
System and Cable Requirements Thunderbolt 3 (TB3) is not supported (other than on TB3-based Apple M1/M2/M3 Standard chipsets). M1, M2, and M3 Standard chipsets will work with a single display, while M4/M5 Standard and M1/M2/M3/M4 Pro/Max chipsets will work with dual displays. When connected to a MacBook, the dock's Thunderbolt 5 (USB-C DFP) port supports up to HDMI 2.0b (4K 60 Hz) when using an HDMI adapter. Achieving high refresh rates may require DSC (Display Stream Compression) support from both the monitor and the host GPU. The bit depth and color depth may be adjusted to enable higher refresh rates, and results may vary depending on OS updates. If monitor recognition issues occur, connect the monitor with the lowest refresh rate first, as high refresh rate monitors may consume all available bandwidth. For external display compatibility over a single Thunderbolt connection on different Windows systems, please consult the computer manufacturer's website. Accessory Products - TBLT5MM1M240W
- TBLT5MM80CM240W
- TBLT5MM50CM240W
- 135B-USBC-HDMI212M
- 112B-USBC-HDMI21
- 142-USBC-DP-8K-10F
- CDP2DP14B
- C22G-USB-ETHERNET
- 1USB4-NVME-ENCLOSURE
- USB4-10GBE-ETHERNET
Equivalent Part Number in the EU 303UE-TB5-HUB Equivalent Part Number in the UK 303UE-TB5-HUB Input Voltage 110V-240V AC Output Current 8.58A Output Voltage (V) 21V DC Power Consumption (In Watts) 180.18 Power Delivery 140W Power Source AC Adapter Included Plug Type CP (OD:7.4/ID:5.1/CPD:0.6) Center Tip Polarity Positive Cable Length (mm) 1 Color Space Gray Humidity 0% to 95% (non-condensing) Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Aluminum and Plastic Product Length (mm) 172.6 Product Width (mm) 77.5 Product Height (mm) 20 Product Weight (g) 451 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No Maximum Data Transfer Rate 80Gbps Maximum Digital Resolutions 7680 x 4320 (8K) 60 Hz OS Compatibility - Windows 11
- Windows 11 ARM
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
Supported Charging Outputs - USB-C (15W)
- BC 1.2 (1.5A)
UASP Support Yes USB Type and Rate - Thunderbolt 5 (80Gbps)
- USB4 (40Gbps)
- USB4 (80Gbps)
Bus Type - Thunderbolt 5
- Thunderbolt 4
- USB4 (40Gbps)
- USB4 (80Gbps)
Chipset ID - Intel - JHL9480
- Parade - FL5801
- Infineon - CYPM1322
- Infineon - CYPD8225
Compatible Lock Slot Kensington Standard Slot (K-Slot) Industry Standards - Thunderbolt 5
- USB 3.2 Gen 2 10Gbps
- USB Power Delivery 3.1

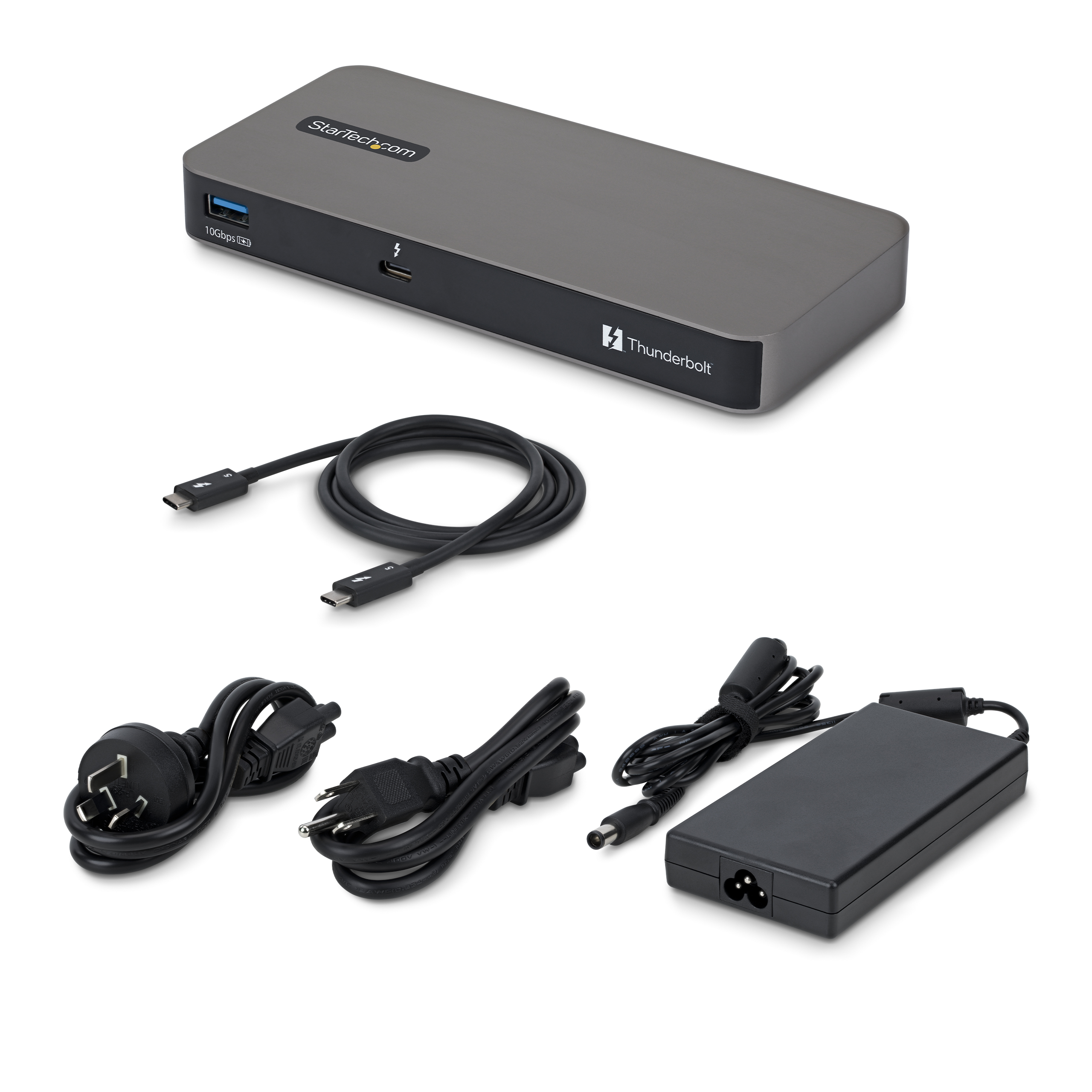

LED Indicators Carton Depth (mm) 380 Carton Height (mm) 285 Carton Quantity 8 Carton Weight Gross (g) 12080 Included in Package - 1 - Thunderbolt 5 Hub
- 1 - 1 - Universal Power Adapter (NA/JP, ANZ)
- 1 - 1m Thunderbolt 5 Host Cable
Package Depth (mm) 235 Package Height (mm) 99 Package Width (mm) 145 Package Weight (g) 1360 Packaging Description Thunderbolt™ 5 Hub - 3x TB5 - 1x USB-A 10Gbps - 140W PD - Thunderbolt™ Share Packaging Description India Thunderbolt™ 5 Hub - 3x TB5 - 1x USB-A 10Gbps - 140W PD - Thunderbolt™ Share Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-C (Thunderbolt 80Gbps) Connector 1 (Quantity) 3 Connector 2 USB-A (10Gbps, 7.5W) Connector 2 (Quantity) 1 Host Connector 1 USB-C (Thunderbolt 80Gbps) Host Connector 1 (Quantity) 1 A+ Required Actual Inbox Documents Created Compliance Insert Amazon Merchandising Manager Kristian Haighton Amazon Only SKU No Amazon Visual Content Level Platinum Application Photos Required Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Comparable SKU Comment External Thunderbolt 3 to USB Controller - 3 Dedicated USB Host Chips - 1 Each for 5Gbps USB-A Ports, 1 Shared Between 10Gbps USB-C & USB-A Ports - TB3 Daisy Chain - Self Power Comparable SKU 2 Comment N/A Digital Content Due Date 2026-03-24 Enhanced Gallery Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Brooke Taylor ID Label Silkscreened or a Label Sticker label - custom size - requires size population below Launch Markets (concatenated) AU,CA,JP,MX,NZ,US Primary Technology - Thunderbolt 5
- USB4 (40Gbps)
- Power Delivery
Priority New Product High Product Development Specialist Yipeng Zhang Product Information Creation Specialist (PICS) Maria Powell Product Manager Natalie Goodale Product Performance Specialist Ray Aoki Product Photographer Caleigh Le Grand Target Development Completion Date 2025-11-15 Target Production Release 2025-11-22 Tech Lead Justin Weaver Technical Writer Maria Powell Technology Lifecycle Mainstream Video Required
