Main Image
32PORT
Main Image

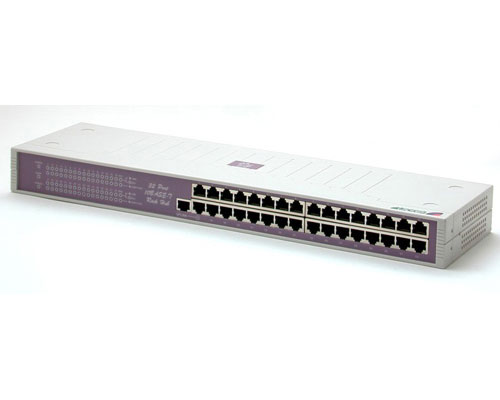

Product Name *D**Replaced by ES3132R* 32-port Unmanaged 10BaseT Hub Product Number 32PORT UPC 065030778039 Warranty 2 Years Taxonomy Product > Legacy Discontinued Product Title (Long) *D**Replaced by ES3132R* 32-port Unmanaged 10BaseT Hub Bullet 1 Complies with IEEE 802.3 10BaseT standards. Bullet 2 Simultaneous support connection of thirty-two 10BaseT segments, one 10Base2 segment, and one 10Base or 10BaseF segment. Bullet 3 Thirty-two RJ45 (UTP or STP) ports, one BNC port, one AUI port. Bullet 4 Port auto-partitioning and reconnection to facilitate faulty segment isolation. Bullet 5 Polarity auto-detection and auto-correction for UTP/STP ports. Marketing Copy The StarTech.com 32-port unmanaged 10BaseT hub is an IEEE 802.3 compliant, rack mountable, highly flexible network solution. Network connections can be made with UTP/STP, AUI, or BNC and faulty ports are automatically isolated with the auto partitioning/reconnection feature. Data collision and jabber handling functions help make the 32PORT a beneficial addition to any expanding network. Applications UTP/STP network connections, AUI network connections, BNC network connections TAA Compliant No General Specifications - UTP/STP Ports: (32) RJ-45 Shielded
- Uplink Ports: (1) RJ-45 Shielded
- BNC Ports: (1) BNC
- AUI Ports: (1) AUI (DB-15 connector) for transceiver
- LEDs: Link/Rx & Partition for each port, Collision, Jabber, Power
- Dimensions: 442x125x44mm (17.4x4.9x1.75 in.)
- Weight: 1250g (2.75 lb.)
- Power: Autoswitch AC 100~250V (50~60Hz)
Included in Package - 1 - 32 Port 10BaseT Rackmount Hub
- 1 - BNC T-Connector
- 1 - AC Power Cord
- 2 - Mounting Brackets
- 4 - Rubber Feet
- 1 - User's Manual
- 6 - M3x10mm screws for Mounting Bracket
en-US Content Approved Yes
