33FT-8K-HDMI-BOOSTER

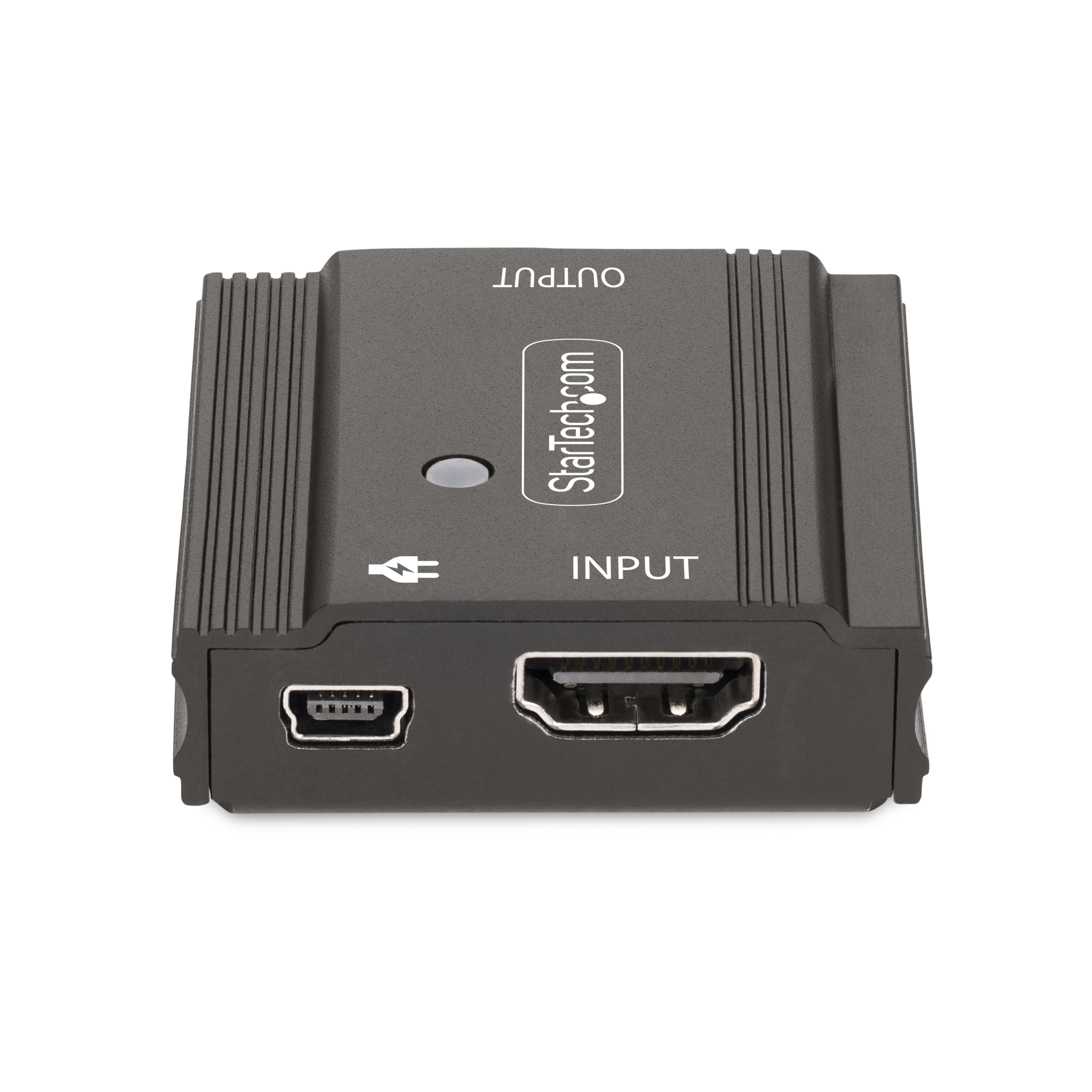

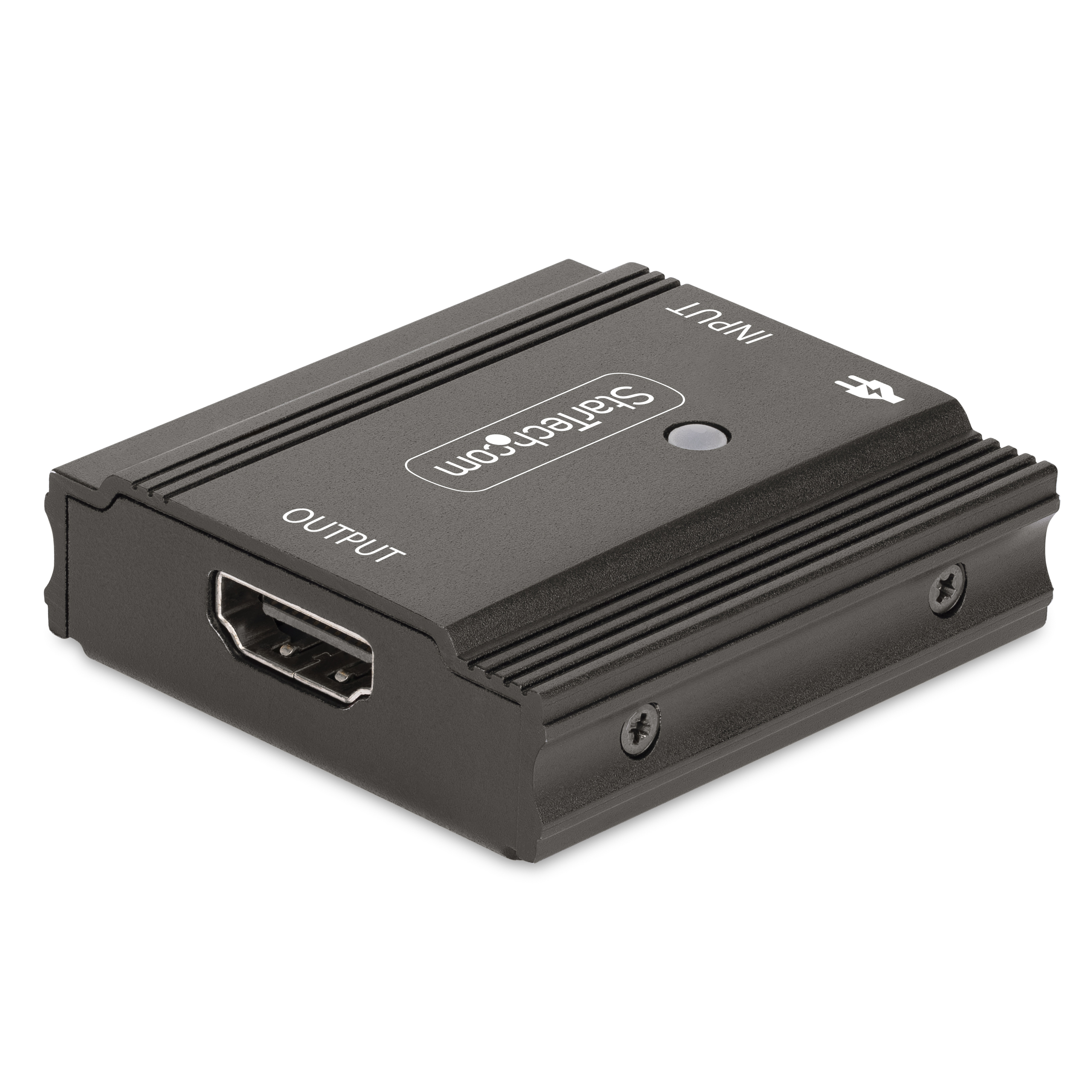

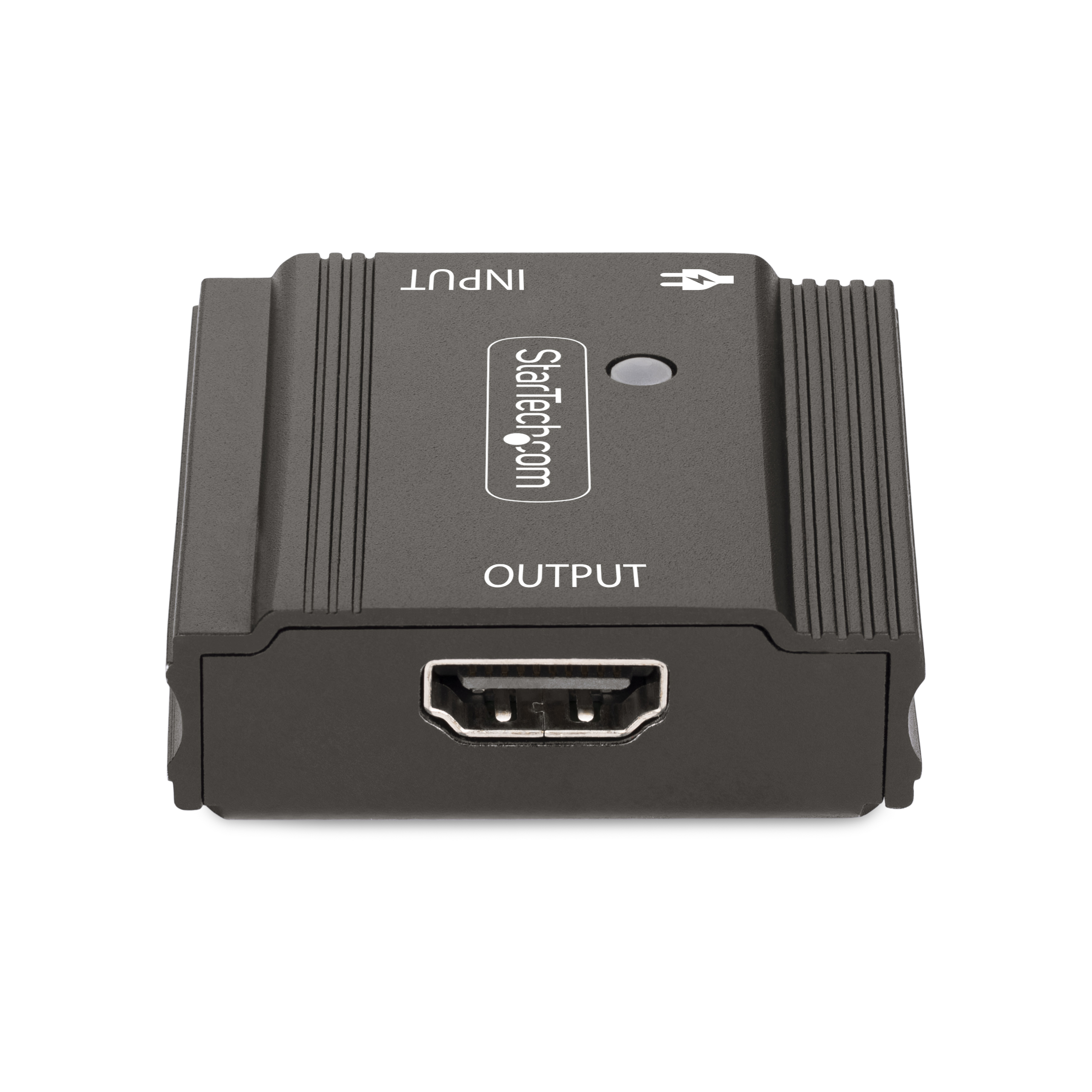

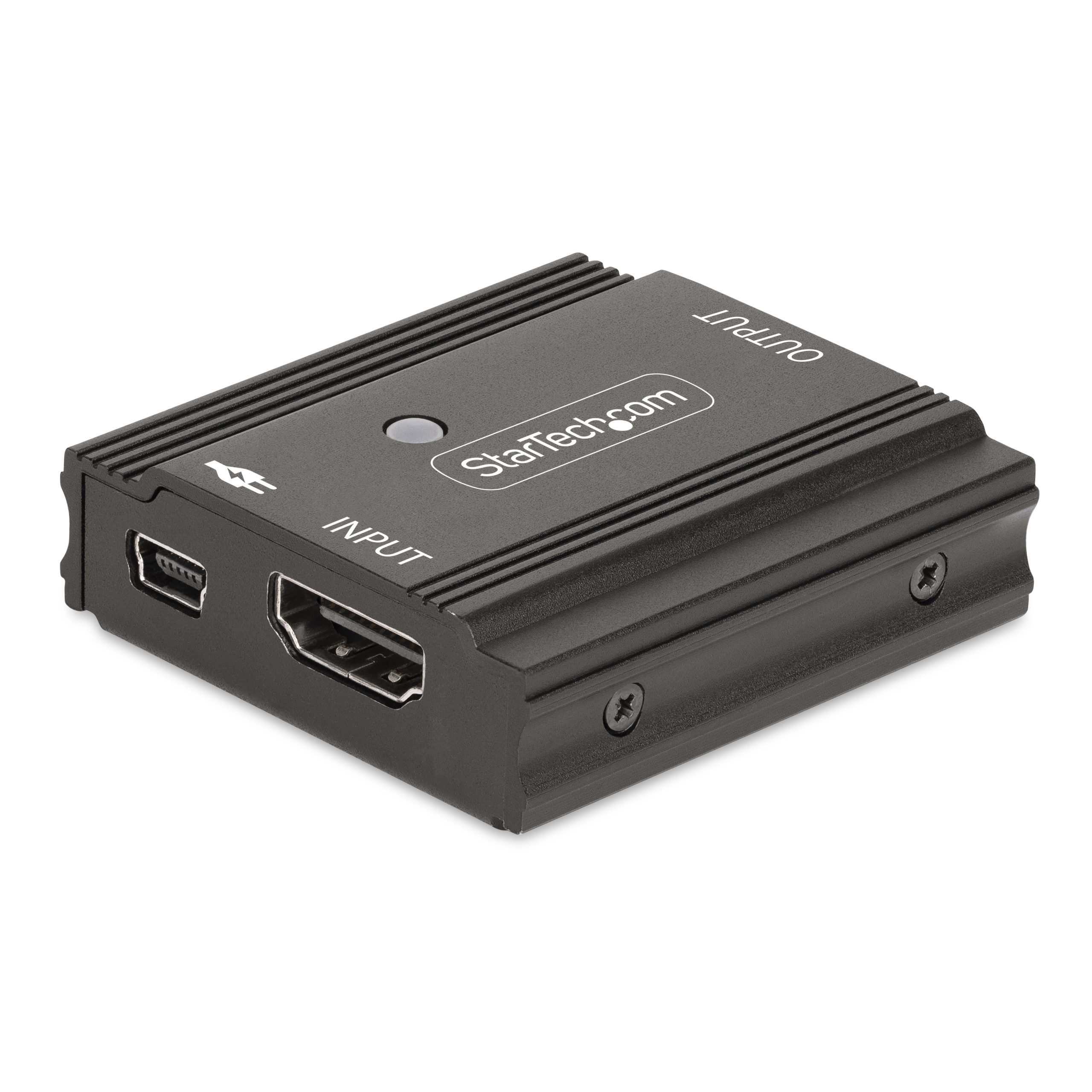

10m HDMI Signal Booster and Extender - 8K 60Hz
Amplify and extend an 8K 60Hz HDMI® signal, connecting two DSC-enabled devices, using two Ultra High Speed HDMI cables
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 10m HDMI Signal Booster and Extender - 8K 60Hz Product Number 33FT-8K-HDMI-BOOSTER UPC 065030900423 Lifecycle status Active Warranty 2 Years Taxonomy Product > Extenders > Video Extenders Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 HDMI Extenders Family HDMI Booster Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) HDMI Signal Booster Product Title (Short) 33ft (10m) 8K 60Hz HDMI Signal Booster Product Title (Medium) 33ft (10m) 8K 60Hz HDMI Signal Booster, HDMI 2.1 Inline Repeater/Amplifier Product Title (Standard) 33ft (10m) 8K 60Hz HDMI Signal Booster, Active HDMI 2.1 Inline Repeater/Video Signal Amplifier, Compact Cable Extender, TAA Product Title (Long) 33ft (10m) 8K 60Hz HDMI Signal Booster, Active HDMI 2.1 Inline Repeater and Video Signal Amplifier up to 8K 60Hz/4K 144Hz, Compact HDMI Cable Extender - HDMI Signal Extension - TAA Product Title (AMZ) 33ft (10m) 8K 60Hz HDMI Signal Booster, Active HDMI 2.1 Inline Repeater and Video Signal Amplifier up to 8K 60Hz/4K 144Hz, Compact HDMI Cable Extender , TAA (33FT-8K-HDMI-BOOSTER) Title Ingram (Part 1) 10m 8K HDMI Signal Booster Title Ingram (Part 2) Compact Inline Repeater/Amplifier Website Product Headline Amplify and extend an 8K 60Hz HDMI® signal, connecting two DSC-enabled devices, using two Ultra High Speed HDMI cables Bullet 1 HDMI SIGNAL BOOSTER: Combine two standard-length HDMI cables into an extra-long cable supporting up to 8K 60Hz / 4K 144Hz at a max total cable length of 33ft (10m), with 13ft (4m) from source to repeater, and 20ft (6m) from repeater to display Bullet 2 COMPACT AND DURABLE: Lightweight HDMI signal amplifier features a metal housing and a small form factor, making it versatile for installation in a variety of environments; It is ideal for office, education, and digital signage applications Bullet 3 FLEXIBLE POWER AND EXTENSION: TAA Compliant HDMI booster is powered through an available USB Port or USB Wall Charger; 5ft (1.5m) USB-A Cable included; Supports lower resolutions and refresh rates at greater distances such as 1080p at 150ft (45m) Bullet 4 UNIVERSAL COMPATIBILITY: Inline HDMI Repeater requires no drivers or software and works with any operating system, including Windows, macOS, and ChromeOS; It supports active HDMI cables and video adapters, providing versatile functionality Bullet 5 TECHNICAL SPECIFICATIONS: HDMI Extender is HDMI 2.1 compliant, supporting CEC, variable refresh rate, auto low-latency mode, HDR10, HDCP 1.4/2.2/2.3, DSC 1.1/1.2a, and 7.1ch HDMI audio; 48Gbps Bandwidth; 4:4:4 Chroma subsampling; ARC/eARC not supported Bullets (Compact) Combine two HDMI cables to make an extra long cable supporting 8K 60Hz / 4K 144Hz; Maximum total cable length of 33ft (10m); TAA Compliant HDMI 2.1 Booster is USB Powered; Inline Signal Repeater supports lower resolutions at longer distances Bullets (Consolidated) - Connect two HDMI cables to make an extra-long HDMI cable supporting resolutions up to 8K 60Hz / 4K 144Hz with DSC; Max cable length of 13ft (4m) from the video source and 20ft (6m) to the display - TAA Compliant Signal Amplifier is powered via USB Port/Wall Charger; 5ft (1.5m) USB-A Power Cable included - Supports other resolutions at longer distances such as 1080p at 150ft (45m) - Inline HDMI 2.1 Repeater requires no drivers or software; OS Independent; Metal housing; Small form factor Marketing Copy Marketing Copy (No HTML) Applications - Boost the signal strength of an HDMI video signal in classrooms, offices, and boardrooms

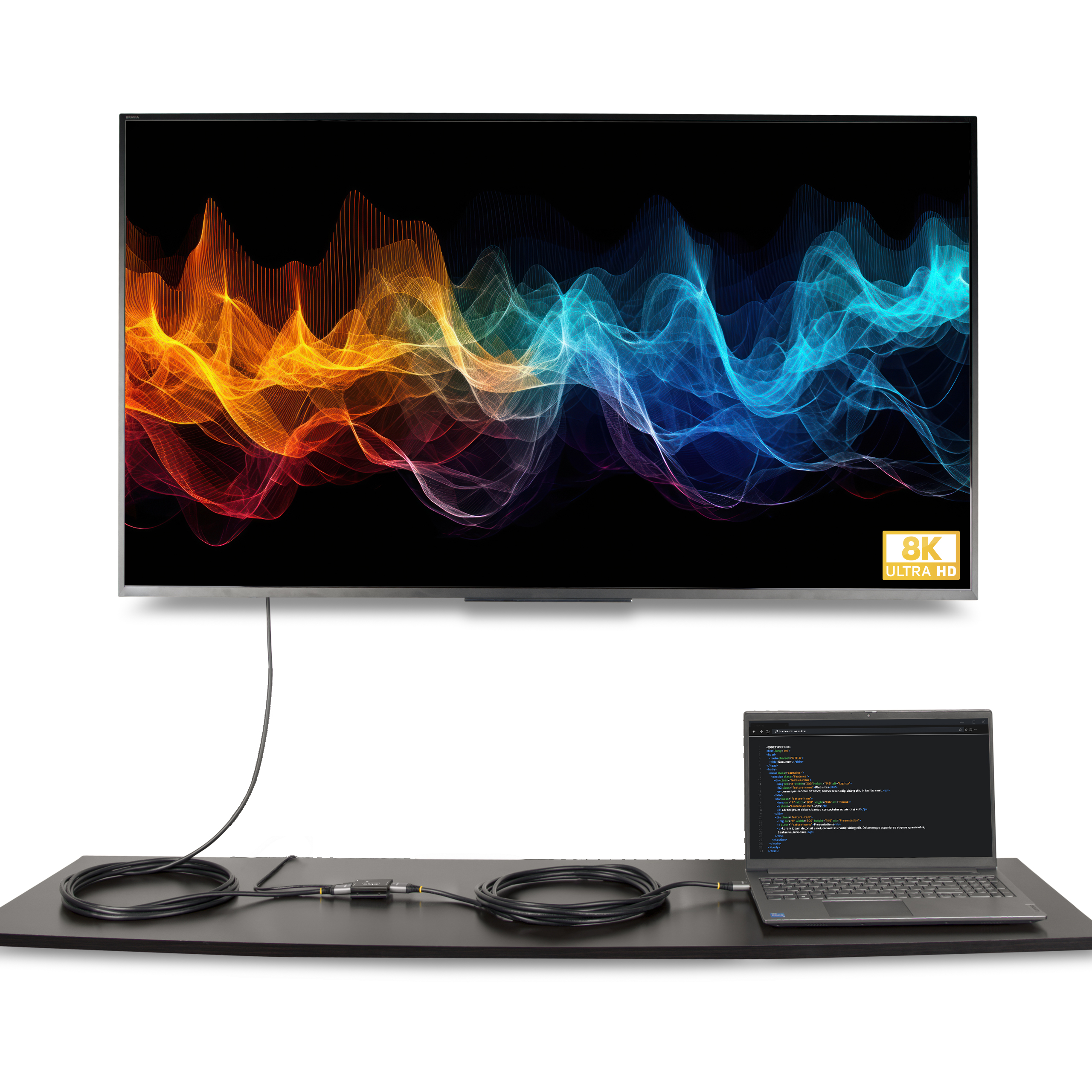

- Use existing HDMI cables to extend a video signal
- Extend an 8K 60Hz HDMI signal up to 33ft (10m)
Website Search Keyword - hdmi amplifier
- HDMI booster
- HDMI cable booster
- hdmi cable extender
- hdmi cable repeater
- hdmi cable signal booster
- hdmi extension adapter
- HDMI repeater
- hdmi signal booster
- video amplifier
- video extender
Required Regulatory Compliance Marks - REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- TSCA - Environmental - United States - EPA TSCA Title VI Compliant
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + cords
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Paper
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
Special Notes - USB power is not required for most applications
- Both the source and display must support 8K 60Hz resolution to achieve this resolution
- ARC/eARC is not supported
Accessory Products - HDMM21V5M
- 8K-A-30F-HDMI-CABLE
- USB2PACBK
- 2PORT-HDMI-SWITCH-8K
- 4PORT-8K-HDMI-SWITCH
Related Products - HDBOOST4K2
- HDBOOST4K
- HDBOOST
Power Source USB-Powered Color Black Humidity 0% ~ 80% RH Material Metal Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 49.000 Product Width (mm) 46.000 Product Height (mm) 16.000 Product Weight (g) 57.000 Storage Temperature -10°C to 60°C (14°F to 140°F) TAA Compliant Yes Audio Specifications HDMI - 7.1 Channel Audio HDR Support HDR10 Max Distance 10m [33ft] Maximum Data Transfer Rate 48Gbps Maximum Digital Resolutions 7680 x 4320 60Hz OS Compatibility OS Independent Supported Resolutions Wide Screen Supported Yes Audio Yes Cabling HDMI Cascadable No LED Indicators Rack-Mountable No Carton Depth (mm) 425 Carton Height (mm) 175 Carton Quantity 12 Carton Weight Gross (g) 2400 Included in Package - 1 - HDMI Booster

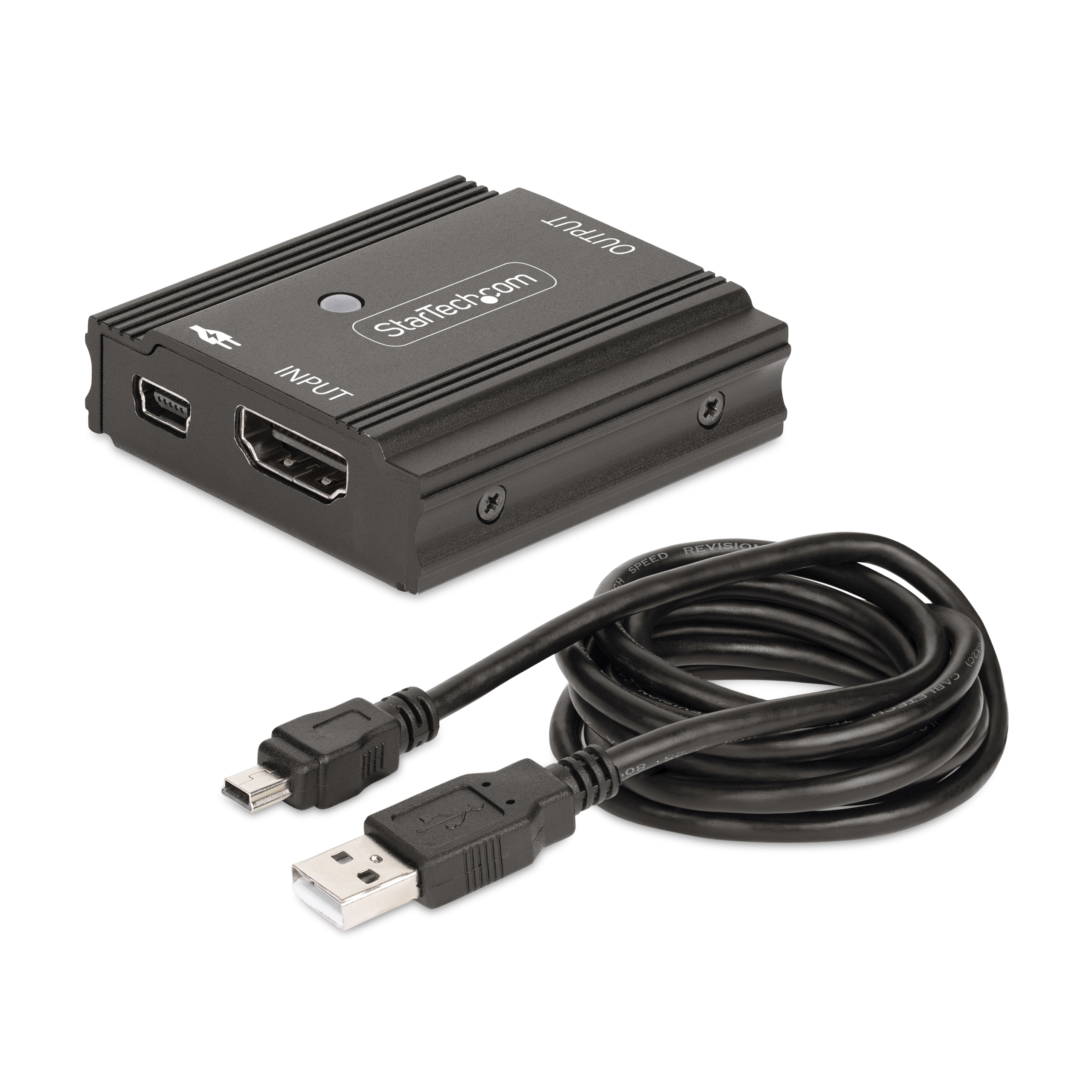

- 1 - USB Power Cable
- 1 - Quick-Start Guide
Included In Package for Label - 1 - USB Cable
- 1 - HDMI Booster
- 1 - Quick-Start Guide
Package Depth (mm) 100 Package Height (mm) 48 Package Width (mm) 157 Package Weight (g) 174 Packaging Description 33ft HDMI Signal Booster and Extender - 8K 60Hz Packaging Description India 10m HDMI Signal Booster and Extender - 8K 60Hz Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 HDMI Connector 2 (Quantity) 1 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kathleen Marshall Application Photos Uploaded Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Comparable SKU Comment HDMI 2.0 Signal booster - 4k60Hz - 5 + 5 (10m) Comparable SKU 2 Comment HDMI 2.0 Signal booster - 4k60Hz - low cost, 7 + 7 (14m) Digital Content Due Date 2023-07-10 Enhanced Gallery Required Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,NL,NZ,SE,UK,US Primary Technology HDMI 2.1 / 8K 60Hz + Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Caleigh Le Grand Target Development Completion Date 2022-11-03 Target Production Release 2023-05-01 Tech Lead Justin Weaver Technical Writer Dan Dagenais Technology Lifecycle None Video Not Required
