35BAYCF2IDE

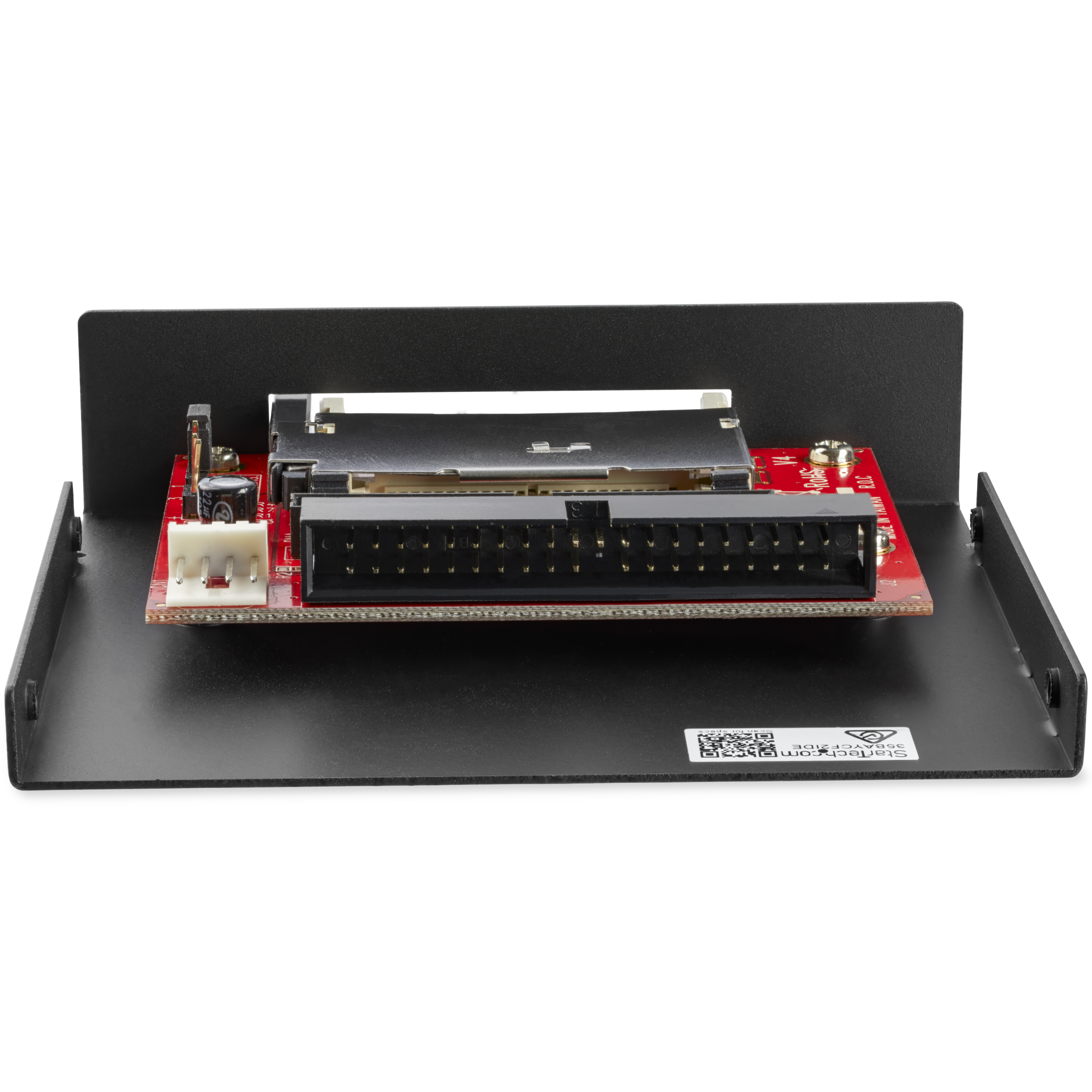

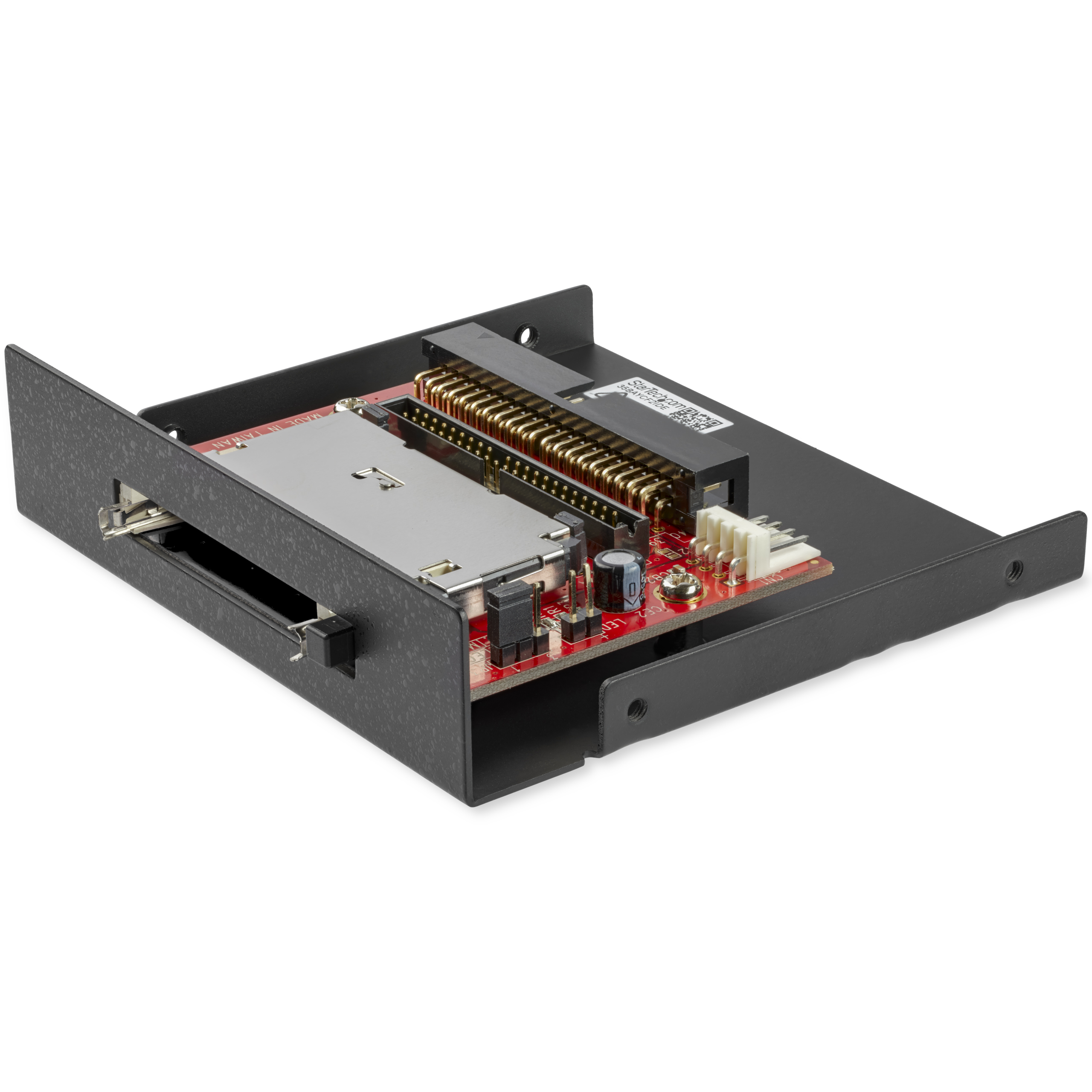

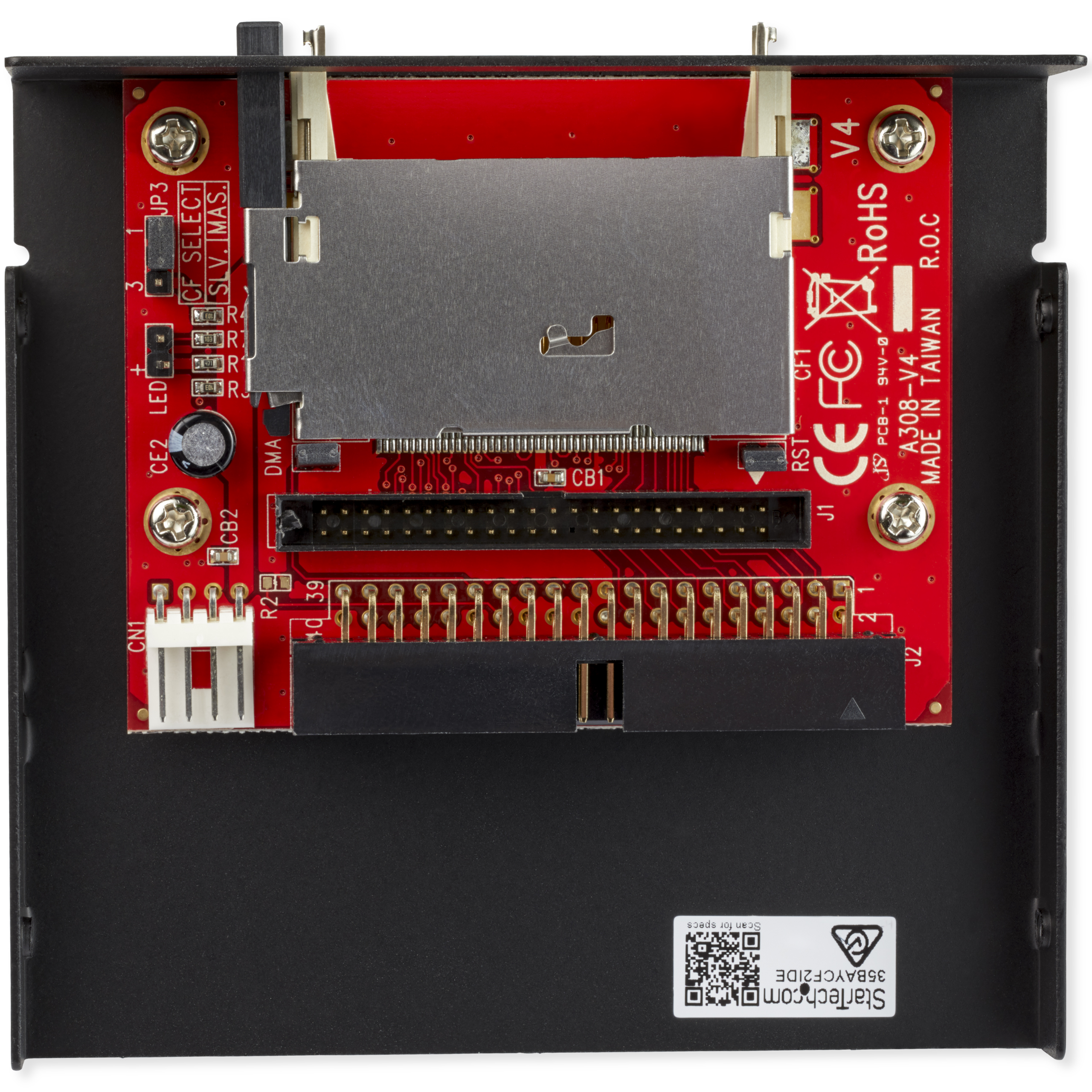

3 5in Drive Bay IDE to Single CF SSD Adapter Card
Connect a CF card to a computer through an IDE connector
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 3 5in Drive Bay IDE to Single CF SSD Adapter Card Product Number 35BAYCF2IDE UPC 065030824194 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Data Storage Cards & Adapters Category Level 1 Data Storage Category Level 2 Flash Media Reader Writers Category Level 3 Internal Card Readers and Writers Family IDE to CF Adapter Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX051X Product Title (Short) 3.5in Drive Bay IDE to CF Adapter Card Product Title (Medium) x Product Title (Standard) CF Adapter Card, 3.5in Drive Bay, IDE, CompactFlash, Solid State Drive, SSD, TAA Product Title (Long) 3.5in Drive Bay IDE to Single CF SSD Adapter Card Reader - TAA Product Title (AMZ) 3.5in Drive Bay IDE to Single CF SSD Adapter Card Reader , TAA (35BAYCF2IDE) Title Ingram (Part 1) 3.5in Drive Bay IDE to Single CF Title Ingram (Part 2) SSD Adapter Card Reader Website Product Headline Connect a CF card to a computer through an IDE connector Bullet 1 Quick and driver free installation into any IDE 40 pin and 44 pin slot Bullet 2 Fully compatible with Compact Flash Type I/II and IBM Micro-drive Bullet 3 Allows Compact flash card to be used as bootable storage Bullet 4 Easy to use jumpers offer simple master/slave drive setting Bullet 5 Can be mounted in the front or rear panel of your case, to fit into any 3.5” bay or available expansion slot Bullets (Consolidated) Connect a CF card to a computer through an IDE connector - Compatible with compact flash memory cards and desktop computers with an IDE slot - Compact flash IDE adapter/CF to IDE adapter/CF to IDE converter/IDE to CF card reader - Compact flash adapter - Quick and driver free installation into any IDE 40 pin and 44 pin slot - Easily swap cards in and out with built-in push button ejector - Easy to use jumpers offer simple master/slave drive setting - Connect your flash card to an IDE slot Marketing Copy Applications - Use your compact flash card as a bootable and removable device
- Excellent for swapping operating systems quickly without having to take your computer apart.
- Connect your compact flash card to a 40 or 44 pin IDE slot
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
Special Notes This product does not support hot-swapping of flash cards while the PC is powered on. You must turn-off your computer to switch cards. Accessory Products BRACKETFDBK Related Products - 35BAYCF2SAT
- IDE2CFINT

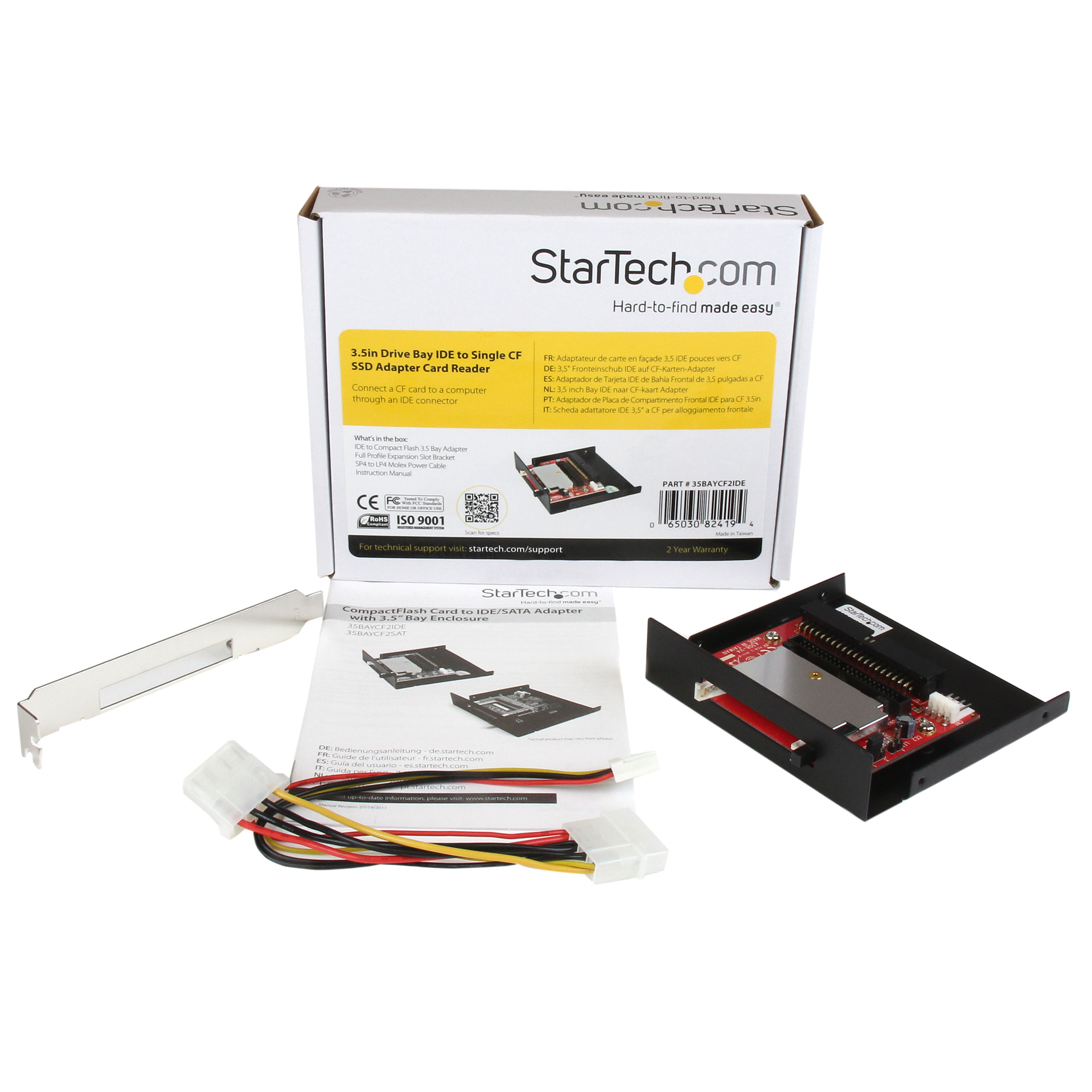

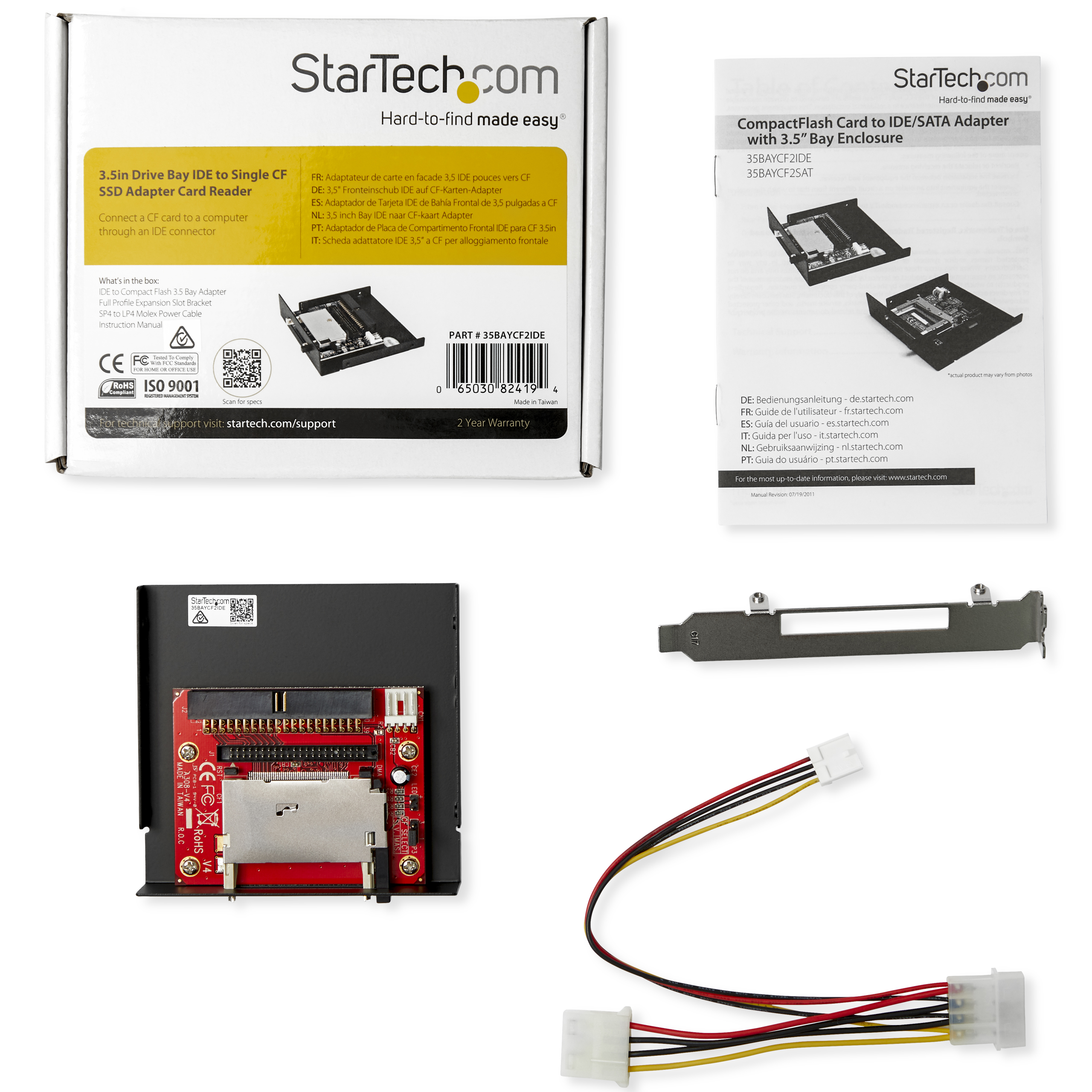

Color Black Humidity 5% ~ 85% RH Operating Temperature -55°C to 85°C (-67°F to 185°F) Primary Material Steel Product Length (mm) 97 Product Width (mm) 100 Product Height (mm) 25 Product Weight (g) 129 Storage Temperature -55°C to 85°C (-67°F to 185°F) TAA Compliant Yes Maximum Data Transfer Rate 133 MBps Memory Media Type CF (Compact Flash I/II Card) OS Compatibility OS Independent Interface/Bridge IDE Carton Depth (mm) 360 Carton Height (mm) 320 Carton Quantity 40 Carton Weight Gross (g) 10358 Included in Package - 1 - Compact Flash to IDE Adapter
- 1 - 3.5” Enclosure
- 1 - Full Profile Expansion Slot Bracket
- 1 - Instruction Manual
- 1 - SP4 to LP4 Molex Power Cable
Included In Package for Label - 1 - Product Documentation
- 1 - Full Profile Expansion Slot Bracket
- 1 - Enclosure
- 1 - Compact Flash To Ide Converter
- 1 - Sp4 To LP4 Molex DC Cable
Package Depth (mm) 143 Package Height (mm) 34 Package Width (mm) 173 Package Quantity 1 Package Weight (g) 240 Packaging Description 3.5in Front Bay IDE to CF Card Adapter Packaging Description India 3.5in Front Bay IDE to CF Card Converter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 CompactFlash Slot Connector 1 (Quantity) 1 Host Connector 1 IDE / PATA (ATA/133) Host Connector 1 (Quantity) 1 Host Connector 2 SP4 / Floppy Power (4-Pin, 5V / 12V) Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,EU,FR,IE,IN,IT,JP,NL,NZ,SE,SG,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
