35BAYCF2SAT

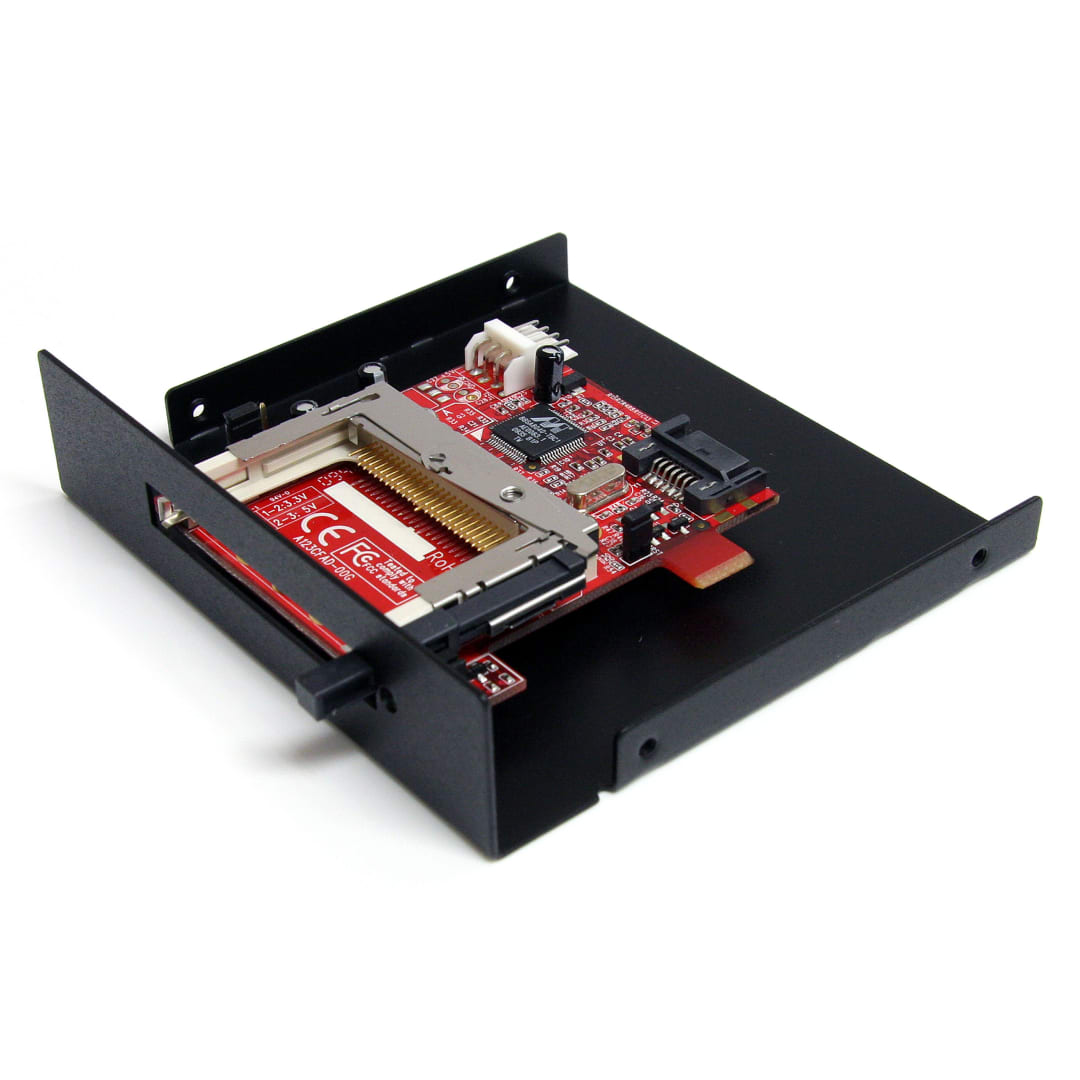

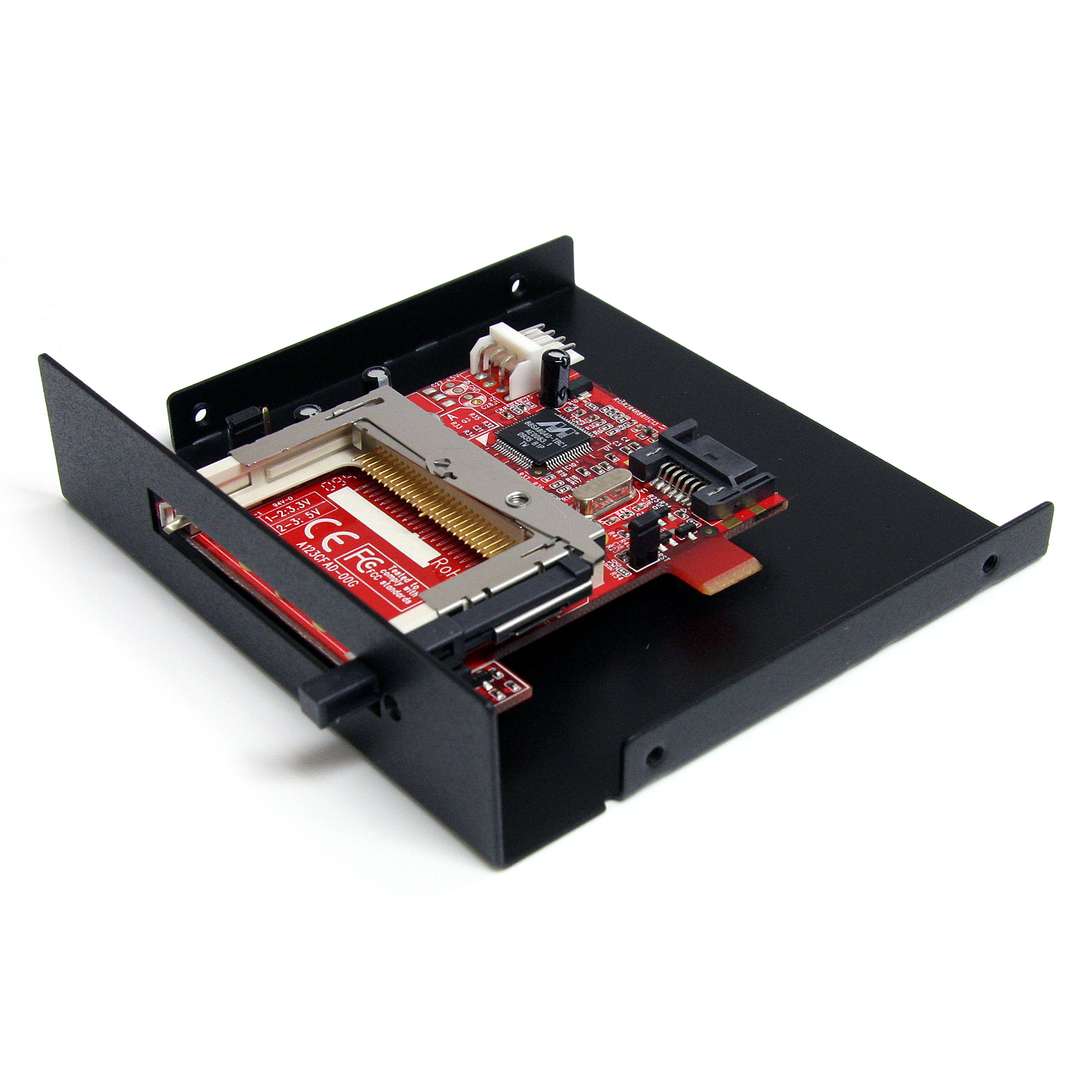

CF Flash Card to SATA 3.5 Bay Adapter
Convert a CF card into a 3.5in Front Bay mounted SATA drive
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name CF Flash Card to SATA 3.5 Bay Adapter Product Number 35BAYCF2SAT UPC 065030824187 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Flash Media Reader Writers Category Level 3 Internal Card Readers and Writers Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX051X Product Title (Short) 3.5in SATA to Single CF SSD Adapter Card Product Title (Standard) StarTech.com CompactFlash Card to SATA Adapter with 3.5" Bay Enclosure - Card reader - 3.5" ( CF I, CF II, SSD, Microdrive ) - Serial ATA Product Title (Long) 3.5in SATA to CompactFlash SSD Adapter Card for 3.5 Drive Bay Product Title (AMZ) 3.5in SATA to CompactFlash SSD Adapter Card for 3.5 Drive Bay (35BAYCF2SAT) Title Ingram (Part 1) 3.5 SATA to Compact Flash SSD Ad Title Ingram (Part 2) apter Card for 3.5 Drive Bay Website Product Headline Convert a CF card into a 3.5in Front Bay mounted SATA drive Bullet 1 Quick and driver free installation into any SATA slot Bullet 2 Fully compatible with Compact Flash Type I/II and IBM Micro-drive Bullet 3 Allows Compact flash card to be used as bootable storage Bullet 4 Easy to use jumpers offer simple master/slave drive setting. Bullet 5 Can be mounted in the front or rear panel of your case, to fit into any 3.5” bay or available expansion slot Marketing Copy Applications - Use your compact flash card as a bootable and removable device
- Excellent for swapping operating systems quickly without having to take your computer apart.
- Connect your compact flash card to a SATA slot
Website Search Keyword - Compact Flash Card
- SATA Adapter
Required Regulatory Compliance Marks FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference Special Notes This product does not support hot-swapping of flash cards while the PC is powered on. You must turn-off your computer to switch cards Related Products - IDE2CFINT
- 35BAYCF2IDE

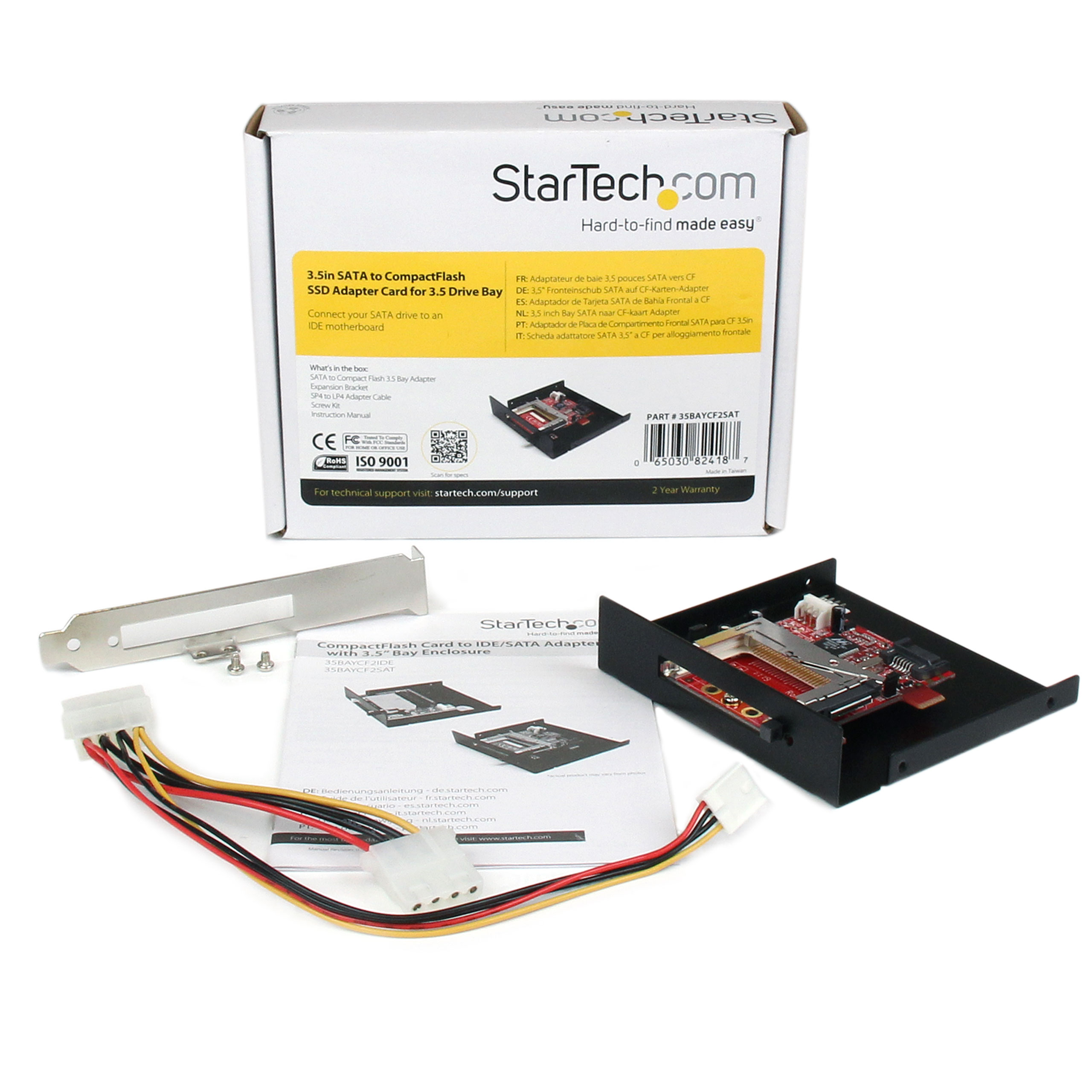

Humidity 15% ~ 90% RH Operating Temperature 0°C to 55°C (32°F to 131°F) Product Length (mm) 70 Product Width (mm) 120 Product Height (mm) 20 Product Weight (g) 45 Storage Temperature -25°C to 70°C (-13°F to 158°F) TAA Compliant No Memory Media Type CF (Compact Flash I/II Card) MTBF (hours) 10,000 Insertion Rating OS Compatibility OS Independent Carton Depth (mm) 500 Carton Height (mm) 350 Carton Quantity 40 Carton Weight Gross (g) 11000 Included in Package - 1 - Compact Flash to IDE Adapter
- 1 - 3.5” Enclosure
- 1 - Expansion Bracket
- 1 - Instruction Manual
- 1 - SP4 to LP4 Adapter Cable
- 1 - Screw Kit
Package Depth (mm) 140 Package Height (mm) 30 Package Width (mm) 175 Package Quantity 1 Package Weight (g) 226 Packaging Description 3.5in Front Bay SATA to CF Card Adapter Packaging Description India 3.5in Front Bay SATA to CF Card Adapter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 CompactFlash Slot Connector 1 (Quantity) 1 Host Connector 1 SATA (7-Pin) Host Connector 1 (Quantity) 1 Host Connector 2 SP4 / Floppy Power (4-Pin, 5V / 12V) Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,EU,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy
