35BAYPANELBK

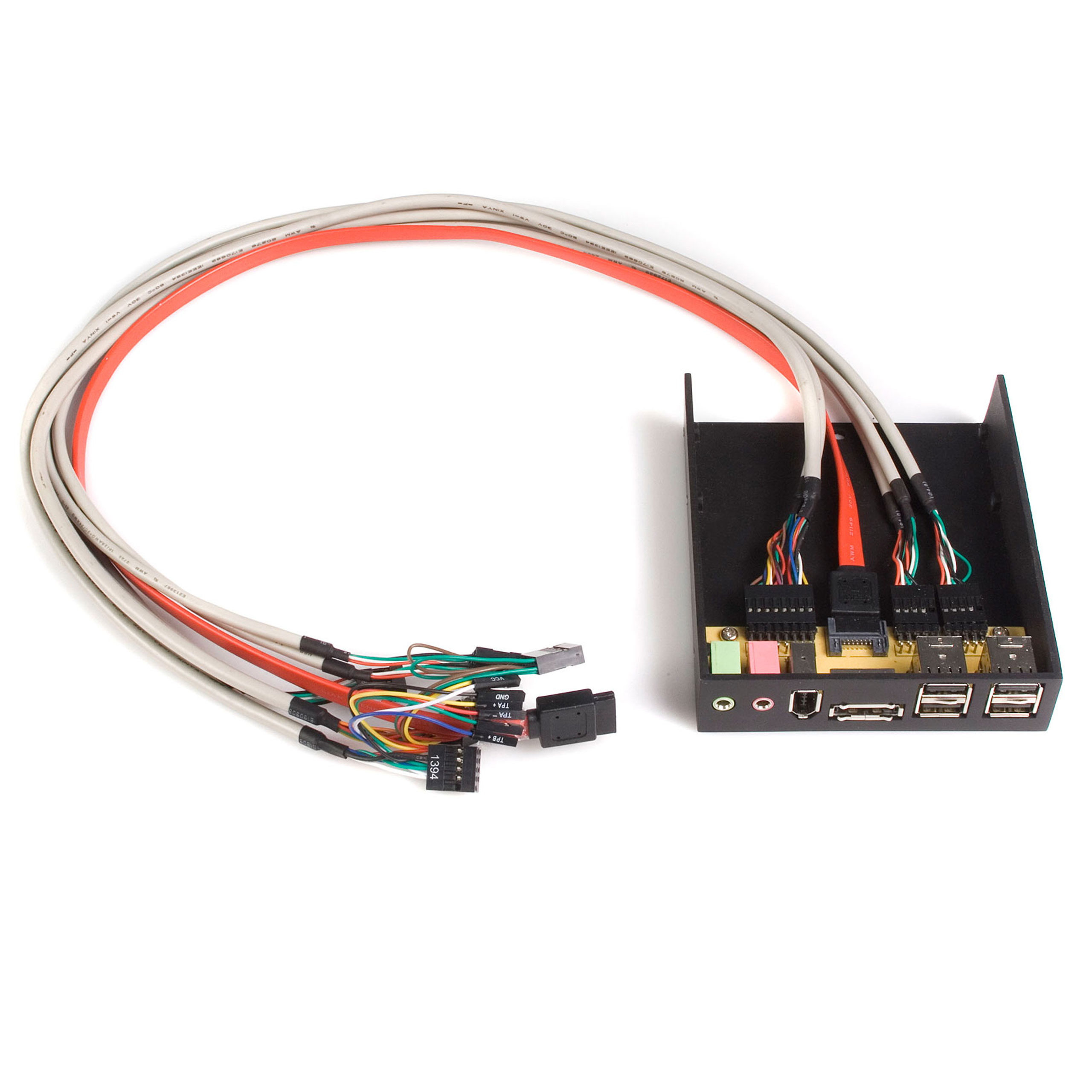

Black 3.5" Drive Bay Multi-Port Panel
Add front panel access to USB 2.0, eSATA, FireWire and audio input ports
Main Image
Product Images
Product Images
BOM Image

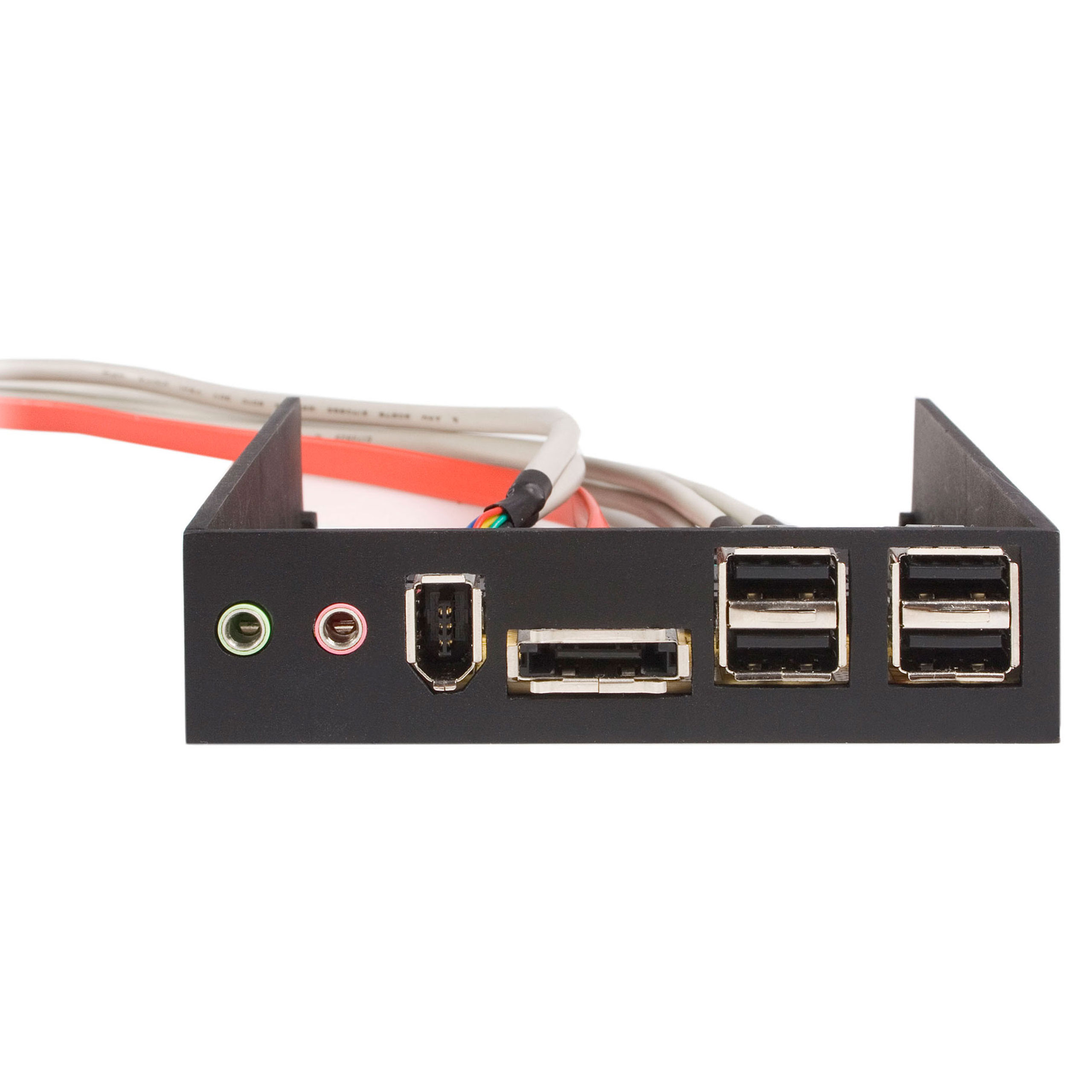

Product Name Black 3.5" Drive Bay Multi-Port Panel Product Number 35BAYPANELBK UPC 065030830539 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Product Title (Short) 3.5 Multi Port Panel for Front Drive Bay Product Title (Standard) 3.5" Multi Port Panel for Front Drive Bay w/ eSATA Product Title (Long) 3.5in Black Multi Port Panel for Front Drive Bay with eSATA Product Title (AMZ) 3.5in Black Multi Port Panel for Front Drive Bay with eSATA (35BAYPANELBK) Title Ingram (Part 1) 3.5in Black Multi Port Panel for Title Ingram (Part 2) Front Drive Bay with eSATA Website Product Headline Add front panel access to USB 2.0, eSATA, FireWire and audio input ports Bullet 1 Fits into a standard 3.5" front bay (or 5.25" front bay with accessory: BRACKETFDBK) Bullet 2 One 6-pin FireWire port Bullet 3 One eSATA port Bullet 4 Four USB 2.0 ports Bullet 5 Speaker and microphone ports via 3.5mm mini-jacks Marketing Copy Applications - Add common rear panel connectors to the front of a chassis for easier access
- Make use of existing internal connectors to expand on system's capabilities
Accessory Products - USBFAA_6
- USBEXTAA10
- USBFAB_6
- USB2HAB6
- USB2HAB10
- 1394_6
- 1394_10
- ESATA3
- ESATA6
- BRACKETFDBK
Related Products - 35BAYPANEL
- ST3504USB

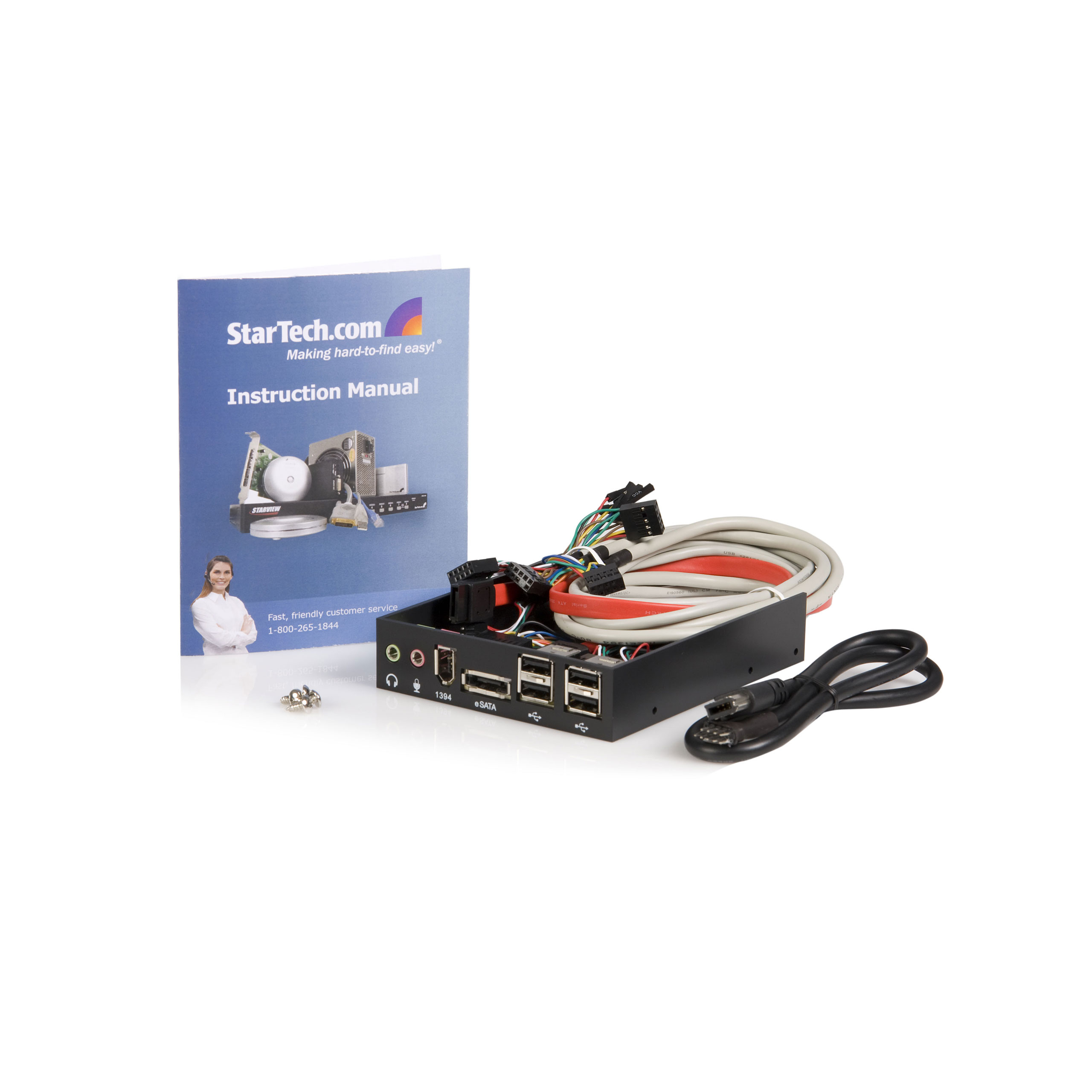

Cable Length (mm) 600 Color Black Material Plastic Product Length (mm) 102 Product Width (mm) 25 Product Height (mm) 121 Product Weight (g) 250 TAA Compliant No Carton Depth (mm) 501 Carton Height (mm) 349 Carton Quantity 24 Carton Weight Gross (g) 8880 Included in Package - 1 - 3.5" Front Panel
- 1 - Instruction Manual

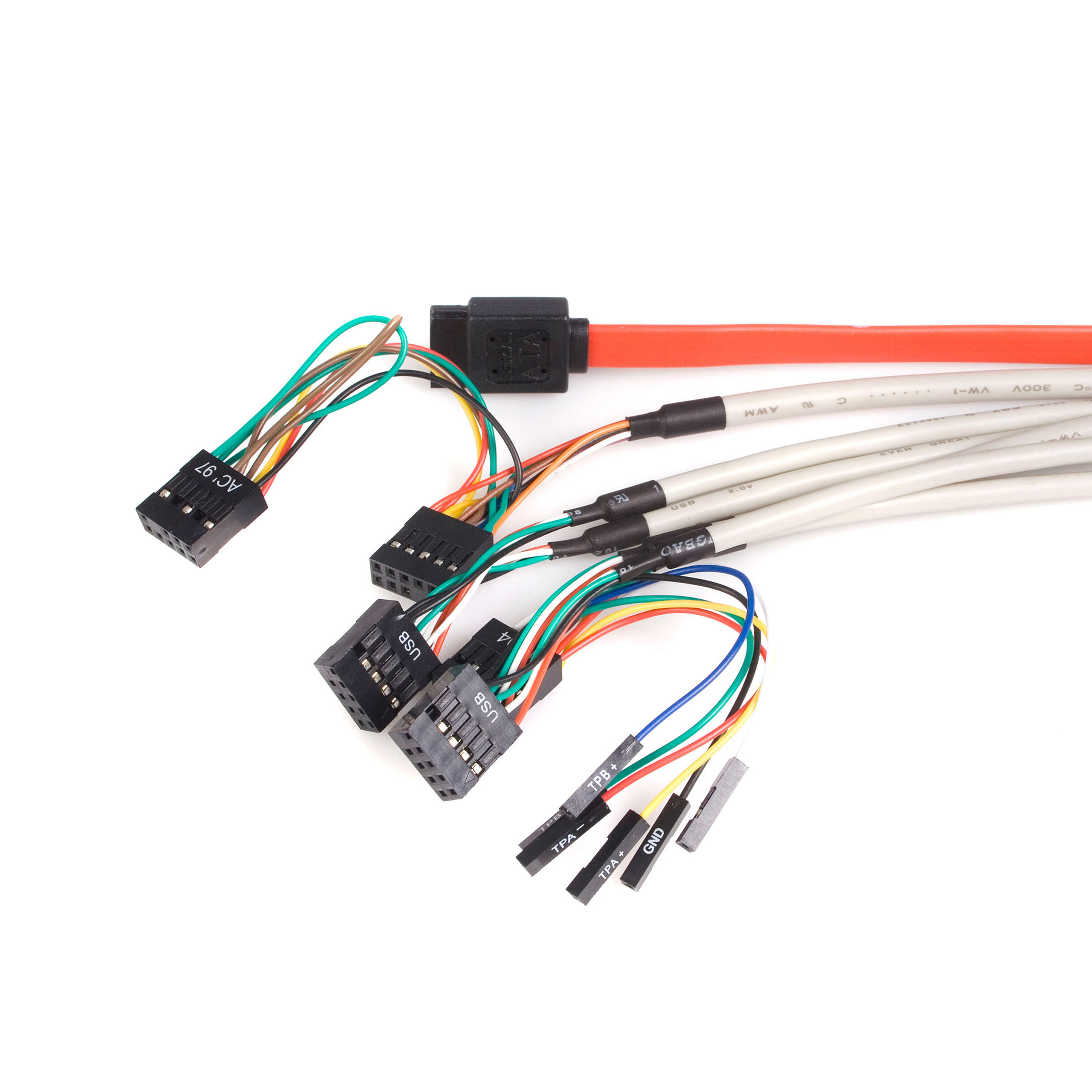

- 1 - 6-pin FireWire to Header Cable
- 1 - Screw Kit
- 1 - Audio Header Cable
- 1 - SATA Cable
- 1 - USB Header Cable
Package Depth (mm) 44 Package Height (mm) 135 Package Width (mm) 238 Package Weight (g) 320 Packaging Description Multi Port Panel for 3.5in Front Bay Packaging Description India Multi Port Panel for 3.5in Front Bay Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 eSATA (7-Pin) Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 4 Connector 3 FireWire 400 (6-Pin, 400Mbps, Bus Power) Connector 3 (Quantity) 1 Connector 4 3.5mm (3 Conductors, TRS) Connector 4 (Quantity) 2 Connector 5 SATA (7-Pin) Connector 5 (Quantity) 1 Connector 6 IDC (10-Pin) Connector 6 (Quantity) 5 en-US Content Approved Yes Product Manager Rafal Gwozdz
