Main Image
35BAYUSB3S4

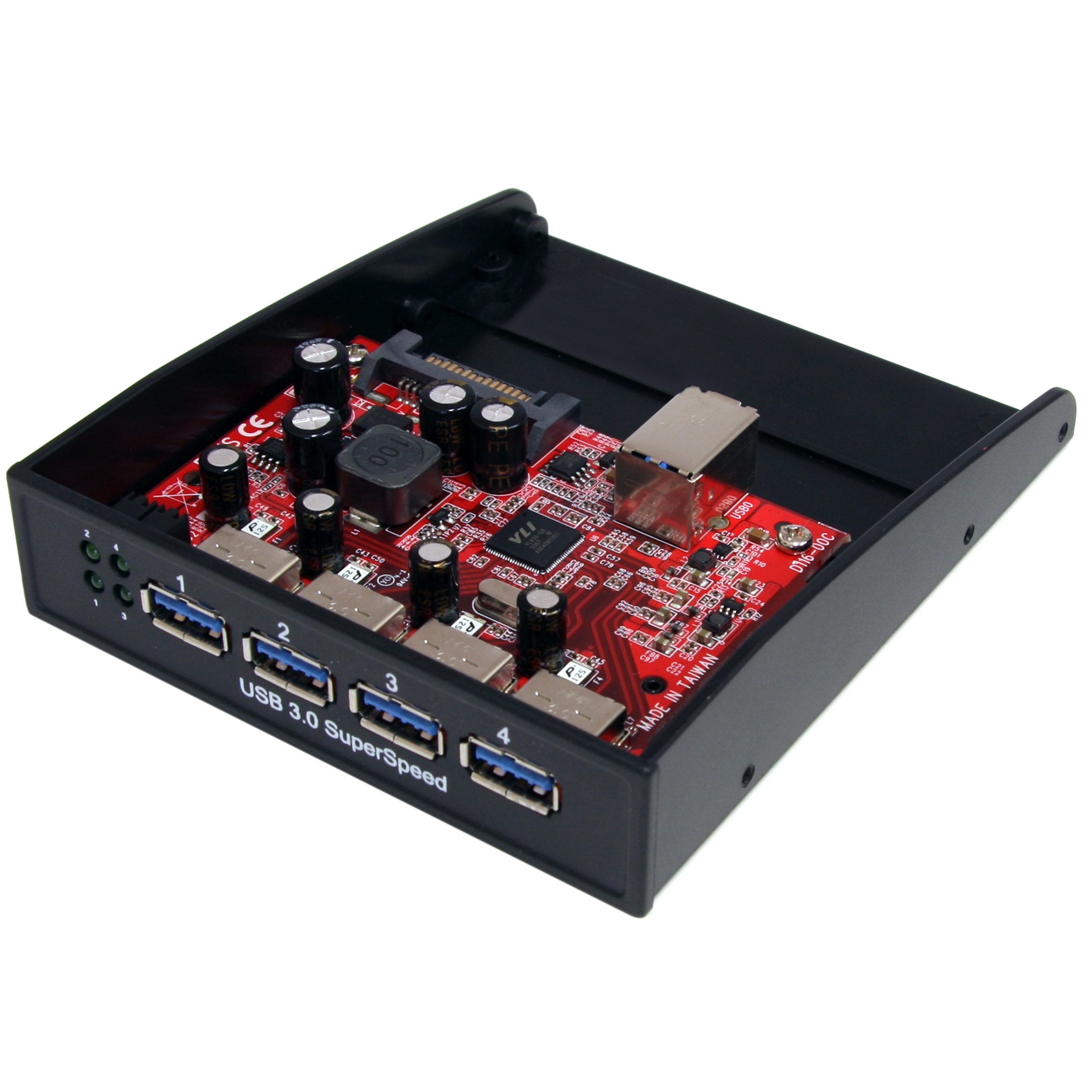

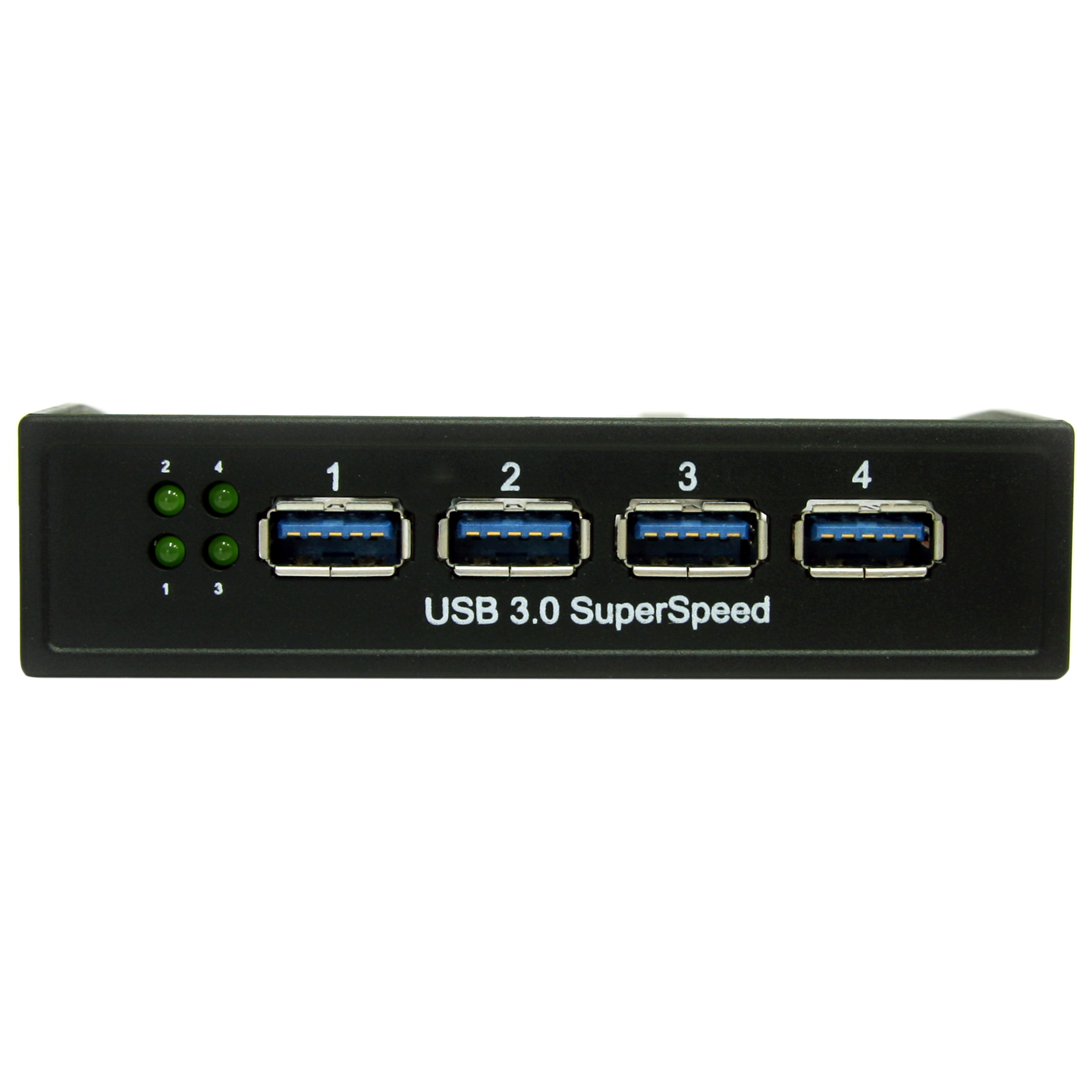

3.5in Black 4 Port Panel for Front Bay
Add a 4-port SuperSpeed USB 3.2 Gen 1 Hub to the 3.5" front bay opening of a computer case
Main Image
Product Images
Product Images
BOM Image
Product Name 3.5in Black 4 Port Panel for Front Bay Product Number 35BAYUSB3S4 UPC 065030846004 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Hubs Category Level 2 USB-A Hubs Category Level 3 USB-A Bus Powered Hubs - 5Gbps Family no family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX051X Product Title (Short) USB 3.0 Front Panel 4 Port Bay Hub 5Gbps Product Title (Standard) USB 3.0 Front Panel 4 Port Hub - 5Gbps - 3.5 5.25in Bay Product Title (Long) USB 3.0 Front Panel 4 Port Hub - 5Gbps - 3.5in or 5.25in Bay - TAA Product Title (AMZ) USB 3.0 Front Panel 4 Port Hub - 3.5in or 5.25in Bay - Front Internal 3.5 USB 3.0 (5Gbps) Hub (35BAYUSB3S4) Title Ingram (Part 1) USB 3.0 Front Panel 4 Port Hub – Title Ingram (Part 2) 3.5 5.25in Bay Website Product Headline Add a 4-port SuperSpeed USB 3.2 Gen 1 Hub to the 3.5" front bay opening of a computer case Bullet 1 Four front accessible USB type-A ports Bullet 2 SuperSpeed USB 3.2 Gen 1 compliant, supporting data transfer rates up to 5 Gbps Bullet 3 Backward compatible with USB 2.0 and USB 1.0/1.1 specifications and devices Bullet 4 Fits into any 3.5" computer case front bay Bullet 5 Provides up to 900mA of power per port Bullets (Consolidated) Add a 4-port SuperSpeed USB 3.2 Gen 1 Hub to the 3.5" front bay opening of a computer case - USB 3.2 Gen 1 Hub - 4 Port USB 3.2 Gen 1 Hub - Internal USB Hub - USB Port Splitter - Front USB Hub - Supports up to 5 Gbps and up to 900mA of Power Per Port Marketing Copy Marketing Copy (No HTML) The 35BAYUSB3S4 3.5-inch Front Bay to 4-Port USB 3.2 Gen 1 Panel Hub is TAA compliant and turns any available 3.5-inch computer case front bay into a 4-Port USB 3.2 Gen 1 hub. Using only a single USB connection, this front panel hub adds four easily accessible USB ports to the front of your computer case through a 3.5-inch bay, or through a 5.25-inch bay using the optional Front Bay Bracket Adapter (BRACKETFDBK) accessory. Each of the added ports is compliant with the USB 3.2 Gen 1 standard which supports up to 5 Gbps of bandwidth (10x faster than the USB 2.0 standard) and up to 900mA of power. Accessorize with the PEXUSB3S11 PCI Express card to provide an internal USB 3.2 Gen 1 port, so as to keep the external ports free for external devices. Backed by a StarTech.com 2-year warranty and free lifetime technical support. Applications - Expand your system's USB 3.2 Gen 1 capabilities with additional ports for connecting high speed external storage devices
- Add easier to access USB ports to the front of a computer system instead of the rear
- Make use of an internal USB port and unused 3.5" front bay to increase the system's expandability
Website Search Keyword - USB 3.0
- internal USB hub
- SuperSpeed
- front bay panel
- Drive bay hub
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
System and Cable Requirements - Available 3.5 inch front bay
- Available USB 3.0 type A port
Accessory Products - BRACKETFDBK
- USB3SAB1
- USB3SAB6
- USB3SAB10
- USB3SAB3
- LP4LSATAADAP
- PYO1LP4SATA
- SATAPOWADAP
- PYO2SATA
- PEXUSB3S11
- PEXUSB3S4
Related Products - 35BAYPANELBK
- ST4300USB3
- ST4300USBM
Replacement Product H5A4A-USB-HUB-2 Constrained SKU Alternatives (Limited Stock) - ST4300MINU3B
- H5A4A-USB-HUB
Power Source USB-Powered Color Black Humidity 20% ~ 80% RH Material Plastic Operating Temperature 5°C to 50°C (41°F to 122°F) Primary Material Plastic Product Length (mm) 120.000 Product Width (mm) 100.000 Product Height (mm) 25.000 Product Weight (g) 98.000 Storage Temperature -25°C to 70°C (-13°F to 158°F) TAA Compliant Yes Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) Fast Charge Ports (BC 1.2) No OS Compatibility OS Independent USB Type and Rate USB 5Gbps Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID VIA/VLI - VL811+ Ethernet Port No Interface/Bridge USB 3.2 Gen 1 (5Gbps) Laptop Dock / USB Hub Fast-Charge No LED Indicators 4 - USB Device Link (Green) USB-C Device Port(s) No USB-C Host Connection No Carton Depth (mm) 380 Carton Height (mm) 318 Carton Quantity 60 Carton Weight Gross (g) 13788 Included in Package - 1 - Instruction Manual

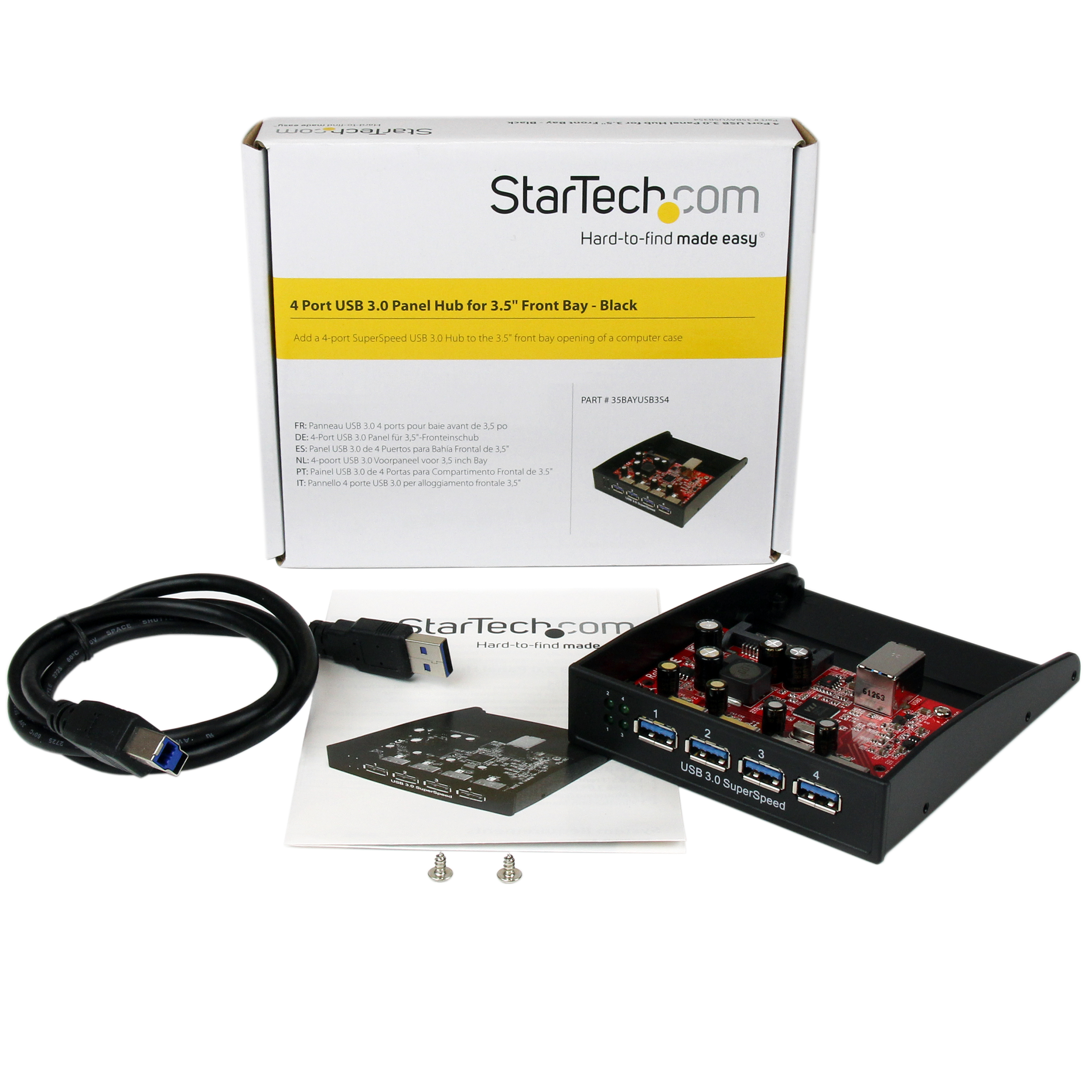

- 1 - 3.5" Front Panel
- 1 - Mounting Screw Kit
- 1 - USB 3.0 Cable
Package Depth (mm) 142 Package Height (mm) 32 Package Width (mm) 174 Package Quantity 1 Package Weight (g) 216 Packaging Description 4 Port USB 3.0 Panel for 3.5" Front Bay Packaging Description India 4 Port USB 3.0 Panel for 3.5" Front Bay Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 4 Connector 2 USB-B (5Gbps, 4.5W) Connector 2 (Quantity) 1 Connector 3 SATA (15-Pin) Connector 3 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IT,JP,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Maria Powell Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle None
