35FCREADBU3

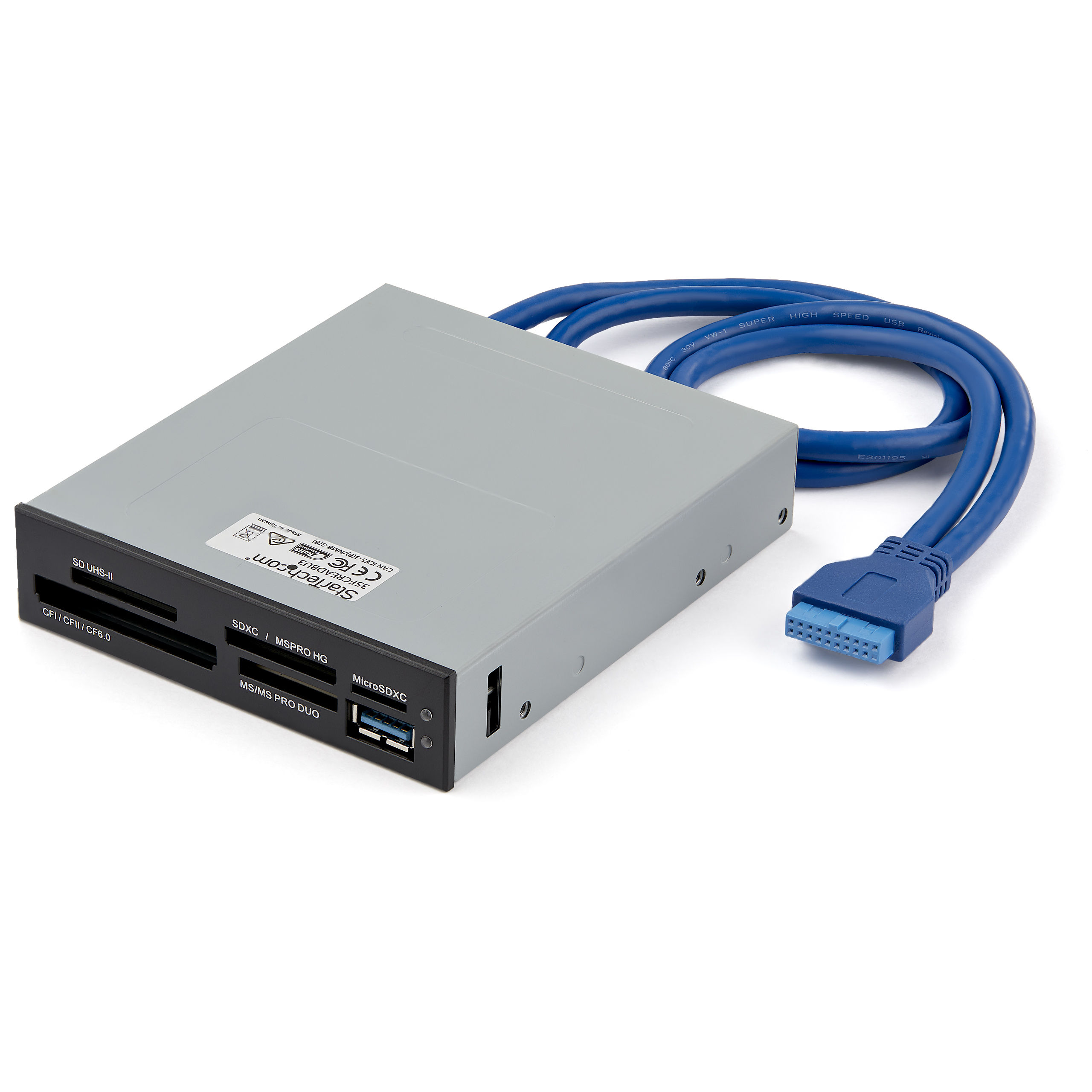

Fast Internal Multi Card Reader USB 3 0 UHS II
Turn a 3.5" internal bay on your computer into a fast and versatile memory card reader - for SD, Micro SD, CF, Memory Stick and more
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name Fast Internal Multi Card Reader USB 3 0 UHS II Product Number 35FCREADBU3 UPC 065030862394 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Data Storage Cards & Adapters Category Level 1 Data Storage Category Level 2 Flash Media Reader Writers Category Level 3 Internal Card Readers and Writers Family USB Multi-Card Reader Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX020X Product Title (Ultra-Short) USB 3.0 Card Reader Product Title (Short) USB 3.0 Internal Multi-Card Reader Product Title (Medium) USB 3.0 Internal Multi-Card Reader w UHS-II Support -SD/MicroSD/MS/CF Product Title (Standard) USB 3.0 Internal Multi-Card Reader with UHS-II Support, SD/Micro SD/MS/CF Memory Card Reader, TAA Product Title (Long) USB 3.0 Internal Multi-Card Reader with UHS-II Support - TAA Product Title (AMZ) USB 3.0 Internal Multi-Card Reader with UHS-II Support - SecureDigital/Micro SD/Memory Stick/Compact Flash Memory Card Reader , TAA (35FCREADBU3) Title Ingram (Part 1) Fast Internal Multi-Card Reader Title Ingram (Part 2) - USB 3.0 Powered & UHS-II Support Website Product Headline Turn a 3.5" internal bay on your computer into a fast and versatile memory card reader - for SD, Micro SD, CF, Memory Stick and more Bullet 1 USB 3.0 MULTI-CARD READER: This Internal USB 3.0 Multi-Card Reader fits into any 3.5in drive bay and connects internally to a 20-pin motherboard header; Access the most popular flash card formats from a desktop computer; 20-pin IDC cable and screws incl. Bullet 2 WIDE COMPATIBILITY: Supports CompactFlash type I, SD/miniSD/microSD/SDHC/SDXC, MMC/RS-MMC/HS-MMC/MMCmobile/MMCplus/MMCmicro/HC-MMC, MemoryStick (MS/MS Duo/HS-MS/MS PRO/MS PRO Duo/MS PRO-HG Duo/MS-ROM/M2), and xD Picture card; Front facing USB 3.0 port Bullet 3 SIMULTANEOUS SLOT ACCESS: This internal multi-card reader supports access to four different card slots simultaneously (excluding same type media), allowing you to conveniently copy files from or between different media cards at the same time Bullet 4 CONVENIENT SETUP: OS independent supporting Windows, macOS, and Linux; Built-in Power and Activity LEDs; Ideal for saving, editing & transferring content in videography, photography, podcasting, YouTube & social media Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this TAA compliant internal multi-card reader is backed for 2 years, including free lifetime 24/5 multi-lingual assistance Bullets (Compact) Turn a 3.5" internal bay into a fast, versatile memory card reader - USB 3.0 Internal Multi-Card Reader w/ UHS-II Support - Simultaneous file transfers for up to 4 different cards - Supports most cards incl: SD, Micro SD, Memory Stick, Compact Flash Bullets (Consolidated) Turn a 3.5" internal bay on your computer into a fast and versatile memory card reader - USB 3.0 Internal Multi-Card Reader with UHS-II Support - Supports most standard memory cards including SD/Micro SD/Mini SD/SDXC/MS/MS Pro/CF/HS-MMC/HC-MMC/SDHC - Simultaneous access to multiple cards for concurrent downloads (up to 4 different cards) - 5-slot design supports concurrent downloads - Powered directly from USB 3.0 port with front USB access - Backward compatible Marketing Copy Applications - Provide read/write access to a wide range of memory cards, ideal for photo labs and kiosks
- Read and copy high-res image files quickly and efficiently, an effective solution for medical units, school systems and business applications
- Back-up and copy data, photos and video from your memory cards to your home computer, or from your computer to a memory card
Website Search Keyword - flash card reader
- multimedia card reader
- internal card reader
- usb card reader
- memorystick
- compact flash
- secure digital
- SecureDigital card reader
- Micro SD reader
- Memory Stick reader
- UH II card reader
- USB 3.0 card reader
- USB 3.0 multi-card reader
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
Accessory Products - BRACKETFDBK
- USBEXTAA6IN
- USB3EXT6INBK
Related Products - FCREADHCU3
- FCREADMICRO3
- FCREADU3HC
- 35FCREADBK3
- FCREADHC
- FCREADMICRO
- FCREADMINI
- 35FCREAD20BK
- 35FCREADREM
Cable Length (mm) 410 Color Black Humidity 15% ~ 85% RH Material Steel and Plastic Operating Temperature 0°C to 60°C (32°F to 140°F) Primary Material Steel Product Length (mm) 118 Product Width (mm) 100 Product Height (mm) 24 Product Weight (g) 250 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes Maximum Data Transfer Rate 5 Gbps Memory Media Type - CF (Compact Flash I/II Card)
- SDXC (Secure Digital eXtended Capacity)
- MS/MS Pro (Memory Stick/Memory Stick Pro)
- Mini-SD, Micro-SD (Mini/Micro Secure Digital)
- HS-MMC, HC-MMC (High Speed/High Capacity Multimedia Card)
- SDHC (Secure Digital High Capacity)
- MS Duo, MS Pro Duo, MS Pro-HG Duo
- HS-MS (High Speed Memory Stick)
- MS MG (Memory Stick w/ MagicGate)
- MS Micro (Memory Stick Micro)
- MSXC (Memory Stick eXtended Capacity)
- microSDHC (Micro Secure Digital High Capacity)
- SD/MMC (Secure Digital/Multimedia Card)

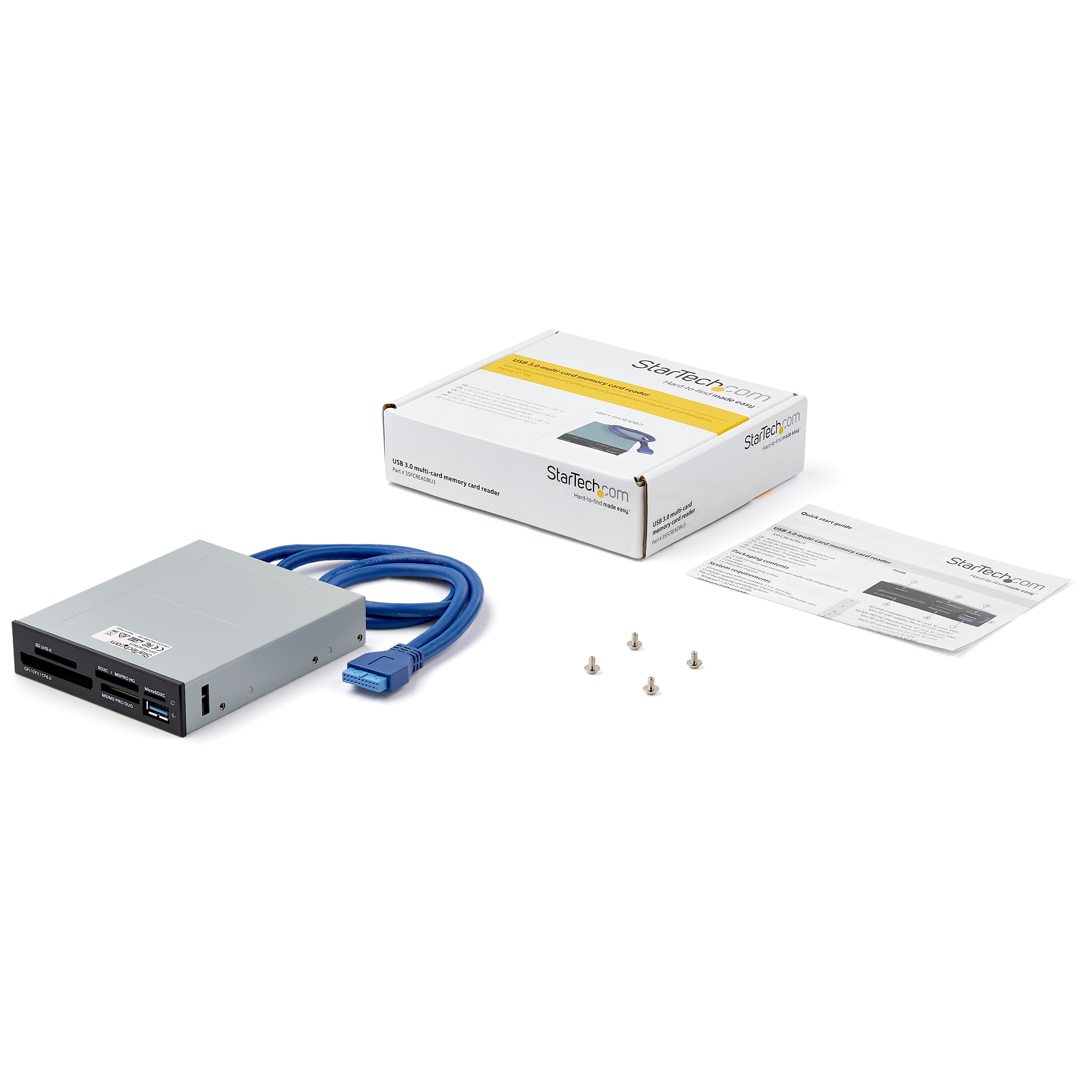

OS Compatibility OS Independent USB Type and Rate USB 3.0 (5Gbps) Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID Realtek - RTS5321 Interface/Bridge USB 3.2 Gen 1 (5Gbps) LED Indicators 2 - Power and Access Carton Depth (mm) 454 Carton Height (mm) 343 Carton Quantity 40 Carton Weight Gross (g) 13084 Included in Package - 1 - USB 3.0 memory card reader
- 4 - mounting screws
- 1 - quick start guide
Included In Package for Label - 1 - USB 3.0 Memory Card Reader
- 4 - Mounting Screws
- 1 - Quick Start Guide
Package Depth (mm) 137 Package Height (mm) 47 Package Width (mm) 162 Package Quantity 1 Package Weight (g) 302 Packaging Description USB 3.0 multi-card memory card reader Packaging Description India USB 3.0 multi-card memory card reader Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SD Card Slot Connector 1 (Quantity) 2 Connector 2 Memory Stick / PRO Slot Connector 2 (Quantity) 1 Connector 3 Micro SD Card Slot Connector 3 (Quantity) 1 Connector 4 CompactFlash Slot Connector 4 (Quantity) 1 Connector 5 USB-A (7.5W Power Only) Connector 5 (Quantity) 1 Host Connector 1 IDC (20-Pin) Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2015-05-14 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2015-04-22 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
