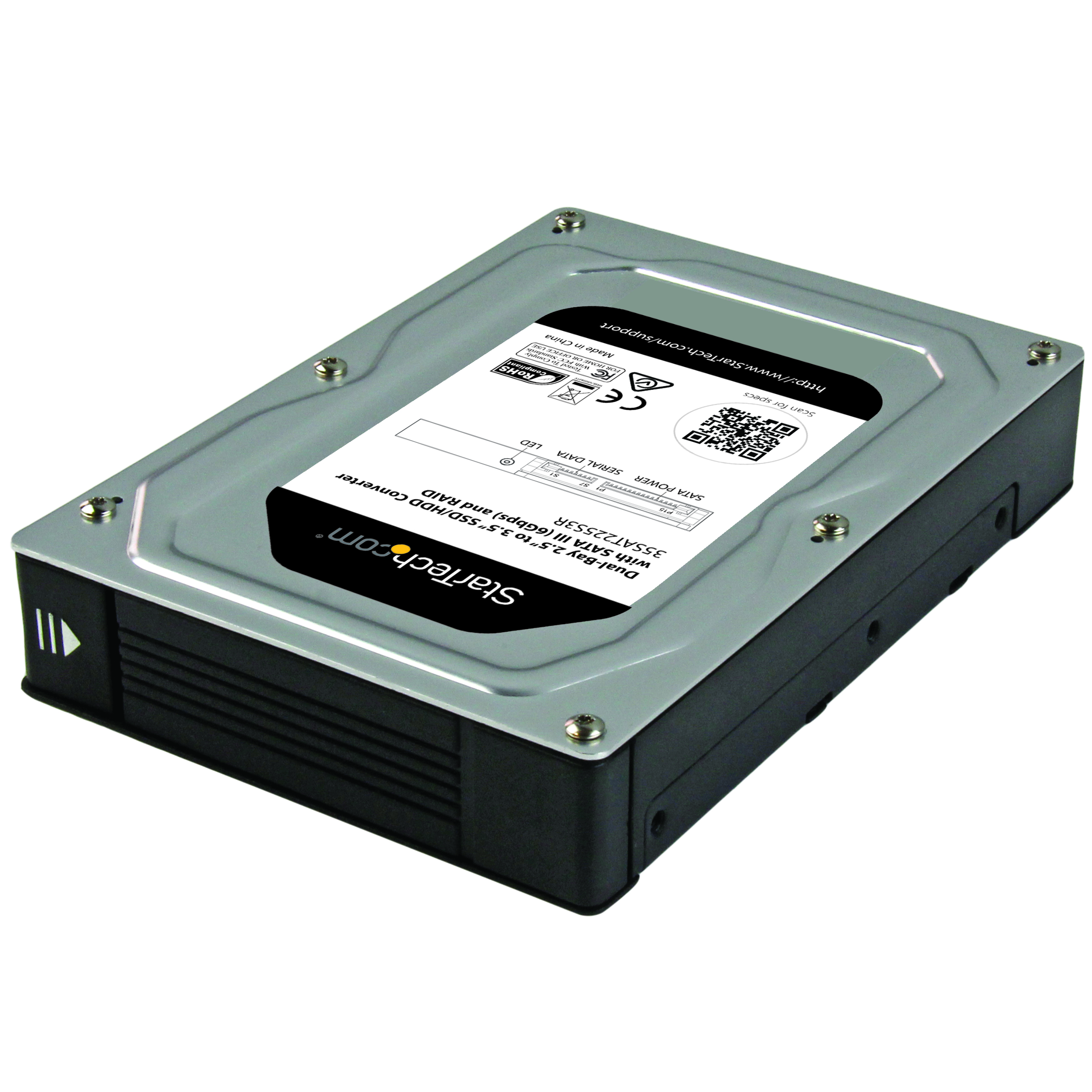

35SAT225S3R

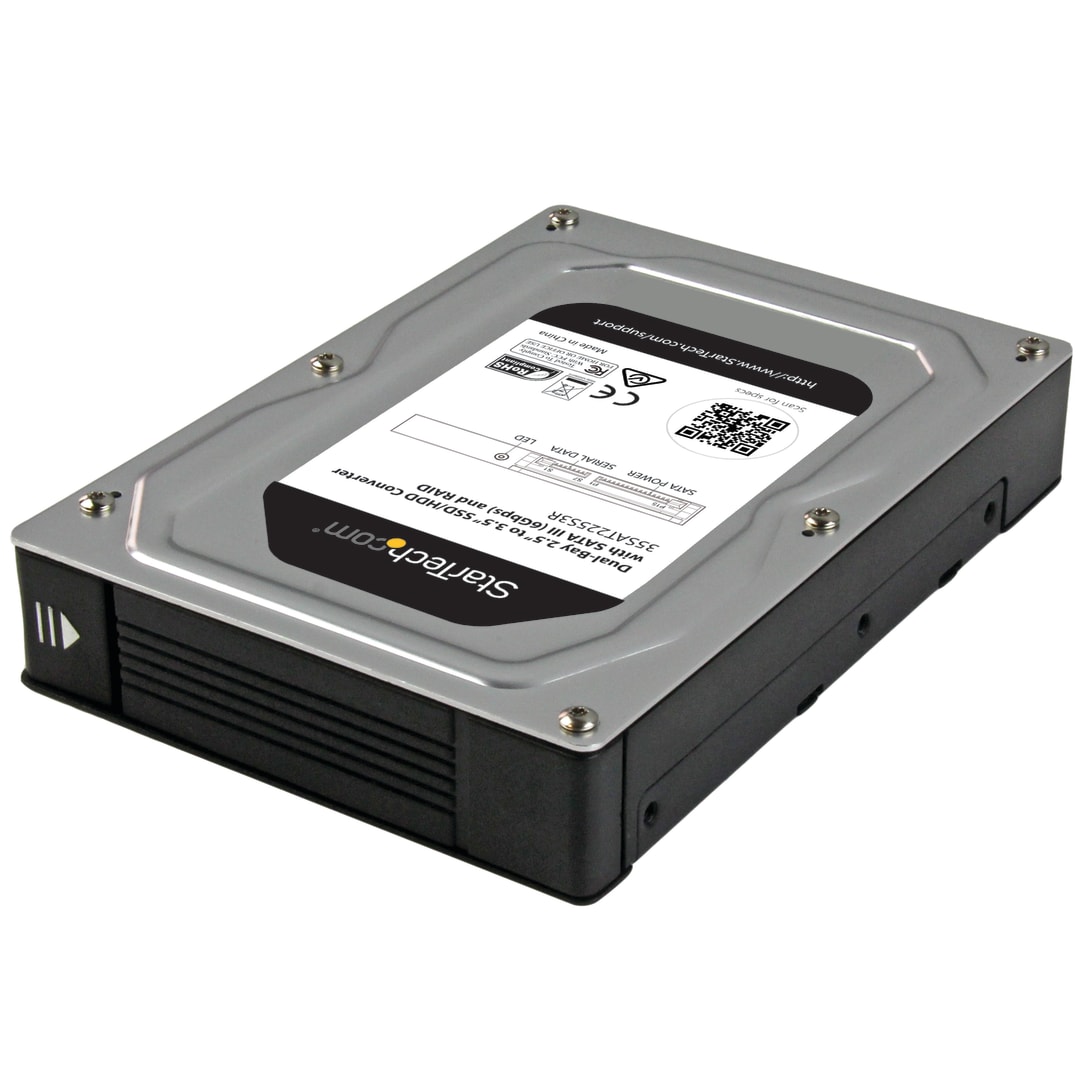

2 Bay 2.5 to 3.5 SATA HDD Converter
Install two 2.5” SATA drives into a 3.5” drive bay and get increased performance or data redundancy with RAID
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 2 Bay 2.5 to 3.5 SATA HDD Converter Product Number 35SAT225S3R UPC 065030864381 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 SATA Adapter Enclosures/Converters Family No Family Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX088X Product Title (Ultra-Short) 2.5-3.5 SATA Adapter Product Title (Short) Dual 2.5” to 3.5” SATA Adapter Enclosure Product Title (Medium) Dual-Bay 2.5” to 3.5” SATA Hard Drive Adapter Enclosure with RAID - SATA III Product Title (Standard) Dual-Bay 2.5in to 3.5in SATA Hard Drive Adapter Enclosure with RAID - Supports SATA III & RAID 0, 1, Spanning, JBOD Aluminum Product Title (Long) Dual-Bay 2.5” to 3.5” SATA Hard Drive Adapter Enclosure with RAID Product Title (AMZ) Dual-Bay 2.5in to 3.5in SATA Hard Drive Adapter Enclosure with RAID - Supports SATA III & RAID 0, 1, Spanning, JBOD Aluminum (35SAT225S3R) Title Ingram (Part 1) Dual-Bay 2.5” to 3.5” SATA SSD/ Title Ingram (Part 2) HDD Adapter Enclosure with RAID Website Product Headline Install two 2.5” SATA drives into a 3.5” drive bay and get increased performance or data redundancy with RAID Bullet 1 Upgrade your system performance by installing two 2.5” SSDs/HDDS in a 3.5" drive bay Bullet 2 Features hardware RAID - RAID 0, 1 plus JBOD and spanning to enhance drive performance or add redundancy Bullet 3 Installs easily into internal or external 3.5” drive bays Bullet 4 Supports SATA I, II and III (up to 6Gbps) Bullet 5 TRIM support for stable performance Bullets (Compact) Install two 2.5” SATA drives into a 3.5” drive bay and get increased performance or data redundancy w/ RAID - Dual-Bay 2.5” to 3.5” SATA Hard Drive Adapter Enclosure - 2-Bay Adapter Enclosure to update legacy desktop PCs & servers - SATA III (6 Gbps) Bullets (Consolidated) Install two 2.5" SATA drives into a 3.5" drive bay and get increased performance or data redundancy with RAID - Dual-Bay 2.5" to 3.5" SATA Hard Drive Adapter Enclosure - 2-Bay adapter enclosure for cost-effective upgrades to legacy desktop PCs and servers - Install two 2.5" SSDs/HDDs into a single internal or external 3.5" drive bay - Supports RAID 0 and RAID 1 plus Spanning and JBOD - Supports SATA I/II/III (up to 6 Gbps) - Durable aluminum housing Marketing Copy Marketing Copy (No HTML) Applications - Build or upgrade a desktop PC or server to take advantage of the increased performance of two 2.5" HDDs or SSDs in a 3.5" drive bay - ideal for system integrators, IT professionals and prosumers
- Upgrade core IT systems cost-efficiently
- Upgrade legacy systems such as desktop PCs and servers
Website Search Keyword - SATA Hard Drive Adapter Enclosure
- Dual-Bay 2.5” to 3.5” SATA Hard Drive Adapter Enclosure
- 2.5 inch hard drive adapter
- 2.5 HDD to 3.5 HDD SATA adapter
- 2.5 to 3.5 HDD adapter
- 2.5 to 3.5 SATA converter
- RAID enclosure
- SATA 2.5" to 3.5" adapter
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes TRIM and SMART have limited support while in a RAID configuration. A SATA controller with Port Multiplier support is required, in addition to the product configured in JBOD mode, to provide full TRIM and SMART support. Accessory Products BRACKETFDBK Related Products - 25SAT35HDD
- 25SATSAS35
- 25S22M2NGFFR
- SAT2MSAT25
- SAT2M2NGFF25
Color Silver & Black Humidity 5% ~ 65% Material Aluminum and Plastic Operating Temperature 0°C to 55°C (32°F to 90°F) Primary Material Aluminum Product Length (mm) 146.000 Product Width (mm) 102.000 Product Height (mm) 26.000 Product Weight (g) 223.000 Storage Temperature -20°C to 55°C (-4°F to 131°F) TAA Compliant No Maximum Data Transfer Rate 6Gbps OS Compatibility OS Independent Port Multiplier Yes RAID Yes Chipset ID ASMedia - ASM1092R Compatible Drive Types SATA Fans Included? Yes/No No Front Door Key Lock No LED Indicators - 1 - Bay 1 HDD Error
- 1 - Bay 2 HDD Error
Number of Drives 1 Supported Drive Height(s) 9.5mm Carton Depth (mm) 316 Carton Height (mm) 259 Carton Quantity 32 Carton Weight Gross (g) 9140 Included in Package - 1 - dual-bay 2.5" to 3.5" drive converter
- 1 - quick-start guide
- 4 - mounting screws
Package Depth (mm) 114 Package Height (mm) 36 Package Width (mm) 162 Package Quantity 1 Package Weight (g) 270 Packaging Description Dual-Bay 2.5” to 3.5” SATA Drive Converter with RAID Packaging Description India Dual-Bay 2.5” to 3.5” SATA Drive Converter with RAID Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin + 15-Pin) Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2016-03-16 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2016-06-30 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IT,JP,NL,NZ,PE,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2016-05-10 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle None
