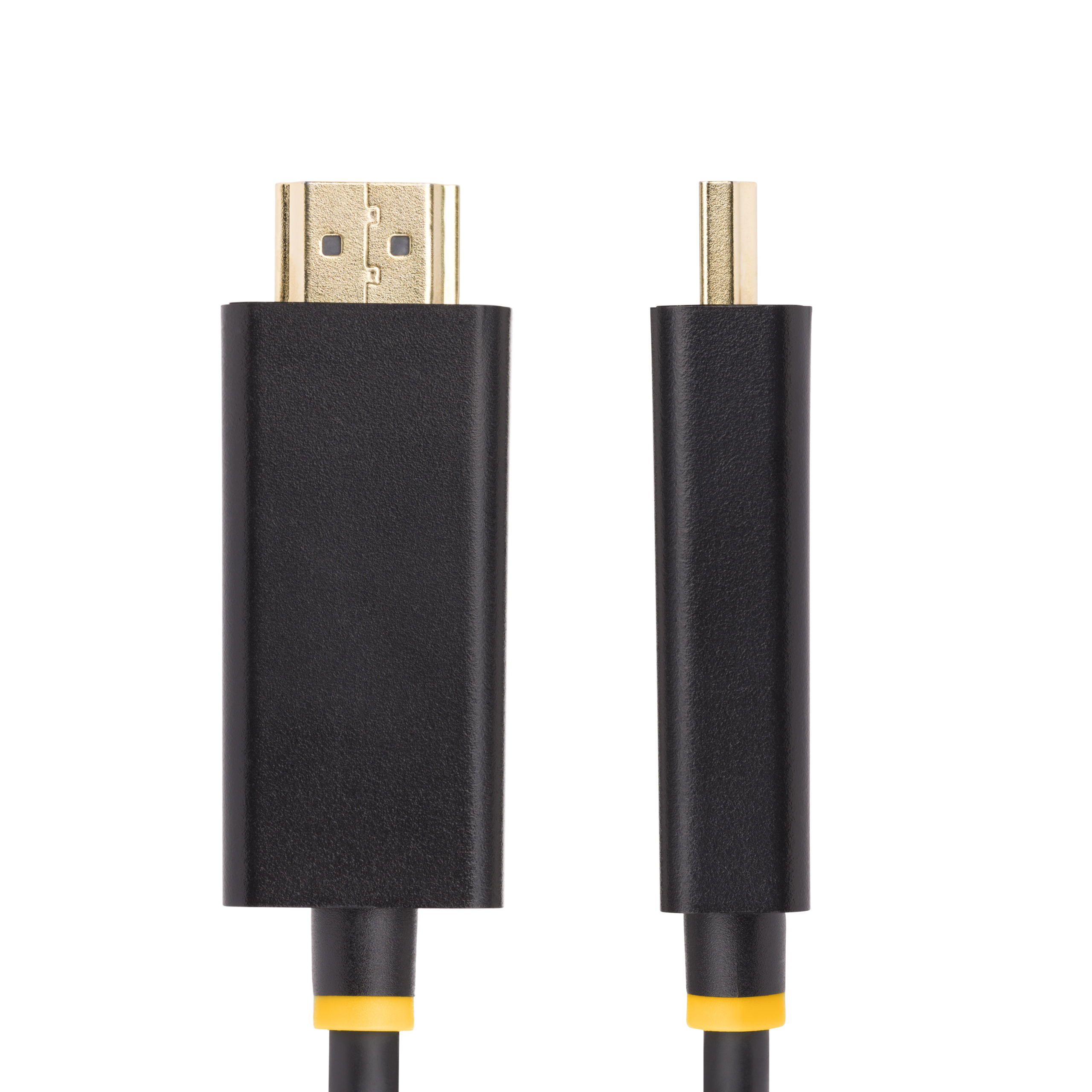

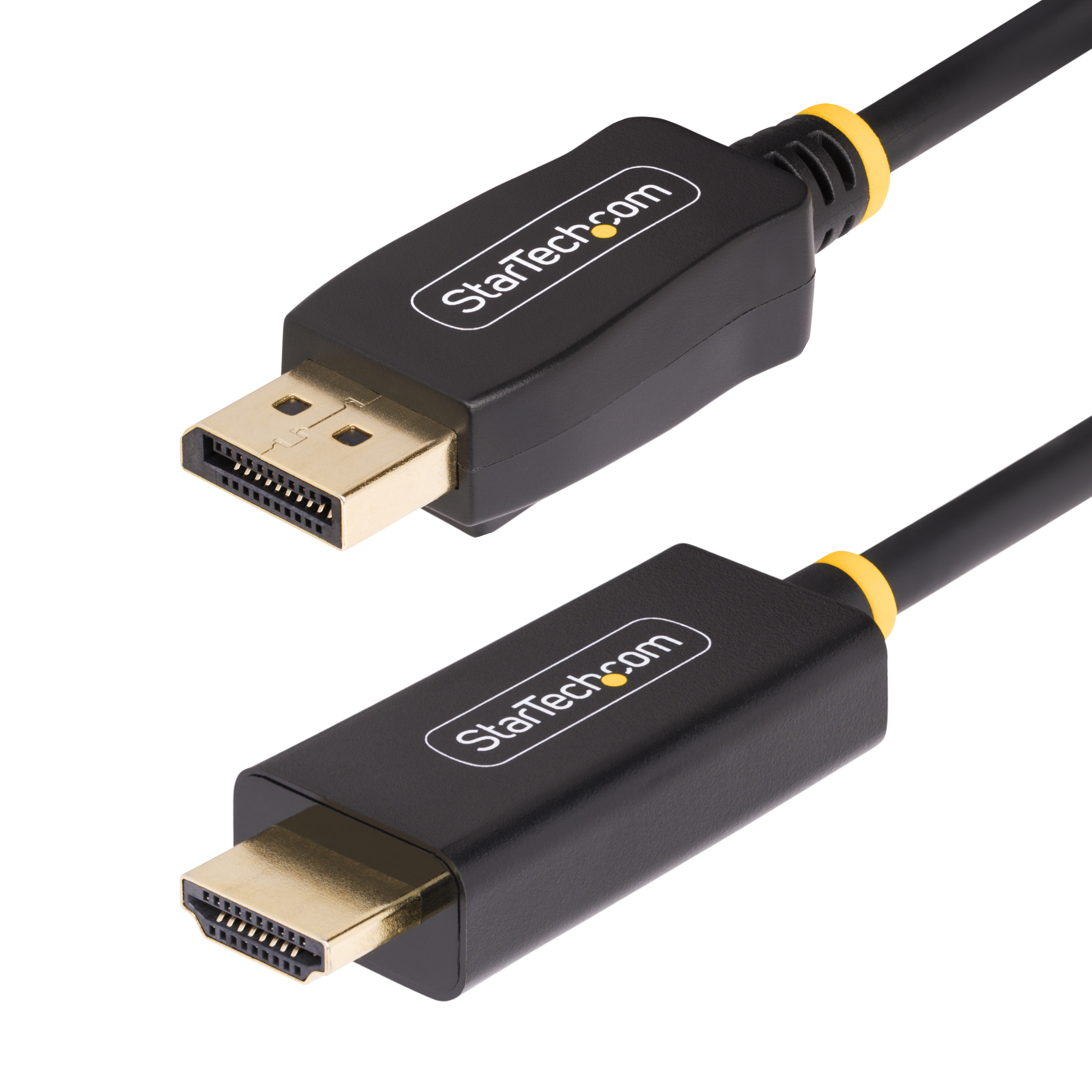

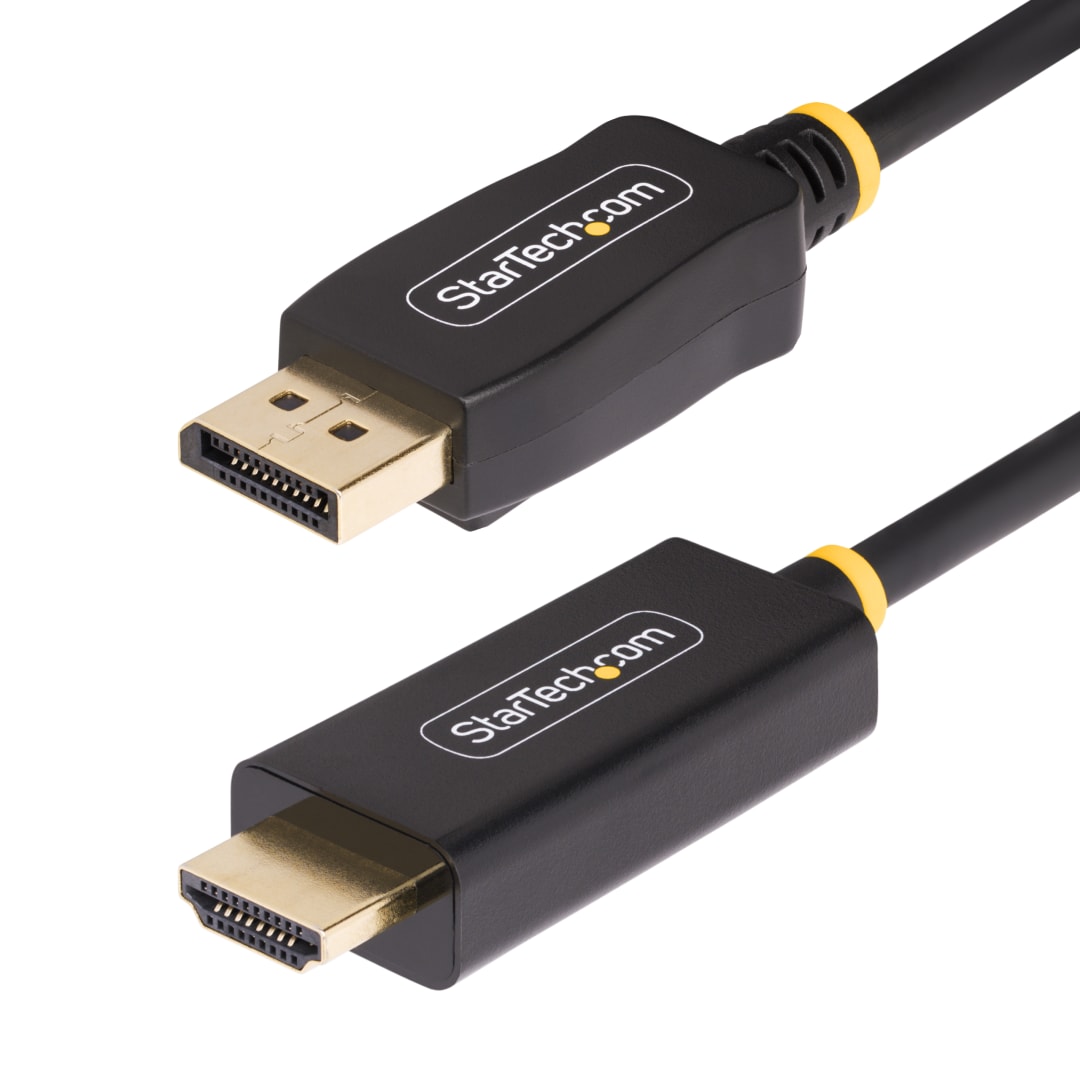

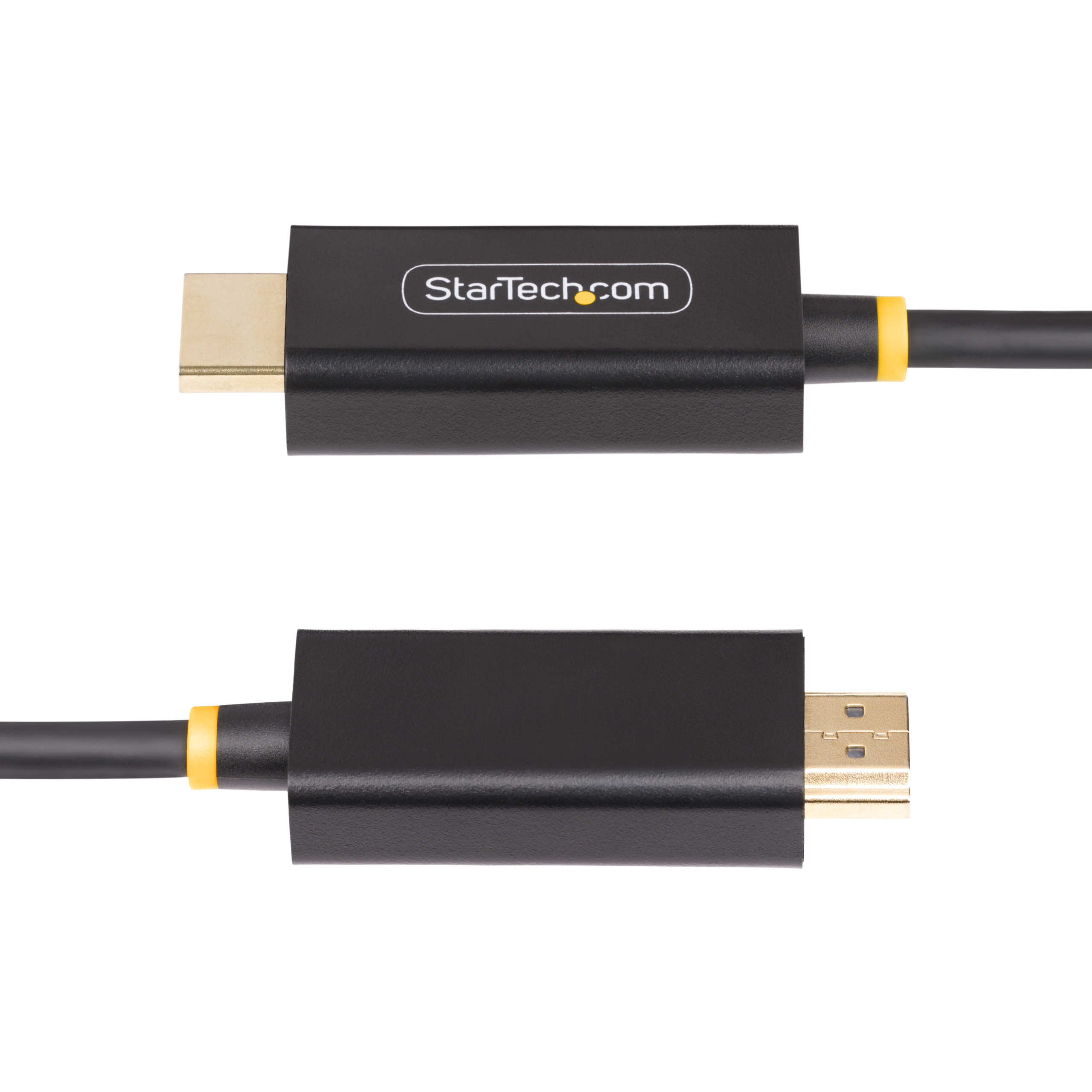

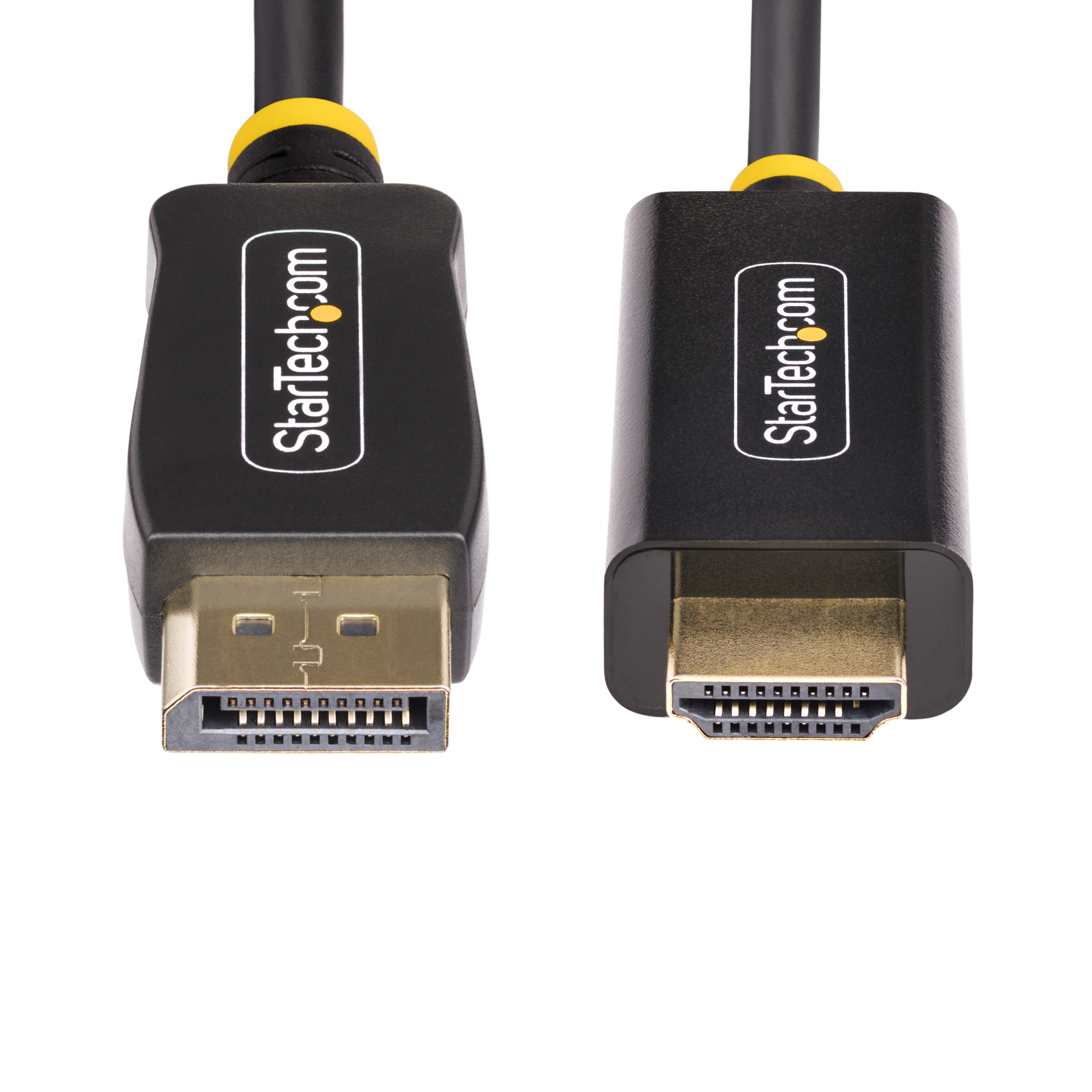

3F-DP-HDMI-4K60-HDR
DP 1 4 to HDMI 2 0b Cable 3 ft m m

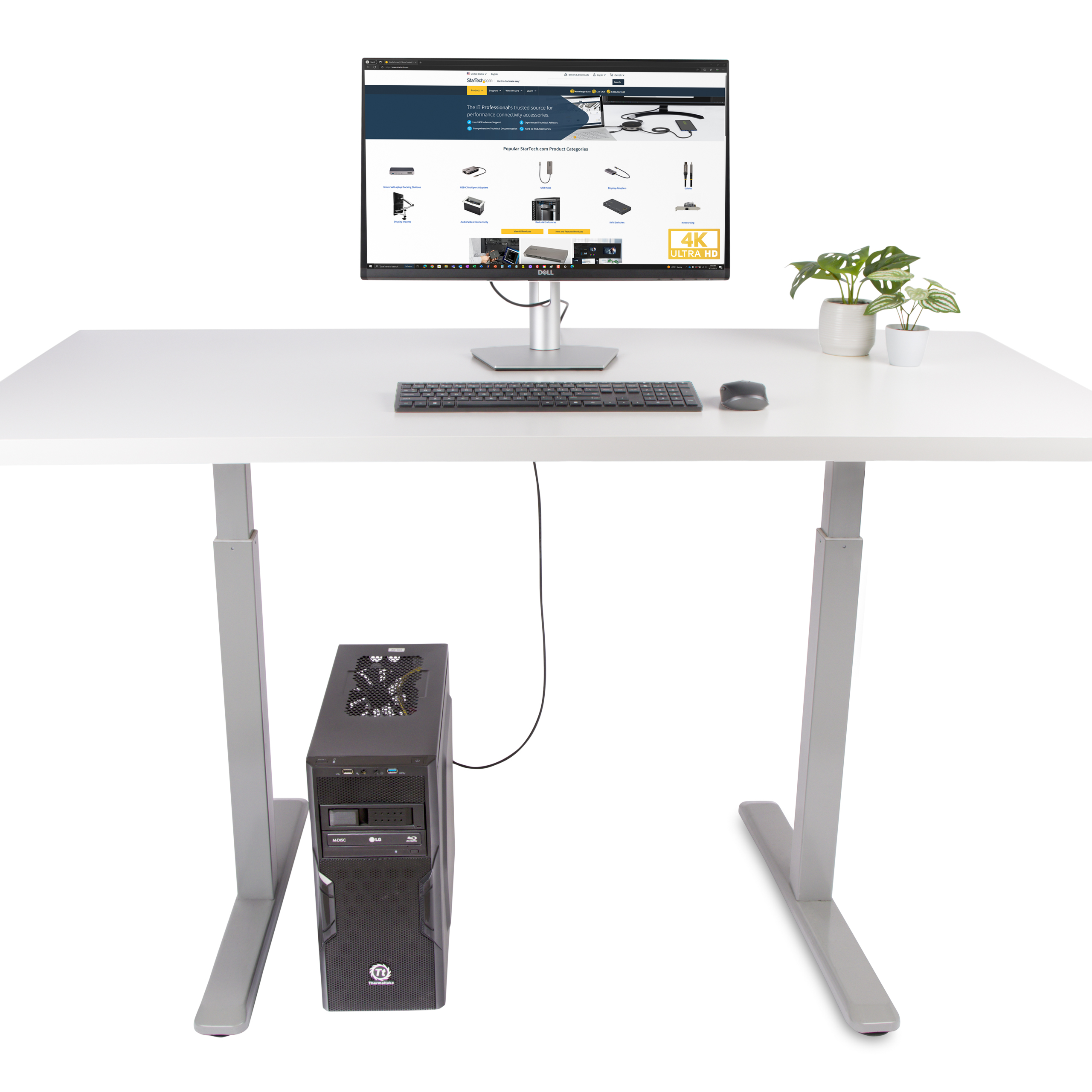

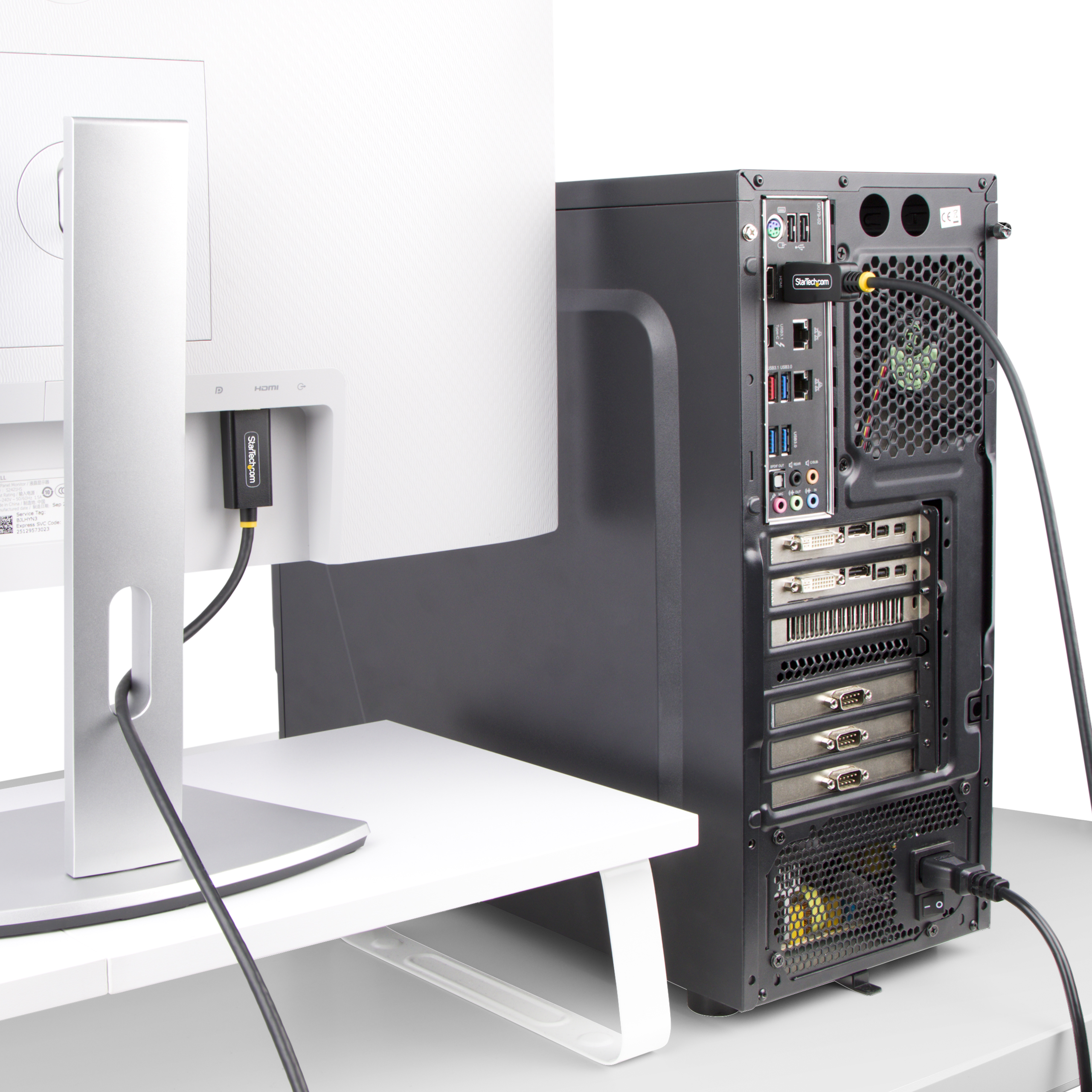

Connect a DisplayPort source to an HDMI display up to 3.3ft (1m) away, with support for up to 4K 60Hz HDR video
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Name DP 1 4 to HDMI 2 0b Cable 3 ft m m Product Number 3F-DP-HDMI-4K60-HDR UPC 065030901840 Lifecycle status Active Warranty 3 Years Weighted Opportunity 32965 Taxonomy Product > Docks, Hubs & Video Adapters > Video Adapters Category Level 1 Display and Video Adapters Category Level 2 DP and MDP Display Adapters Category Level 3 DP to HDMI - 4K HDR Family DP to HDMI 2.0 Adapter Cables Country of Origin Europe & Japan Vietnam Country of Origin North America Vietnam Country of Origin History (1) Vietnam Country of Origin Revision (1) XXXXXX170X Product Title (Ultra-Short) DP to HDMI Cable Product Title (Short) 3.3ft DP to HDMI Cable, 4K 60Hz with HDR Product Title (Medium) 3.3ft (1m) DisplayPort to HDMI Adapter Cable, 4K 60Hz with HDR, DP to HDMI 2.0b Product Title (Standard) 3.3ft (1m) DisplayPort to HDMI Adapter Cable, 4K 60Hz with HDR, DP to HDMI 2.0b Cable, Active Video Converter Product Title (Long) 3.3ft (1m) DisplayPort to HDMI Adapter Cable, 4K 60Hz with HDR, DP to HDMI 2.0b, Active Video Converter, DisplayPort Desktop to HDMI Monitor Product Title (AMZ) 3.3ft (1m) DisplayPort to HDMI Adapter Cable, 4K 60Hz with HDR, DP to HDMI 2.0b Cable, Active Video Converter Title Ingram (Part 1) 1m DP to HDMI Adapter Cable - Title Ingram (Part 2) Active DisplayPort to HDMI Adapter Website Product Headline Connect a DisplayPort source to an HDMI display up to 3.3ft (1m) away, with support for up to 4K 60Hz HDR video Bullet 1 HIGH-PERFORMANCE: 3.3-foot (1-meter) DisplayPort to HDMI Adapter Cable connects a DisplayPort-enabled desktop to an HDR-capable 4K 60Hz HDMI display; HBR3 18Gbps bandwidth; Supports 4:4:4/RGB color space, 8-bit w/dithering, 7.1ch audio, and HDCP 1.4/2.3 Bullet 2 HDR ADAPTER CABLE: HDR improves visual quality by providing a wider range of brightness level and colors, resulting in a dynamic viewing experience; Integrated video adapter cable reduces potential points of failure, signal loss, and clutter Bullet 3 NO DRIVERS OR SOFTWARE: Universal Adapter Cable is compatible with all hardware platforms and any operating system; Utilize integrated or dedicated GPU (Intel/AMD/Nvidia) capabilities enabling high performance graphics with minimal CPU usage Bullet 4 BUILD QUALITY & DESIGN: Built with adaptive receiver equalization to optimize input signal and amplify output signal to ensure display compatibility; Cage shielding prevents Electro-Magnetic Interference (EMI) and helps maintain signal integrity Bullet 5 HOST COMPATIBILITY: Active Adapter Cable works with computers from Dell, HP, Lenovo, and other desktop manufacturers; Backward compatible with 4K 30Hz, 1080p, and other lower resolutions; Latching DisplayPort ensures reliable connection to the computer Bullets (Compact) 3.3ft (1m) DisplayPort to HDMI Adapter Cable connects a DisplayPort-enabled desktop to an HDR-capable 4K 60Hz HDMI display; 4:4:4 8-bit chroma subsampling; Universal Cable requires no drivers/software; Backward compatible with lower resolutions Bullets (Consolidated) - 3.3ft (1m) DisplayPort to HDMI Adapter Cable connects a DisplayPort-enabled desktop to an HDR-capable 4K 60Hz HDMI display - 18Gbps bandwidth; 4:4:4/RGB color space 8-bit w/dithering; 7.1ch audio; HDCP 1.4/2.3 - Universal Adapter Cable requires no drivers or software; Compatible with any operating system - Built with adaptive receiver equalization to optimize input signal and amplify output signal to ensure display compatibility - Backward compatible with 1080p and other lower resolutions Marketing Copy Marketing Copy (No HTML) Applications - Connect a DisplayPort-enabled computer to an HDR-capable HDMI display
- Integrated video adapter and cable simplifies cable management and reduces clutter
- Ideal for creative professionals who work with high-resolution graphics and video
Website Search Keyword - dp to hdmi cable
- dp to hdmi
- displayport to hdmi
- displayport to hdmi cable
- displayport to hdmi converter
- dp to hdmi covnerter
- dp to hdmi adapter
- dp to hdmi converter
Required Regulatory Compliance Marks - Triman/Info-Tri - Packaging - Waste - European Union - Plastic Bag
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - Low-Density Polyethylene
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Special Notes The DisplayPort to HDMI Adapter Cable is a unidirectional cable that allows the transfer of video signals from a DisplayPort-enabled device to a HDMI-enabled display. System and Cable Requirements To achieve maximum performance, both the source and destination devices must support the appropriate specifications. Accessory Products HD2MF6INL Related Products - 6F-DP-HDMI-4K60-HDR
- 10F-DP-HDMI-4K60-HDR
- DP2HD4K60S
- DP2HD4K60H
Power Source Bus Powered Cable Length (mm) 1000 Color Black Humidity 10% ~ 90% RH Material PVC Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 915 Product Width (mm) 20.7 Product Height (mm) 12.7 Product Weight (g) 50 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Audio Specifications HDMI - 7.1 Channel Audio Bandwidth 18Gbps General Specifications Outside Cable Diameter: 5.0mm HDR Support Yes Maximum Digital Resolutions 4K 60Hz Maximum Supported Resolution 4K 60Hz (HDR) OS Compatibility OS Independent Supported Resolutions Video Output Port HDMI Wide Screen Supported Yes Active or Passive Adapter Active Audio Yes AV Input DisplayPort AV Output HDMI Cable Jacket Material PVC - Polyvinyl Chloride Chipset ID Synaptics - VMR7100 Connector Plating Gold Converter Type Cable Adapters Host Connection Port DisplayPort Number of Displays 1 Carton Depth (mm) 305 Carton Height (mm) 310 Carton Quantity 150 Carton Weight Gross (g) 8090 Included in Package 1 - DisplayPort to HDMI Cable Number of Sub-Cartons 15 Package Depth (mm) 119 Package Height (mm) 27 Package Width (mm) 168 Package Weight (g) 56 Packaging Description 3ft DisplayPort to HDMI Adapter Cable - HDR - 4K 60Hz Packaging Description India 3ft DisplayPort to HDMI Converter Cable - HDR - 4K 60Hz Sub-Carton Depth (mm) 276 Sub-Carton Height (mm) 88 Sub-Carton Width (mm) 296 Sub-Carton Quantity 10 Sub-Carton Weight (g) 566 Connector 1 DisplayPort Connector 1 (Quantity) 1 Connector 2 HDMI Connector 2 (Quantity) 1 A+ Not Required Actual Inbox Documents Created None Amazon Merchandising Manager Kristian Haighton Application Photos Uploaded Artwork Due Date 2023-11-30 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Comparable SKU Comment Resolution difference, 4k60 on the NPI, 4k/30 on the legacy Comparable SKU 2 Comment n/a Digital Content Due Date 2024-02-02 Enhanced Gallery Required Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,MX,NL,SE,UK,US Primary Technology HDMI 2.0 / 4K 60 Hz and HDR Product Development Specialist Michael Munn Product Information Creation Specialist (PICS) Dan Dagenais Product Manager David Muzinic Product Performance Specialist John Mardinly Product Photographer Caleigh Le Grand Target Development Completion Date 2023-08-25 Target Production Release 2023-11-30 Tech Lead Justin Weaver Technical Writer Dan Dagenais Technology Lifecycle Mainstream Video Not Required
