Main Image
410VDSLEXT2
1Port to 4Port VDSL2 Network Extender with Switch

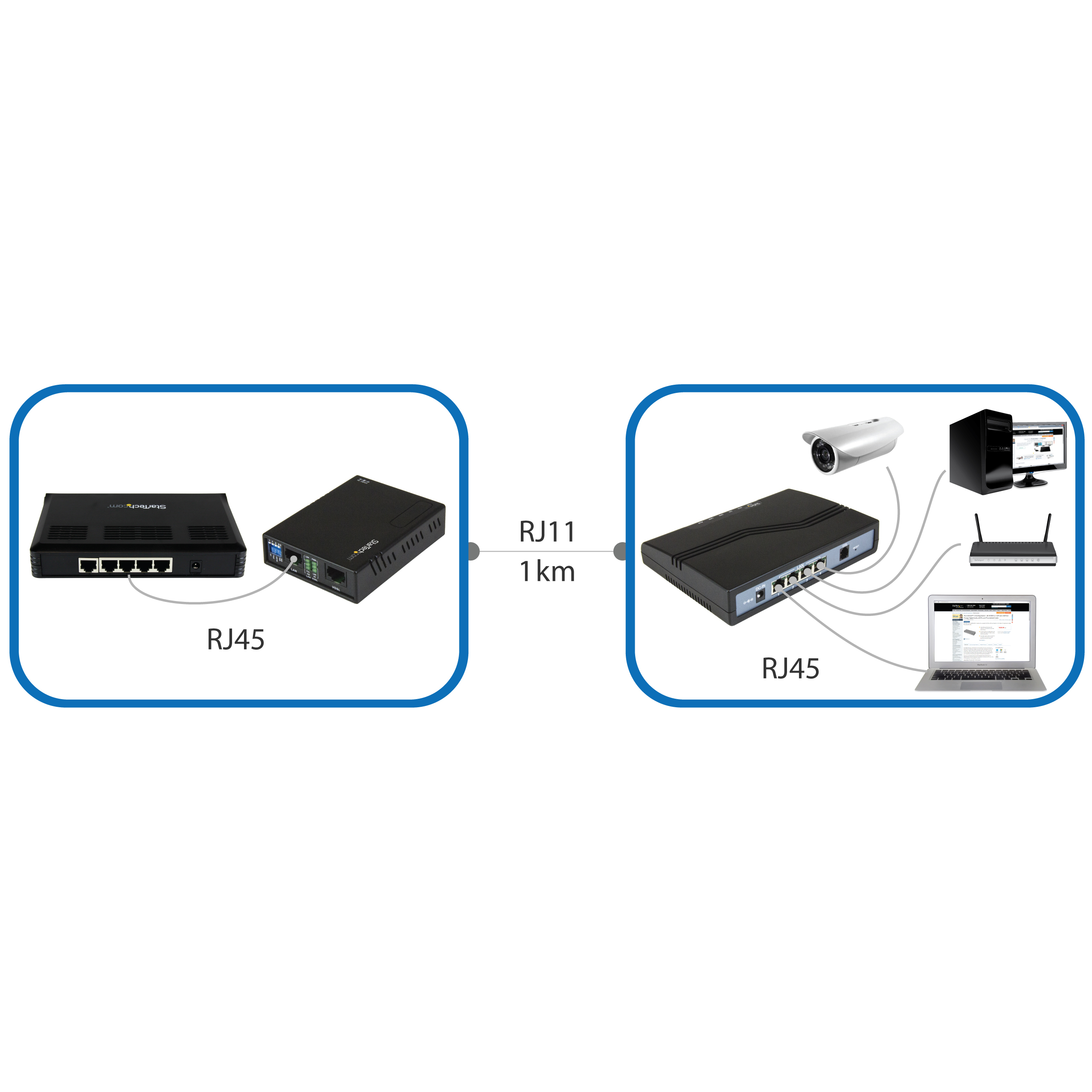

Scale your 10/100 Mbps Ethernet network 1km over RJ11 phone lines and remotely connect four RJ45 network devices
Main Image
Product Images
Product Images
BOM Image
Product Name 1Port to 4Port VDSL2 Network Extender with Switch Product Number 410VDSLEXT2 UPC 065030859325 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Networking Category Level 2 Ethernet Switches and Extenders Category Level 3 Ethernet Extenders Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX016X Product Title (Ultra-Short) VDSL2 Extender Kit Product Title (Short) 1 to 4 VDSL2 Ethernet Extender Kit - 1km Product Title (Medium) 1 Port to 4 Port VDSL2 Ethernet Extender Kit Over Single-pair Wire - 1km Product Title (Standard) 1 Port to 4 Port VDSL2 Ethernet Extender Kit Over Single-pair Wire - 10/100Mbps - 1km Product Title (Long) 1-Port to 4-Port VDSL2 Ethernet Extender Kit Over Single-Pair Wire - 10/100Mbps - 1km Product Title (AMZ) 1 Port to 4 Port VDSL2 Ethernet Extender Kit Over Single-pair Wire - 1km - Built-in Switch - 10/100Mbps LAN Network Extender (410VDSLEXT2) Title Ingram (Part 1) 1Port to 4Port VDSL2 Network Title Ingram (Part 2) Extender Kit - Built-in Switch Website Product Headline Scale your 10/100 Mbps Ethernet network 1km over RJ11 phone lines and remotely connect four RJ45 network devices Bullet 1 Reduce additional expenses using your existing phone line infrastructure or RJ11 cable Bullet 2 Create a convenient point-to-point extension over longer distances than standard 10/100Mbps Ethernet cable Bullet 3 Connect multiple RJ45 network devices directly to the receiver, with an integrated 4-port Ethernet switch Bullet 4 Quickly configure and manage your network with a simple web-based interface Bullet 5 8kV air and 4kV contact ESD and surge protection Bullets (Consolidated) Scale your 10/100 Mbps Ethernet network 1km over RJ11 phone lines and remotely connect four RJ45 network devices - 1 Port to 4 Port VDSL2 Ethernet Extender Kit Over Single-pair Wire - Built-in Switch - Long reach LAN Network Extender - RJ45 to RJ11 extension - Cost-effective and convenient - Integrated 4 port Ethernet switch - Simple web-based interface - ESD and surge protection - Supports IP port and MAC address filtering Marketing Copy Applications - Connect users in isolated areas of a large complex or separate buildings using existing RJ11
- Deploy in stone, concrete, or heritage buildings where network connectivity is typically unavailable
- Extend network access and connect multiple IP cameras or Wi-Fi access points in remote areas of a stadium, auditorium, or campus
Website Search Keyword - 2 wire
- two wire
- Ethernet extension
- network extender
- network extension
- lan extender
- phone line extender
- remote network
- DSL extender
- VDSL extender
- copper extender
- 10/100 extender
- RJ45 extender
- VDSL2 extender
- single pair wire extender
- ethernet over rj11
- ethernet over phone line
- ethernet extender kit
- ethernet over vdsl
- ethernet over vdsl2
- ethernet extender
- vdsl2 ethernet extender
- ethernet over vdsl2 kit
- vdsl over 10/100 network
- vdsl2 over fast ethernet
- ethernet extender kit over Single Pair Wire
- network extender over phone line
- network extender over telephone wire
- network extender over rj11
- Ethernet extender over single pair wire
- Ethernet extender over vdsl
- dsl Ethernet extender
- vdsl Ethernet extender
- 4 port ethernet extender
- 4 port vdsl extender
- 4 port vdsl2 extender
- 4 port network extender
- 4 port single pair wire extender
- 4 port ethernet over rj11
- 4 port ethernet over phone
- LAN over phone line
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes Accessory Products - C6PATCH3BK
- C6PATCH10BK
- C6PATCH25BL
- C6PATCH35OR
- RJ6FT
- RJ12FT
- RJ25FT
- WIRC5ECMR
- SVA12M2NEUA
- SVA12M5NA
Input Current 0.36 A Input Voltage 100 - 240 AC Output Current 1.0 A Output Voltage (V) 12V DC Power Consumption (In Watts) 4.5 Power Source 2 AC Adapters Included Plug Type M Center Tip Polarity Positive Color Black Humidity Material Plastic Operating Temperature Product Length (mm) 180 Product Width (mm) 135 Product Height (mm) 60 Product Weight (g) 408 Storage Temperature TAA Compliant Yes Auto MDIX Yes General Specifications - Full Duplex Support: Yes
- Auto-Negotiation: Yes
- VLAN Tagging: Yes
Jumbo Frame Support No Max Distance 1 km (0.6 mi) Maximum Data Transfer Rate 200 Mbps - Full-Duplex MTBF (hours) Chipset ID Industry Standards - IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX
- VDSL2 ITU-T G.993.2, VDSL ITU-T G.993.1, and VDSL2/VDSL ITU-T G.997.1 compliant
- IEEE 802.3x Full Duplex Flow Control, IEEE 802.1Q VLAN Tagging, IEEE 802.1P Quality of Service (QoS)

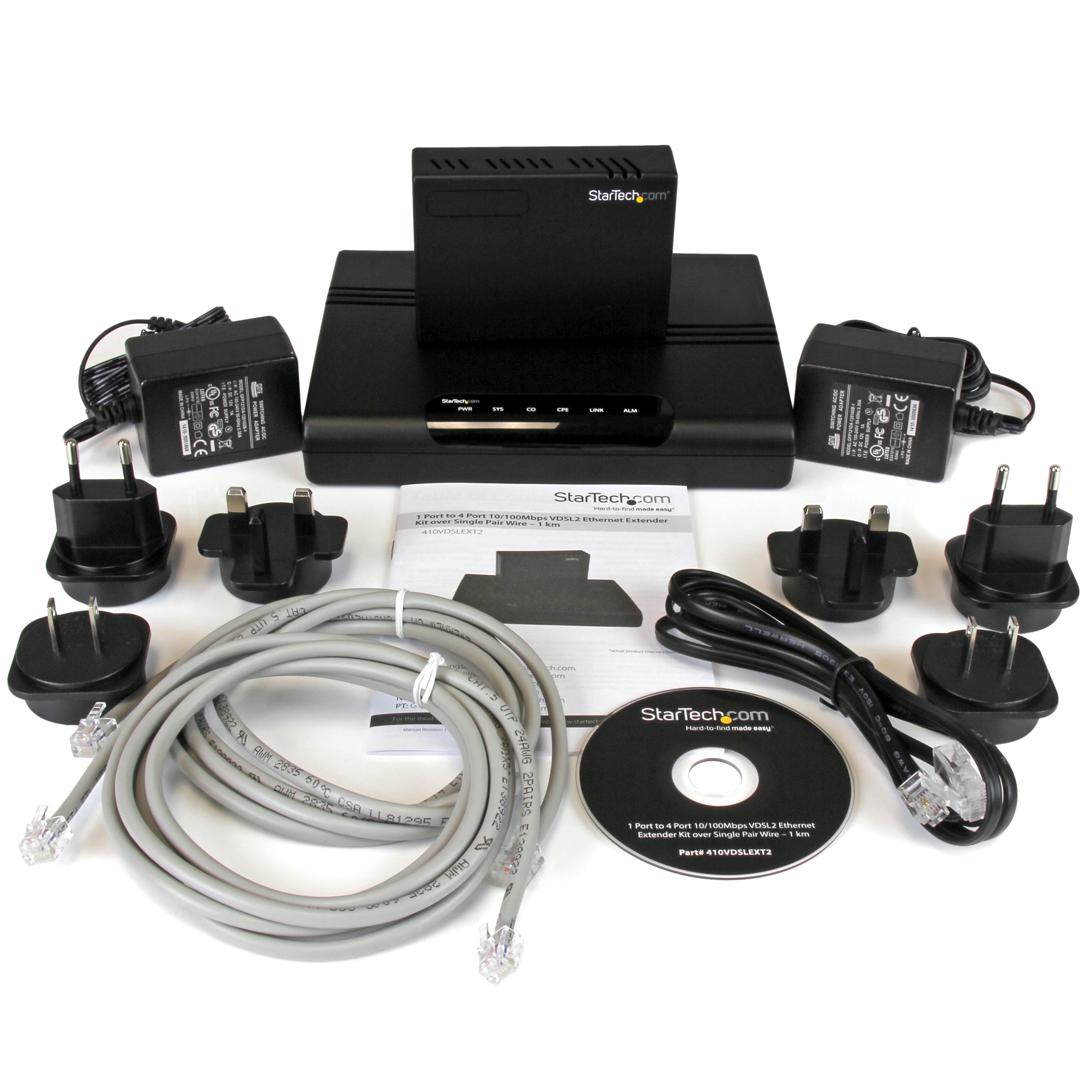

LED Indicators 0 - Please see product manual Regulatory Approvals Carton Depth (mm) 345 Carton Height (mm) 420 Carton Quantity 8 Carton Weight Gross (g) 12310 Included in Package - 1 - 1 Port VDSL2 Ethernet Transmitter
- 1 - 4 Port VDSL2 Ethernet Receiver
- 2 - Universal Power Adapters (NA/UK/EU)
- 1 - RJ45 to VDSL2 Cable
- 1 - RJ11 Cable
- 1 - Instruction CD
- 1 - Instruction Manual
Package Depth (mm) 165 Package Height (mm) 200 Package Width (mm) 230 Package Quantity 1 Package Weight (g) 1400 Packaging Description 1 Port to 4 Port VDSL2 Ethernet Extender Kit - 1 km Packaging Description India 1 Port to 4 Port VDSL2 Ethernet Extender Kit - 1 km Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 4 Connector 2 RJ-11 Connector 2 (Quantity) 1 Host Connector 1 RJ-45 Host Connector 1 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-07-14 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) BE,CA,DE,DK,ES,EU,FR,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
