410VDSLEXTEU
VDSL2 Ethernet Extender Kit 10/100 4 Port 1km
Extend your 10/100Mbps Ethernet network to multiple users or network segments up to 1km away
Main Image
Product Images
Product Images
BOM Image
Product Name VDSL2 Ethernet Extender Kit 10/100 4 Port 1km Product Number 410VDSLEXTEU UPC 065030842952 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX016X Product Title (Short) 4 Port VDSL2 Ethernet Extender Kit UTP Product Title (Standard) 4 Port 10/100 VDSL2 Ethernet Extender Kit over Single Pair Wire - 1km Product Title (Long) 4 Port 10/100 VDSL2 Ethernet Extender Kit over Single Pair Wire - 1km Title Ingram (Part 1) 4 Port VDSL2 Ethernet Extender K Title Ingram (Part 2) it over Single Pair Wire Website Product Headline Extend your 10/100Mbps Ethernet network to multiple users or network segments up to 1km away Bullet 1 Four 10/100Mbps auto-sensing/auto-MDIX LAN ports Bullet 2 Integrated RS232 Console port Bullet 3 Lightweight, compact design Bullet 4 POTS/ISDN splitter on board Bullet 5 Provides surge protection for VDSL2 port Marketing Copy Applications - Extend network connectivity to remote areas of stadiums, auditoriums or other venues
- Industrial applications include controlling CNC machinery, polling bar code scanner data, administering process control equipment, and other harsh environment applications
- Monitor and control medical equipment, security keypads/card scanners, point of sale equipment and remote sensor data, and various other healthcare related network communications
- Provide connectivity to users or network segments that are in an isolated area of a large complex or in another building altogether
- Remote sensor monitoring for traffic flow management (air traffic control, expressway flow)
Website Search Keyword - 10/100 extender
- 2 wire
- copper extender
- DSL extender
- Ethernet extension
- lan extender
- network extender
- network extension
- phone extender
- phone line extender
- remote network
- RJ45 extender
- two wire
- VDSL extender
Accessory Products - C6PATCH10BK
- C6PATCH15BL
- C6PATCH20GR
- C6PATCH25GN
- RJ12FT
- RJ25FT
- WIRC6PATBKRL
- WIRRJ11
Related Products - 110VDSLEXT
- EOC110K
- EOC110R
Replacement Product 410VDSLEXT2 Input Current 0.5A Input Voltage 110V-240V AC Output Current 1.25A Output Voltage (V) 12V DC Power Consumption (In Watts) < 5W Power Source 2 AC Adapters Included Plug Type M Center Tip Polarity Positive Color Black Humidity 10~90% RH Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 180 Product Width (mm) 143 Product Height (mm) 36 Product Weight (g) 418 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Auto MDIX Yes Full Duplex Support Yes Maximum Data Transfer Rate MTBF (hours) 35,000 Hrs @ 25°C Switching Architecture Store and Forward Chipset ID Lantiq - VINAX D+A Industry Standards IEEE 802.3, IEEE802.3u, ETSI, ITU, ANSI VDSL2 LED Indicators - 4 - LAN Link/Activity indicators
- 1 - Power
- 1 - WAN Link indicator

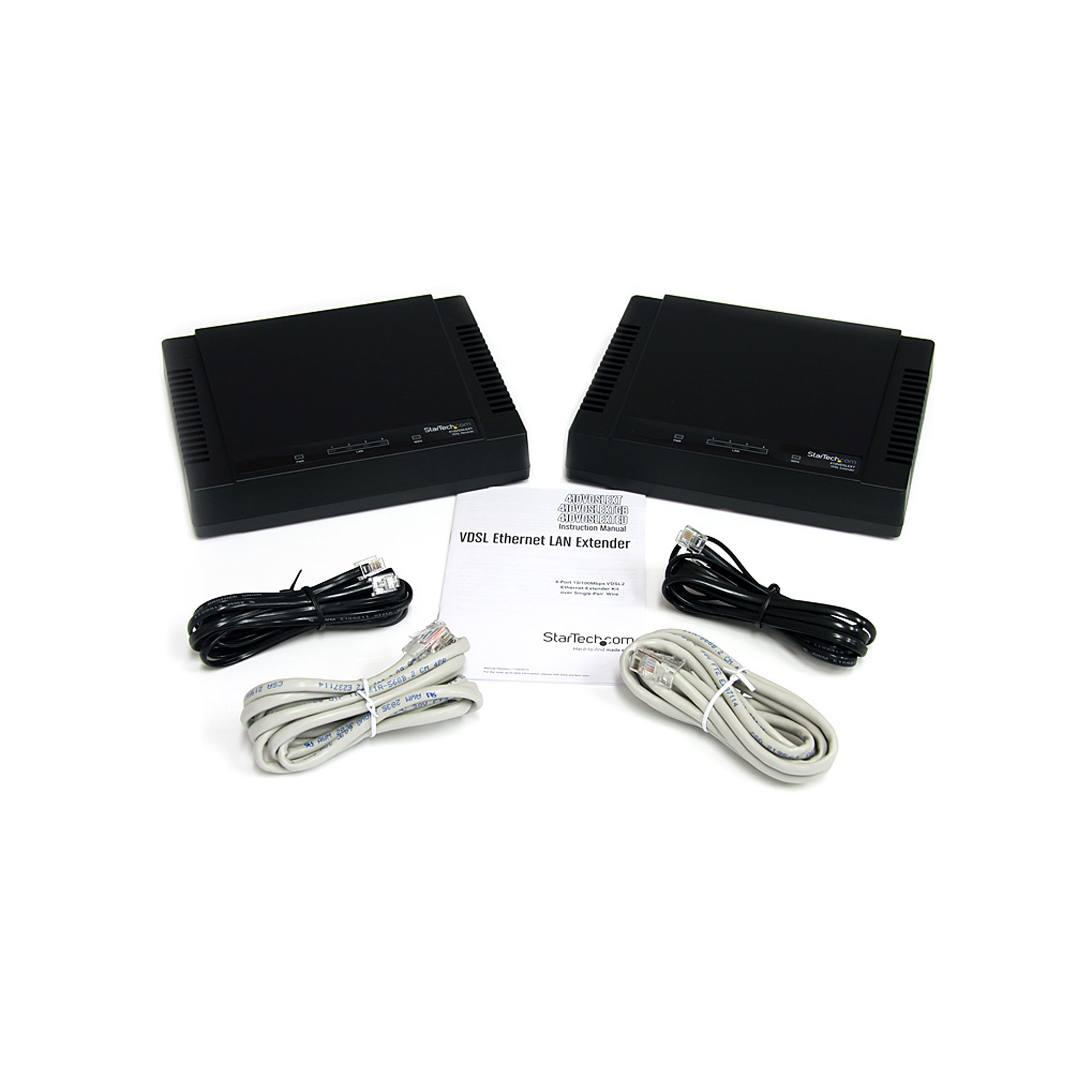

Carton Depth (mm) 355 Carton Height (mm) 355 Carton Quantity 6 Carton Weight Gross (g) 11500 Included in Package - 0 - Extender Unit
- 0 - Power Adapter
- 0 - Receiver Unit
- 0 - RJ-11 Cable
- 0 - RJ-45 Cable
- 0 - Instruction Manual
Package Depth (mm) 165 Package Height (mm) 145 Package Width (mm) 340 Package Quantity 2 Package Weight (g) 1752 Packaging Description 4 Port VDSL Ethernet Extender Kit UTP 1km Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DB-9 Serial Connector 1 (Quantity) 1 Connector 2 RJ-11 Connector 2 (Quantity) 2 Connector 3 RJ-45 Connector 3 (Quantity) 4 en-US Content Approved Yes Product Manager Daryl Hunt
