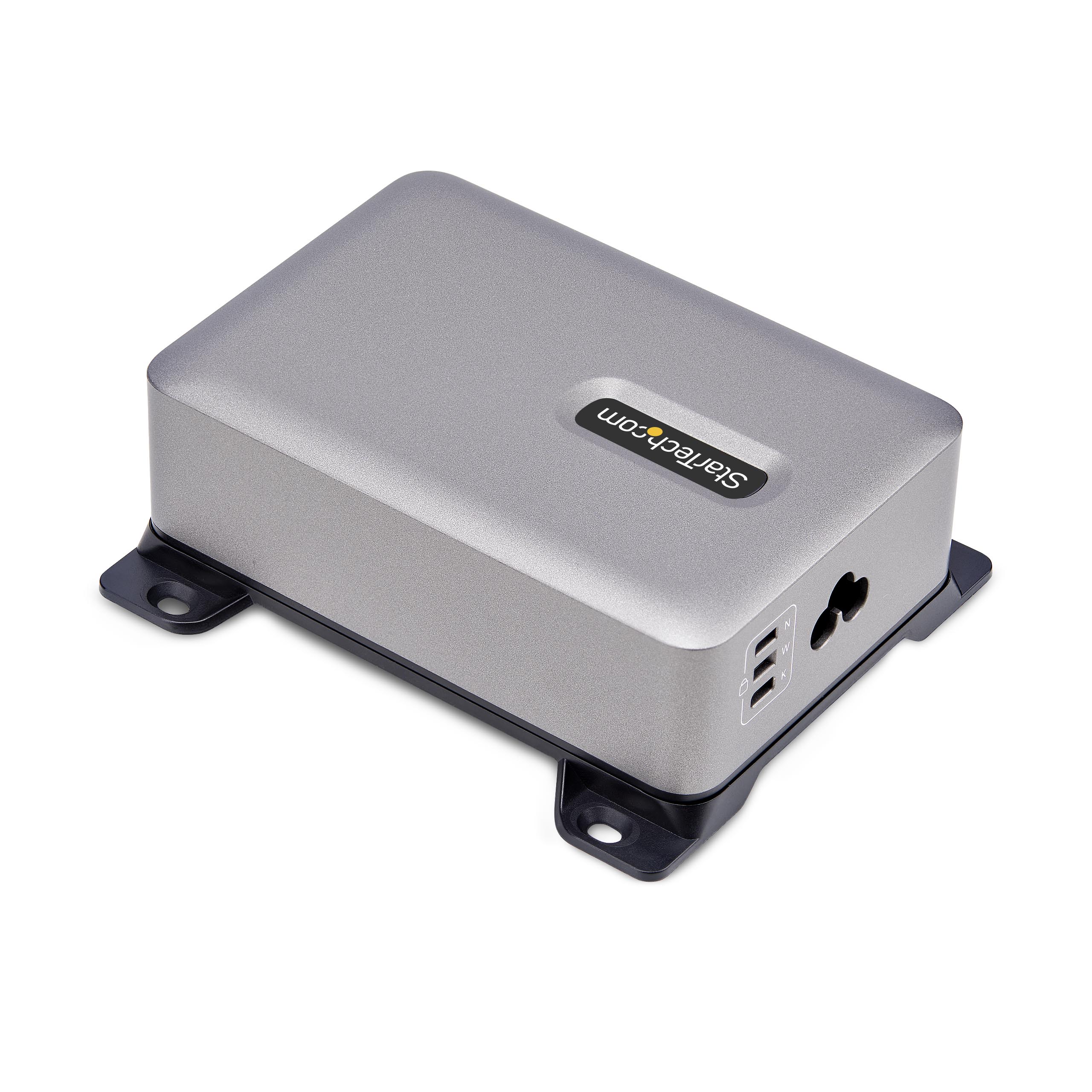

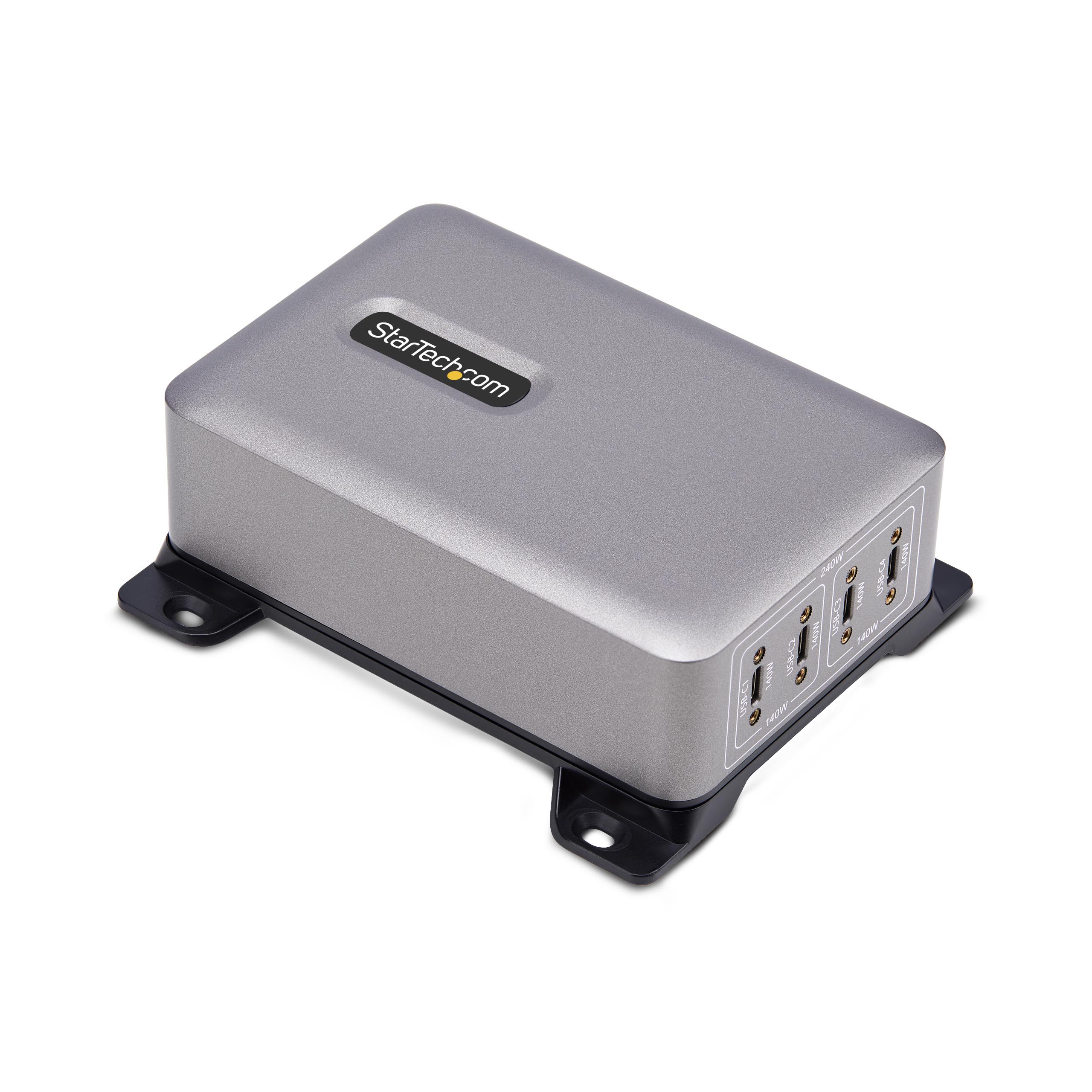

424DEU-USB-C-CHARGER
240W, Desk Charger, 4x USB-C, EU Power Cord, Standard SKU
Power and charge up to 4 USB-C devices that support USB Power Delivery with this 240W quad USB-C GaN Laptop Charger
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Video Link YouTube
Video Link YouTube
Video Link YouTube
Product Name 240W, Desk Charger, 4x USB-C, EU Power Cord, Standard SKU Product Number 424DEU-USB-C-CHARGER UPC 065030919654 Lifecycle status Active Warranty 2 Years Weighted Opportunity 0 Taxonomy Product > Power > Mobile Device Chargers Category Level 1 Workstation Accessories Category Level 2 Mobile Device Chargers Category Level 3 Desktop Chargers Family USB-C Charge Hubs - 140-300W Country of Origin Europe & Japan Vietnam Country of Origin North America Vietnam Country of Origin History (1) Vietnam Country of Origin Revision (1) XXXXXX190X Product Title (Ultra-Short) 4-Port USB-C Charger Product Title (Short) 4-Port USB-C Charger, 240W Total Product Title (Medium) 4-Port USB-C Charger, 240W Total, Single Port 140W EPR, PD 3.1 Product Title (Standard) 4-Port Multi-Device USB-C Charger, 240W Total, Single Port 140W EPR, Screw Locking Ports, Ideal for Boardrooms Product Title (Long) 4-Port Multi-Device USB-C Charger, 240W Total, Single Port 140W EPR, PD 3.1, Screw Locking Ports, Surface Mounting, Ideal for Boardrooms Product Title (AMZ) 4-Port Multi-Device USB-C Charger, 240W Total, Single Port 140W EPR, PD 3.1, Screw Locking, Ideal for Boardrooms Title Ingram (Part 1) 4-Port USB-C Charger Title Ingram (Part 2) 240W Total, Single Port 140W EPR Website Product Headline Power and charge up to 4 USB-C devices that support USB Power Delivery with this 240W quad USB-C GaN Laptop Charger Bullet 1 SECURE & OUT-OF-SIGHT: 4 screw-locking USBC ports prevent unwanted disconnections; Pre-installed surface-mount bracket (100x100 VESA) for discreet mounting under tables or inside enclosures; Compatible with Noble Wedge, K-Slot, and Nano locks Bullet 2 SAFE & EFFICIENT: UL listed (IEC 62368-1), USB-IF/FCC/CE compliant, and DOE Level VI energy-efficient, providing protection against over-voltage, overheating, and over-current; Active Power Factor Correction significantly improves efficiency Bullet 3 HIGH-CAPACITY MULTI-DEVICE CHARGER: 4-Port USB-C PD3.1 charger delivers up to 140W EPR per port (240W total power) to charge 4 laptops/devices simultaneously; Rapidly charges the powerful MacBook Pro 16 (M3 Max/ M4 Pro/Max) from 0 to 50% in just 30 minutes Bullet 4 STAYS COOL WITH MINIMAL THERMAL THROTTLING: GaN charger runs cool for hours even during extended full-load use, delivering consistent fast charging; Features dual transformer topology to efficiently distribute heat while maintaining a compact design Bullet 5 WORKSPACE CHARGER: Consolidate chargers and free up desk space in meeting rooms/boardrooms, shared/open workspaces or reception desks, eliminating the need for shared wall outlets or cluttered table setups; Use as laptop/tablet charging station for education Bullets (Compact) USB-C desk charger with 4x USBC (single port 140W EPR Power Delivery 3.1); Charge up to four laptops simultaneously with a total power of 240W; Runs cool under extended full-load use; Compatible with 16" MacBook M3/M4 Pro/Max; Ideal for meeting rooms Bullets (Consolidated) - USB-C charging hub with 4x USBC (240W Total, Single port 140W PD 3.1) - Charge up to four laptops simultaneously - GaN charger block runs cool under extended full-load use - Charges 16" MacBook Pro from 0-50% in 30 mins - 4 screw-locking USB-C ports prevent unwanted disconnections - Surface mountable (100x100 VESA) for discreet mounting under tables or inside enclosures - UL listed and USB-IF/FCC/CE compliant laptop power adapter meets DOE Level VI standards - Ideal for boardrooms Marketing Copy Marketing Copy (No HTML) Applications - Ideal for fixed use in calls, meetings, or any other fixed setup where charging multiple laptops and devices is required

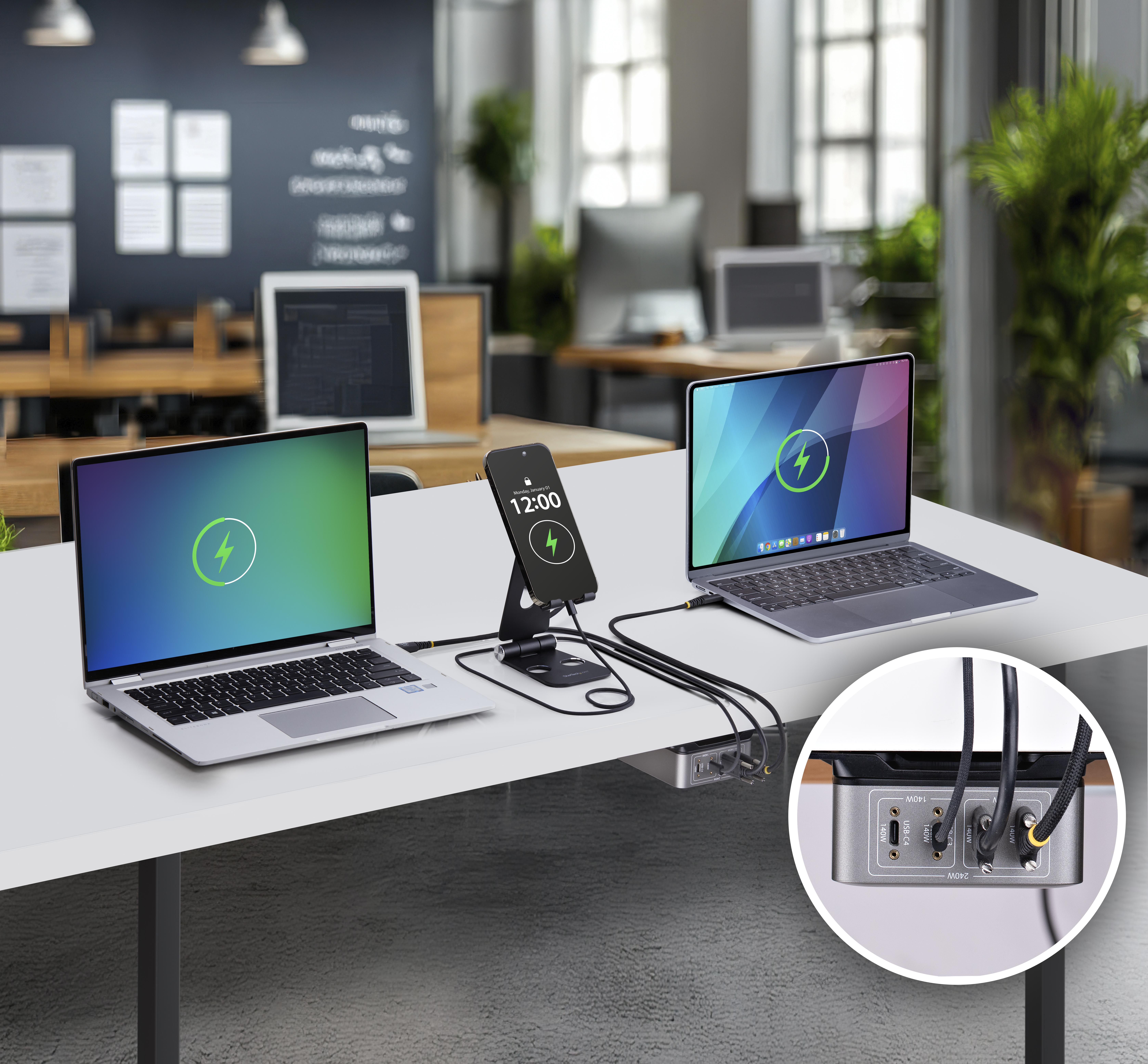

- Power laptops and other USB devices in at the office or home office
Website Search Keyword - 12-inch Surface Pro
- 12" Surface Pro
- Surface Pro 11
- 12 inch Surface Pro power adapter
- 12" Surface Pro power adapter

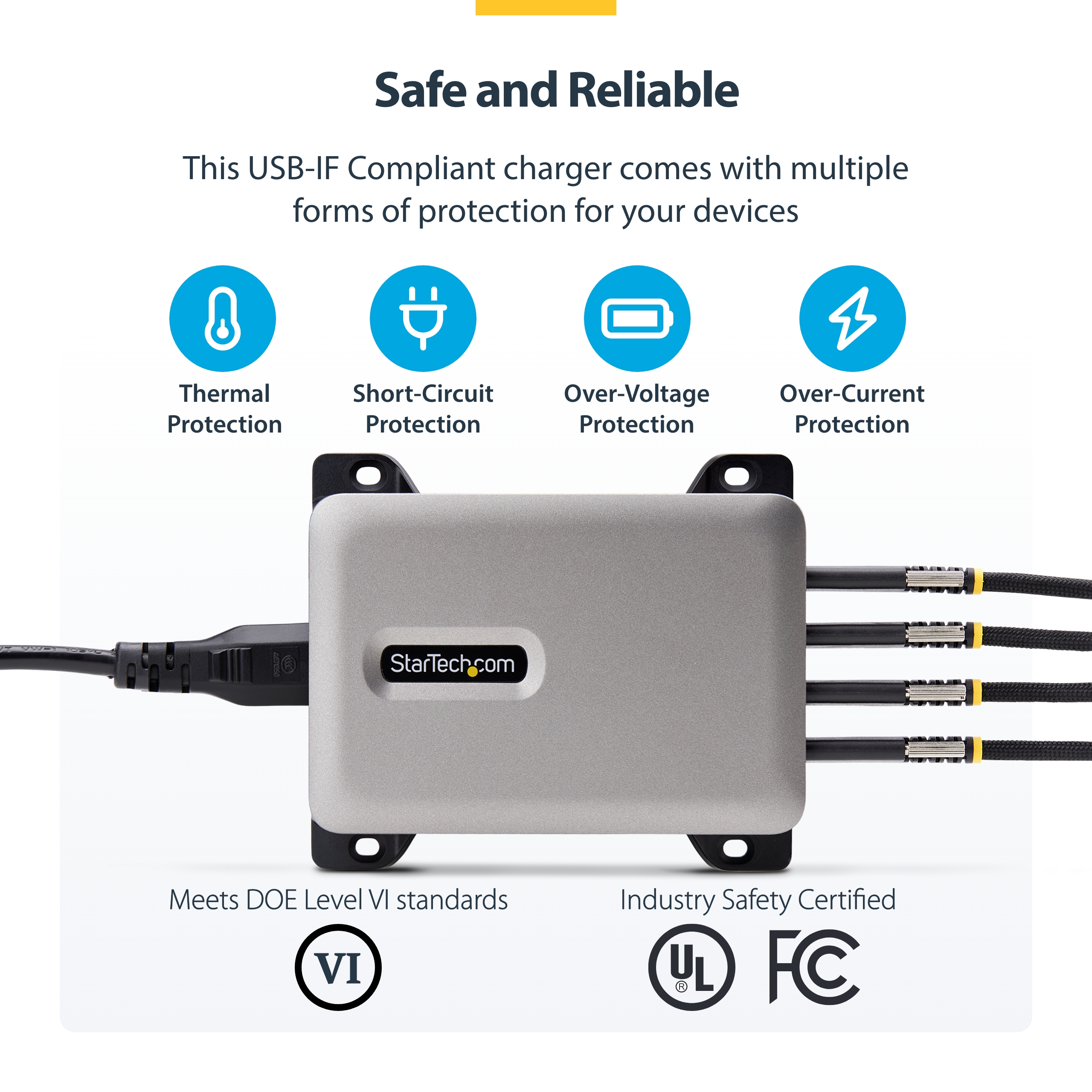

Required Regulatory Compliance Marks - UL - Safety - Electrical - Canada / United States - Legacy cULus Mark
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- Level VI - Efficiency - Global - Level VI Energy Efficiency Mark
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Safety - Electrical - European Union - Low Voltage Directive (LVD) 2014/35/EU
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- CE - Efficiency - European Union - EU ErP Ecodesign Directive 2009/125/EC
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- RCM - Safety - Electrical - Australia/New Zealand - RCM Mark
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- PSE - Safety - Electrical - Japan - PSE Circle Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Accessory Products - USB2EPR2M
- USB2EPR1M
- USB2EPR4M
- USB2EPR3M
- 50C-40G-USB4-CABLE
- 1M-40G-USB4-CABLE
- USB2EPR1MW
- USB2EPR4MW
- USB2EPR2MW
- USB2EPR3MW
- S2CEPR2M-USBSL-CABLE
- S2CEPR3M-USBSL-CABLE

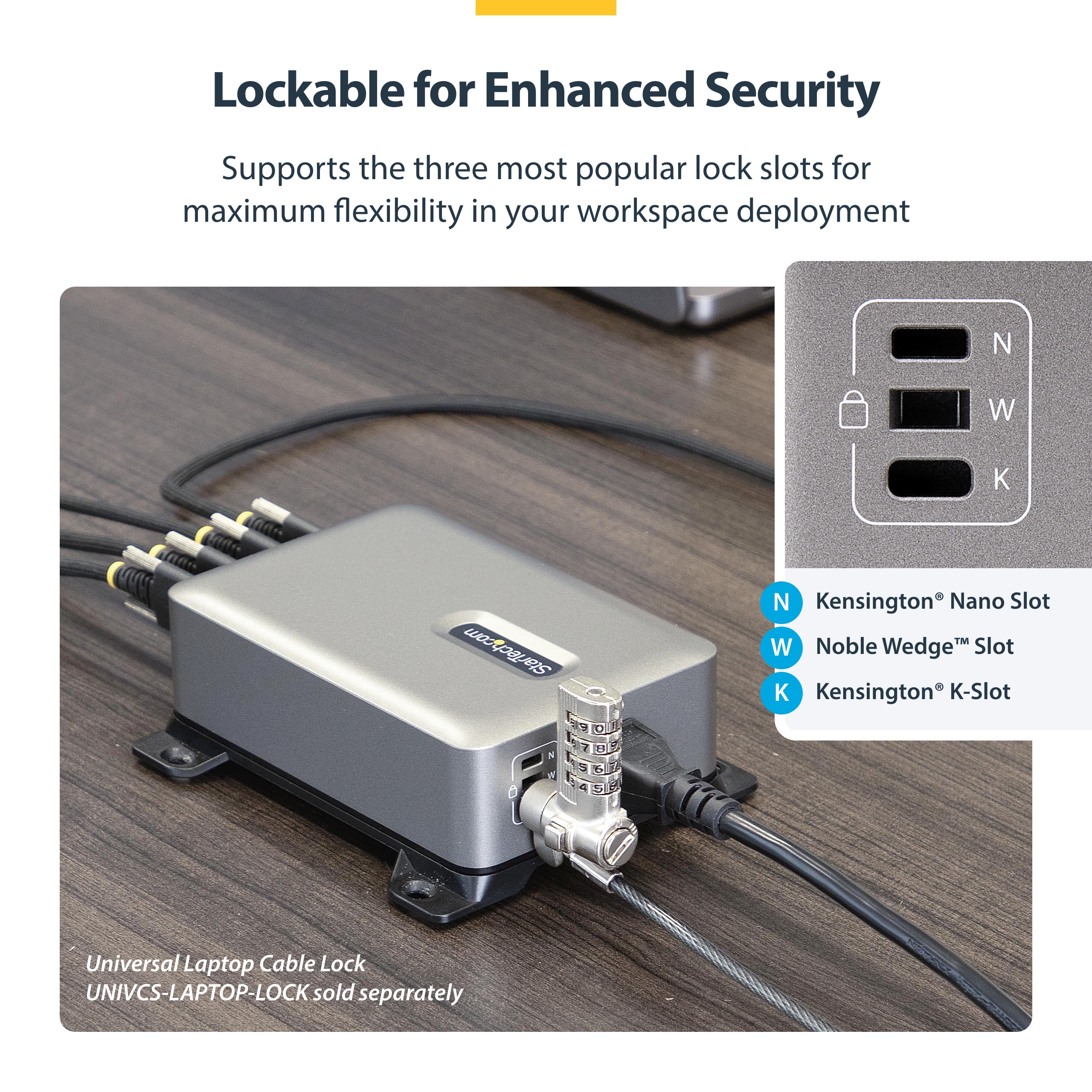

- UNIVKMKO-LAPTOP-LOCK
- UNIVC4D-LAPTOP-LOCK
Related Products - 1014GCN-WALL-CHARGER
- 2210GCN-WALL-CHARGER
- WCH1C30
- WCH1C
- WCH1CBK
- USB2PACBK
- USB2PACUBK
- USB2PACWH
- USB4PACBK
- USB4PACWH

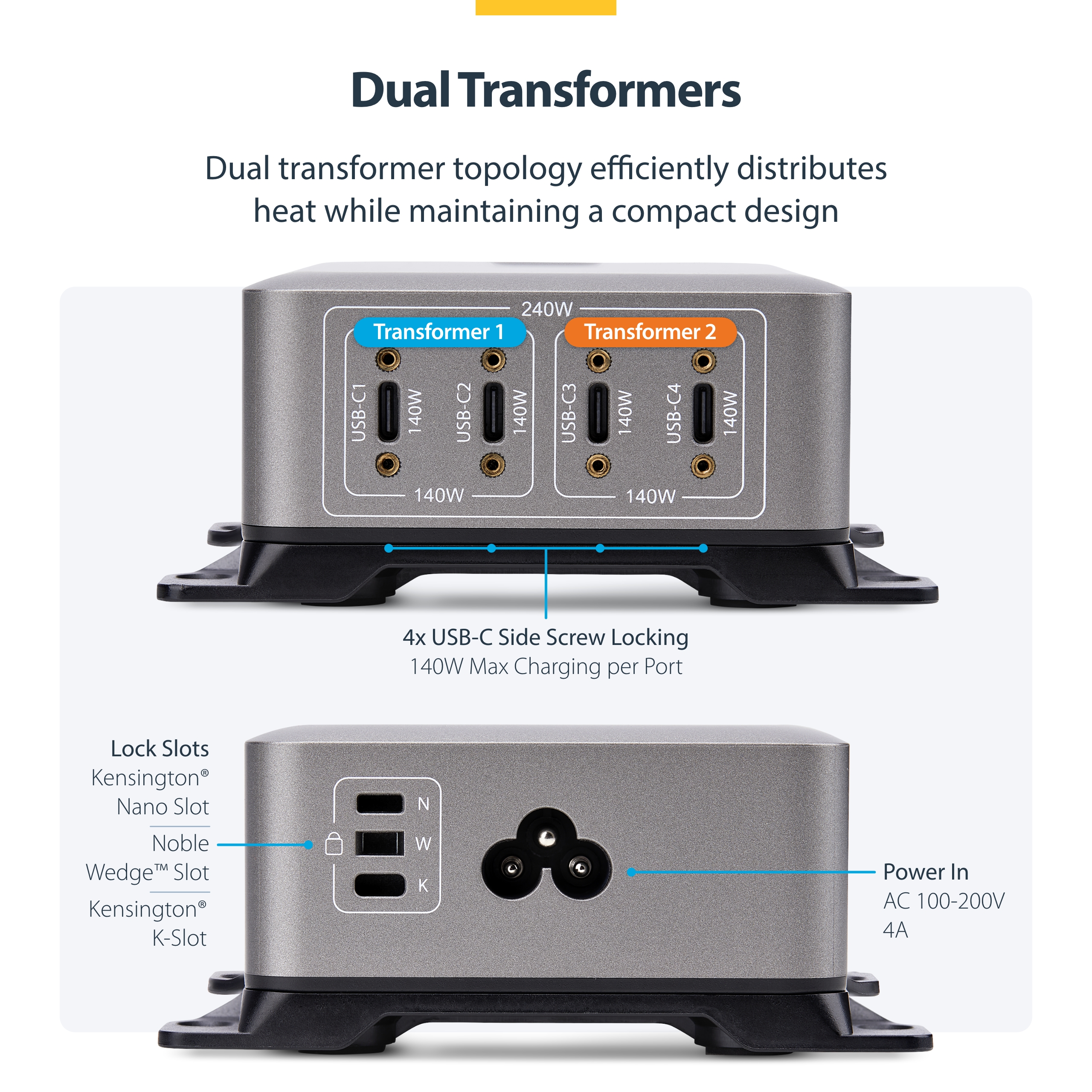

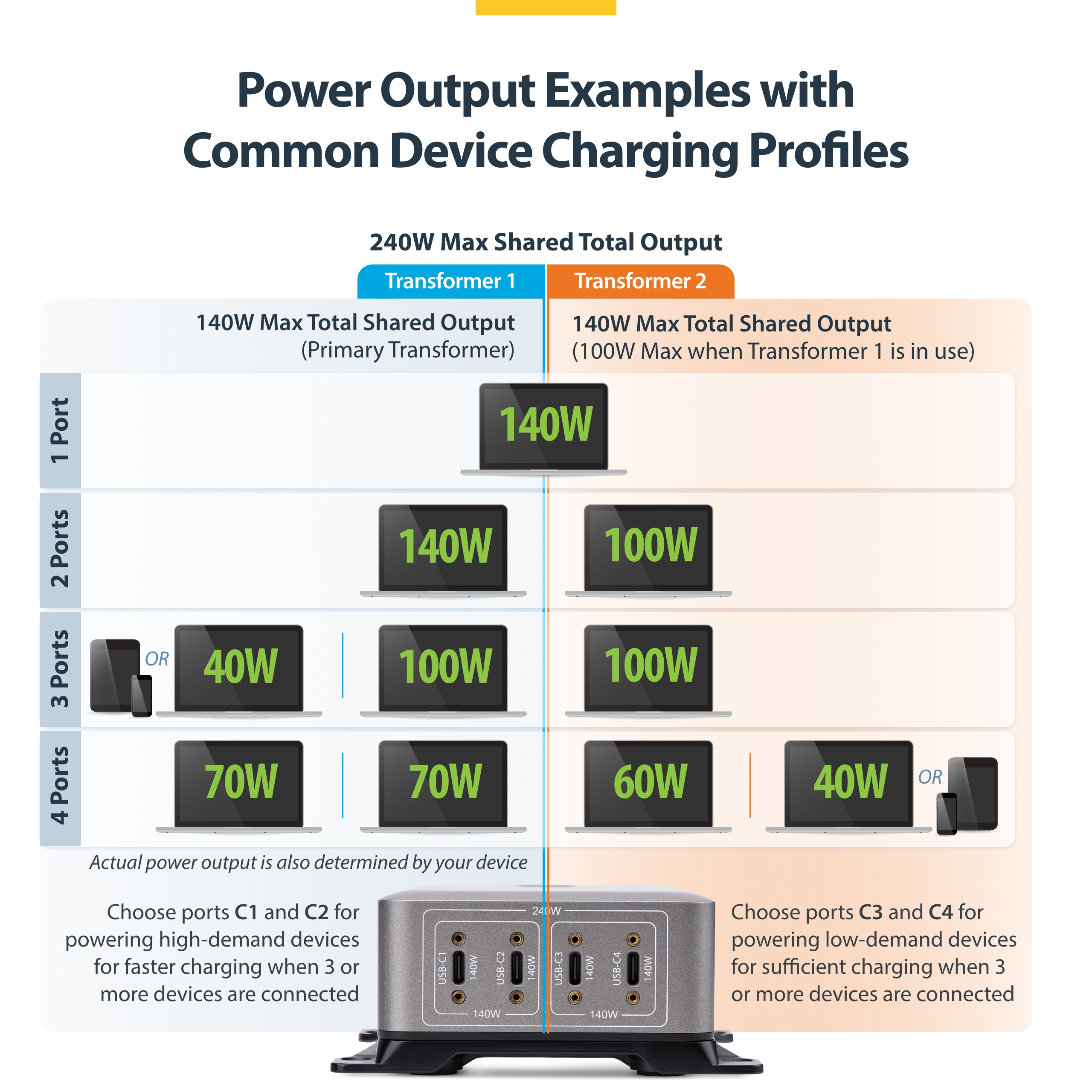

Input Current 4.0A Input Voltage 100 - 240 AC Output Current 3A (5V, 9V, 12V, 15) / 5A (20V, 28V) Output Voltage (V) - 15V DC
- 5V DC
- 9V DC
- 12V DC
- 20V DC
- 28V DC

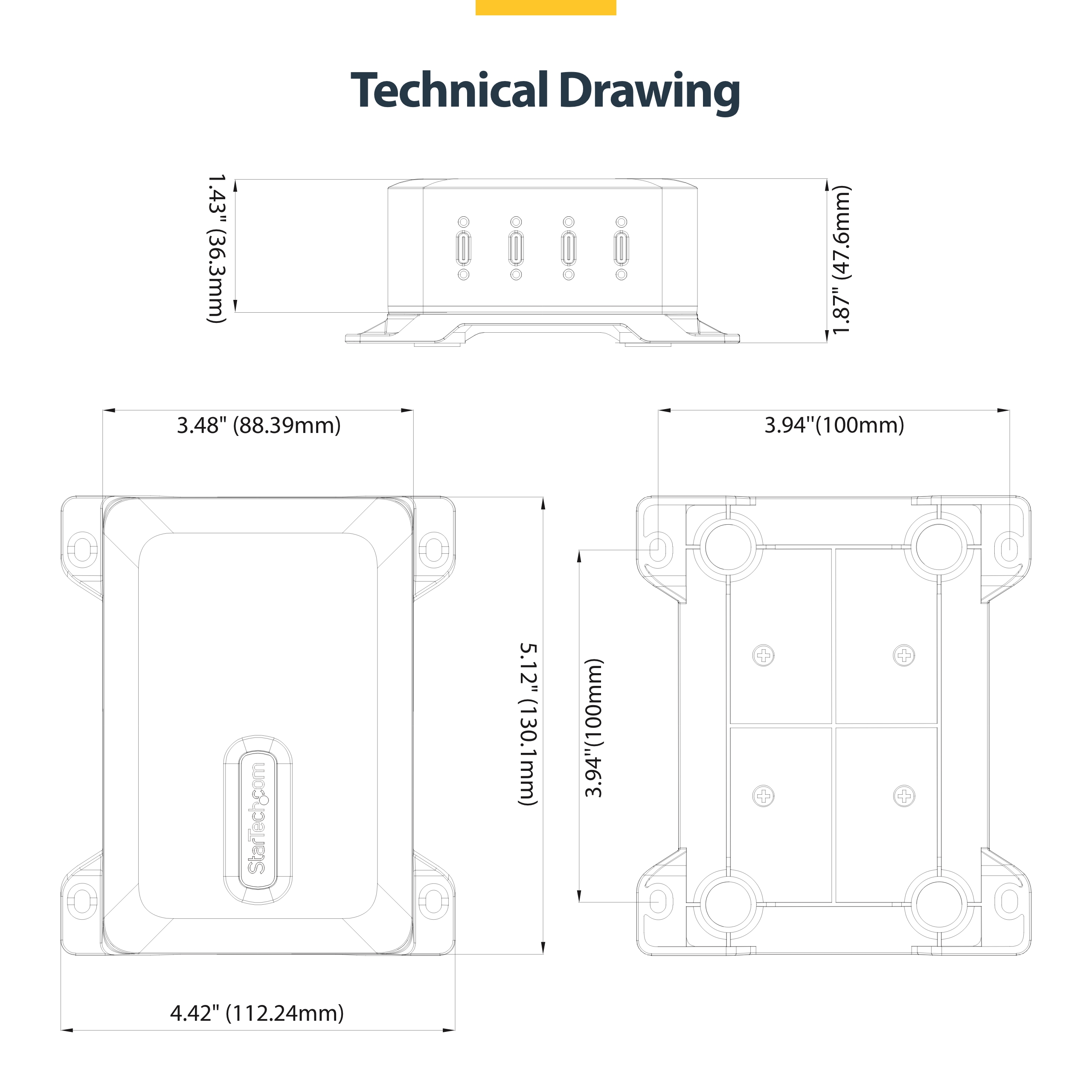

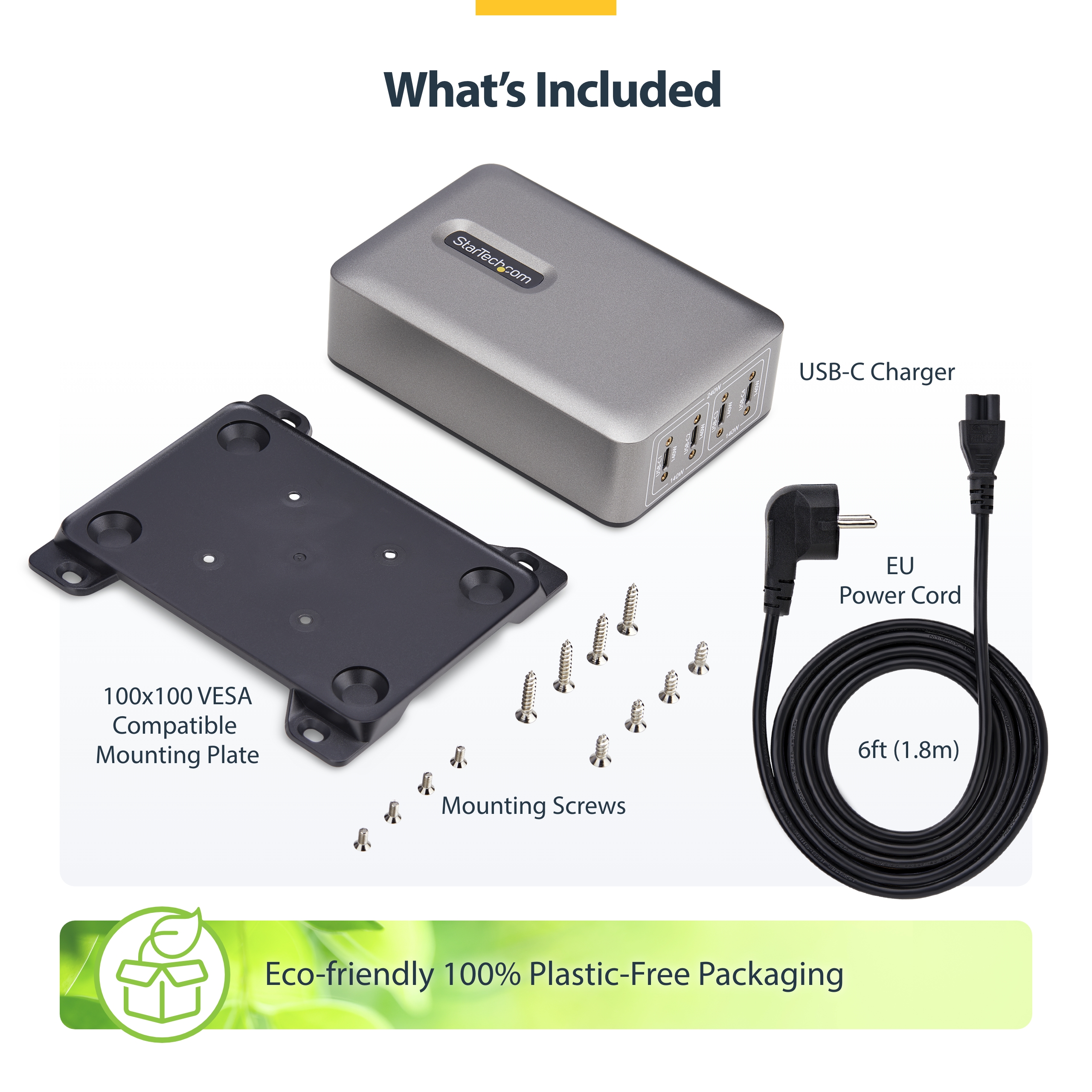

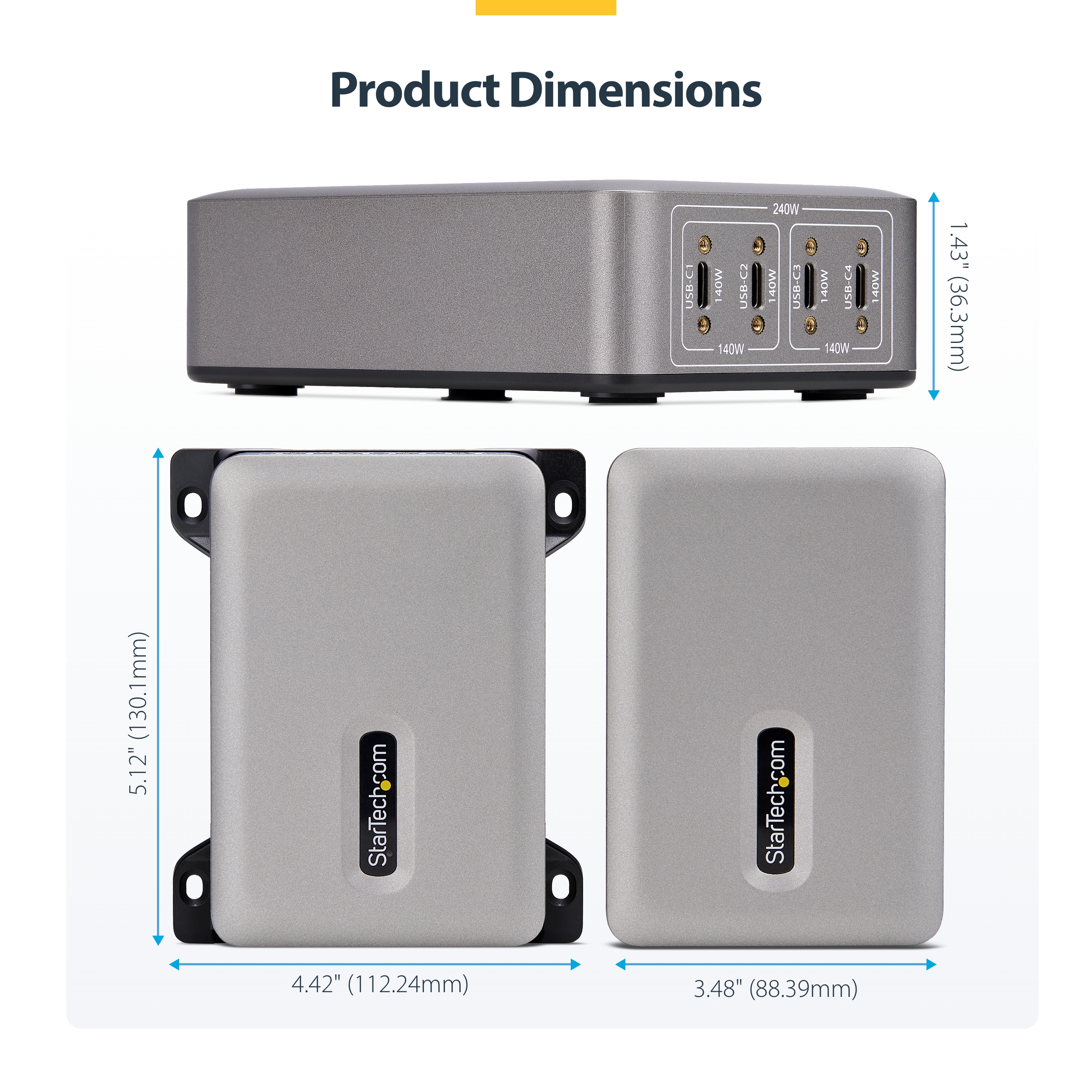

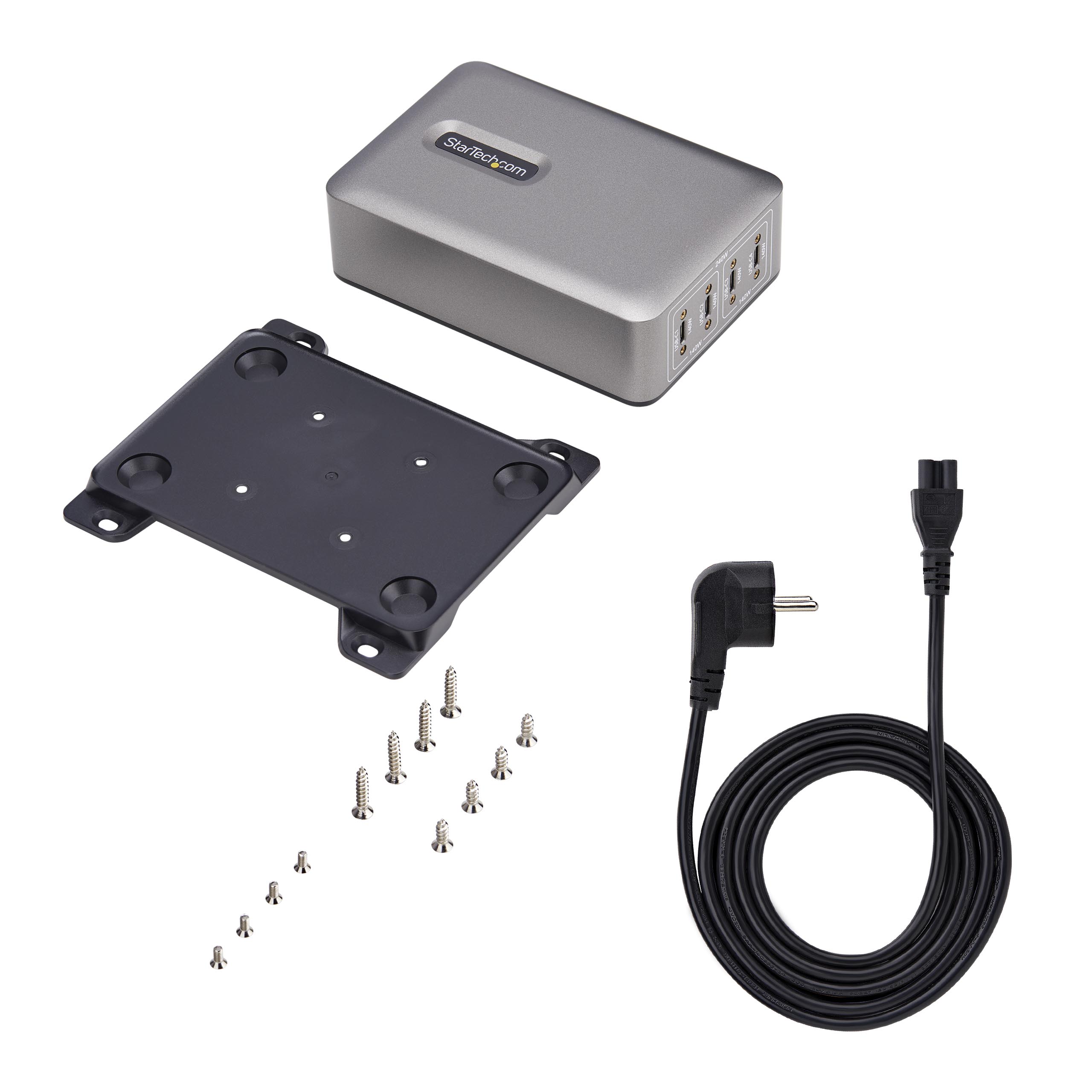

Power Consumption (In Watts) 240 W Plug Type IEC 60320 C5 Power Color Black Humidity Material Plastic Operating Temperature 0°C to 30°C (32°F to 86°F) Product Length (mm) 112.240 Product Width (mm) 130.090 Product Height (mm) 43.710 Product Weight (g) 780.000 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant No MTBF (hours) 50410 Hours Industry Standards USB Power Delivery 3.1 Carton Depth (mm) 310 Carton Height (mm) 200 Carton Quantity 5 Carton Weight Gross (g) 6275 Included in Package - 1 - 240W USB-C Charger

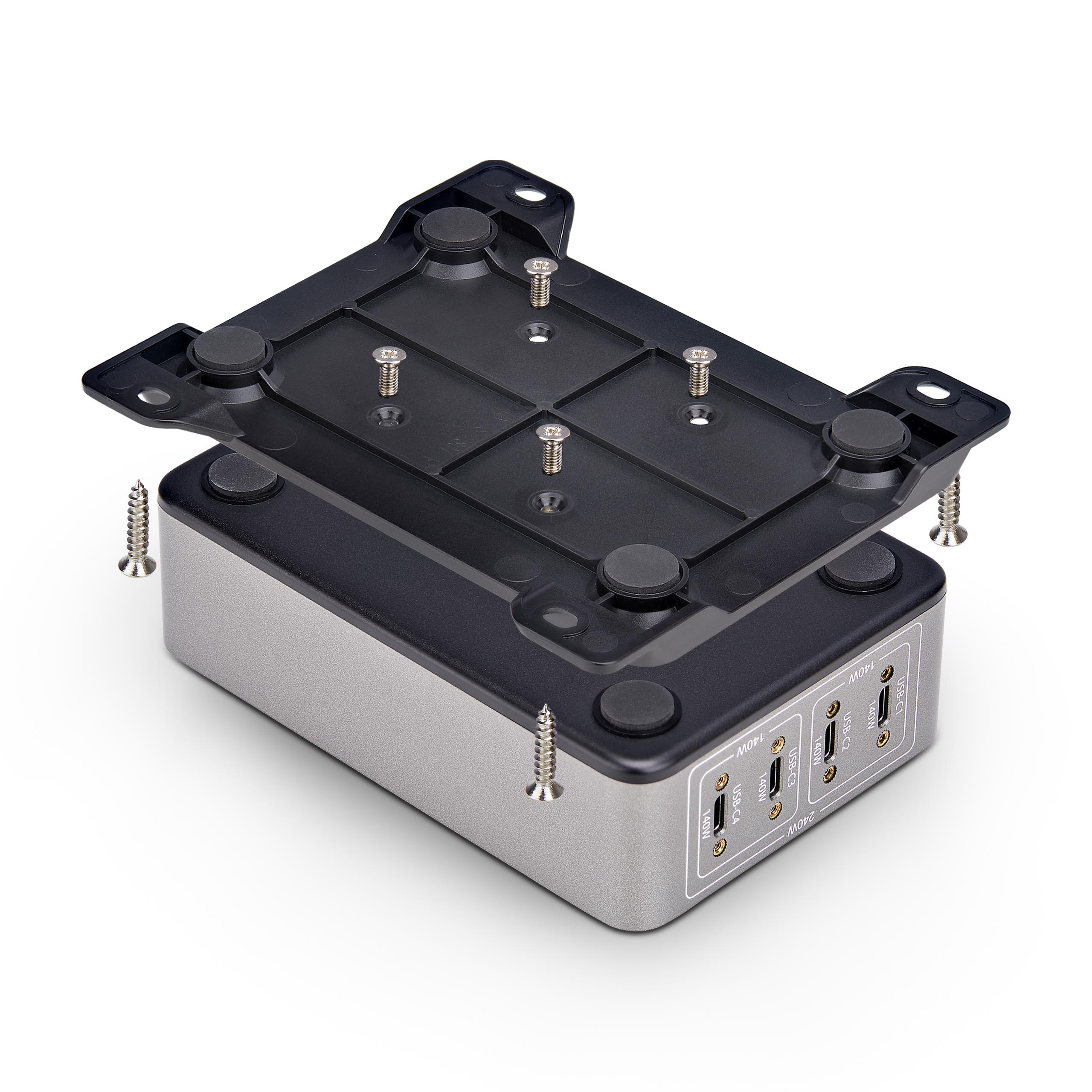

- 4 - M3x4mm (5/32") Phillips Countersunk Machine Screws (Installed)
- 4 - M4x12mm (1/2") Phillips Countersunk Wood Screws
- 4 - M4x20mm (3/4") Phillips Countersunk Wood Screws
- 1 - 6ft [1.8m] CEE 7/7 to IEC-C5 Power Cord

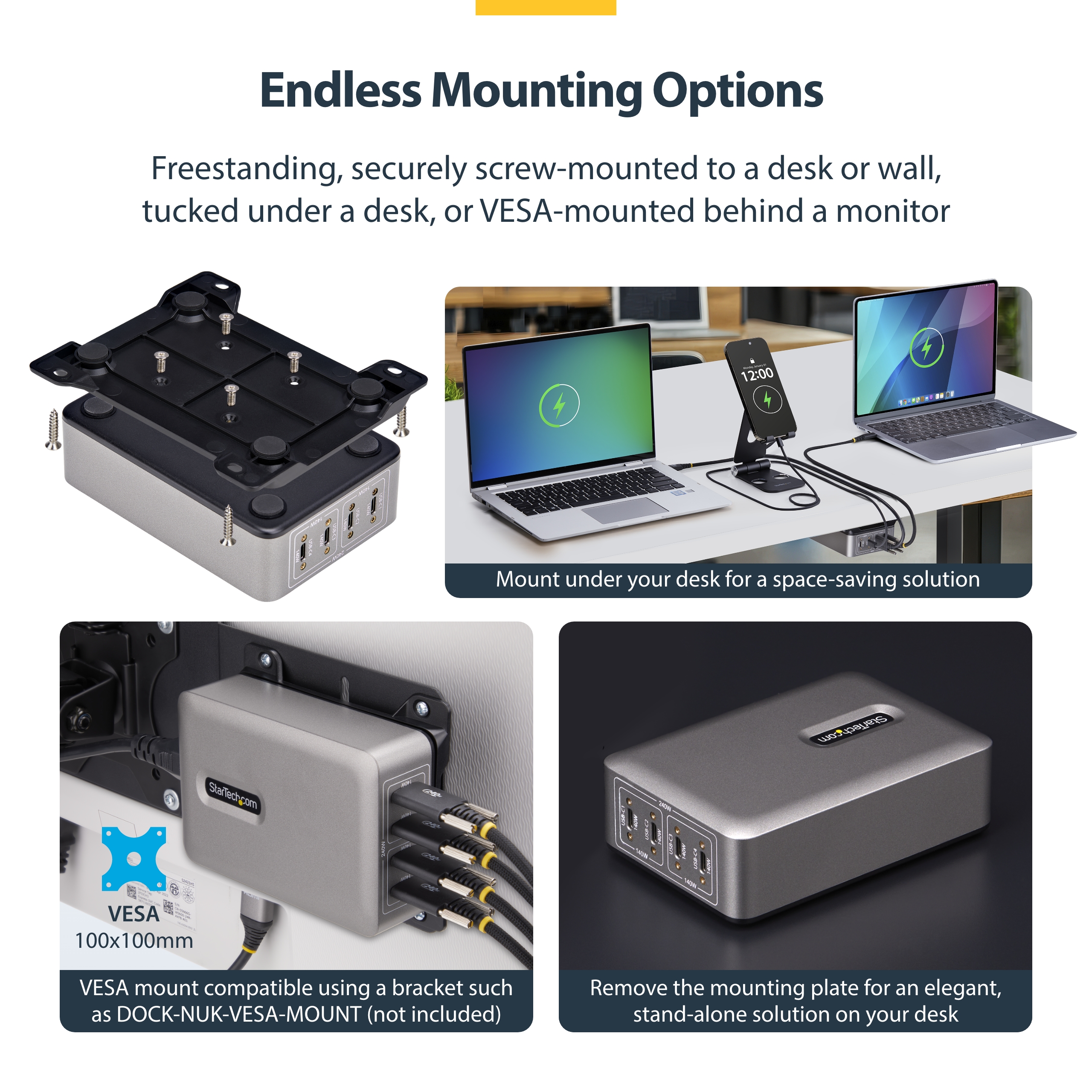

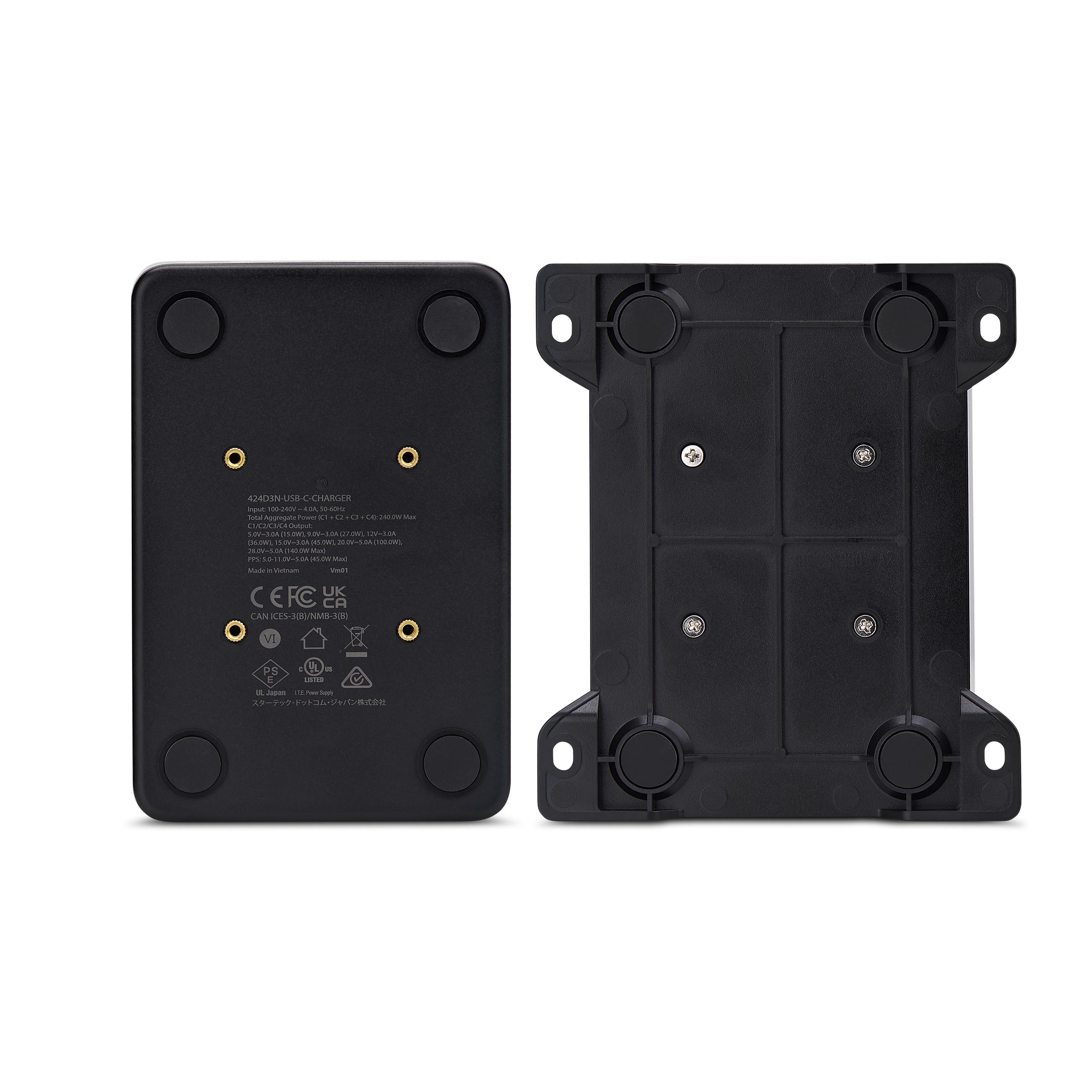

- 1 - Mounting Plate (Installed)
- 1 - Product Documentation

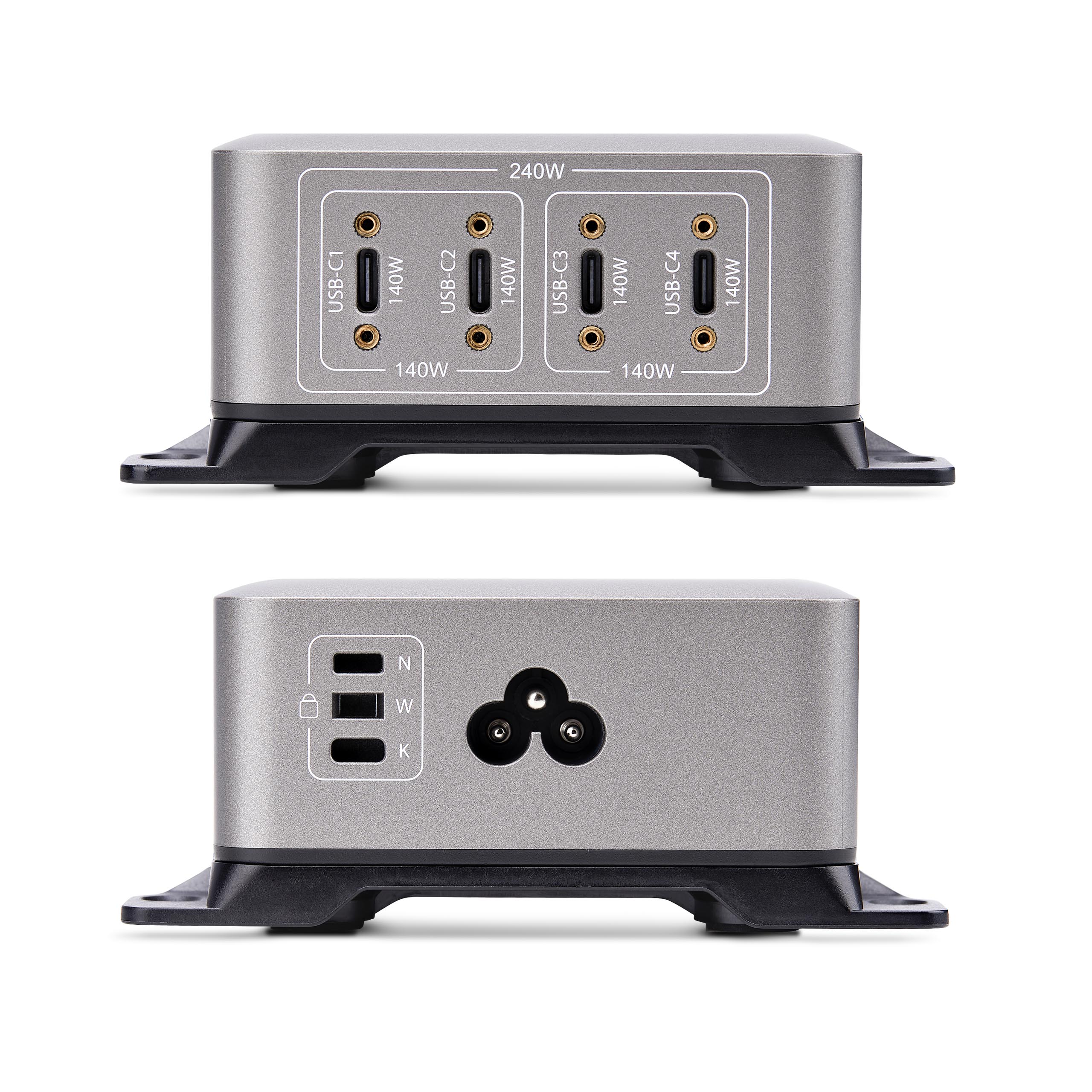

Package Depth (mm) 185 Package Height (mm) 58 Package Width (mm) 174 Package Weight (g) 1095 Packaging Description 4-Port 240W GaN USB-C Laptop Charger, Desktop/Under Desk Mount Packaging Description India 4-Port 240W GaN USB-C Laptop Charger, Desktop/Under Desk Mount Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 IEC C6 (250V AC, 2.5A) Connector 1 (Quantity) 1 Connector 2 USB-C (100W PD Only) Connector 2 (Quantity) 4 Actual Inbox Documents Created Compliance Insert Amazon Merchandising Manager Kristian Haighton Application Photos Uploaded Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Digital Content Due Date 2025-02-17 Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett ID Label Silkscreened or a Label Laser etched label - requires dieline showing location Launch Markets (concatenated) AT,BE,CH,DE,DK,ES,FI,FR,IT,NL,SE Primary Technology USB-C Priority New Product High Product Development Specialist Alex Sikora Product Information Creation Specialist (PICS) Maria Powell Product Manager Tony Parackal Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2024-11-29 Target Production Release 2024-12-06 Tech Lead Justin Weaver Technical Writer Maria Powell
