Main Image
450FBLCLC10

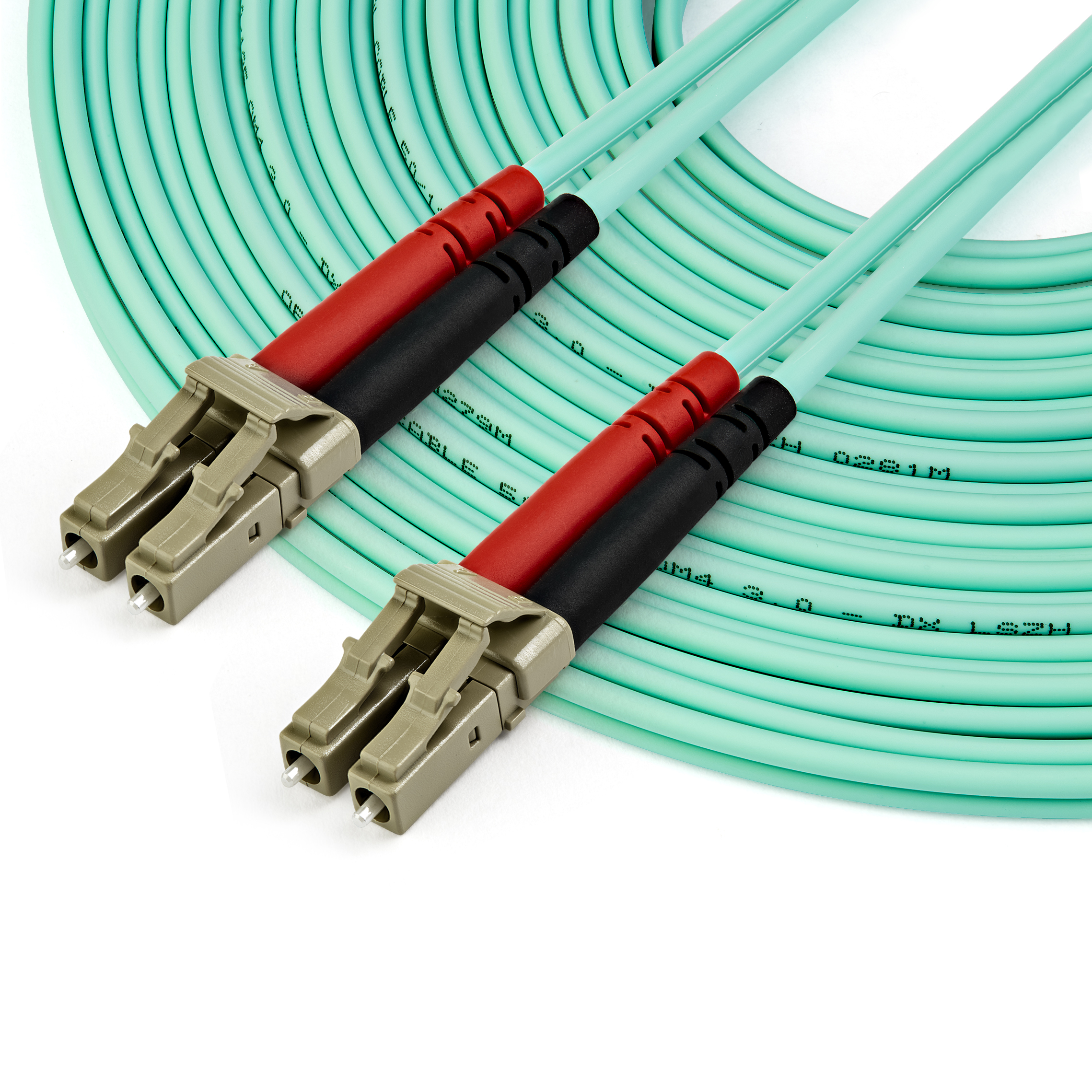

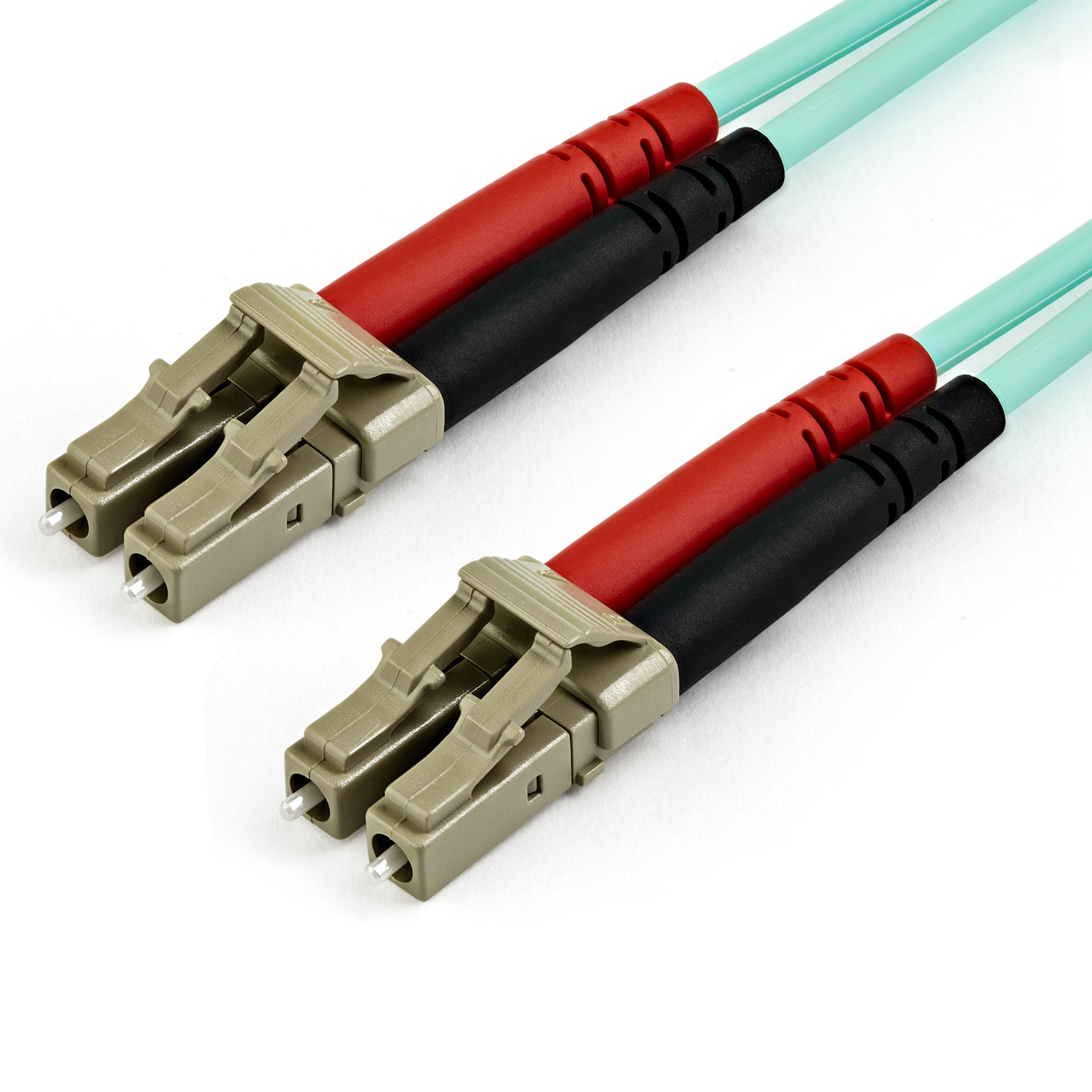

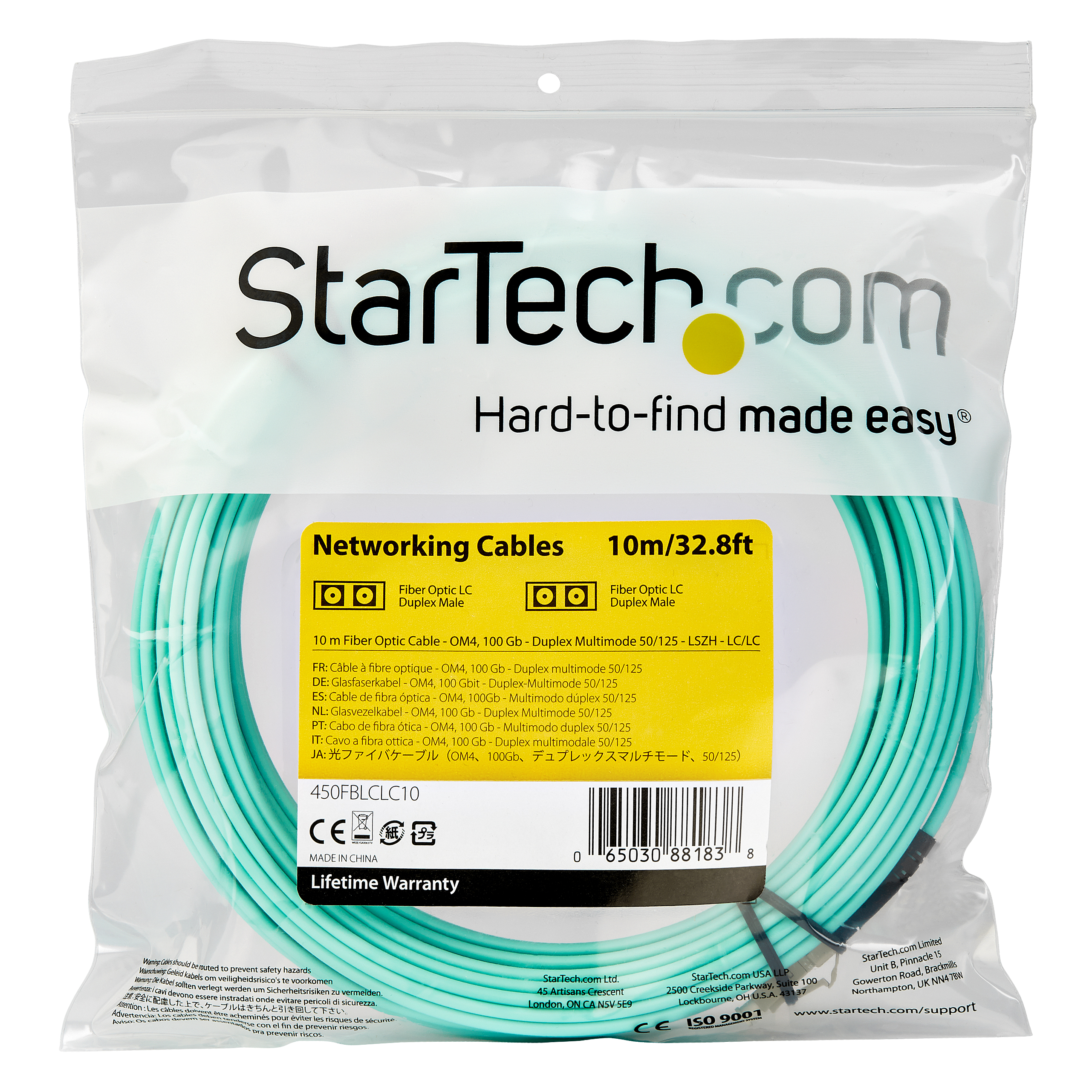

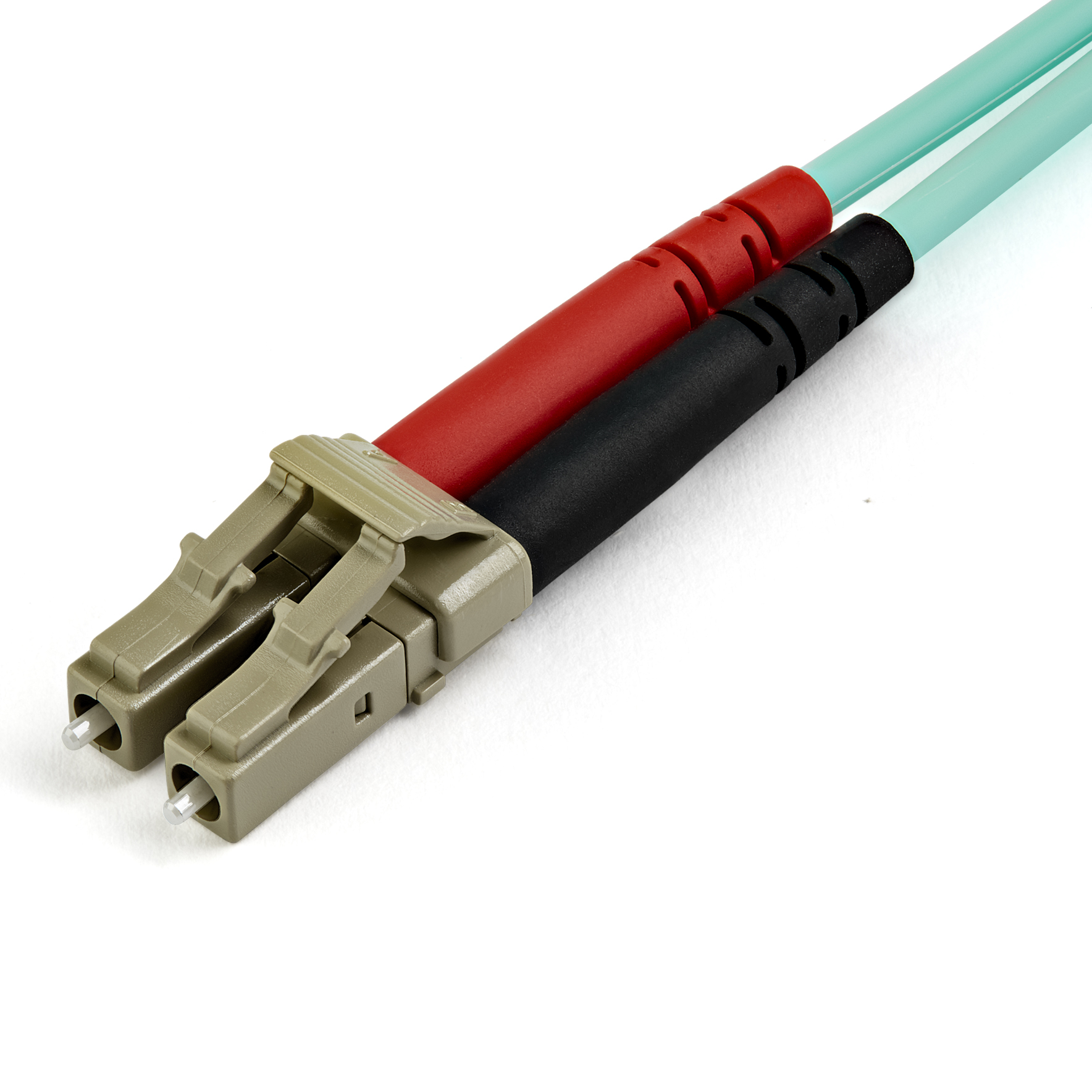

10m OM4 Fiber Cable - LC Fiber Patch Cable - Aqua
LSZH Jacket | Aramid Fiber Sheath | Ideal for SANs, data servers, SFP+
Main Image
Product Images
Product Images
Product Images
Product Name 10m OM4 Fiber Cable - LC Fiber Patch Cable - Aqua Product Number 450FBLCLC10 UPC 065030881838 Lifecycle status Active Warranty Lifetime Taxonomy Product > Cables > Fiber Network Cables Category Level 1 Network Cables Category Level 2 Fiber Cables Category Level 3 Multimode OM4 Fiber Cables Family OM4 Fiber Cables Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX079X Product Title (Ultra-Short) LC/LC Fiber Cable Product Title (Short) 10m LC/UPC OM4 Fiber Cable, LSZH Cord Product Title (Medium) 10m (30ft) LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable, Duplex 50/125µm Product Title (Standard) 10m (30ft) LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable, 50/125µm, 100G, Low Insertion Loss, LSZH Fiber Jumper Cord Product Title (Long) 10m (30ft) LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable, 50/125µm LOMMF/VCSEL Zipcord Fiber, 100G, Low Insertion Loss - LSZH Fiber Jumper Cord Product Title (AMZ) 10m (30ft) LC/UPC OM4 Multimode Fiber Optic Cable, 50/125, 100G, Low Insertion Loss, LSZH Fiber Jumper Cord Title Ingram (Part 1) 10m OM4 Fiber Optic Patch Cord Title Ingram (Part 2) Aqua - LC/LC - 50/125 - 40/100Gb Website Product Headline LSZH Jacket | Aramid Fiber Sheath | Ideal for SANs, data servers, SFP+ Bullet 1 OM4 FIBER CABLE: OM4 Laser-Optimized Multimode Fiber Cable is immune to EMI and supports up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors enable quick visual identification of polarity and conversion to simplex cabling Bullet 2 QUALITY CONSTRUCTION: LC/LC connectors with UPC polished ends significantly improves return loss over PC polish; Robust molded connector strain reliefs minimizes wear from bending; Protective Aramid fiber for increased tensile strength Bullet 3 SAFETY AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and toxic fumes if combusted; Attenuation value under 2.3dB/km meets or exceeds industry standards Bullet 4 WIDE COMPATIBILITY: OM4 LC/LC multimode cable supports 1/10/40/100 Gbps networks; Backward compatible with OM3; For high-density network applications such as SANs, data servers, fiber switches, SFP+, QSFP+, and QSFP28 transceivers Bullet 5 SPECS: 10m (33ft); Color: Aqua (OM4); LC/LC UPC; 50/125µm Core/Cladding; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: 2000MHz·km at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life Bullets (Compact) 10m (33ft) OM4 Multimode LC/LC-UPC Fiber Cable; 1/10/40/100 Gbps Full Duplex; 50/125µm Core w/ Aramid Sheath; Bandwidth: 2000MHz·km at 850nm w/ VCSEL source; Outer Diameter: 2.9mm; Jacket Material: LSZH; Temp Range: -20 to 60°C (-4 to 140°F) Bullets (Consolidated) 10m (33ft) OM4 LC/LC UPC OM4 LOMMF cable supporting 1/10/40/100 Gbps duplex connections - Cable individually tested for signal integrity | Ideal for high-bandwidth multimode transmissions between servers and Storage Area Networks (SANs) - 50/125µm fiber core/cladding w/Aramid sheath | Optimized for >=2000MHz·km at 850nm w/ VCSEL source - Cord O.D.: 2.9mm | Jacket Material: LSZH | Temperature Range: -20 to 60DEG C (-4 to 140DEG F) Marketing Copy Marketing Copy (No HTML) Applications - Use in 40/100 Gigabit Ethernet and fiber-channel applications
- High-speed connectivity for high-density applications
Website Search Keyword - 100g fiber cable
- 100g multimode fiber
- 100gb fiber cable
- aqua fiber cable
- aqua fiber optic cable
- C2G fiber cable
- cat 6 cable
- cat6 cable
- fiber optic cable
- fiber optic patch cord
- fiber patch cord
- lc fiber cable
- lc lc fiber patch cable
- lc to lc fiber cable
- lc to lc fiber patch cable
- lc to lc multimode duplex fiber optic patch cable
- mm fiber optic cable
- multi mode fiber cable
- multimode duplex fiber optic cable
- multimode fiber cable
- om4 cable
- om4 fiber
- om4 fiber cable
- om4 fiber optic cable
- om4 multimode
- om4 multimode fiber
- Tripp Lite fiber cable
Required Regulatory Compliance Marks - CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Related Products - 450FBLCLC1
- 450FBLCLC2
- 450FBLCLC3
- 450FBLCLC7
- 450FBLCLC15
Cable Length (mm) 10000 Color Aqua Humidity 0~90% RH Operating Temperature -20°C to 60°C (-4°F to 140°F) Primary Material Plastic Product Length (mm) 10000.000 Product Width (mm) 15.2 Product Height (mm) 10.7 Product Weight (g) 131.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Cable Rating 1Gbps / 10Gbps / 40Gbps / 100Gbps Fiber Type Multi Mode Maximum Data Transfer Rate 100Gbps Wavelength 850nm Cable Jacket Material Low Smoke Zero Halogen Classification OM4 Fiber Cable Type Duplex Fiber Classification OM4 Fiber Size 50/125 Fire Rating LSZH Rated (Low Smoke Zero Halogen) Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 410 Carton Height (mm) 450 Carton Quantity 80 Carton Weight Gross (g) 13184 Included in Package 1 - 10 m Fiber Optic Cable Number of Sub-Cartons 8 Package Depth (mm) 198 Package Height (mm) 36 Package Width (mm) 166 Package Quantity 1 Package Weight (g) 140 Packaging Description Fiber Optic Cable - OM4, 100 Gb - Duplex Multimode 50/125 Packaging Description India 10m Fiber Optic Cable - OM4, 100 Gb - Duplex Multimode 50/125 Sub-Carton Depth (mm) 190 Sub-Carton Height (mm) 208 Sub-Carton Width (mm) 190 Sub-Carton Quantity 10 Sub-Carton Weight (g) 1552 Connector 1 LC Duplex Fiber Connector 1 (Quantity) 1 Connector 2 LC Duplex Fiber Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2019-04-11 Buying Center - AV & Collaboration No Buying Center - Data Center Yes Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2019-05-03 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,EU,FI,FR,IE,IN,IT,JP,MX,NL,NZ,SE,SG,UK,US Primary Technology None Priority New Product N/A Product Development Specialist Brian Ha Product Information Creation Specialist (PICS) Brian Chan Product Manager Tim North Product Performance Specialist Ray Aoki Product Photographer Caleigh Le Grand Target Development Completion Date 2019-03-22 Target Production Release 2019-04-12 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Latest
