Main Image
450FBLCLC5PP

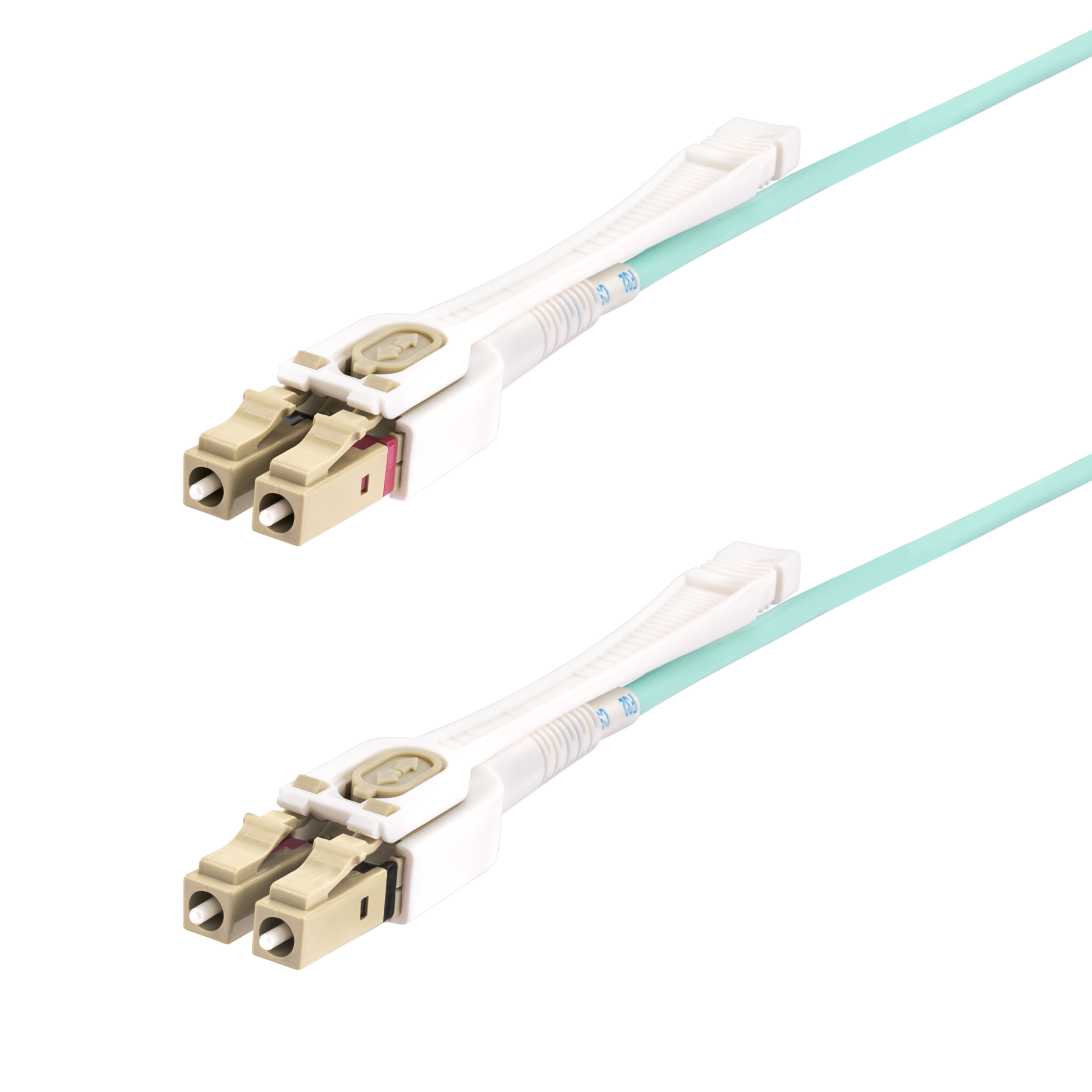

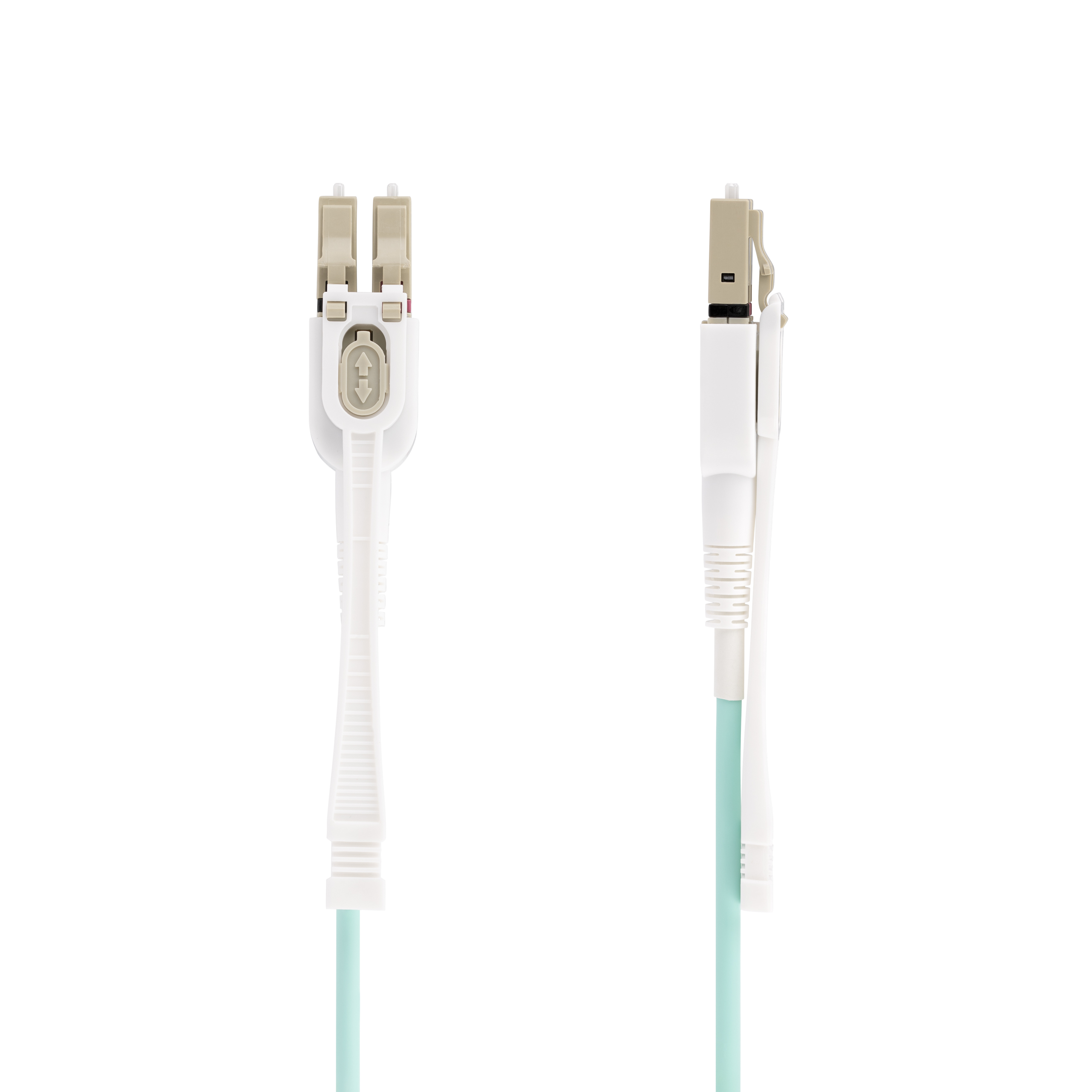

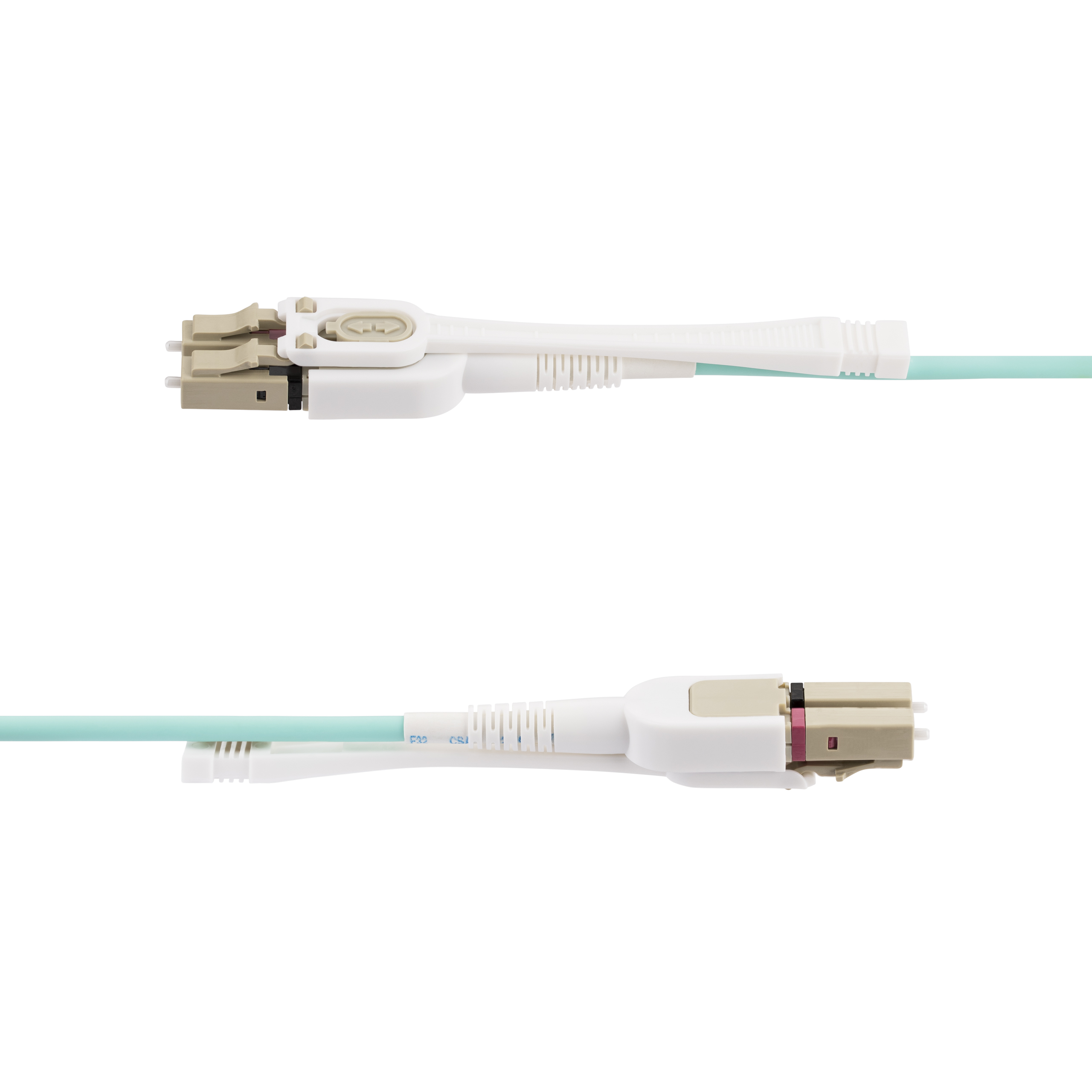

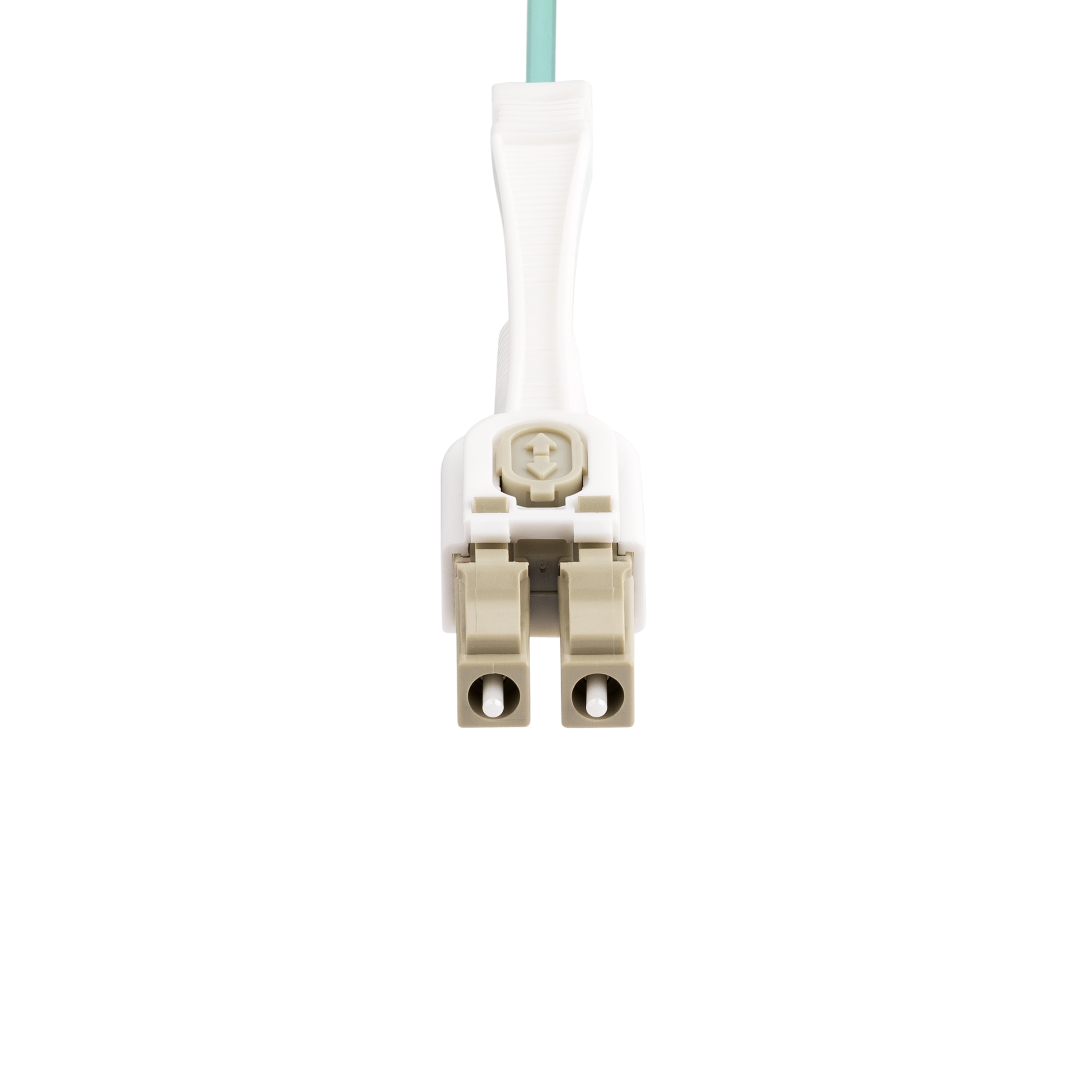

5m 100G Duplex Multimode 50 125 OM4 Push Pull Tabs LSZH Fibe
Optimize fiber patch cabling in high-density patching applications where cables are prone to bending
Main Image
Product Images
Product Images
Product Images
Product Name 5m 100G Duplex Multimode 50 125 OM4 Push Pull Tabs LSZH Fibe Product Number 450FBLCLC5PP UPC 065030900782 Lifecycle status Active Warranty Lifetime Weighted Opportunity 3948 Taxonomy Product > Cables > Fiber Network Cables Category Level 1 Network Cables Category Level 2 Fiber Cables Category Level 3 Multimode OM4 Fiber Cables Family OM4 Fiber Cables Push/Pull Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX079X Product Title (Ultra-Short) OM4 MM Fiber Cable Product Title (Short) 5m LC/LC OM4 Multimode Fiber Cable Product Title (Medium) 5m (16.4ft) LC/LC-UPC OM4 Multimode Fiber Cable, Push Pull Tabs, 50/125, 100G Product Title (Standard) 5m (16.4ft) LC (UPC) OM4 Multimode Fiber Optic Cable w/Push Pull Tabs, 50/125µm, 100G, Low Insertion Loss, LSZH Jumper Cord Product Title (Long) 5m (16.4ft) LC to LC (UPC) OM4 Multimode Fiber Optic Cable w/Push Pull Tabs, 50/125µm, 100G, Bend Insensitive, Low Insertion Loss - LSZH Fiber Jumper Cord Product Title (AMZ) 5m (16.4ft) LC (UPC) OM4 Multimode Fiber Optic Cable, 50/125, 100G, Low Insertion Loss, LSZH Fiber Jumper Cord Title Ingram (Part 1) OM4 LC/LC Multimode Fiber Cable Title Ingram (Part 2) LSZH - 50/125, 100G Website Product Headline Optimize fiber patch cabling in high-density patching applications where cables are prone to bending Bullet 1 PUSH-PULL OM4 CABLE: OM4 LOMMF Cable is immune to EMI and supports up to 100Gbps networks; Push-pull tab design provides easy access for precise insertion/removal in high-density installations; Retractable connector housings for toolless polarity swapping Bullet 2 QUALITY CONSTRUCTION: LC/LC-UPC ends for improved return loss over PC polish; Bend Insensitive fiber core housed in Aramid-reinforced jacket for a loaded bend radius of 6cm and 3cm when unloaded Bullet 3 WIDE COMPATIBILITY: OM4 multimode cable supports 10/40/100G networks; Backward compatible with OM3; High micro-bending resistance facilitates tight bends in intricate environments, ideal for fiber switches/servers, SANs, and SFP+/QSFP+/QSFP28 modules Bullet 4 SPECS: 5 meters (16.4ft); OM4; LC/LC UPC; Push Pull Tabs; 50/125µm; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: 4700MHz/km (850nm); Attenuation: ≤2.4dB/km (850nm), ≤0.6dB/km (1300nm); Cable OD: 2.9mm; Bend Radius: 6cm/2.4in (loaded), 3cm/1.2in (unloaded) Bullet 5 SAFETY AND RELIABILITY: Individually tested for signal integrity; LSZH (Low-Smoke Zero-Halogen) jacket emits low toxic fumes if combusted; Safe for enclosed/poorly ventilated spaces; Attenuation below 2.4dB/km at 850nm meets or exceeds industry standards Bullets (Compact) 5m (16.4ft) OM4 LOMMF LC/LC-UPC Fiber Cable w/Push Pull Tabs; 10/40/100Gbps Full Duplex; 50/125µm Bend-Insenitive Fiber; BW: 4700MHz.km at 850nm; Bend Radius: 6cm (loaded)/3cm (unloaded); OD: 3mm; Jacket: LSZH; Temp Range: -20 to 60C (-4 to 140F) Bullets (Consolidated) 5m (16.4ft) LC/LC UPC OM4 LOMMF cable supports 10/40/100Gbps networks; Push-Pull tab design enables precise insertion/removal in tight spaces; Toolless polarity switching - UPC-polished ends for minimal return loss; Molded strain reliefs; Bend Insensitive fiber core housed in Aramid-reinforced LSZH jacket for a loaded bend radius of 6cm and 3cm unloaded - Ideal for fiber switches/servers/SANs and SFP+/QSFP+/QSFP28 units - 50/125µm; OD: 2.9mm; Temp Range: -20 to 60DEG C (-4 to 140F) Marketing Copy Marketing Copy (No HTML) Applications - Use in 40/100 Gigabit Ethernet and fiber architecture
- Push-pull and toolless polarity swap connectors
Website Search Keyword - 100g fiber cable
- 100g multimode fiber
- 100gb fiber cable
- aqua fiber cable
- aqua fiber optic cable
- fiber optic cable
- fiber optic patch cord
- fiber patch cord
- lc fiber cable
- lc lc fiber patch cable
- lc to lc fiber cable
- lc to lc fiber patch cable
- lc to lc multimode duplex fiber optic patch cable
- mm fiber optic cable
- multi mode fiber cable
- multimode duplex fiber optic cable
- multimode fiber cable
- om4 cable
- om4 fiber
- om4 fiber cable
- om4 fiber optic cable
- om4 multimode
- om4 multimode fiber
- Push Pull Tabs
- Push-Pull Tabs
- Push Pull
Required Regulatory Compliance Marks - REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Temp - N/A - Global - Used to replace duplicates or identify for removal
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
Related Products - 450FBLCLC3PP
- 450FBLCLC4PP
- 450FBLCLC8PP
- 450FBLCLC10PP
Cable Length (mm) 5000 Color Aqua Humidity 0~90% RH Operating Temperature -20°C to 60°C (-4°F to 140°F) Product Length (mm) 5000.000 Product Width (mm) 12.500 Product Height (mm) 0.000 Product Weight (g) 37.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Cable Rating 1Gbps / 10Gbps / 40Gbps / 100Gbps Fiber Type Multi Mode Maximum Cable Length (mm) 5000 Maximum Data Transfer Rate 100Gbps Wavelength - 850nm
- 1300nm
Cable Jacket Material Low Smoke Zero Halogen Classification OM4 Fiber Cable Type Duplex Fiber Classification OM4 Fiber Size 50/125 Fire Rating LSZH Rated (Low Smoke Zero Halogen) Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 410 Carton Height (mm) 430 Carton Quantity 200 Carton Weight Gross (g) 12350 Included in Package 1 - 5m OM4 Multimode Fiber Optic Cable LC - LC Number of Sub-Cartons 20 Package Depth (mm) 198 Package Height (mm) 17 Package Width (mm) 163 Package Quantity 1 Package Weight (g) 56 Packaging Description 5m (15ft) LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable w/Push-Pull Tabs Packaging Description India 5m (15ft) LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable w/Push-Pull Tabs Sub-Carton Depth (mm) 256 Sub-Carton Height (mm) 87 Sub-Carton Width (mm) 241 Sub-Carton Quantity 10 Sub-Carton Weight (g) 538 Connector 1 LC Duplex Fiber Connector 1 (Quantity) 1 Connector 2 LC Duplex Fiber Connector 2 (Quantity) 1 A+ Not Required Actual Inbox Documents Created None Amazon Merchandising Manager Kathleen Marshall Application Photos Not Required Artwork Due Date 2023-05-23 Buying Center - AV & Collaboration No Buying Center - Data Center Yes Buying Center - End User Compute No Buying Center - Networking & Edge Yes Comparable SKU Comment NA Comparable SKU 2 Comment NA Digital Content Due Date 2023-10-06 Enhanced Gallery Not Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,IE,IT,JP,NL,NZ,SE,UK,US Product Development Specialist Brian Ha Product Information Creation Specialist (PICS) Brian Chan Product Manager Tim North Product Performance Specialist Ray Aoki Product Photographer Caleigh Le Grand Target Development Completion Date 2023-06-27 Target Production Release 2023-07-14 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream Video Not Required
