4K30-HDMI-CAPTURE

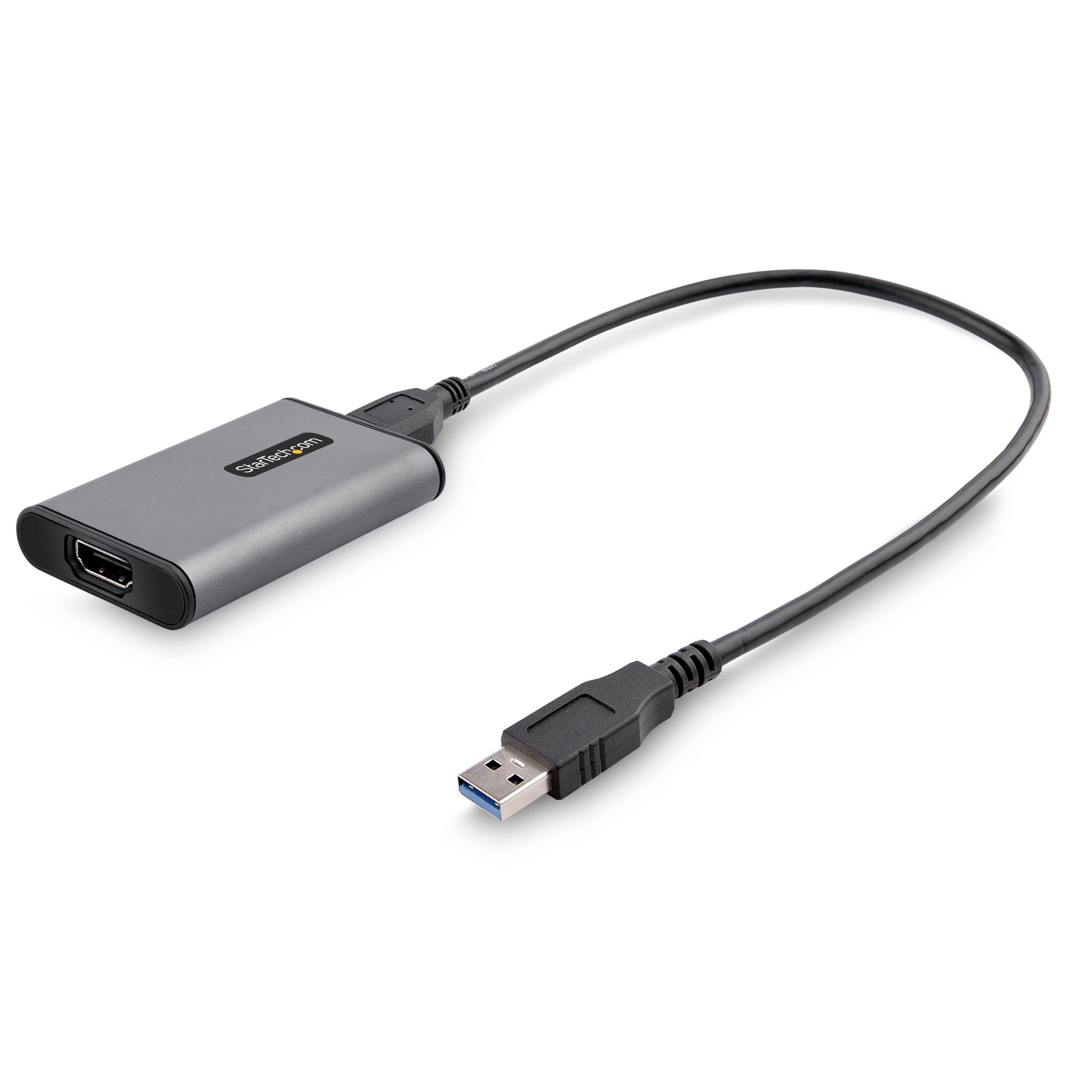

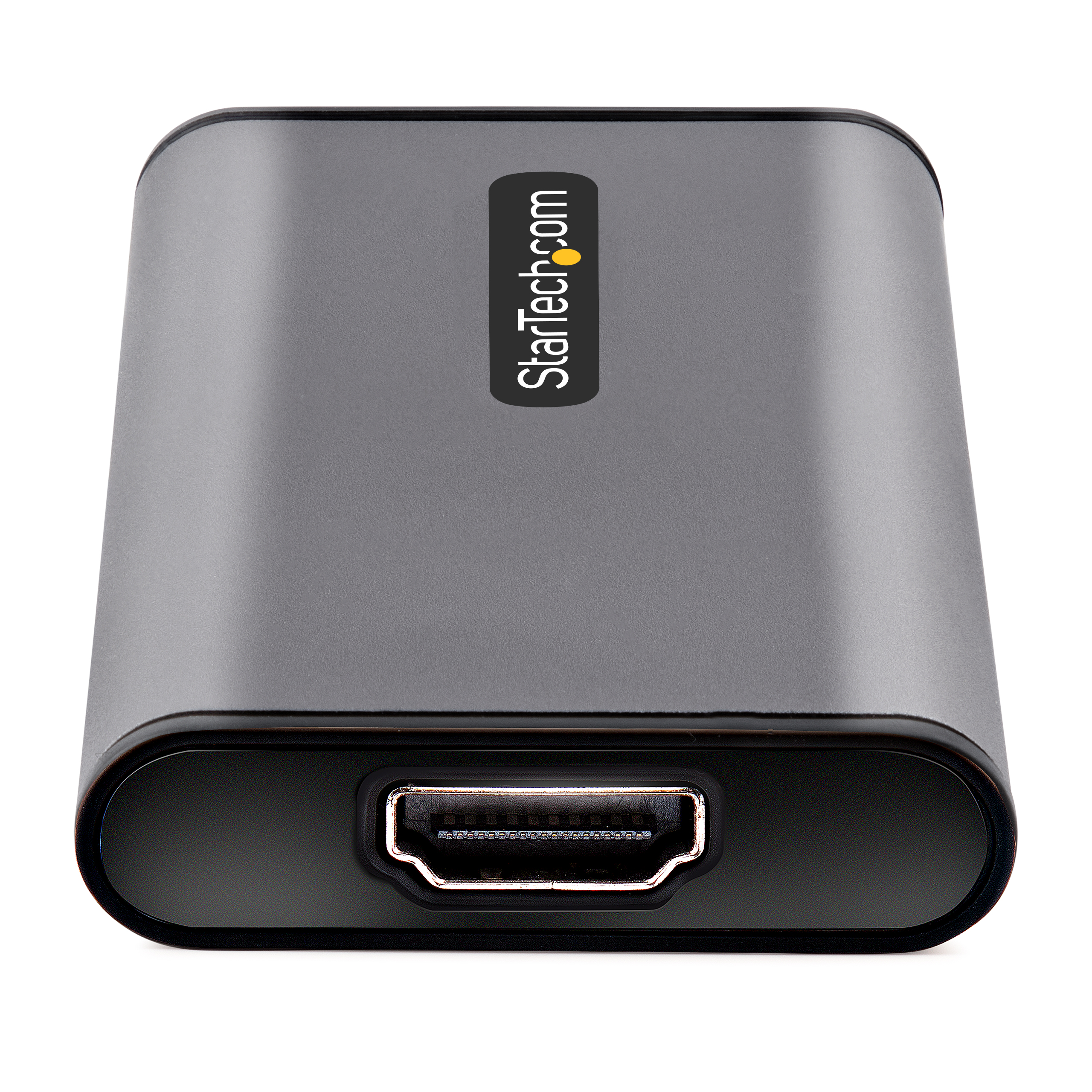

4K30 HDMI USB capture device
4K 30Hz HDMI Recorder | USB 3.2 Gen 1 (5Gbps) | UVC | USB-A/USB-C Cables Included
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Quick-Start Guide
Video Link YouTube
Product Name 4K30 HDMI USB capture device Product Number 4K30-HDMI-CAPTURE UPC 065030895682 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Video Capture Devices Category Level 3 USB-A Capture Family No Family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Ultra-Short) HDMI Capture Device Product Title (Short) USB 3.0 4K HDMI Video Capture Device Product Title (Medium) USB 3.0 HDMI Video Capture Device, 4K External USB Capture Card/Adapter, UVC Product Title (Standard) USB 3.0 HDMI Video Capture Device, 4K Video External USB Capture Card/Adapter, UVC Screen Recorder, works w/USB-A, USB-C, TB3 Product Title (Long) USB 3.0 HDMI Video Capture Device, 4K 30Hz Video Capture Adapter/External USB Capture Card, UVC, Live Stream, Screen Recorder, Works w/ USB-A, USB-C, TB3 - Windows/Mac/Ubuntu - TAA Product Title (AMZ) USB 3.0 HDMI Video Capture Device, 4K 30Hz Video Capture Adapter/External USB Capture Card, UVC, Live Stream, Screen Recorder, Works w/ USB-A, USB-C, TB3 - Windows/Mac (4K30-HDMI-CAPTURE) Title Ingram (Part 1) HDMI Video Capture Device - Title Ingram (Part 2) 4K 30Hz, Window/macOS/Ubuntu Website Product Headline 4K 30Hz HDMI Recorder | USB 3.2 Gen 1 (5Gbps) | UVC | USB-A/USB-C Cables Included Bullet 1 PERFORMANCE: The HDMI Video Capture Device records up to 4K 30Hz HDMI | Captures up to 2160p 30fps, 1440p 60fps, or 1080p 120fps | 2ch 16 bit PCM audio support | 32KHz/44.1KHz/48KHz sampling rate | HDCP 1.4 compliant, does not capture protected content Bullet 2 USB VIDEO CLASS: UVC ensures driverless, automatic install in Windows, macOS, and Ubuntu | The External USB Capture Card is compatible with DirectShow/QuickTime applications (OBS, Xsplit and VLC) | H.264/H.265 software encoding (MPEG4/MJPEG/YUY2) Bullet 3 APPLICATIONS: Record conference calls, presentations, security feeds or training videos using 3rd party software | Live stream for education, corporate presentations, or houses of worship on platforms with RTSP/RTMP | Capture video camera, DSLR or webcams Bullet 4 PORTABLE & BUS POWERED: Durable, compact, and lightweight aluminum video capture adapter | Ideal for media rooms, classrooms or recording studios| Connects directly to a laptop or desktop | 16inch (40cm) USB 3.2 Gen 1 USB-A and USB-C cables included Bullet 5 COMPATIBILITY: This screen recorder works with Windows (7 & up), macOS (10.14 & up) and Ubuntu (20.04 & up) | Works w/ Thunderbolt 3 | Works with video editing and collaboration software such as Teams, Google Hangouts, Zoom, Adobe Connect, and GoToMeeting Bullets (Compact) HDMI Video Capture Device records up to 4K 30Hz; 2ch 16bit PCM Audio; 32KHz/44.1KHz/48KHz sample rate; H.264/H.265 software encoding; HDCP 1.4 - Auto driver install; Bus powered; Supports DirectShow; Windows/macOS/Ubuntu; Includes USB-A/USB-C cables Bullets (Consolidated) HDMI Video Capture Device records up to 4K 30Hz; 2ch 16bit PCM audio; 32KHz/44.1KHz/48KHz sample rate; H.264/H.265 software encoding (MPEG4/MJPEG/YUY2) - UVC; Auto driver install; Bus powered; Supports DirectShow/QuickTime - Record security feeds/training videos with 3rd party software; Live stream for education/presentations on RTSP/RTMP platforms - Windows/macOS/Ubuntu; Includes USB-A and USB-C Cables; Works with OBS/xSplit/VLC/Teams/Zoom - HDCP 1.4 does not capture encrypted content Marketing Copy Marketing Copy (No HTML) Applications - Capture meetings, presentations, or conference calls directly to your computer
- Live stream content for community events, education, or houses of worship
- Works with 3rd party software that supports Directshow/Quicktime
Website Search Keyword - 4k hdmi capture card
- 4K Video Capture
- external video capture card
- hdmi video capture device
- screen capture recorder
- usb capture card
- video capture adapter
Required Regulatory Compliance Marks - RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
Special Notes - A computer that supports USB 3.2 Gen 1 (5Gbps) or higher is required. USB 3.2 Gen 1 (5Gbps) is also known as USB 3.0. This product will not work with USB 2.0 or 1.1 controllers.
- This device is HDCP compliant, and will not capture copy protected video, such as Blu-rays or the video output of Mac computers. However, this device will capture video to Mac computers and will capture non-encrypted video.
- This device is compatible with hosts that have Thunderbolt 3/4 ports, but will only run at up to USB 3.2 Gen 1 (5Gbps).
Accessory Products - HDMMV50CM
- HDMMV1M
- HDMMV2M
- ST122HD20S
Related Products UVCHDCAP Input Current 300 mA Input Voltage 5 Power Consumption (In Watts) 1.5 W Power Source Bus Powered Cable Length (mm) 400 Color Gray Humidity 20 - 90% Material Aluminum Operating Temperature 0°C to 45°C (32°F to 113°F) Product Length (mm) 73.000 Product Width (mm) 44.000 Product Height (mm) 12.000 Product Weight (g) 41.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes Audio Specifications HDMI - 2 Channel Audio Maximum Digital Resolutions 3840 x 2160p @ 30fps OS Compatibility - Windows 7
- Windows 8.1
- Windows 10
- Windows 11
- macOS Mojave (10.14)
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- macOS Monterey (12.0)
- Ubuntu
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
Audio Yes AV Input HDMI AV Output - USB
- USB-C
Chipset ID - ITE - IT66021
- ITE - IT9323

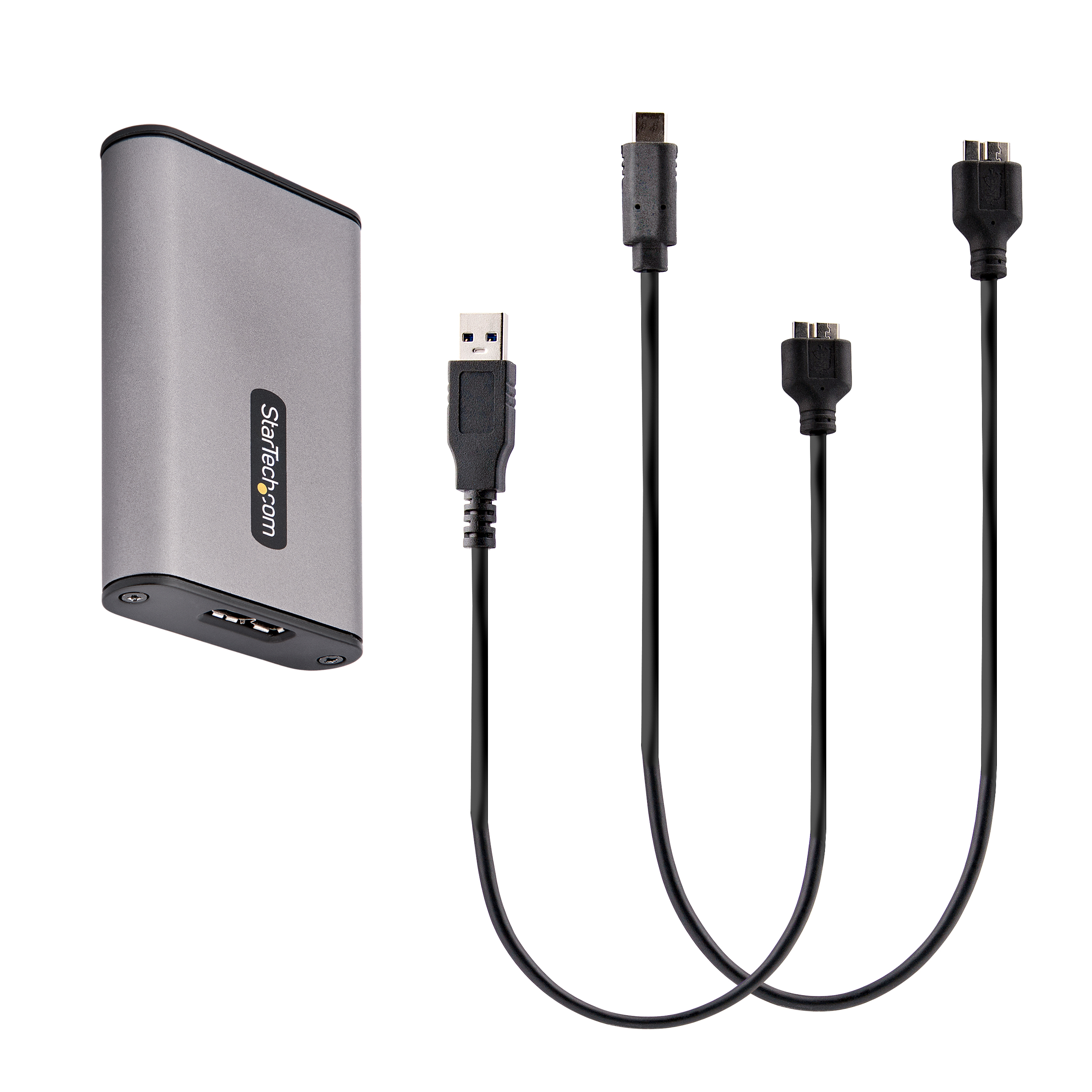

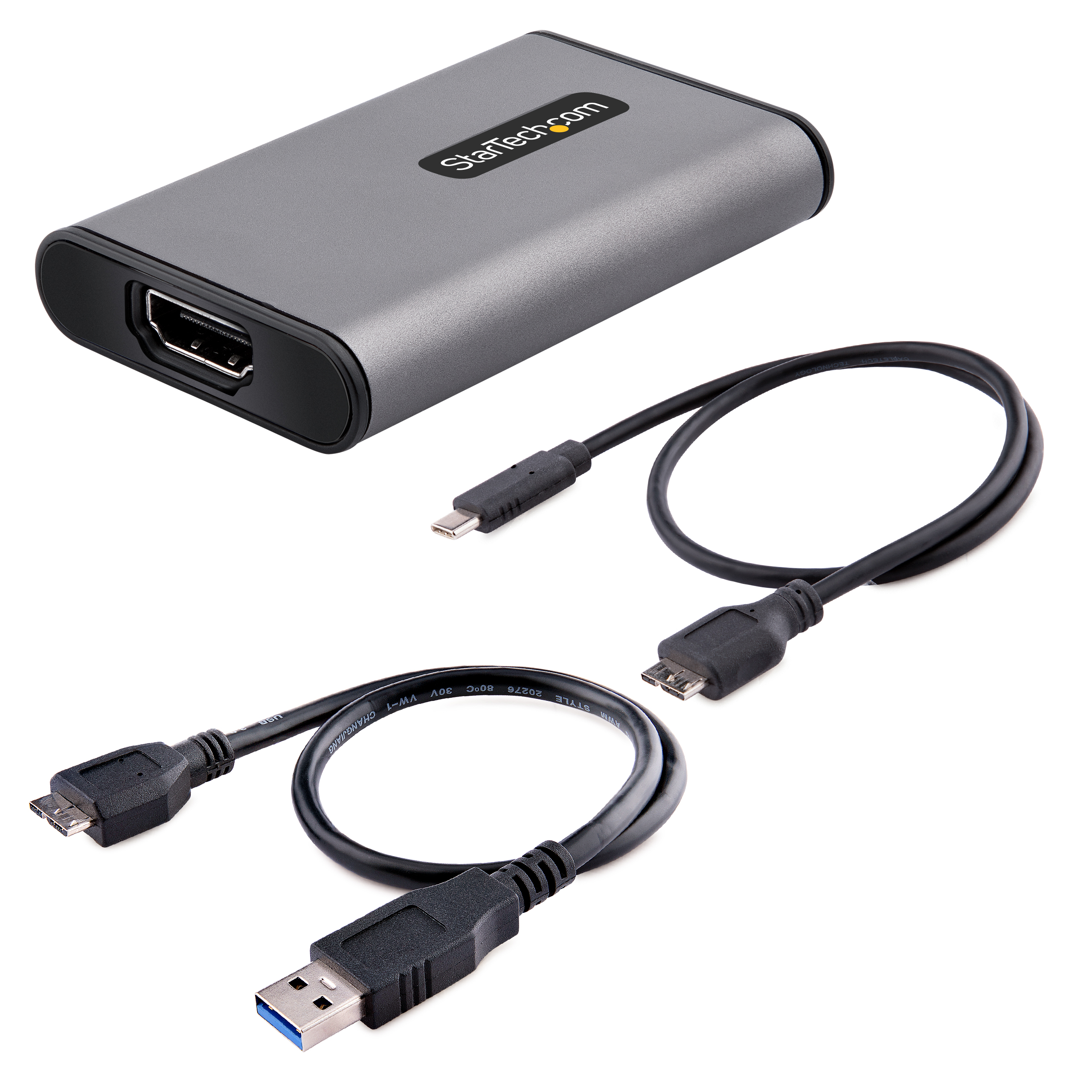

Converter Type Format Converter Carton Depth (mm) 490 Carton Height (mm) 260 Carton Quantity 40 Carton Weight Gross (g) 9387 Included in Package - 1 - Capture Device
- 1 - USB-A to Micro USB-B Host Cable
- 1 - USB-C to Micro USB-B Host Cable
- 1 - Quick-Start Guide
Package Depth (mm) 107 Package Height (mm) 37 Package Width (mm) 155 Package Quantity 1 Package Weight (g) 139 Packaging Description UVC HDMI Capture Device - USB-A/USB-C - 4K 30Hz Packaging Description India UVC HDMI Capture Device - USB-A/USB-C - 4K 30Hz Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 USB Micro-B (5Gbps, 4.5W) Connector 2 (Quantity) 1 Actual Inbox Documents Created Manual in the box Amazon Merchandising Manager Veronica Ye Buying Center - AV & Collaboration Yes Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2022-05-30 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,IE,IT,JP,NL,NZ,SE,SG,UK,US Primary Technology - USB 3.2 Gen 1 / 5Gbps
- HDMI 1.4 / 1080p or 4K 30Hz
Product Development Specialist Anas Abdul Hameed Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2022-04-01 Target Production Release 2022-04-08 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle None
