4K50IC-EXTEND-HDMI
HDMI 2 0 Extender 4k60 50m PoC
Extend a 4K 60Hz HDMI signal over CAT6/6A cabling for distances of up to 200ft (60m) with Power over Cable

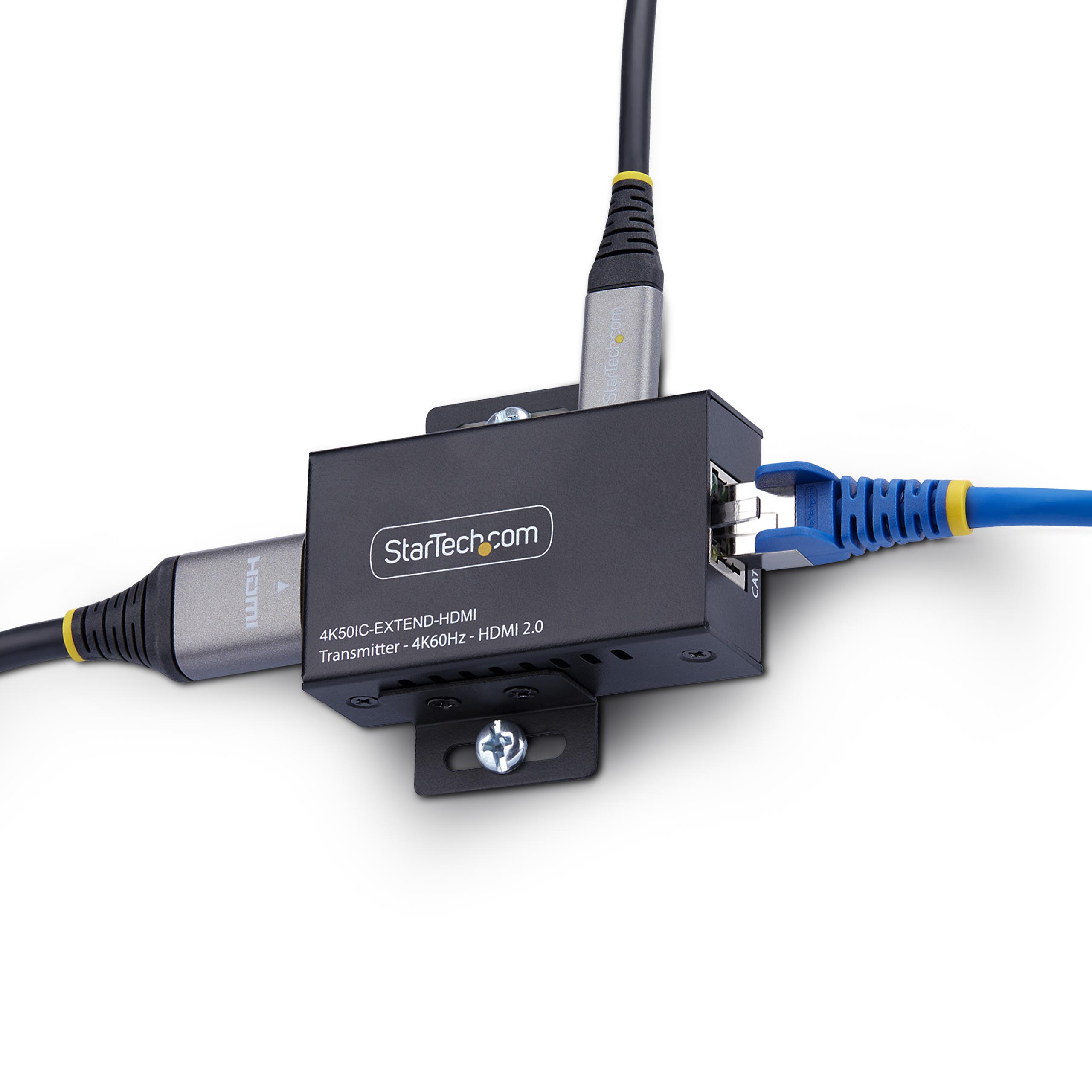

Main Image

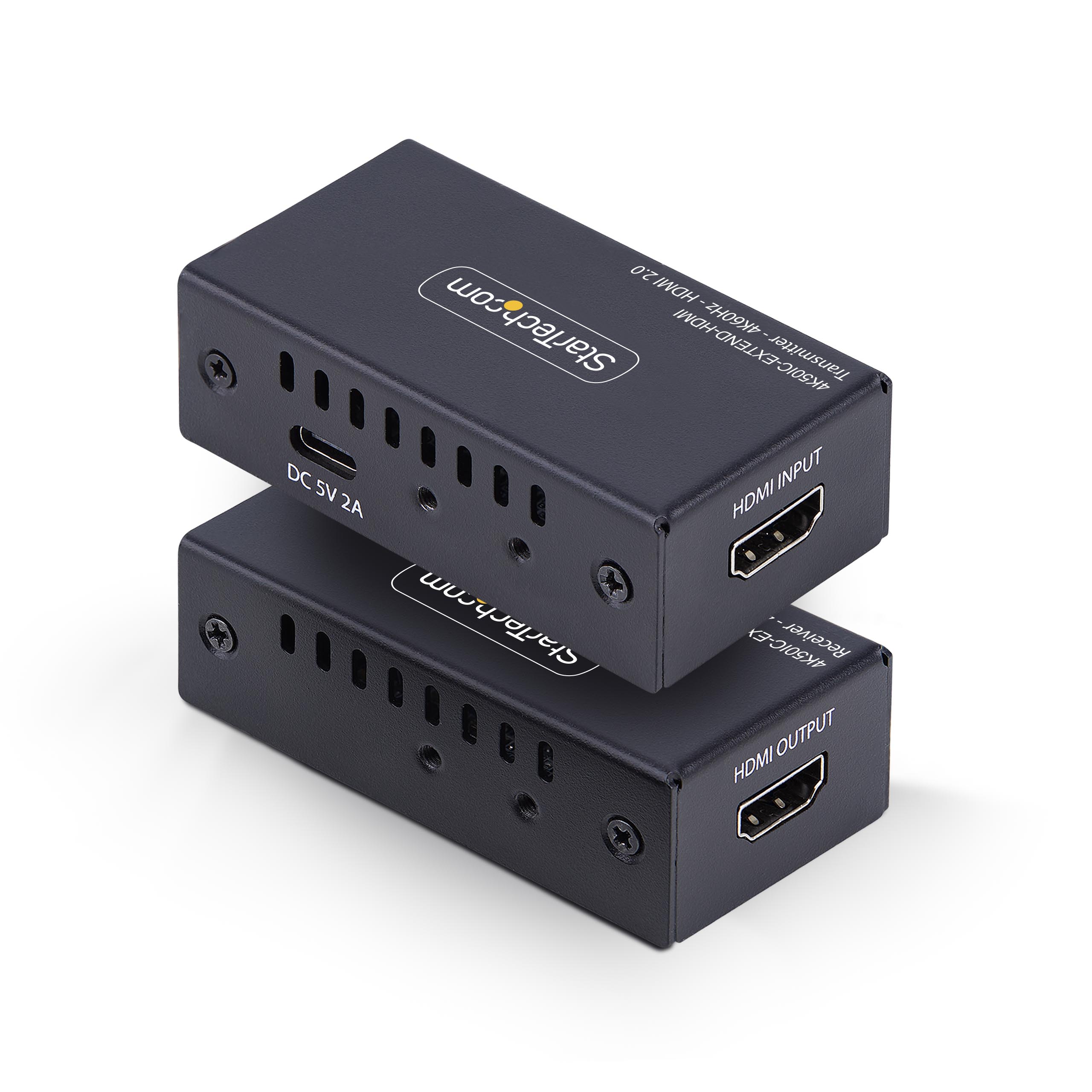

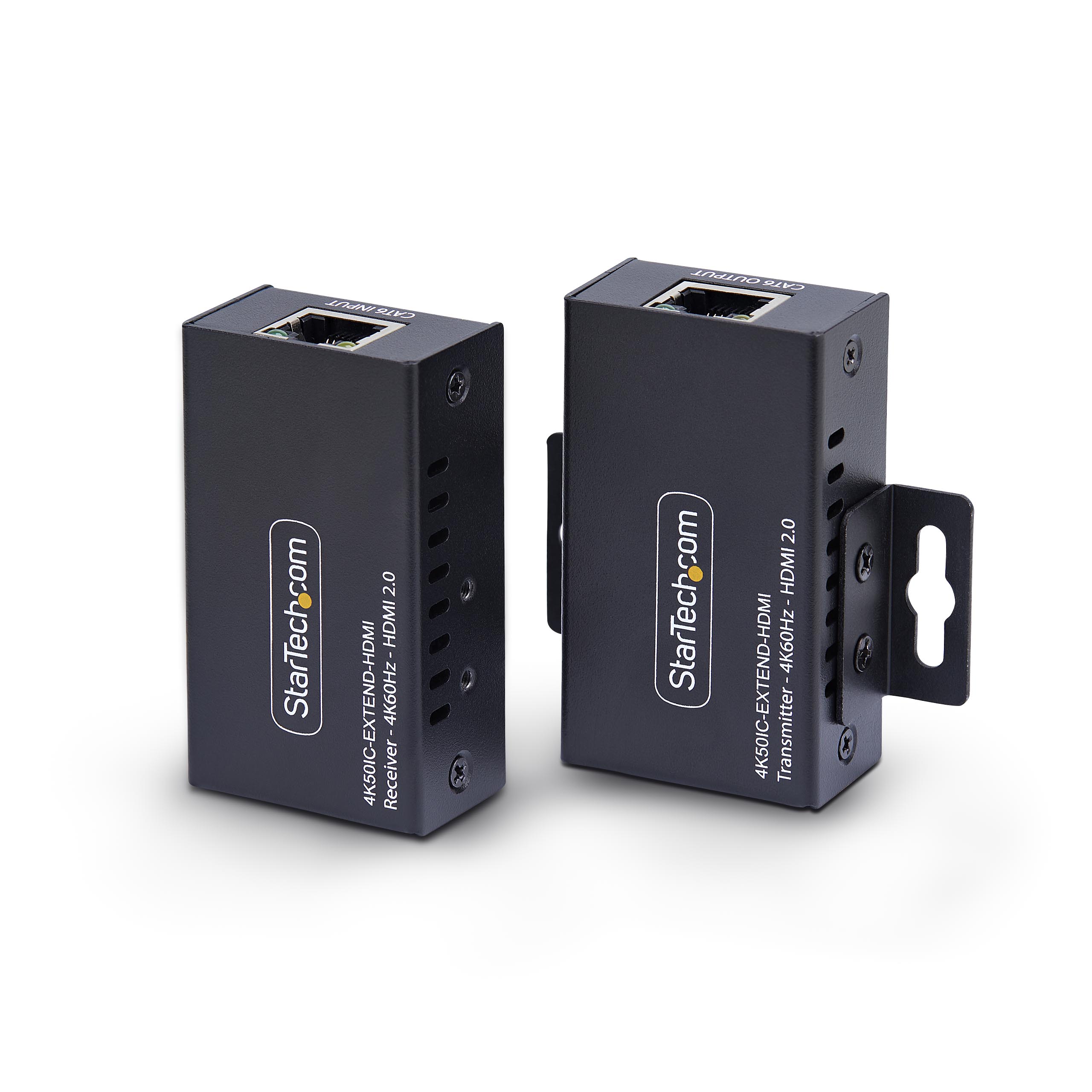

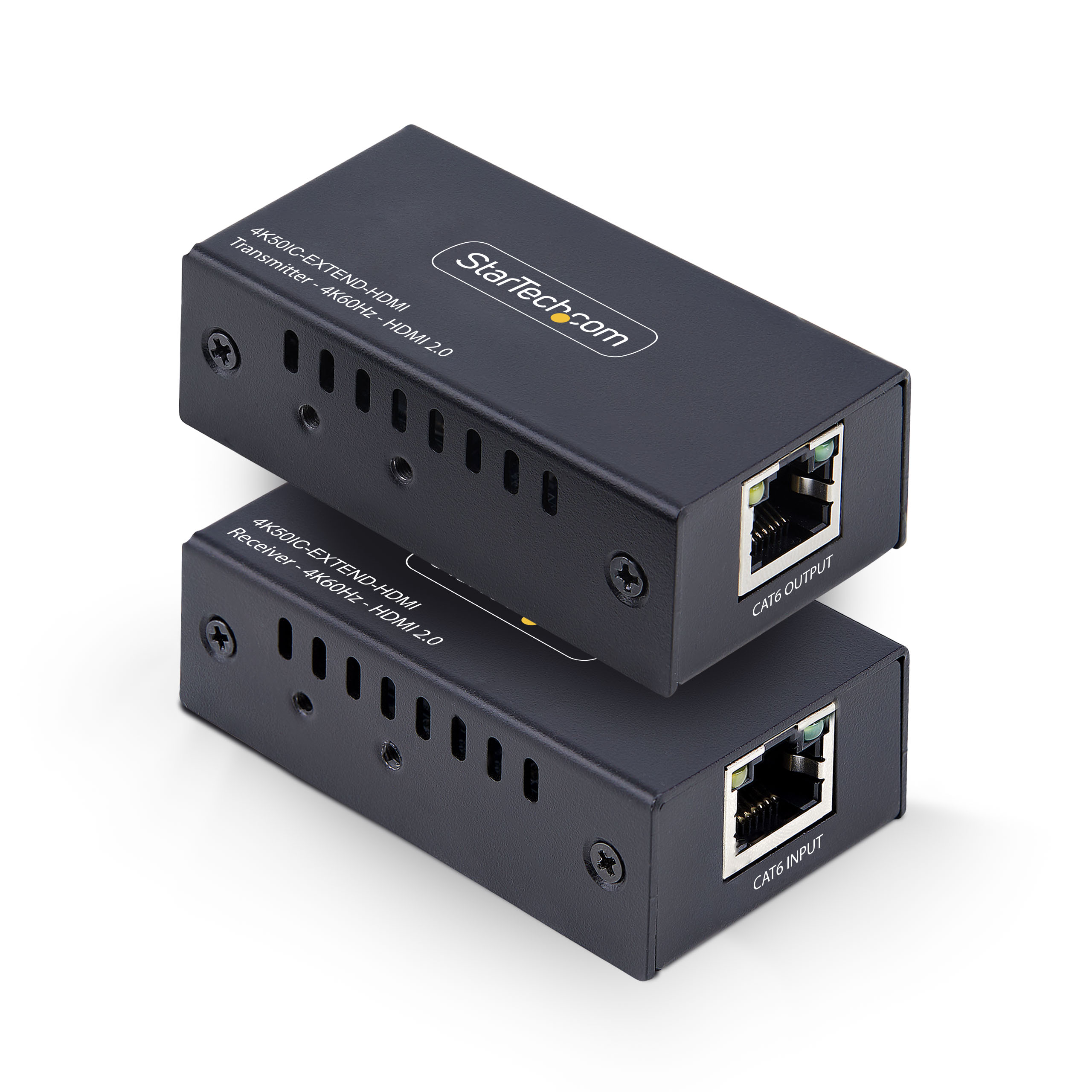

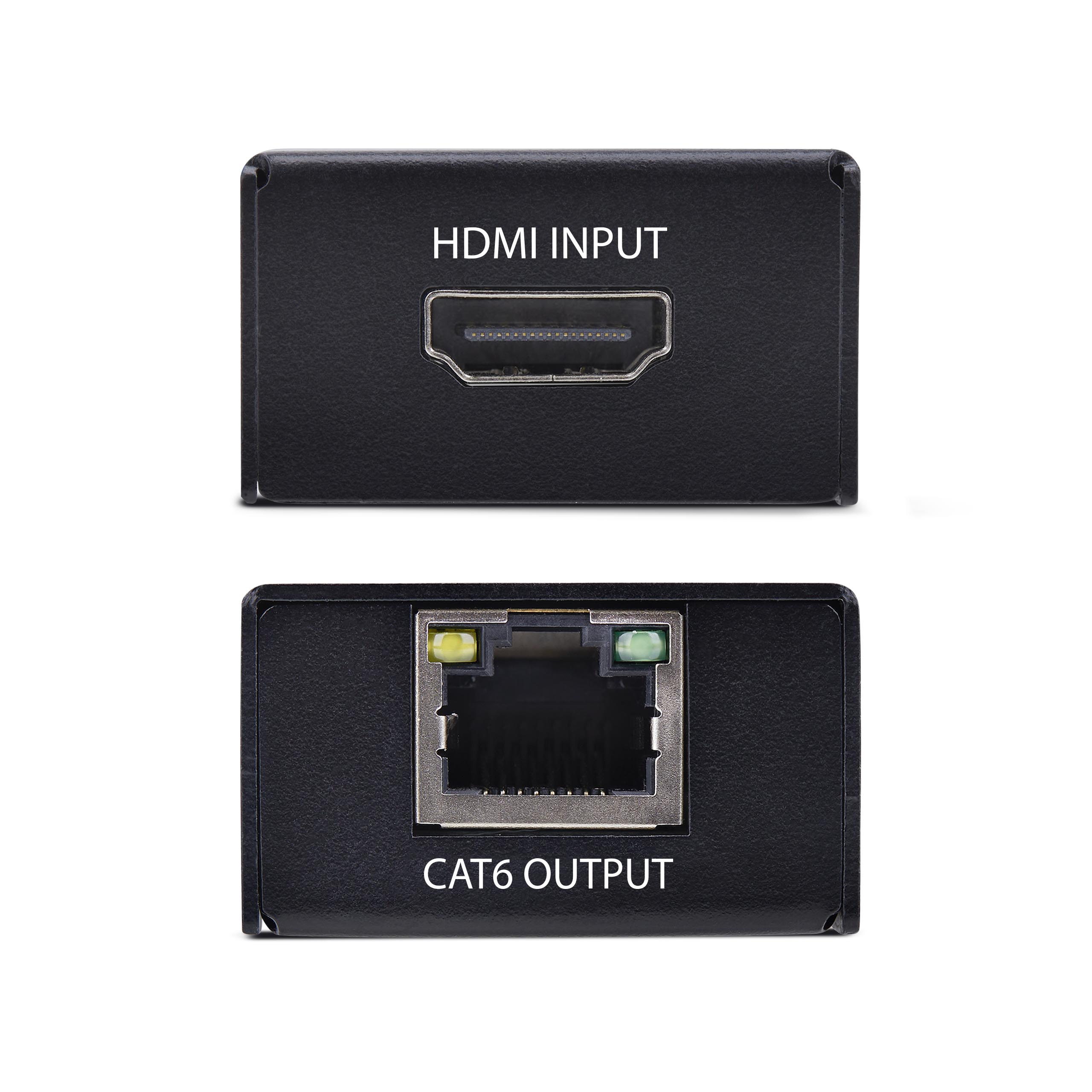

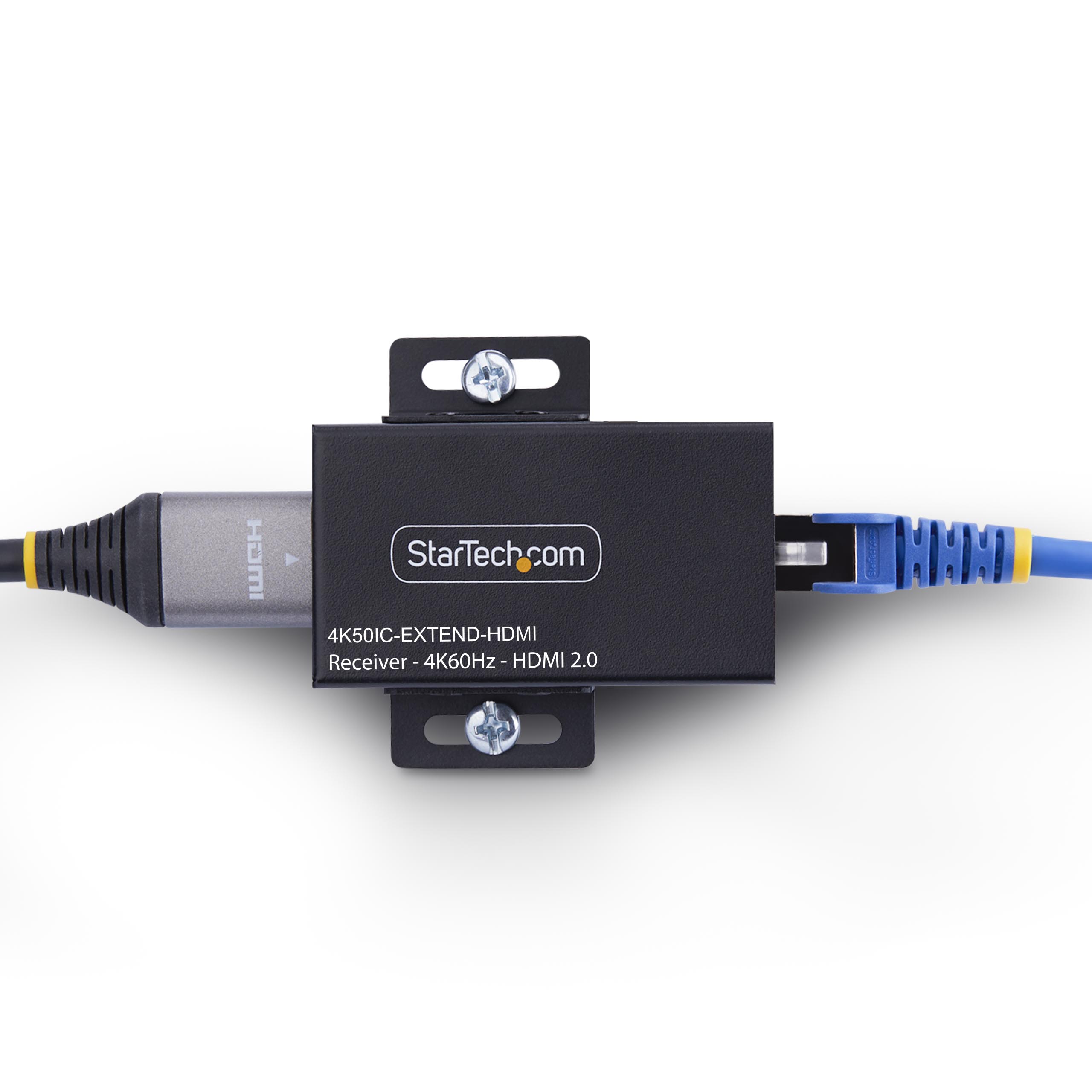

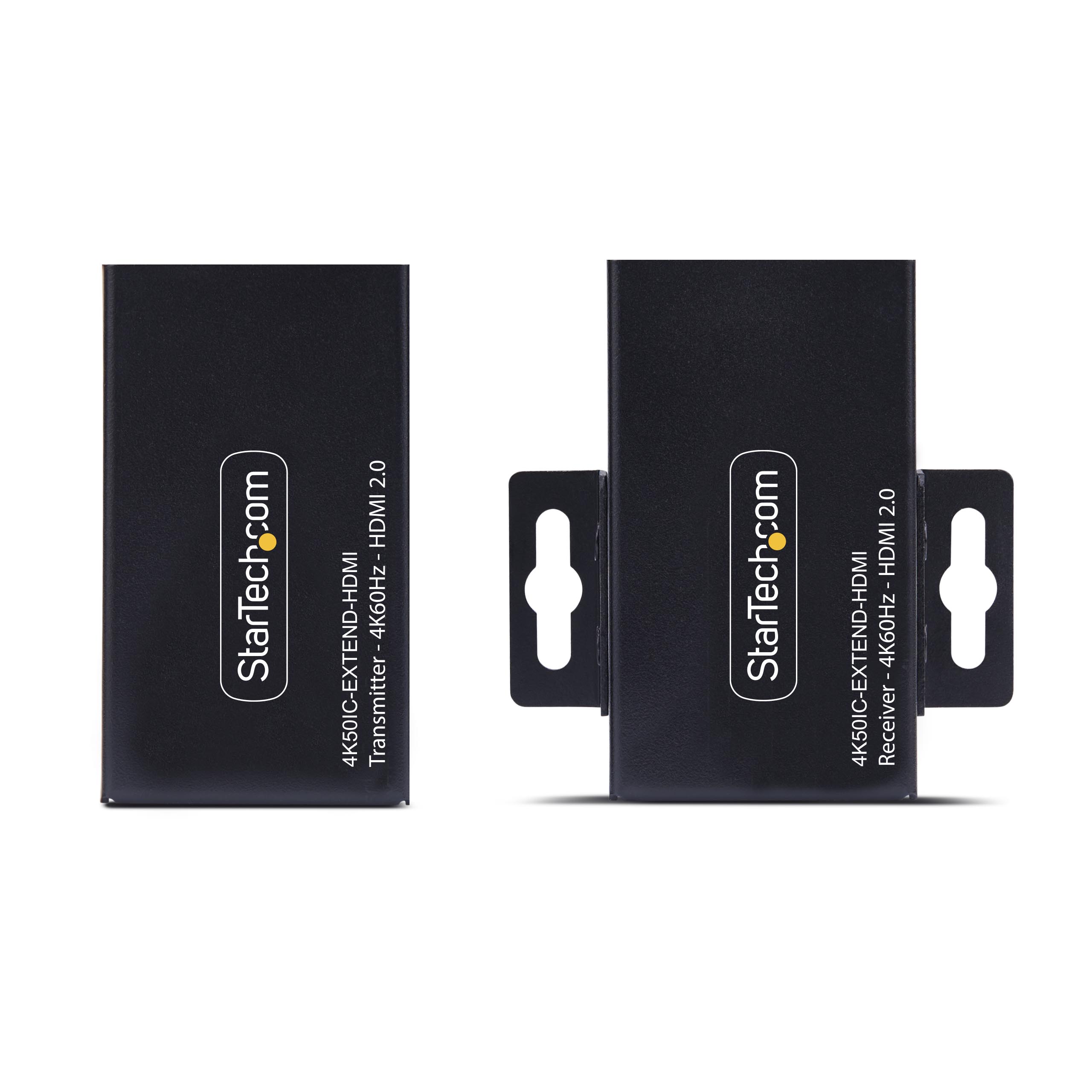

Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name HDMI 2 0 Extender 4k60 50m PoC Product Number 4K50IC-EXTEND-HDMI UPC 065030918299 Lifecycle status Active Warranty 2 Years Weighted Opportunity 0 Taxonomy Product > Extenders > Video Extenders Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 HDMI Extenders Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX117X Product Title (Ultra-Short) 4K HDMI Extender Product Title (Short) HDMI Extender, 4K 60Hz, 200ft Product Title (Medium) HDMI Extender Over CAT5e/6, 4K 60Hz, 200ft (60m), Transmitter/Receiver Kit Product Title (Standard) HDMI Extender Over CAT5e/CAT6, 4K 60Hz, Up to 200ft (60m), Transmitter and Receiver Kit, Power Over Cable Product Title (Long) HDMI Extender Over CAT5e/CAT6, 4K 60Hz, Up to 200ft (60m), Transmitter and Receiver Kit, Power Over Cable, Compact Form Factor Product Title (AMZ) HDMI Extender Over CAT5e/CAT6, 4K 60Hz, Up to 200ft (60m), Transmitter and Receiver Kit, Power Over Cable Title Ingram (Part 1) HDMI Extender Over CAT5e/6 - Title Ingram (Part 2) 4K 60Hz, 200ft/60m, HDMI 2.0 Website Product Headline Extend a 4K 60Hz HDMI signal over CAT6/6A cabling for distances of up to 200ft (60m) with Power over Cable Bullet 1 HDMI OVER ETHERNET CABLING: HDMI Extender transmits visually lossless and low latency 4K 60Hz video and 7.1ch audio up to 200ft (60m) over a single network cable; HDMI 2.0 compliant extender supports HDR, HDCP 2.2, DTS, & Dolby Digital audio Bullet 2 POWER-OVER-CABLE: Extend HDMI signals to areas that have limited power outlets using Power-over-Cable (PoC); Included power adapter connects to the HDMI Extender Kit's transmitter while the HDMI receiver is powered over the CAT5e/6 cable Bullet 3 NO DRIVERS OR SOFTWARE: Point-to-Point connection uses a single CAT6/5e cable and requires no drivers/software or IP configuration, reducing setup time; Works w/any operating system (Windows/macOS/ChromeOS) and hardware platform (Intel/AMD/Apple Silicon) Bullet 4 VERSATILE MOUNTING OPTIONS: Mount the HDMI extender on a wall, ceiling, or beneath a table using the included mounting brackets; Compact form factor allows for installation in tight spaces Bullet 5 APPLICATIONS: HDMI extender offers a longer range than HDMI cables, and Ethernet cables are easier to run in walls, behind furniture, or through cable trays; Compact form factor makes it ideal for boardrooms, digital signage, trade shows, and classrooms Bullets (Compact) HDMI Extender transmits visually lossless and low latency 4K 60Hz video and 5.1ch audio up to 200ft/60m over a single network cable; Power over cable/single power adapter on transmitter; no drivers/software/ip config; Incl. mounting kit Bullets (Consolidated) - HDMI Extender transmits visually lossless and low latency 4K 60Hz video and 5.1ch audio up to 200ft (60m) over a single network cable - HDMI 2.0 compliant; Supports HDR/HDCP 2.2/DTS/Dolby Digital audio - Extend HDMI signals to areas with limited power outlets using Power-over-Cable (PoC) - Point-to-Point connection requires no drivers/software/IP configuration - Works w/any OS (Windows/macOS/ChromeOS) and hardware platform (Intel/AMD/Apple Silicon) - Includes wall mounting kit Marketing Copy Marketing Copy (No HTML) Applications - Extend a 4K 60Hz HDMI signal in offices, building lobbies, shopping centers, airports, and more
- Extend a HDMI signal to locations that lack power outlets
Website Search Keyword - HDMI Extender
- HDMI over cat5e
- hdmi over cat6
- video extender
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Accessory Products - HDMM1MP
- HDMM2MP
- C6ASPAT35BK
- C6ASPAT30BK
- C6ASPAT25BK
Related Products - 4K70IC-EXTEND-HDMI
- EXTEND-HDMI-4K40C6P1
- ST121HD20V
- ST121WHDS2

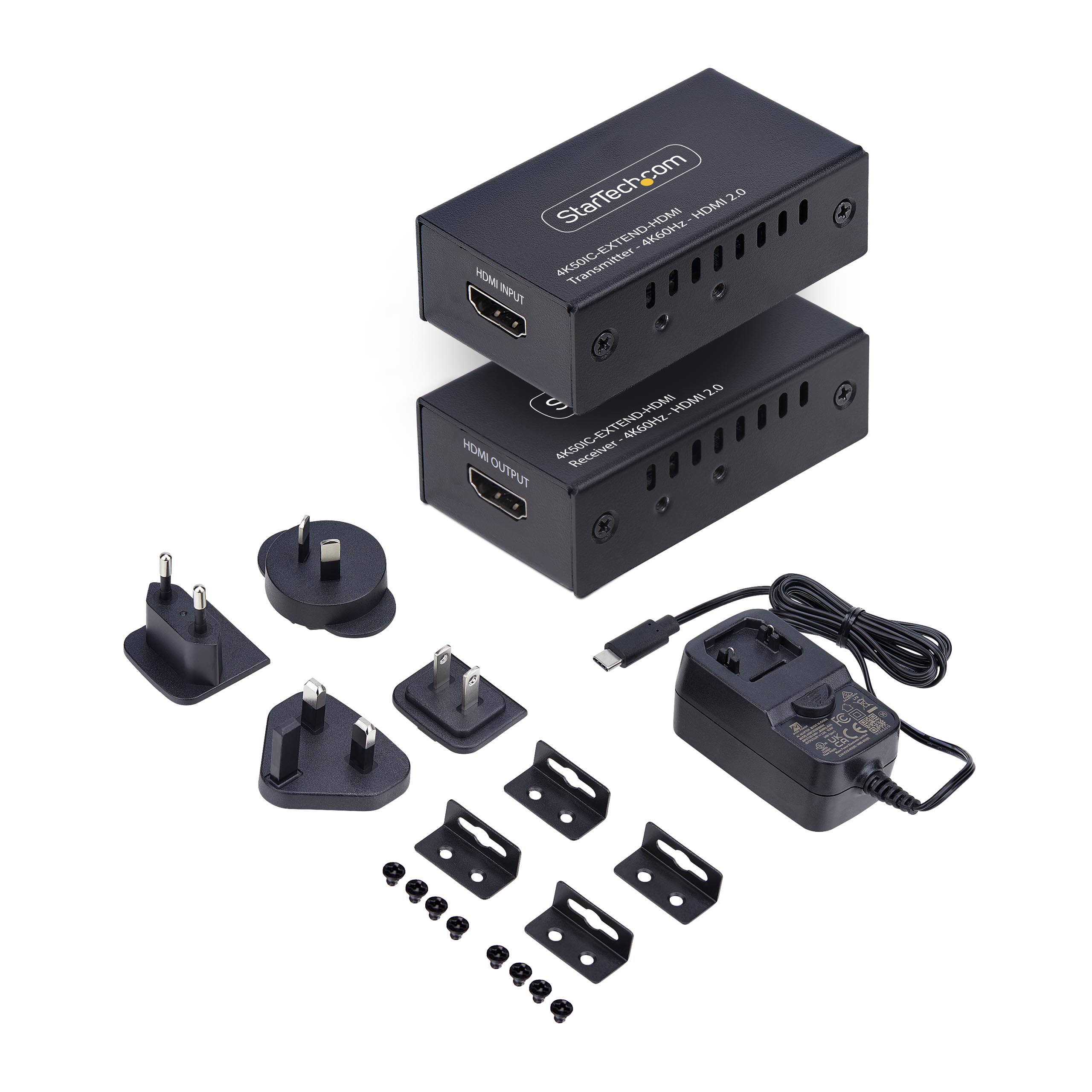

Input Current 0.3A Input Voltage 100 - 240 AC Output Current 2A Output Voltage (V) 5 DC Power Consumption (In Watts) 10W Power Source AC Adapter Included Plug Type USB Type-C (24 pin) USB Power Delivery Only Color Black Humidity 0% - 90% RH (non-condensing) Material Metal Operating Temperature -20°C to 60°C (-4°F to 140°F) Product Length (mm) 66 Product Width (mm) 36 Product Height (mm) 20 Product Weight (g) 177 Storage Temperature -30°C to 70°C (-22°F to 158°F) TAA Compliant No Audio Specifications HDMI - 7.1 Channel Audio HDR Support HDR Maximum Cable Length (mm) 60000 Maximum Supported Resolution 4K 60Hz (HDR) OS Compatibility OS Independent Supported Resolutions Video Output Port HDMI Wide Screen Supported Yes Audio Yes AV Input HDMI AV Output HDMI Cabling Cat 5e UTP or better Number of Displays 1 Rack-Mountable No Carton Depth (mm) 430 Carton Height (mm) 380 Carton Quantity 30 Carton Weight Gross (g) 11600 Included in Package - 1 - HDMI Transmitter
- 1 - HDMI Receiver
- 1 - Universal Power Adapter (NA/EU/UK/ANZ)
- 1 - Product Documentation

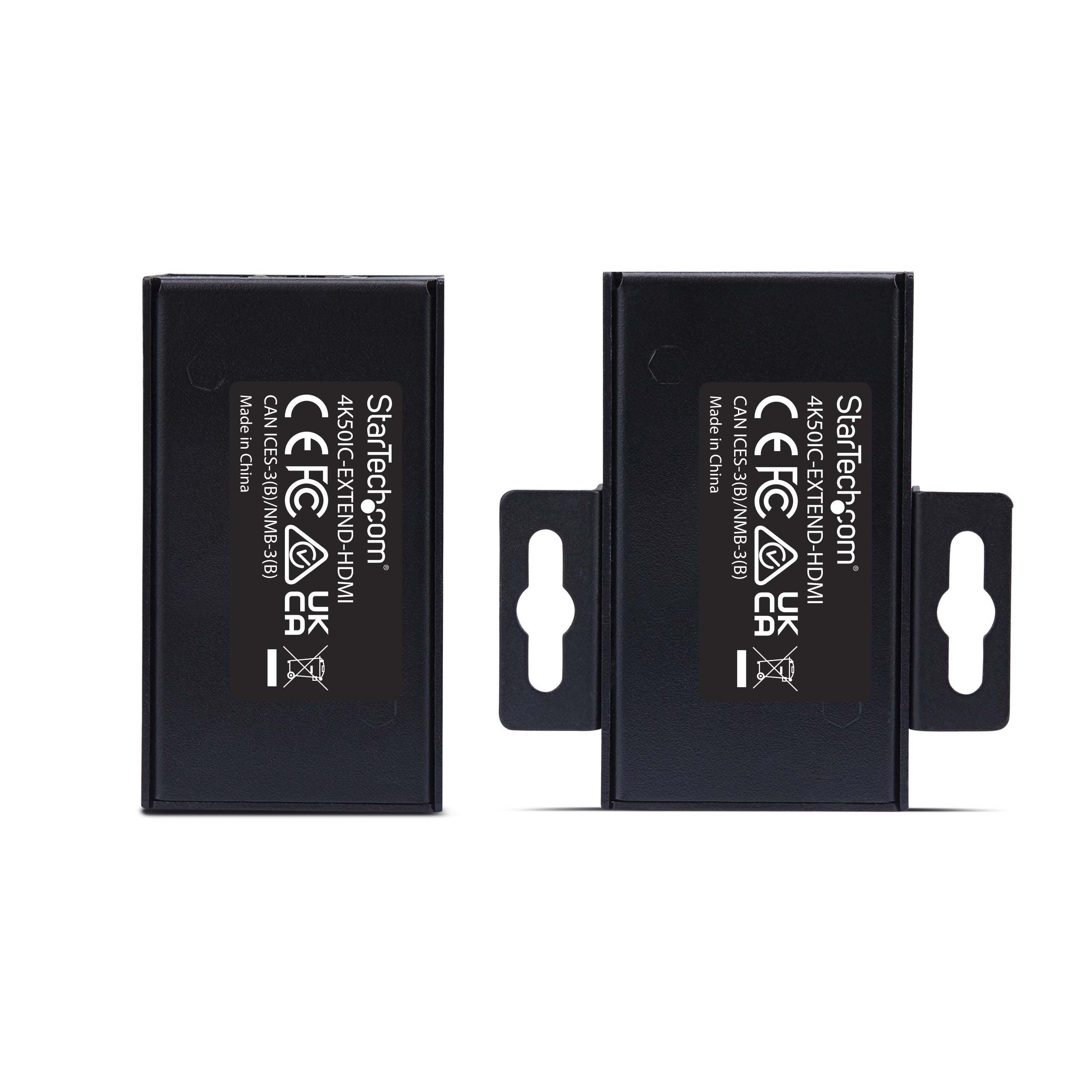

- 1 - Mounting Bracket Kit
Package Depth (mm) 150 Package Height (mm) 77 Package Width (mm) 117 Package Weight (g) 364 Packaging Description HDMI Extender over CAT6/6A - 4K 60Hz - 200ft (60m) Packaging Description India HDMI Extender over CAT6/6A - 4K 60Hz - 200ft (60m) Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 USB-C (100W PD Only) Connector 2 (Quantity) 1 Connector 3 RJ-45 Connector 3 (Quantity) 1 Connector 4 HDMI Connector 4 (Quantity) 1 Connector 5 RJ-45 Connector 5 (Quantity) 1 A+ Not Required Actual Inbox Documents Created Compliance Insert Amazon Merchandising Manager Kathleen Marshall Amazon Visual Content Level Gold Apple Compatibility Apple Compatible Application Photos Uploaded Artwork Due Date 2024-09-05 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Comparable SKU Comment 70 meter version Comparable SKU 2 Comment 50m 1080 version Digital Content Due Date 2025-01-31 Enhanced Gallery Required Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett ID Label Silkscreened or a Label Sticker label - 37x20mm Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,FI,FR,IE,IT,MX,NL,SE,UK,US Primary Technology HDMI 2.0 / 4K 60 Hz and HDR Priority New Product Medium Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2024-08-29 Target Production Release 2024-10-31 Tech Lead Justin Weaver Technical Writer Dan Dagenais Technology Lifecycle None Video Not Required
